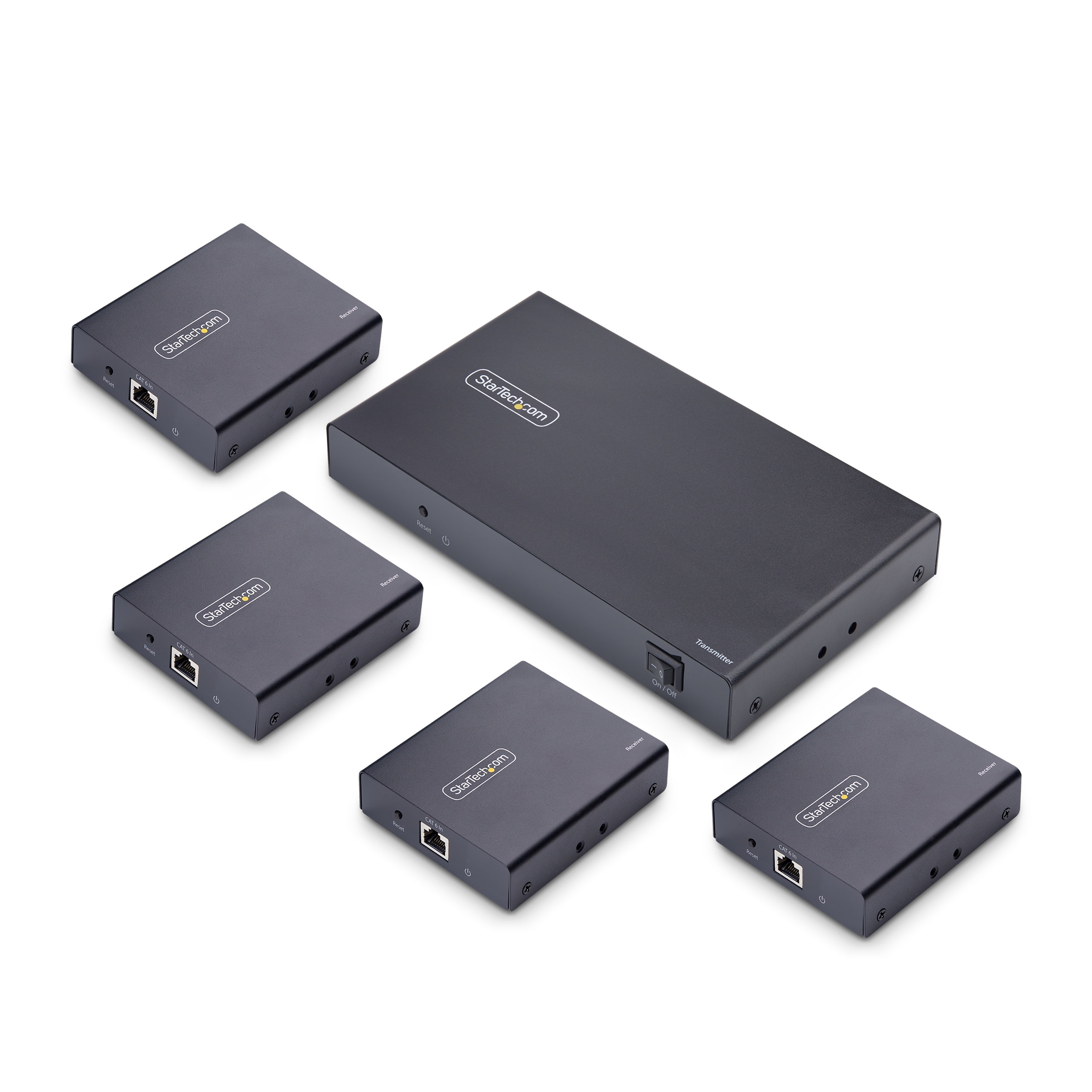

4K7014IC-EXTEND-HDMI
1x4 HDMI 4k60Hz CAT 6 Extender and Splitter 230ft 70m

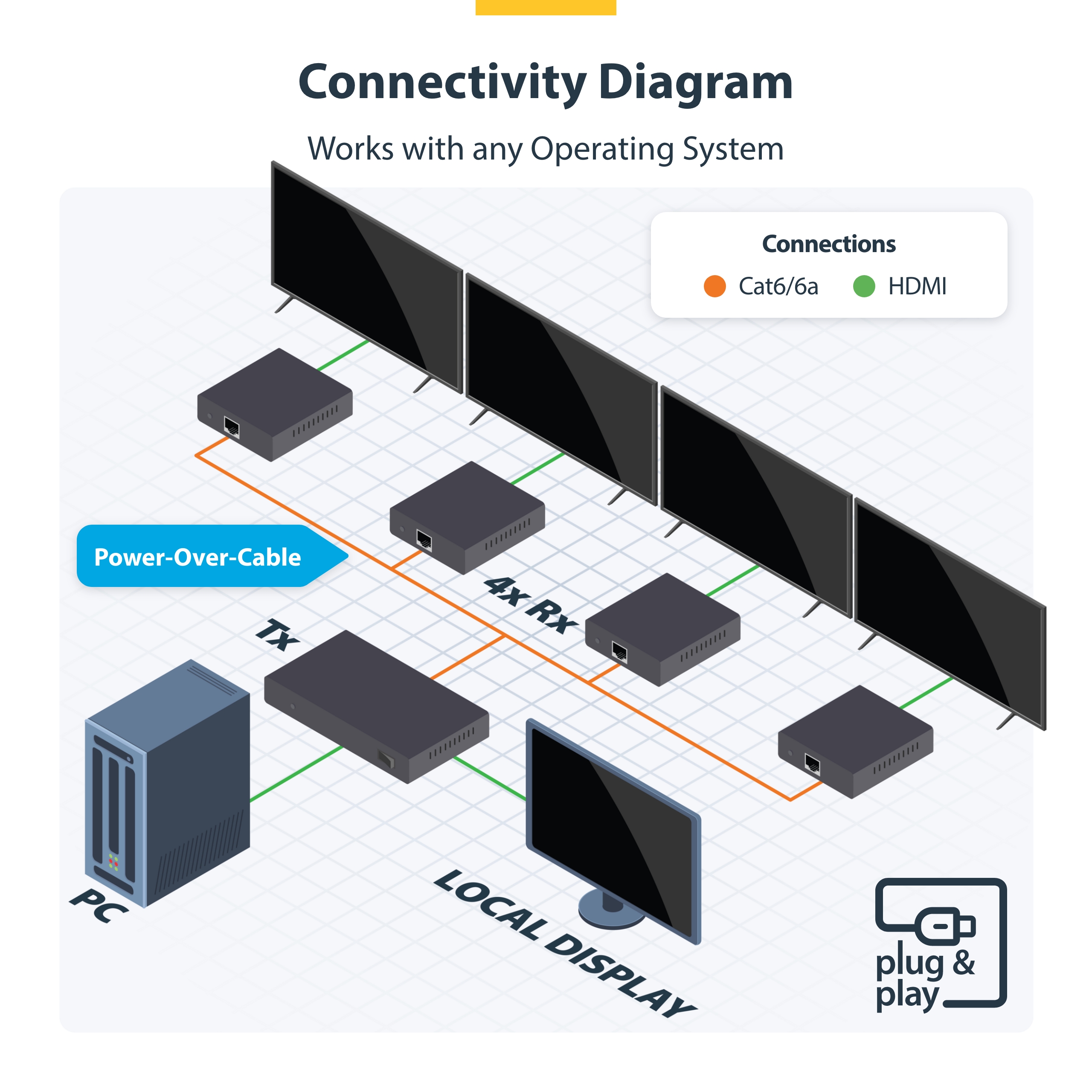

Split and extend a single 4K 60Hz HDMI signal to four HDMI displays over a distance of up to 230ft (70m) with Power over Cable
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
BOM Image
Quick-Start Guide
Product Name 1x4 HDMI 4k60Hz CAT 6 Extender and Splitter 230ft 70m Product Number 4K7014IC-EXTEND-HDMI UPC 065030916165 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Country of Origin Europe & Japan Philippines Country of Origin North America Philippines Country of Origin History (1) Philippines Country of Origin Revision (1) XXXXXX155X Product Title (Ultra-Short) 4-Port HDMI Extender Product Title (Short) 4-Port HDMI Extender/Splitter Over CAT6 Product Title (Medium) 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, 230ft (70m) Product Title (Standard) 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x4 HDMI over Ethernet Distribution Kit, 1 In 4 Out Product Title (Long) 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x4 HDMI over Ethernet Distribution Kit with IR and Power Over Cable Product Title (AMZ) 4-Port HDMI Extender and Splitter Over CAT6, 4K 60Hz, Up to 230ft (70m), 1x4 HDMI over Ethernet Distribution Kit Title Ingram (Part 1) 4-Port HDMI Extender/Splitter - Title Ingram (Part 2) 1x4 HDMI over Ethernet Kit Website Product Headline Split and extend a single 4K 60Hz HDMI signal to four HDMI displays over a distance of up to 230ft (70m) with Power over Cable Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) Extend HDMI signals to four remote displays over CAT6/6a with one transmitter; Supports 4K 60Hz and 7.1ch audio up to 230ft (70m); Single power adapter powers the transmitter and the receivers; No drivers/software/IP configuration; Works with any OS Bullets (Consolidated) - HDMI Extender splits signals to four remote displays over CAT6/6a with one transmitter; Supports 4K 60Hz and 7.1ch audio up to 230ft (70m) - IR extension allowing remote control of source devices from each display - Single power adapter powers the transmitter and the receivers over ethernet cables - No drivers/software/IP configuration; Works with any OS (Windows/macOS/ChromeOS) - 1x4 HDMI distribution kit includes mounting brackets for transmitter and receivers; Compact form factor Marketing Copy Marketing Copy (No HTML) Applications - Distribute a single video source to four displays in conference rooms for presentations
- Extend digital signage content across multiple screens in retail stores, airports, or public venues
- Stream high-resolution video to multiple displays in classrooms or training rooms for educational and instructional environments
Website Search Keyword - hdmi ethernet extender
- hdmi extender
- hdmi over ethernet
- hdmi over cat6
- cat 6 to hdmi
- hdmi extender cat5
- hdmi over cat5/cat6
- hdmi cat 6 extender
- cat5 hdmi converter
- ethernet hdmi converter
- hdmi converter ethernet
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + foam tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
Special Notes This HDMI Extender must be connected directly and cannot transmit signals through any network equipment such as routers, switches, or hubs Accessory Products - HDMMV1M
- N6PATCH100BK
- C6PATCH50BL
- HDMMV2M
Related Products - 4K7012IC-EXTEND-HDMI
- 4K70IC-EXTEND-HDMI
- ST124HDBT

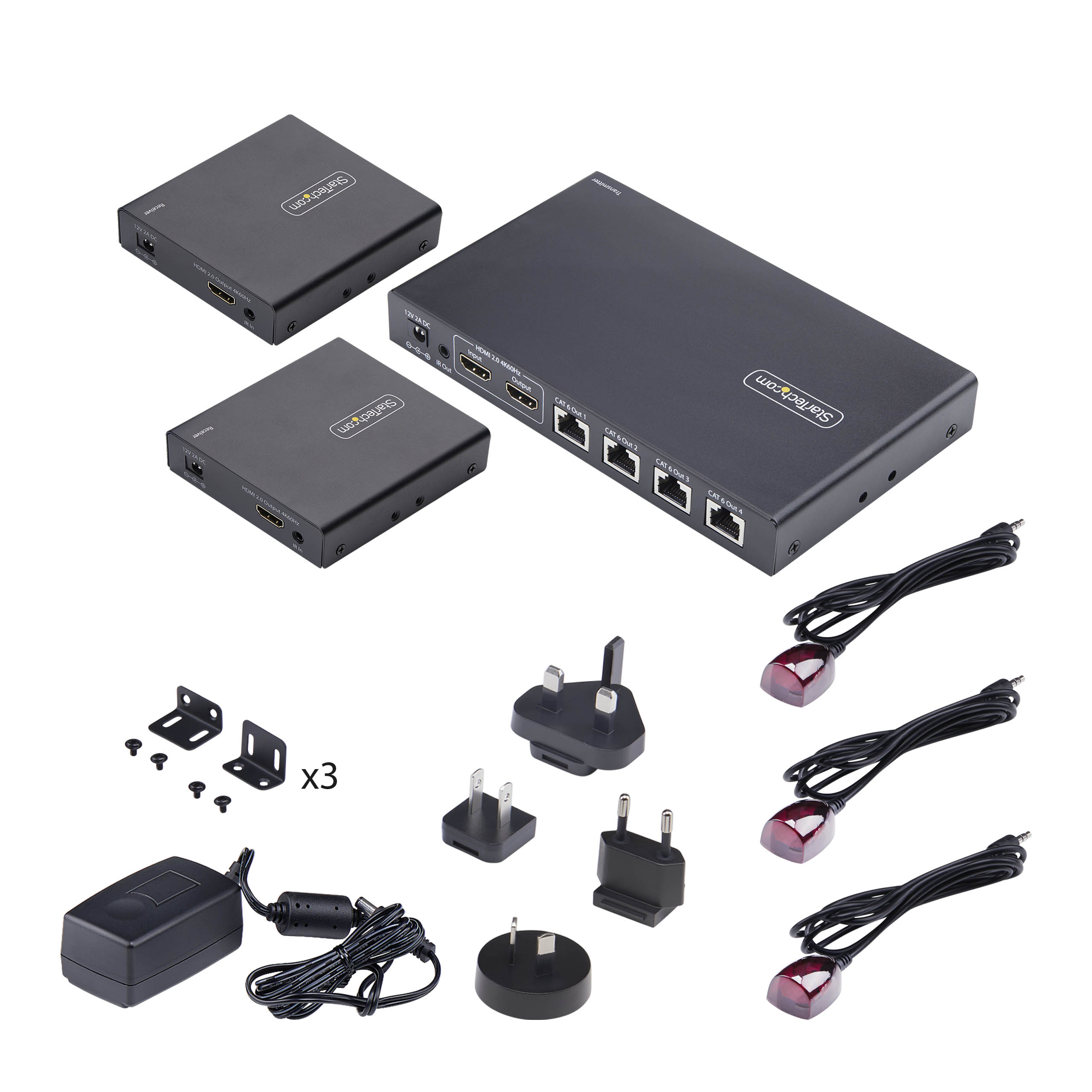

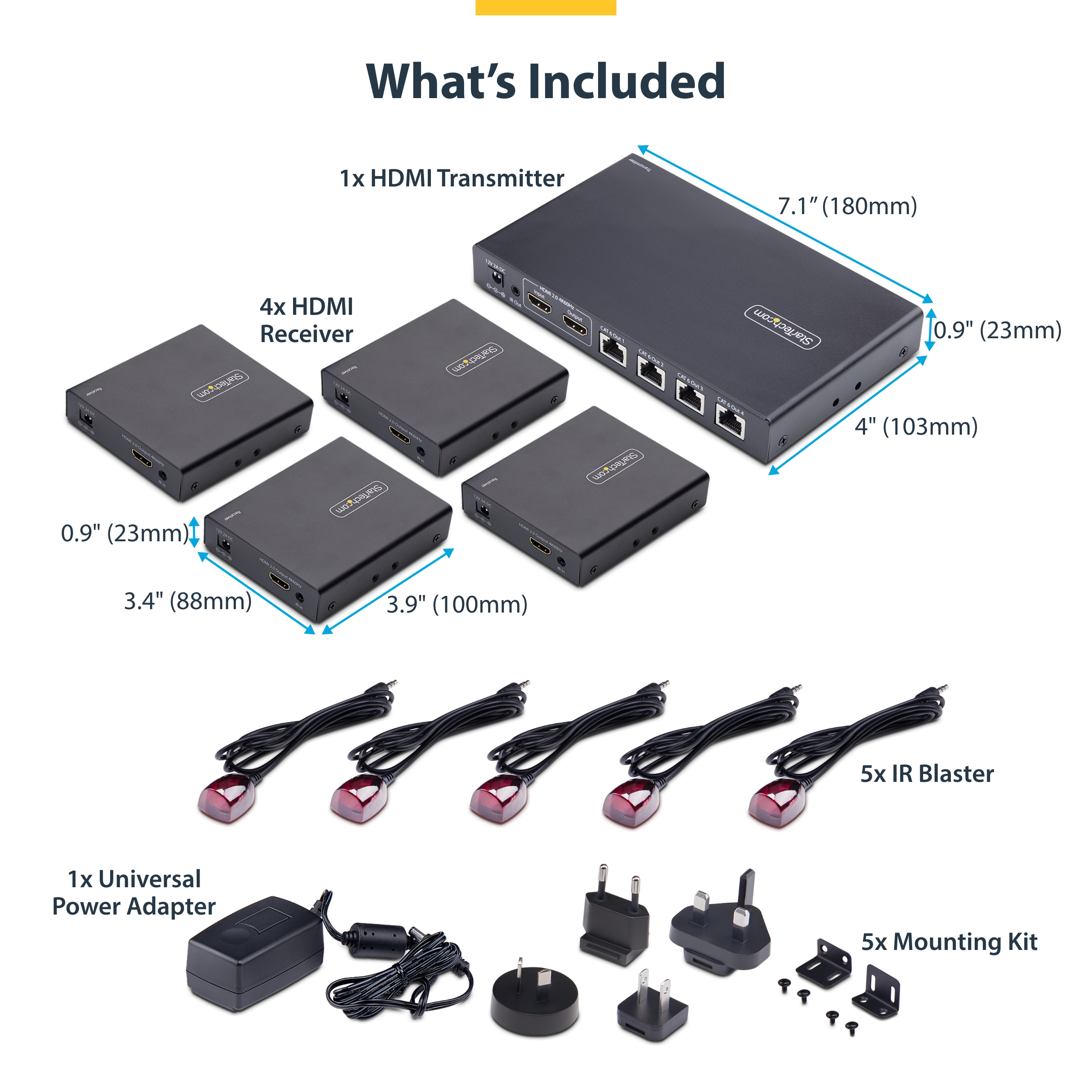

Input Current 0.8A Input Voltage 100 - 240 AC Output Current 2.0A Output Voltage (V) 12V DC Power Consumption (In Watts) 24W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% ~ 90% RH (non-condensing) Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 180 Product Width (mm) 103 Product Height (mm) 23 Product Weight (g) 375 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Audio Specifications HDMI - 2 Channel Audio Max Distance 70m [230ft] OS Compatibility OS Independent Wide Screen Supported Yes Audio Yes Cabling Cat 6 UTP Cascadable No Chipset ID GSV5100 LED Indicators Matrix Video Switch (Filter) No Rack-Mountable No Carton Depth (mm) 450 Carton Height (mm) 525 Carton Quantity 6 Carton Weight Gross (g) 16800 Included in Package - 1 - HDMI Transmitter
- 4 - HDMI Receiver
- 1 - IR Blaster
- 4 - IR Receiver
- 5 - Mounting Kit
- 1 - Universal Power Adapter (NA/UK/EU/ANZ)
- 1 - Product Documentation
Package Depth (mm) 423 Package Height (mm) 60 Package Width (mm) 345 Package Weight (g) 1182 Packaging Description 4-Port HDMI Splitter and Extender - 4K 60Hz - 230ft (70m) Packaging Description India 4-Port HDMI Splitter and Extender - 4K 60Hz - 230ft (70m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 4 Connector 2 HDMI Connector 2 (Quantity) 4 Connector 3 3.5mm (3 Conductors, TRS) Connector 3 (Quantity) 4 Host Connector 1 3.5mm (3 Conductors, TRS) Host Connector 1 (Quantity) 1 Host Connector 2 HDMI Host Connector 2 (Quantity) 1 Host Connector 3 HDMI Host Connector 3 (Quantity) 1 Host Connector 4 RJ-45 Host Connector 4 (Quantity) 4 A+ Not Required Actual Inbox Documents Created Compliance Insert & EN/DE QSG Amazon Merchandising Manager Kathleen Marshall Apple Compatibility Apple Compatible Application Photos Uploaded Artwork Due Date 2025-06-06 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Point to Point HDMI extender of this product. Comparable SKU 2 Comment HDMI Over IP - not the same extension style however is only product that can extend and split 1 HDMI signal. Digital Content Due Date 2025-08-14 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,NL,PL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Priority New Product Medium Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-05-06 Target Production Release 2025-05-13 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
