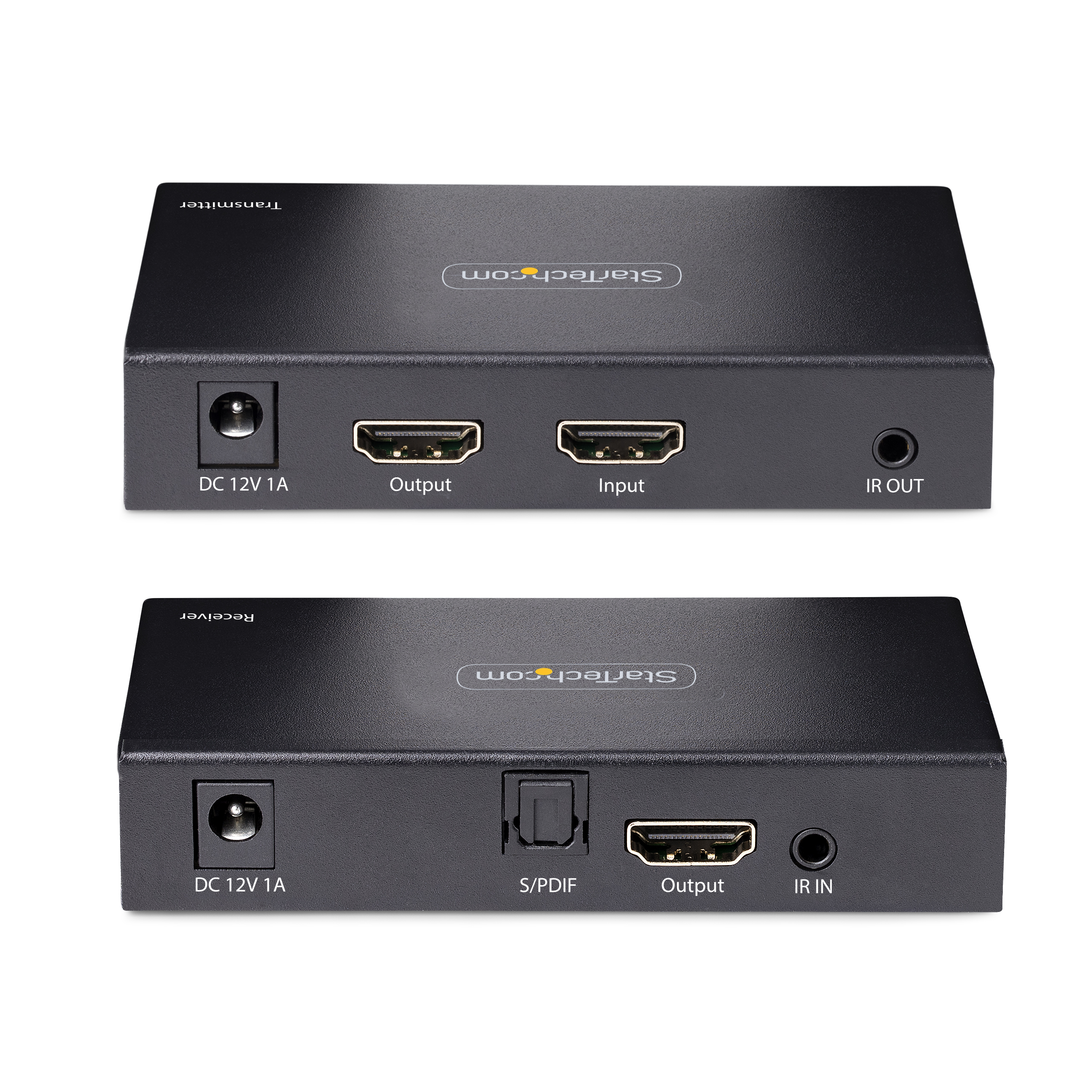

4K70IC-EXTEND-HDMI
HDMI 2 0 Extender 4k60 70m ipcolor
Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name HDMI 2 0 Extender 4k60 70m ipcolor Product Number 4K70IC-EXTEND-HDMI UPC 065030899208 Lifecycle status Active Warranty 2 Years Taxonomy Product > Extenders > Video Extenders Category Level 1 Video Display Connectivity Category Level 2 Video Extenders Category Level 3 HDMI Extenders Family HDMI Extender Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX117X Product Title (Ultra-Short) 4K HDMI Extender Product Title (Short) StarTech.com 4K HDMI Extender, 4K 60Hz Product Title (Medium) 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz, HDMI Over Ethernet Cable (230ft) Product Title (Standard) 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out Product Title (Long) 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit Product Title (AMZ) 4K HDMI Extender Over CAT5/CAT6 Cable, 4K 60Hz HDR Video Extender Up to 230ft (70m), HDMI Over Ethernet Cabling, S/PDIF Audio Out, HDMI Transmitter and Receiver Kit (4K70IC-EXTEND-HDMI) Title Ingram (Part 1) 4K HDMI Extender - Title Ingram (Part 2) 4K 60Hz HDMI Over CAT6 Cabling Website Product Headline Extend an HDMI® audio-video signal up to 230ft (70m), with Power-over-Cable and resolutions up to 4K 60Hz Bullet 1 HDMI OVER ETHERNET CABLING: 4K HDMI Extender transmits 4K 60Hz (4:4:4) video signals and 7.1ch audio up to 230ft (70m) with zero latency over a single CAT5e/6 cable; HDMI 2.0; HDR; HDCP 2.2; HDMI or S/PDIF audio output; DTS and Dolby Digital audio Bullet 2 POWER-OVER-CABLE: Included power adapter connects to the HDMI Extender Kit's transmitter and powers the receiver for areas where power outlets may be limited; Power is delivered to the receiver over a CAT5e/6 cable, using Power-over-Cable (PoC) Bullet 3 VERSATILE FUNCTIONALITY: Transmitter features an HDMI output which can be used to connect a local display or to connect cascaded HDMI extenders; HDMI extender over Ethernet Cable is ideal for digital signage in malls, stadiums, and hospitals Bullet 4 IR EXTENSION: HDMI over CAT5/CAT6 Extender includes an IR Control Extension Kit, with 1x IR Blaster and 1x IR Receiver, to control an IR device from the receiver; IR Blaster/Receiver feature pre-installed adhesive for convenient installation Bullet 5 INSTALLATION OPTIONS: Durable metal housing, 8kV air and 6kV contact ESD protection, suitable for a variety of environments; Included mounting kit and rubber feet provide versatile installation options; No IP configuration, software, or drivers required Bullets (Compact) 4K HDMI Extender; 4K 60Hz (4:4:4) up to 230ft (70m) with zero latency over a CAT6/5e Ethernet cable; HDR; One Power Supply with PoC; Local HDMI output for a display/cascaded extender; Metal housing; Mounting Kit/Rubber Feet/IR Extension Kit Bullets (Consolidated) The 4K HDMI Extender sends 4K 60Hz (4:4:4) up to 230ft (70m) with zero latency over a single CAT6/5e Ethernet cable; HDMI 2.0; HDR; HDCP 2.2 - Included power adapter supplies power to both units (PoC); IR Extension Kit incl. - HDMI or S/PDIF audio output; Transmitter's local HDMI output can be used to connect a display/cascaded to another extender - Durable metal housing; 8kV air/6kV contact ESD protection - Included mounting kit and rubber feet; No IP configuration/software/drivers required Marketing Copy Marketing Copy (No HTML) Applications - Extend a 4K 60Hz HDMI signal in offices, building lobbies, shopping centers, airports, and more

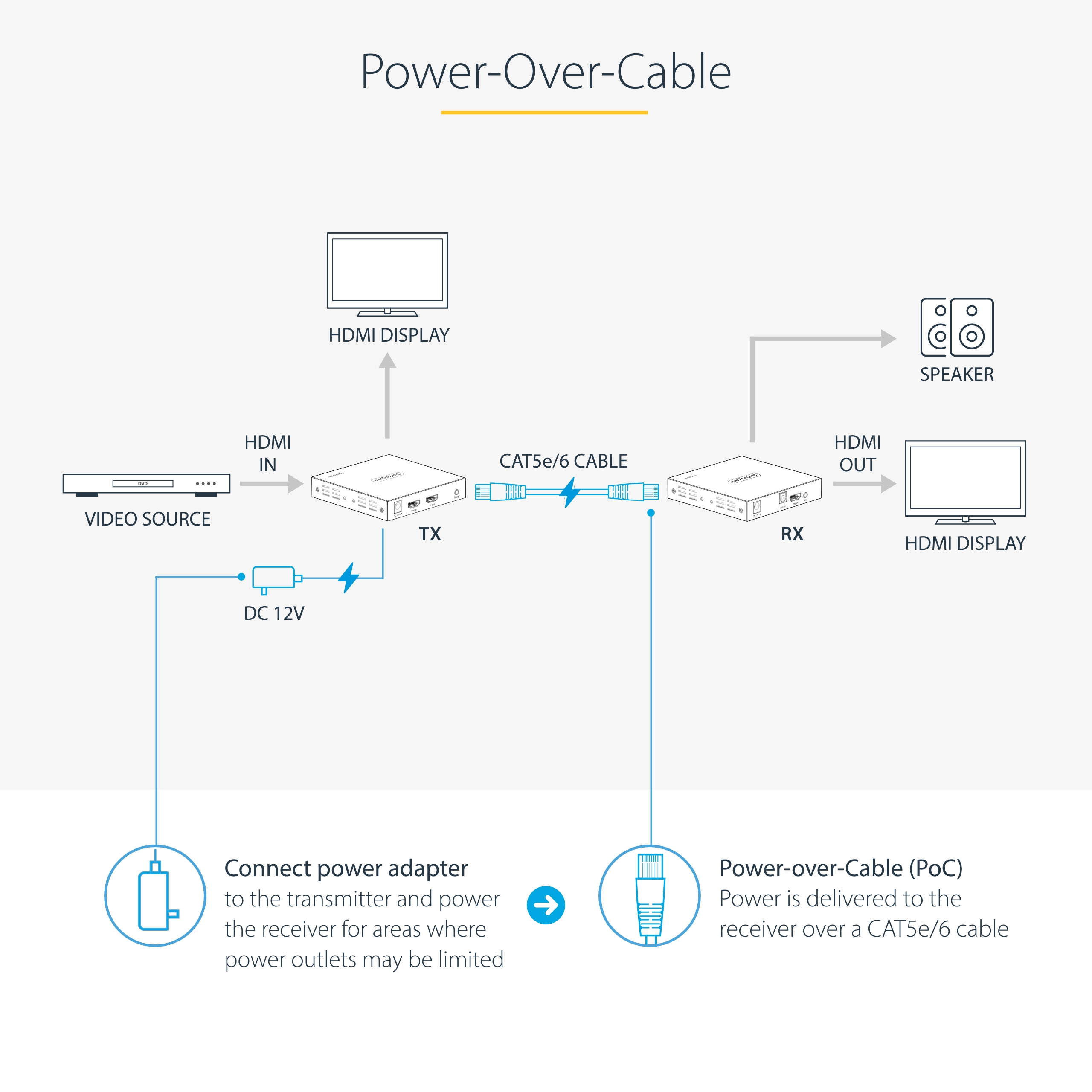

- Extend a HDMI signal to locations that lack power outlets

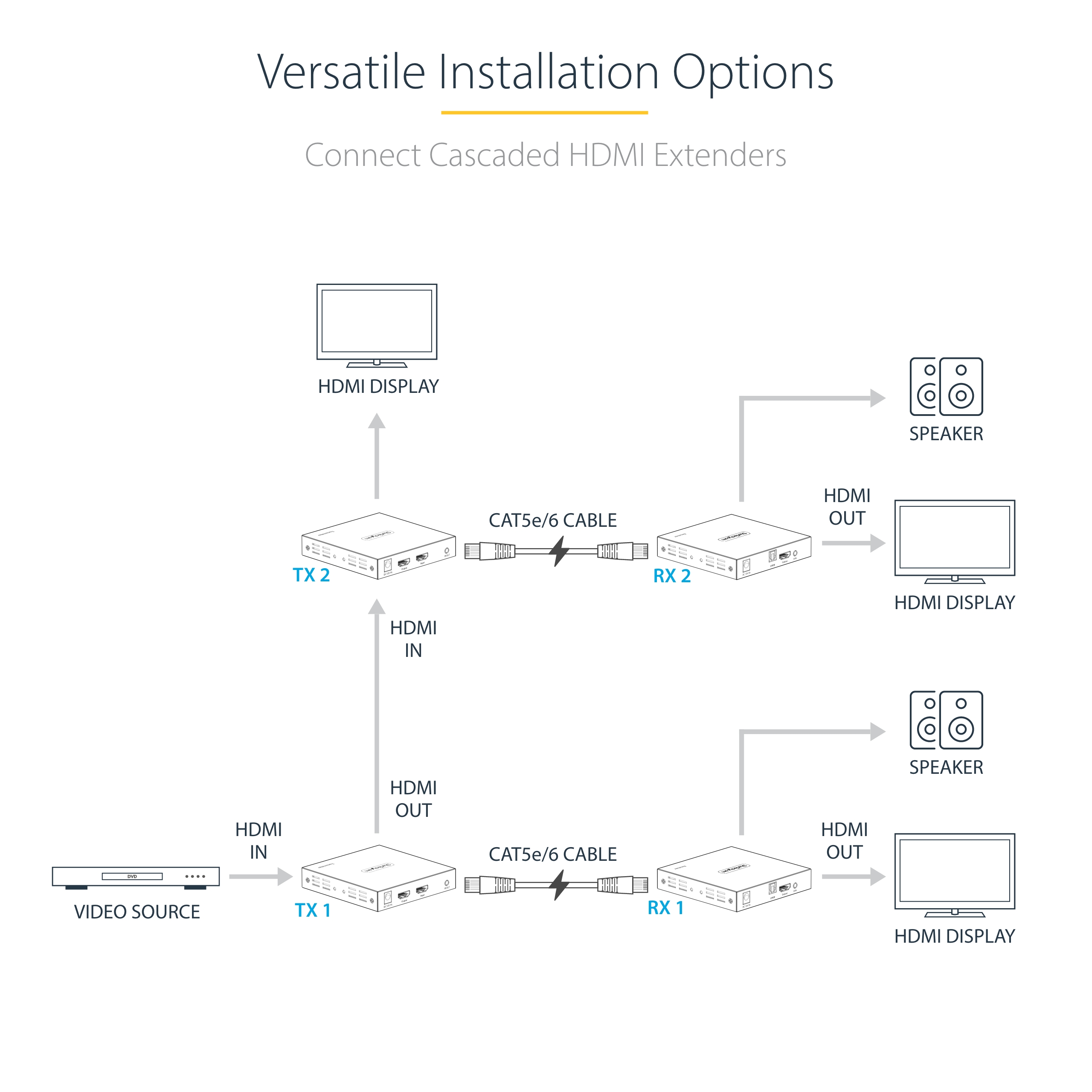

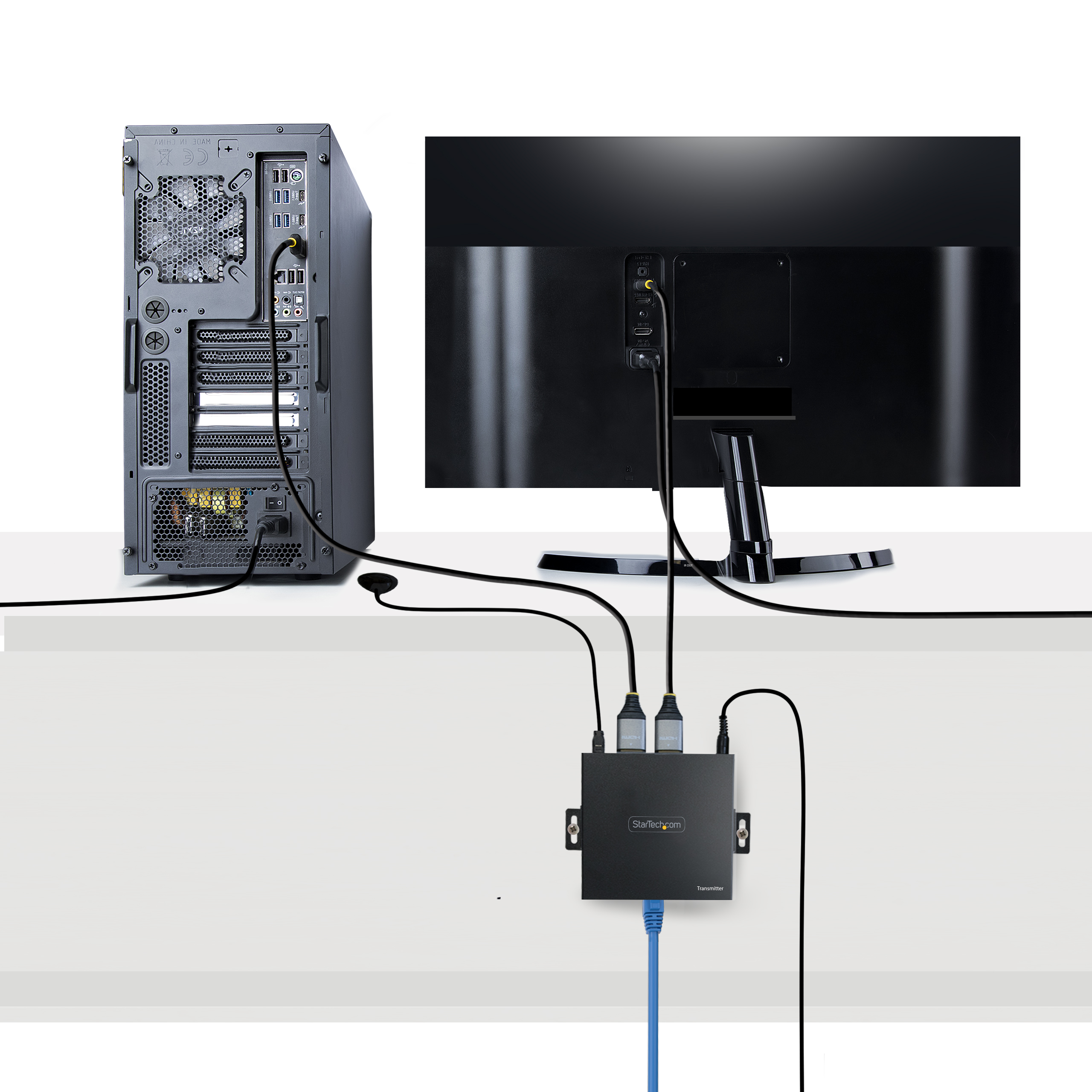

- Display the same image on a display locally and to a remote location
Website Search Keyword - 4k 60hz HDMI extender
- 4k HDMI ethernet extender
- 4k hdmi extender
- HDMI cat5 extender
- hdmi extender over cat6
- hdmi over cat5/cat6
- hdmi over ethernet
- hdmi over ethernet 4k
- hdmi transmitter and receiver kit
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - HDMM1MP
- HDMM2MP
- HDMM3MP
- C6ASPAT35BK
- C6ASPAT30BK
- C6ASPAT25BK
Related Products - EXTEND-HDMI-4K40C6P1
- ST121HDBT20S
- ST121HDBTE
- STDHVHDBT

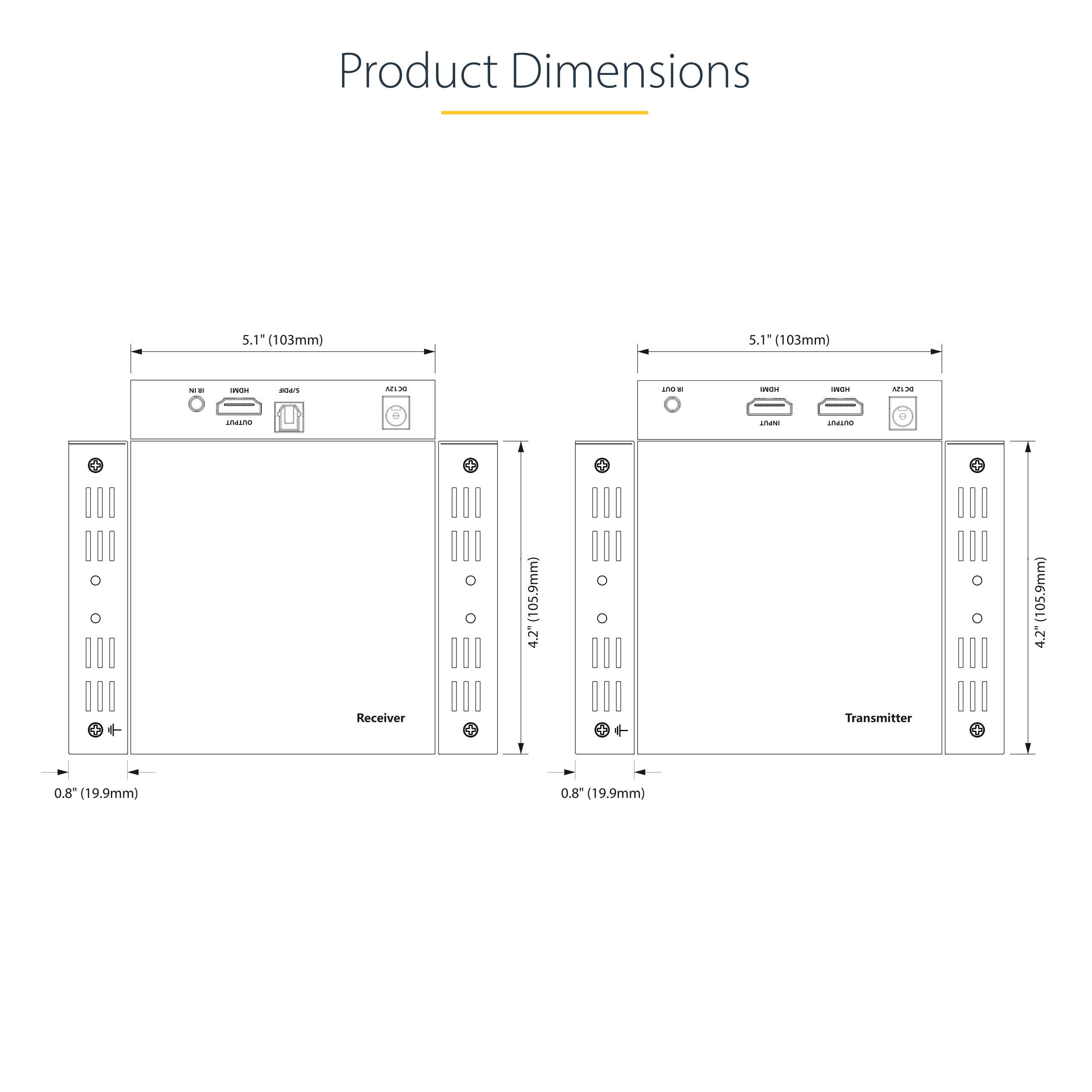

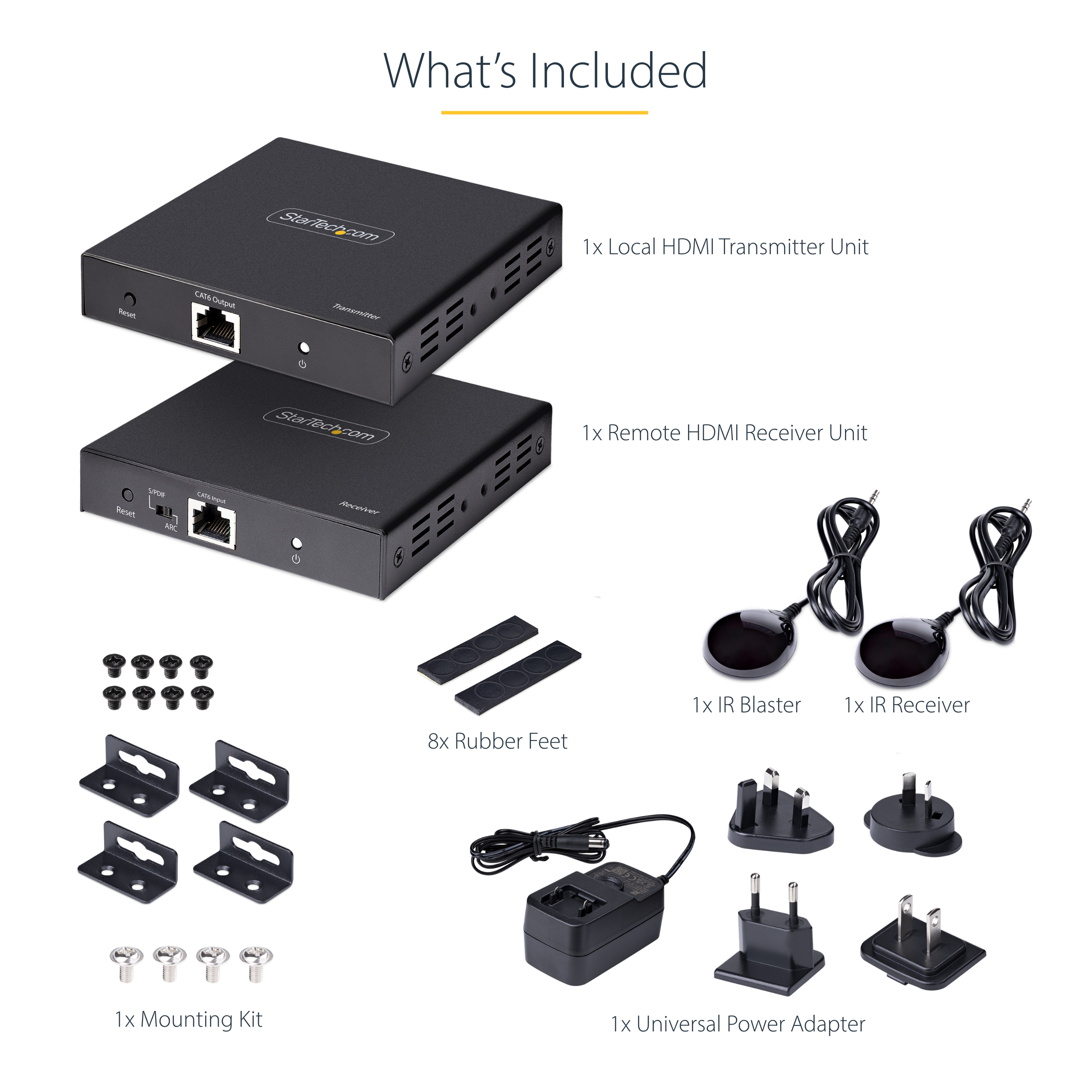

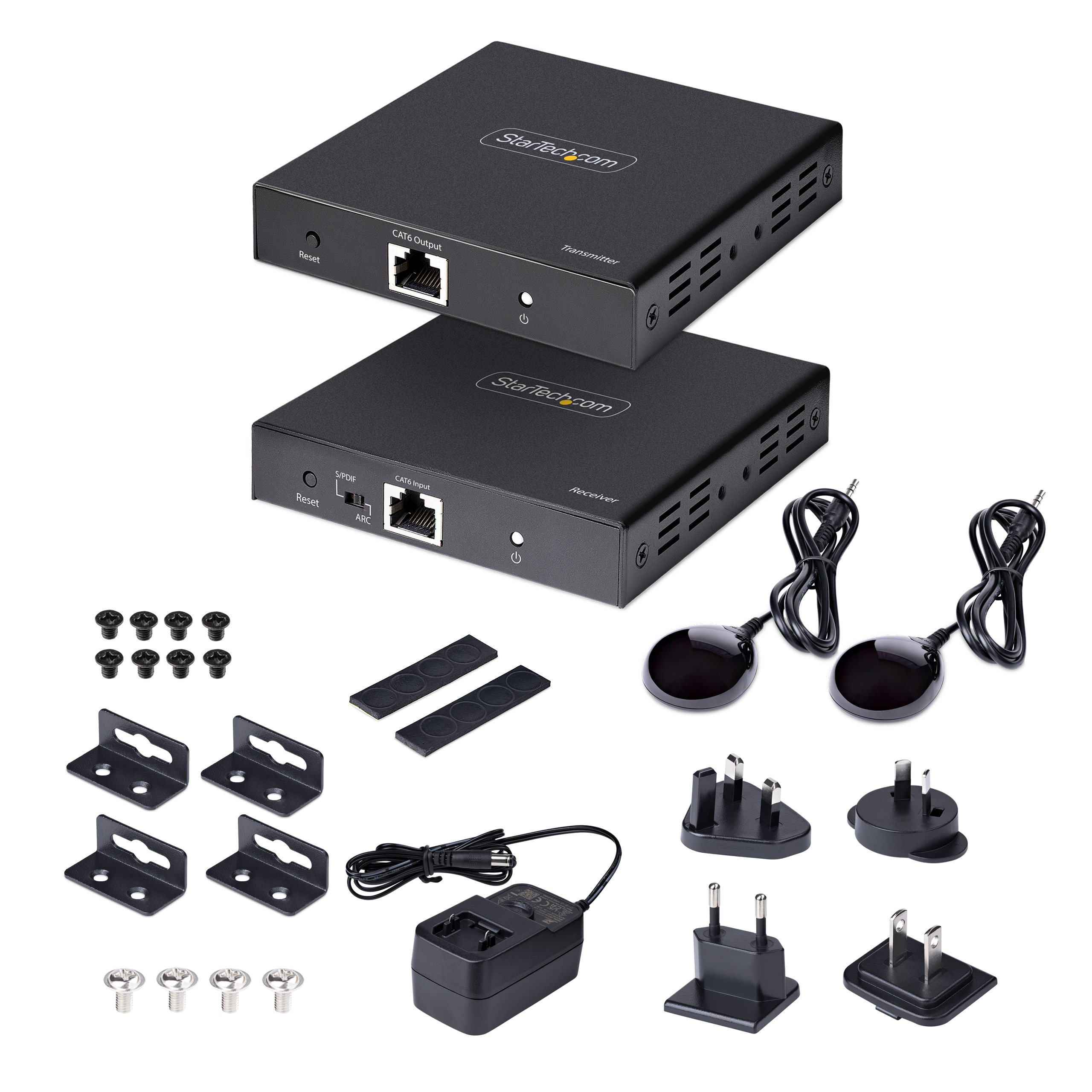

Input Current 0.3A Input Voltage 100 - 240 AC Output Current 1A Output Voltage (V) 12V DC Power Consumption (In Watts) 0.1W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 0% - 90% RH (non-condensing) Material Metal Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 106.000 Product Width (mm) 99.000 Product Height (mm) 26.000 Product Weight (g) 210.000 Storage Temperature -30°C to 70°C (-22°F to 158°F) TAA Compliant No Audio Specifications HDMI - 7.1 Channel Audio HDR Support HDR10 Max Distance 70m [230ft] Maximum Digital Resolutions 3840x2160 @ 60Hz OS Compatibility OS Independent Supported Resolutions Wide Screen Supported Yes Audio Yes Cabling Cat 5e UTP or better Cascadable Yes LED Indicators Rack-Mountable No Carton Depth (mm) 391 Carton Height (mm) 430 Carton Quantity 10 Carton Weight Gross (g) 9730 Included in Package - 1 - Local HDMI Transmitter Unit
- 1 - Remote HDMI Receiver Unit

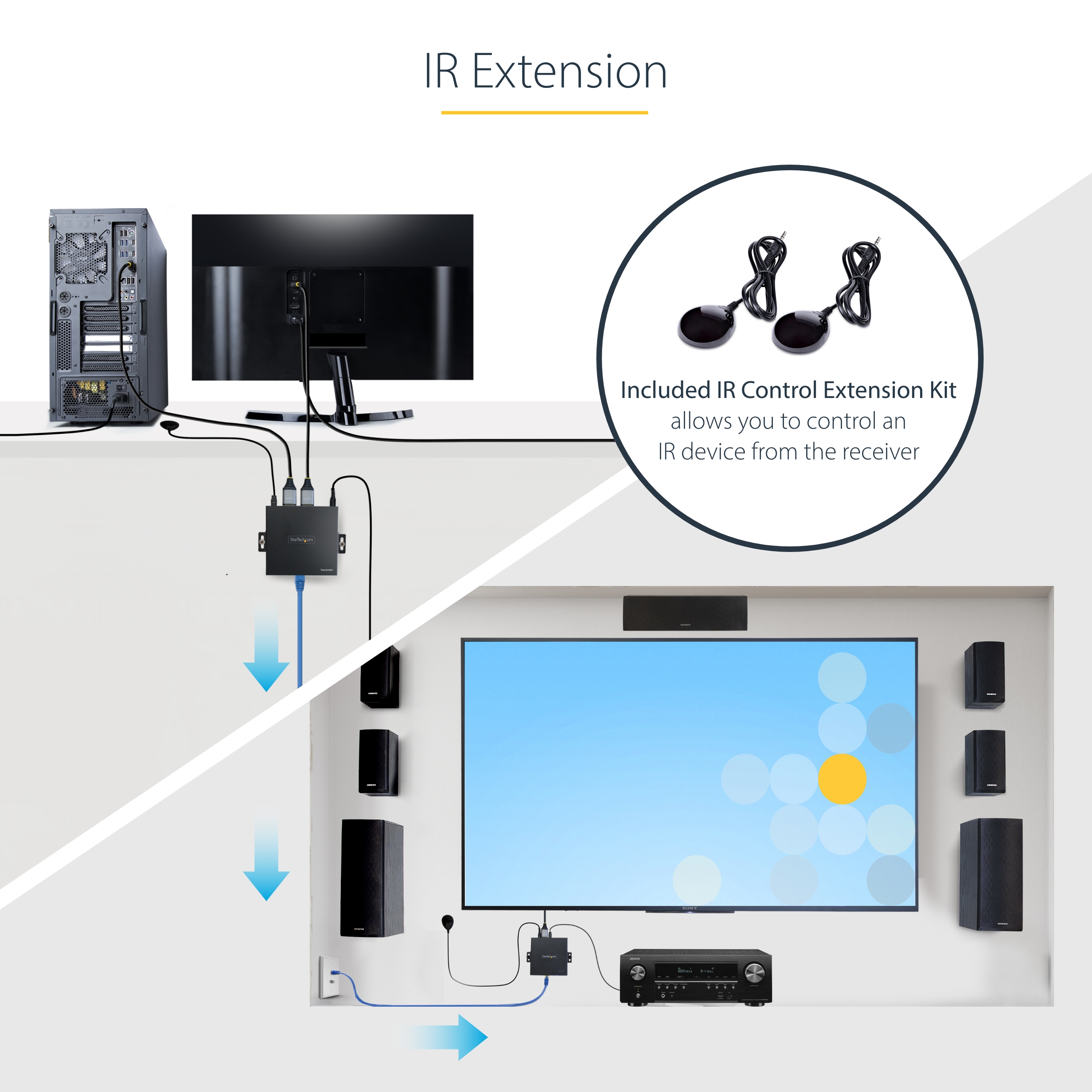

- 1 - IR Blaster
- 1 - IR Receiver
- 1 - Mounting Kit
- 1 - Power Adapter
- 1 - Quick-Start Guide
- 8 - Rubber Feet

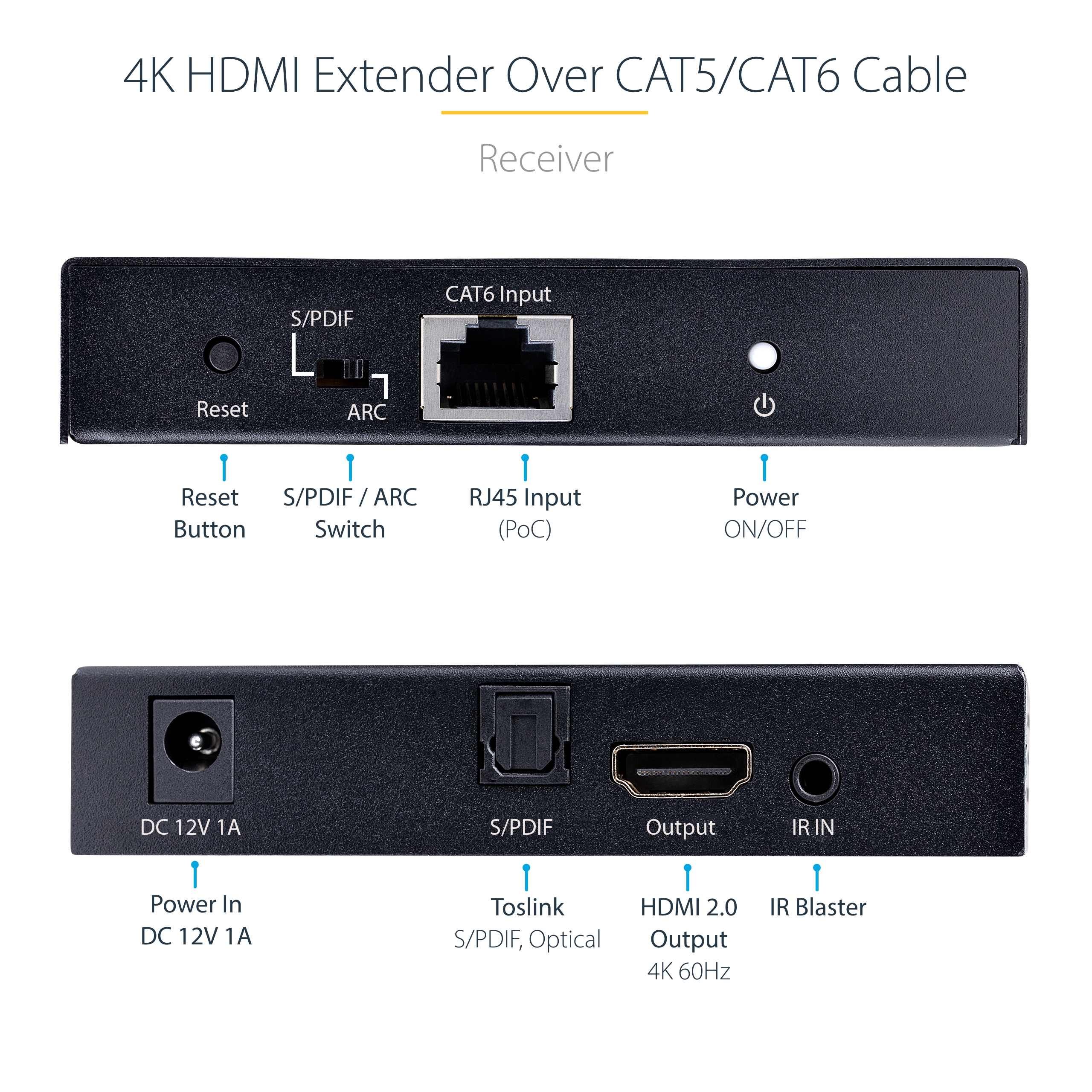

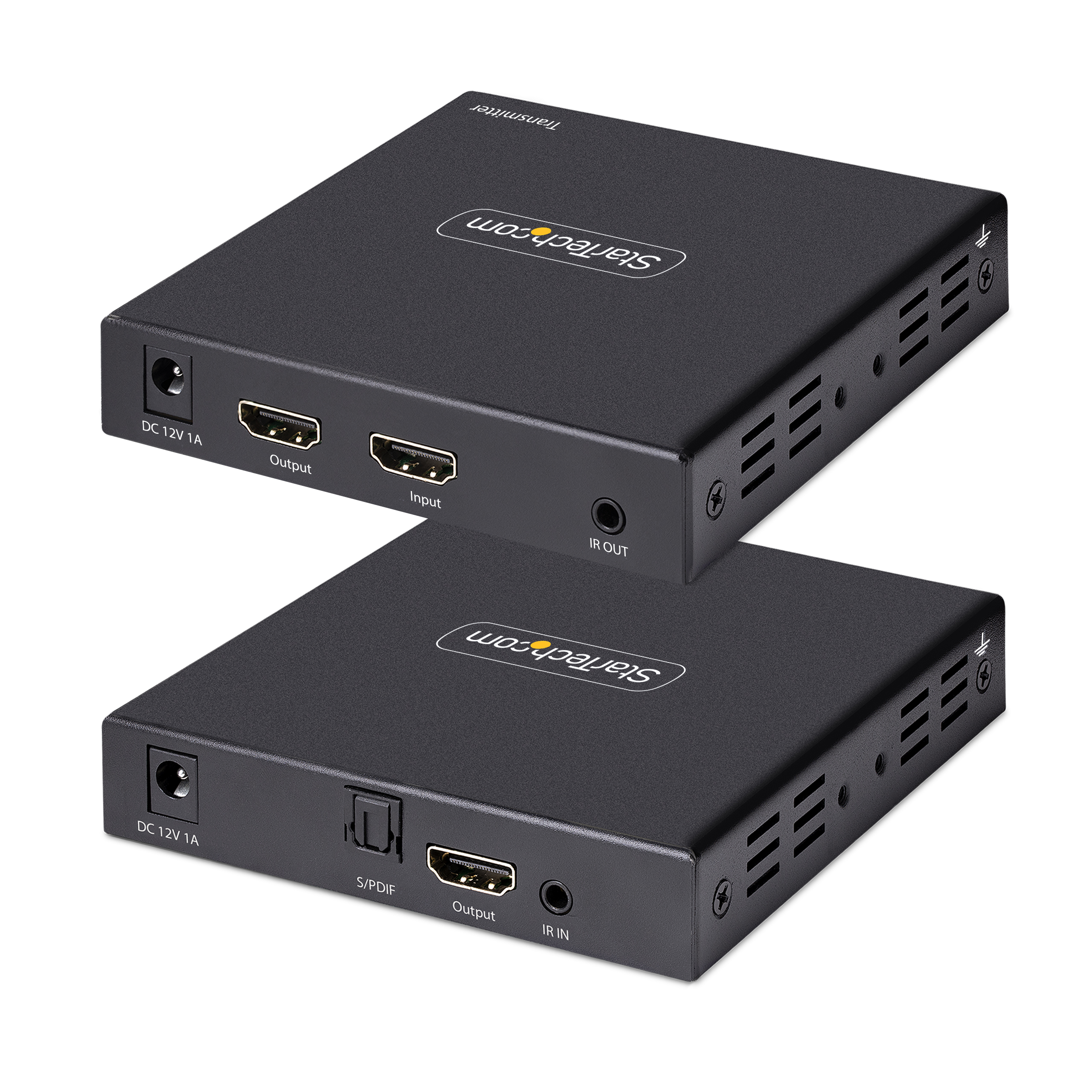

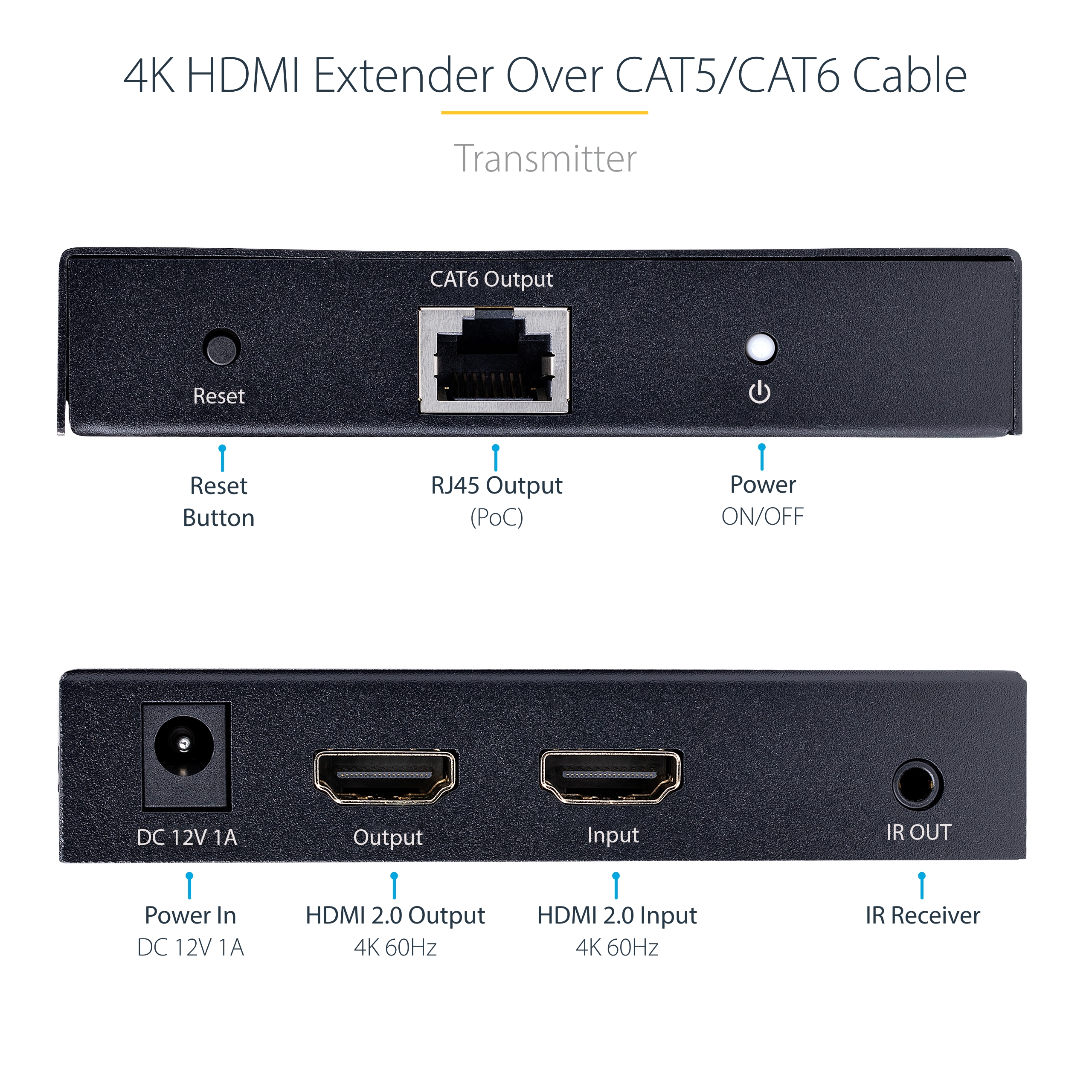

Package Depth (mm) 240 Package Height (mm) 83 Package Width (mm) 182 Package Quantity 1 Package Weight (g) 912 Packaging Description HDMI over CAT6/6A Extender- 4K 60Hz - 230ft (70m) Packaging Description India HDMI over CAT6/6A Extender- 4K 60Hz - 230ft (70m) Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 HDMI Connector 1 (Quantity) 1 Connector 2 3.5mm (3 Conductors, TRS) Connector 2 (Quantity) 1 Connector 3 TOSLINK (Optical S/PDIF) Connector 3 (Quantity) 1 Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 4 (Quantity) 1 Connector 5 RJ-45 Connector 5 (Quantity) 1 Host Connector 1 HDMI Host Connector 1 (Quantity) 1 Host Connector 2 HDMI Host Connector 2 (Quantity) 1 Host Connector 3 RJ-45 Host Connector 3 (Quantity) 1 Host Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Host Connector 4 (Quantity) 1 Host Connector 5 3.5mm (3 Conductors, TRS) Host Connector 5 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2022-07-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Digital Content Due Date 2022-10-12 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) BE,CA,CH,CL,DE,ES,FR,IE,IT,MX,NL,SE,UK,US Primary Technology HDMI 2.0 / 4K 60 Hz and HDR Product Development Specialist Otto Gutierrez Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2022-06-28 Target Production Release 2022-08-15 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle None Video Required
