4N515S8-POWER-STRIP

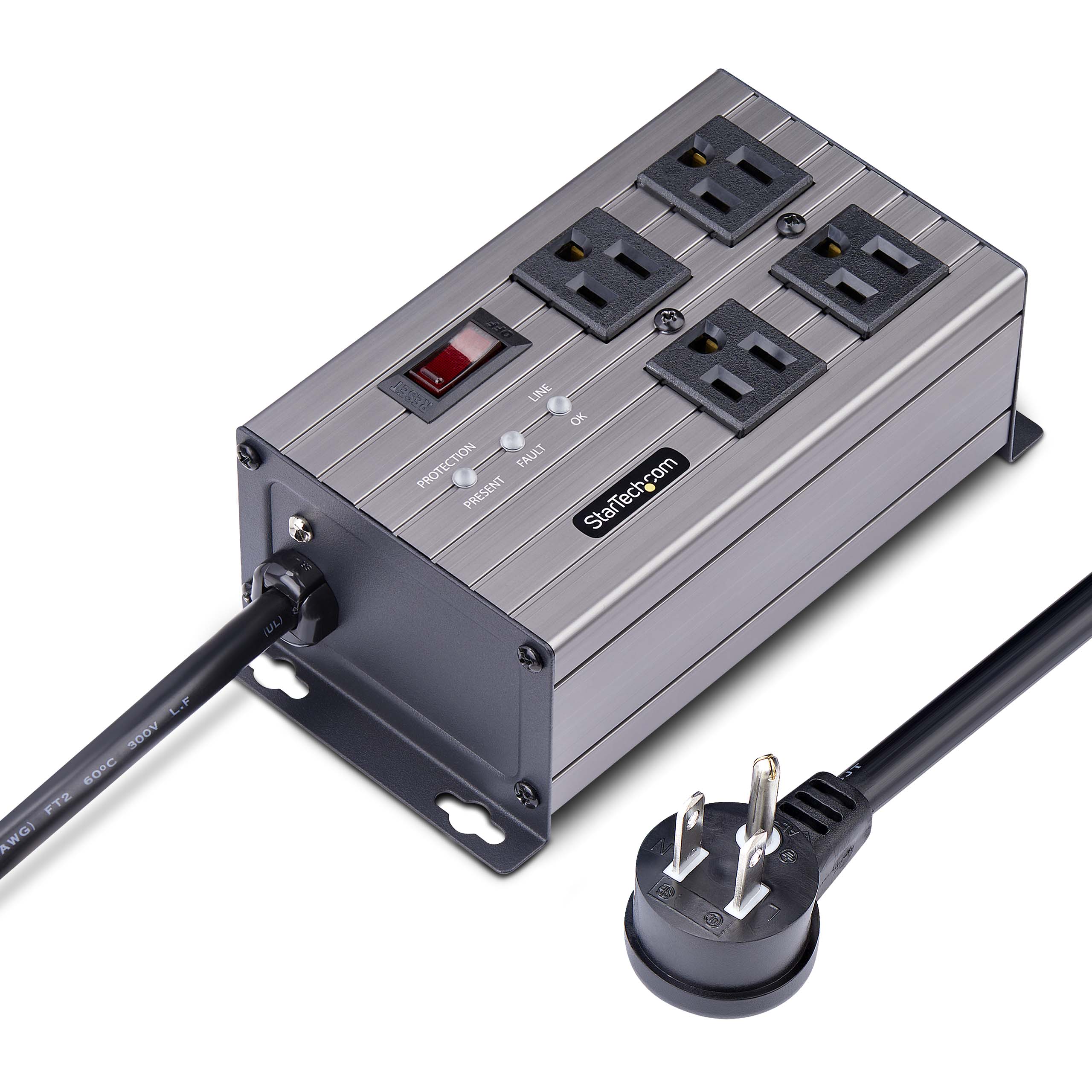

4 Outlet Surge Protected Industrial Power Bar NA
Add four power outlets from a single power outlet and protect connected devices from power surges
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 4 Outlet Surge Protected Industrial Power Bar NA Product Number 4N515S8-POWER-STRIP UPC 065030902687 Lifecycle status Active Warranty 2 Years Weighted Opportunity 63303 Taxonomy Product > Power > PDUs Category Level 1 Workstation Accessories Category Level 2 Mobile Device Chargers Category Level 3 Power Strips Family Noise Isolated Power Strips - Surface Mount Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX007X Product Title (Ultra-Short) 4-Port Power Strip Product Title (Short) 4-Port Industrial Power Strip, Isolated Product Title (Medium) 4-Outlet Industrial Power Strip, EMI Isolation. Mountable, 8ft Cord NEMA 5-15P/R Product Title (Standard) 4-Outlet Industrial Power Strip 125V/15A, EMI/RFI Isolation, Surge Prot., Mountable PDU, 8ft NEMA 5-15P Cord, UL Listed, TAA Product Title (Long) 4-Outlet Industrial Power Strip 125V/15A, EMI/RFI Isolation, Surge Protection, Mountable PDU, Attached 8ft/2.4m Cord, NEMA 5-15P/R, UL Listed, TAA Product Title (AMZ) Flat Plug 4-Outlet Heavy Duty Industrial Power Strip 125V/15A with Surge Protector, EMI/RFI Isolation, Mountable PDU, 8ft/2.4m Extension Power Cord, NEMA 5-15P/R, TAA Title Ingram (Part 1) 4-Port Industrial Power Strip - Title Ingram (Part 2) Surge Protection, Mountable PDU Website Product Headline Add four power outlets from a single power outlet and protect connected devices from power surges Bullet 1 4 OUTLET POWER STRIP: Built-in 8ft. (2.4m) NEMA 5-15P Power Cord; 4x NEMA 5-15R Outlets; 125V Max. Input/Output; 15A Circuit Breaker; 3450-Joule Surge Protector/Suppressor; 2x EMI/RFI Noise Isolated Filter Banks (2-outlets per bank); UL Listed PDU Bullet 2 15 AMP CIRCUIT BREAKER: This Industrial Grade Power Distribution Unit features a self-tripping and resettable circuit breaker to protect connected equipment; 15A trip-point; Ideal for network and server room applications Bullet 3 EMI/RFI NOISE ISOLATION: The outlets on this Power Strip are arranged in isolated filter banks (2-outlets per bank) preventing EMI & RFI noise from interacting between equipment connected to separate banks, and eliminating all line noise interference Bullet 4 INSTALLATION FLEXIBILITY: Mountable PDU with built-in ear mounting allows for temporary wall/surface mounting; Paper mounting template included for hassle-free installation; Premium mounting screws with 2.4mm spacers included Bullet 5 OPTIMIZED DESIGN: Heavy-duty extruded aluminum housing with widely spaced outlets; Attached 8 ft. (2.4m) long power cord; Protection/Fault/Line Ok LEDs for easy power-health monitoring Bullets (Compact) UL Listed 4-Outlet Industrial Grade Power Strip - NEMA 5-15P/R - EMI/RFI noise isolated filter banks (2-outlets per bank) - Surge protector - 15A resettable circuit breaker - Mounting ears w/template and screws for a temporarily mountable PDU - Metal Bullets (Consolidated) - UL Listed 4-Outlet Industrial Grade Power Strip with 8ft NEMA 5-15P cord and 125V max. input/output - 4x widely spaced NEMA 5-15R outlets with EMI/RFI noise isolated filter banks (2-outlets per bank) - 15A circuit breaker and 3450-Joule surge protector ideal for network/server room - Built-in mounting ears with included mounting template and screws makes Power Distribution Unit (PDU) temporary wall/surface mountable - Extruded aluminum housing Marketing Copy Marketing Copy (No HTML) Applications - Suitable for industrial workstations that use a variety of tools and equipment needing reliable and consistent power
- Ideal for network and server rooms where multiple devices such as servers, switches, and routers need reliable power
- Perfect for home offices where computers, monitors, printers, and other peripherals require organized and safe power distribution
Website Search Keyword - ISOBAR
- Industrial Power Strip
- long cord power strip
- long power strip
- long surge protector power strip
- mountable power strip
- network pdu
- network power strip
- outlet cable
- outlet power strip
- pdu
- pdu surge protector
- power distribution unit
- power strip surge protector
- power strip with long cord
- server room pdu
- surge protector power strip
- surge suppressor
Required Regulatory Compliance Marks - UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Accessory Products - PAC1016
- PAC10110
Related Products - 6N515S8-POWER-STRIP
- 8N515S12-POWER-STRIP

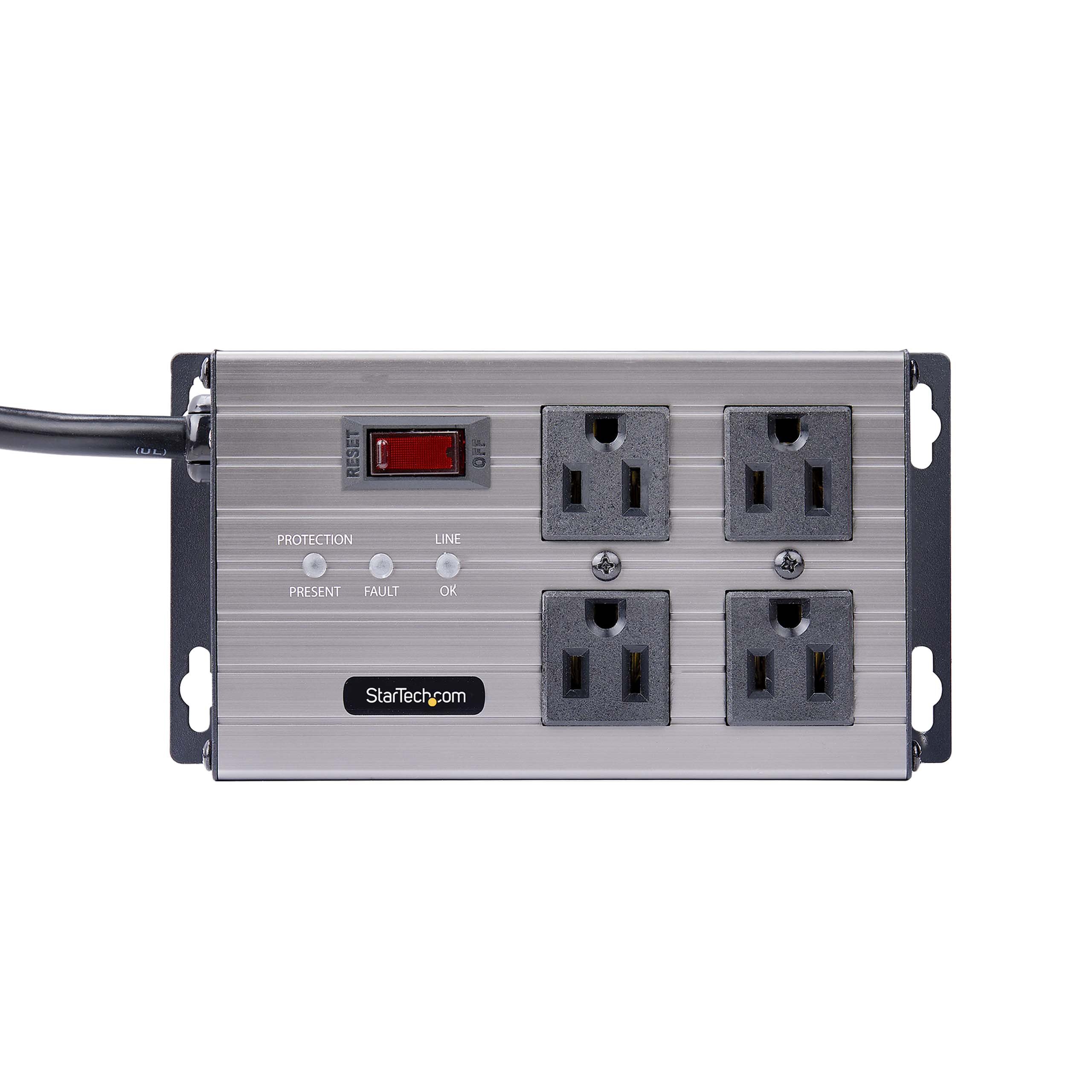

Input Current 15A (max.) Input Voltage 125V (max.) Output Current 15A (max.) Output Voltage (V) 125V (max.) Plug Type NEMA 1-15 Power (North America) Plug Cable Length (mm) 2439 Color Space Gray Humidity 5% (0C) to 95% (40C) Material Aluminum Operating Temperature 0C to 40C Product Length (mm) 175.400 Product Width (mm) 90.500 Product Height (mm) 62.300 Product Weight (g) 1092.000 Storage Temperature -10C to 60C TAA Compliant Yes Maximum Output Voltage (V) 125V Maximum Total Current 15A Maximum Total Current Draw per Phase 15A Nominal Input Voltage (V) 125V Nominal Output Voltage (V) 125V Regulatory Derated Input Current (North America) 15A LED Indicators - 1 - Protection Present LED - Illuminates Green, When the Surge Protection on the Power Strip is Functioning Correctly
- 1 - Fault LED - Illuminates Red When the Power Source that the Power Strip is Connected to is Wired Incorrectly
- 1 - Line Ok LED - Illuminates Green When the Power Source that the Power Strip is Connected to is Wired Correctly

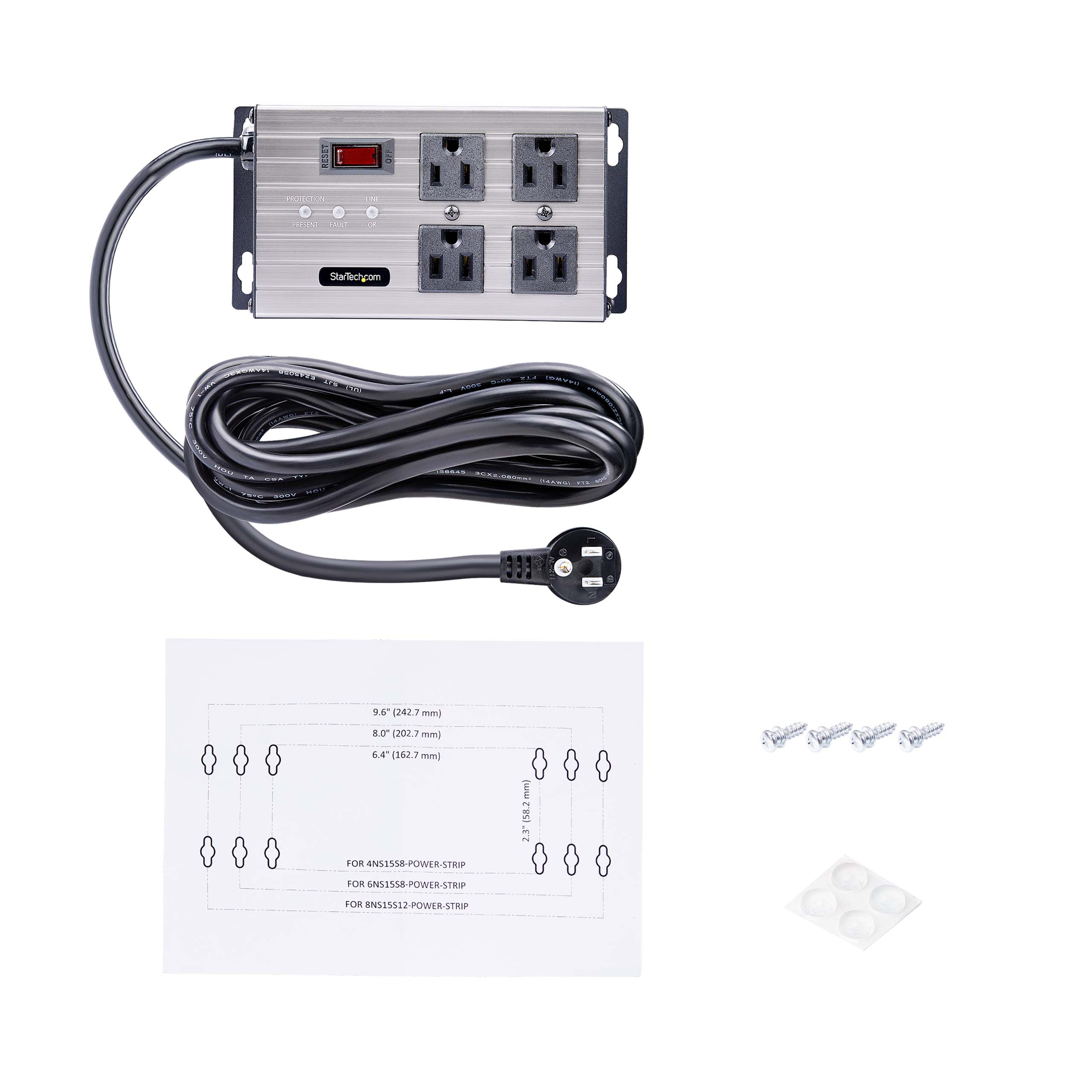

Rack-Mountable No Carton Depth (mm) 398 Carton Height (mm) 469 Carton Quantity 12 Carton Weight Gross (g) 15160 Included in Package - 1 - 4-Outlet Power Strip
- 4 - Space Screws
- 4 - Foot Pads
- 1 - Mounting Template
- 1 - Quick-Start Guide
Package Depth (mm) 189 Package Height (mm) 105 Package Width (mm) 222 Package Weight (g) 1196 Packaging Description 4-Outlet Industrial Power Strip with Surge Protection Packaging Description India 4-Outlet Industrial Power Strip with Surge Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 NEMA 5-15 (125V AC, 15A) Connector 1 (Quantity) 1 Connector 2 NEMA 5-15 (125V AC, 15A) Connector 2 (Quantity) 4 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2024-01-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Input 1x NEMA 5-15, Output 8x NEMA 5-15, Surge Protection 1800J, 15A max Load, 120VAC, Tethered 6ft cable Comparable SKU 2 Comment No existing power strips Digital Content Due Date 2024-05-08 Enhanced Gallery Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Andrew Richardson Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle Mainstream Video Not Required
