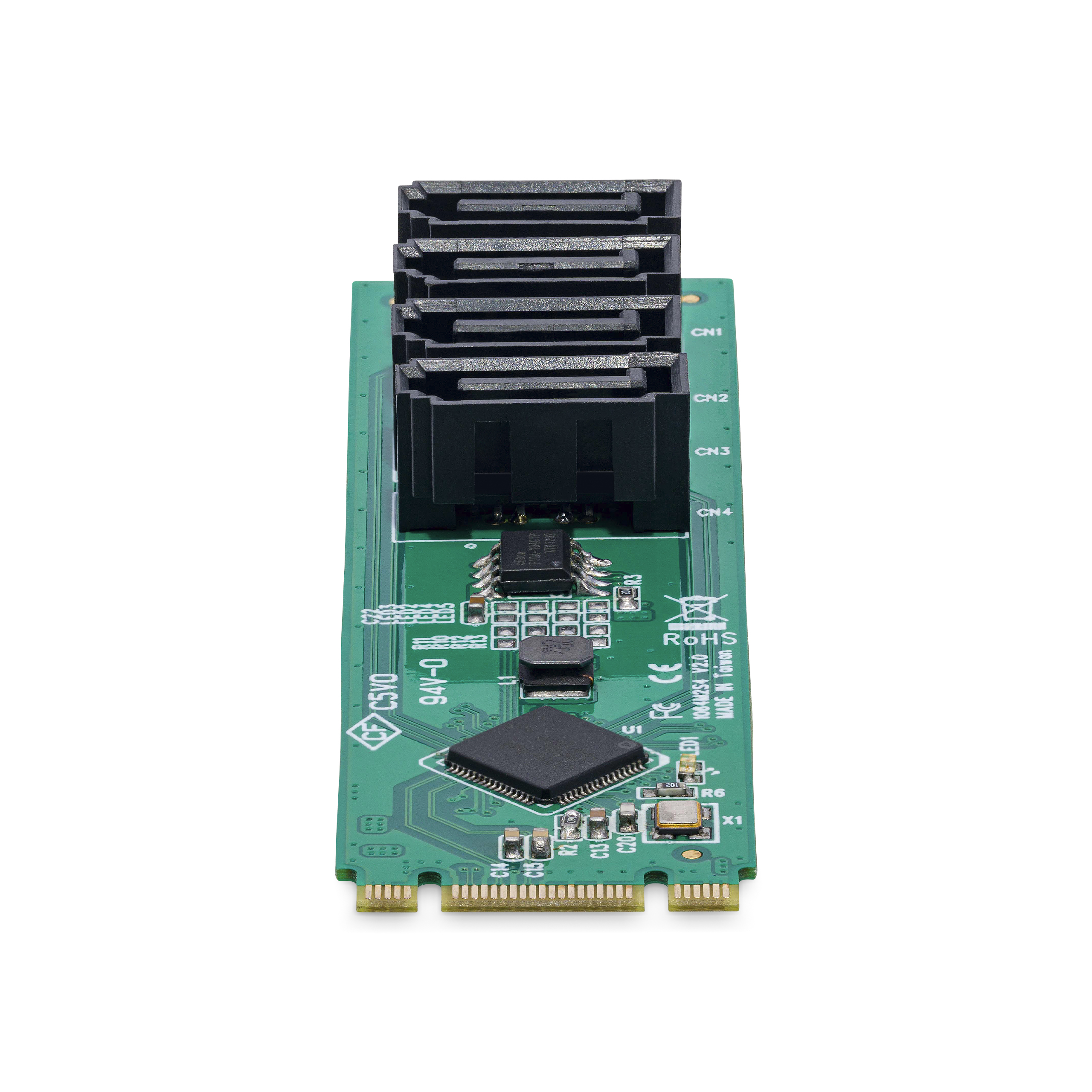

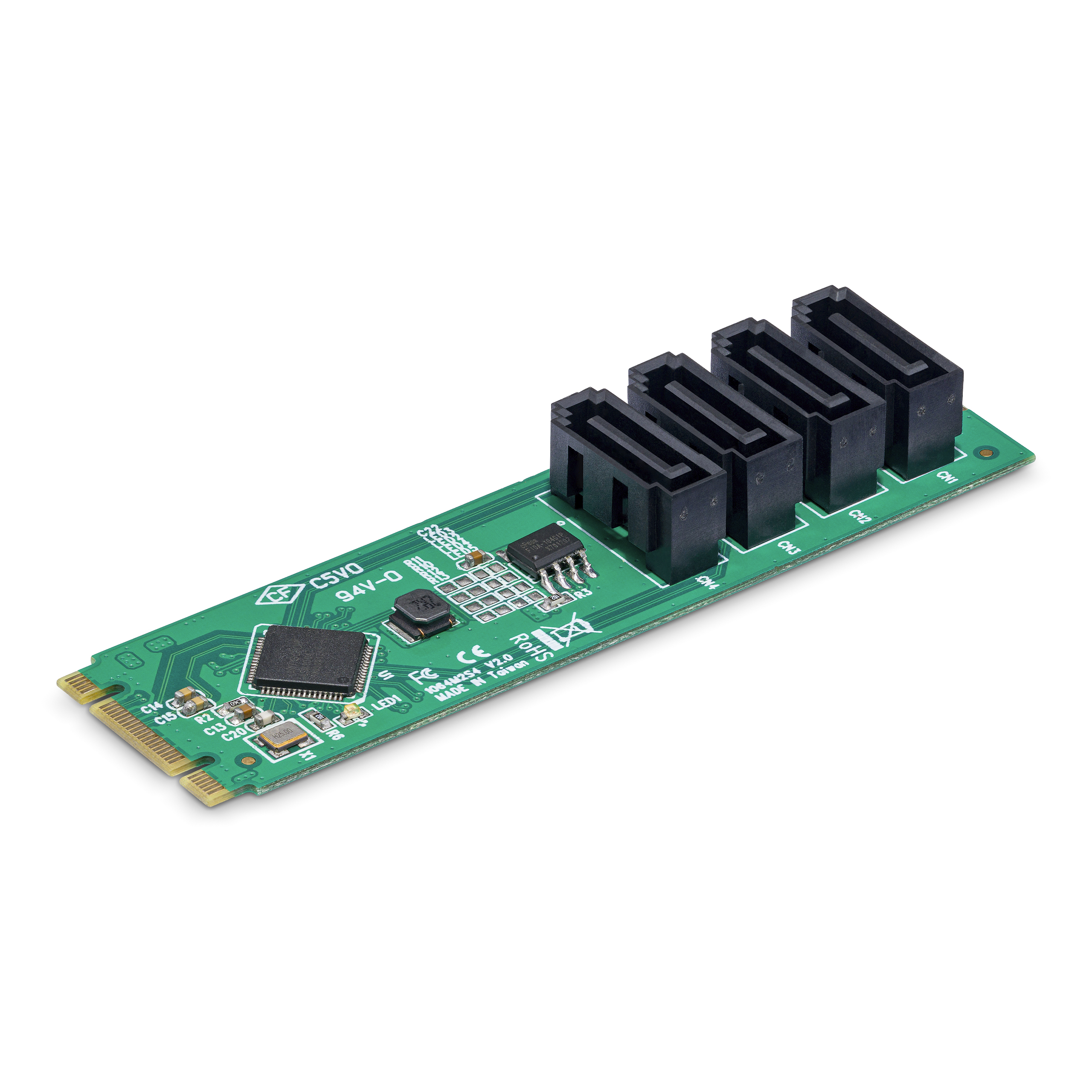

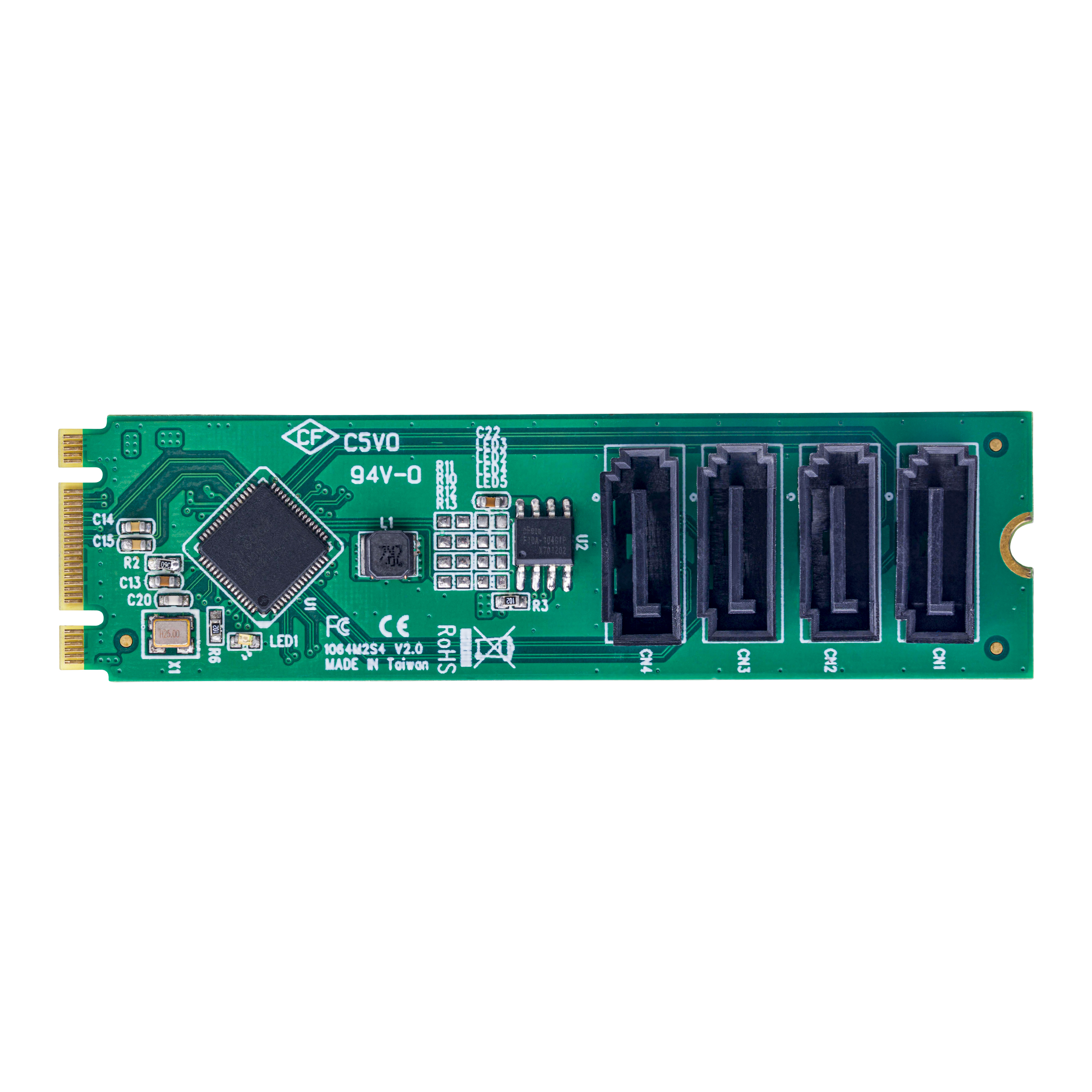

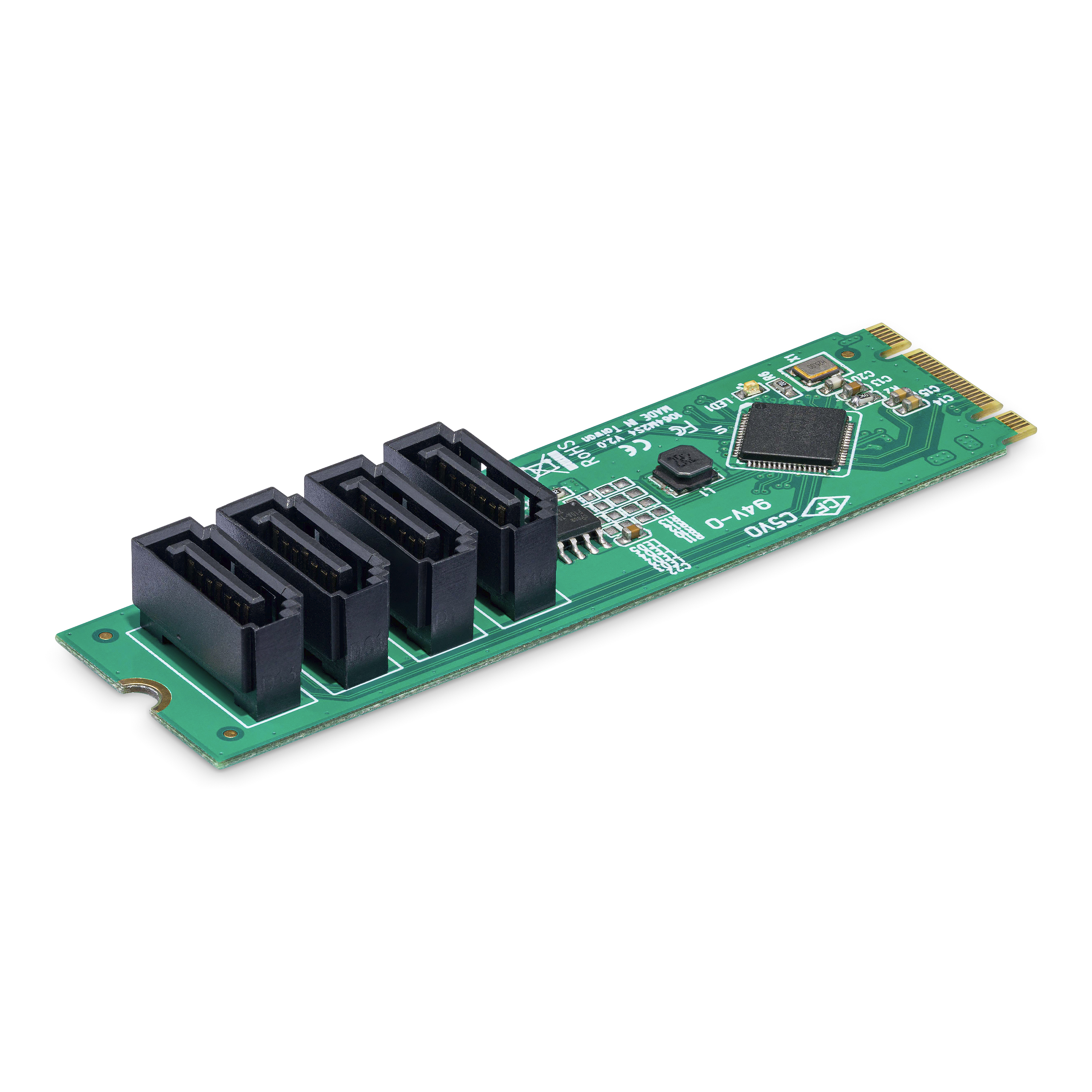

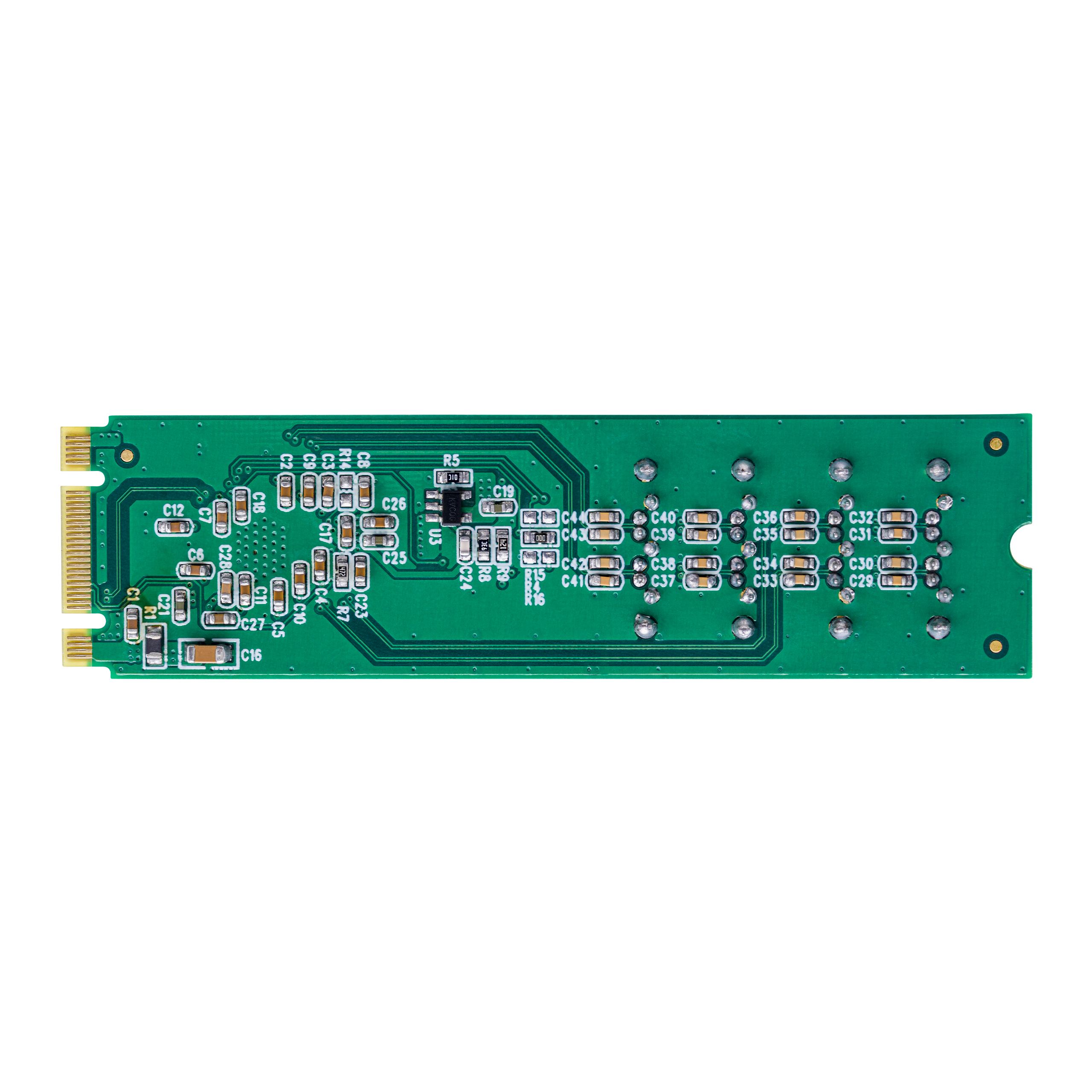

4P-SATA-M2-ADAPTER
M 2 B M Key to 4 Port SATA 3
Install four SATA drives via one M.2 slot for a high-density storage solution
Main Image
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name M 2 B M Key to 4 Port SATA 3 Product Number 4P-SATA-M2-ADAPTER UPC 065030903745 Lifecycle status Active Warranty 2 Years Weighted Opportunity 12086 Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 M.2 NVMe/SATA Card Adapters/Controllers Family M.2 SATA to SATA Adapter Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX054X Product Title (Ultra-Short) 4-Port M.2 to SATA Product Title (Short) 4-Port M.2 to SATA Adapter Card Product Title (Medium) 4-Port M.2 to SATA Adapter Card, M.2 PCIe to SATA Expansion Card for HDD/SSDs Product Title (Standard) 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card for Windows/macOS/Linux, TAA Product Title (Long) 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card, ASM1064 Chipset, M.2 NVMe to 4x HDD/SSD for Windows/macOS/Linux, TAA Product Title (AMZ) 4-Port M.2 to SATA Adapter Card, M.2 PCIe 3.0 to SATA HDD/SSD Expansion Card for Windows/macOS/Linux, TAA Title Ingram (Part 1) 4-Port M.2 to SATA Adapter - Title Ingram (Part 2) M.2 PCIe 3.0 to SATA Expansion Card Website Product Headline Install four SATA drives via one M.2 slot for a high-density storage solution Bullet 1 INCREASE STORAGE: Expand storage capacity and flexibility using minimal connections and the small M.2 footprint; Add up to four independent SATA drives to a desktop via a single 2280 M.2 drive slot while maintaining SATA 6Gbps read/write speeds per drive Bullet 2 UNIVERSAL COMPATIBILITY: Drivers auto-install in most major operating systems including Windows 8 & up, macOS, and Linux; Compatible with all hardware platforms such as Intel/AMD; Supports software storage management including Storage Spaces (Microsoft) Bullet 3 APPLICATIONS: Use with modern motherboards or external enclosures that feature an M.2 slot to cost-effectively expand storage capabilities; Ideal for data storage, backups, NAS setups, photographers, videographers, and content creation Bullet 4 TECH SPECS: ASMedia ASM1064 chip supports TRIM, SMART data, SATA I/II/III, and PCI Express 3.0; Includes 4x 19.6in (50cm) SATA cables to connect the HDDs/SSDs; Compatible with PCIe-based B or M-key M.2 slots; NOTE: Not compatible with SATA M.2 drive slots Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this 4-port M.2 to SATA Adapter Card is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) Add 4x SATA drives to a desktop via a single 2280 M.2 drive slot while maintaining SATA 6Gbps read/write speeds per drive; Drivers auto-install in most operating systems; Supports TRIM, SMART data, PCIe 3.0; Includes x4 SATA cables Bullets (Consolidated) - Add 4x SATA drives to a desktop via a single 2280 M.2 drive slot; Maintain SATA 6Gbps read/write speeds per drive - Drivers auto-install in Windows 8 and up/macOS/Linux; Supports software storage management (Storage Spaces) - Use with computers/external enclosures that have an M.2 slot to cost-effectively expand storage capabilities - Supports TRIM and SMART data; SATA I/II/III and PCIe 3.0; Includes 4x SATA cables - Works in PCIe-based B or M-key M.2 slots; Not compatible with SATA M.2 slots Marketing Copy Marketing Copy (No HTML) Applications - Use with modern motherboards or external enclosures that feature an M.2 slot to cost-effectively expand storage capabilities
- Ideal for data storage, backups, NAS setups, photographers, videographers, and content creation
Website Search Keyword - m.2 to sata adapter card
- m.2 sata adapter
- nvme expansion card
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - This product is only compatible with PCIe-based B-key or M-key M.2 drive slots
- This product is not compatible with SATA-based M.2 drive slots
- The included SATA cables are 19.6-inches (50cm) in length
Accessory Products - BRACKET125PT
- BRACKET225PT
- HDDSLEV25
Related Products M2E4SFF8643 Power Source Bus Powered Color Green Humidity 20% ~ 80% RH Operating Temperature 0°C to 70°C (32F° to 158F°) Product Length (mm) 80.000 Product Width (mm) 22.000 Product Height (mm) 11.000 Product Weight (g) 8.000 Storage Temperature -20°C to 80°C (-4F° to 176F°) TAA Compliant Yes Hot Swap Capability Yes MTBF (hours) 68,555,579 Hours OS Compatibility - Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Ubuntu
- Linux
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Port Multiplier Yes RAID No S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Chipset ID ASMedia ASM1064 Interface/Bridge M.2 PCIe (x4 PCIe) IO Card Port Style Integrated on Card LED Indicators Carton Depth (mm) 685 Carton Height (mm) 306 Carton Quantity 75 Carton Weight Gross (g) 10750 Included in Package - 1 - M.2 to Quad SATA Drive Adapter
- 4 - SATA Cables
- 1 - Quick-Start Guide
Package Depth (mm) 142 Package Height (mm) 30 Package Width (mm) 170 Package Weight (g) 142 Packaging Description M.2 to Quad SATA Drive Adapter Packaging Description India M.2 to Quad SATA Drive Converter Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (7-Pin) Connector 1 (Quantity) 4 Host Connector 1 M.2 B+M-Key (PCIe, AHCI / NVMe) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Not Required Artwork Due Date 2024-05-31 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment U.2 (SFF-8643) to M.2 PCI Express 4.0 x4 Host Adapter Card Comparable SKU 2 Comment SATA PCIe Card - 4 Port PCIe SATA Expansion Card Digital Content Due Date 2024-06-28 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Dan Dagenais Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-01-12 Target Production Release 2024-05-31 Tech Lead Justin Weaver Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
