4PCIE-PCIE-ENCLOSURE

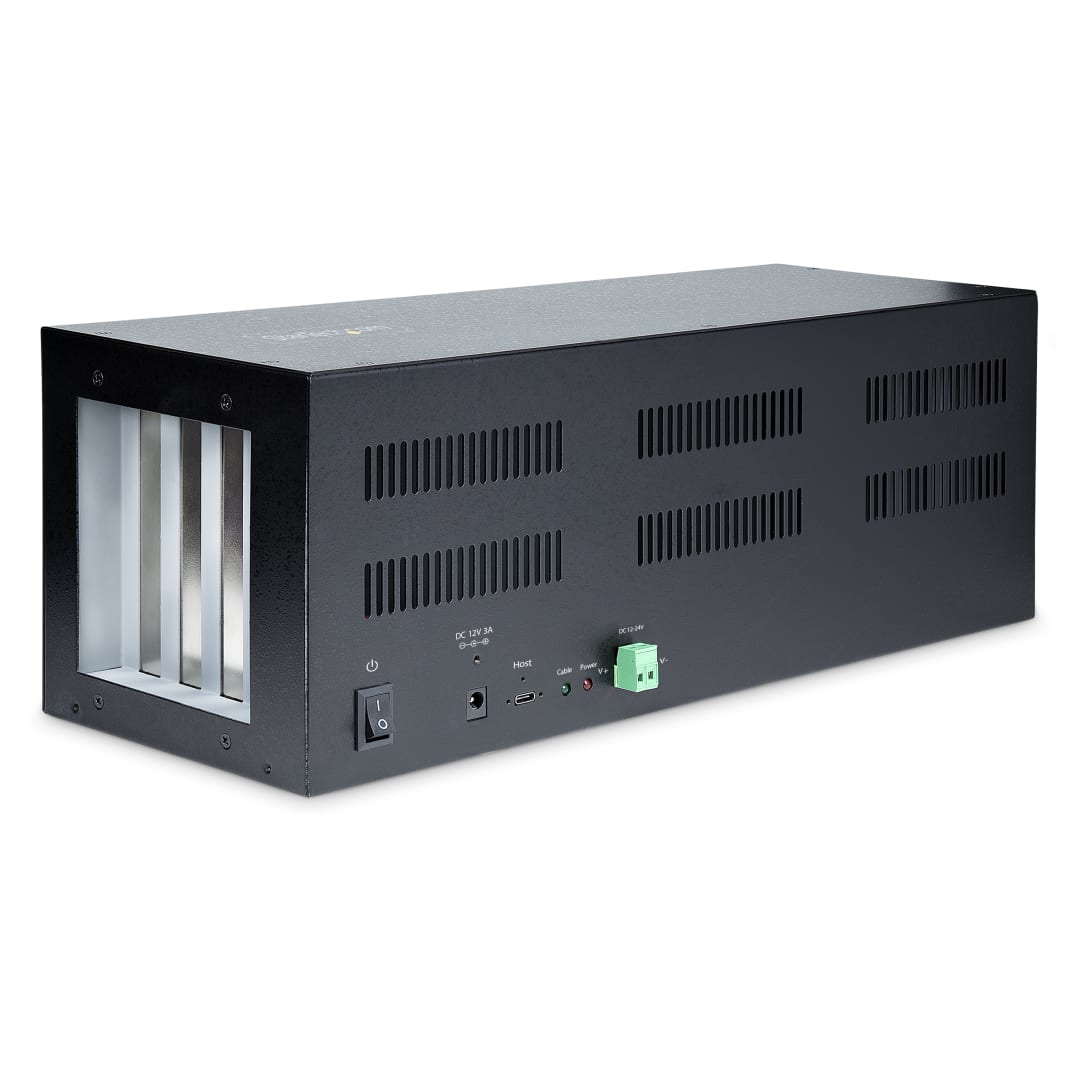

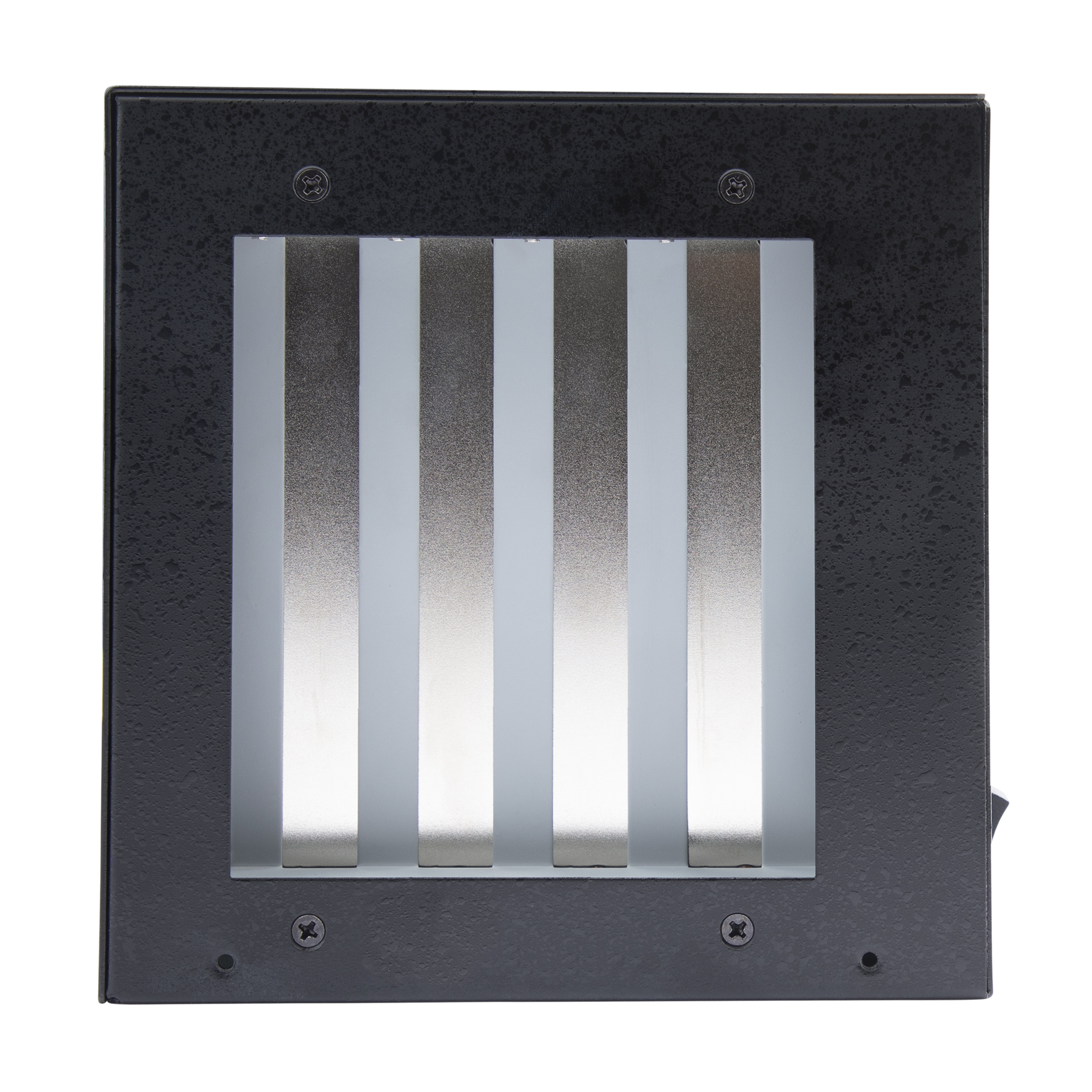

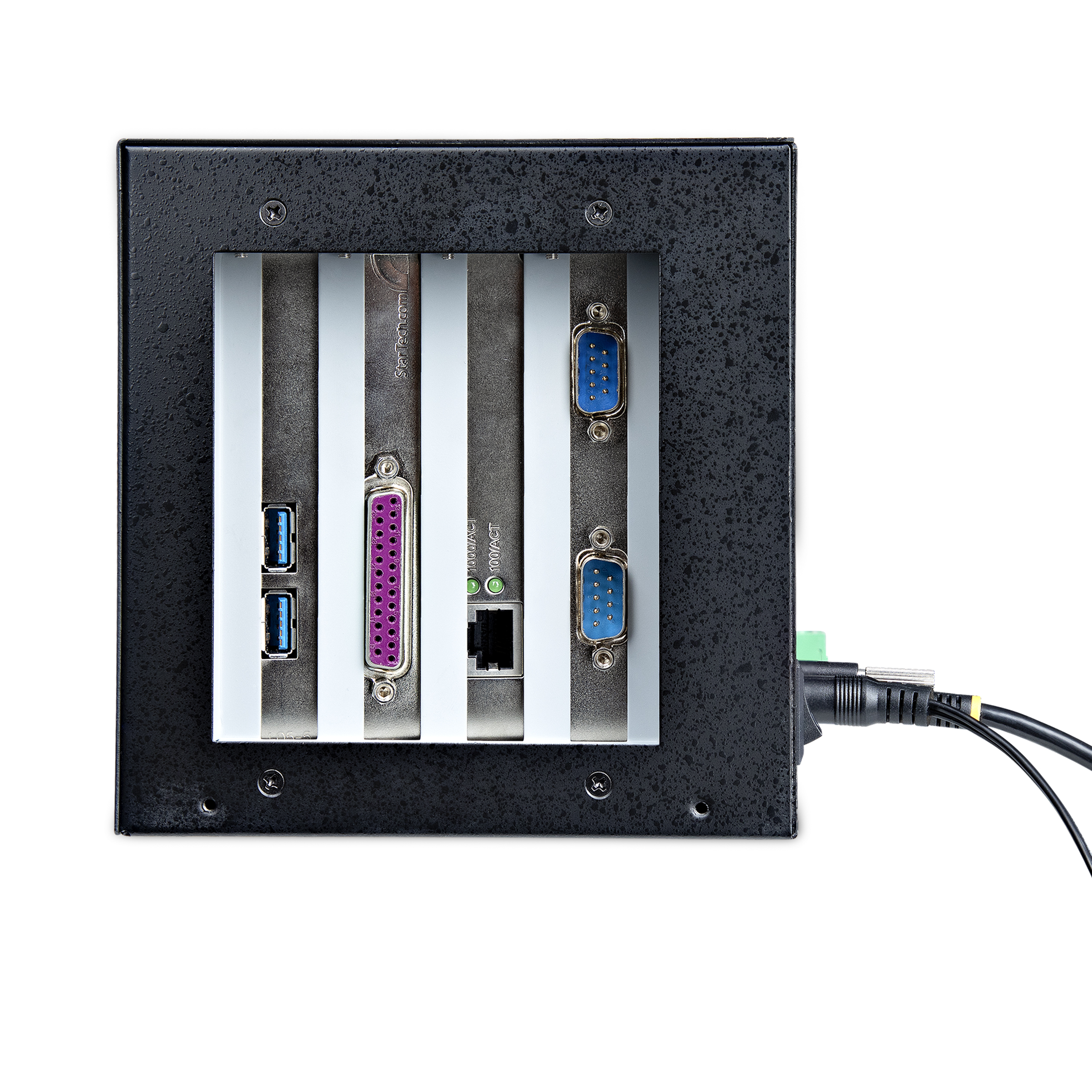

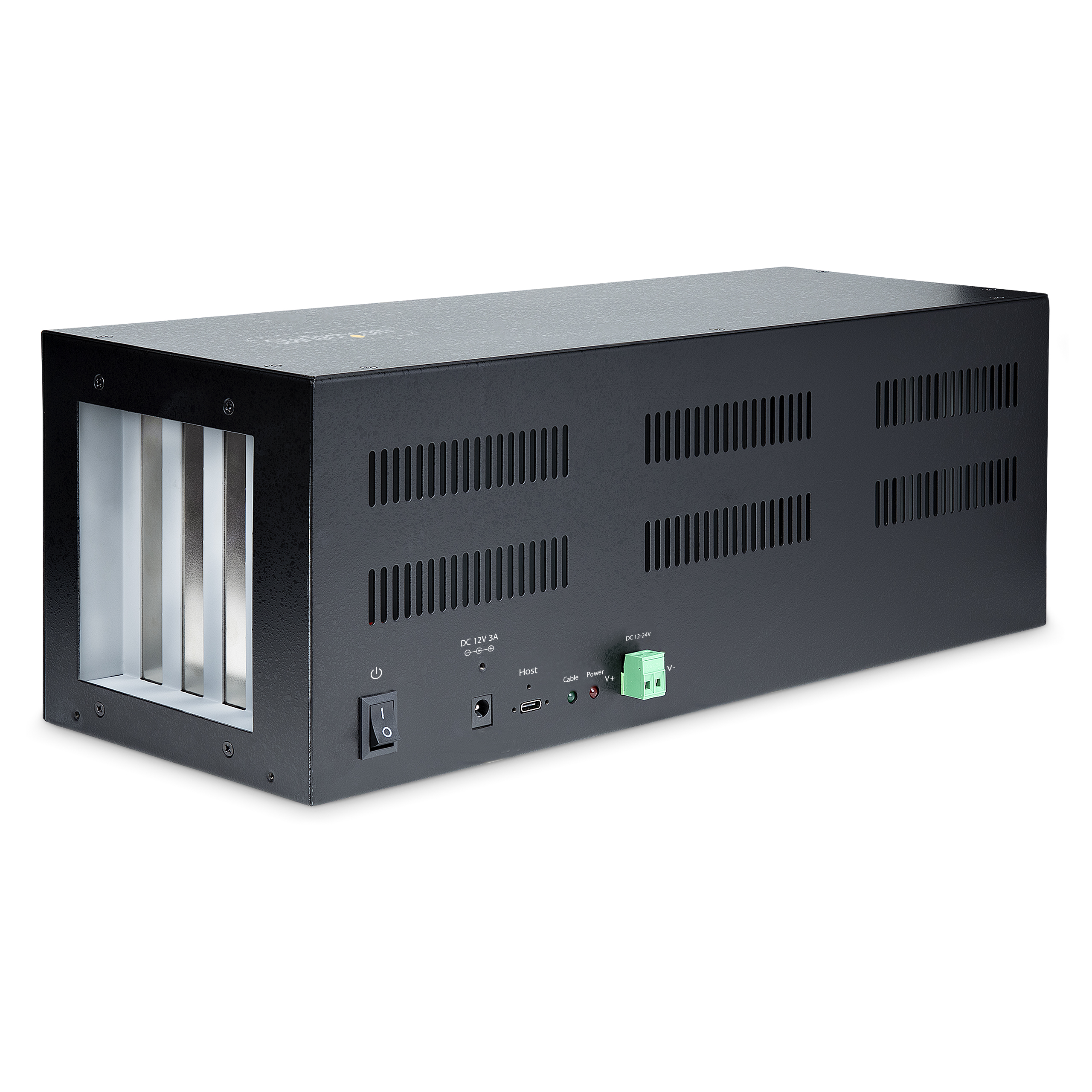

PCI Express to 4 PCIe Expansion Enclosure System
Steel Housing | Mounting Brackets | Screw-lock USB-C Cable
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name PCI Express to 4 PCIe Expansion Enclosure System Product Number 4PCIE-PCIE-ENCLOSURE UPC 065030894630 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Expansion Chassis Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Expansion Slot Conversion and Extension Family PCIe Expansion Chassis Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) PCIe Expansion Slots Product Title (Short) 4-Slot PCIe Expansion Chassis, PCIe 2.0 Product Title (Medium) 4-Slot PCIe Expansion Chassis, USB-C External PCIe Slots for PC, PCIe 2.0/10Gbps Product Title (Standard) 4-Slot PCIe Expansion Chassis, External PCIe Slots for PC, PCIe 2.0 w/10Gbps Throughput, PCI Express Expansion Box, TAA Product Title (Long) 4-Slot PCIe Expansion Chassis with PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots - TAA Product Title (AMZ) 4-Slot PCIe Expansion Chassis w/PCIe x2 Host Card, PCIe 2.0 - 10Gbps, External PCIe Slots for Desktops/Servers, PCI Express Expansion Box/Adapter, 4 PCIe x1 Slots , TAA Title Ingram (Part 1) 4 Slot PCIe Expansion Chassis - Title Ingram (Part 2) PCI Express Expansion Box/Adapter Website Product Headline Steel Housing | Mounting Brackets | Screw-lock USB-C Cable Bullet 1 EXPANSION CHASSIS FOR PCIE CARDS: Increase the PCI-e slot count of a desktop computer or server; Add four external PCIe x1 slots; PCI Express 2.0 x2 proprietary USB-C Host Card with locking port; 5.9ft (1.8m) USB-C locking cable included Bullet 2 RUGGED CONSTRUCTION: PCI Express expansion box is built with SECC steel to withstand harsh conditions and up to 140°F (60°C); Vented chassis for cooling; Quiet operation; Power adapter (12V 3A) included, terminal block port (12-24 VDC) available Bullet 3 HASSLE FREE UPGRADES: Connect add-on cards (e.g., USB, Ethernet, SFP, Serial, and I/O Cards) to a host system with limited expansion slots; Implement fast deployments and reduce the cost and downtime required to configure an existing or new host system Bullet 4 COMPATIBILITY: This PCIe expansion chassis is OS independent and requires no additional software; Windows, macOS, and Linux are supported; Installed add-on card may require additional drivers and specific supported OS; Not meant to be used with GPUs Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this external PCIe expansion chassis for desktop is backed for two years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 4-Slot PCIe Expansion Chassis; External PCIe Slots for Desktop/Server; Host Card PCI-e 2.0 x2, 10Gbps, included 6ft (1.8m) USB-C locking cable; For USB, Ethernet/fiber, or Serial/I-O cards; SECC steel enclosure withstands temps up to 140°F Bullets (Consolidated) External expansion chassis for PCIe cards increases the PCI-e slot count of a desktop computer or server | Adds four external PCIe x1 slots | Host PCIe card uses an x2 PCI Express 2.0 slot on the host system - 6ft (1.8m) USB-C locking cable incl. | 10 Gbps bandwidth - Use for USB cards/Ethernet/fiber cards/Serial/I-O cards - Commercial-grade SECC steel enclosure withstands temps of up to 140 DEGF/60 DEGC | Vented chassis for passive cooling - PCIe expansion chassis/adapter is OS independent Marketing Copy Marketing Copy (No HTML) Website Search Keyword - expansion chassis for pcie cards
- external pci express adapter
- external pcie slot for desktop
- pci express expansion box
- pci express expansion chassis
- PCIe expansion chassis
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes - This product does not support hot-plugging of the USB Type-C cable. The chassis must be powered off before connecting or disconnecting the USB Type-C cable.

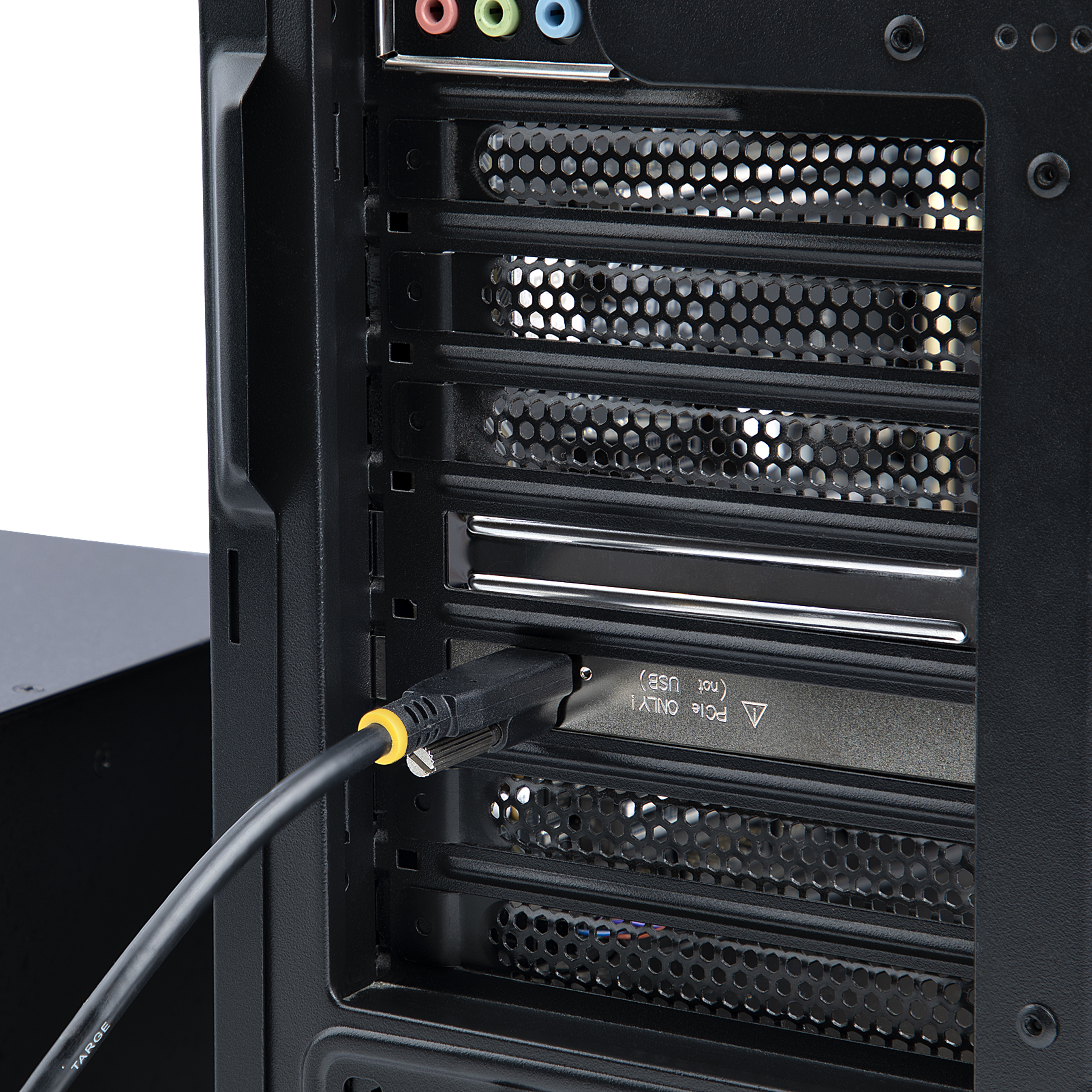

- This product only supports a single orientation of the USB Type-C cable. It must be used in the proper orientation where the screw-locking connector lines up correctly with the PCIe to PCIe Expansion Chassis and the PCIe Host Adapter Card.
- This product does not support graphics/video cards.
- Installed PCIe cards may require the installation of drivers. Check with the manufacturer of the PCIe cards for drivers and to confirm OS compatibility.
- The PCIe to PCIe Expansion Chassis must be used with the included PCIe Host Adapter Card. It is not compatible with other USB Type-C cards or built-in computer ports.
- For the Wake-on-LAN (WoL) feature to work, the host computer must also support WoL and be appropriately configured. Refer to the Quick-start guide to confirm the jumper settings of the PCIe Host Card.
Accessory Products - PEX16S550LP
- PEX2S1P553B
- PEX2S553
- PEX1P2
- PEX2PECP2
- PEX1394A2V2
- PEX1394B3
- PEXUSB3S23
- PEXUSB3S25
- PEXUSB3S3GE
- PEXUSB3S4V
- PEXUSB3S7
- PEXUSB4DP
- PEX1000SFP2
- PEX1000MMSC2
- PEX100S
- ST1000SPEX2
- ST1000SPEXD4
- ST1000SPEXI
- ST2GPEX

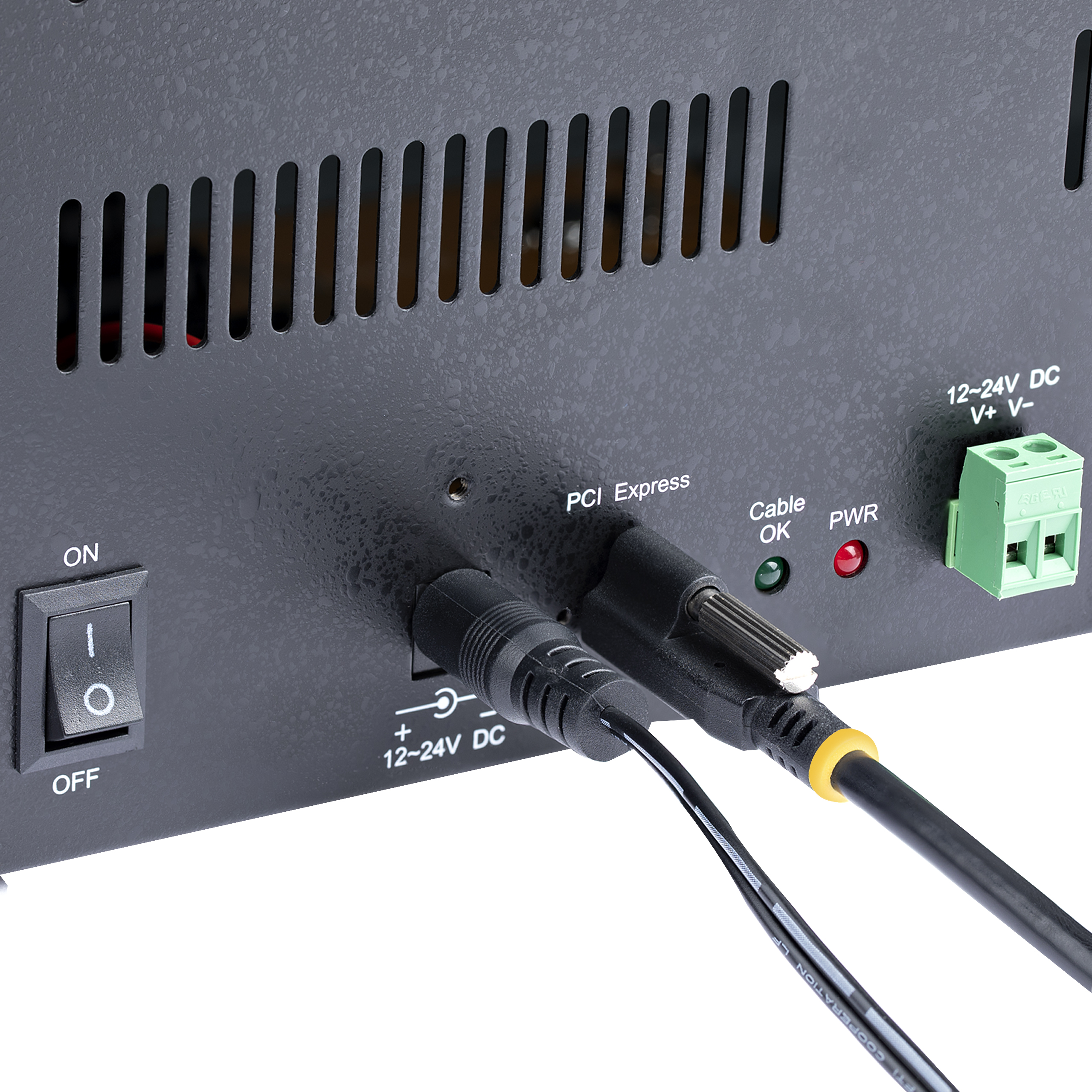

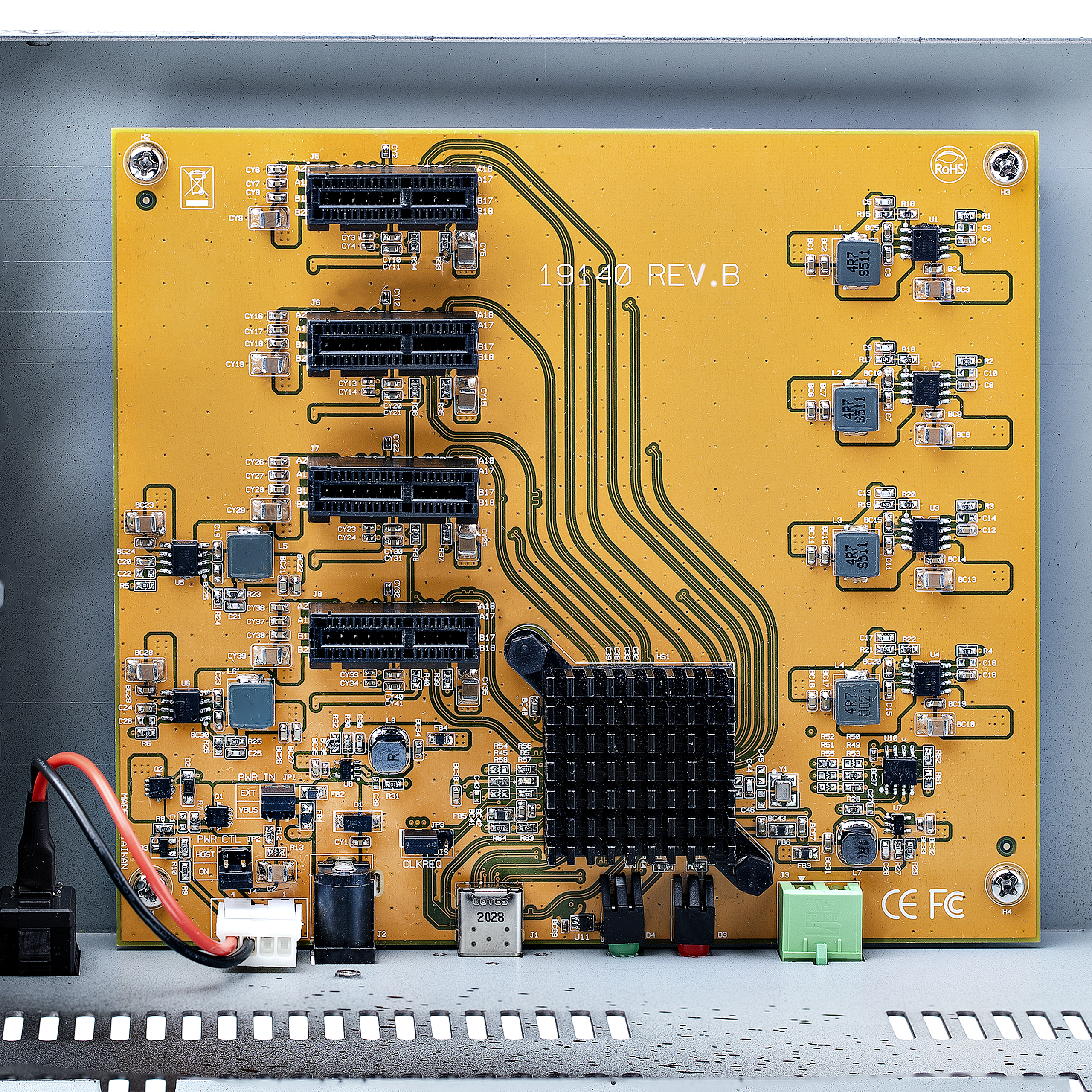

Related Products PEX2PCIE4L Input Current 1A Input Voltage 100 - 240 AC Output Current 3A Output Voltage (V) 12V DC Power Consumption (In Watts) 36W Power Source AC Adapter Included and Terminal Block Plug Type M Center Tip Polarity Positive Color Black Humidity 5 to 95% (non-condensing) Material Steel Operating Temperature 0 to 60°C (32 to 140°F) Primary Material Steel Product Length (mm) 137.800 Product Width (mm) 411.000 Product Height (mm) 143.000 Product Weight (g) 2300.000 Storage Temperature -20 to 75°C (-4 to 167°F) TAA Compliant Yes Maximum Cable Length (mm) 1800 Maximum Data Transfer Rate 10 Gbps OS Compatibility OS Independent Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1806 Industry Standards PCI Express 2.0 </br> USB Type-C Interface/Bridge PCI Express IO Card Port Style Integrated on Card LED Indicators - 1 - Solid green = USB Type-C cable is in the correct orientation</br> Off = USB Type-C cable is not in the correct orientation
- 1 - Solid red - Power is On</br> Off = Power is Off

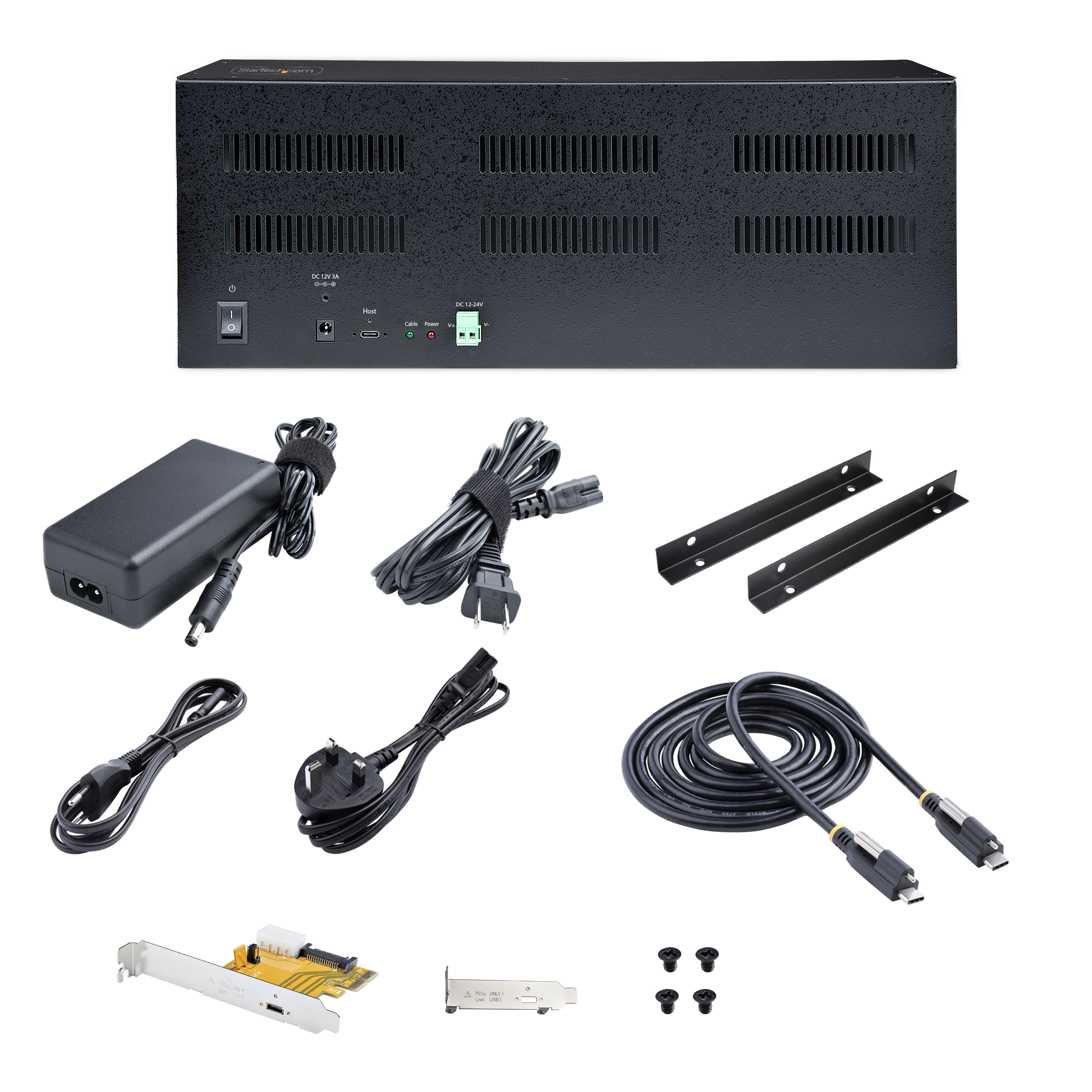

Carton Depth (mm) 520 Carton Height (mm) 275 Carton Quantity 2 Carton Weight Gross (g) 8168 Included in Package - 1 - PCIe to PCIe Expansion Chassis

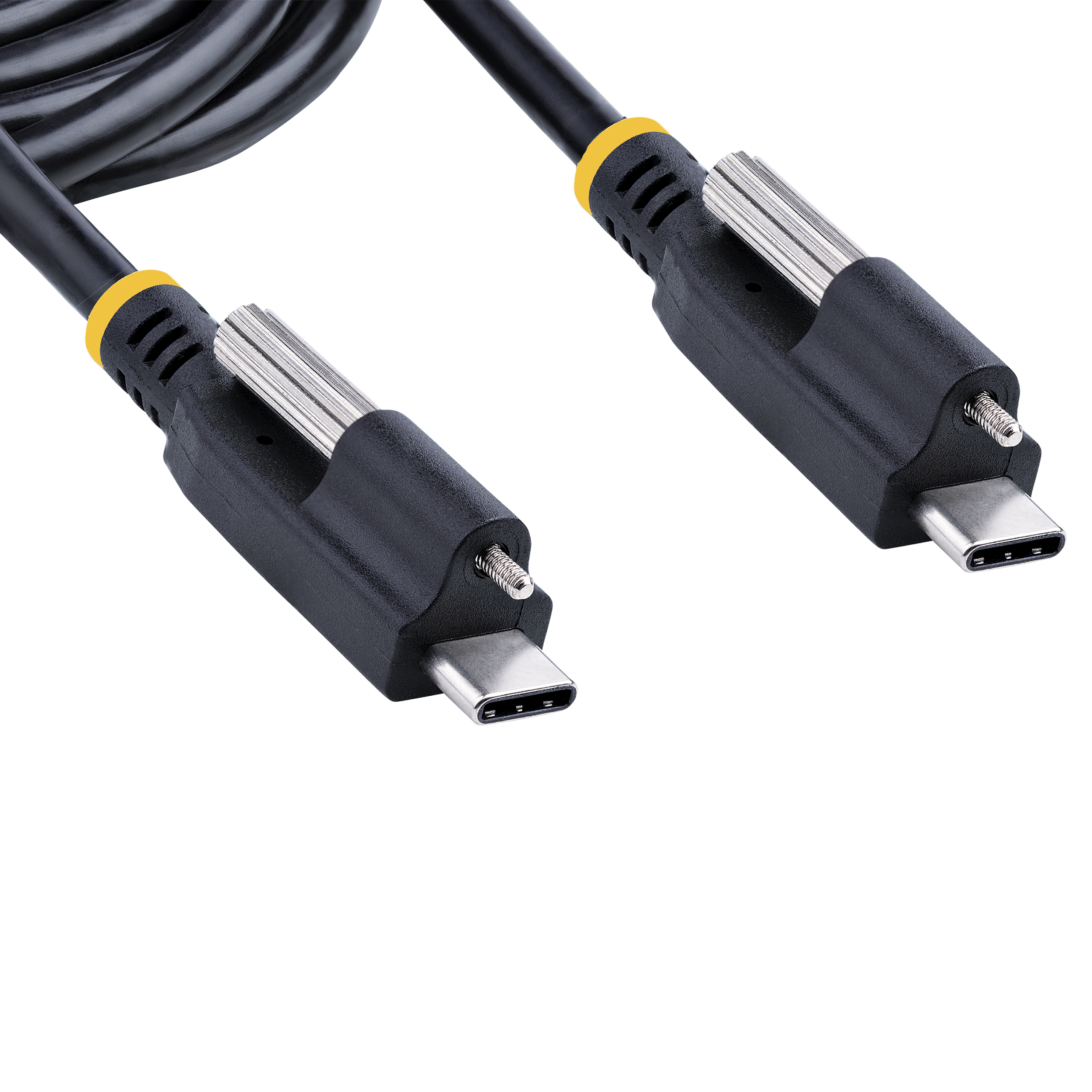

- 1 - 6ft (1.8m) USB Type-C to C Male to Male Cable
- 1 - Low-Profile Bracket
- 1 - Universal Power Adapter
- 1 - Terminal Block Connector
- 1 - Quick-Start Guide

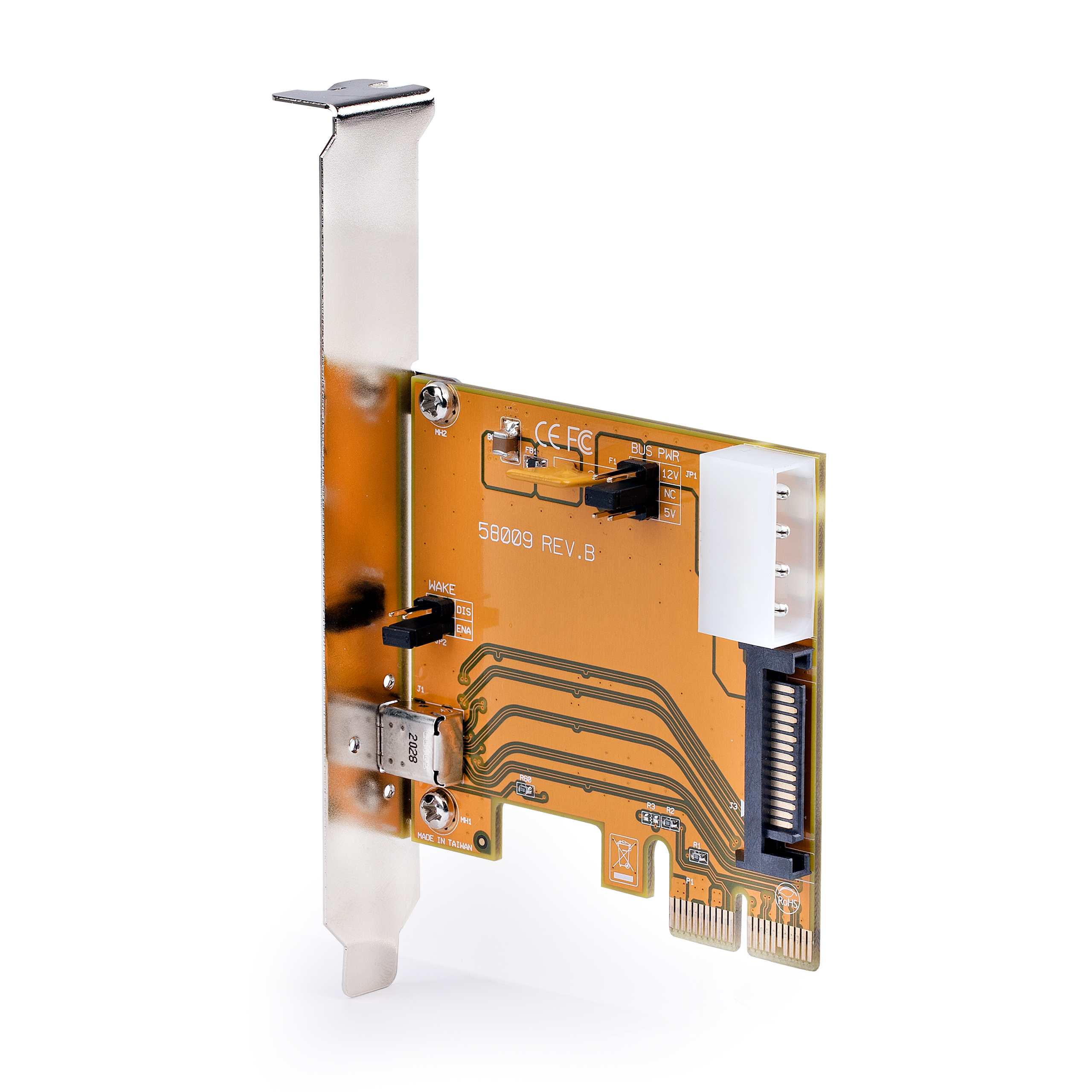

- 1 - PCIe Host Adapter Card
- 2 - Mounting Brackets
- 4 - Mounting Brackets Screws
Package Depth (mm) 443 Package Height (mm) 247 Package Width (mm) 210 Package Quantity 1 Package Weight (g) 3596 Packaging Description PCIe 2.0 to 4 PCIe Slots Expansion Chassis - USB Type-C Packaging Description India PCIe 2.0 to 4 PCIe Slots Expansion Chassis - USB Type-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 PCI Express x1 Connector 1 (Quantity) 4 Connector 2 Terminal Block (2 Wire) Connector 2 (Quantity) 1 Connector 3 USB-C (10Gbps, 4.5W) Connector 3 (Quantity) 1 Connector 4 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 4 (Quantity) 1 Connector 5 PCI Express x2 Connector 5 (Quantity) 1 Connector 6 USB-C (10Gbps, 4.5W) Connector 6 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2022-04-15 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2022-08-26 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,CL,DE,DK,ES,FI,FR,IE,IT,JP,SE,UK,US Primary Technology None Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-10-24 Target Production Release 2022-06-30 Tech Lead Brian Linseman Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Not Required
