4POSTRACK25

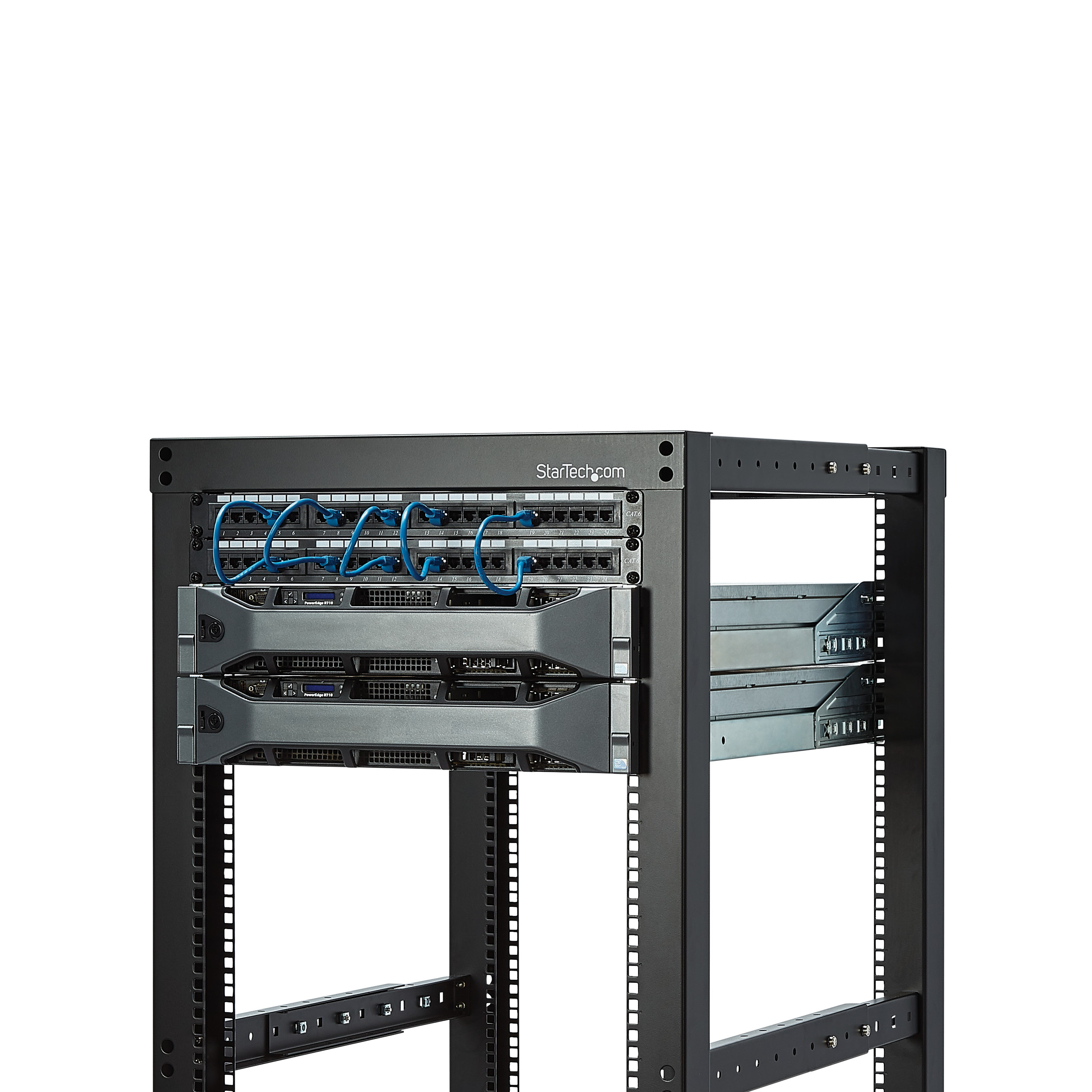

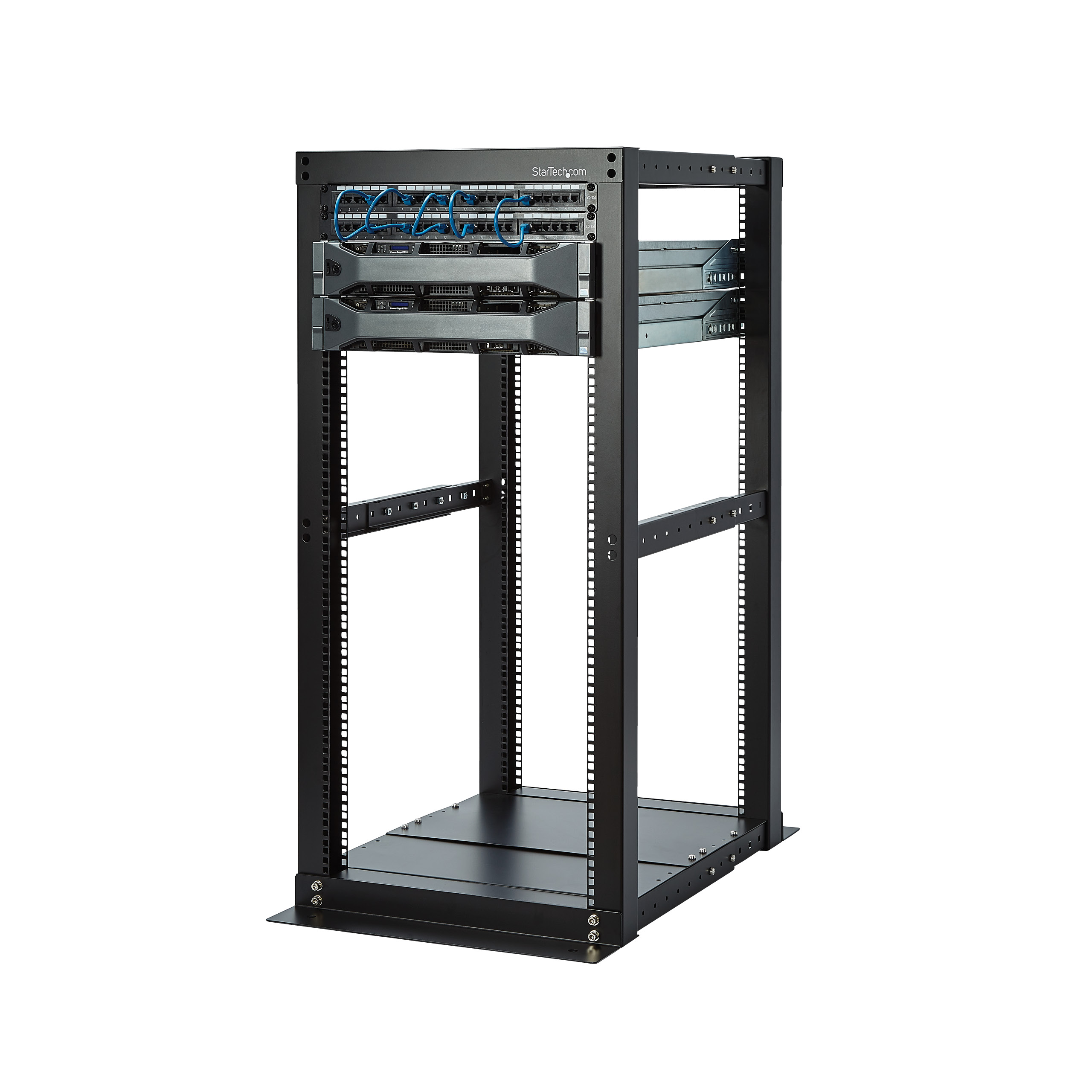

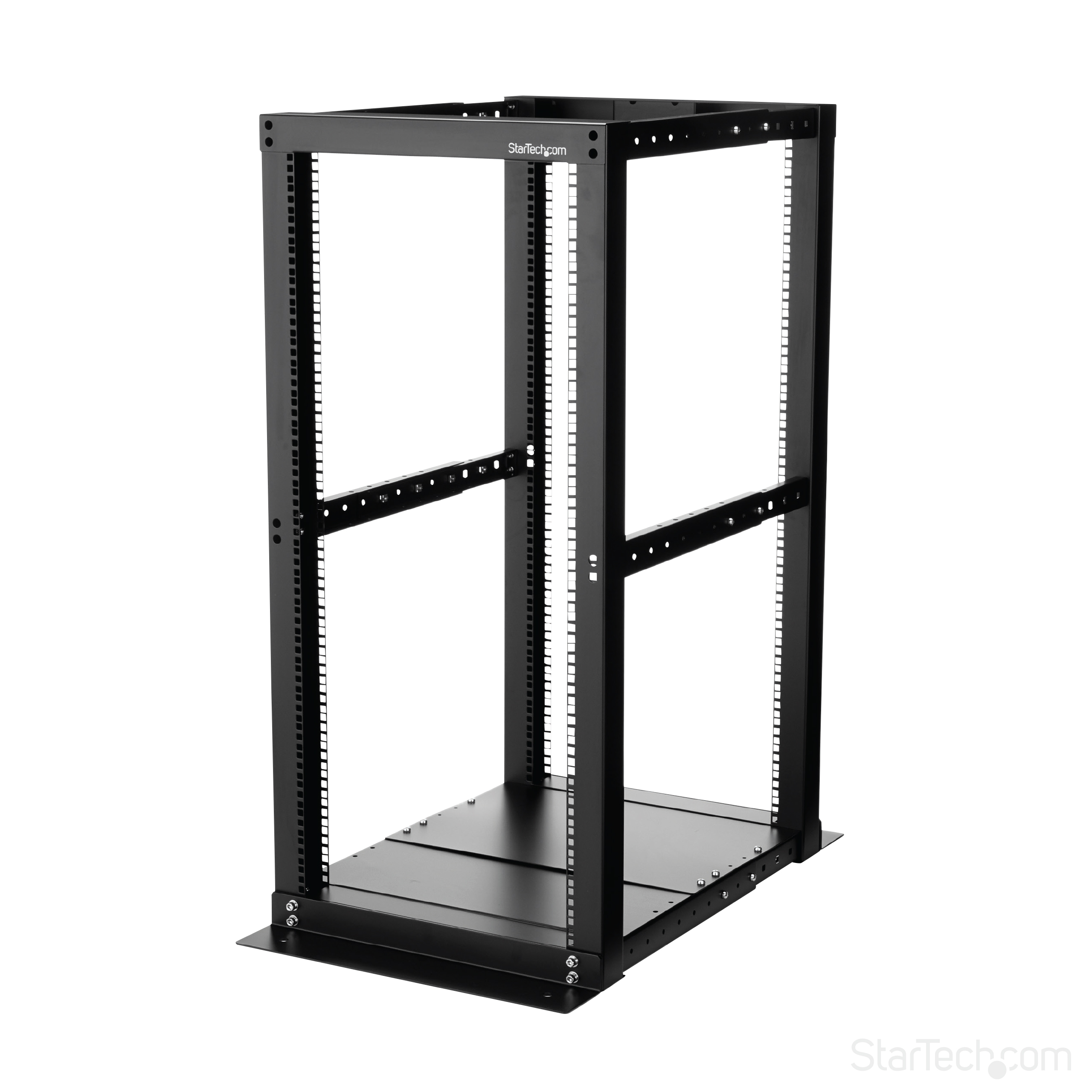

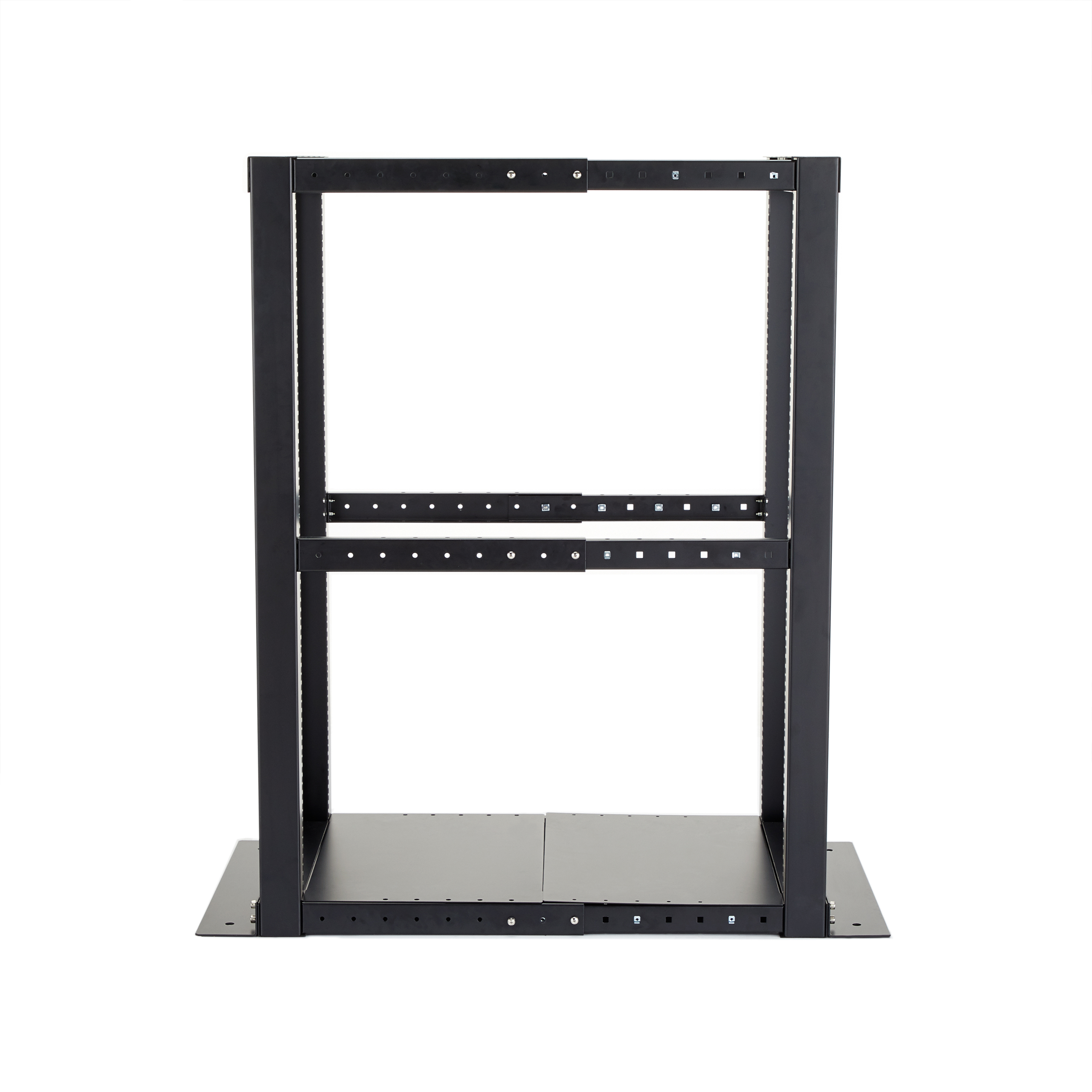

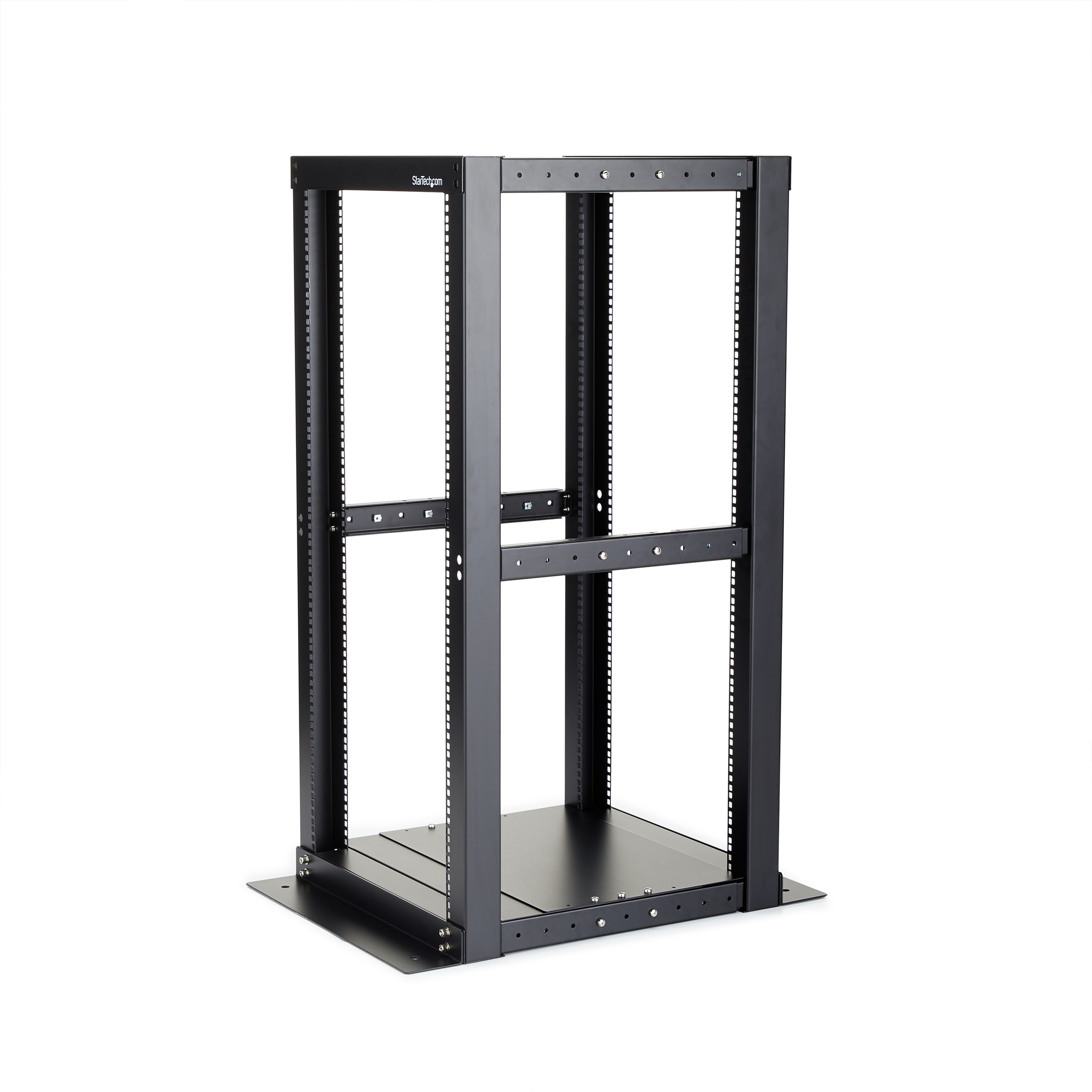

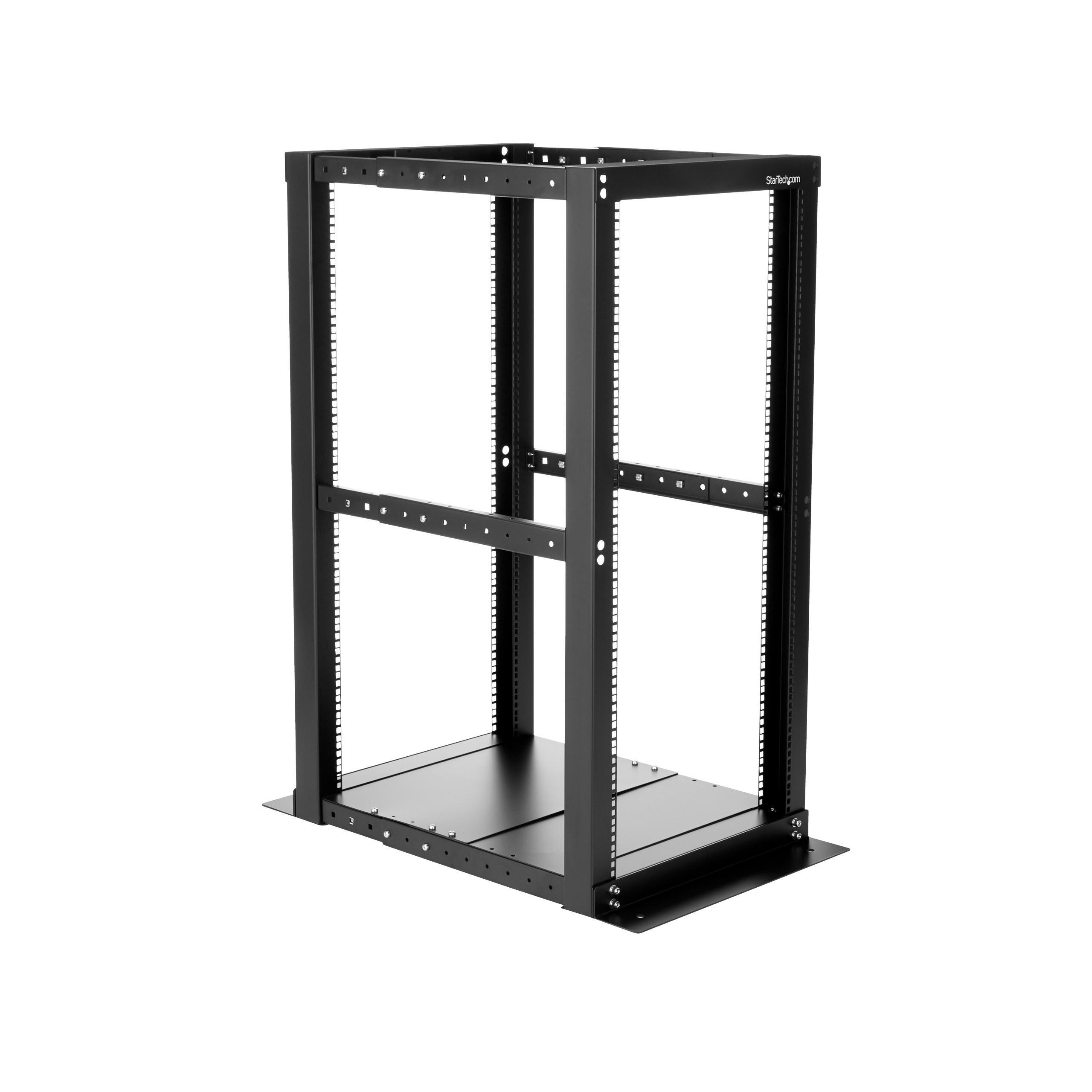

25U Half Height 4-post Server Rack
Store your servers, network and telecommunications equipment in this 25U open-frame rack
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 25U Half Height 4-post Server Rack Product Number 4POSTRACK25 UPC 065030822329 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Racks and Enclosures Category Level 2 Open Frame Racks Category Level 3 Mid-Size Racks - 13-36U Family 4 Post Open Adjustable Depth Floor Securable Rack Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX094X Product Title (Ultra-Short) 25U 4 Post Svr Rack Product Title (Short) 25U 4 Post Open Frame Server Rack Product Title (Medium) 25U Adjustable Depth 4 Post Open Frame Server Rack Cabinet Product Title (Standard) 25U Adjustable Depth 4 Post Open Frame Server Rack Cabinet Product Title (Long) 25U Adjustable Depth 4 Post Open Frame Server Rack Cabinet Product Title (AMZ) 25U Open Frame Server Rack - 994lb Capacity - 4 Post Adjustable Depth (18.3" to 39.3") Network/Communications Equipment Rack w/ Casters (4POSTRACK25) Title Ingram (Part 1) 25U 4 Post Server Open Frame Rac Title Ingram (Part 2) k Cabinet Website Product Headline Store your servers, network and telecommunications equipment in this 25U open-frame rack Bullet 1 Heavy gauge mounting rails Bullet 2 Unobstructed ventilation and cable routing Bullet 3 25U Open frame design Bullet 4 Flat-packed for easy shipping Bullet 5 Adjustable mounting depth from 18.3 - 39.2in Bullets (Consolidated) Store your servers, network and telecommunications equipment in this 25U open-frame rack - Compatible with IBM System X rack server - 25U Server Rack/4 Post Rack/Adjustable Depth Rack/Equipment Rack/Telecom Rack - Adjustable mount depth from 23.5 - 31.5 in - Supports a static loading capacity of 992 lbs (450 kg) - Rack mount servers, KVM switches and network equipment in a server room or data center Marketing Copy Marketing Copy (No HTML) The 25U open frame server rack provides a durable, open air housing for rackmount servers and networking equipment. This TAA compliant server rack adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. The server rack features heavy gauge mounting rails to ensure a stable installation platform, with support for mounting depth adjustment (23.5 - 39.2 inch), giving you the flexibility to fit each rack-mounted audio, video, or data component. This 25U four-post rack is compliant with EIA-RS-310C standards, offering a universal design that's compatible with communication and computer equipment from popular manufacturers. Plus, this adjustable depth rack is flat packed to reduce shipping costs and simplify handling. For added versatility, StarTech.com offers an optional 4pc caster kit (4POSTCASTER) that can be installed on the bottom of the network rack, making it easier to re-position the media cabinet as needed for future uses. This open frame communications rack is the perfect solution for technology shops and repair centers with limited space and mountable equipment. This network rack provides durable storage for rack mount servers, KVM switches, and networking equipment where security at the rack level is not required, such as in a locked server room. Backed by a StarTech.com lifetime warranty and free lifetime multilingual technical support. Applications - Durable storage for rackmount servers, KVM switches, and networking equipment
- Suitable for rackmount equipment where security at the rack level is not required
- Perfect solution for Technology shops and repair centers with limited space and mountable equipment
- Audio/Video editing room, radio or television studio broadcast rackmount equipment
Website Search Keyword - 4 Post
- Racks
- 25U
- open frame
- open rack
- knockdown
- knock down
- flatpack
- flat pack
- equipment rack
- server racks
- network rack
- cabinet
- cabinets
- telecom rack
- telco
- telecommunications rack
- SR4POST25
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Color Black Construction Material Steel Depth Capacity (Filter) Adjustable Height with Casters (mm) 1296 Maximum Mounting Depth (mm) 1000 Minimum Mounting Depth (mm) 466 Primary Material Steel Product Length (mm) 620.000 Product Width (mm) 571.000 Product Height (mm) 1225.000 Product Weight (g) 38101.728 TAA Compliant Yes Rack Weight Capacity Range 601-1400lbs (273-635kg) Weight Capacity for Racks with No Casters (g) 450000 Frame Type Open Frame Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile C-Shape Rack Special Features - Adjustable Mounting Rails
- Base Plate with Floor-Anchoring Holes
- Easy Assembly
- Casters (Optional)
Rack Type 4-Post Rack U Height Ranges 12-26U U Height 25U Wallmountable No Carton Depth (mm) 638 Carton Height (mm) 172 Carton Quantity 1 Carton Weight Gross (g) 41730.464 Included in Package - 2 - Front/Rear Frames
- 2 - Floor Plates
- 6 - Adjustable Horizontal Arms
- 2 - Floor Mounting Brackets
- 1 - M8 Hex Key
- 8 - M8x25 Hex Socket Screws
- 42 - M5x15 Truss Head Screws
- 16 - Bushing Caps
- 62 - M5 Screws
- 62 - M5 Cage Nuts
Package Depth (mm) 655 Package Height (mm) 180 Package Width (mm) 1300 Package Quantity 1 Package Weight (g) 41500 Packaging Description 25U Adjustable 4 Post Open Frame Server Rack Packaging Description India 25U Adjustable 4 Post Open Frame Server Rack Rack Flatpack Yes Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,EU,FR,IE,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
