4U2525-SAS-BACKPLANE
Quad 2 5 bay Remo

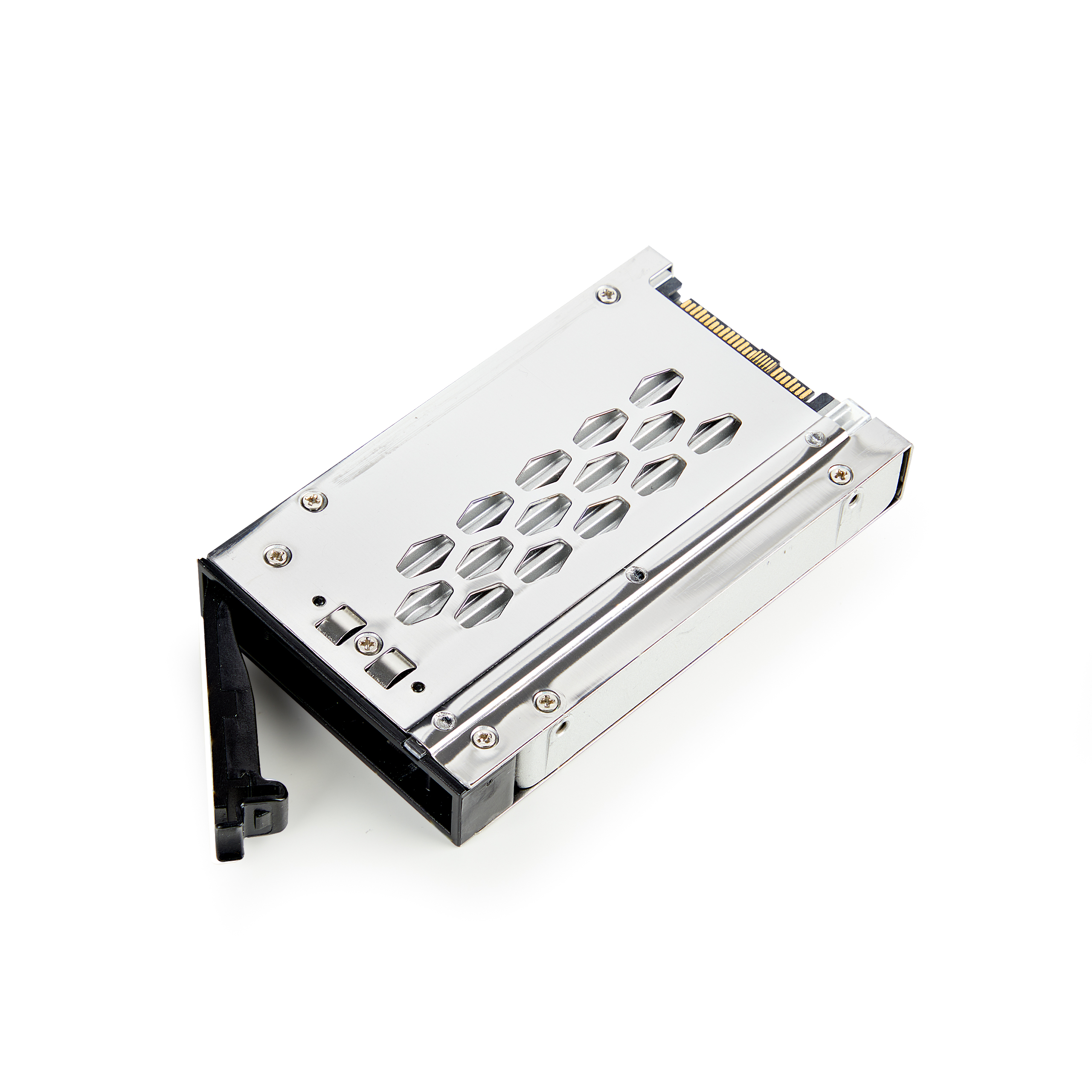

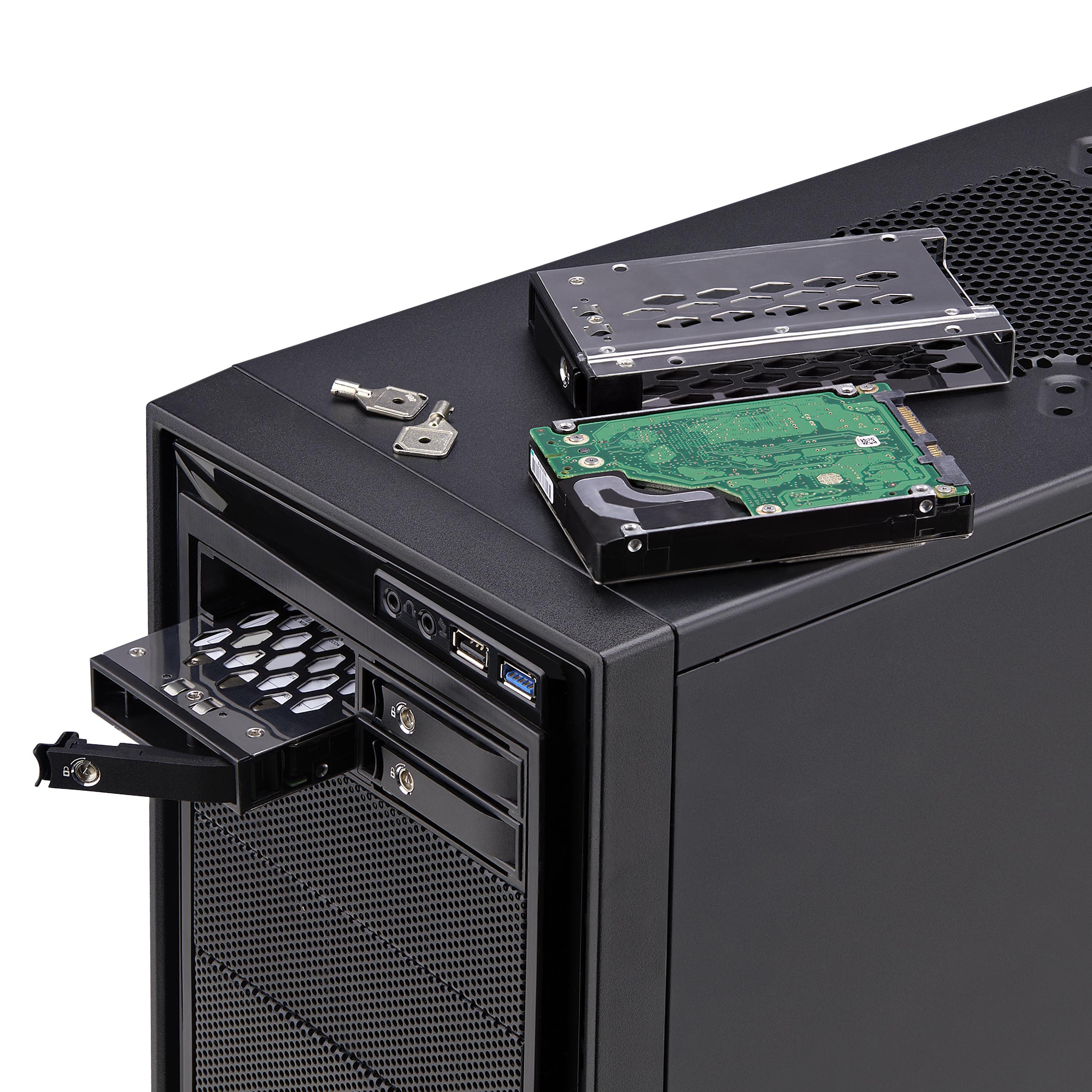

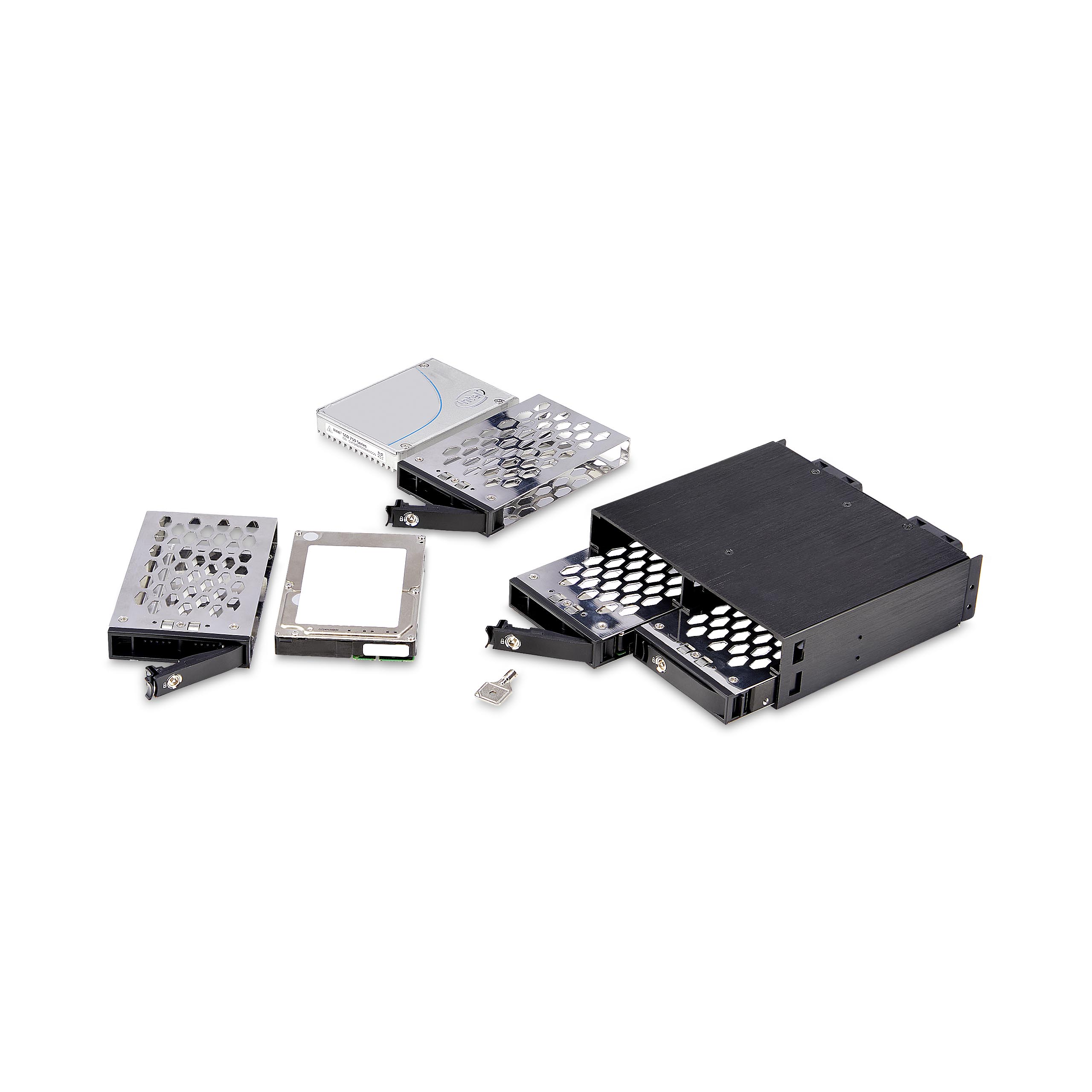

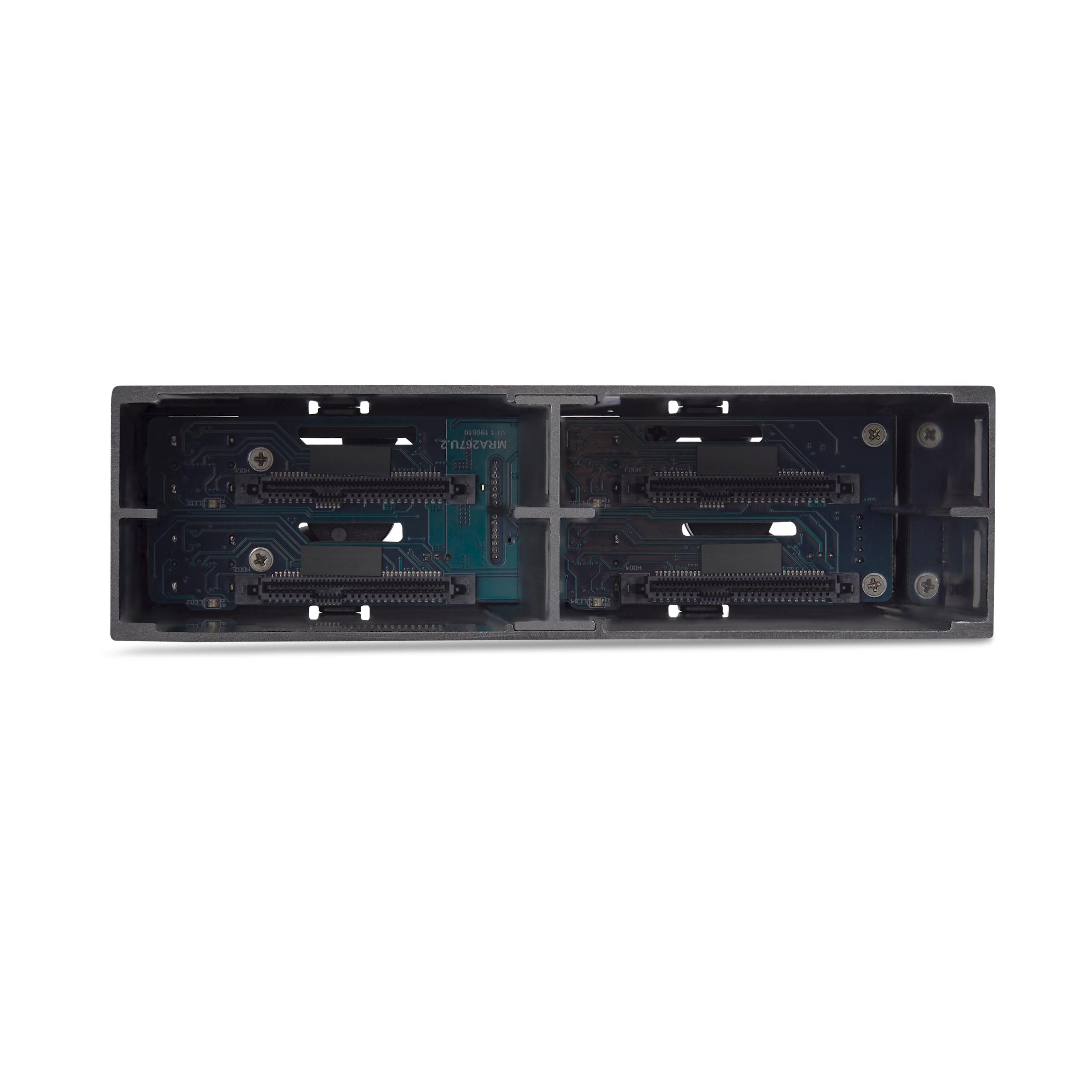

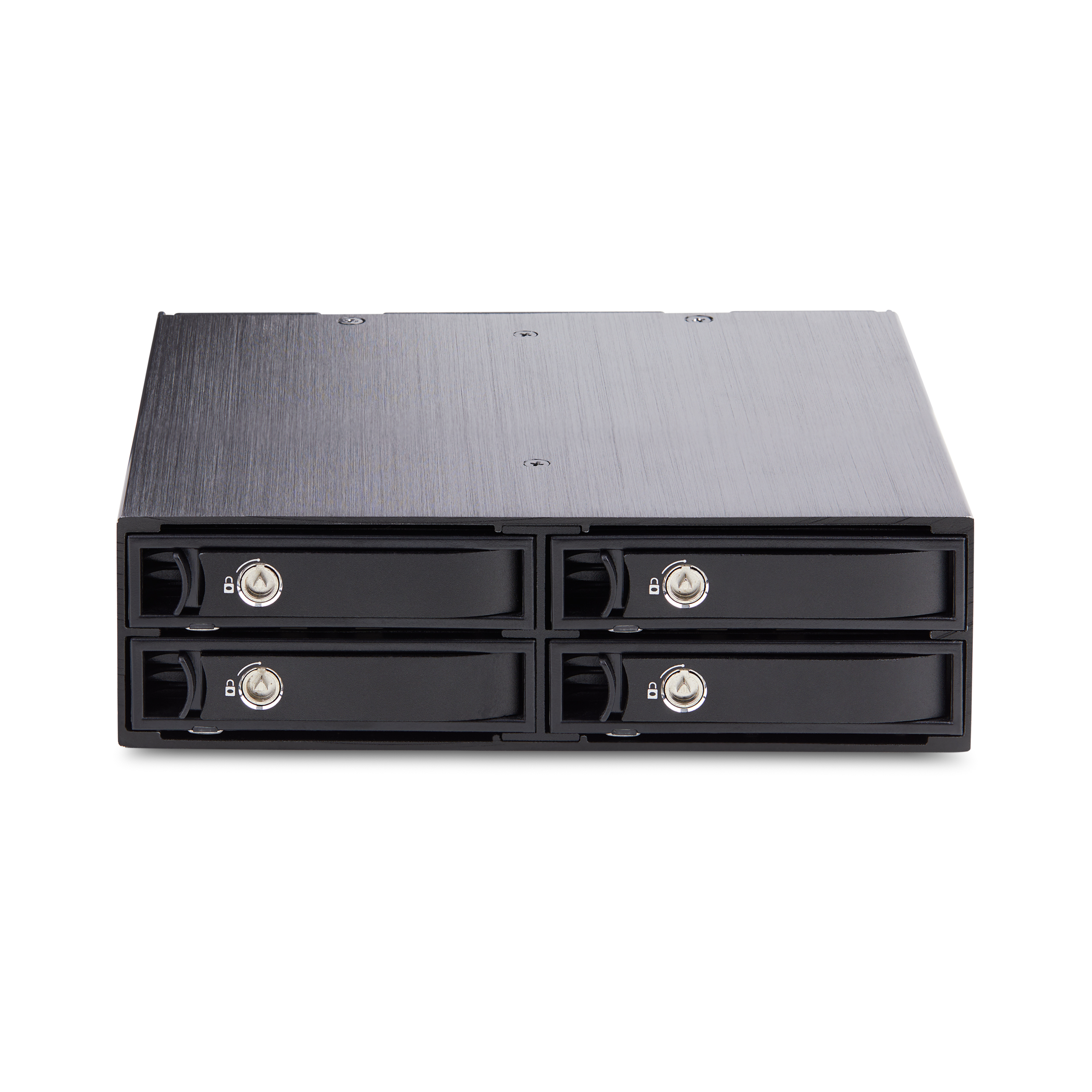

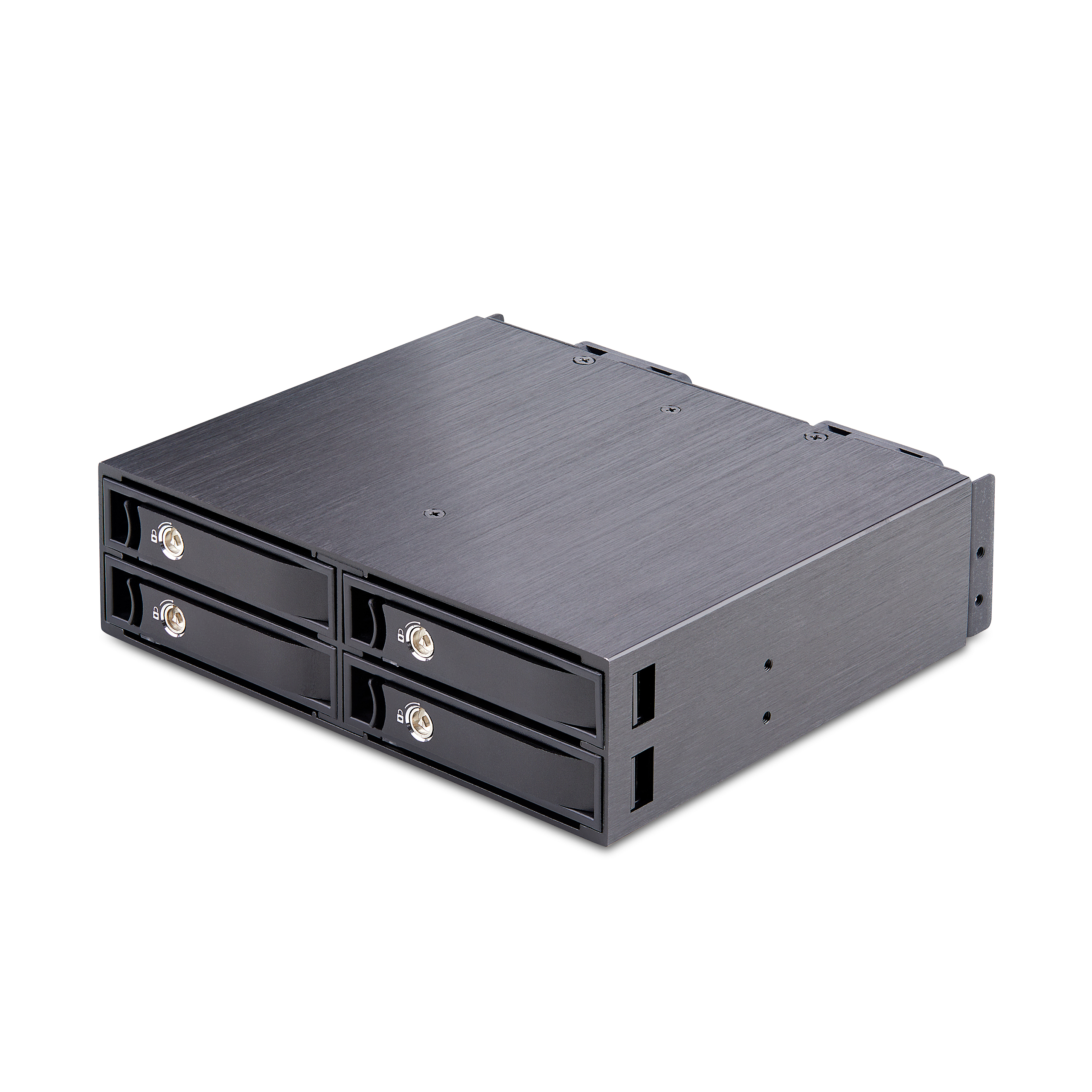

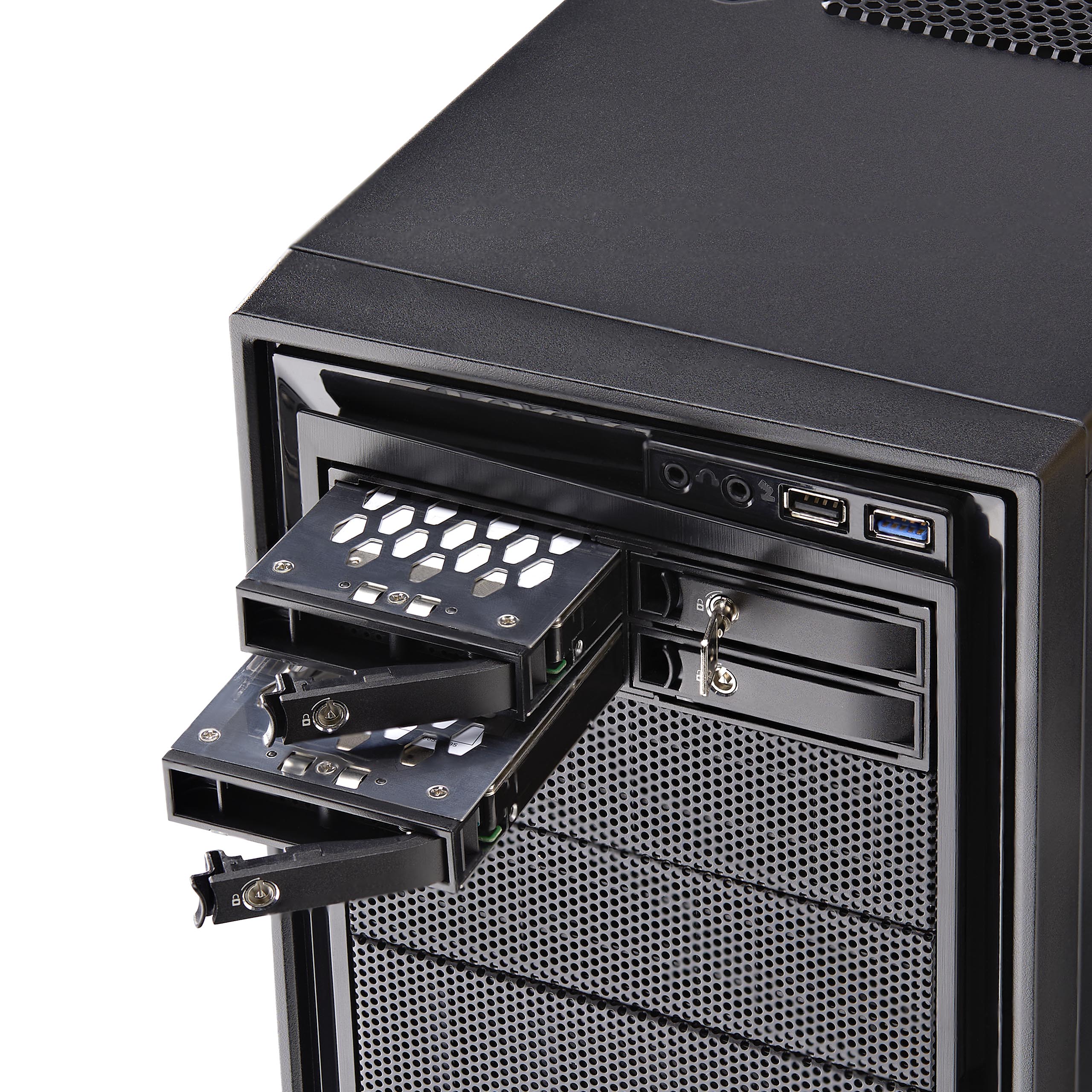

Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays
Main Image
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name Quad 2 5 bay Remo Product Number 4U2525-SAS-BACKPLANE UPC 065030900133 Lifecycle status Active Warranty 2 Years Weighted Opportunity 111897 Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Internal Storage Category Level 3 2.5" Drive Mobile Racks and Backplanes Family Quad 2.5" U.2 Backplane Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX088X Product Title (Ultra-Short) 4-Bay U.2 Backplane Product Title (Short) 4-Bay Backplane for U.2 NVMe Drives Product Title (Medium) 4-Bay Backplane for U.2 Drives, Mobile Rack for 2.5inch U.2 (SFF-8639) SSDs Product Title (Standard) 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Mobile Rack for 2.5inch U.2 (SFF-8639) NVMe HDD/SSDs, Removable Trays Product Title (Long) 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Quad-Bay Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) HDD/SSDs, Includes Mini-SAS HD Cables and Removeable Trays - Backplane with Fans Product Title (AMZ) 4-Bay Backplane for U.2 Drives, Fits in a 5.25inch Bay, Mobile Rack Enclosure for 2.5inch U.2 (SFF-8639) NVMe SSDs, Includes Mini-SAS HD Cables/Removeable Trays (4U2525-SAS-BACKPLANE) Title Ingram (Part 1) 4-Bay Backplane for U.2 SSDs - Title Ingram (Part 2) Mobile Rack Enclosure with Cables Website Product Headline Install four 2.5in U.2 (SFF-8639) NVMe drives into one 5.25in bay, with removable drive trays Bullet 1 4-BAY BACKPLANE: Add four U.2 (SFF-8639) NVMe drive bays to computer; Supports 7mm to 15mm 2.5" NVMe SSDs; Up to 32Gbps per drive with individual Mini-SAS SFF-8643 ports; Fits into a 5.25" bay; Hot swapping requires PCIe hot swap support from the host Bullet 2 SECURE DESIGN: Lockable drive trays/caddies (2x keys incl.) keep the drives safe while adding an extra layer of security, helping to prevent accidental hot-swaps; Aluminum body aids heat dissipation; Extra drive trays sold separately (SATSASTRX25) Bullet 3 WELL VENTILATED: Quad U.2 mobile rack with four perforated drive trays/caddies, two rear blower fans and front air vents keep drives cool for optimal performance; Rear fan switch enables the adjustment of drive cooling fans between high and low settings Bullet 4 WIDE COMPATIBILITY: Compatible with storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), and mdraid/mdadm (Linux); Requires no drivers or software and works with any operating system; Supports U.2 NVMe Drives only Bullet 5 HASSLE-FREE SETUP: Includes 4x 2ft (61cm) Mini-SAS HD cables and uses a single SATA Power connector from the desktop/server power supply for a rapid installation; Drive and backplane mounting screws included; LEDs for individual drive status and activity Bullets (Compact) 4-bay backplane adds four U.2 (SFF-8639) NVMe drive bays to desktop/server; Supports 7mm to 15mm 2.5" U.2 NVMe SSDs; Up to 32Gbps; Lockable and removeable drive trays/caddies; Works with any operating system; 2x keys incl.; Includes 4x Mini-SAS Cable Bullets (Consolidated) - 4-bay backplane adds 4x U.2 SFF-8639 NVMe drive bays to a desktop/server; Supports 7mm to 15mm 2.5" SSDs; Up to 32Gbps per drive via Mini-SAS SFF-8643 ports - Lockable and removeable drive trays/caddies with 2x keys included - Mobile rack features two rear fans and front air vents to keep drives cool for optimal performance; Fan switch for high/low settings - Includes 4x 2ft Mini-SAS HD cables; Uses SATA Power from the host PSU; Drive/backplane mounting screws included; Fits into a 5.25" bay Marketing Copy Marketing Copy (No HTML) Applications - For businesses or professionals who need a reliable data backup and archiving solution
- Add a scalable storage solution to file servers or network-attached storage (NAS) systems
Website Search Keyword - 2.5" 4 drive u.2 backplane
- 2.5" backplane
- 4 drive backplane
- 4 drive mobile rack
- 4-bay backplane
- 5.25" hard drive bay
- hdd backplane
- ssd backplane
- u.2 backplane
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + foam
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
Special Notes - This product supports U.2 (SFF-8639) drives only.
- Hot swapping requires PCIe hot swap support from the host
Accessory Products SATSASTRX25 Related Products - SATSASBP425
- HSB3SATSASBA
- HSB4SATSASBA

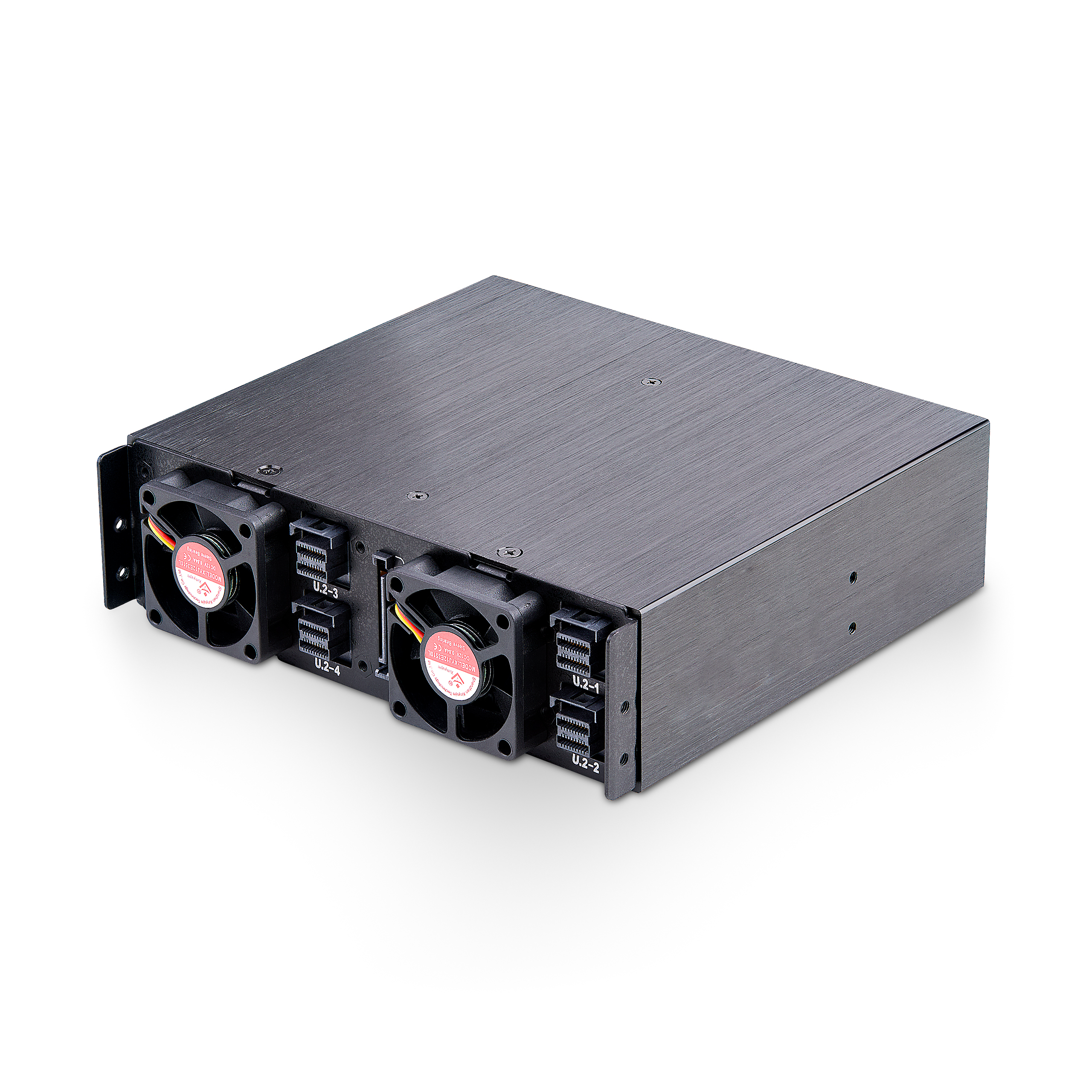

Color Black Humidity 5% ~ 65% RH (non-condensing) Material Aluminum Operating Temperature 0°C to 55°C (32°F to 131°F) Product Length (mm) 146.000 Product Width (mm) 139.000 Product Height (mm) 42.000 Product Weight (g) 704.000 Storage Temperature -20°C to 55°C (-4°F to 131°F) TAA Compliant No 4Kn Support Yes Air Flow Rate 2.47 CFM Hot Swap Capability Yes Insertion Rating 500 Maximum Data Transfer Rate 32Gbps MTBF (hours) 30,000 Hours Noise Level 21.3 dBA OS Compatibility OS Independent Port Multiplier No Compatible Drive Types U.2 (PCIe, NVMe, SFF-8639) Fan Bearing Type Sleeve Bearing Fans 2 - 35 mm Fans Included? Yes/No Yes Front Door Key Lock Yes Interface/Bridge U.2 (SFF-8639; PCIe x4) LED Indicators Number of Drives 4 Supported Drive Height(s) - 7mm
- 9.5mm
- 12.5mm
- 15mm
Carton Depth (mm) 469 Carton Height (mm) 215 Carton Quantity 6 Carton Weight Gross (g) 7310 Included in Package - 1 - 4-Bay Drive Backplane
- 1 - Set of Keys
- 8 - Frame Mounting Screws
- 16 - Drive Mounting Screws
- 1 - Quick-Start Guide

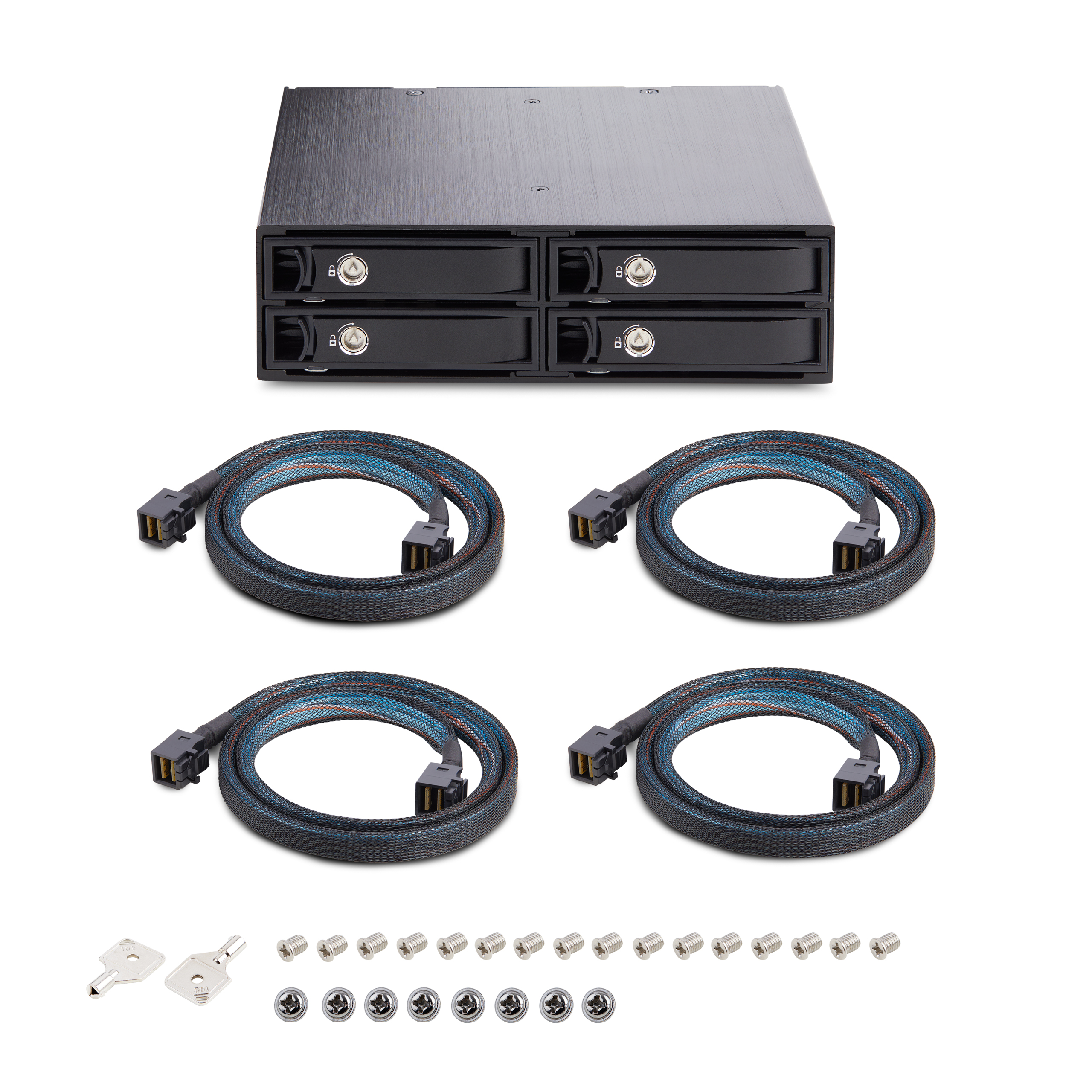

- 4 - 2ft Mini-SAS Cables

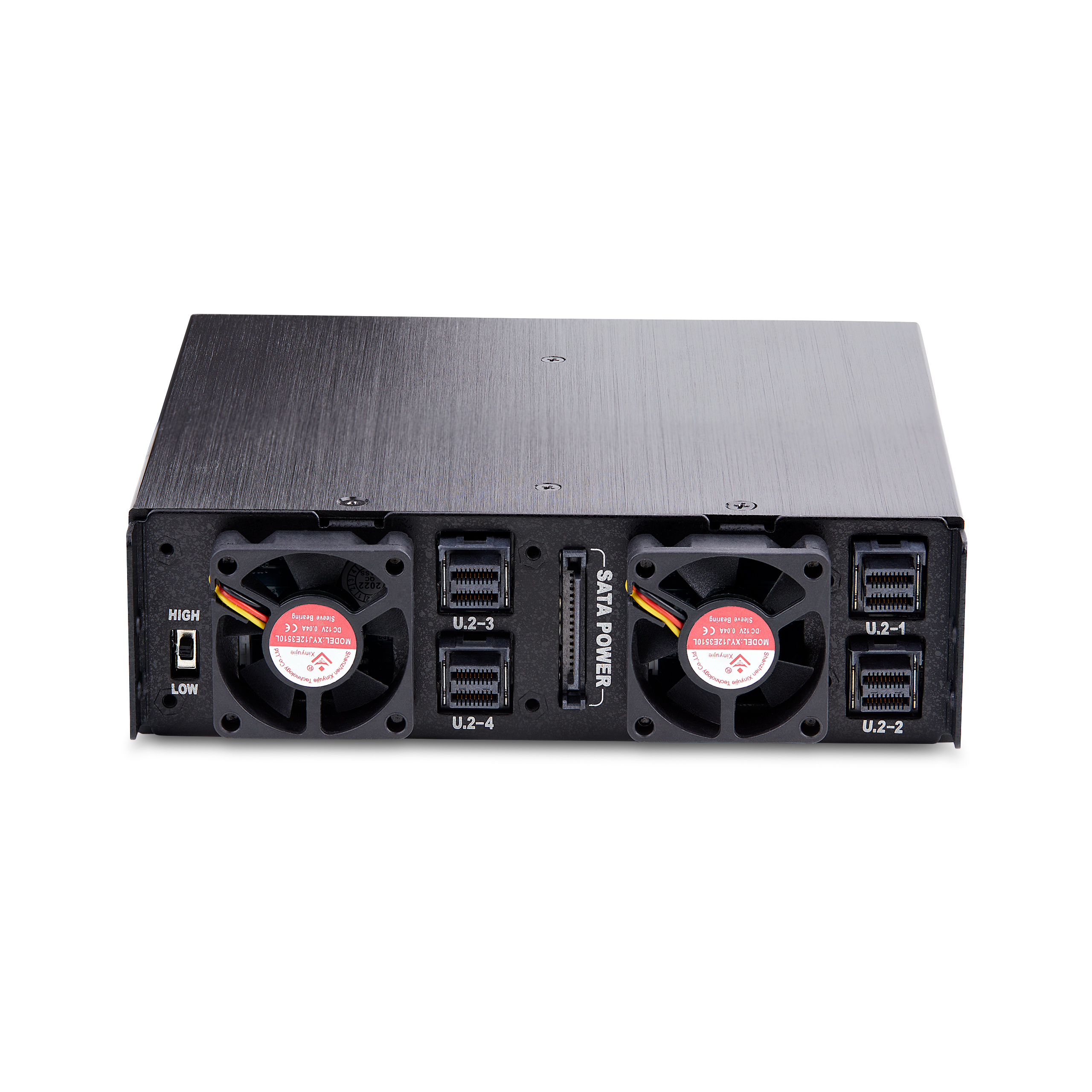

Package Depth (mm) 218 Package Height (mm) 136 Package Width (mm) 185 Package Quantity 1 Package Weight (g) 1070 Packaging Description 4-Bay 2.5in U.2 (SFF-8639) Drive Backplane Packaging Description India 4-Bay 2.5in U.2 (SFF-8639) Drive Backplane Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 U.2 (PCIe, AHCI / NVMe) Connector 1 (Quantity) 4 Host Connector 1 SFF-8643 (36-Pin SAS) Host Connector 1 (Quantity) 4 Host Connector 2 SATA (15-Pin) Host Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Application Photos Uploaded Artwork Due Date 2023-04-11 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 4-Bay Mobile Rack Backplane for 2.5in SATA/SAS Drives - 5.25in bay Comparable SKU 2 Comment N/A Digital Content Due Date 2023-10-13 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) CA,IN,JP,US Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-04-04 Target Production Release 2023-06-15 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
