50FIBLCLC5

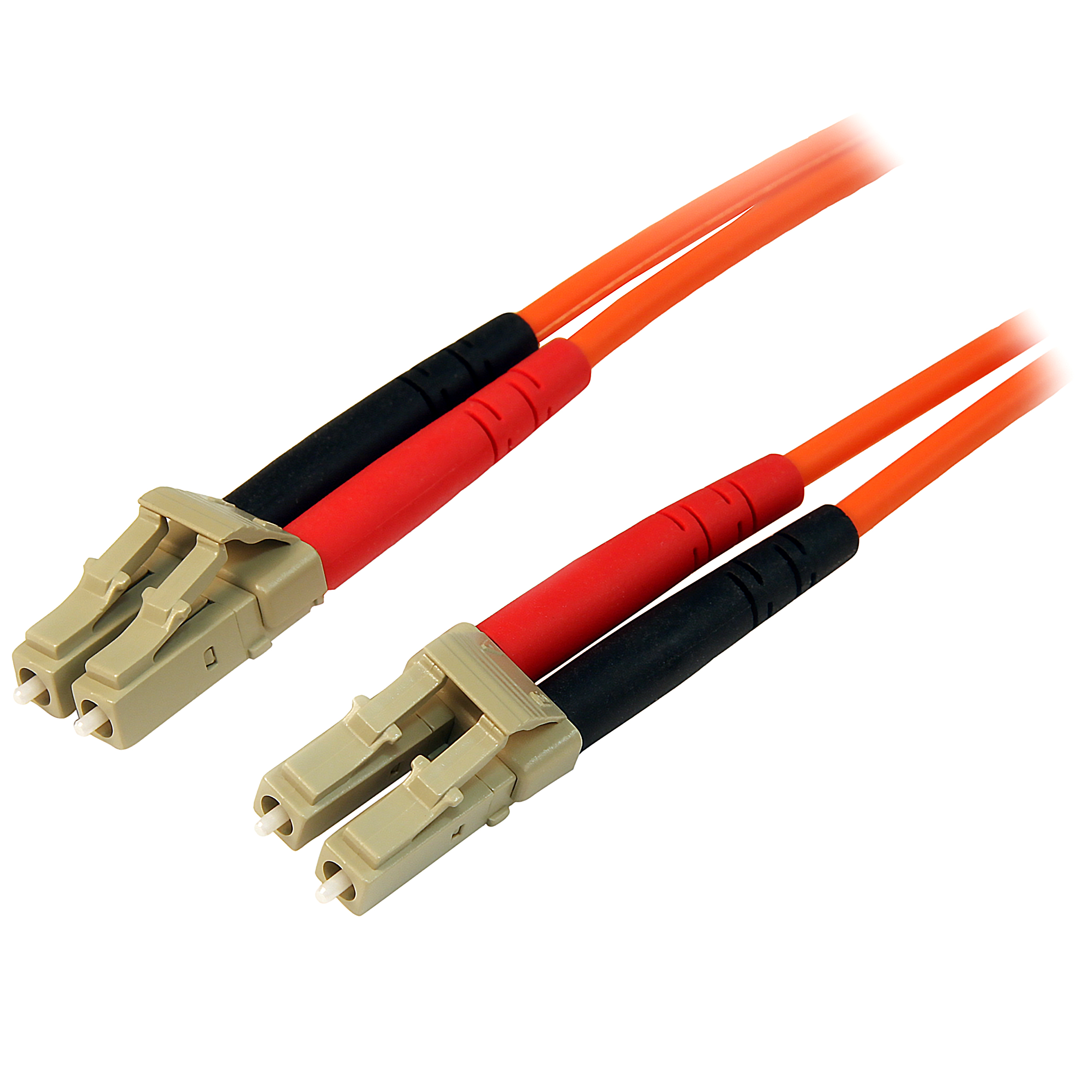

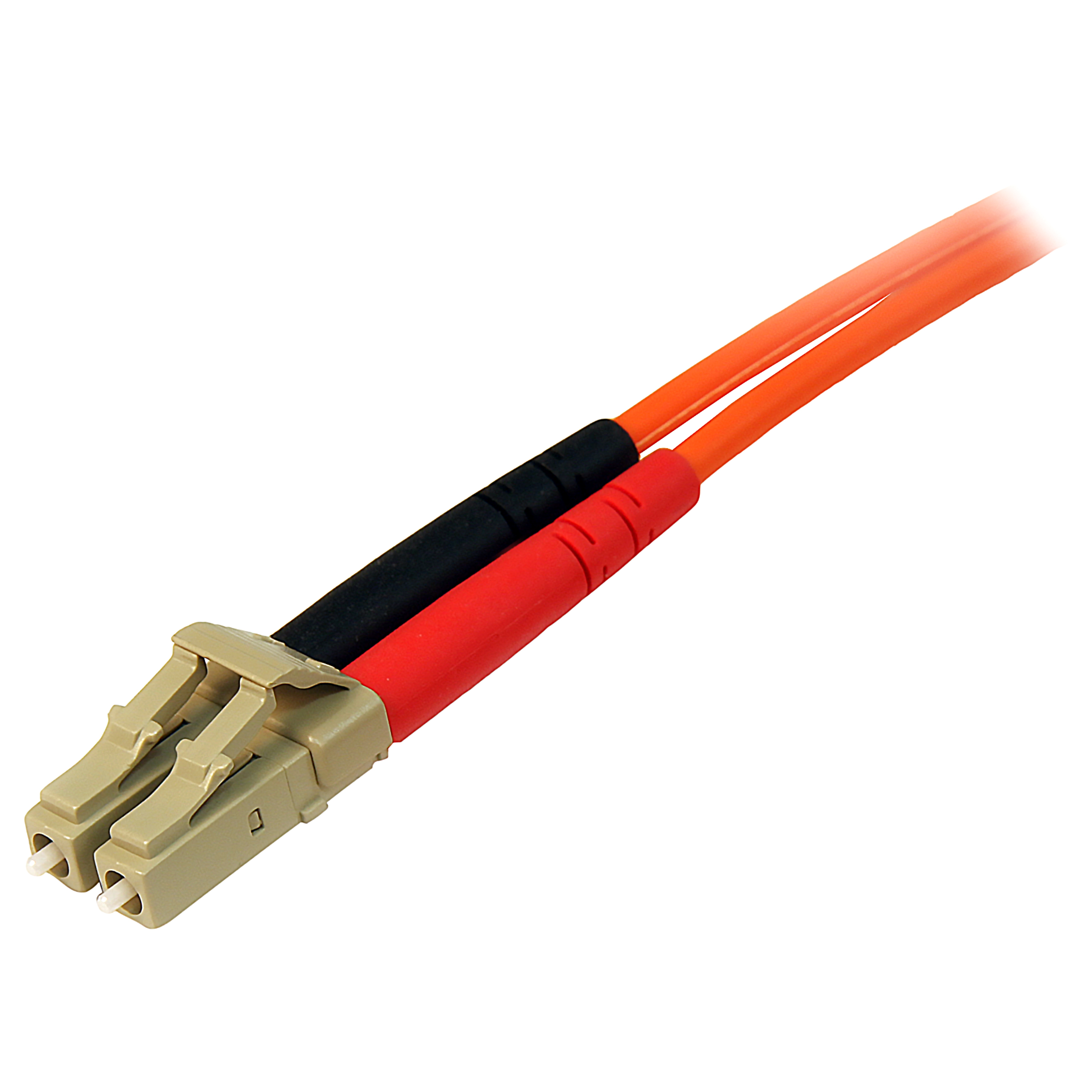

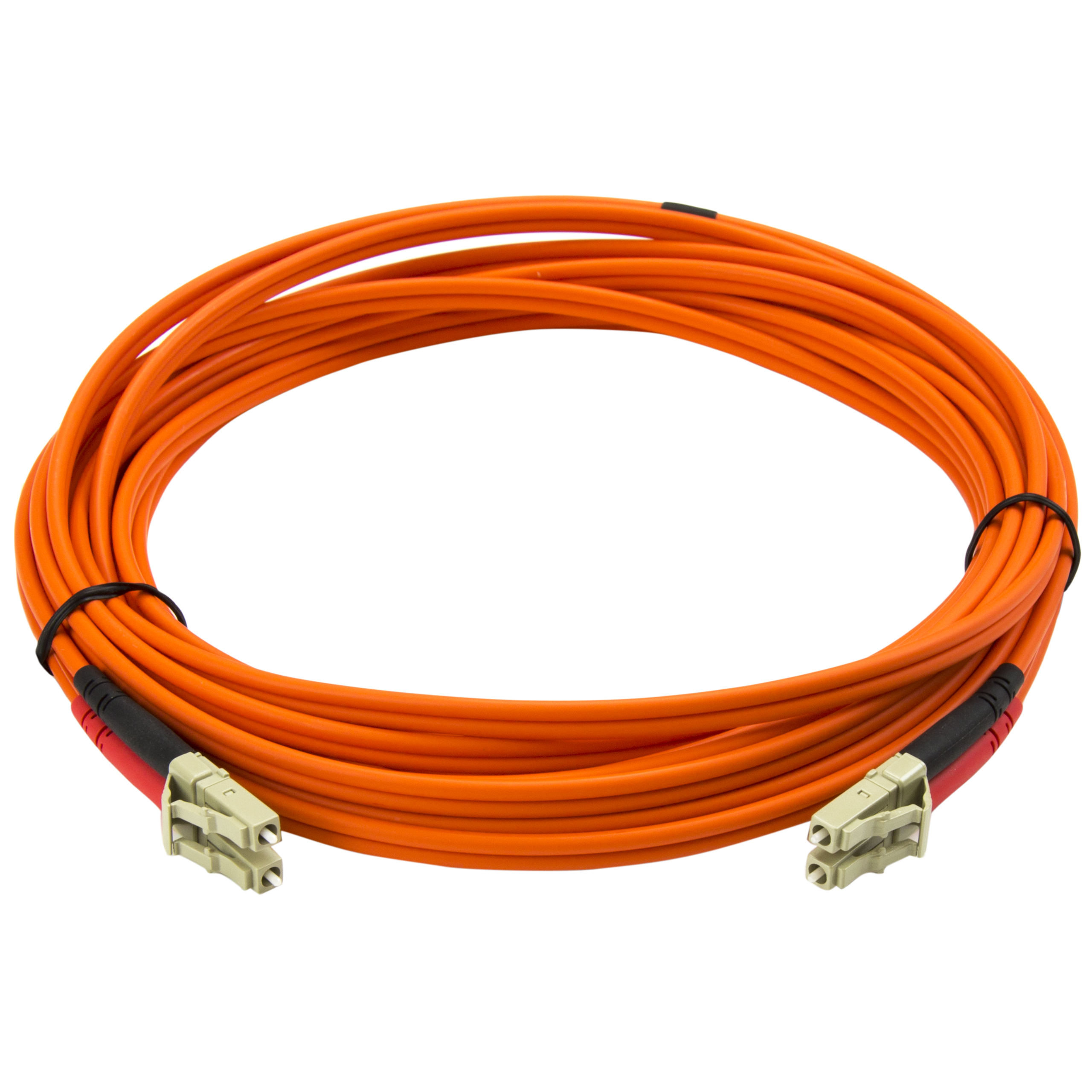

5m 50 125 Multimode LC LC Fiber Cable
Connect fiber network devices for high-speed transfers with LSZH rated cable
Main Image
Product Images
Product Images
Product Name 5m 50 125 Multimode LC LC Fiber Cable Product Number 50FIBLCLC5 UPC 065030802895 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Fiber Network Cables Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode OM2 Fiber Cables Family OM2 Fiber Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX079X Product Title (Ultra-Short) 5m Fiber Cable LC/LC Product Title (Short) 5m Multimode Fiber Patch Cable LC - LC Product Title (Medium) 5m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH - LC/LC Product Title (Standard) 5m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/LC Product Title (Long) 5m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/LC Product Title (AMZ) 5m Fiber Optic Cable - Multimode Duplex 50/125 - LSZH Fiber Jumper Cord - LC/LC Title Ingram (Part 1) 5m Multimode 50/125 Duplex Title Ingram (Part 2) Fiber Patch Cable LC/LC - LSZH Website Product Headline Connect fiber network devices for high-speed transfers with LSZH rated cable Bullet 1 Immune to electrical interference Bullet 2 OM2 (50/125) 500MHz multimode fiber Bullet 3 LSZH (Low-Smoke, Zero-Halogen) cable jacket Bullet 4 Attenuation loss meets or exceeds industry standards Bullets (Compact) Connect fiber network devices for high-speed transfers with LSZH rated cable - LC to LC Fiber Optic Patch Cable - OM2 (50/125) 500MHz multimode fiber - LSZH (Low-Smoke, Zero-Halogen) cable jacket - 5m in length - Lifetime Warranty Bullets (Consolidated) Connect fiber network devices for high-speed transfers with LSZH rated cable - 5 meter Duplex Fiber Cable/LC to LC/Multimode Patch Cable/5m Multimode 50/125 Duplex Fiber Optic Cable LC to LC - OM2 (50/125) 500MHz multimode fiber - LSZH (Low-Smoke, Zero-Halogen) cable jacket - Immune to electrical interference - Ideal solution for data applications requiring high speed data transmission - Guaranteed reliability with a StarTech.com lifetime warranty Marketing Copy Applications - Used by long distance networks with mission critical data
- Telecommunication / Data communication
- Broadband systems
- Ideal solution for data applications requiring high speed data transmission
Website Search Keyword N520-05M Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Cable Length (mm) 5000 Color Orange Humidity 0~90% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 5000.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 67.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Cable Rating 1Gbps / 10Gbps Fiber Type Multi Mode Maximum Data Transfer Rate 10Gbps Cable Jacket Material Low Smoke Zero Halogen Classification OM2 Fiber Cable Type Duplex Fiber Classification OM2 Fiber Size 50/125 Fire Rating LSZH Rated (Low Smoke Zero Halogen) Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 408 Carton Height (mm) 438 Carton Quantity 160 Carton Weight Gross (g) 14642 Included in Package 1 - 5m Multimode 50/125 Duplex Fiber Patch Cable LC – LC Number of Sub-Cartons 8 Package Depth (mm) 197 Package Height (mm) 20 Package Width (mm) 171 Package Quantity 1 Package Weight (g) 84 Packaging Description Multimode 50/125 Duplex Fiber Patch Cable Packaging Description India Multimode 50/125 Duplex Fiber Patch Cable Sub-Carton Depth (mm) 204 Sub-Carton Height (mm) 213 Sub-Carton Width (mm) 213 Sub-Carton Quantity 20 Sub-Carton Weight (g) 1660 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 LC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,IE,IT,JP,NL,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
