50FIBPLCST2

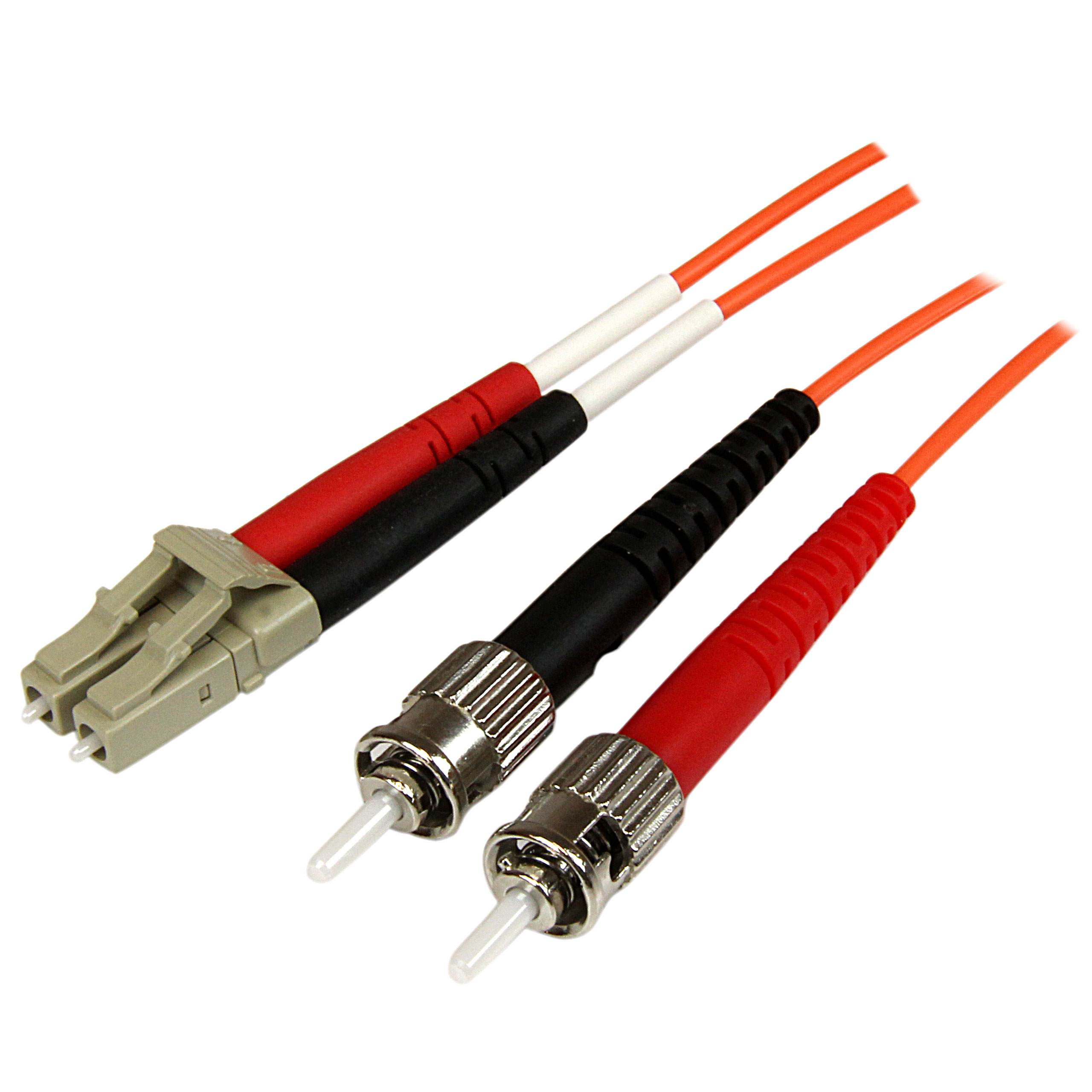

2m 50 Micron Multimode Fiber Optic Cord LC-ST OFNP
Provide a high-performance link between fiber network devices, for applications requiring plenum rated cables
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 2m 50 Micron Multimode Fiber Optic Cord LC-ST OFNP Product Number 50FIBPLCST2 UPC 065030851961 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode OM2 Fiber Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX079X Product Title (Ultra-Short) OFNP LC-ST Fiber Cbl Product Title (Short) 2m OFNP LC to ST Duplex Fiber Cable Product Title (Medium) 2m Fiber Optic Cable - Multimode Duplex 50/125 - OFNP Plenum - LC/ST Product Title (Standard) 2m Fiber Optic Cable - Multimode Duplex 50/125 - OFNP Plenum - LC/ST - OM2 - LC to ST Fiber Patch Cable Product Title (Long) Fiber Optic Cable - Multimode Duplex 50/125 - OFNP Plenum - LC/ST - 2 m Product Title (AMZ) 2m Fiber Optic Cable - Multimode Duplex 50/125 - OFNP Plenum - LC/ST - OM2 - LC to ST Fiber Patch Cable (50FIBPLCST2) Title Ingram (Part 1) 2m 50 Micron Multimode Fiber LC Title Ingram (Part 2) to ST Fiber Optic Cord OFNP Website Product Headline Provide a high-performance link between fiber network devices, for applications requiring plenum rated cables Bullet 1 1x LC MM male connector Bullet 2 1x ST MM male connector Bullet 3 OFNP Plenum Fire Rating Bullet 4 OM2 (50/125) 500MHz multimode fiber Bullet 5 Attenuation loss meets or exceeds industry standards Bullets (Compact) Provide a high-performance link between fiber network devices, for applications requiring plenum rated cables - LC to ST Fiber Optic Patch Cable - OM2 (50/125) 500MHz multimode fiber - OFNP Plenum fire rating - 2m in length - Lifetime Warranty Bullets (Consolidated) Provide a high-performance link between fiber network devices for applications requiring plenum rated cables - Duplex Fiber Cable/LC to ST Fiber Patch Cable/2m 50/125 Multimode Plenum OFNP Fiber Optic Cable - OM2 (50/125) 500MHz multimode fiber - Ideal for installation in air plenums or ducts or walls or conduits or ceilings etc. - Use in Gigabit Ethernet and Fiber Channel applications - Ideal solution for data applications requiring high speed data transmission Marketing Copy Applications - Can be used in air ducts and plenums where CMP fire rating is required
- Use in Gigabit Ethernet and Fiber Channel applications
- Ideal solution for data applications requiring high speed data transmission
- Broadband systems
- Telecommunication/Data communication
Website Search Keyword - duplex fiber cable
- multimode fiber patch cord
- LC to ST fiber patch cable
- OFNP fiber
- plenum fiber cable
- 50 micron multimode fiber
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Related Products - 50FIBPLCST1
- 50FIBPLCST3
- 50FIBPLCST5
Cable Length (mm) 2000 Color Orange Humidity 0~90% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Product Length (mm) 2000.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 40.000 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Cable Rating 1Gbps / 10Gbps Fiber Type Multi Mode Maximum Data Transfer Rate 10Gbps Cable Jacket Material Low Smoke Zero Halogen Classification OM2 Fiber Cable Type Duplex Fiber Classification OM2 Fiber Size 50/125 Fire Rating OFNP Plenum Rated Carton Depth (mm) 405 Carton Height (mm) 404 Carton Quantity 240 Carton Weight Gross (g) 14110 Included in Package 1 - 2m Plenum Multimode 50/125 Duplex Fiber Patch Cable LC - ST Number of Sub-Cartons 8 Package Depth (mm) 200 Package Height (mm) 21 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 49 Packaging Description Plenum Multimode 50/125 Duplex Fiber Patch Cable Packaging Description India Plenum Multimode 50/125 Duplex Fiber Patch Cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 30 Sub-Carton Weight (g) 1543 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 ST Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-06-03 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Legacy
