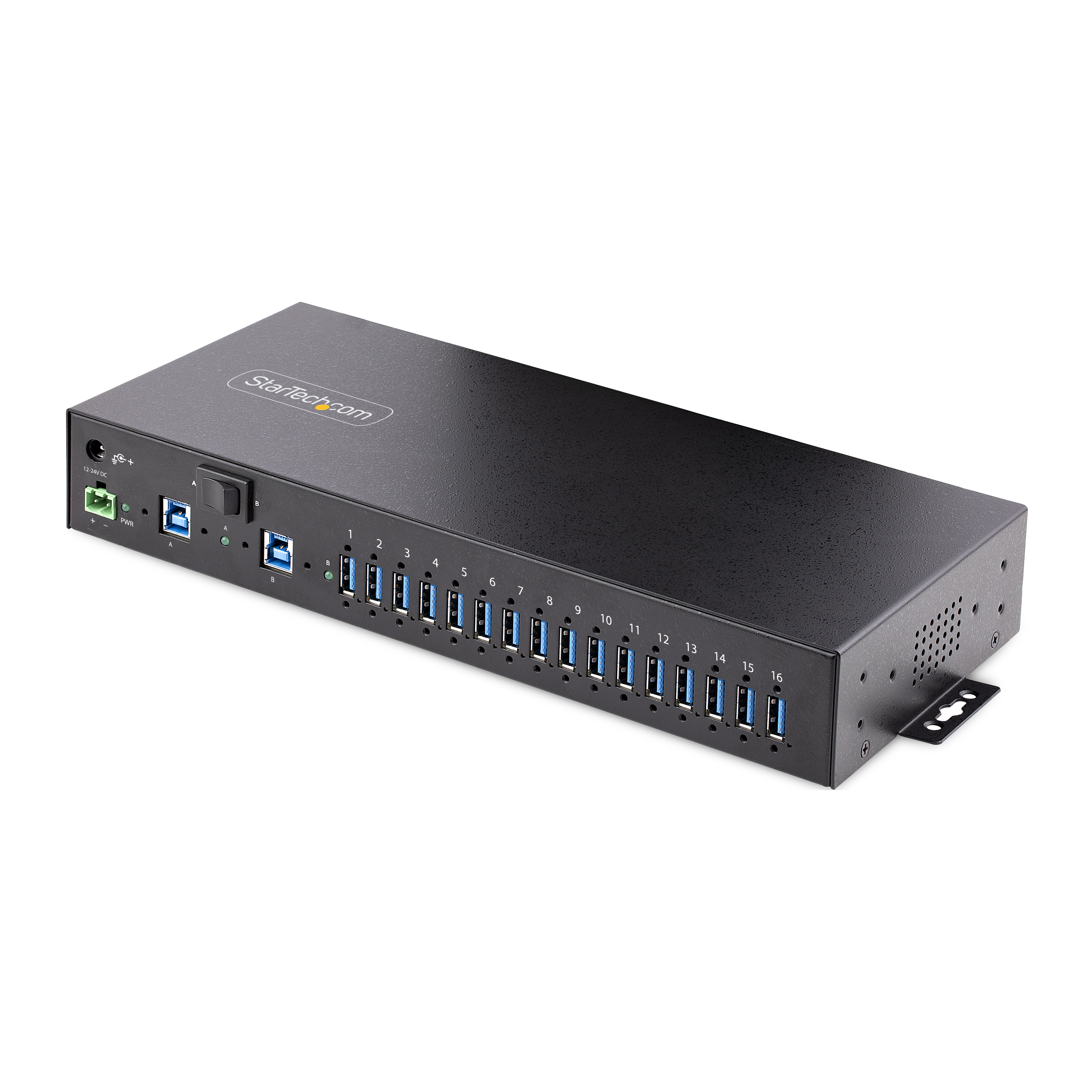

5G16AINDS-USB-A-HUB
16-Port Industrial 5Gbps Hub - ESD Protection

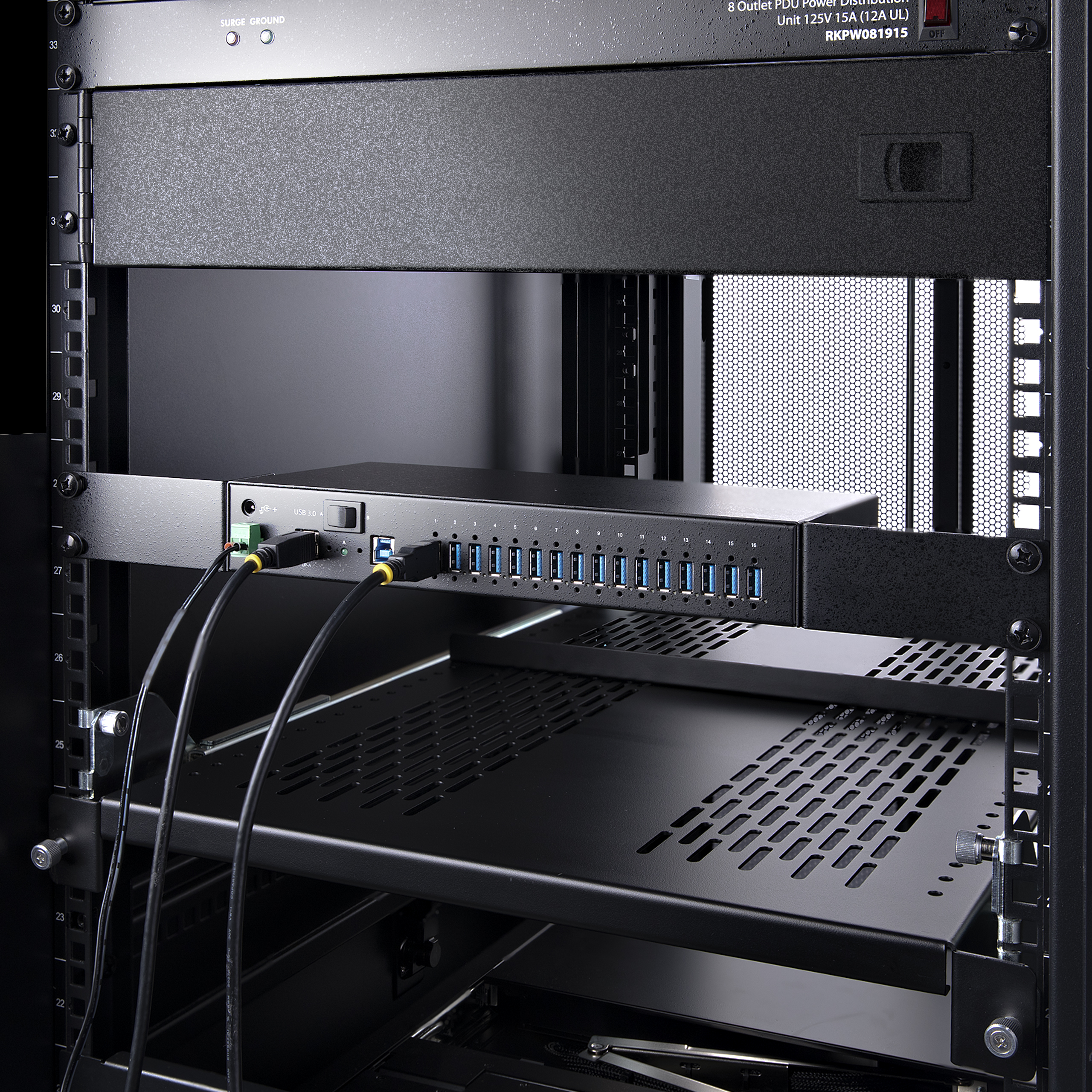

Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name 16-Port Industrial 5Gbps Hub - ESD Protection Product Number 5G16AINDS-USB-A-HUB UPC 065030894999 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 16-Port Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) Industrial USB Hub Product Title (Short) 16-Port Industrial USB 3.0 Hub/Switch Product Title (Medium) 16-Port Industrial USB 3.0 Hub 5Gbps, Mountable, USB Charging, Dual-Host Switch Product Title (Standard) 16-Port Industrial USB 3.0 Hub 5Gbps, Mountable, Terminal Block Power Up to 120W Shared, USB Charging, Dual-Host Switch, TAA Product Title (Long) 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W Shared USB Charging, Dual-Host Hub/Switch - TAA Product Title (AMZ) 16-Port Industrial USB 3.0 Hub 5Gbps, Metal, DIN/Surface/Rack Mountable, ESD Protection, Terminal Block Power, up to 120W Shared USB Charging, Dual-Host Hub/Switch , TAA Title Ingram (Part 1) Industrial USB 3.0 Hub for Title Ingram (Part 2) Laptops/Desktops - USB Charging Website Product Headline Add 16x USB 3.2 Gen 1 (5 Gbps) ports to two host computers, using this DIN-rail/Surface/Rack-mountable industrial hub Bullet 1 16-PORT INDUSTRIAL USB HUB: USB 3.2 Gen 1 hub w/metal housing for durability in harsh environments & Level 4 ESD protection (15kV air/8kV contact); 16x USB-A Ports; 5Gbps shared; 10ft long host cable; USB Event Monitoring utility (available for download) Bullet 2 FLEXIBLE MOUNTING OPTIONS: EIA-310 compliant mounting brackets for 1U 19" rackmount installation; Built-in mounting ears for wall/desk installation; DIN-rail mounting hardware; Screw-lock-enabled connectors on all ports facilitate reliable connections Bullet 3 POWER OPTIONS: The rugged USB 3.0 hub can be powered by either the DC barrel connection or DC 2-wire terminal block, using a 12 to 24V DC power source (DC adapter not incl.); Overcurrent protection protects connected devices from overdrawing power Bullet 4 POWER & CHARGE: When connected to a power source, the multiport USB expansion hub supports BC 1.2 charging; 120W is shared across all ports with 16 ports simultaneously charging at max 1.5A/7.5W per port, or up to 8 ports at max 2.0A/10W charging Bullet 5 DUAL-HOST SWITCH: With a 2-port host switch, this USB hub can connect to two separate desktop or laptop computers and seamlessly switch between primary host devices, using the manual rocker switch Bullets (Compact) 16 USB-A 3.2 Gen 1 (5Gbps shared) Downstream Facing Ports (DFP) w/dual-host switch/hub - Steel enclosure - Locking ports - Level-4 ESD protection 15kV air/8kV contact - Rack/Surface/DIN rail mountable - BC 1.2 charging w/power source (not incl.) Bullets (Consolidated) 16 USB-A 3.2 Gen 1 (5Gbps shared) Downstream Facing Ports - Switch between 2 computers w/dual host switch - 10ft long host cable - Level-4 ESD protection (15kV air/8kV contact) - 19" EIA-310 rack/wall/desk/DIN-rail mountable - USB 3.0 multiport expansion hub powered by the DC barrel connection or terminal block and a 12-24V DC source (not incl.) - BC 1.2 charging (7.5W) on each port (power adapter req.) - Screw-locking connectors on all ports - USB Event Monitoring available for download Marketing Copy Marketing Copy (No HTML) Applications - Occupies 1U of server rack space in a 19" server rack, typically found in server rooms within data centers
- Power and/or charge up to 16 USB devices
- Connect two host devices to the USB Hub, with the option to manually select an active host device
Website Search Keyword - 16-port usb 3.0 hub
- 16-port usb hub
- charging usb hub
- desktop usb hub
- din rail usb hub
- esd protection
- industrial usb 3.0 hub
- industrial usb hub
- laptop usb hub
- laptop usb port expander
- mountable usb hub
- powered usb hub
- powered usb hub 3.0 with ac adapter
- powered usb hub long cable
- rugged usb hub
- under the desk usb hub
- usb 3.0 powered hub
- usb 3.2 gen 2 hub
- usb c to usb adapter
- usb c to usb hub
- usb data hub
- usb expansion hub
- usb hub bc 1.2
- usb hub charging supported
- usb hub for mac
- usb isolated hub
- usb multiport hub
- usb splitter
- usb type c hub
- usb-c hub
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
System and Cable Requirements - Available USB 3.2 Gen 1 Port
- USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0
- Ports are grouped in 8 pairs (1&2, 3&4, 5&6, 7&8, 9&10, 11&12, 13&14, 15&16) and each pair supports max 3A/15W combined (1.5A/7.5W per port), or max 2.0A/10W per port when only one of both ports is used.
Accessory Products - PEXUSB3S11
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB6
- USB3SAUB3BK
- USB3SEXTAA6
- 160W-POWER-ADAPTER
Related Products - HB30A7AME
- HB30A10AME
- HB31C2A2CME
- HB31C3A1CME
- HB20A7AME
- HB20A4AME
- ST1030USBM
- ST7300USBME
- ST4300USBM
- ST4200USBM
- USB210AIND-USB-A-HUB
- ST7200USBM
- 5G4AINDNP-USB-A-HUB
- S5G16AINDS-USB-A-HUB
Input Voltage 12 ~ 24 DC Power Source Not Included (DC/Terminal Block) Plug Type - M
- Terminal Block (2 Wire)

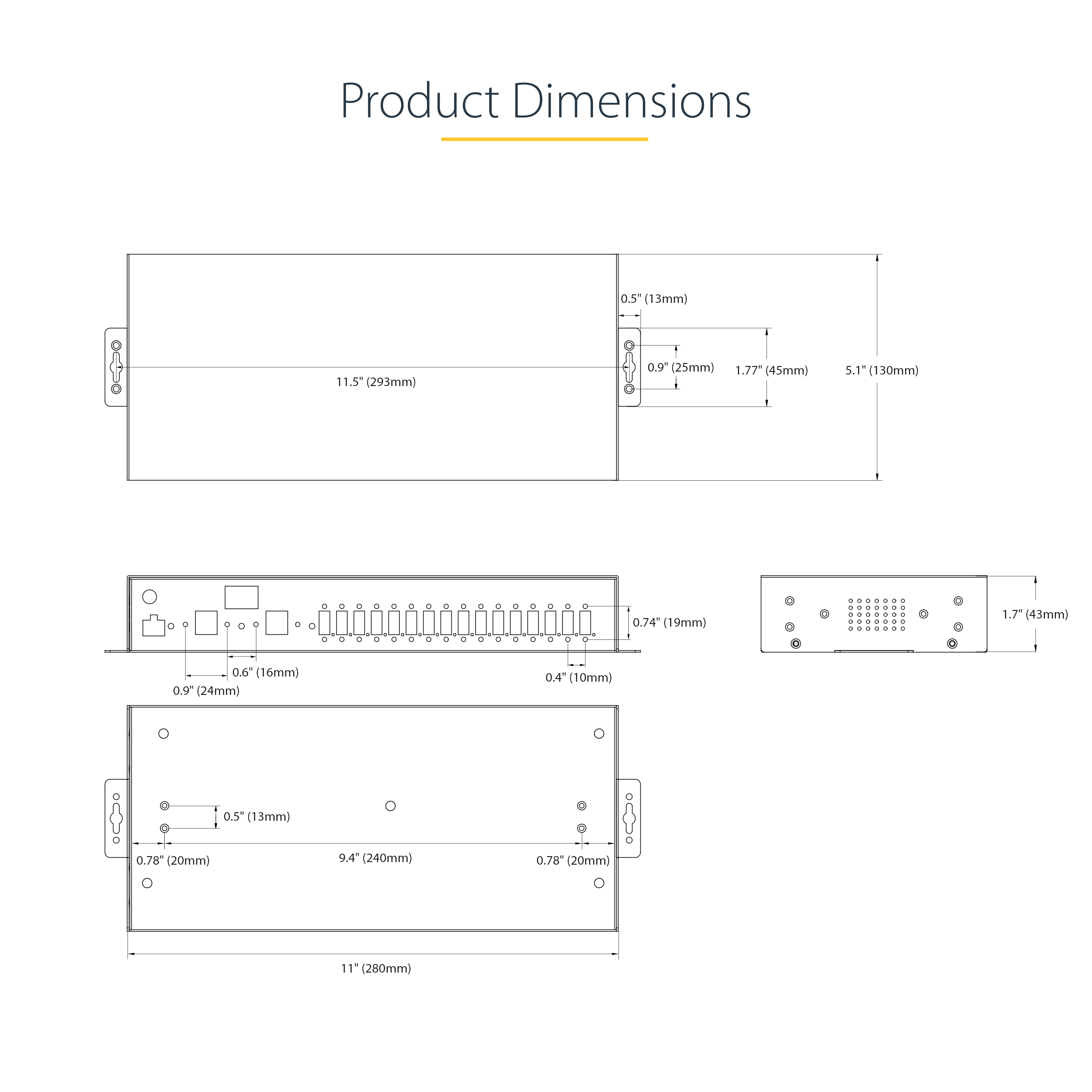

Color Black Extended Temperature Range No Humidity 5% - 95% RH Material Steel Operating Temperature 32°F to 140°F (0°C to 60°C) Product Length (mm) 308 Product Width (mm) 130 Product Height (mm) 4.420 Product Weight (g) 1098 Storage Temperature -4°F to 167°F (-20°C to 75°C) TAA Compliant Yes Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)

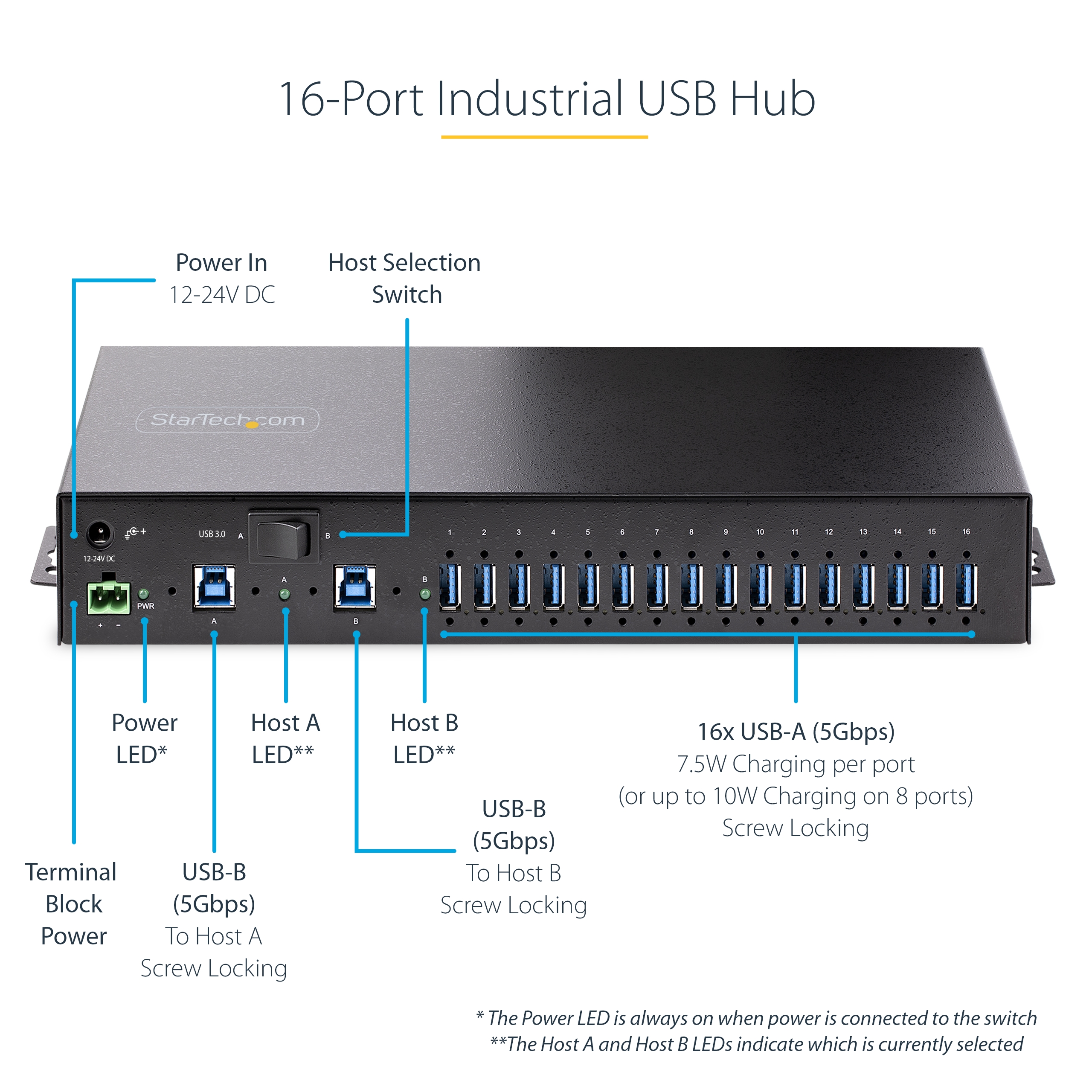

Maximum Data Transfer Rate 5 Gbps MTBF (hours) 122,383.8 Hours OS Compatibility OS Independent Total Available Power Output (In Watts) 120W USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID Genesys Logic - GL3523 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 1 - Power (Green) - Solid Green - Indicates if the USB Hub is receiving power from either a USB Host or a DC Power Source
- 2 - USB Host Selection LEDs - Solid Green - Indicates which Host Device is currently selected

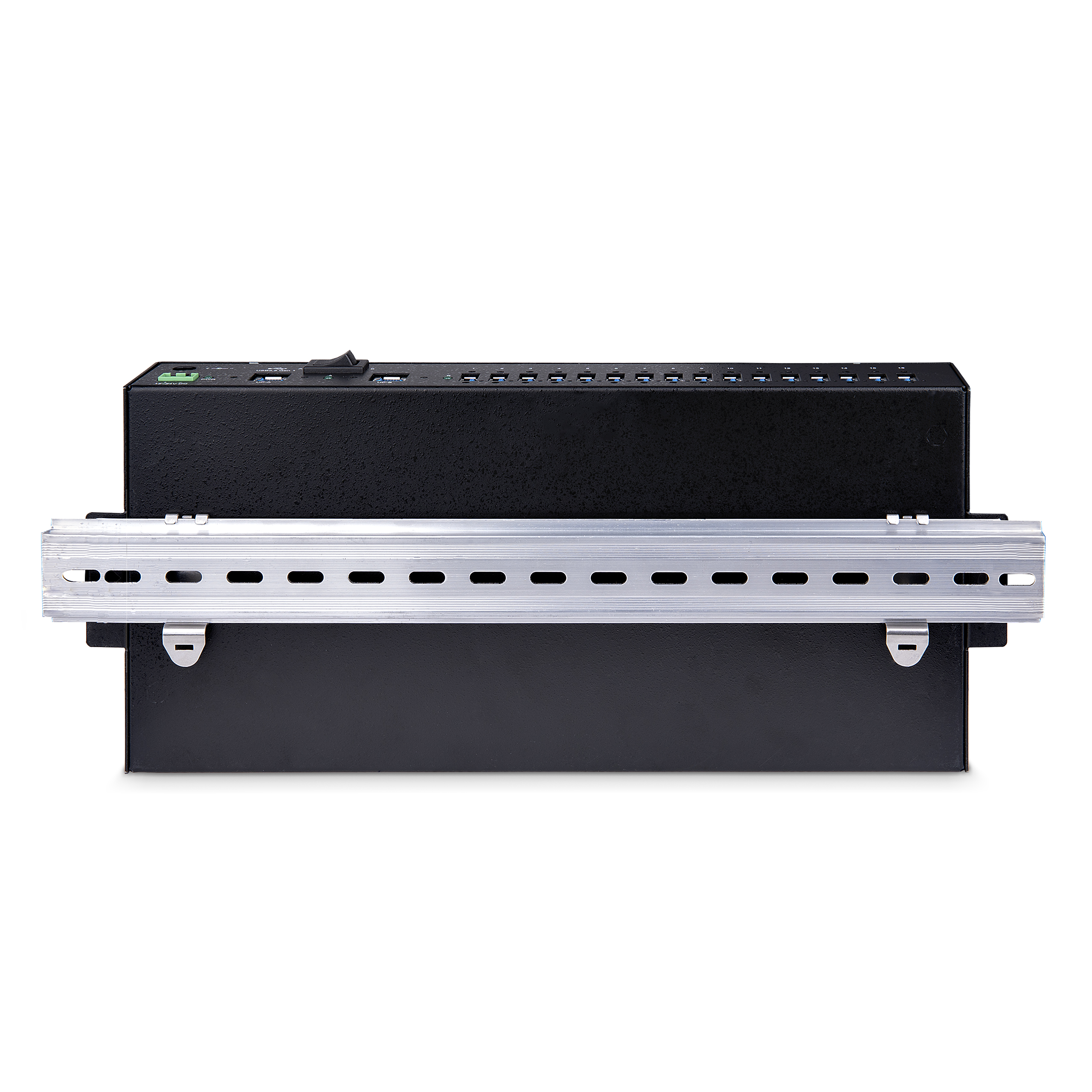

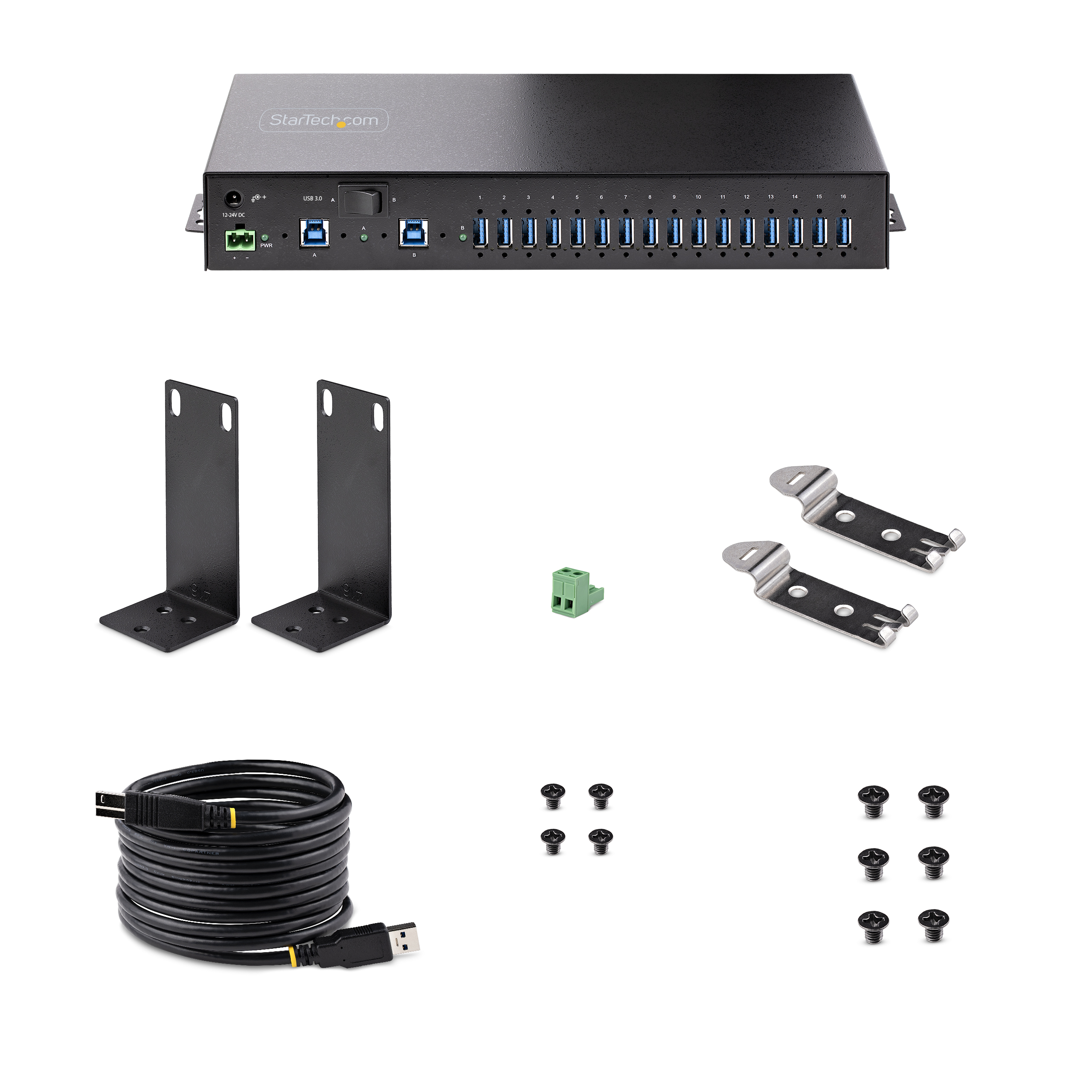

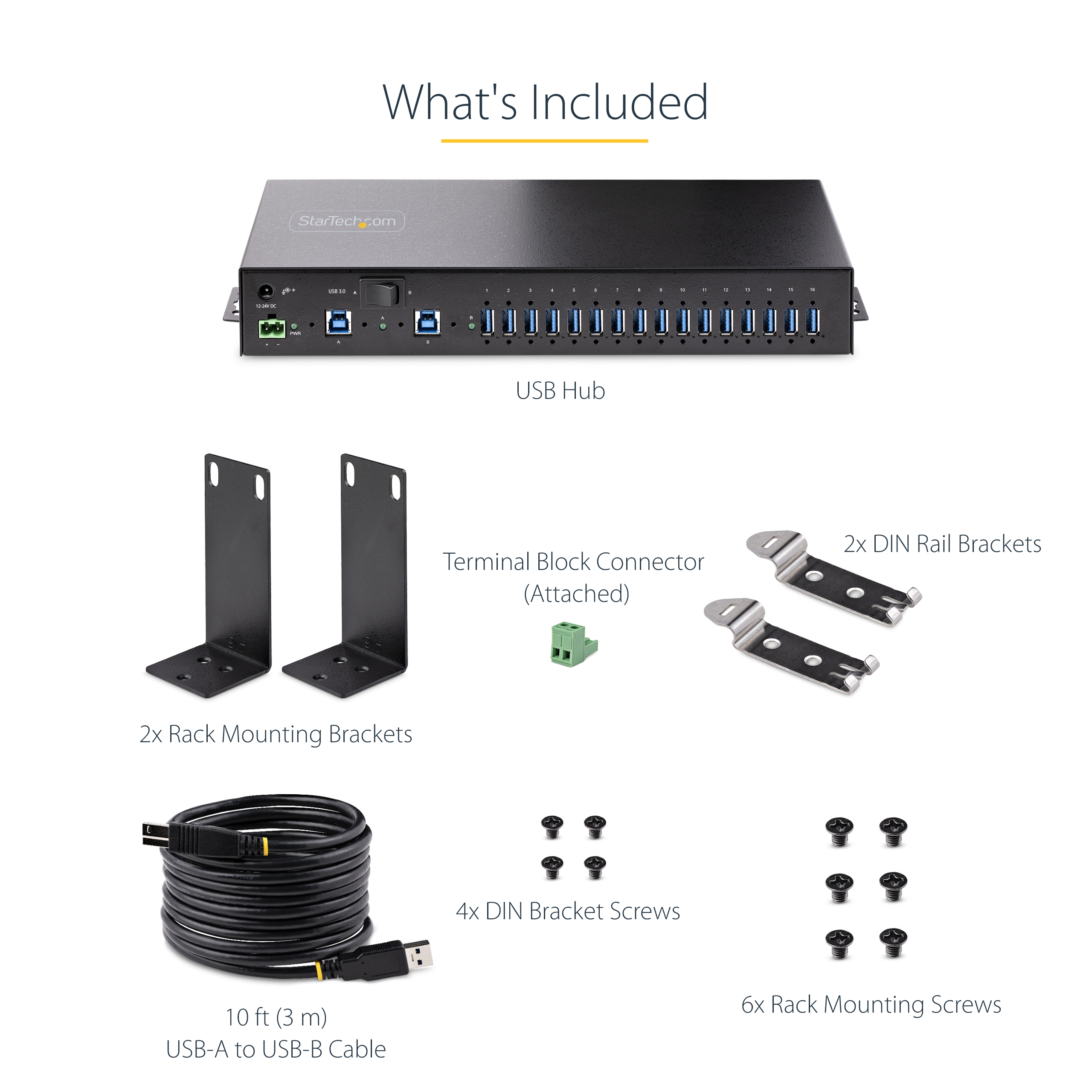

Mounting Options DIN Rail Number of Battery Charge 1.2 Ports 16 U Height 1U USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 541 Carton Height (mm) 317 Carton Quantity 5 Carton Weight Gross (g) 10330 Included in Package - 1 - USB Hub
- 1 - 10 ft [3 m] USB-A to USB-B Cable
- 1 - Terminal Block Connector (Attached)

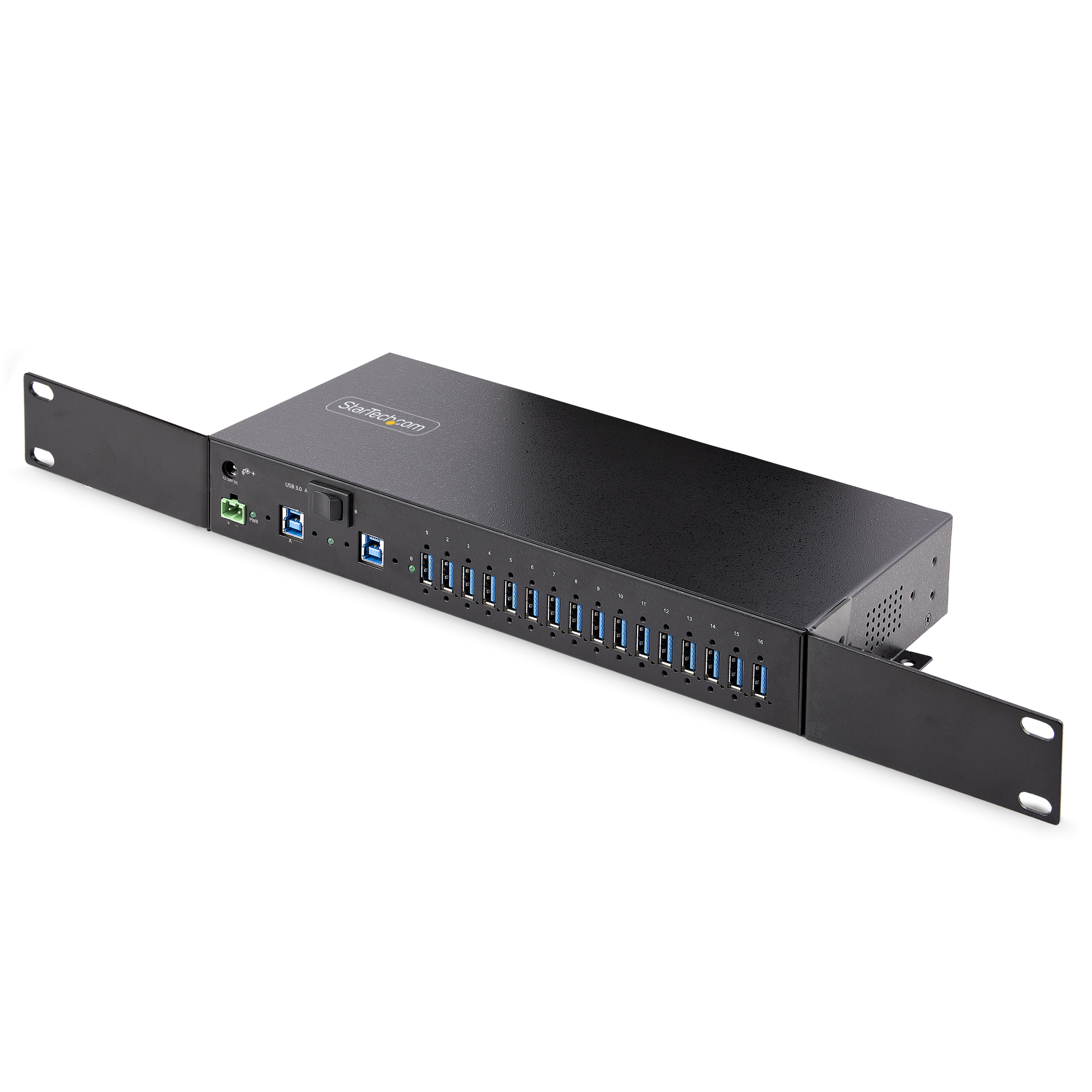

- 2 - Rack Mounting Brackets
- 1 - Quick-Start Guide

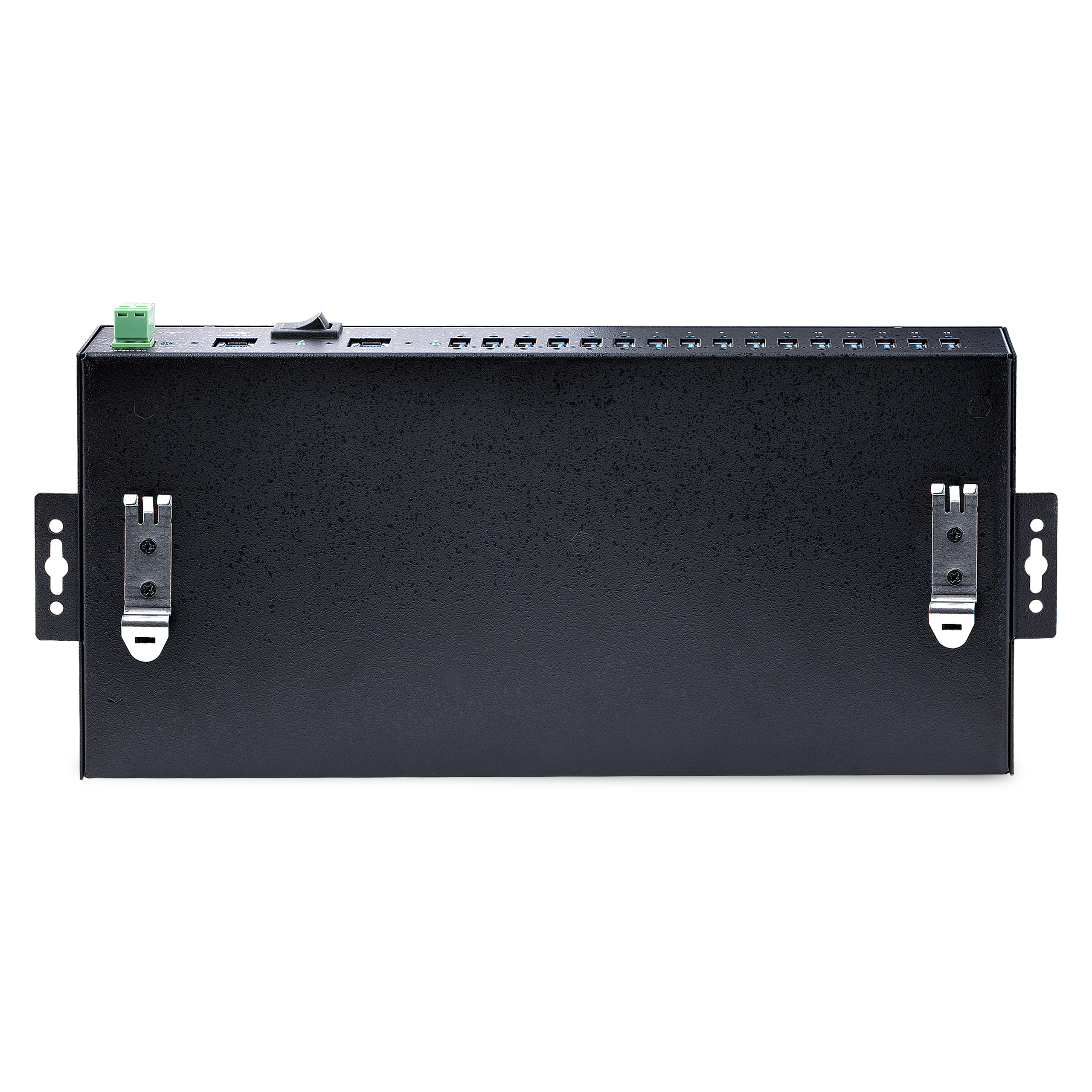

- 2 - DIN Rail Brackets
- 4 - DIN Bracket Screws
- 6 - Rack Mounting Screws
Included In Package for Label - 1 - 10 ft [3 m] USB-A to USB-B Cable
- 1 - Hardware Kit
- 1 - Mounting Kit
- 1 - Quick-Start Guide
- 1 - Terminal Block Connector (Attached)
- 1 - USB Hub
Package Depth (mm) 371 Package Height (mm) 101 Package Width (mm) 279 Package Quantity 1 Package Weight (g) 1888 Packaging Description 16-Port Industrial USB 3.2 Gen 1 Hub - ESD Protection Packaging Description India 16-Port Industrial 5Gbps Hub - ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 16 Connector 2 Terminal Block (2 Wire) Connector 2 (Quantity) 1 Connector 3 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 3 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 2 A+ Not Required Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-12-09 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2023-03-09 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2022-05-13 Target Production Release 2022-06-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Not Required
