5G2A1SGBB-USB-C-HUB

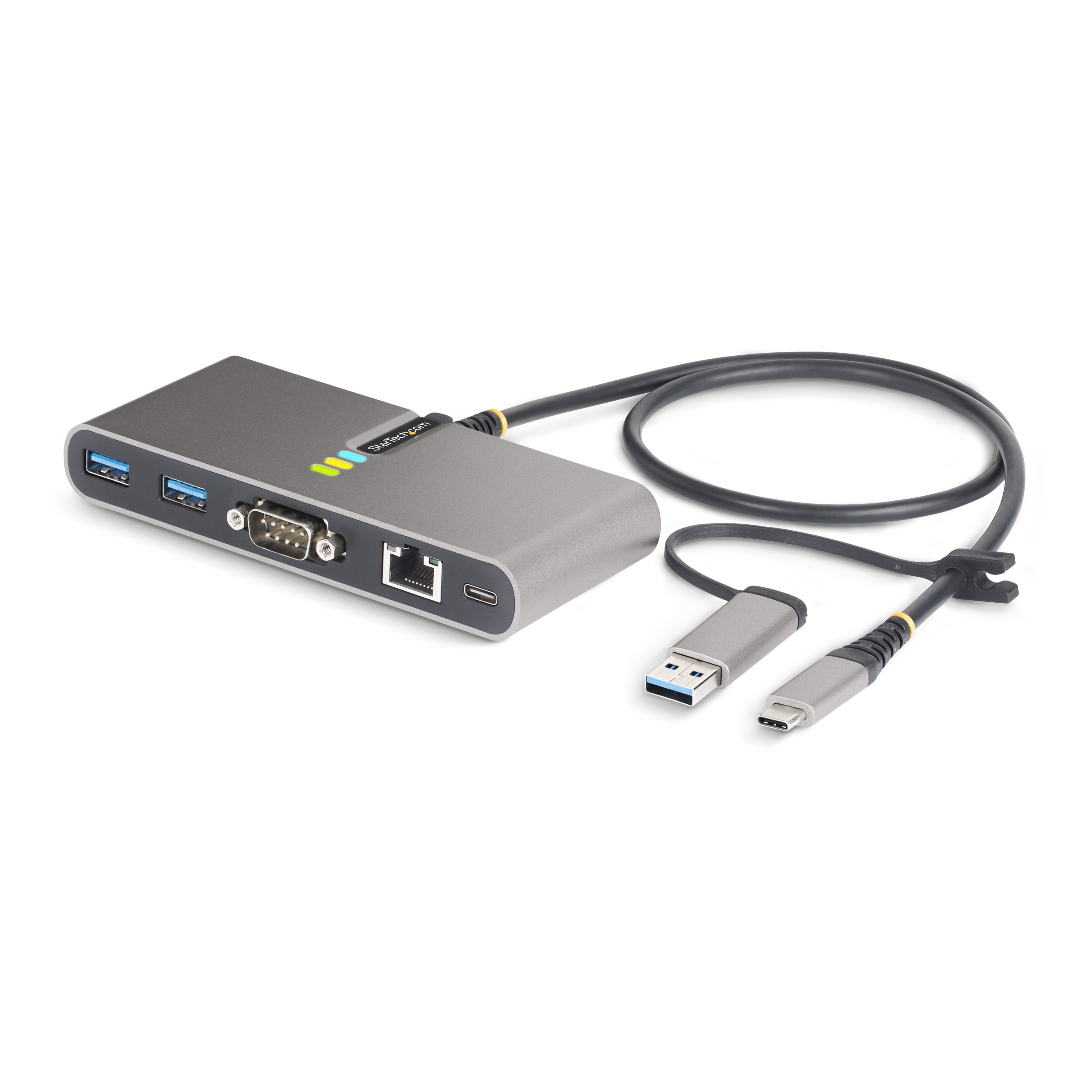

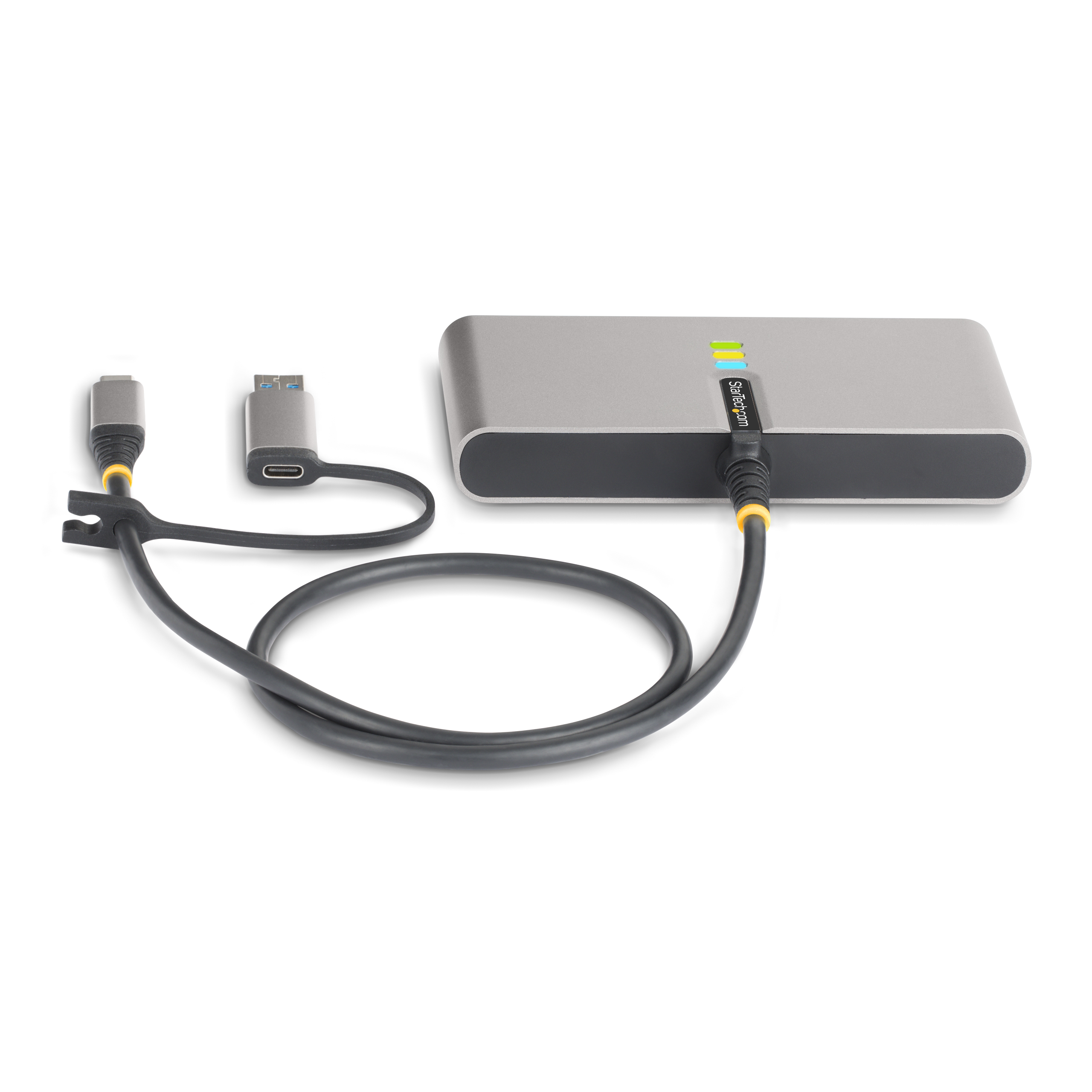

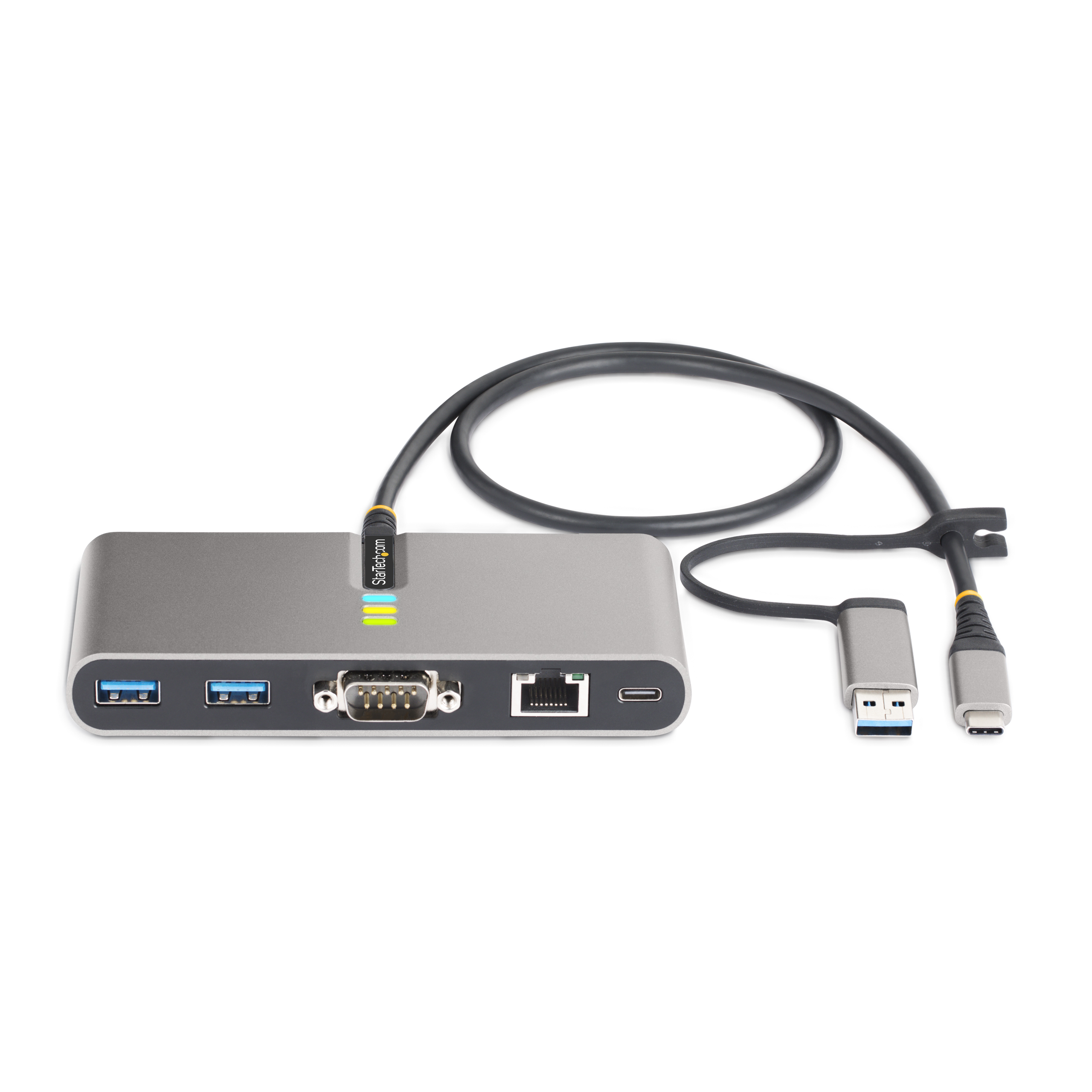

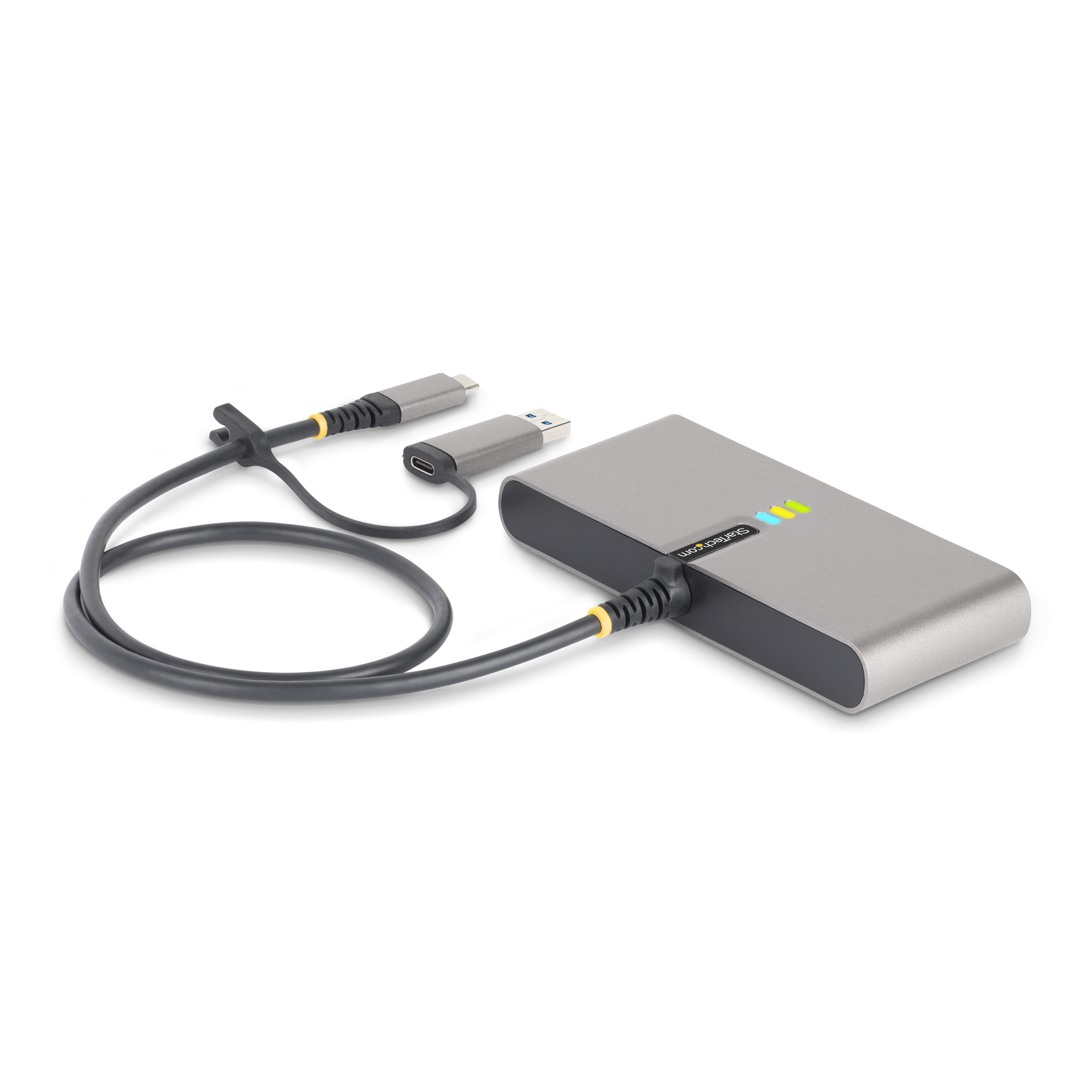

2 Port USB-C 5Gbps HUB with 2 x USB-A, Gigabit Ethernet, RS-
Add a unique combination of serial, USB and Ethernet ports to your laptop or PC
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 2 Port USB-C 5Gbps HUB with 2 x USB-A, Gigabit Ethernet, RS- Product Number 5G2A1SGBB-USB-C-HUB UPC 065030899284 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Bus Powered Hubs - 5Gbps Family Desktop USB to Serial Adapters - FTDI - USB Hubs Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) USB Hub, RS232, GbE Product Title (Short) 2-Port USB-C/USB-A Hub - GbE and RS232 Product Title (Medium) 2-Port USB-C/USB-A Hub with GbE and RS-232 Serial, PD Pass-Through, 2x USB-A Product Title (Standard) 2-Port USB-C Hub with Gb Ethernet and RS232 FTDI Serial, Attached USB-C to USB-A Dongle, 100W PD Pass-Through, 2x USB-A 5Gbps Product Title (Long) 2-Port USB-C Hub with Ethernet and RS-232, Attached USB-C to USB-A Dongle, 100W PD Pass-Through, 2x USB-A 5Gbps, Gigabit Ethernet, RS232 Serial (FTDI) Product Title (AMZ) 2-Port USB-C Hub with Gb Ethernet and RS232 FTDI Serial, Attached USB-C to USB-A Dongle, 100W PD Pass-Through, 2x USB-A 5Gbps Title Ingram (Part 1) USB-C to 2-Port USB 5Gbps Type Title Ingram (Part 2) A Hub, Gb Ethernet, RS232 Serial Website Product Headline Add a unique combination of serial, USB and Ethernet ports to your laptop or PC Bullet 1 2-PORT USB-C HUB: Portable USB 5Gbps expansion hub features a built-in 2ft USB-C host cable & attached USB-C to USB-A dongle; 2-Port USB Type-A (5Gbps) Hub; Overcurrent Protection; 1x RS-232 Serial Adapter (FTDI); 1x Gigabit Ethernet; 100W PD Pass-Through Bullet 2 RS-232 SERIAL: RS232 serial adapter with FTDI chip and COM retention; USB Enumeration/Transmit/Receive LEDs offer real-time port activity; Max Baud Rate: 115.2 Kbps; 256 Byte FIFO; Odd/Even/Mark/Space/None Parity Modes; 7 or 8 Data Bits; 1 or 2 Stop bits Bullet 3 GIGABIT ETHERNET: Built-in GbE converter to provide the reliability and security of wired Ethernet to a laptop or desktop; GbE controller is fully compatible with IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging; 10/100/1000 Mbps Bullet 4 RELIABLE PERFORMANCE: Connect an external USB-C power adapter (not included) for 100W Power Delivery 3.0 pass through; 15W is reserved for the adapter to avoid device dropouts or power overdraw that's common in other hubs; Up to 85W for laptop charging Bullet 5 OUR ADVANTAGE: Included connectivity tools for IT Pros and IT help-desk support teams; USB Event Monitoring logs/timestamps USB port usage enabling admins to identify potentially malicious devices, MAC Address Cloning & WIFI Auto Switch Utilities Bullets (Compact) 2-Port USB-C 5Gbps hub w/2x USB-A - USB-C host cable and attached USB-C to USB-A dongle - RS-232 serial port - GbE - 100W PD pass-through (15W reserved for hub) - Connectivity Tools software (USB Event Monitoring/MAC Address Cloner/WIFI Auto Switch) Bullets (Consolidated) - 2-Port USB-C expansion hub (USB 3.2 Gen 1 5Gbps) with 2x USB-A and built-in USB-C host cable with attached USB-C to USB-A dongle - RS-232 serial port w/FTDI chip and LEDs for monitoring (USB Enumeration/TX/RX) - Gigabit Ethernet compatible w/IEEE 802.3u/ab standards supporting WoL/Jumbo Frames/V-LAN Tagging - 100W PD pass-through for laptop charging w/USB-C power adapter (15W reserved for hub) - Connectivity Tools software w/USB Event Monitoring/MAC Address Cloner/WIFI Auto Switch utilities Marketing Copy Marketing Copy (No HTML) Applications - Add wired internet connectivity to a laptop
- Ideal for traveling between home and office
- Add RS-232 capabilities to USB-enabled Data Terminal Equipment (DTE) to connect Data Communication Equipment (DCE) peripherals
Website Search Keyword - 2-Port USB-C Hub
- bus powered usb hub
- desktop usb hub
- ftdi serial to usb
- laptop usb hub
- portable hub
- rs232 to usb
- serial to usb
- serial to usb adapter
- usb 3.2 gen 1 hub
- usb c 3.2 gen 1 hub
- usb c hub powered
- usb expansion hub
- usb hub with ethernet
- usb serial
- usb serial adapter
- usb to ethernet adapter
- usb to ethernet adapter for laptop
- usb to rs232
- usb to rs232 adapter
- usb to rs232 adapter cable
- usb to rs232 hub
- usb to serial
- usb to serial adapter
- USB to serial converter
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- 85
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - DO NOT USE RCM EMC - General Statement - DON'T USE
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Paper
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Accessory Products - C6PATCH15BK
- N6PATCH10BK
- N6PATCH1BL
- N6PATCH10BL
- N6PATCH6BK
- N6PATCH6BL
- N6PATCH3BL
- N6PATCH4RD
- N6LPATCH7BK
- N6PATCH7BL
- N6LPATCH10BL
- N6PATCH7BK
- N6LPATCH7BL
- USB3S2SAT3CB
- SDOCK2U33
- SDOCK2U33V
- SDOCK4U33
- USB2PACUBK
- USB2PACBK
- USB2PACWH
- UUSBHAUB1
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
Related Products - 5G3AGBB-USB-C-HUB
- HB30C3A1GEA2
- HB30C3A1GEA
- HB30C3AGEPD
- HB30C3A1GE
- HB31C2A1CGS
- HB31C2A1CGB
- 10G2A1C25EPD-USB-HUB
Power Consumption (In Watts) 15W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Cable Length (mm) 600 Color Space Gray Humidity 0% to 95% RH Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 55.000 Product Width (mm) 128.000 Product Height (mm) 19.000 Product Weight (g) 105.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Data Bits 7, 8 Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) FIFO 256 Bytes Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 9K max. Max Baud Rate 115.2 Kbps Maximum Data Transfer Rate OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- Windows Server 2022
- Windows Server 2019
- Windows Server 2016
- Windows Server 2012
- macOS Sonoma (14.0)
- macOS Ventura (13.0)
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Linux
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
- Windows Server 2025
Parity Odd/Even/Mark/Space/None Promiscuous Mode No PXE Yes Stop Bits 1, 2 Supported Serial Protocol RS-232 Total Available Power Output (In Watts) 15 W UASP Support Yes USB Type and Rate USB 5Gbps Wake-On-LAN (WOL) Yes Bus Type USB 3.2 Gen 1 (5 Gbps) Chipset ID - VIA - VL817-Q7
- VIA - VL103-Q4
- ASIX - AX88179A
- FTDI - FT232RL
Ethernet Port Yes Industry Standards - IEEE 802.3u, IEEE 802.3ab
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
- USB 3.2 Gen 1 (5Gbps)
Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
- Serial
Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - USB Enumeration LED (Blue) - Illuminates to Indicate the RS-232 Functionality of the USB Hub is in an Operational State
- 1 - RS-232 Transmitter LED (Yellow) - Illuminates to Indicate Outbound RS-232 Transmissions
- 1 - RS-232 Receiver LED (Green) - Illuminates to Indicate Inbound RS-232 Transmissions
USB-C Device Port(s) No USB-C Host Connection Yes Carton Depth (mm) 370 Carton Height (mm) 315 Carton Quantity 40 Carton Weight Gross (g) 7610 Included in Package - 1 - USB-C Hub
- 1 - Quick-Start Guide
Package Depth (mm) 149 Package Height (mm) 36 Package Width (mm) 216 Package Quantity 1 Package Weight (g) 168 Packaging Description 2-Port USB-C Hub - 2x USB-A (5Gbps), 100W USB PD Pass-through, GbE, RS-232 Packaging Description India 2-Port USB-C Hub - 2x USB-A (5Gbps), 100W USB PD Pass-through, GbE, RS-232 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 2 Connector 2 DB-9 Serial Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 Connector 4 USB-C (100W PD Only) Connector 4 (Quantity) 1 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Host Connector 2 USB-A (5Gbps, 4.5W) Host Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-10-25 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Serial adapter to base sales split against Comparable SKU 2 Comment USBC to 3A/GbE/PD, black, just no serial port Digital Content Due Date 2024-03-20 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,SE,UK,US Primary Technology - Power Delivery
- USB 3.2 Gen 1 / 5Gbps
- USB-C
Product Development Specialist Yipeng Zhang Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-10-18 Target Production Release 2023-10-25 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Video Not Required
