5G2A2CPDB-USB-C-HUB

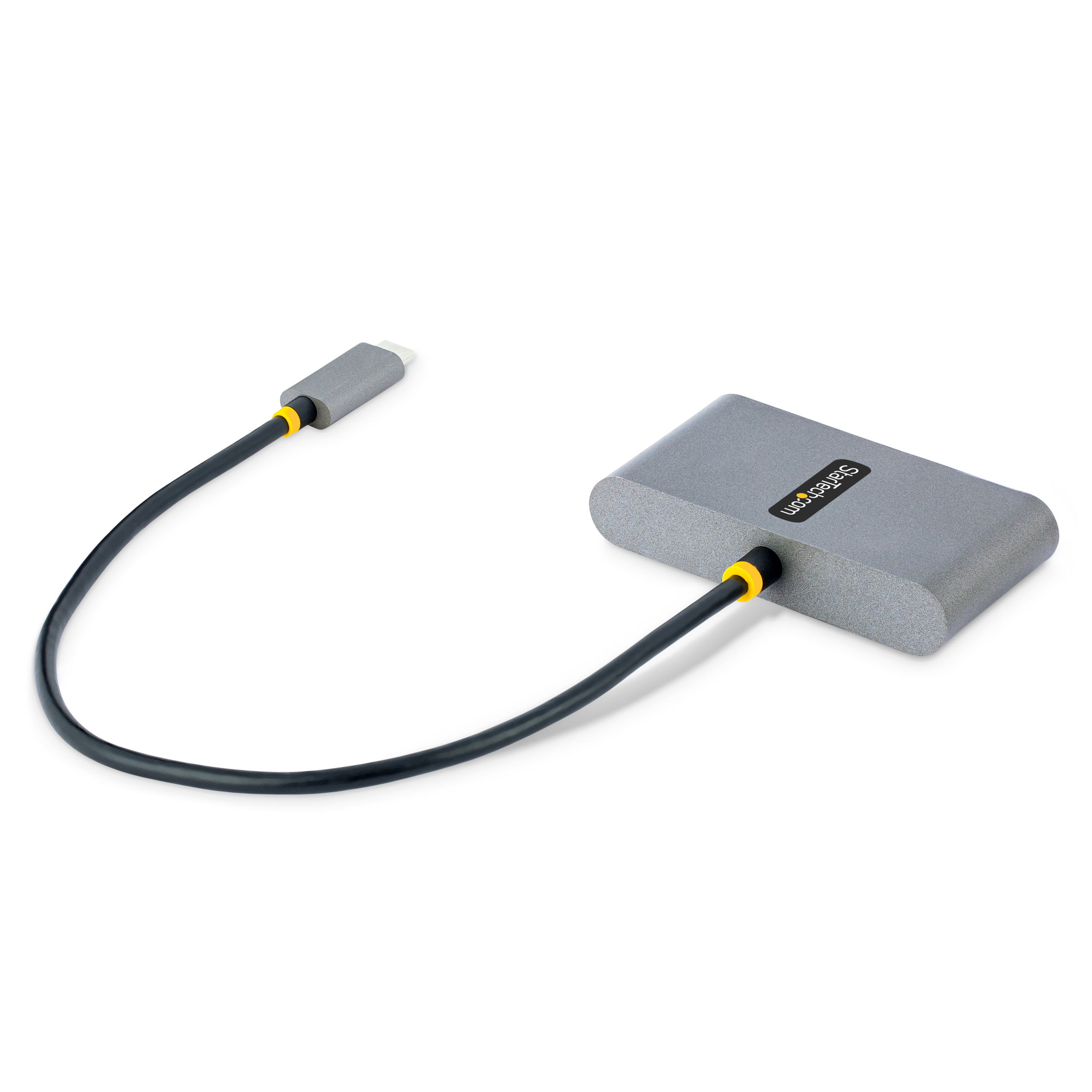

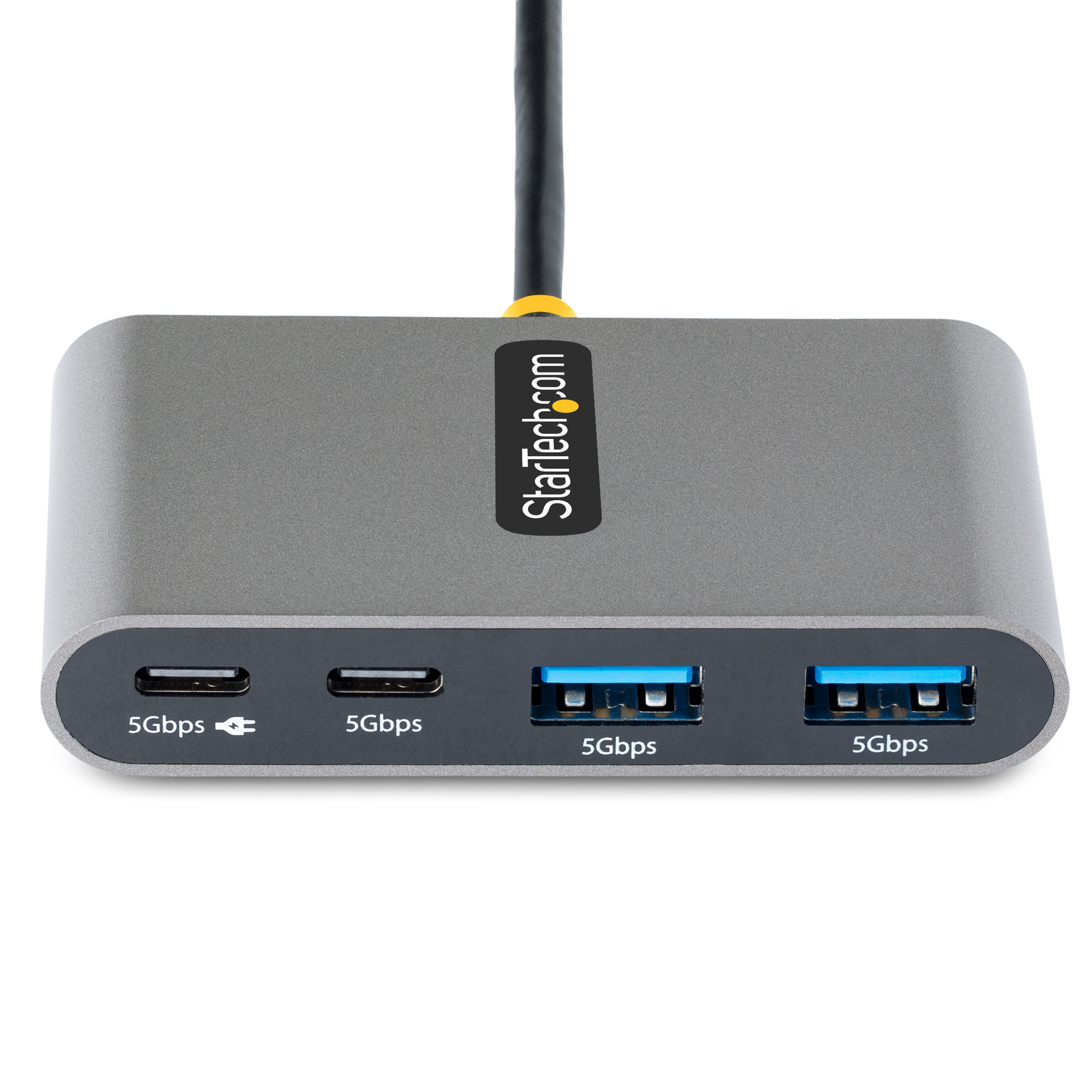

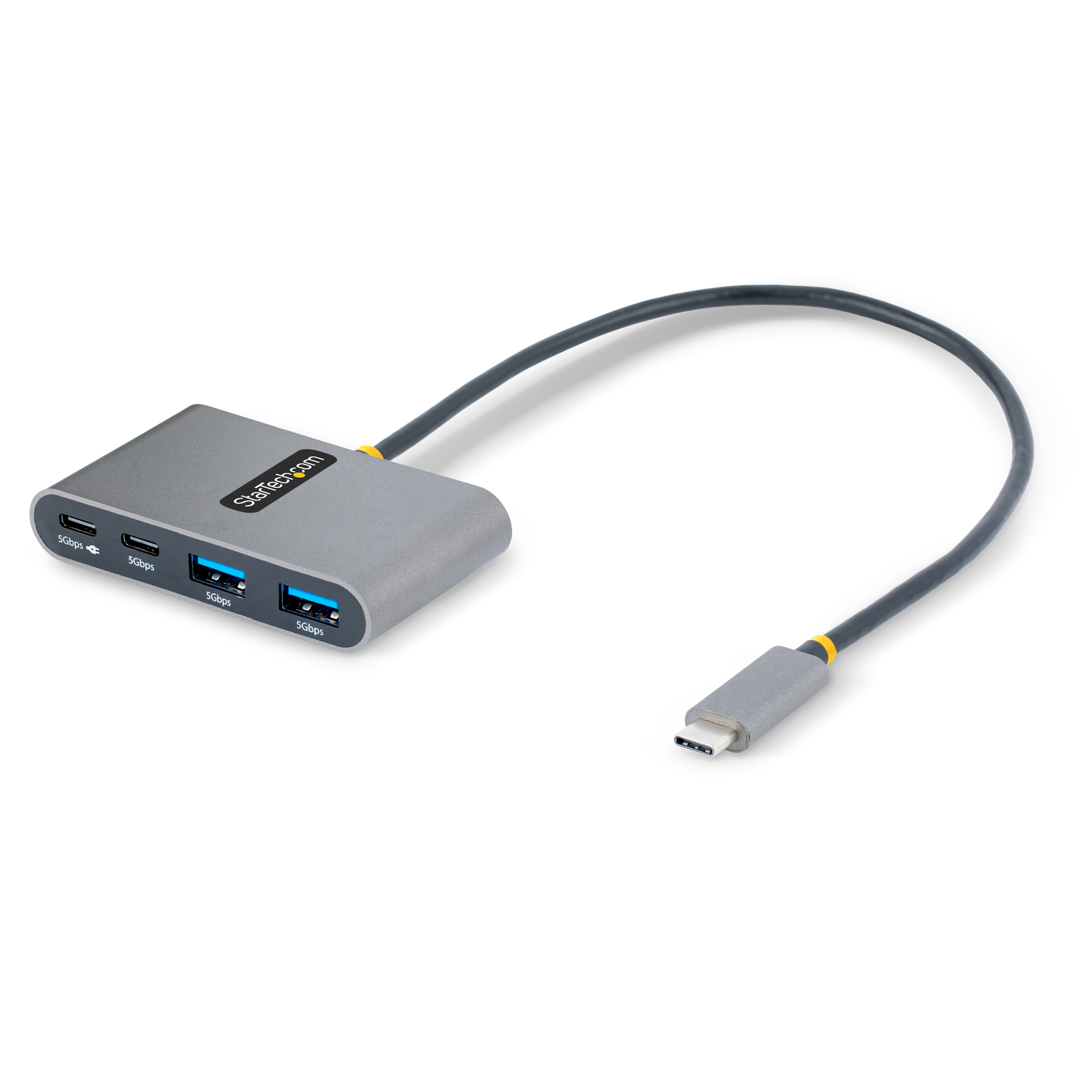

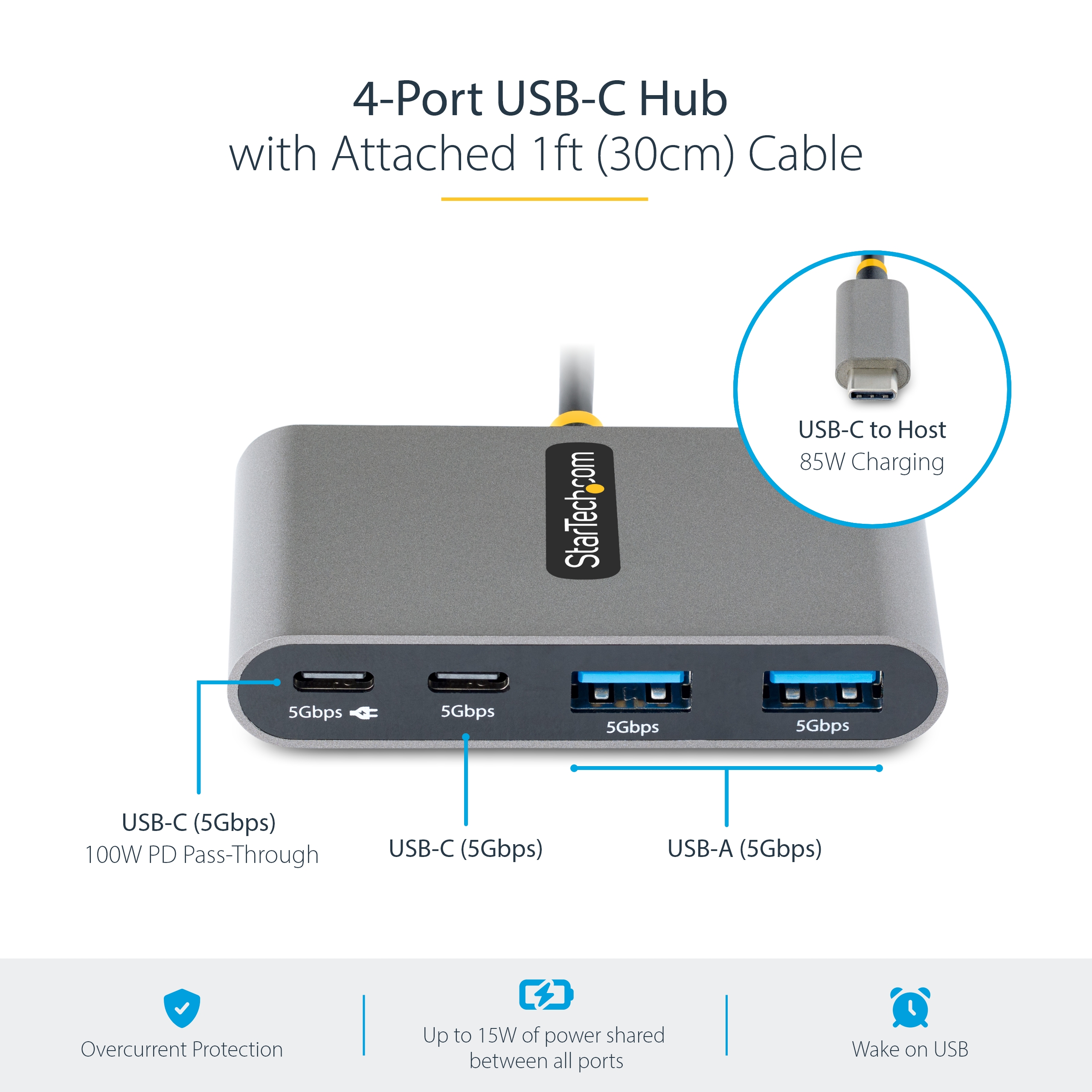

4 Port USB C Hub with 2x USB A Ports and 2x USB C Ports US
USB Type-C to 2x USB Type-A and 2x USB Type-C | USB 3.2 Gen 1 (5Gbps) | 100W USB Power Delivery Pass-Through
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 4 Port USB C Hub with 2x USB A Ports and 2x USB C Ports US Product Number 5G2A2CPDB-USB-C-HUB UPC 065030894807 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-C Hubs Category Level 3 USB-C Bus Powered Hubs - 5Gbps Family USB-C Bus Powered Hubs - 5Gbps - 4-Port - C/A Mix Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX190X Product Title (Ultra-Short) 4-Port USB-C Hub, PD Product Title (Short) 4-Port USB-C Hub with 100W PD, 5Gbps Product Title (Medium) 4-Port USB-C Hub with 100W PD Pass-Through, 2x USB-A + 2x USB-C, 5Gbps Product Title (Standard) 4-Port USB-C Hub with 100W Power Delivery Pass-Through, 2x USB-A + 2x USB-C, 5Gbps, 1ft/30cm Long Cable, Portable USB 3.0 Hub Product Title (Long) 4-Port USB-C Hub with 100W Power Delivery Pass-Through - 2x USB-A + 2x USB-C - USB 3.0 5Gbps - 1ft (30cm) Long Cable - Portable USB Type-C to USB-A/C Hub Product Title (AMZ) 4-Port USB-C Hub with 100W Power Delivery Pass-Through - 2x USB-A + 2x USB-C - 5Gbps - 1ft (30cm) Long Cable - Portable USB Type-C to USB-A/C Hub - USB-C Splitter (5G2A2CPDB-USB-C-HUB) Title Ingram (Part 1) 4-Port USB-C Hub Adapter - Title Ingram (Part 2) USB Portable Hub w/ USB-C Charging Website Product Headline USB Type-C to 2x USB Type-A and 2x USB Type-C | USB 3.2 Gen 1 (5Gbps) | 100W USB Power Delivery Pass-Through Bullet 1 4-PORT USB-C HUB: USB 3.2 Gen 1 (5Gbps) expansion hub w/USB-C host, 2x USB-A, 2x USB-C incl. 1x USB PD pass-through, Overcurrent Protection (OCP) & Wake on USB - Up to 15W of power shared dynamically between 4 downstream ports Bullet 2 RELIABLE PERFORMANCE: 100W Power Delivery Pass-Through with 15W reserved for adapter (when using one or all ports) and up to 85W available for host laptop charging - Prevents device dropouts, and/or power overdraw common in other hubs Bullet 3 EXTRA-LONG CABLE: Compact housing and bus-powered ideal for travel - Attached extra-long 1ft. (30cm) host cable for easy setup and to reduce connector strain on 2-in-1 devices such as Surface Pro 7, iPad Pro, HP Elite X2, and laptops on riser stands Bullet 4 APPLICATIONS: Add USB connectivity and host device charging from a single USB-C port - Ideal for USB-C charged devices with limited USB ports such as MS Surface Pro, Pixel Book & iPad Pro - USB Event Monitoring utility available for download Bullet 5 COMPATIBILITY: Supports all major operating systems, incl. Windows, macOS, Linux, iPadOS, ChromeOS, Android - Compatible w/ Thunderbolt 3/4 & USB4 host devices such as MacBook (Intel/M1/M2), Lenovo X1 Carbon, Dell XPS, Microsoft Surface - Works w/USB 2.0 Bullets (Compact) Portable USB-C Expansion Hub - 2x USB-A, 2x USB-C - USB 3.2 Gen 1 5Gbps - Bus-powered or 100W PD pass-through (15W for adapter/85W charging) w/Type-C laptop power adapter - 15W of bus-power shared - 1ft/30cm long host cable - Win/Mac/Chrome/Linux Bullets (Consolidated) USB-C laptop expansion hub with 2x USB-A and 2x USB-C incl. 1x USB PD pass-through - Portable hub is bus powered or 100W PD Pass-through (85W laptop charging) w/Type-C laptop power adapter - USB 3.2 Gen 1 (5Gbps) | 4-Port USB Hub (2x USB-C/2x USB-A) | 15W of power (provided by USB host) shared dynamically between 4 downstream ports | Overcurrent Protection (OCP) | Wake on USB - Windows/macOS/Linux/iPadOS/ChromeOS - Extra-long 1ft (30cm) built-in host cable - Connectivity Tools app Marketing Copy Marketing Copy (No HTML) Applications - Ideal for traveling between the home and office

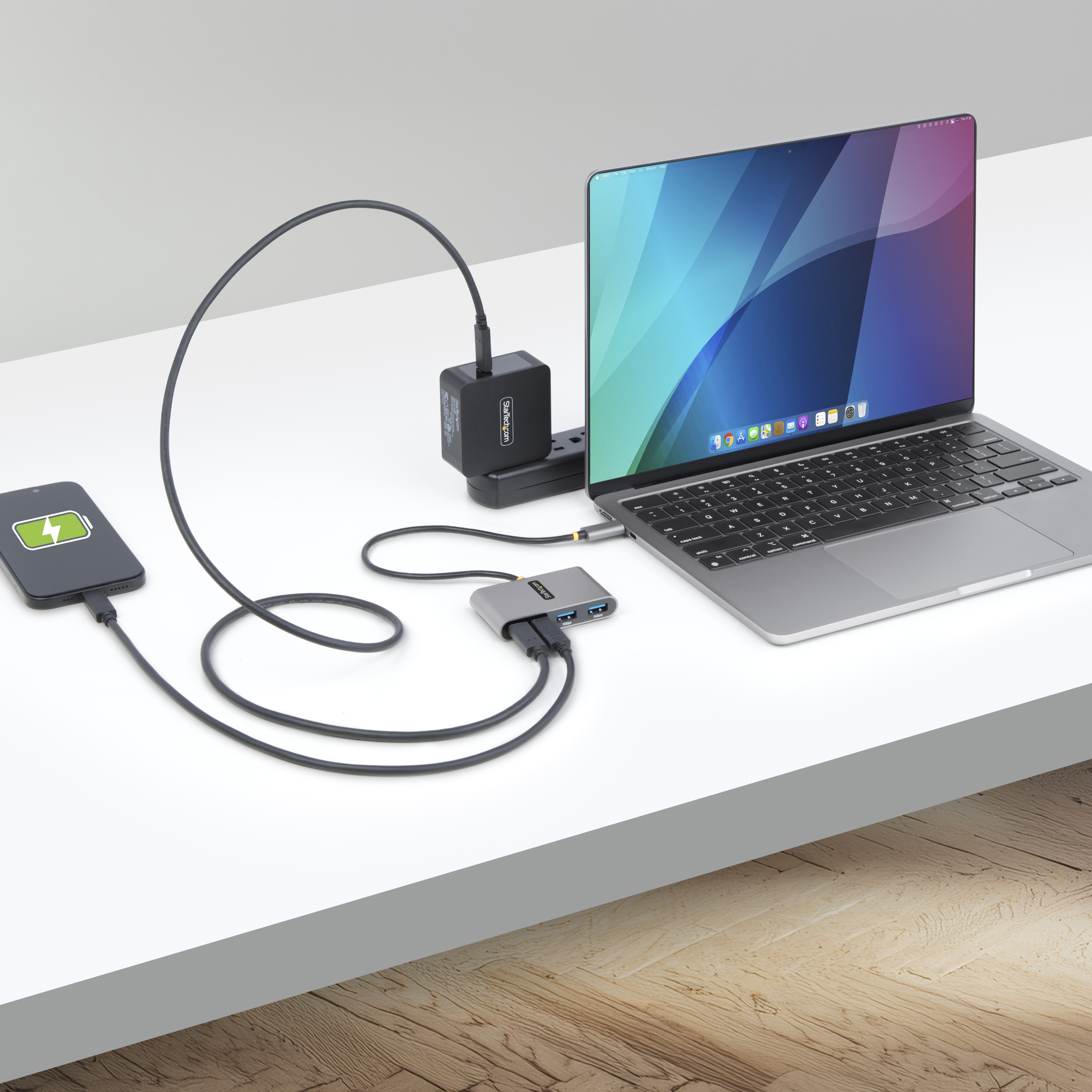

- Charge your laptop by using one of the downstream USB-C ports to connect a USB-C power adapter

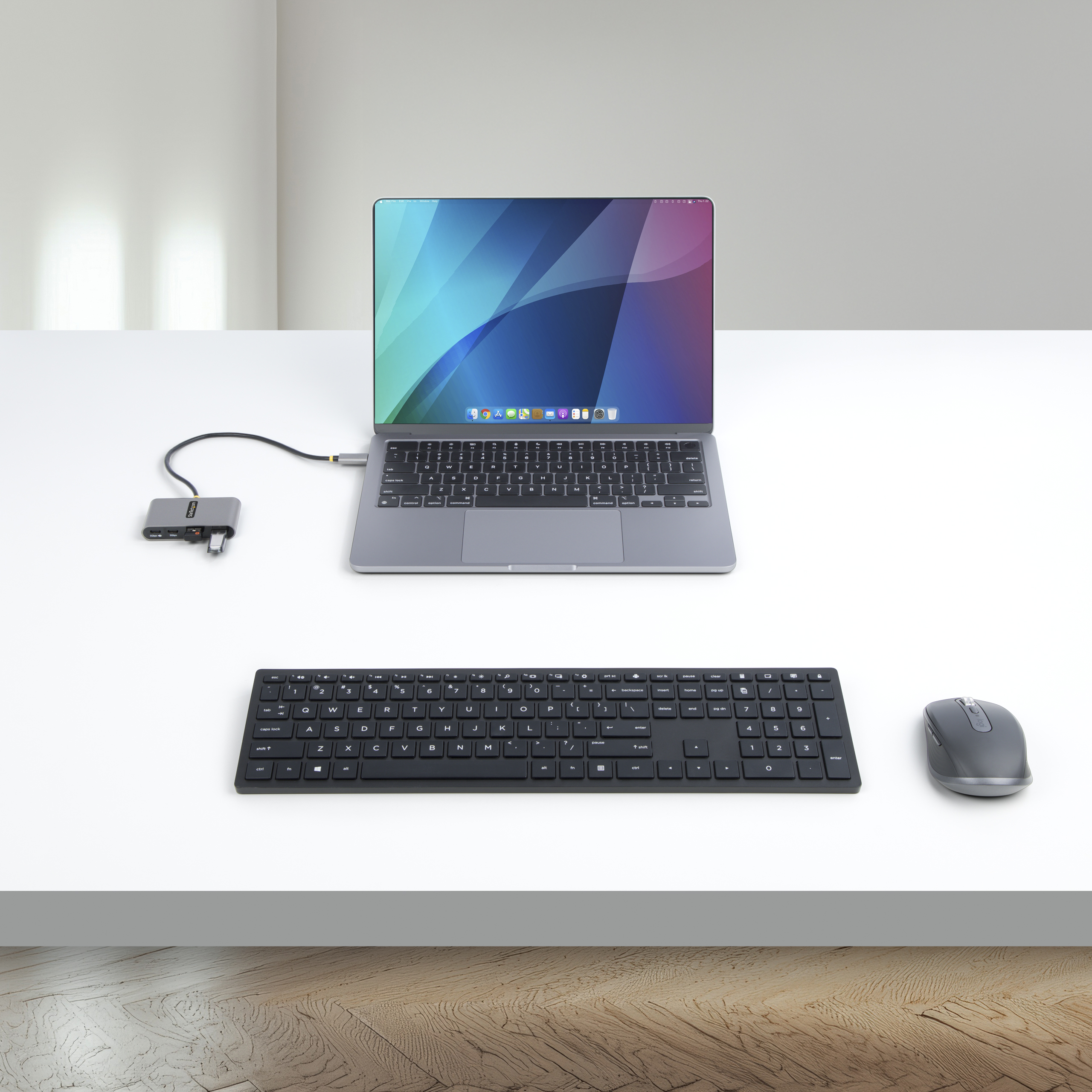

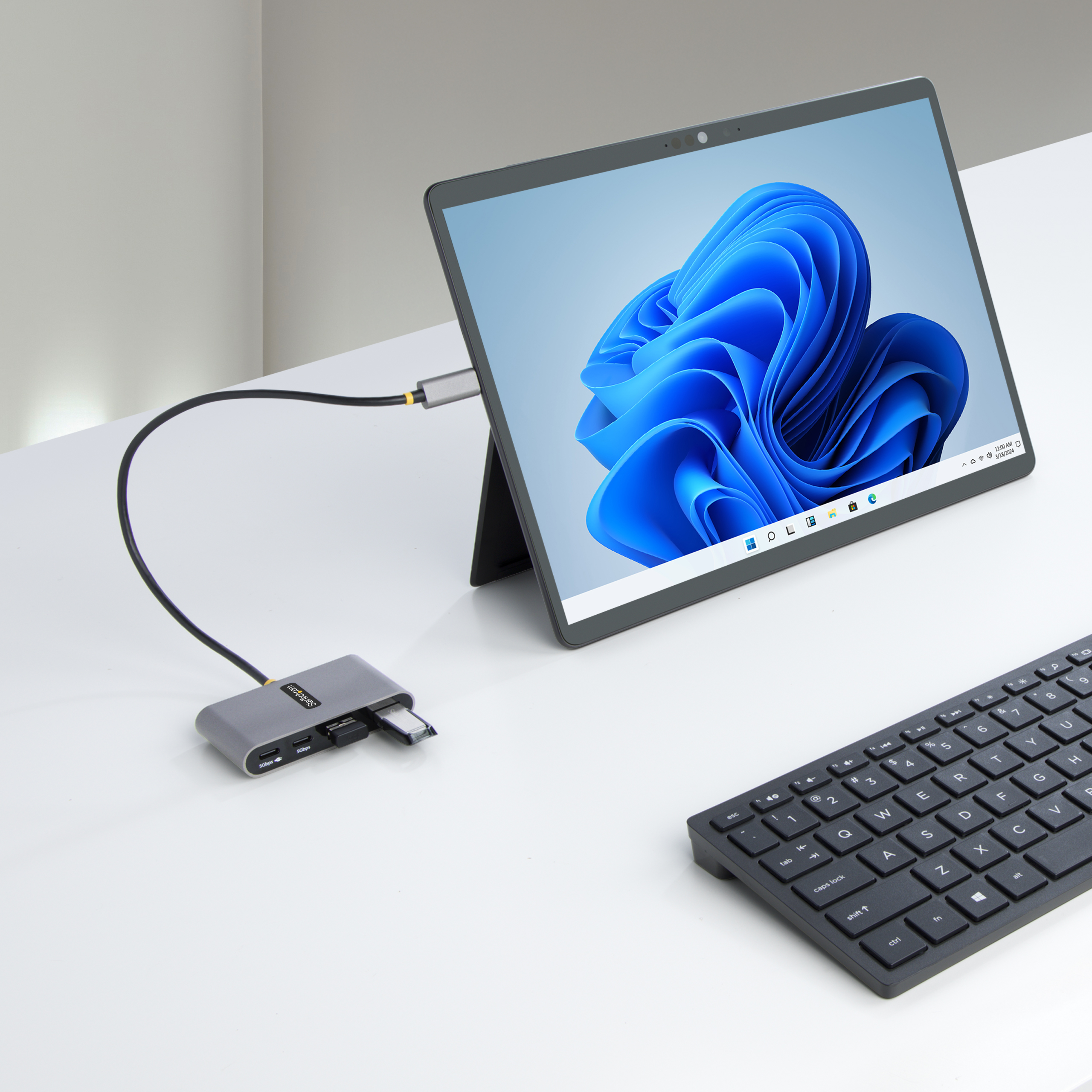

- Connect two USB-A peripherals and two USB-C peripherals to a USB-C equipped laptop
Website Search Keyword - 3 port usb 3.0 hub
- 4 port usb 3.0 hub
- 4 port usb hub
- 4 port USB-C hub
- aluminum usb c hub
- bus powered usb hub
- desktop usb hub
- laptop usb hub
- multiple usb c ports hub
- portable hub
- portable usb 3.0 hub
- portable usb c hub
- superspeed usb 3.0 hub
- usb 3.0 hub for macbook pro
- usb 3.0 travel hub
- usb 3.1 gen 1 hub
- usb 3.1 gen 2 hub
- usb 3.2 gen 2 hub
- usb c 3.1 gen 2 hub
- usb c expansion hub
- usb c hub dongle
- usb c hub for laptop
- usb c hub with power delivery
- usb c splitter
- usb c to usb a hub
- usb c to usb adapter
- usb c to usb c hub
- usb c to usb hub
- usb expansion hub
- usb hub bc 1.2
- usb hub for mac
- usb type c hub
- usb-c hub
- USB-C hub with power delivery
- usb-c port
- usb-c to usb-a hub
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
Special Notes - USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
- The USB hub features Overcurrent Protection (OCP). OCP prevents faulty USB peripherals from drawing more power than is safely allocated.
- OCP is activated when a connected USB peripheral attempts to draw more power then is safely allocated to the port. OCP will prevent this peripheral from consistently connecting to the Computer. This may result in the Computer re-recognizing the device continuously, until the device is disconnected.
- Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure the host USB-C port supports USB Power Delivery.
- Power will not pass through to the adapter when connected to a host USB-C port that lacks USB PD functionality.
- Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.
System and Cable Requirements - A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery).
- Optional: USB-C power adapter (for example, your laptop's USB-C based power adapter).
Accessory Products - WCH1C
- WCH1CEU
- WCH1CUK
- USB3S2SAT3CB
- SDOCK2U33
- SDOCK2U33V
- SDOCK4U33
Related Products - DKT30CSDHPD3
- DKT30CSDHPD
- 127B-USBC-MULTIPORT
- DKT31CSDHPD3
- HB30C4AFPD
- HB31CM4CPD3
- HB31C3A1CPD3

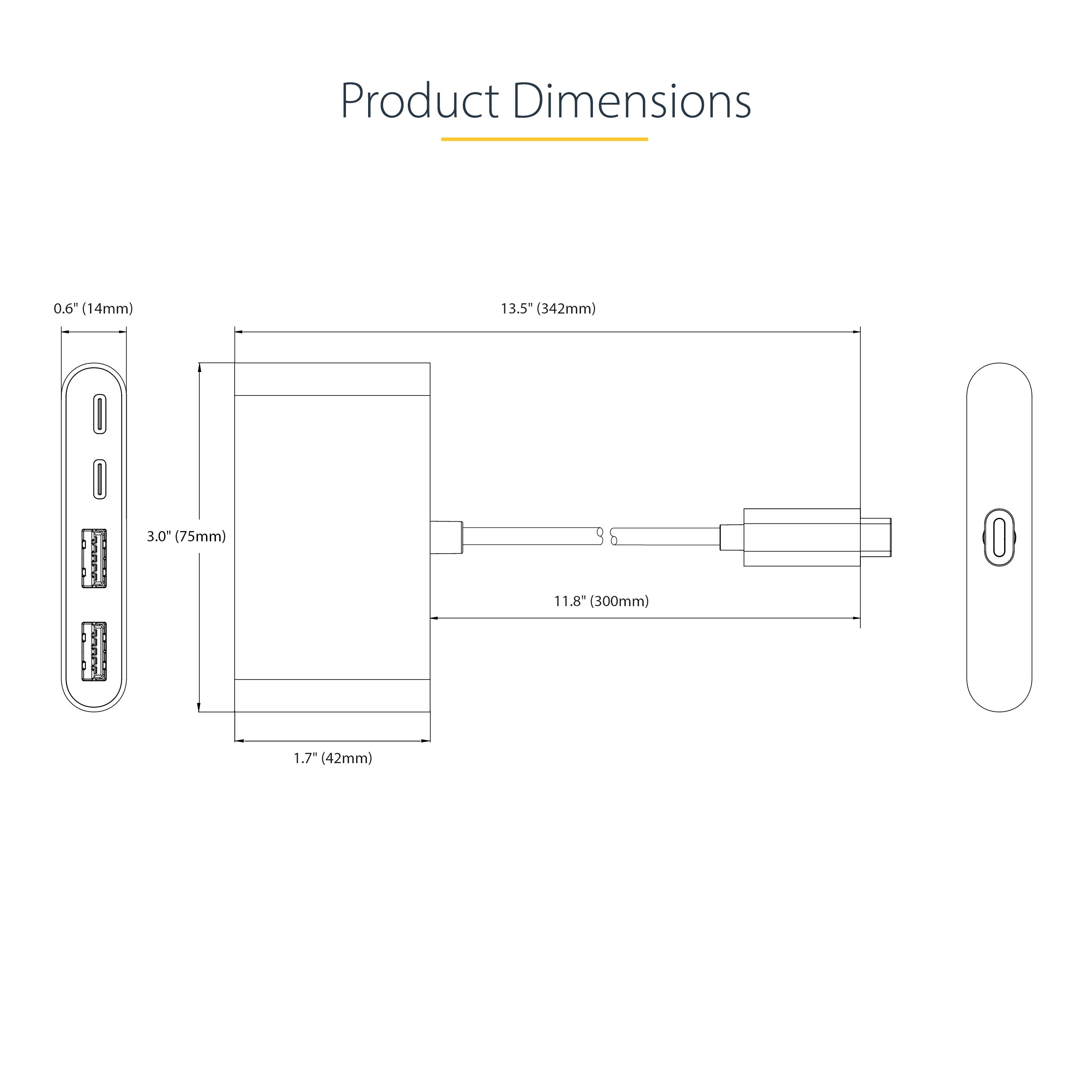

Output Voltage (V) 5 DC Power Consumption (In Watts) 15W Power Delivery 100W Power Source Bus Powered and Host USB-C Power Adapter Cable Length (mm) 300 Color Space Gray Humidity 5% ~ 85% RH Material Plastic Operating Temperature 0°C to 45°C (32°F to 113°F) Product Length (mm) 42.000 Product Width (mm) 75.000 Product Height (mm) 14.000 Product Weight (g) 41.000 Storage Temperature -5°C to 70°C (23°F to 158°F) TAA Compliant No Device Power Consumption (In Watts) 15W Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No General Specifications Maximum Laptop Charging: 80W Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Linux
- Chrome OS
- Android
- Windows 8.1
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- iPadOS
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
Total Available Power Output (In Watts) Up to 100W Total USB Power Output 4.5W (5V/0.9A) UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID - Fresco - FL7102
- Fresco - FL5001
Ethernet Port No Industry Standards - USB 3.2 Gen 1 - Backward compatible with USB 2.0 and 1.1
- USB Power Delivery 3.0
Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No USB-C Device Port(s) Yes USB-C Host Connection Yes Carton Depth (mm) 544 Carton Height (mm) 324 Carton Quantity 60 Carton Weight Gross (g) 6792 Included in Package 1 - USB-C Hub Included In Package for Label 1 - USB-C Hub Package Depth (mm) 173 Package Height (mm) 31 Package Width (mm) 144 Package Quantity 1 Package Weight (g) 94 Packaging Description 4-Port USB Type C™ 3.2 Gen 1 Hub w/Power Delivery 100W - USB-A & USB-C Packaging Description India 4-Port USB Type C™ 3.2 Gen 1 Hub w/PD 100W - USB-A & USB-C Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-C (5Gbps, 4.5W) Connector 1 (Quantity) 1 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 2 Connector 3 USB-C Dual-Role (5Gbps, 4.5W / 100W PD Input) Connector 3 (Quantity) 1 Host Connector 1 USB-C (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-04-08 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2022-11-10 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
