5G3AGBB-USB-A-HUB

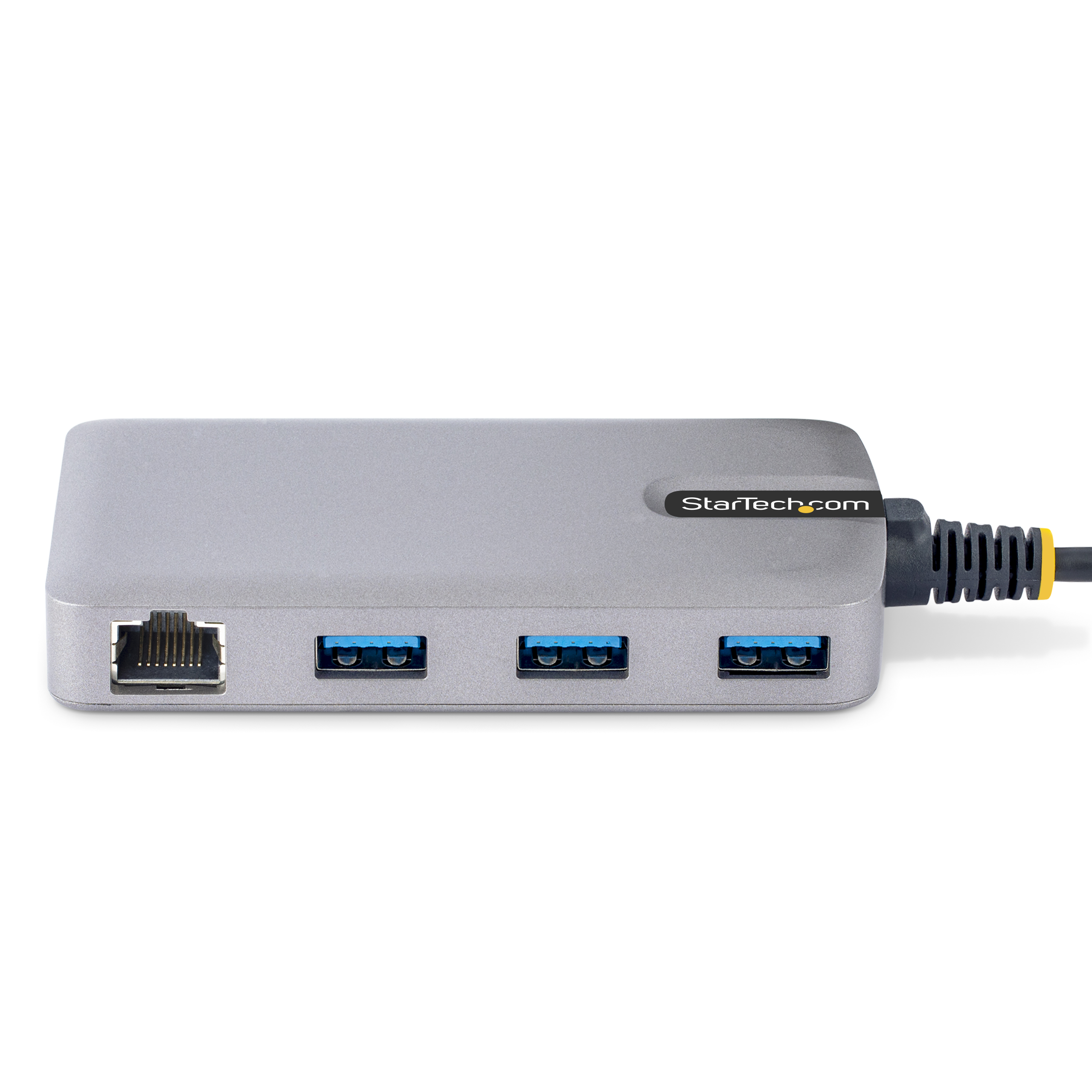

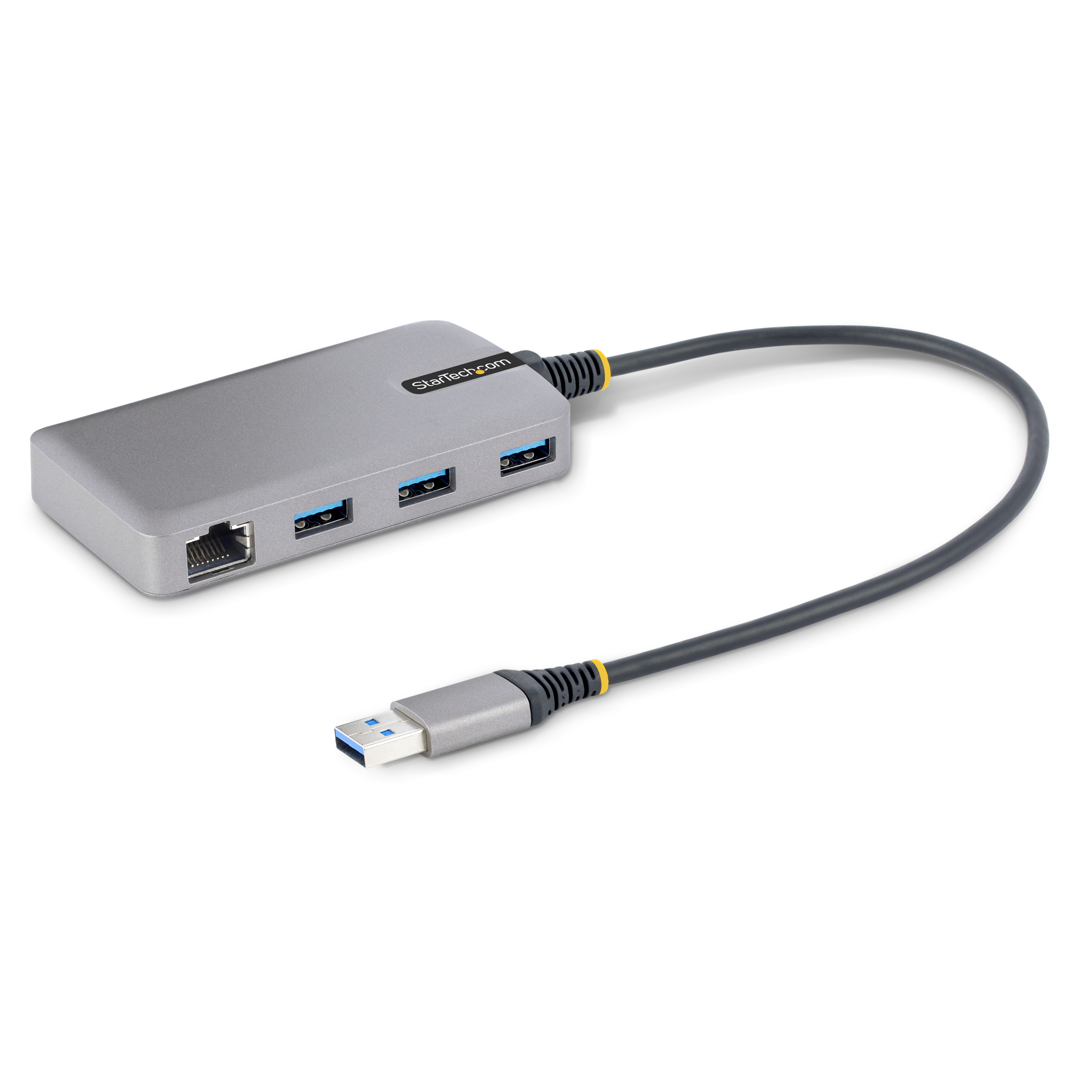

3 Port USB 5Gbps HUB with Gigabit Ethernet
10/100/1000Mbps Ethernet | USB Type-A to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 3 Port USB 5Gbps HUB with Gigabit Ethernet Product Number 5G3AGBB-USB-A-HUB UPC 065030893244 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A Multifunction Hubs - 5Gbps Family USB-A Multifunction Hubs - 5Gbps - with Ethernet Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 3-Port USB Hub + GbE Product Title (Short) 3-Port USB Hub w/ GbE Ethernet Adapter Product Title (Medium) 3-Port USB Hub with Ethernet, USB-A Ports, GbE, 5Gbps, 1ft/30cm Cable, Portable Product Title (Standard) 3-Port USB Hub with Ethernet, USB-A Ports, Gigabit Ethernet/GbE, 5Gbps, Bus-Powered, 1ft/30cm Cable, Portable Laptop USB Hub Product Title (Long) 3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet (RJ-45) - USB 3.0 5Gbps - Bus-Powered - 1ft/30cm Long Cable - Portable Laptop USB Hub Adapter w/ GbE Product Title (AMZ) 3-Port USB Hub with Ethernet - 3x USB-A Ports - Gigabit Ethernet (RJ-45) - USB 3.0 (5Gbps) - Bus-Powered - 1ft/30cm Long Cable - Portable Laptop USB Hub Adapter w/ GbE (5G3AGBB-USB-A-HUB) Title Ingram (Part 1) 3-Port USB Hub w/ GbE, Portable Title Ingram (Part 2) USB Hub Adapter with Ethernet Website Product Headline 10/100/1000Mbps Ethernet | USB Type-A to 3x USB Type-A | USB 3.2 Gen 1 (5Gbps) | 1ft (30cm) Built-In Host Cable Bullet 1 3 PORT USB HUB: Bus-powered USB 3.2 Gen 1 (5Gbps) expansion hub features a USB-A host connector and 3-port USB-A hub, Overcurrent Protection (OCP) & Wake on USB - 4.5W of bus power dynamically shared between 3 downstream ports Bullet 2 GIGABIT ETHERNET: Features a built-in GbE adapter to provide the reliability and security of wired RJ45 Ethernet to a laptop or desktop - The GbE controller is fully compatible w/IEEE 802.3u/ab standards and supports WoL, Jumbo Frames, and V-LAN Tagging Bullet 3 AUXILIARY POWER INPUT: The USB hub features a Micro USB power input (cable sold separately) to add 4.5W (5V/0.9A) of power to the hub for applications where additional power may be required, such as connecting high power USB devices like SSDs/HDDs Bullet 4 EXTRA-LONG CABLE: Attached 1ft/30cm cable provides longer reach for easy setup and prevents adapter from dangling on the USB-A host connector - Ideal cable length to reduce port strain on 2-in-1 convertible laptops, or host laptops on riser stands Bullet 5 CONNECTIVITY TOOLS: Optimize the performance and security of this USB-A hub, using the included MAC Address Changer, USB Event Monitoring, Wi-Fi Auto Switch utilities (available for download) - Hub compatible with Windows/macOS/Linux/ChromeOS/Android Bullets (Compact) Portable USB Expansion Hub w/Gb Ethernet RJ45 (WoL/Jumbo Frames/V-LAN Tagging) for laptop/desktop - 3x USB-A 3.2 Gen 1 5Gbps - Bus-powered dongle (4.5W power provided by USB host) - 1ft long host cable - Optional aux Micro USB power - Win/Mac/Chrome Bullets (Consolidated) Portable USB expansion hub for laptop/desktop computers - Gb Ethernet RJ45 | IEEE 802.3u/ab | Wake-on-LAN | Jumbo Frames | V-LAN Tagging - USB 3.2 Gen 1 5Gbps | 3x USB-A | Bus-powered dongle w/4.5W of power dynamically shared between downstream ports | Over Current Protection | Wake on USB - Optional Micro USB power input (cable sold separately) adds 4.5W of power for devices requiring additional power - Windows/Mac/Linux/Chrome - 1ft host cable - Connectivity Tools app Marketing Copy Marketing Copy (No HTML) Applications - Connect three USB-A peripherals and enable Gigabit Ethernet by connecting to a USB-A equipped laptop

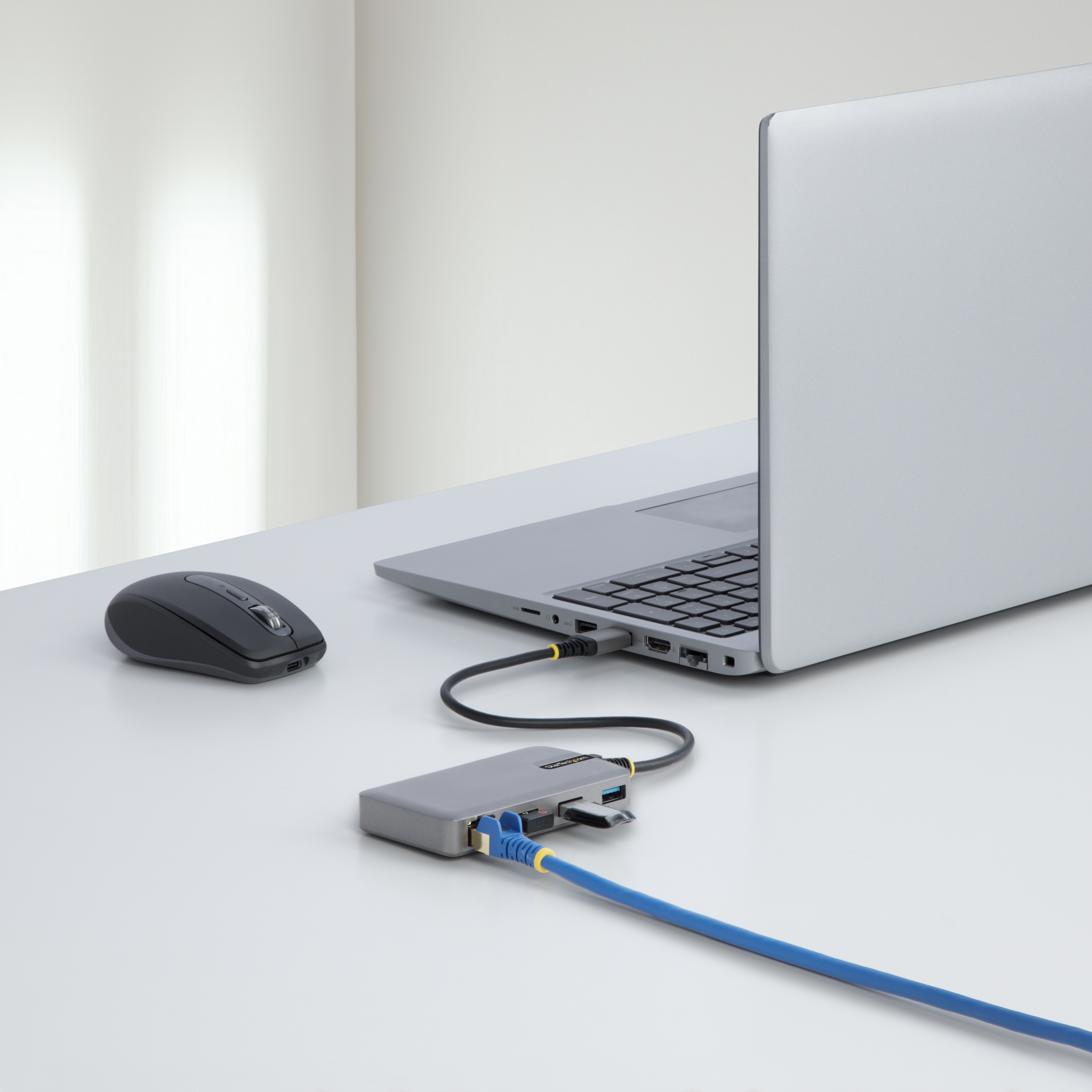

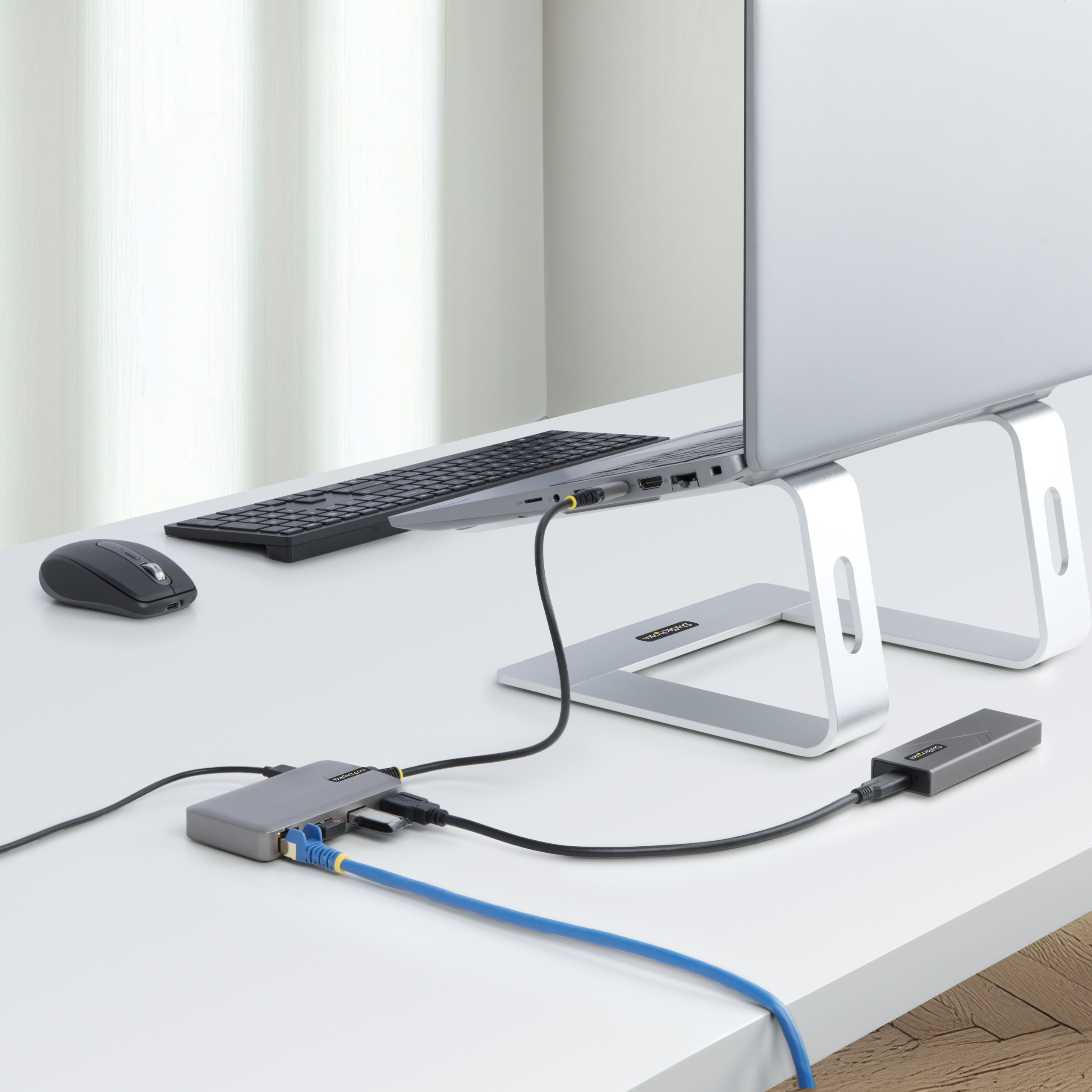

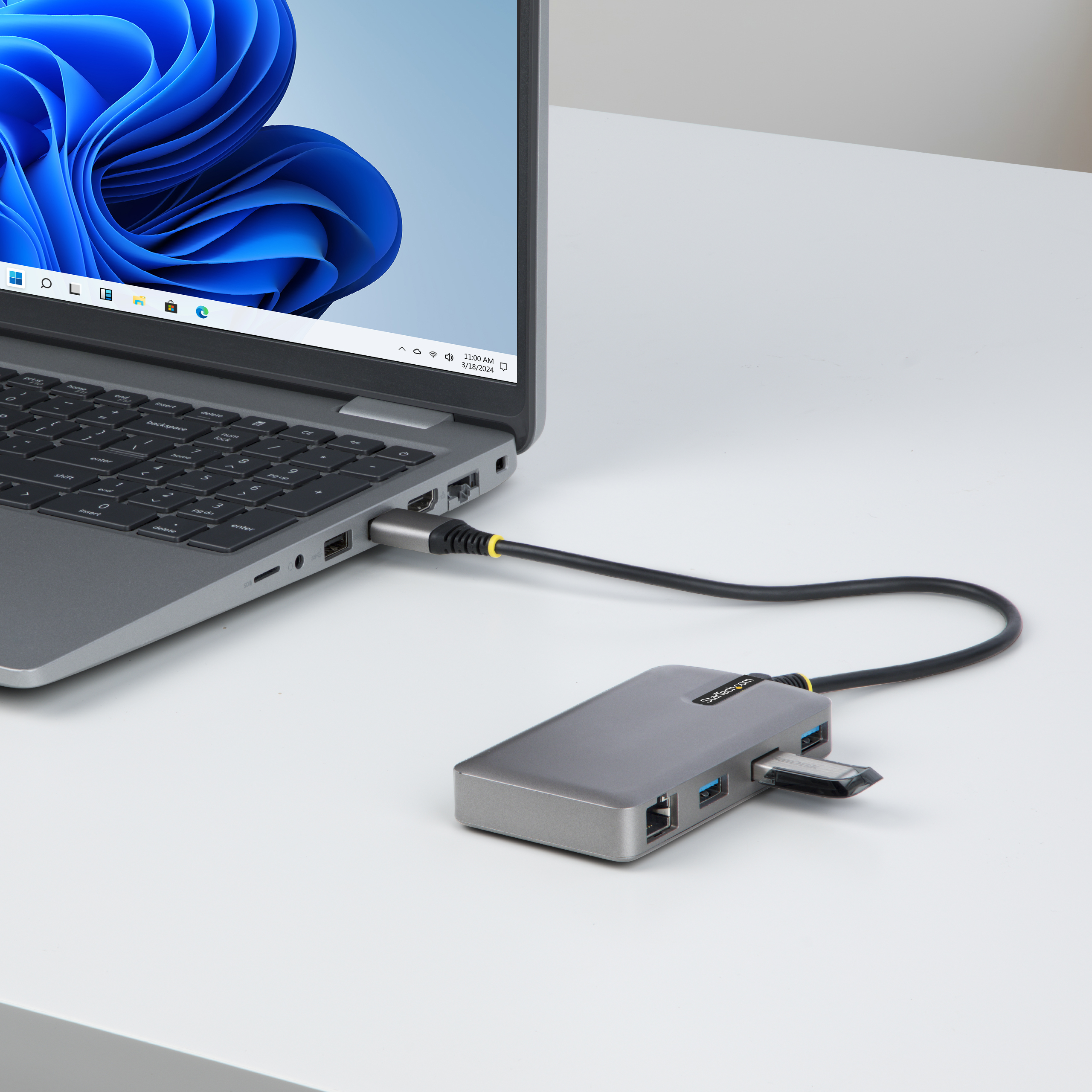

- Add wired internet connectivity to the laptop
- Ideal for traveling between the home and office
Website Search Keyword - 3 port usb 3.0 hub
- 3-port usb hub
- 3-port usb-a hub
- bus powered usb hub
- desktop usb hub
- ethernet dongle
- laptop usb hub
- laptop usb port expander
- portable hub
- portable usb 3.0 hub
- superspeed usb 3.0 hub
- usb 3.0 hub for macbook pro
- usb 3.0 travel hub
- usb 3.1 gen 1 hub
- usb 3.1 gen 2 hub
- usb 3.2 gen 2 hub
- usb c 3.1 gen 2 hub
- usb c hub dongle
- usb c to usb adapter
- usb c to usb hub
- usb expansion hub
- usb hub bc 1.2
- usb hub for mac
- usb hub with ethernet
- usb to ethernet adapter
- usb to ethernet adapter for laptop
- usb type c hub
- usb-c hub
Required Regulatory Compliance Marks - RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + paper tray/divider
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
Special Notes - USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps).
- Wake-on-LAN (WoL) functionality can be disabled by the host computer, if the host computer USB controller enters power save mode. It's recommended that USB power save modes be disabled within your operating system, if the WoL functionality is required for your application.
Accessory Products - USB3S2SAT3CB
- SDOCK2U33
- SDOCK2U33V
- SDOCK4U33
- USB2PACUBK
- USB2PACBK
- USB2PACWH
- UUSBHAUB1
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- C6PATCH15BK
- N6PATCH10BK
- N6PATCH1BL
- N6PATCH10BL
- N6PATCH6BK
- N6PATCH6BL
- N6PATCH3BL
- N6PATCH4RD
- N6LPATCH7BK
- N6PATCH7BL
- N6LPATCH10BL
- N6PATCH7BK
- N6LPATCH7BL
Related Products - 5G4AB-USB-C-HUB
- 5G4AB-USB-A-HUB

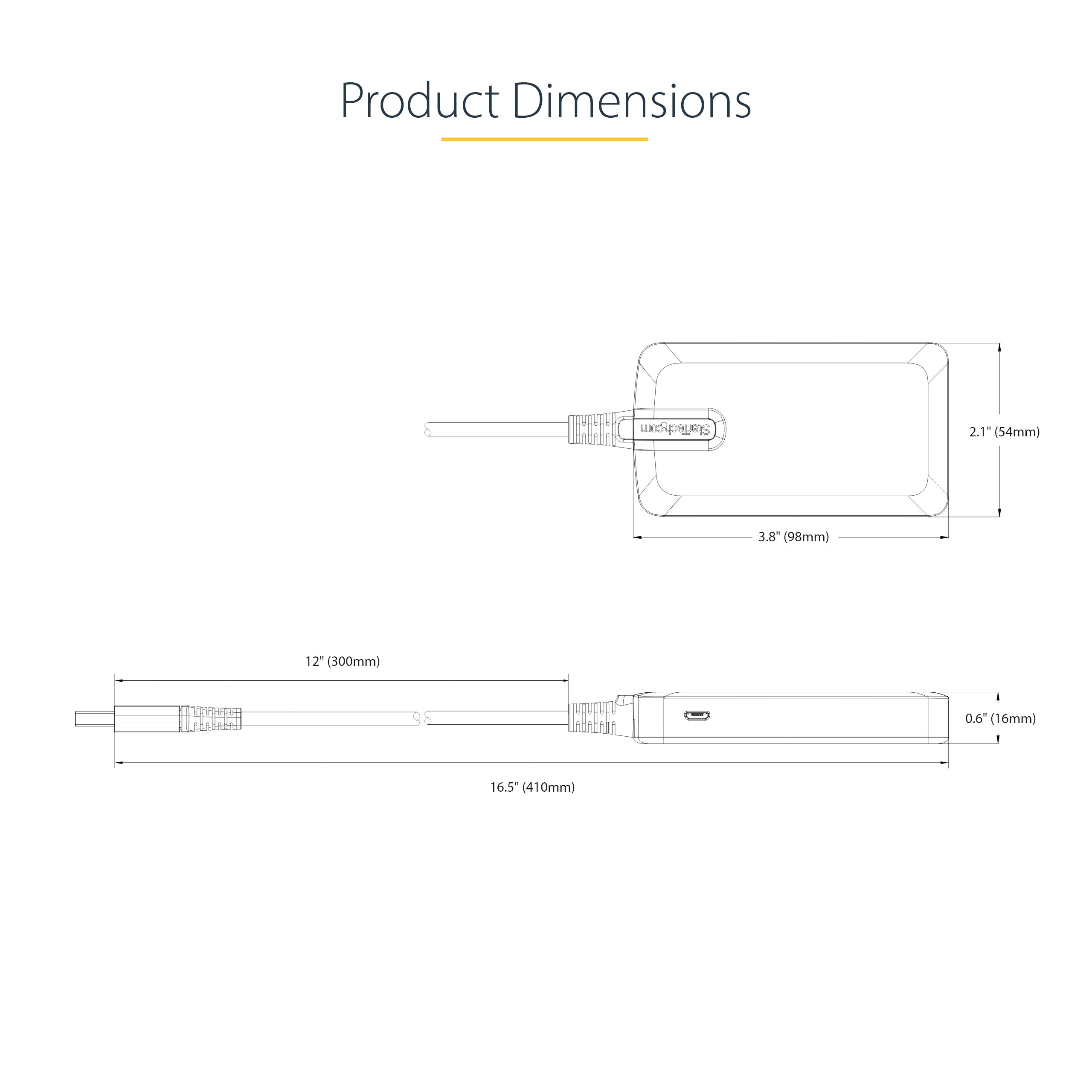

Power Source Bus Powered Cable Length (mm) 300 Color Space Gray Humidity 0% ~ 85% RH (no condensation) Material Plastic Network Adapter Form Factor Attached Cable Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 420.000 Product Width (mm) 50.000 Product Height (mm) 15.000 Product Weight (g) 84.000 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Flow Control Full duplex flow control Full Duplex Support Yes Jumbo Frame Support 9K max. Maximum Data Transfer Rate OS Compatibility - Windows 11
- Windows 10
- Windows 8
- Windows 7
- macOS Monterey (12.0)
- macOS Big Sur (11.0)
- macOS Catalina (10.15)
- macOS Mojave (10.14)
- macOS High Sierra (10.13)
- macOS Sierra (10.12)
- Mac OS X El Capitan (10.11)
- Linux
- Chrome OS
- Android
- Windows 8.1
- macOS Ventura (13.0)
- macOS Sonoma (14.0)
- Windows 11 ARM
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)
UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID - VIA - VL817
- Asix - AX88179A
Ethernet Port Yes Industry Standards - IEEE 802.3u, IEEE 802.3ab
- IEEE 802.3az Energy-Efficient Ethernet, IEEE 802.3x Flow Control, 802.1q VLAN Tagging, 802.1p Layer 2 Priority Encoding
- USB 3.0 - Backward compatible with USB 2.0 and 1.1
Interface/Bridge - USB 3.2 Gen 1 (5Gbps)
- RJ45 (Gigabit Ethernet)
Laptop Dock / USB Hub Fast-Charge No LED Indicators - 1 - Network Link LED - Green
- 1 - Network Activity LED - Amber

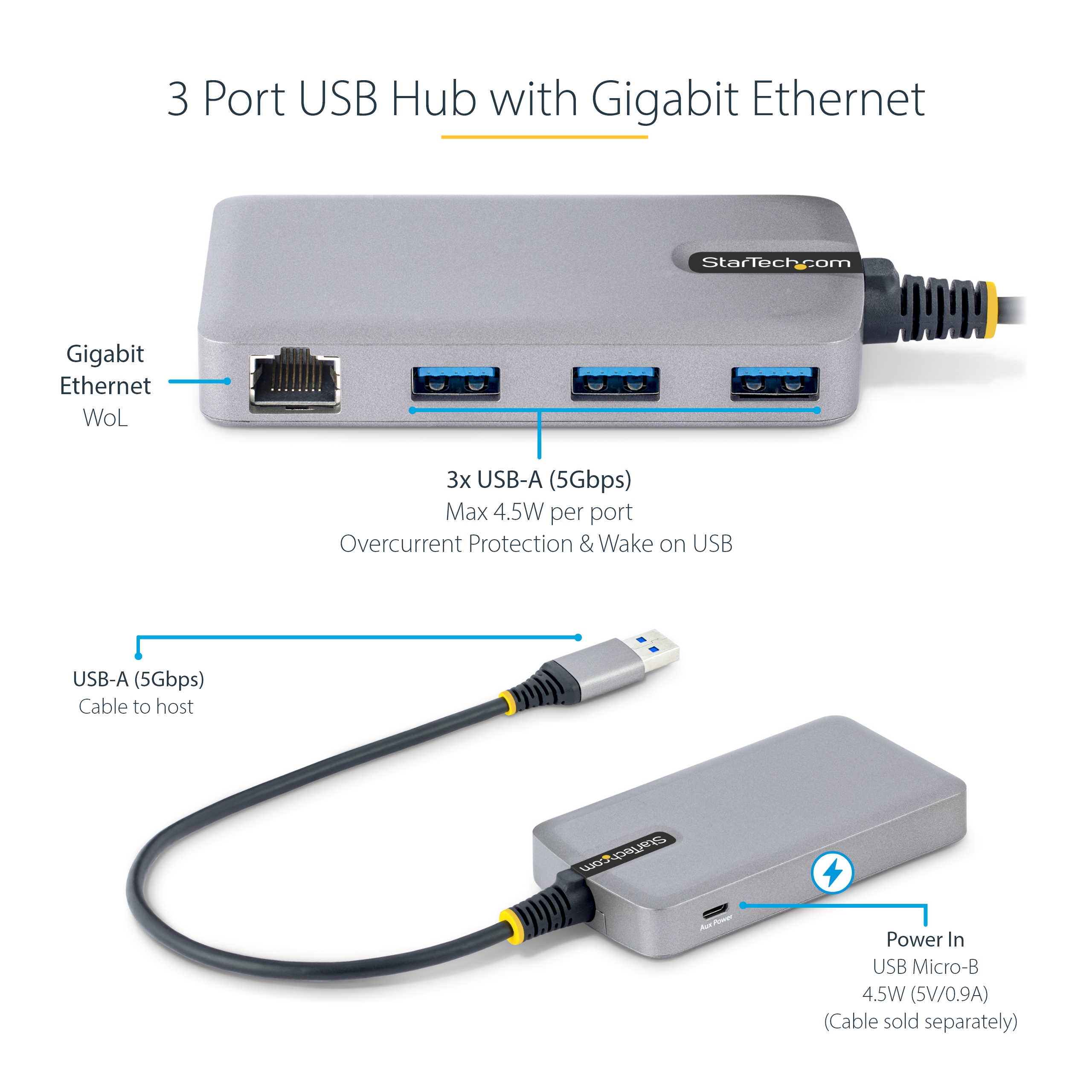

USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 481 Carton Height (mm) 444 Carton Quantity 70 Carton Weight Gross (g) 10624 Included in Package 1 - USB Hub Included In Package for Label 1 - USB Hub Number of Sub-Cartons 1 Package Depth (mm) 170 Package Height (mm) 31 Package Width (mm) 145 Package Quantity 1 Package Weight (g) 134 Packaging Description 3-Port USB 3.2 Gen 1 (5Gbps) Hub with GbE - USB-A Packaging Description India 3-Port USB 3.2 Gen 1 (5Gbps) Hub with GbE - USB-A Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 70 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 3 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB Micro-B (2.5W Power Only) Connector 3 (Quantity) 1 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-07-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-09-06 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2022-06-17 Target Production Release 2022-07-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Video Not Required
