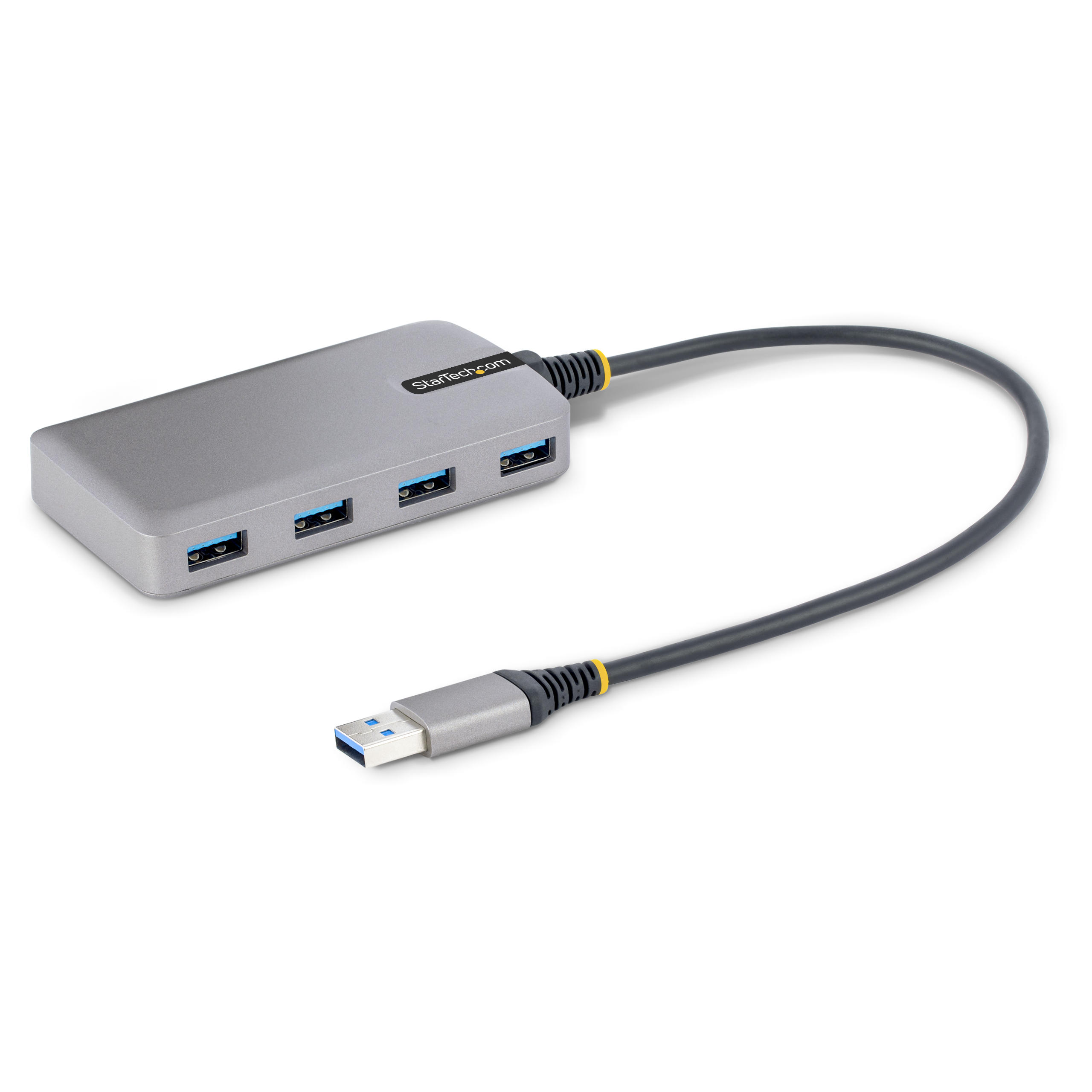

5G4AB-USB-A-HUB
4 Port USB SuperSpeed5Gbps 3 0 Portable Hub VBL

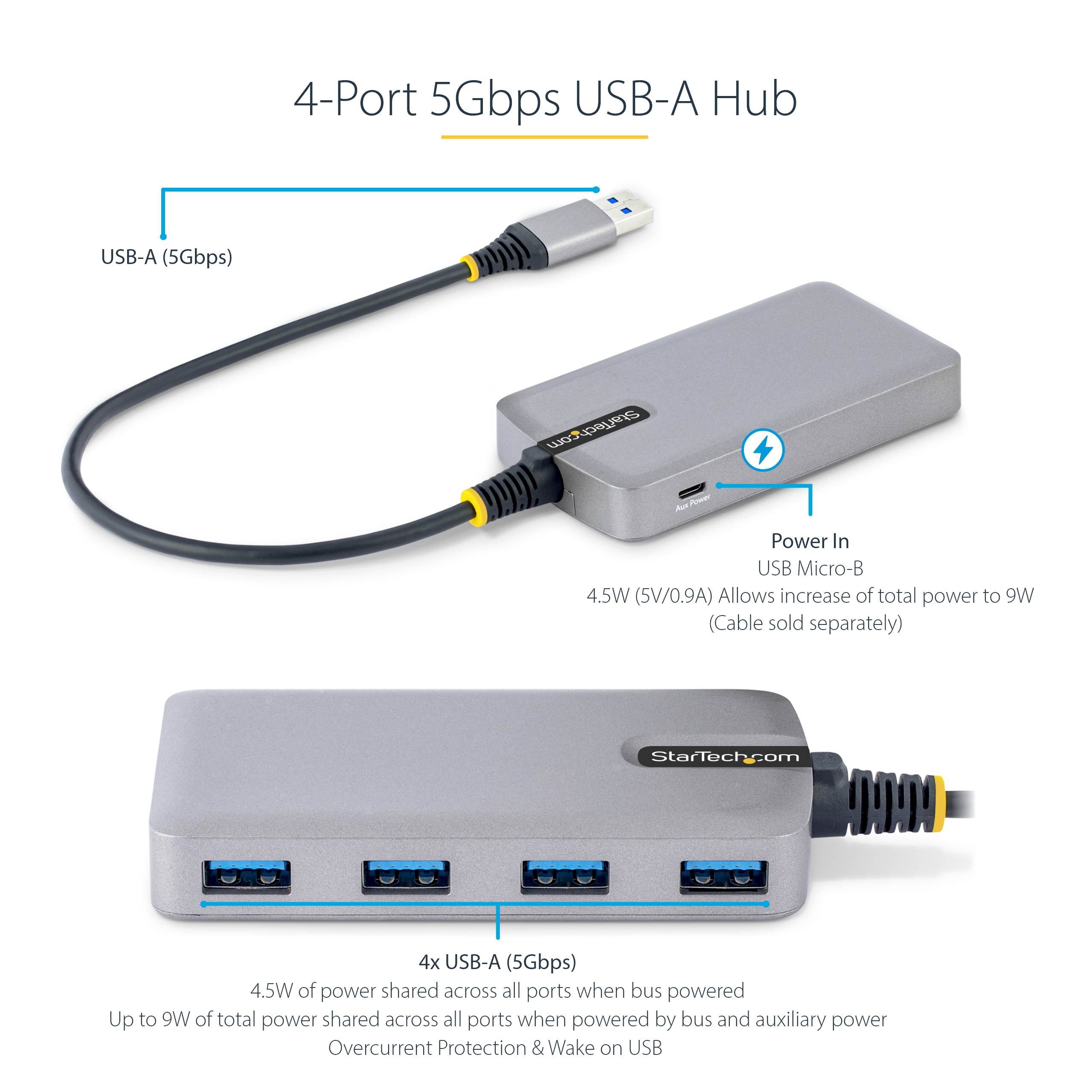

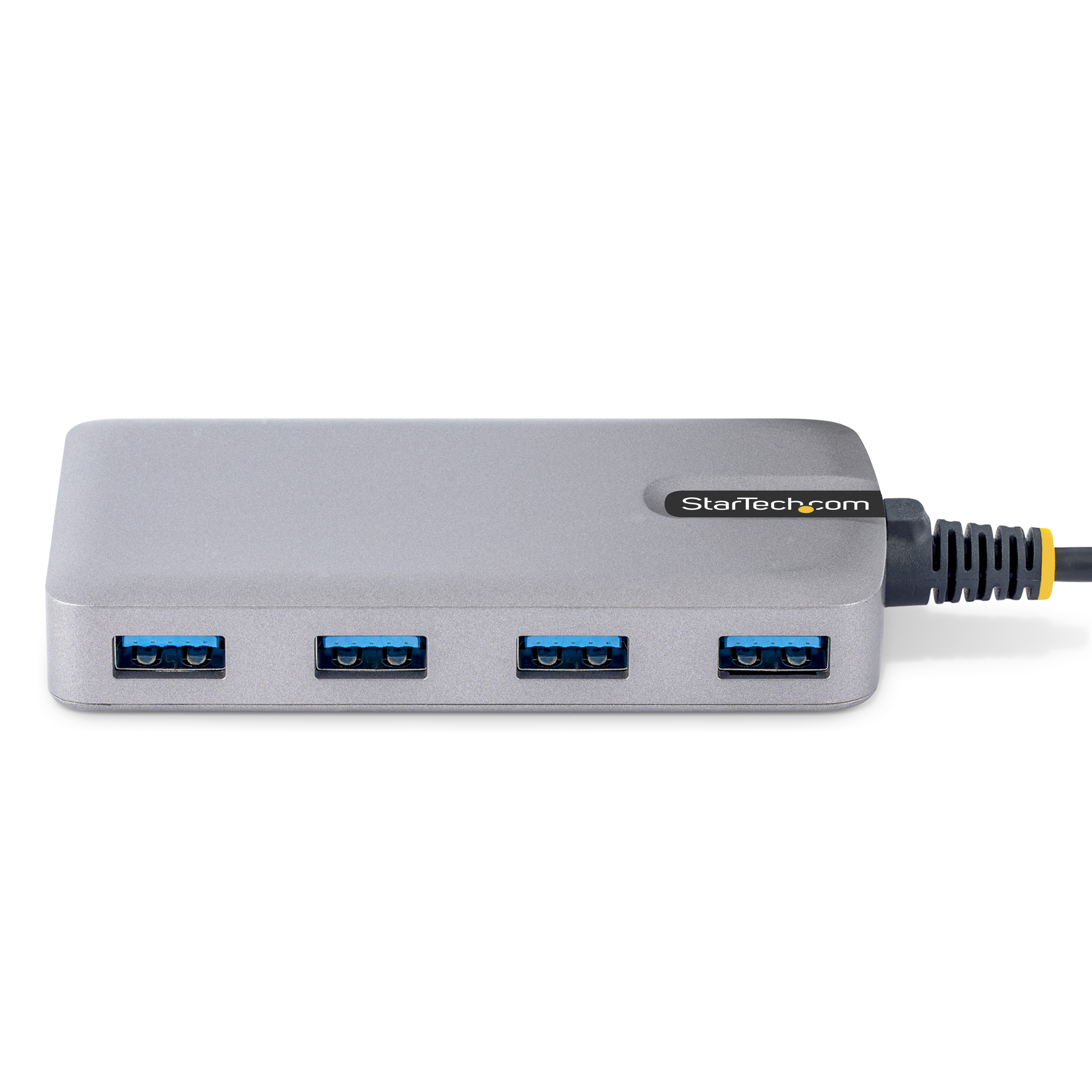

USB Type-A to 4x USB Type-A | USB 3.2 Gen 1 (5Gbps) | Auxiliary Micro USB Power Input (up to 4.5W)
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Video Link YouTube
Product Name 4 Port USB SuperSpeed5Gbps 3 0 Portable Hub VBL Product Number 5G4AB-USB-A-HUB UPC 065030893220 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A Bus Powered Hubs - 5Gbps Family USB-A Bus Powered Hubs - 5Gbps - 4-Port - All A Country of Origin Europe & Japan China Country of Origin North America Vietnam Country of Origin History (1) China Country of Origin Revision (1) XXXXXX028X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX132X Product Title (Ultra-Short) 4-Port 5Gbps USB Hub Product Title (Short) 4-Port USB Hub, 5Gbps, Bus Powered Product Title (Medium) 4-Port USB Hub, 5Gbps, Bus Powered, Optional Auxiliary Power, Laptop USB-A Hub Product Title (Standard) 4-Port USB Hub, USB 3.0 5Gbps, Bus Powered, USB-A to 4xA w/ Optional Auxiliary Power, Portable Laptop USB Hub, 1ft/30cm Cable Product Title (Long) 4-Port USB Hub - USB 3.0 5Gbps, Bus Powered, USB-A to 4x USB-A Hub w/ Optional Auxiliary Power Input - Portable Desktop/Laptop USB Hub, 1ft/30cm Cable, USB Expansion Hub Product Title (AMZ) 4 Port USB Hub, USB 3.0 (5Gbps), Bus Powered, USB-A to 4x USB-A Hub w/ Optional Auxiliary Power Input, Portable Desktop/Laptop USB Hub, 1ft/30cm Cable, USB Expansion Hub (5G4AB-USB-A-HUB) Title Ingram (Part 1) 4-Port USB-A Hub, 5Gbps, Laptop Title Ingram (Part 2) Desktop, Portable Expansion Hub Website Product Headline USB Type-A to 4x USB Type-A | USB 3.2 Gen 1 (5Gbps) | Auxiliary Micro USB Power Input (up to 4.5W) Bullet 1 4 PORT USB HUB: Bus-powered USB 3.2 Gen 1 (5Gbps) expansion hub features a USB-A host connector and 4x USB-A ports, Overcurrent Protection (OCP) & Wake on USB - 4.5W of bus power dynamically shared between 4 downstream ports, with max 4.5W per port Bullet 2 AUXILIARY POWER INPUT: The USB hub features a Micro USB power input (cable sold separately) to add 4.5W (5V/0.9A) of power to the hub for applications where additional power may be required, such as connecting high power USB devices like SSD drives Bullet 3 COMPATIBILITY: OS independent - Supports all operating systems, including Windows, macOS, Linux, ChromeOS, Android - Compatible with USB Type-A host devices such as Lenovo X1 Carbon, Dell XPS, Microsoft Surface - Works w/USB 2.0 devices Bullet 4 EXTRA LONG CABLE: Bus-powered USB dongle with compact housing, ideal for travel - Attached extra-long 1ft. (30cm) host cable for easy setup and to reduce connector strain on 2-in-1 devices, such as Surface Pro 7 and laptops on riser stands Bullet 5 APPLICATIONS: Add 4x USB-A ports from a single USB-A port for connecting peripherals such as keyboard/mouse, USB SSDs & thumb drives - Ideal for desktops or laptop computers with limited USB ports - USB Event Monitoring utility available for download Bullets (Compact) Portable USB-A Expansion Hub for desktop or laptop computers - 4x USB-A - USB 3.2 Gen 1 5Gbps - Bus-powered dongle (4.5W of power provided by USB host) - Optional auxiliary power input (Micro USB) - 1ft/30cm long host cable - Win/Mac/Chrome/Linux Bullets (Consolidated) Portable USB-A expansion hub for laptop or desktop computers - USB 3.2 Gen 1 (5Gbps) | 4-Port USB-A hub | Bus-powered dongle w/4.5W of bus power dynamically shared between 4 downstream ports with max 4.5W per port | Over Current Protection (OCP) | Wake-on-USB - Optional auxiliary Micro USB power input (cable sold separately) adds 4.5W of power for applications requiring additional power - Windows/macOS/Linux/ChromeOS - Extra-long 1ft/30cm built-in host cable - USB Event Monitoring app Marketing Copy Marketing Copy (No HTML) Applications - Connect four USB-A peripherals to a USB-A equipped laptop or desktop
- Ideal for traveling between the home and office
Website Search Keyword - 4 port usb 3.0 hub
- 4 port usb hub
- 4 port USB-A hub
- bus powered usb hub
- desktop usb hub
- laptop usb hub
- portable hub
- portable usb 3.0 hub
- portable usb c hub
- usb c expansion hub
- usb c hub dongle
- usb c splitter
- usb c to usb adapter
- usb c to usb hub
- usb expansion hub
- usb hub bc 1.2
- usb hub for mac
- usb type c hub
- usb-c hub
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
Special Notes USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps) and USB 3.0 (5Gbps). System and Cable Requirements - A host computer with an available USB-A port.

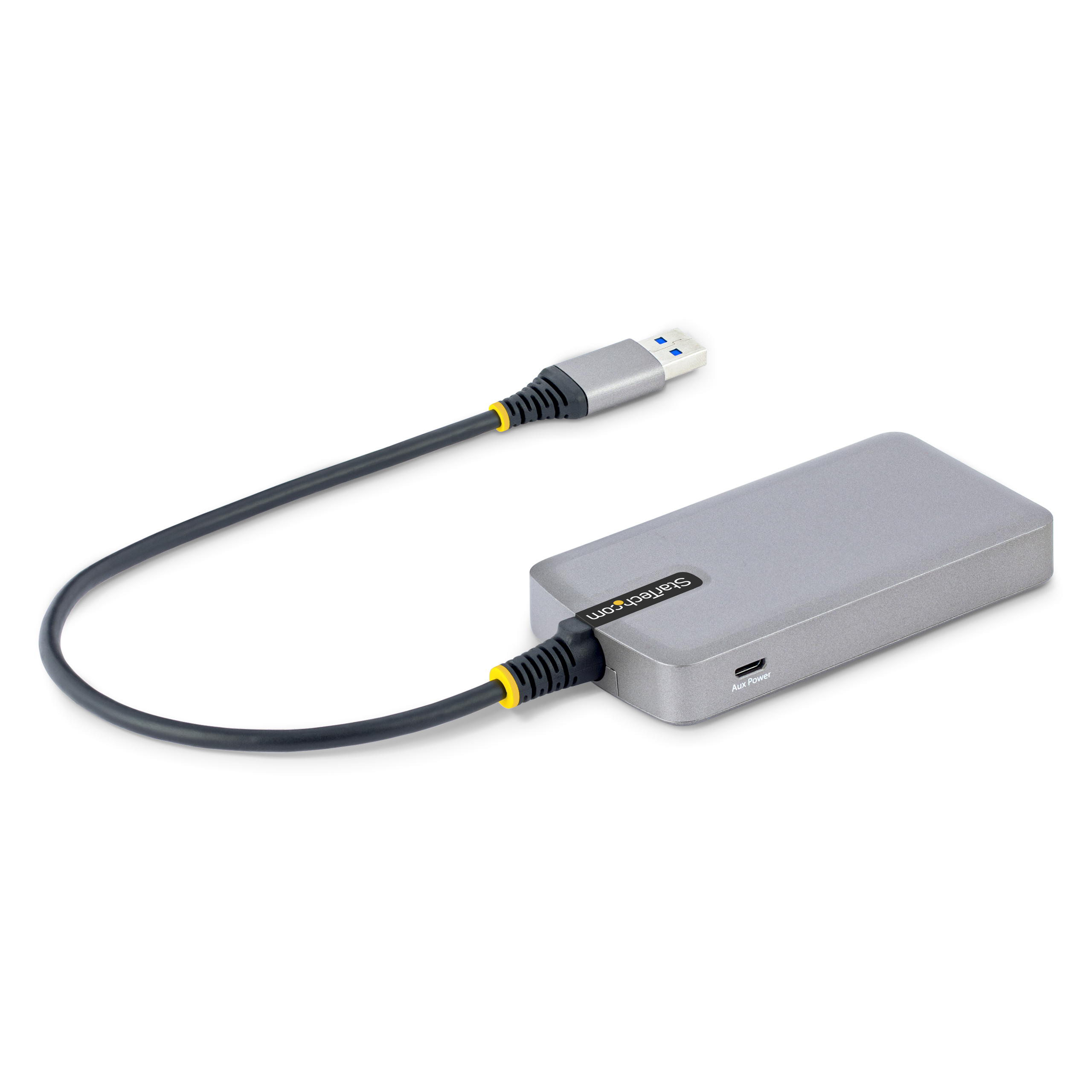

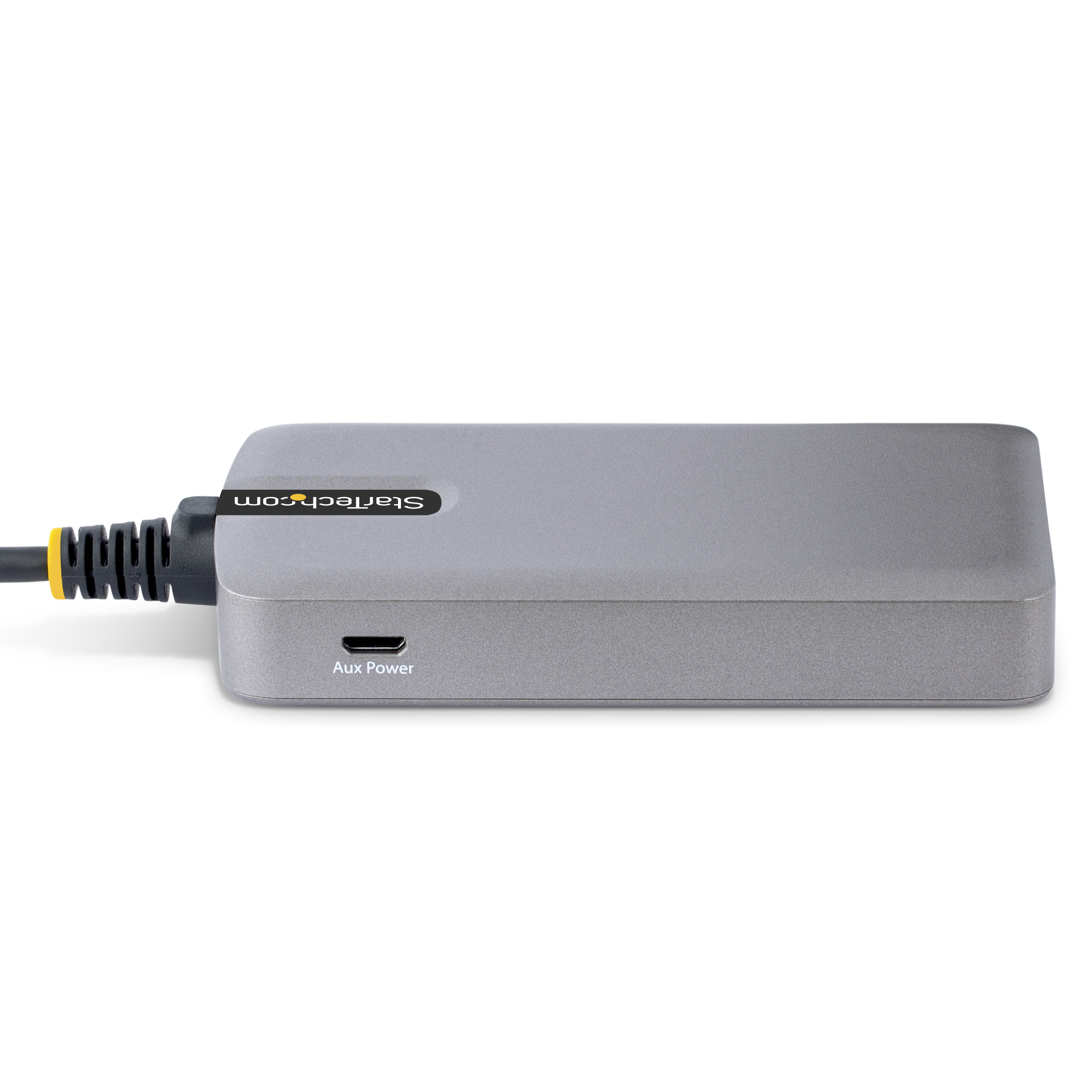

- (Optional - when USB bus power is inadequate) USB Power Source with USB Micro-B host cable to provide supplemental power to the USB hub (up to 4.5W).
Accessory Products - USB3S2SAT3CB
- SDOCK2U33
- SDOCK2U33V
- SDOCK4U33
- USB2PACUBK
- USB2PACBK
- USB2PACWH
- UUSBHAUB3
- UUSBHAUB6
- UUSBHAUB10
- UUSBHAUB1
Related Products - 5G3AGBB-USB-C-HUB
- 5G3AGBB-USB-A-HUB
- 5G4AB-USB-C-HUB

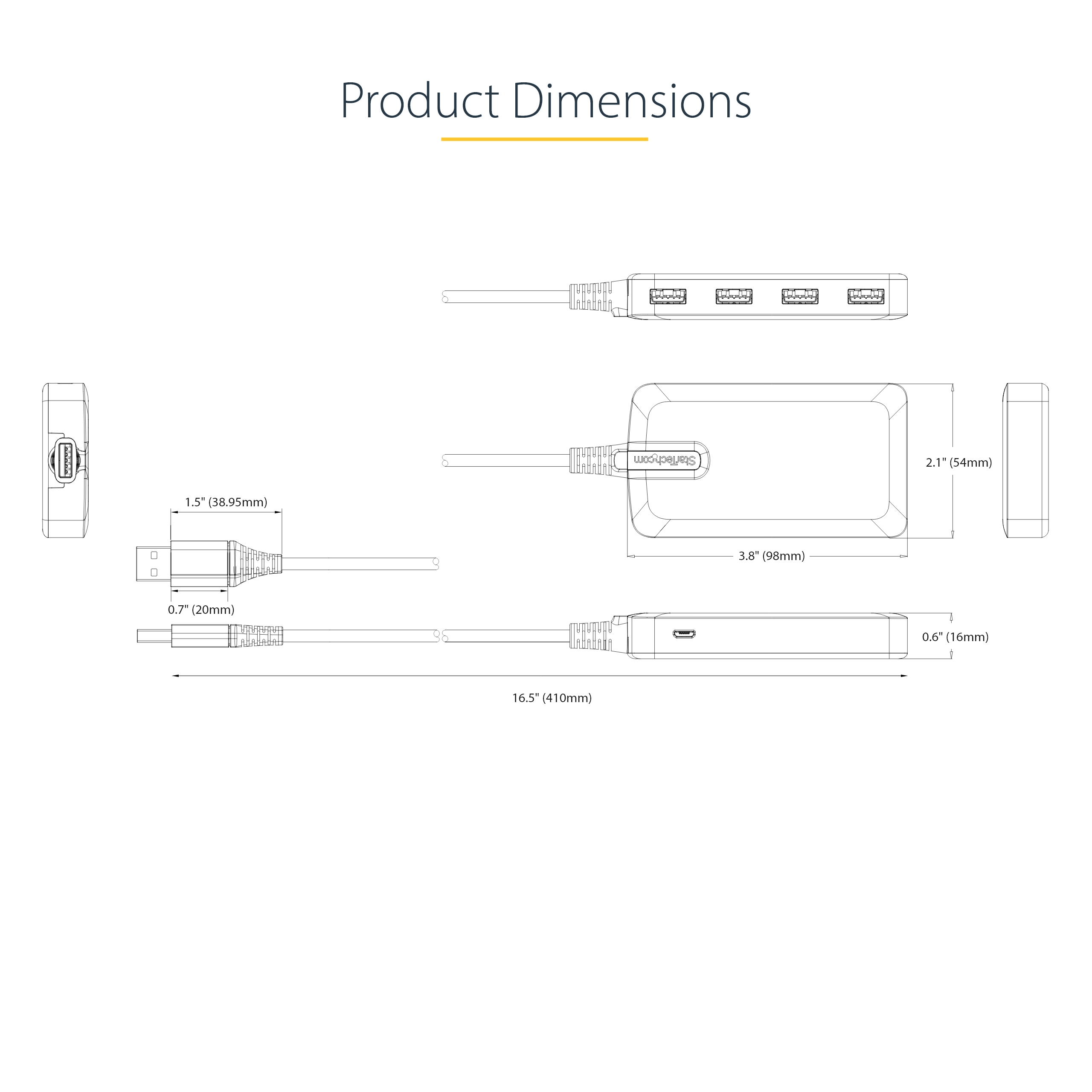

Power Source Bus Powered Cable Length (mm) 300 Color Space Gray Humidity 0% ~ 85% RH (no condensation) Material Plastic Operating Temperature 0°C to 70°C (32°F to 158°F) Product Length (mm) 420.000 Product Width (mm) 54.000 Product Height (mm) 16.000 Product Weight (g) 82.000 Storage Temperature -40°C to 80°C (-40°F to 176°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) No Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 107,000 hours OS Compatibility OS Independent UASP Support Yes USB Speed USB 3.2 Gen 1 (5Gbps) USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA - VL817 Ethernet Port No Industry Standards USB 3.2 Gen 1 - Backward compatible with USB 2.0 and 1.1 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge No USB-C Device Port(s) No USB-C Host Connection No Carton Depth (mm) 479 Carton Height (mm) 447 Carton Quantity 70 Carton Weight Gross (g) 10452 Included in Package 1 - USB Hub Included In Package for Label 1 - USB Hub Package Depth (mm) 170 Package Height (mm) 32 Package Width (mm) 146 Package Quantity 1 Package Weight (g) 136 Packaging Description 4-Port USB 3.2 Gen 1 (5Gbps) Hub - USB Type-A Packaging Description India 4-Port USB 5Gbps Hub - USB Type-A Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 4 Connector 2 USB Micro-B (2.5W Power Only) Connector 2 (Quantity) 1 Host Connector 1 USB-A (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-07-07 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-07-27 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 1 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CL,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Sam Bushell Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2022-06-17 Target Production Release 2022-07-30 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle Mainstream Video Not Required
