5G4AINDNP-USB-A-HUB
Connect four USB Type-A 3.2 Gen 1 (5Gbps) devices to a single USB port on your computer, using a USB hub that's suitable for harsh industrial/commercial environments
| Product Name | 4Port USB 3 Hub Metal USB Hub w Surge Protection no PSU |
|---|---|
| Product Number | 5G4AINDNP-USB-A-HUB |
| UPC | 065030898010 |
| Lifecycle status | Active |
| Warranty | 2 Years |
| Taxonomy | Product > Docks, Hubs & Video Adapters > USB Hubs |
| Category Level 1 | Hubs |
| Category Level 2 | Industrial USB Hubs |
| Category Level 3 | Industrial USB Hubs - 5Gbps |
| Family | Industrial USB Hubs - 5Gbps - 4-Port |
| Country of Origin Europe & Japan | Taiwan |
| Country of Origin North America | Taiwan |
| Country of Origin History (1) | Taiwan |
| Country of Origin Revision (1) | XXXXXX013X |
| Product Title (Ultra-Short) | Industrial USB-A Hub |
|---|---|
| Product Title (Short) | 4-Port Industrial USB 3.0 Hub, Metal |
| Product Title (Medium) | 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB-A Expansion Hub, Mountable |
| Product Title (Standard) | 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable, USB-A Expansion Hub, TAA |
| Product Title (Long) | 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA |
| Product Title (AMZ) | 4-Port Industrial USB 3.0 5Gbps Hub, Rugged USB Hub with ESD Protection, DIN/Wall/Desk Mountable USB-A Hub, USB Expander w/Locking Ports, Heavy Duty - TAA |
| Title Ingram (Part 1) | 4-Port Industrial USB Hub 5Gbps |
| Title Ingram (Part 2) | USB-A Hub w/ ESD Protection |
| Website Product Headline | Connect four USB Type-A 3.2 Gen 1 (5Gbps) devices to a single USB port on your computer, using a USB hub that's suitable for harsh industrial/commercial environments |
| Bullet 1 | 4-PORT INDUSTRIAL USB HUB: USB 5Gbps expansion hub w/metal enclosure for durability in harsh environments; Provides 4 USB 3.0 Type-A Downstream Facing Ports (DFP); 5Gbps shared; 6ft A-B host cable; USB Event Monitoring utility (available for download) |
| Bullet 2 | ESD PROTECTION: Heavy-duty USB hub with integrated electrostatic discharge safeguards; Protects connected devices with up to 8kV air and 4kV contact ESD protection |

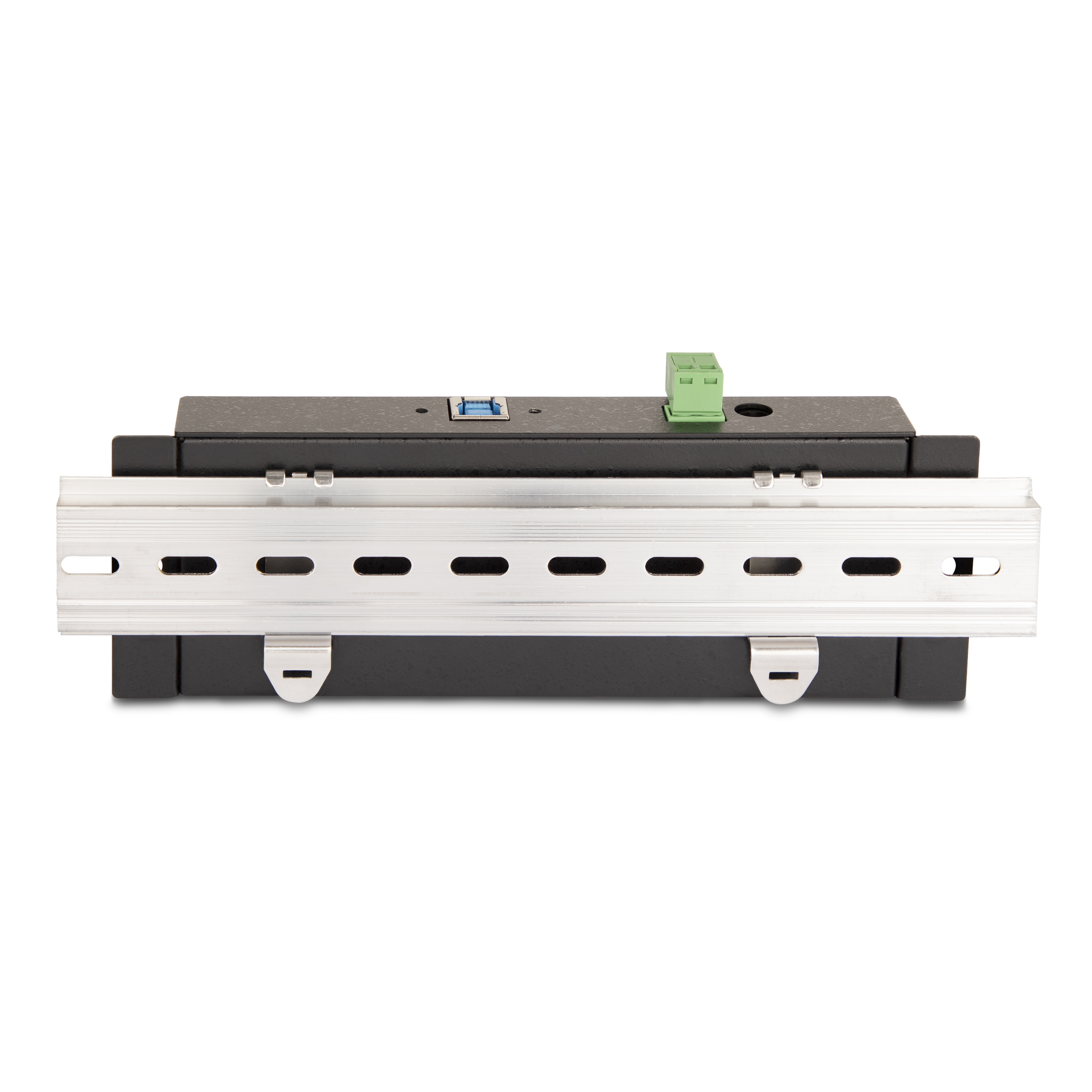

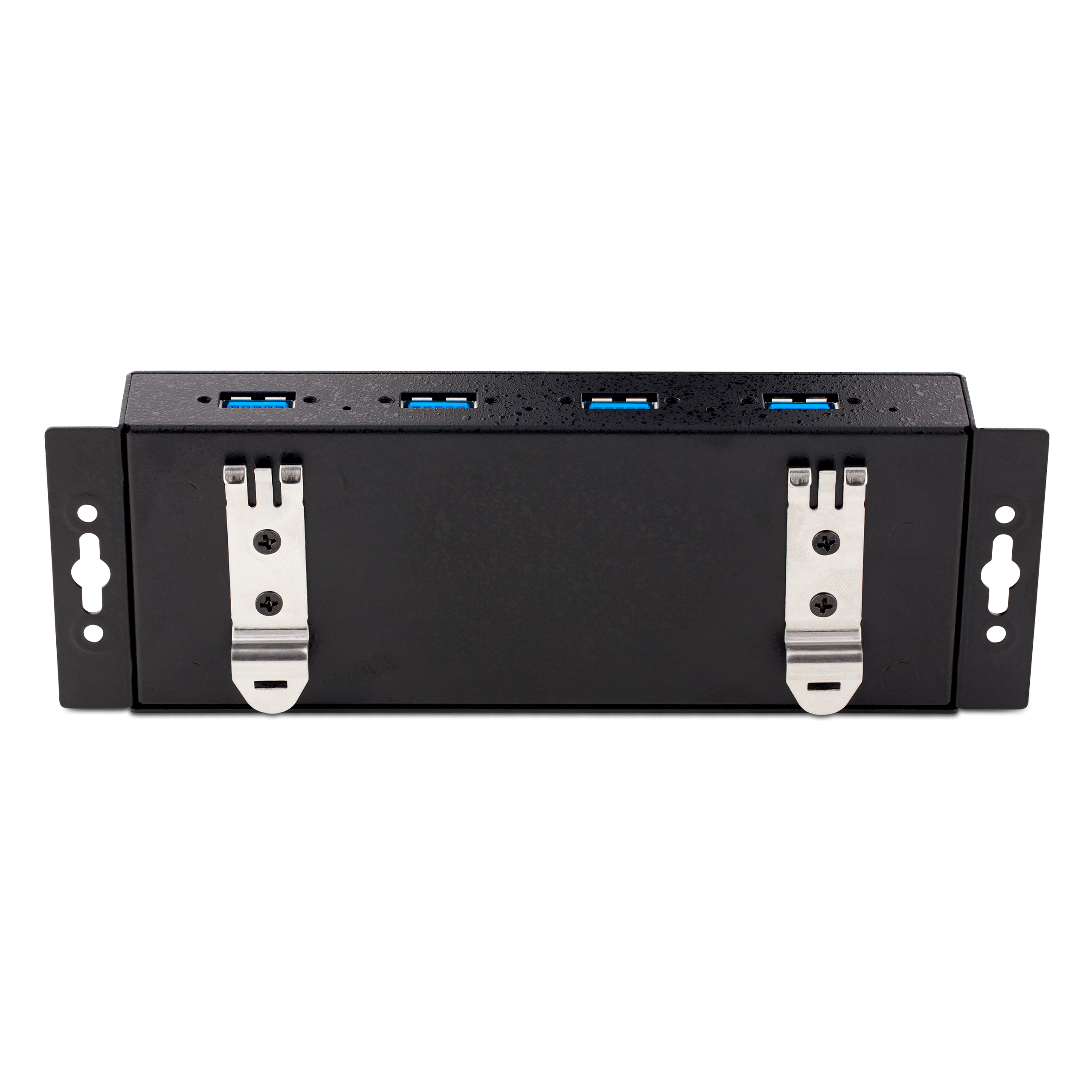

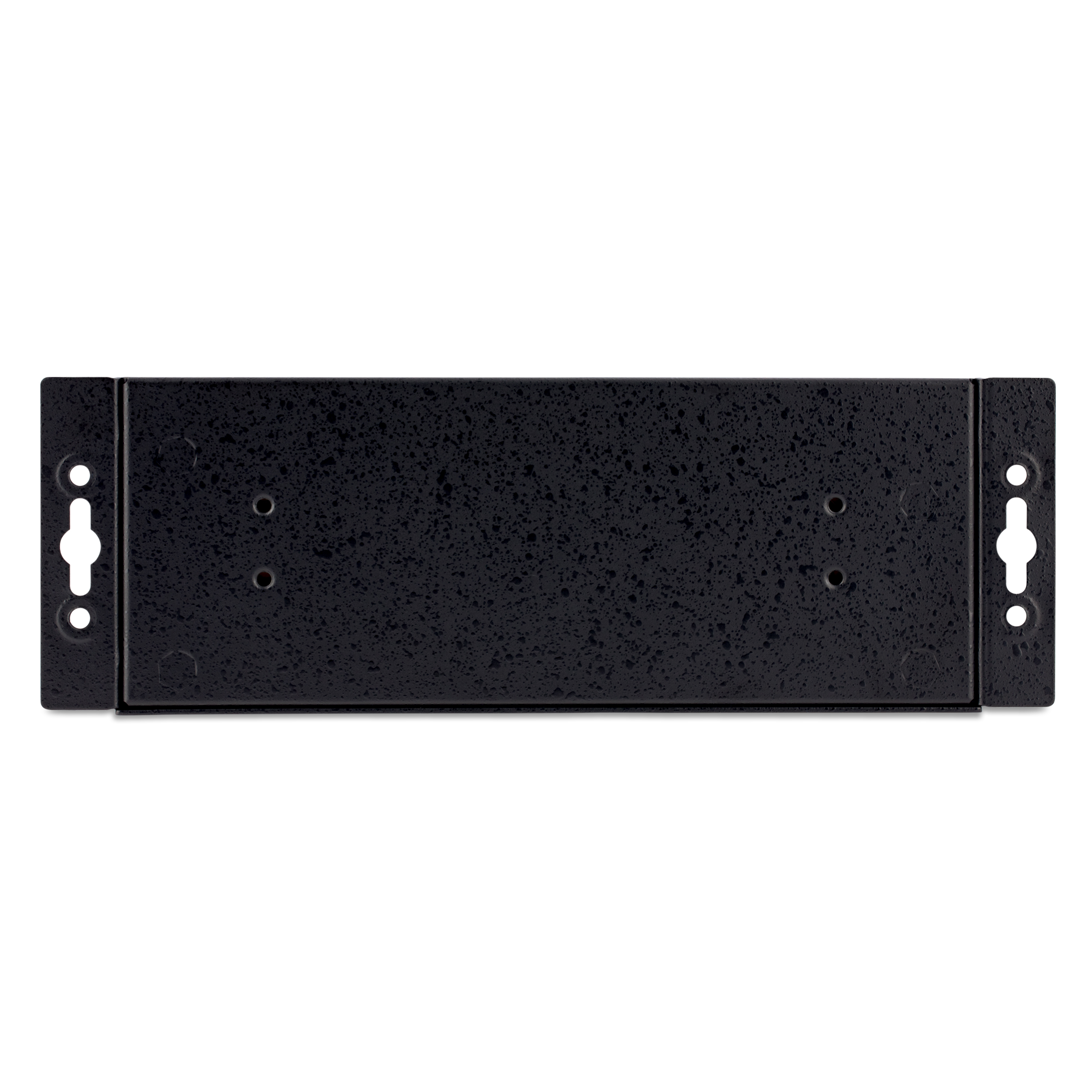

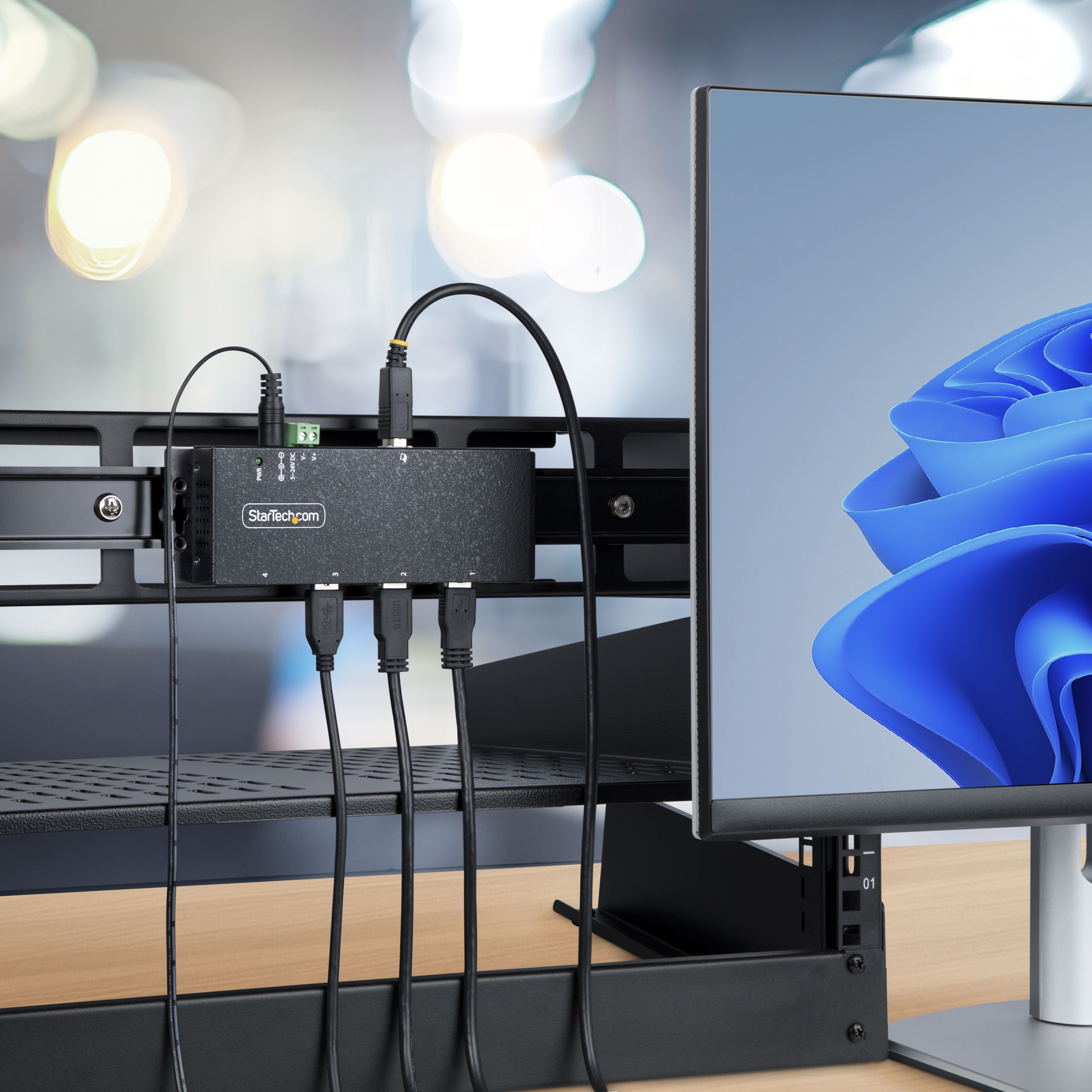

| Bullet 3 | FLEXIBLE MOUNTING OPTIONS: Built-in mounting brackets for wall or desk installation; DIN rail mounting hardware included; Screw-lock connectors on host and device ports to ensure a reliable and secure connection |
| Bullet 4 | POWER OPTIONS: Rugged multiport hub is powered by either the DC barrel connection or terminal block using a 5 to 24V DC source (DC source not incl.); Optional power adapter available ITB20D3250 (sold separately) to power the hub via 2-wire terminal block |
| Bullet 5 | POWER & CHARGE: When connected to a power source, the mountable port expander hub supports BC 1.2 charging; Each port supports 12W (2.4A); Overcurrent protection protects connected devices from overdrawing power |
| Bullets (Compact) | 4-port metal USB hub for industrial environment; Driverless; USB 5Gbps - Wall / desk / DIN rail mount - DC barrel or terminal block power w/ 5 to 24V DC source (not incl.) - BC 1.2 charging with power source - 8kV Air / 4kV Contact ESD protection |
| Bullets (Consolidated) | - Industrial USB hub adds 4 USB-A Downstream Facing Ports (DFP); 5Gbps shared - Rugged metal design; Mount hub to a wall/desk/DIN rail; 6ft (1.8m) A-B host cable - 8kV Air and 4kV Contact ESD protection - Powered by the DC barrel connection or terminal block using a 5 to 24V DC source (not included); Hub supports BC 1.2 charging on each port when connected to power source - Overcurrent protection (OCP) protects devices from overdrawing power - Download our USB Event Monitoring utility |
| Marketing Copy | |
| Marketing Copy (No HTML) | |
| Website Search Keyword |
|
| Required Regulatory Compliance Marks |
|
|---|
| System and Cable Requirements |
|
|---|
| Accessory Products |
|
|---|---|
| Related Products |
|
| Power Source | Not Included (DC/Terminal Block) |
|---|---|
| Plug Type | M |
| Cable Length (mm) | 1828 |
|---|---|
| Color | Black |
| Extended Temperature Range | No |
| Humidity | 5~95% RH |
| Material | Steel |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |

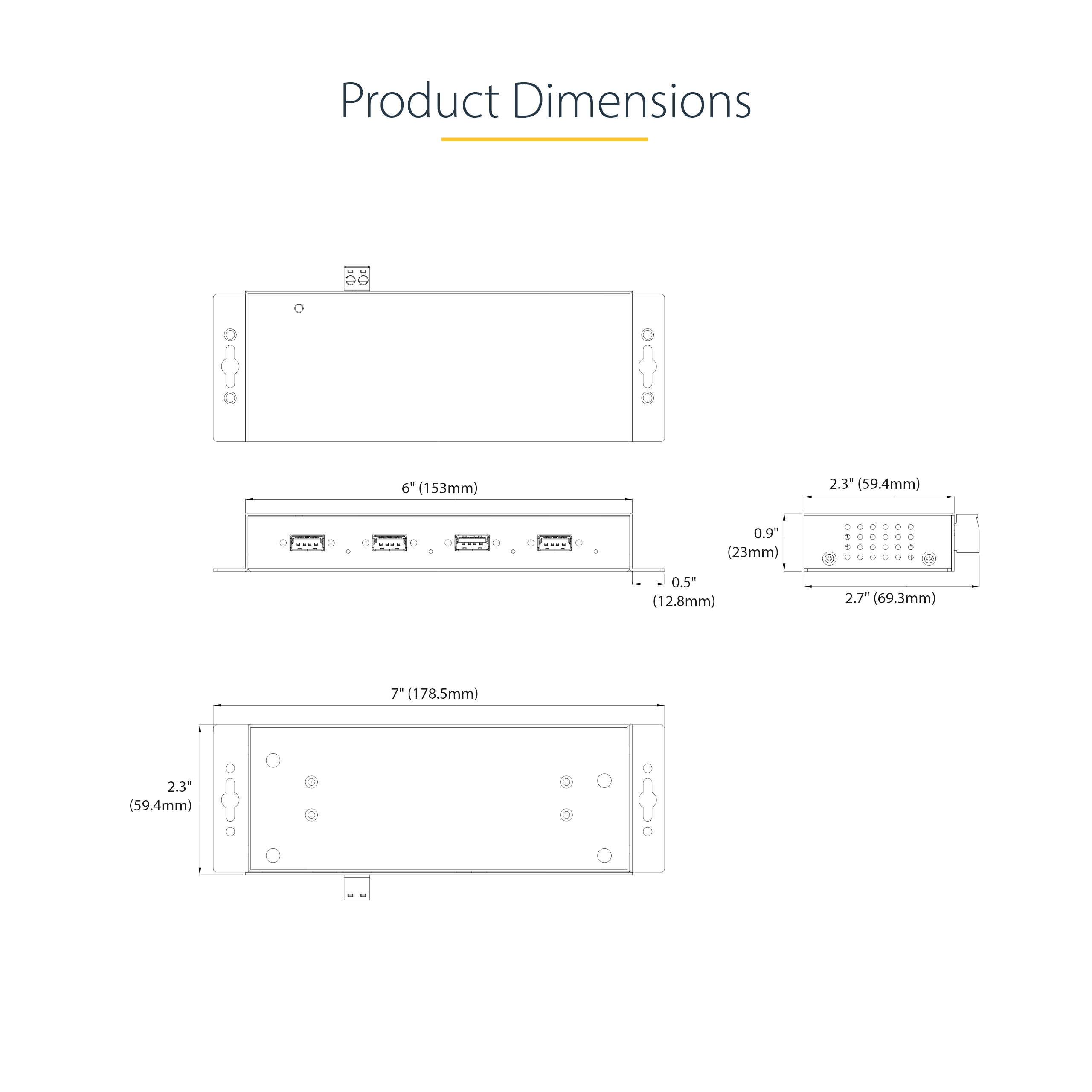

| Product Length (mm) | 178.500 |
| Product Width (mm) | 59.400 |
| Product Height (mm) | 23.000 |
| Product Weight (g) | 280.000 |
| Storage Temperature | -20°C to 85°C (-4°F to 185°F) |
| TAA Compliant | Yes |
| Device Power Consumption (In Watts) | 24 Watts |
|---|---|
| Downstream Maximum Data Transfer Rate | USB 3.2 Gen 1 (5Gbps) |
| ESD Protection |
|
| Maximum Data Transfer Rate | 5 Gbps |
| MTBF (hours) | 243,753 Hours |
| OS Compatibility | OS Independent |
| Total Available Power Output (In Watts) | 18 Watts |
| USB Speed | USB 3.2 Gen 1 (5Gbps) |
| USB Type and Rate | USB 5Gbps |
| Bus Type | USB 3.2 Gen 1 (5Gbps) |
|---|---|
| Chipset ID | VIA/VLI - VL817-Q7 |
| Interface/Bridge | USB 3.2 Gen 1 (5Gbps) |
| Laptop Dock / USB Hub Fast-Charge | No |
| LED Indicators |
|
| Mounting Options | DIN Rail |
| Number of Battery Charge 1.2 Ports | 4 |
| USB-C Device Port(s) | No |
| USB-C Host Connection | No |
| USB Port Type | USB-A |
| Carton Depth (mm) | 525 |
|---|---|
| Carton Height (mm) | 268 |
| Carton Quantity | 25 |
| Carton Weight Gross (g) | 13266 |

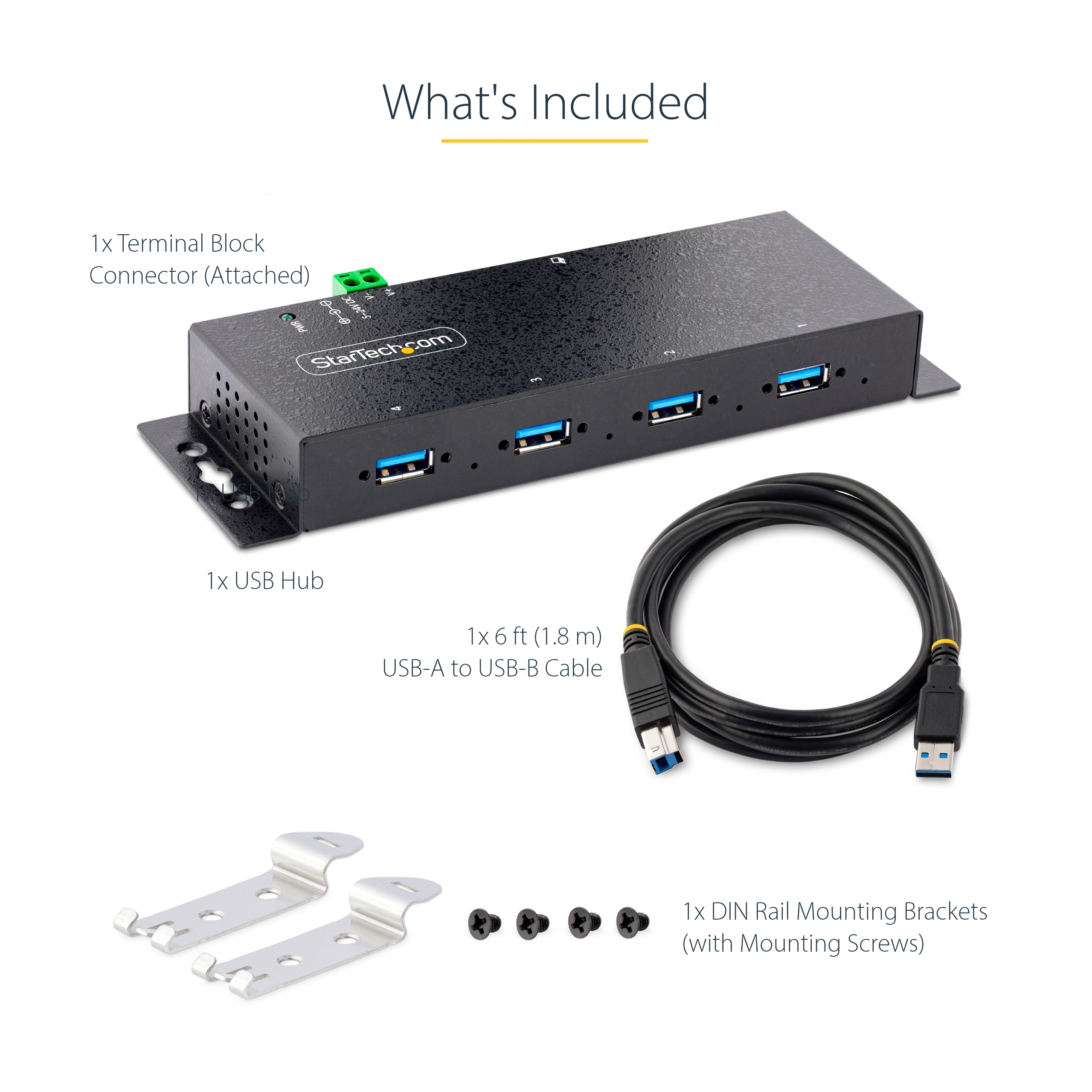

| Included in Package |
|
| Included In Package for Label |
|
| Package Depth (mm) | 151 |
| Package Height (mm) | 55 |
| Package Width (mm) | 216 |
| Package Quantity | 1 |
| Package Weight (g) | 492 |
| Packaging Description | 4-Port Industrial USB Hub - 15kV/8kV Air/Contact ESD Protection - Mountable |
| Packaging Description India | 4-Port Industrial USB Hub - 15kV/8kV Air/Contact ESD Protection - Mountable |
| Sub-Carton Depth (mm) | 0 |
| Sub-Carton Height (mm) | 0 |
| Sub-Carton Width (mm) | 0 |
| Sub-Carton Weight (g) | 0 |
| Connector 1 | USB-A (5Gbps, 4.5W) |
|---|---|
| Connector 1 (Quantity) | 4 |
| Connector 2 | USB-B (5Gbps, 4.5W) |
| Connector 2 (Quantity) | 1 |
| Connector 3 | Terminal Block (2 Wire) |
| Connector 3 (Quantity) | 1 |
| Connector 4 | Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) |
| Connector 4 (Quantity) | 1 |
