5G7AIBS-USB-HUB-NA

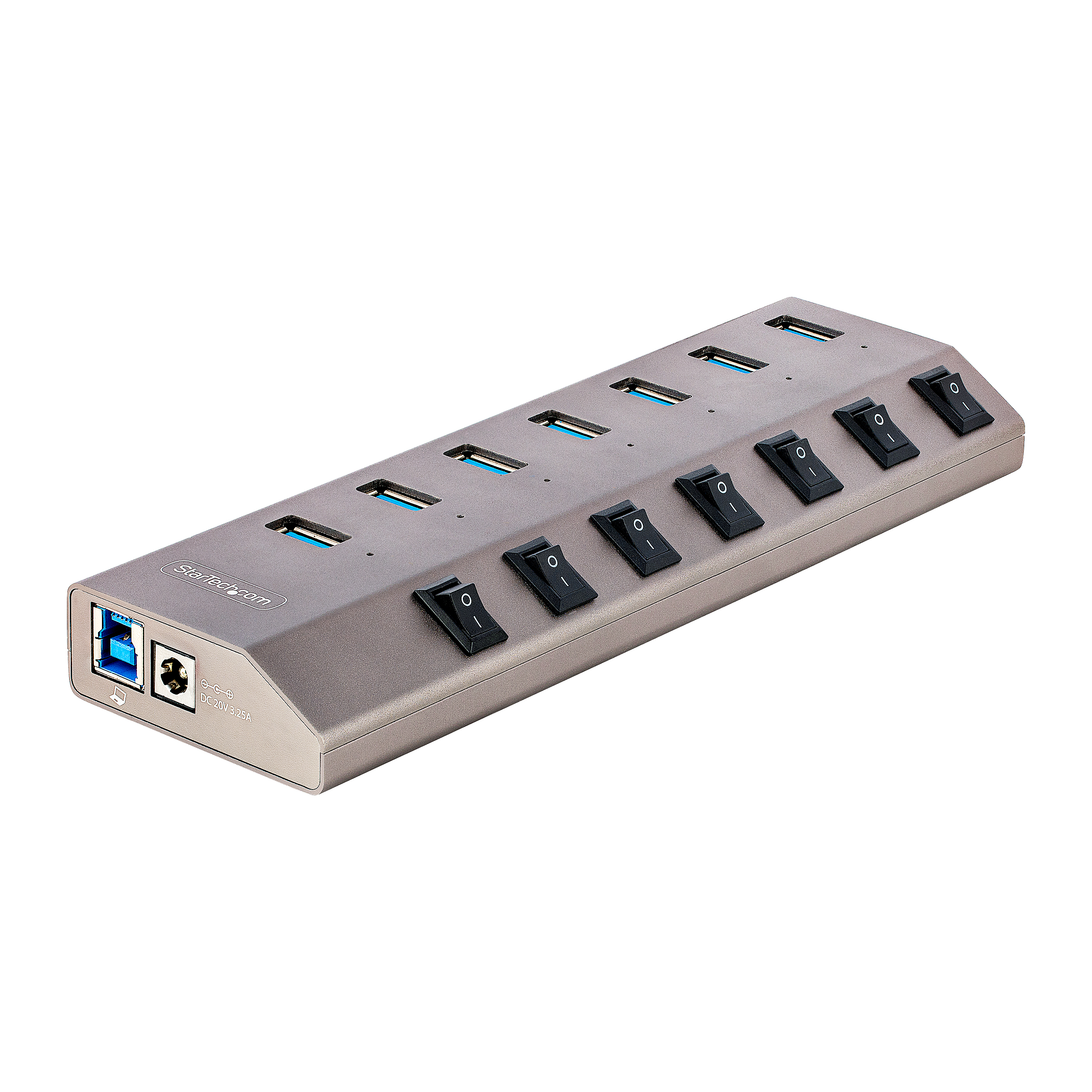

7 Port USB 5Gbps HUB with independent Port Power Switches
7-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3.3ft (1 m) USB-C & USB-A Host Cables Included
Main Image
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 7 Port USB 5Gbps HUB with independent Port Power Switches Product Number 5G7AIBS-USB-HUB-NA UPC 065030893770 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX089X Product Title (Ultra-Short) 7pt USB Hub Switches Product Title (Short) 7-Port Self-Powered USB-C Hub, 7x BC 1.2 Product Title (Medium) 7-Port Self-Powered USB-C Hub with Individual On/Off Switches USB-C to USB-A Hub Product Title (Standard) 7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 5Gbps Expansion Hub w/ Power Supply, USB-C to USB-A Product Title (Long) 7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 (5Gbps) Expansion Hub with Power Supply, Desktop Laptop USB-C to USB-A Splitter Product Title (AMZ) 7 Port Self-Powered USB C Hub with Individual On/Off Switches, USB 3.0 (5Gbps) Expansion Hub with Power Supply, Desktop Laptop USB-C to USB-A Splitter Title Ingram (Part 1) 7-Port Self-Powered USB-C Hub Title Ingram (Part 2) with Individual On/Off Switches Website Product Headline 7-Port USB Hub | Individual On/Off Port Switches | USB 3.2 Gen 1 (5Gbps) | 3.3ft (1 m) USB-C & USB-A Host Cables Included Bullet 1 7-PORT ALUMINUM USB HUB: Expand the connectivity of your USB Type-C or USB Type-A laptop or desktop by adding 7x USB-A ports with individual port switches; USB 5Gbps; Self powered hub with 65W power adapter/supply included Bullet 2 INDIVIDUAL PORT SWITCHES: Each USB-A port has its own on/off switch (w/LED) that toggles power to the USB device connected to the port; Save energy & ensure privacy by turning off SSD/thumb drives, web cams, headsets, etc. when not in use Bullet 3 POWER & CHARGE: Each port supports BC 1.2, providing 1.5A (7.5W) of power simultaneously (52.5W total); Provides power with or wihtout a host computer connected with support for CDP & DCP; Ideal for charging phones & tablets; 65W Power Adapter Included Bullet 4 APPLICATIONS: Includes 3.3ft (1m) USB-C & USB-A host cables to support both USB-A & USB-C host computers; Ideal for peripherals such as external storage devices, thumb drives, HD Cameras & USB 2.0 devices like mice, keyboards, webcams, and USB headsets Bullet 5 COMPATIBILITY: USB expansion hub is OS independent, supporting Windows, macOS, Linux, iPadOS, Chrome OS, Android; Compatible with Thunderbolt & USB 3.0 (USB 3.2 Gen 1)/2.0/1.1/1.0 host computers Bullets (Compact) 7 Port Aluminum USB 3.2 Gen 1 5Gbps hub w/individual port switches - 7x USB Type-A ports - BC 1.2 1.5A (7.5W) of power and on/off switches/LEDs on each port - 3.3ft USB-A/USB-C host cables - Self powered USB hub with AC adapter - OS independent Bullets (Consolidated) 7-Port Aluminum USB 3.2 Gen 1 (5Gbps) Hub with individual port switches - On/off port switches on each USB Type-A port saves energy and ensures privacy | Works w/SSDs/thumb drives/web cams/headsets - Self powered USB laptop/desktop hub w/incl. 65W Power Supply/Adapter | Each port supports BC 1.2 1.5A (7.5W) of power simultaneously - Support for CDP/DCP provides power with or without a host computer connected - USB expansion hub includes 3.3ft (1m) USB-C and USB-A host cables - OS independent Marketing Copy Marketing Copy (No HTML) Applications - Connect external storage devices (thumb drives, HDDs/SSDs), HD Cameras, mice, keyboards, webcams, and USB headsets to a computer
- Turn off devices when they're not in use
Website Search Keyword - 7 port usb 3.0 hub
- 7 port usb hub
- 7 port usb hub with power adapter
- desktop usb hub
- laptop usb hub
- portable usb 3.0 hub
- powered usb hub 3.0 with ac adapter
- powered usb-c hub
- self powered usb hub
- usb 3.0 hub with power adapter
- usb expansion hub
- usb hub bc 1.2
- usb hub with individual power switches
- usb hub with power adapter
- usb type c hub
- usb-a hub with usb-c port
- usb-c to usb-a hub
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes Accessory Products - USB3SEXT2MBK
- USB3EXT6INBK
- USB3AUB15CMS
- USB3SAB1MRA
- USB3AU1MRS
- USB3AUB1MS
- USB3CAUB1M
- USB3AU1MLS
- USB3SEXT1M
- USB3CAB1M
- USB31AC1M
Related Products - HB30A4AIB
- 5G4AIBS-USB-HUB-NA
Equivalent Part Number in the EU 5G7AIBS-USB-HUB-EU Input Voltage 110V-240V AC Output Current 3.25A Output Voltage (V) 20V DC Power Consumption (In Watts) 65W Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Space Gray Humidity 10~90% RH (Non-condensing) Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 59.100 Product Width (mm) 188.100 Product Height (mm) 20.650 Product Weight (g) 206.000 Storage Temperature -10°C to 70°C (14°F to 158°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 50,000 Hours OS Compatibility OS Independent UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA - VL817 Ethernet Port No Industry Standards USB 3.2 Gen 1 (5Gbps) Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 7 - USB Port Host Connection LEDs - Blue Number of Battery Charge 1.2 Ports 7 USB-C Device Port(s) No USB-C Host Connection Yes USB Port Type USB-A Carton Depth (mm) 477 Carton Height (mm) 193 Carton Quantity 10 Carton Weight Gross (g) 7808 Included in Package - 1 - USB Hub

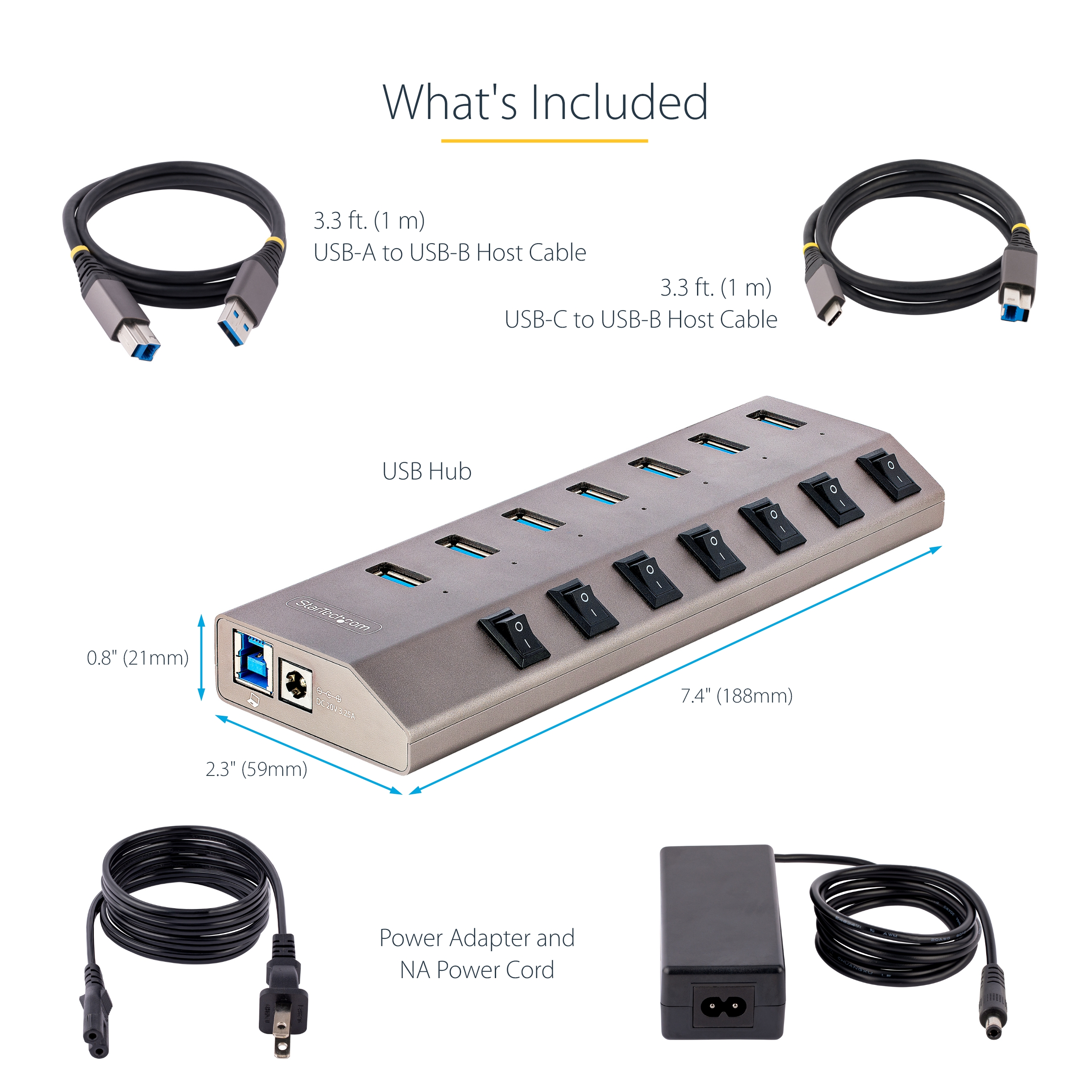

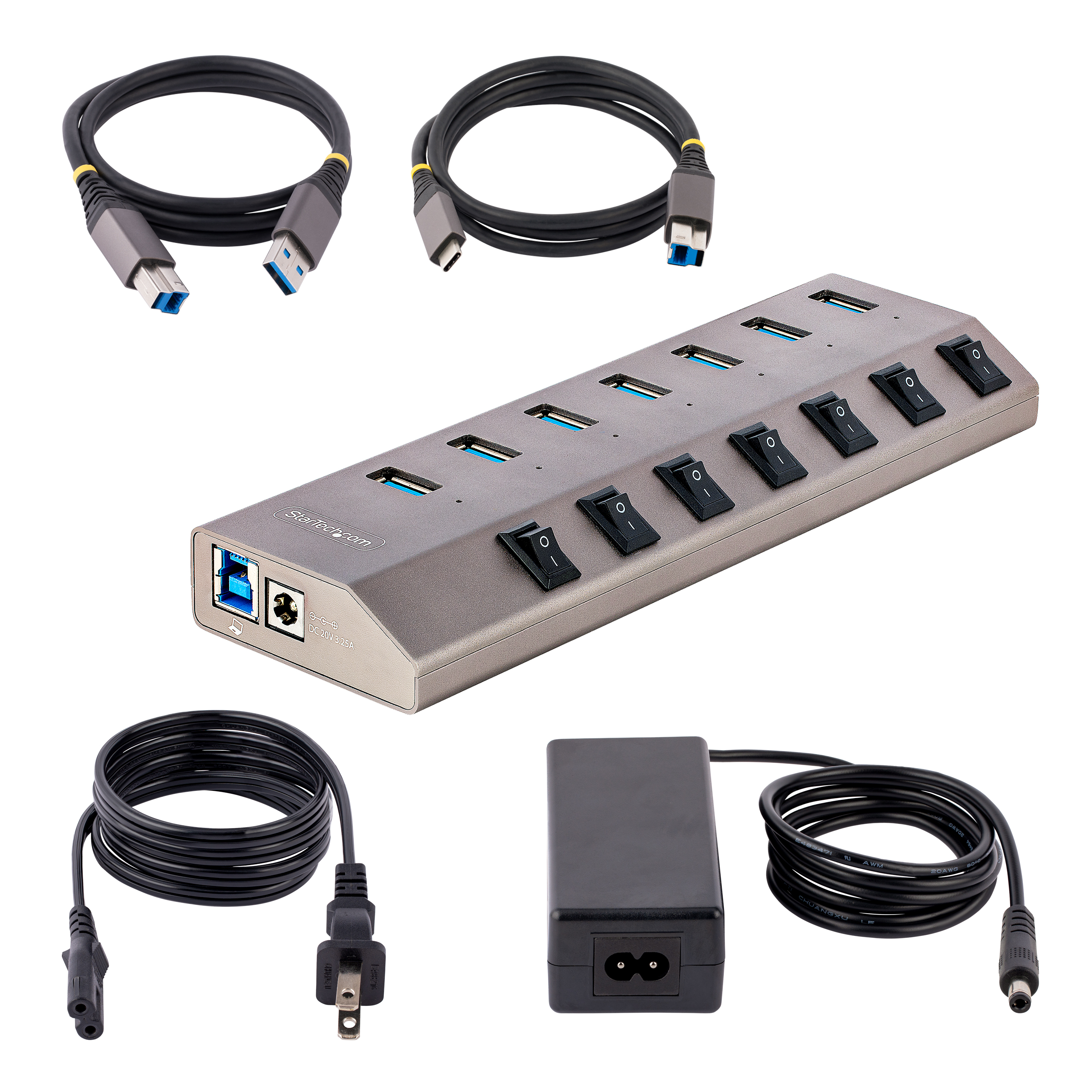

- 1 - 3.3 ft. [1 m] USB-C to USB-B Host Cable
- 1 - 3.3 ft. [1 m] USB-A to USB-B Host Cable
- 1 - Power Adapter (North America)
Package Depth (mm) 227 Package Height (mm) 71 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 718 Packaging Description 7-Port USB Hub with On/Off Port Switches Packaging Description India 7-Port USB Hub with On/Off Port Switches Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 7.5W) Connector 1 (Quantity) 7 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-12-17 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-07-04 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) CA,US Primary Technology - USB 3.2 Gen 1 / 5Gbps
- USB-C
Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2022-05-06 Target Production Release 2022-04-29 Tech Lead Stefan Tirolese Technical Writer Brian Chan Technology Lifecycle Mainstream
