5G7AINDRM-USB-A-HUB
7 port USB 3 1 Gen 1 5Gbps Industrial Managed Hub
Connect and manage up to seven USB Type-A devices, using this USB hub - designed for industrial/commercial environments
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Video Link YouTube
Product Name 7 port USB 3 1 Gen 1 5Gbps Industrial Managed Hub Product Number 5G7AINDRM-USB-A-HUB UPC 065030898195 Lifecycle status Active Warranty 2 Years Weighted Opportunity 96720 Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 Industrial USB Hubs Category Level 3 Industrial USB Hubs - 5Gbps Family Industrial USB Hubs - 5Gbps - 7-Port - Managed Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX013X Product Title (Ultra-Short) 7pt Managed USB Hub Product Title (Short) 7-Port Managed Industrial USB Hub 5Gbps Product Title (Medium) 7-Port Managed USB Hub - Metal Industrial Housing - Mountable - USB 3.2 (5Gbps) Product Title (Standard) 7-Port Managed USB Hub, Heavy Duty Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mount, USB 5Gbps, TAA Product Title (Long) 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps - TAA Product Title (AMZ) 7-Port Managed USB Hub with 7x USB-A, Heavy Duty with Metal Industrial Housing, ESD & Surge Protection, Wall/Desk/Din-Rail Mountable, USB 3.0/3.1/3.2 Gen 1 5Gbps , TAA Title Ingram (Part 1) 7-Port Managed Industrial USB Title Ingram (Part 2) Hub, USB 3.0/3.1/3.2 Gen 1 5Gbps Website Product Headline Connect and manage up to seven USB Type-A devices, using this USB hub - designed for industrial/commercial environments Bullet 1 MANAGED USB HUB: USB Hub Administrator software (free download) works with the Managed USB Hub to enable/disable individual or all ports and reboot the Hub; Windows, macOS, Linux; Supports CLI commands for custom app creation Bullet 2 RUGGED & RELIABLE: With metal housing and 15kV/8kV air/contact Level 4 ESD protection, this heavy duty USB 3.2 Gen 1 5Gbps hub reliably connects 7 USB devices in harsh, industrial environments; Locking USB Ports avoids accidental disconnection Bullet 3 POWER & CHARGE: For unique power requirements the USB Hub supports +7V to +24V DC; Powered via barrel or terminal block with power adapter (sold separately, Part Number: ITB20D3250); 6x USB-A ports capable of BC 1.2 (1.5A) charging (power supply required) Bullet 4 VERSATILE MOUNTING OPTIONS: This mountable USB hub securely installs on/under a desk, to a wall, or DIN rail using the built-in mounting ears & included DIN brackets; 6ft (1.8 m) USB 3.2 Gen 1 5Gbps cable included Bullet 5 CONNECTIVITY TOOLS: Includes Connectivity Tools application that features USB Event Monitoring to log and timestamp USB port usage enabling admins to identify potentially malicious devices; TAA Compliant; Ideal for remote operation & device security Bullets (Compact) 7-Port USB 3.2 Gen 1 5Gbps Managed Industrial USB Hub - Software works to enable/disable individual or all ports and reboot the hub - Supports CLI commands - Metal housing - ESD/Surge protection - Desk/Wall/Din-rail Mountable - 6ft USB cable included Bullets (Consolidated) - 7-Port USB 3.2 Gen 1 (5Gbps) Managed Industrial USB Hub w/6x USB-A ports supporting BC 1.2 (1.5A) charging (power supply req) - Software (free download) to enable/disable individual/all ports and reboot the hub; Supports CLI commands for custom app creation - Windows/macOS/Linux - Metal housing; 15kV/8kV Level 4 ESD and surge protection - Desk/Wall/Din rail Mountable; 6ft USB host cable - +7-24V DC power via barrel or terminal block using an AC power adapter (sold separately PN: ITB20D3250) Marketing Copy Marketing Copy (No HTML) Applications - Connect USB devices such as sensors, cameras, and controllers in manufacturing and industrial automation systems
- Control USB peripherals such as touchscreens, card readers, and barcode scanners in self-service kiosks and point-of-sale (POS) terminals
- Manage and control USB devices such as storage drives, backup devices, and dongles in network server applications
Website Search Keyword - 7 port usb 3.0 hub
- 7 port usb 3.1 hub
- 7 port usb hub
- data transfer hub
- din rail usb hub
- heavy duty usb hub
- high speed usb hub
- industrial grade usb hub
- industrial usb 3.0 hub
- industrial usb hub
- Managed USB Hub
- metal usb 3.0 hub
- metal usb hub
- mountable usb hub
- under desk mount usb hub
- under desk usb hub
- usb 3.0 data hub
- usb 3.0 hub
- usb 3.0 port hub
- usb 3.1 gen 1 hub
- usb hub
- usb hub 3.0
- usb hub data transfer
- usb hub with surge protection
- usb port hub
- usb to usb
- usb to usb hub
- wall mount usb hub
- wall mountable usb hub
Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + foam
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference

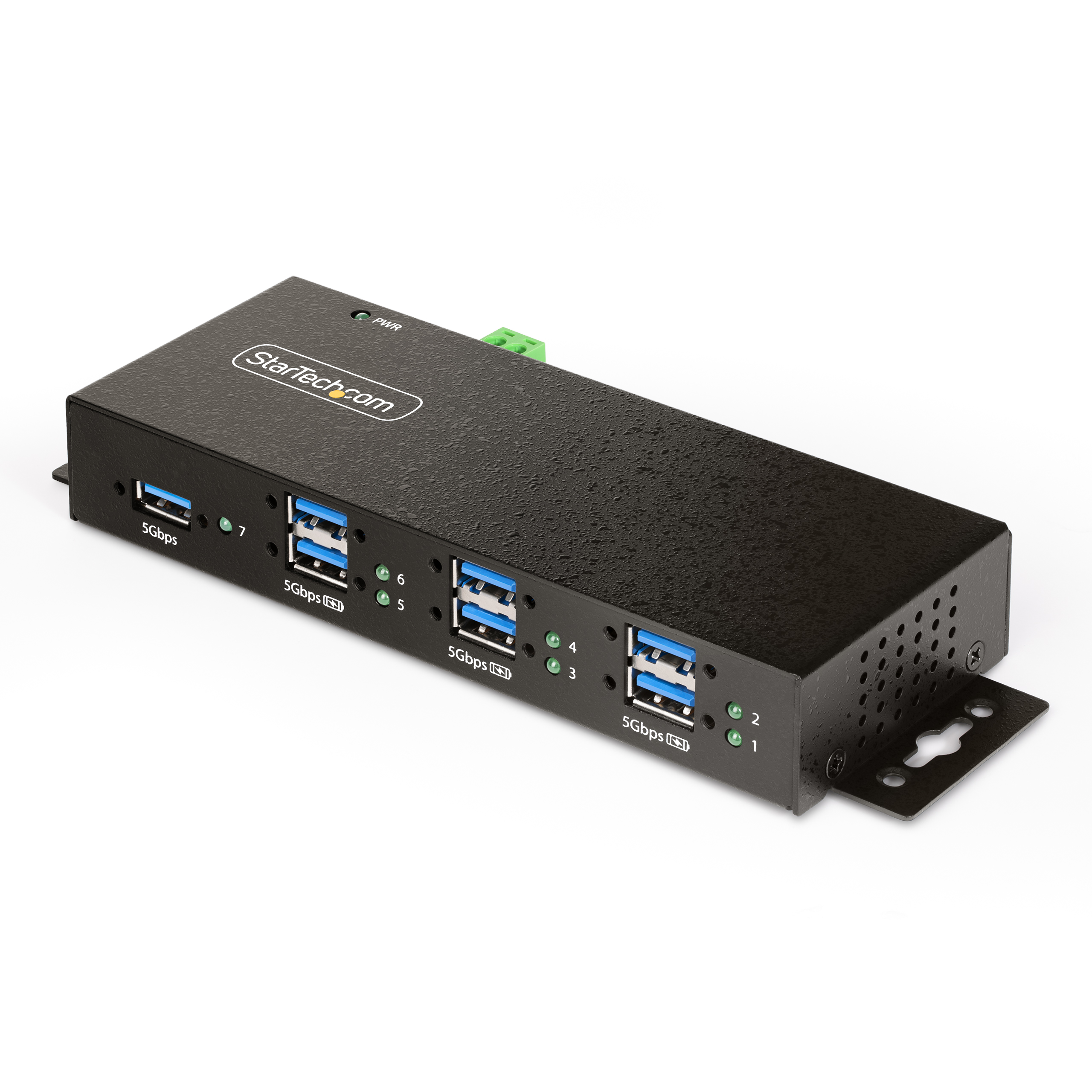

Special Notes - The left-most USB port (port 7) supports 4.5W (5V/0.9A) of power and will only support 5Gbps USB devices; It is not compatible with USB 2.0 (480Mbps). See Quick-Start Guide for details. System and Cable Requirements - - Available USB 3.2 Gen 1 Port
- - USB 3.2 Gen 1 (5 Gbps) is also know as SuperSpeed USB, USB 3.1 Gen 1, and USB 3.0
- - DC Power Source +7 to 24V
Accessory Products - PEXUSB3S11
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAUB3BK
- USB3SEXTAA6
- ITB20D3250
- SVA12M5NA
Related Products 5G4AINDRM-USB-A-HUB Power Source Not Included (DC/Terminal Block) Plug Type - DC Barrel (Type M Plug)
- Terminal Block (2 Wire)
Color Black Extended Temperature Range No Humidity 5 to 95% RH Material Metal Operating Temperature 0°C to 60°C (32°F to 140°F) Product Length (mm) 180 Product Width (mm) 60 Product Height (mm) 26.300 Product Weight (g) 305.000 Storage Temperature -20°C to 75°C (-4°F to 167°F) TAA Compliant Yes Device Power Consumption (In Watts) 41 Watts Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) ESD Protection - +/-15kV (Air)
- +/-8kV (Contact)

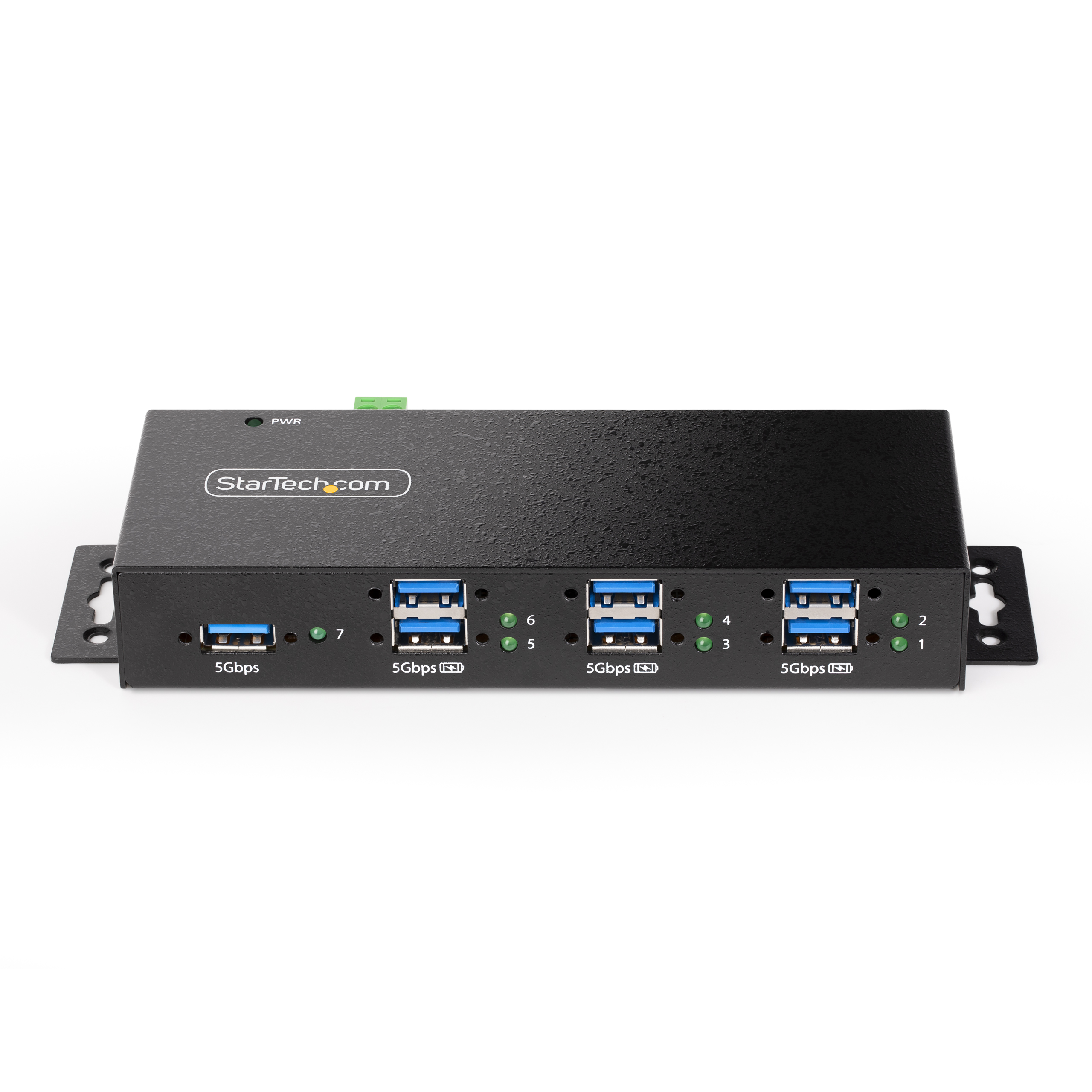

Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 131,406 Hours OS Compatibility OS Independent Total Available Power Output (In Watts) 35W UASP Support Yes USB Type and Rate USB 5Gbps Bus Type USB 3.2 Gen 1 (5Gbps) Chipset ID VIA - VL817-Q7 C0 Industry Standards Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators - 7 - USB Port Status LEDs (Green) - The Corresponding USB-A Data/Charge Port is Enabled or Disabled
- 1 - Power LED (Green) - The USB Hub is receiving power

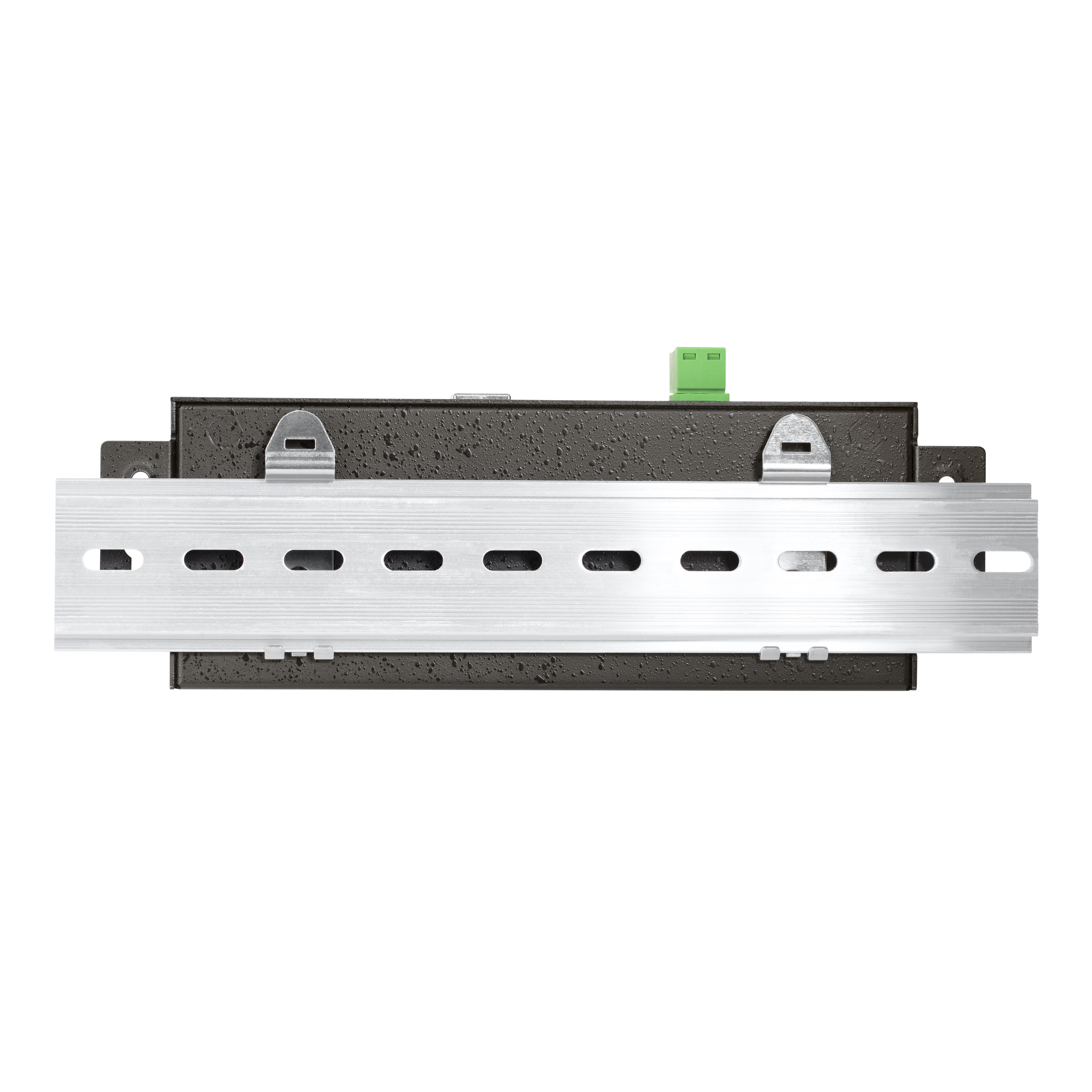

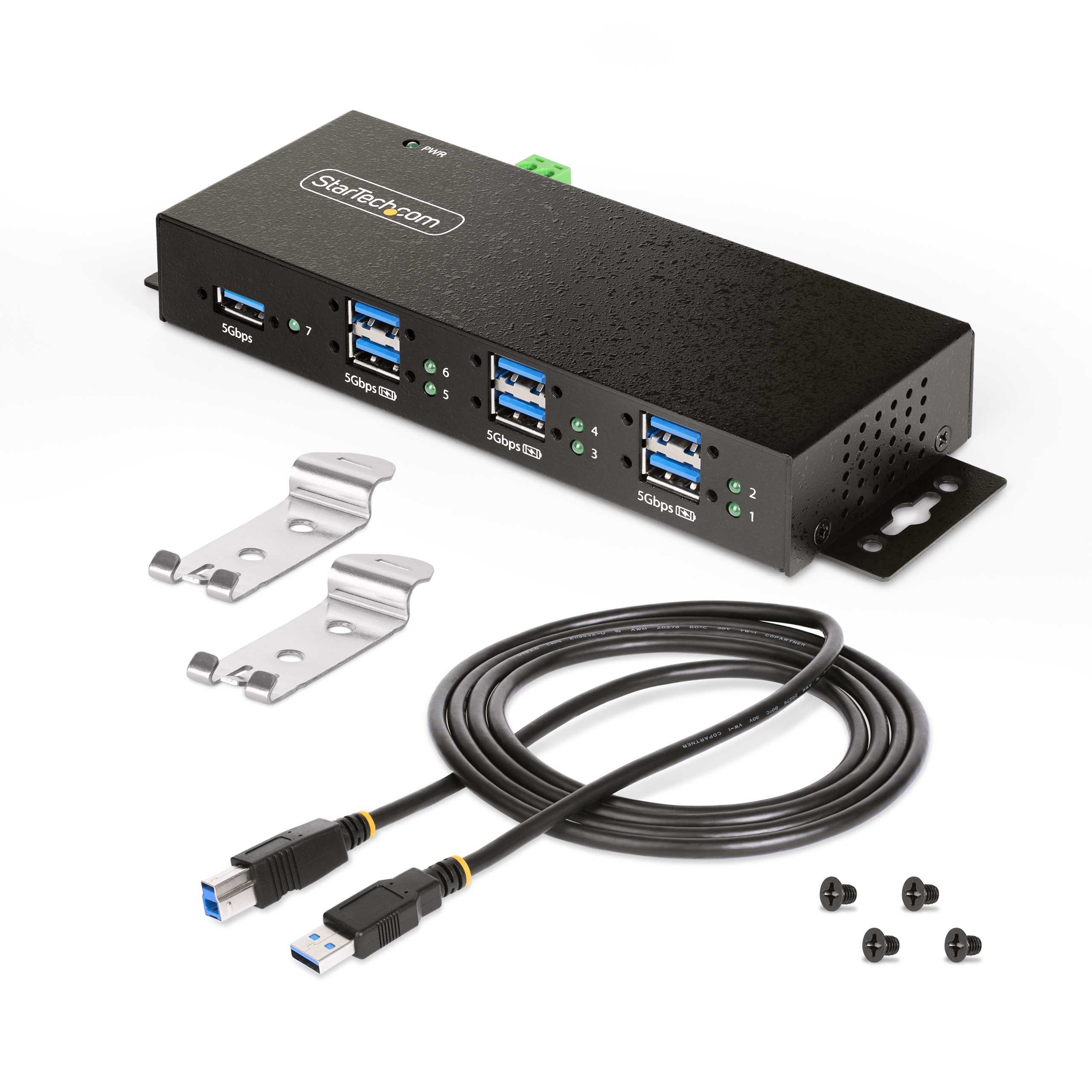

Mounting Options DIN Rail Number of Battery Charge 1.2 Ports 6 USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 430 Carton Height (mm) 265 Carton Quantity 25 Carton Weight Gross (g) 13650 Included in Package - 1 - USB Hub
- 1 - 6 ft [1.8 m] USB-A to USB-B Cable
- 1 - Terminal Block Connector (Attached)
- 2 - DIN Rail Mounting Bracket (with Mounting Screws)
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 2 - Din Rail Mounting Bracket (With Mounting Screws)
- 1 - 6 Ft [1.8 M] USB-A To USB-B Cable
- 1 - USB Hub
Package Depth (mm) 148.2 Package Height (mm) 49.5 Package Width (mm) 218 Package Quantity 1 Package Weight (g) 508 Packaging Description 7-Port Managed Industrial USB Hub - USB 3.2 Gen 1 5Gbps, ESD Protection Packaging Description India 7-Port Managed Industrial USB Hub - USB 3.2 Gen 1 5Gbps, ESD Protection Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 7.5W) Connector 1 (Quantity) 6 Connector 2 USB-A (5Gbps, 4.5W) Connector 2 (Quantity) 1 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2023-05-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment larger form factor but no remote management feature. charging only up to 35w total Comparable SKU 2 Comment n/a Digital Content Due Date 2023-09-28 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology USB 3.2 Gen 1 / 5Gbps Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2023-02-24 Target Production Release 2023-06-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
