5G7AS-USB-A-HUB

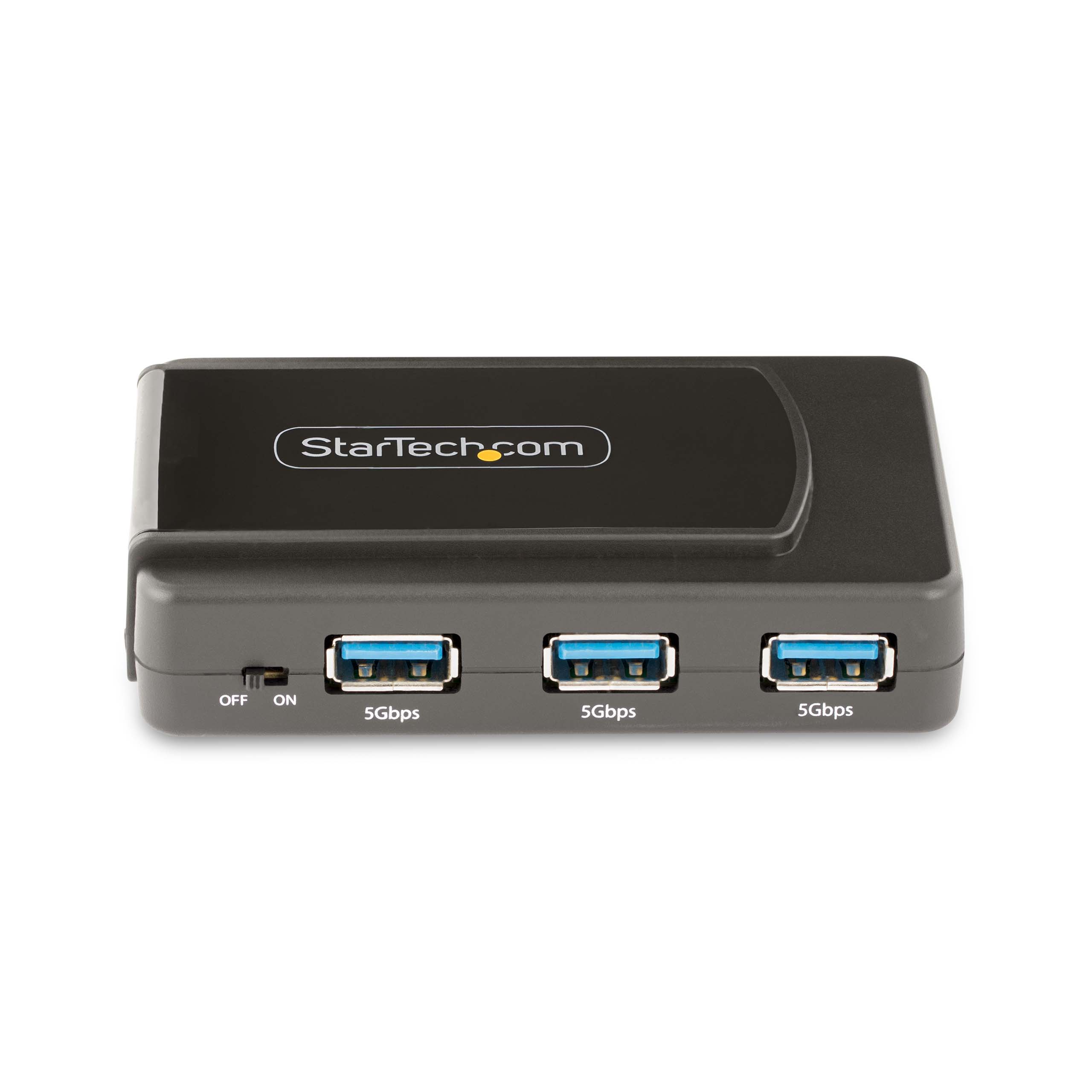

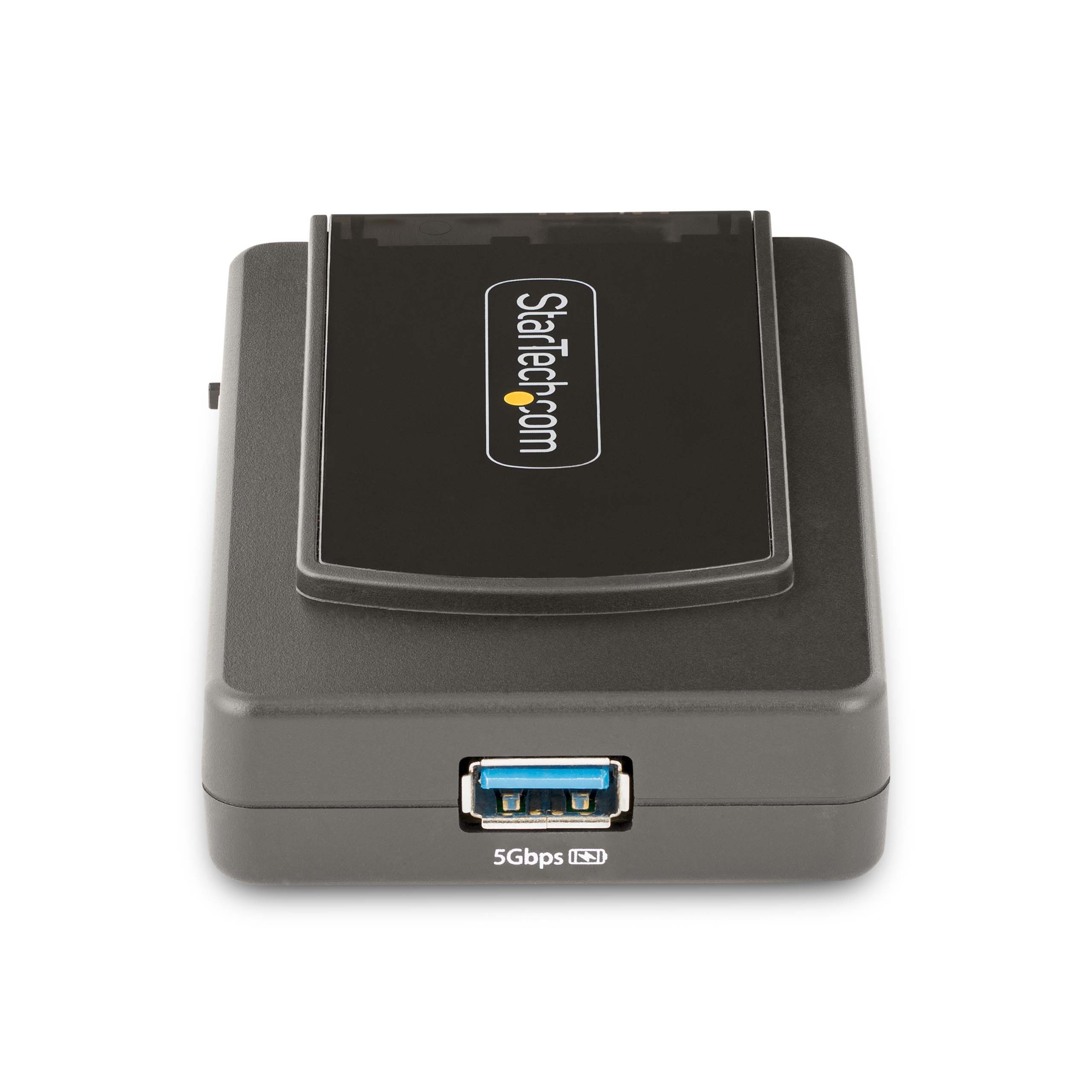

7 Port Black SuperSpeed USB 3 0 Hub

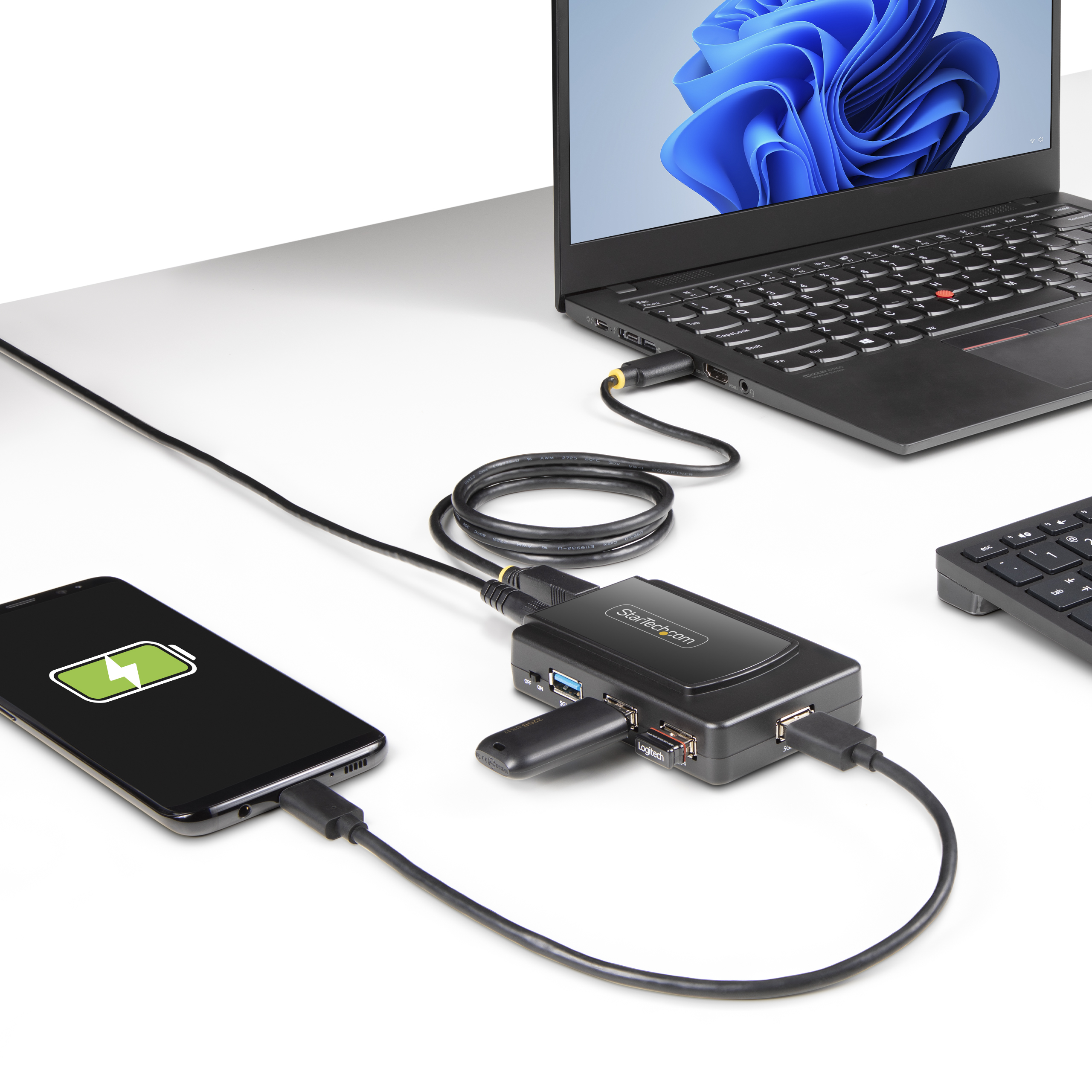

Add seven external SuperSpeed USB ports with BC 1.2 support from a single USB connection
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Video Link YouTube
Product Name 7 Port Black SuperSpeed USB 3 0 Hub Product Number 5G7AS-USB-A-HUB UPC 065030894722 Lifecycle status Active Warranty 2 Years Taxonomy Product > Docks, Hubs & Video Adapters > USB Hubs Category Level 1 Hubs Category Level 2 USB-A Hubs Category Level 3 USB-A External Powered Hubs - 5Gbps Family USB-A External Powered Hubs - 5Gbps - 7-Port Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 7-Port USB Hub 5Gbps Product Title (Short) 7 Port USB Hub, 5Gbps, Self Powered Product Title (Medium) 7-Port USB Hub w/ On/Off Switch - 7x USB-A - Self Powered 3.0 Hub - 5Gbps Product Title (Standard) 7-Port USB Hub, USB 3.0 5Gbps, USB-A to 7x USB-A, Self Powered USB-A Expansion Hub w/ 35W Power Supply Product Title (Long) 7-Port USB Hub - USB 3.0 5Gbps - USB-A to 7x USB-A - Compact Self Powered USB-A Hub w/ 35W Power Supply - Desktop/Laptop USB Hub - USB Expansion Hub Product Title (AMZ) 7-Port USB Hub - USB 3.0 (5Gbps) - USB-A to 7x USB-A - Compact Self Powered USB-A Hub w/ 35W Power Supply - Desktop/Laptop USB Hub - USB Expansion Hub (5G7AS-USB-A-HUB) Title Ingram (Part 1) 7-Port USB Hub - Desktop/Laptop Title Ingram (Part 2) Self Powered USB 3.0 Expansion Hub Website Product Headline Add seven external SuperSpeed USB ports with BC 1.2 support from a single USB connection Bullet 1 7-PORT USB HUB: Self-powered (adapter incl) USB 3.2 Gen 1 (5Gbps) expansion hub w/USB-A host, 7x USB-A ports; 3.3ft (1m) detachable host cable; 1x BC 1.2 charging up to 1.5A/7.5W, 35W of power dynamically shared between 7 ports; Dedicated on/off switch Bullet 2 FAST CHARGE PORT WITH BC 1.2: The 7 port USB-A hub includes a fast charge port that provides power up to 1.5A (7.5W); 35W max power is shared across all used ports and connected devices; Features a Charging Downstream Port (CDP) for data and charging Bullet 3 IT PRO PERFORMANCE: Overcurrent Protection protects connected peripherals from overdrawing power, reducing potential of device dropout/laptop shut down, Wake On USB wakes your laptop from a sleep state, USB Event Monitoring tracks/logs connected devices Bullet 4 COMPATIBILITY: OS independent; Supports all operating systems, including Windows, Linux, ChromeOS; Compatible with USB Type-A host devices such as Lenovo X1 Carbon, Dell XPS, Microsoft Surface; Works w/USB 2.0 devices Bullet 5 Our Advantage: Includes IT Pro Connectivity Tools software to improve USB security on Windows systems - Featuring USB Event logging functionality with timestamps to allow admins to identify potentially malicious devices Bullets (Compact) Self-powered 7-port USB 3.0 expansion hub for laptop and desktop computers - USB 3.2 Gen 1 5Gbps - 7x USB-A - BC 1.2 fast charge port (1.5A/7.5W) with 35W total power across all ports - 3ft USB-A host cable - Power adapter incl - Win/Mac/Chrome/Linux Bullets (Consolidated) Self-powered 7-port Superspeed USB 3.2 Gen 1 (5Gbps) expansion hub for desktop computers | 7x USB-A ports | On/off switch | Overcurrent Protection (OCP) | Wake on USB - USB-A hub w/power adapter | BC 1.2 fast charge port (1.5A/7.5W) | 35W of power dynamically shared across all downstream ports | Charging Downstream Port (CDP) for data/charging - Compact hub ideal for cubicles/small spaces | 3ft detachable USB-B to A host cable - USB Event Monitoring app - Windows/macOS/Linux/ChromeOS Marketing Copy Marketing Copy (No HTML) Applications Connect external storage devices (thumb drives, HDDs/SSDs), HD cameras, mice, keyboards, webcams, and USB headsets to a computer Website Search Keyword - 7 port usb 3.0 hub
- 7 port usb hub
- 7 port USB-A hub
- desktop usb hub
- external powered usb-c hub 7 port
- laptop usb hub
- portable hub
- portable usb 3.0 hub
- self powered usb hub
- usb 3.0 7 port hub
- usb c expansion hub
- usb expansion hub
- usb hub bc 1.2

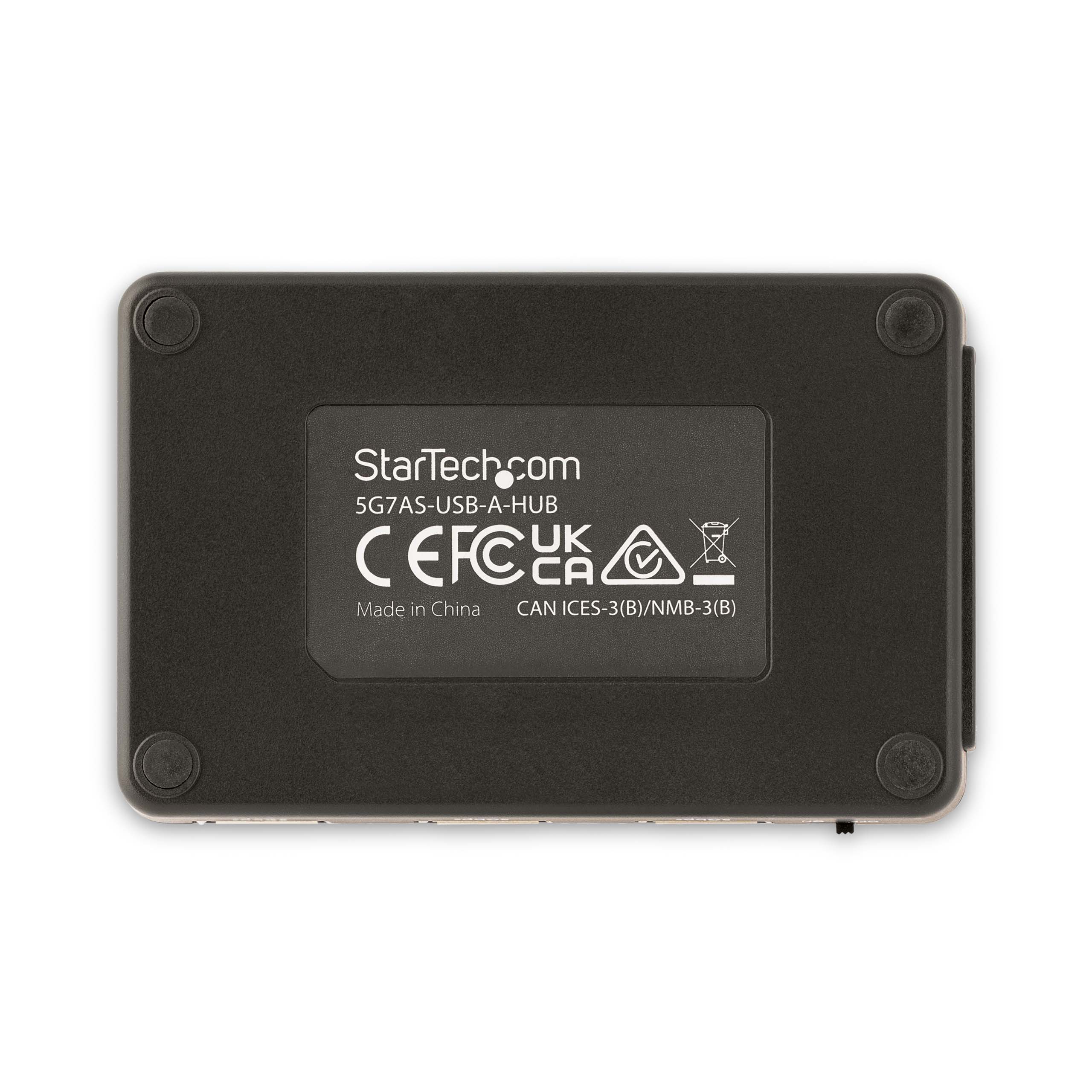

Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Special Notes USB 3.2 Gen 1 (5Gbps) is also known as USB 3.1 Gen 1 (5Gbps), USB 3.0 (5Gbps) and SuperSpeed USB. Accessory Products - SVA5M3NEUA
- PEXUSB3S11
- USB3SAB6BK
- USB3SAB10BK
- USB3SAB3
- USB3SAB6
- USB3SAB10
- USB3SAA6
- USB3SEXTAA6
- USB3SAUB3BK
- USBEXTAA3BK
Related Products - ST4300USB3
- ST4200USBM
- ST4202USB
- ST7200USBM
- ST7202USB

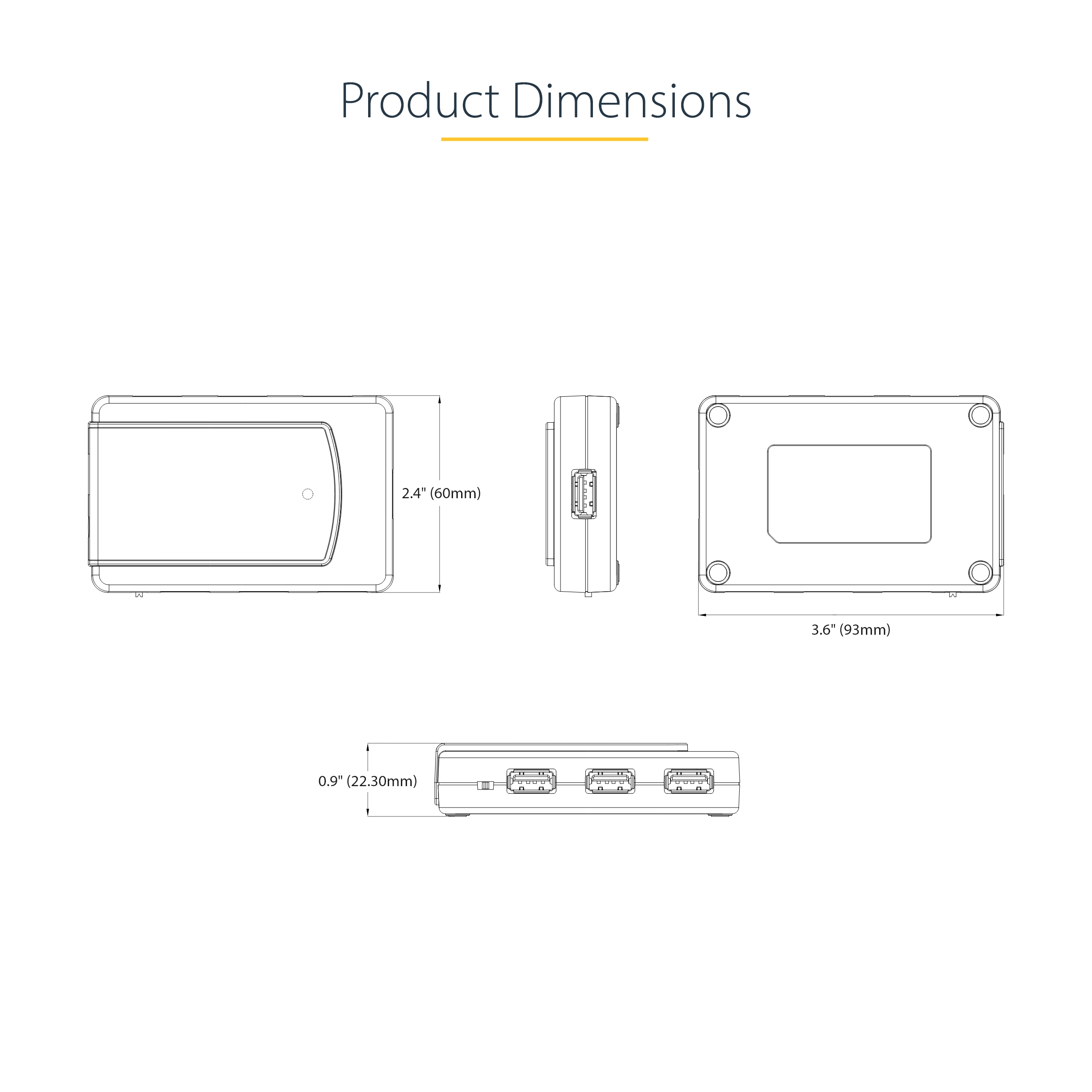

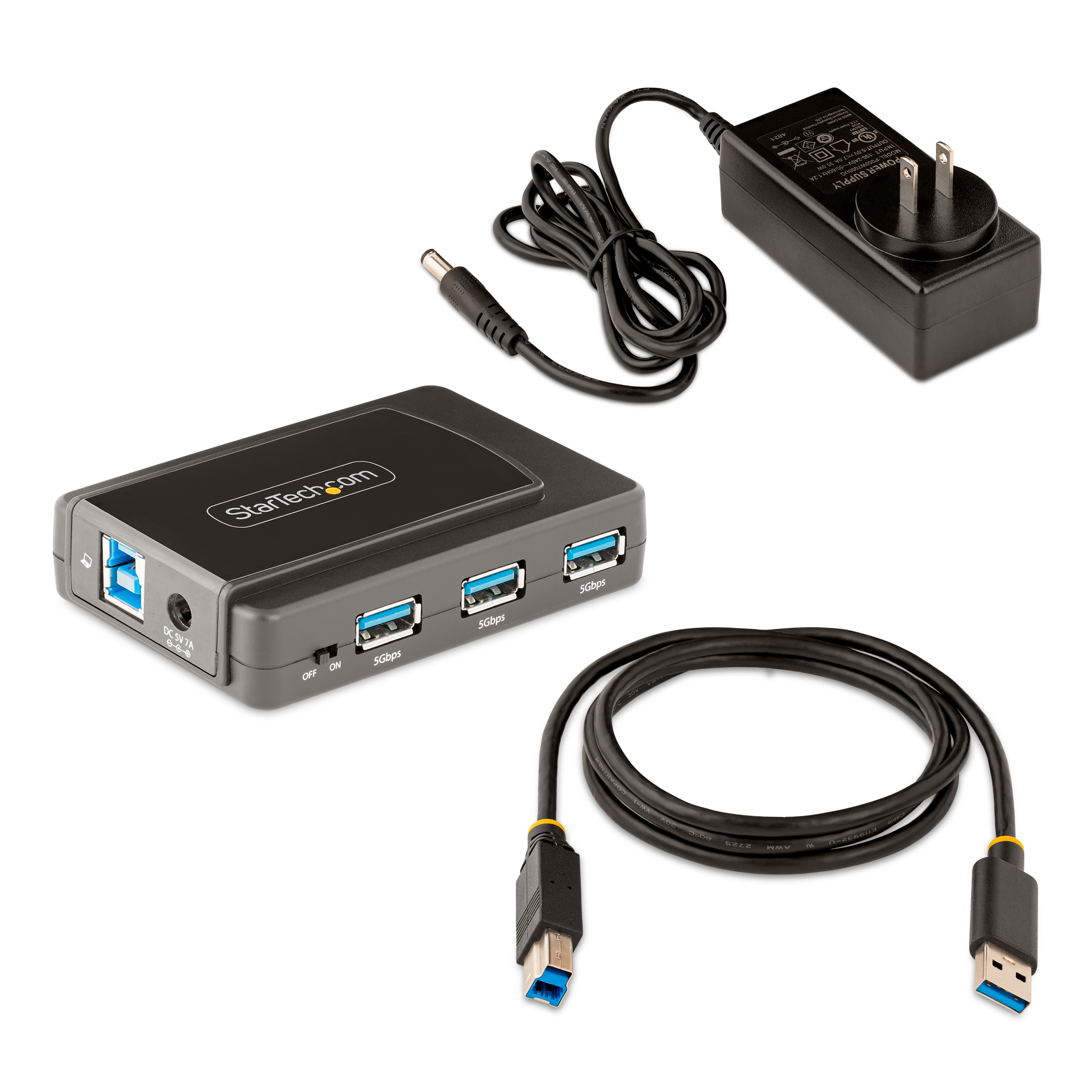

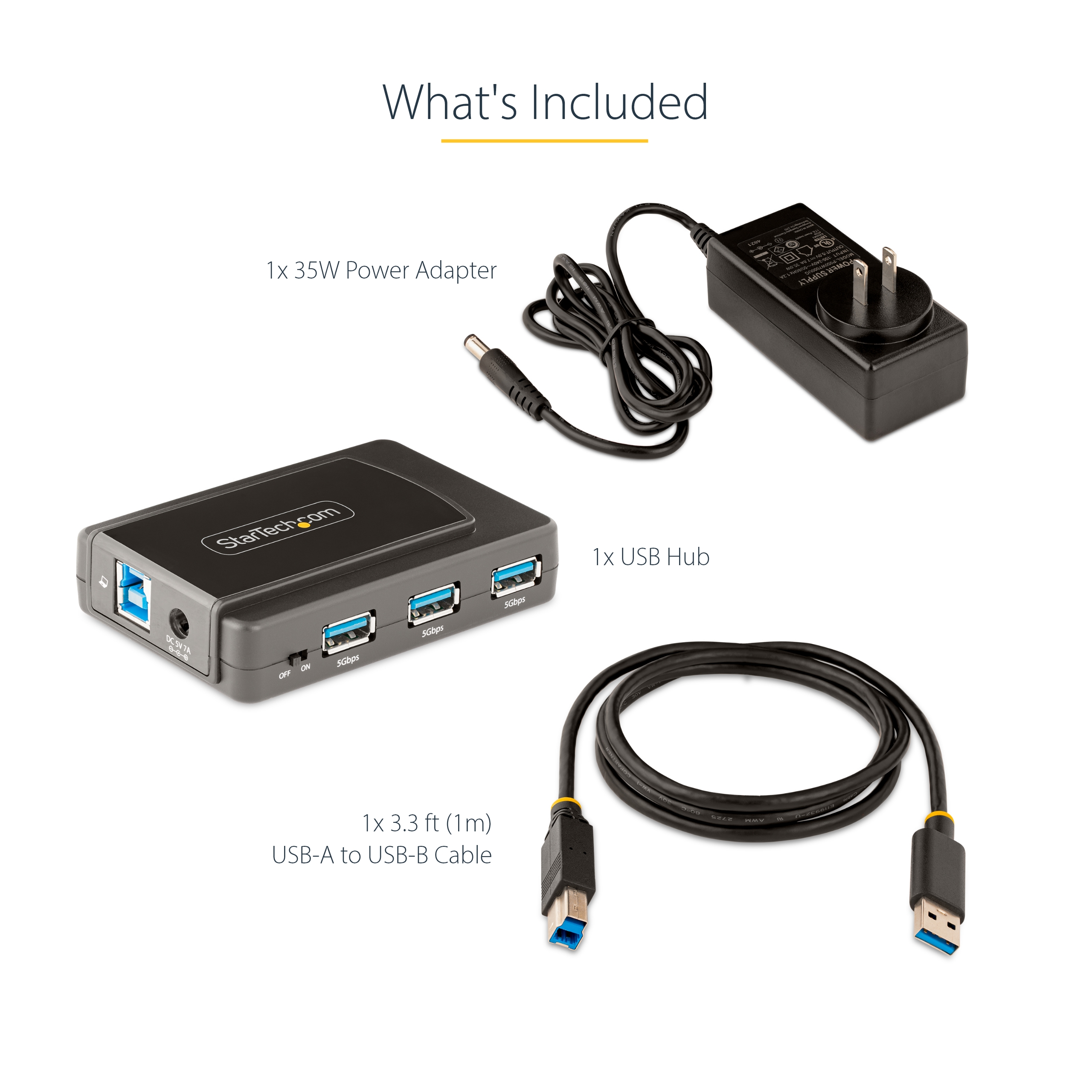

Input Current 1.2A Input Voltage 110V-240V AC Output Current 7A Output Voltage (V) 5 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Cable Length (mm) 1000 Color Black Humidity 10~90% RH Material Plastic Operating Temperature 5°C to 50°C (41°F to 122°F) Product Length (mm) 93.000 Product Width (mm) 60.000 Product Height (mm) 22.300 Product Weight (g) 81.000 Storage Temperature -20°C to 85°C (-4°F to 185°F) TAA Compliant No Downstream Maximum Data Transfer Rate USB 3.2 Gen 1 (5Gbps) Fast Charge Ports (BC 1.2) Yes Maximum Data Transfer Rate 5 Gbps (USB 3.2 Gen 1) MTBF (hours) 50,000 Hours OS Compatibility OS Independent Total USB Power Output 35W UASP Support Yes USB Type and Rate USB 5Gbps Chipset ID VIA VL817 Ethernet Port No Industry Standards USB 3.2 Gen 1 - Backward compatible with USB 2.0 and 1.1 Interface/Bridge USB 3.2 Gen 1 (5Gbps) Laptop Dock / USB Hub Fast-Charge Yes LED Indicators 1 - Power (Solid Green) Number of Battery Charge 1.2 Ports 1 USB-C Device Port(s) No USB-C Host Connection No USB Port Type USB-A Carton Depth (mm) 616 Carton Height (mm) 387 Carton Quantity 40 Carton Weight Gross (g) 18908 Included in Package - 1 - USB Hub
- 1 - 3.3ft (1m) USB 3.0 Cable
- 1 - Power Adapter

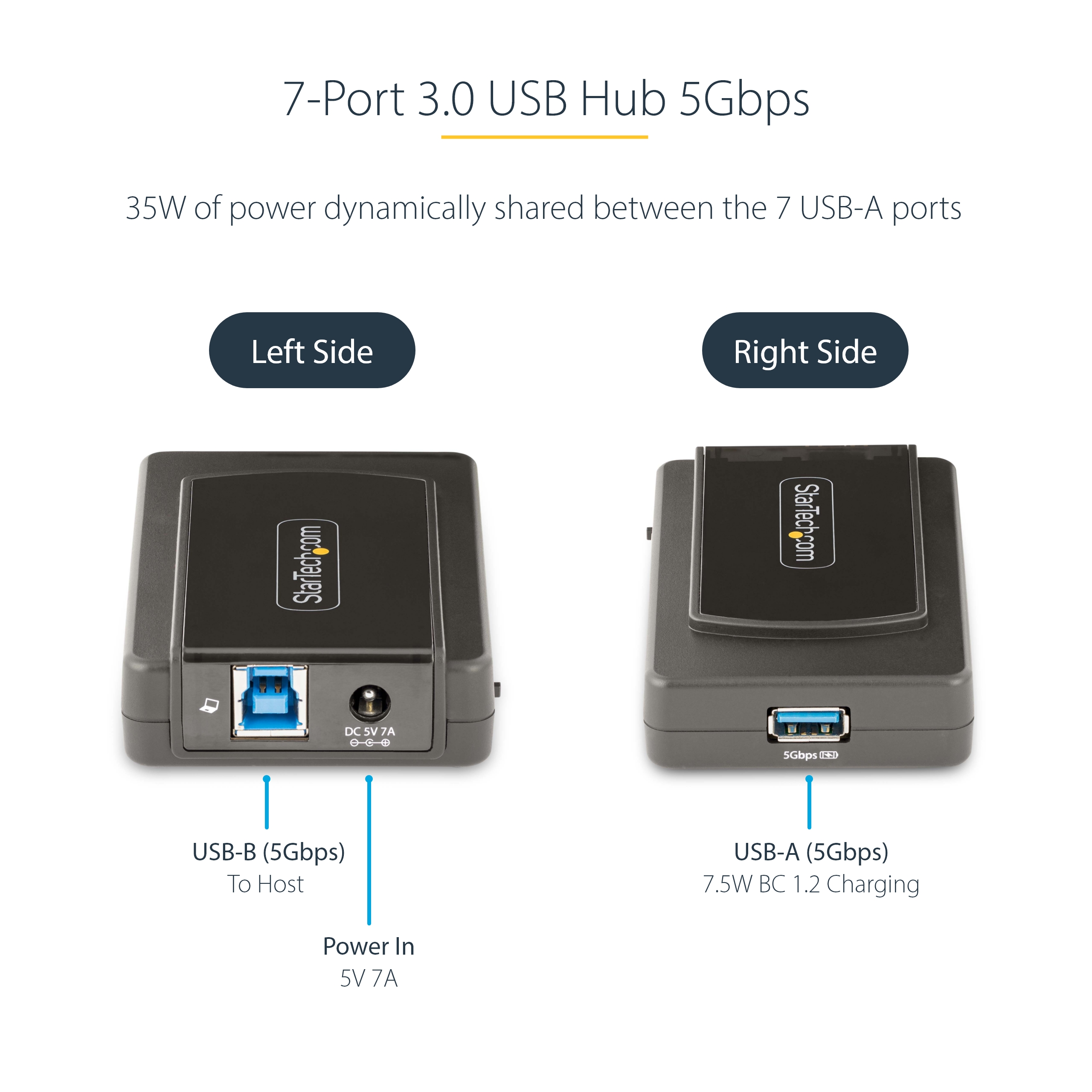

Package Depth (mm) 119 Package Height (mm) 89 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 454 Packaging Description 7 Port SuperSpeed USB 3.0 Hub with BC 1.2 support - Black Packaging Description India 7 Port SuperSpeed USB 3.0 Hub with BC 1.2 support - Black Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 USB-A (5Gbps, 4.5W) Connector 1 (Quantity) 7 Host Connector 1 USB-B (5Gbps, 4.5W) Host Connector 1 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2022-02-03 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Digital Content Due Date 2022-10-13 Enhanced Gallery Uploaded Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) CA,US Primary Technology - None
- USB 3.2 Gen 1 / 5Gbps
Product Development Specialist Abhinav Pathak Product Information Creation Specialist (PICS) Maria Powell Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Caleigh Le Grand Target Development Completion Date 2022-05-13 Target Production Release 2022-05-20 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle Mainstream Video Not Required
