Main Image
5PORT
Main Image

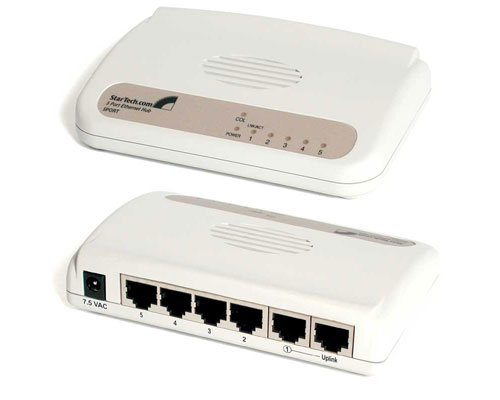

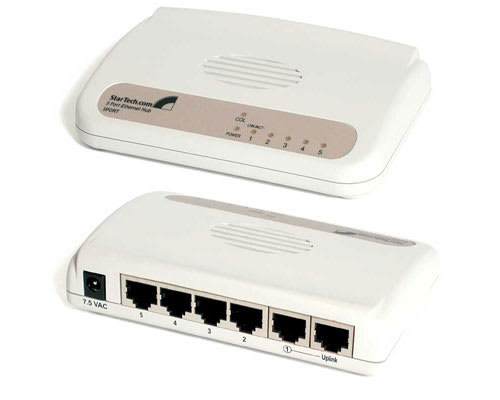

Product Name 5-port 10BaseT Micro Hub Product Number 5PORT UPC 065030773324 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 5-port 10BaseT Micro Hub Bullet 1 Fully conforms to IEEE 802.3 10BaseT repeater specifications Bullet 2 Automatic bad port partitioning isolates problem-causing workstations Bullet 3 Allows data recovery without signal distortion Bullet 4 LED indicators provide Link/Activity, Collision, Power status Bullet 5 Uplink port allows for cascade expansion Marketing Copy Running a small business? Need a small network? Want to add small workgroups to your existing network? The StarTech.com 5 Port 10BaseT micro hub is just what you need. The 5PORT is small in size, with plenty of potential for expandability. Features 5 UTP/STP ports with data transfer rates up to 10 Mbits/sec, and the ability to be daisy chained with up to 4 other hubs when your needs grow. Connected computers can be located up to 100 m away – perfect for any small office space. Backed by StarTech.com’s 2-year warranty and FREE lifetime tech support. Applications - For small networks with UTP/STP wiring and RJ-45 connectors
- Perfect for creating a small business network
- Great for adding small workgroups to an existing network
Accessory Products - M45PATCH10BL
- M45PATCH15BL
- M45PATCH100B
Related Products - DS5105
- DS8105
Power Source AC Adapter Included Color Beige Product Length (mm) 130 Product Width (mm) 1000 Product Height (mm) 30 Product Weight (g) 90 TAA Compliant No Auto MDIX No General Specifications - Standards: IEEE 802.3 10BaseT
- Data Transfer Rate: 10Mbps
- Protocol: CSMA/CD
- Maximum Distance: 100m
- STP/UTP Ports: (5) RJ-45
- Uplink Port: (1) RJ-45
- LEDs: (5) Link/Activity, Collision, Power
- Supported Hardware: PCs, MACs, Sun, DEC, any 10Base2/T compatible
- Power Requirements: 7.5V AC, 500mA
- Dimensions: 130x90x30mm (4.7x3.0x1.2 in.)
- Weight: 1kg
- Operating Environment: 0~45 deg C, 10~80% Humidity
- Certifications: FCC Class A, CE Mark
Carton Depth (mm) 340 Carton Height (mm) 210 Carton Quantity 25 Carton Weight Gross (g) 13200 Included in Package - 1 - FIVE PORT ETHERNET HUB
- 1 - POWER ADAPTOR
- 1 - SET OF SCREWS
- 1 - INSTRUCTION MANUAL
Package Depth (mm) 63 Package Height (mm) 136 Package Width (mm) 180 Package Weight (g) 480 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 5 en-US Content Approved Yes Product Manager Daryl Hunt
