6-MONITOR-ARM-A

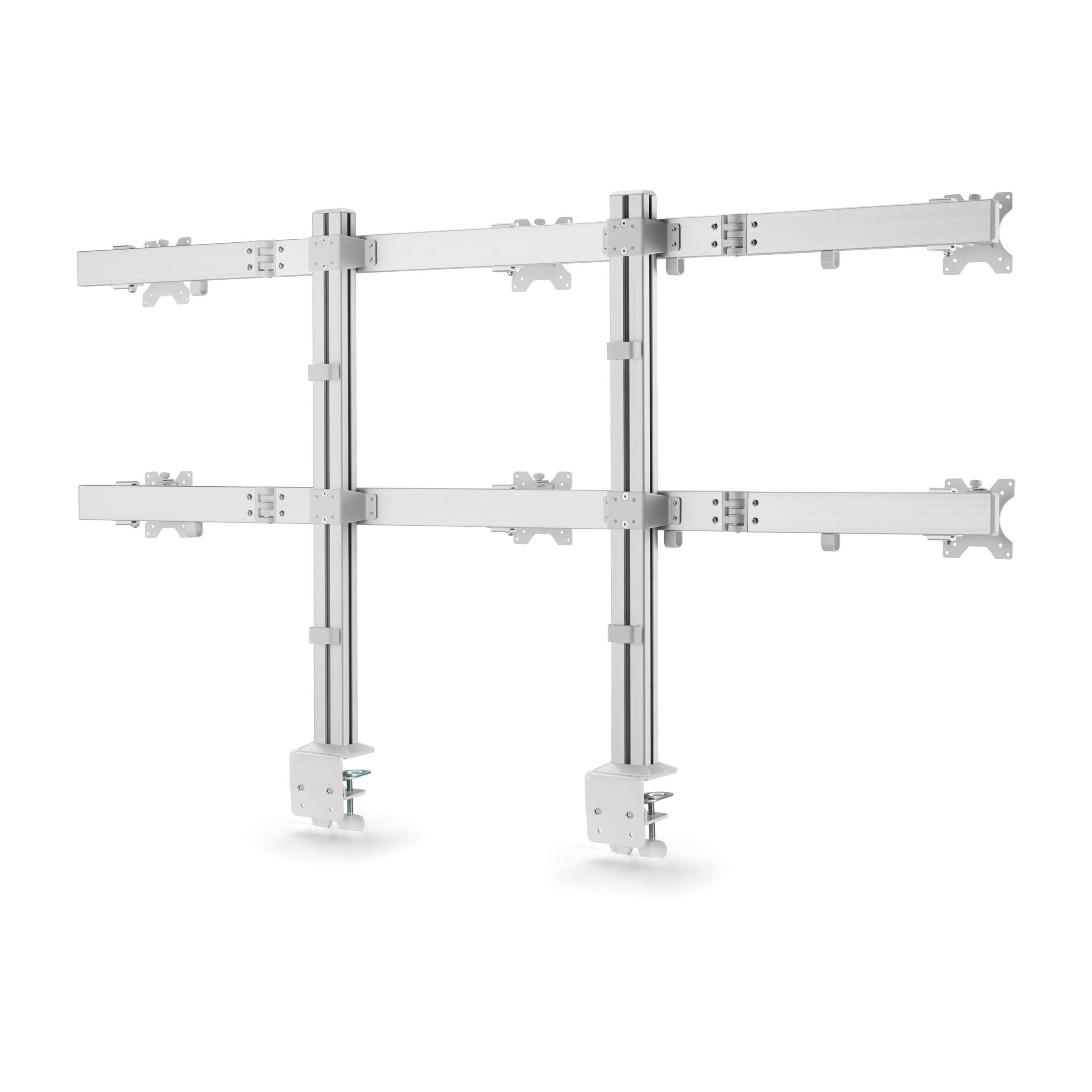

Six Monitor Mount Assembly

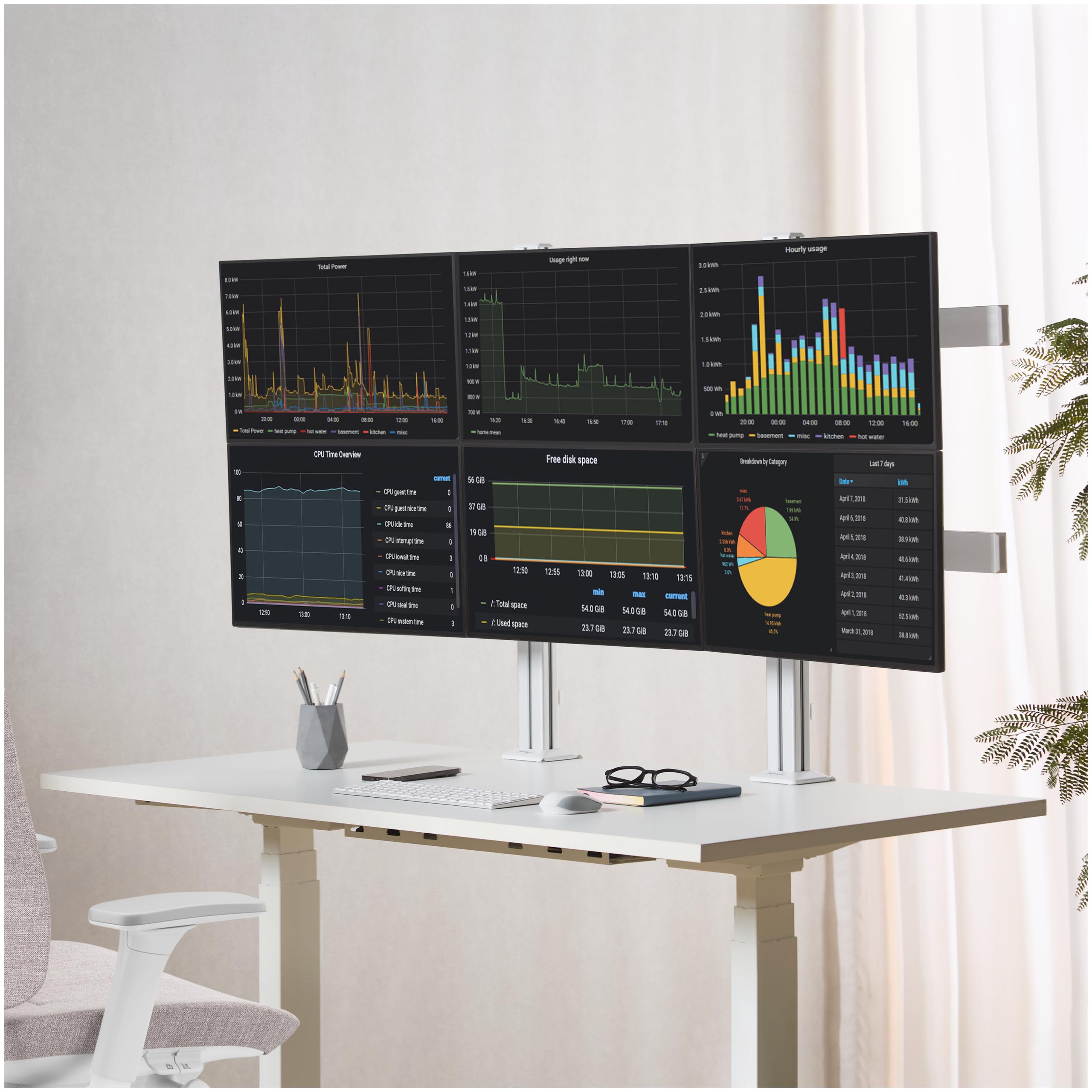

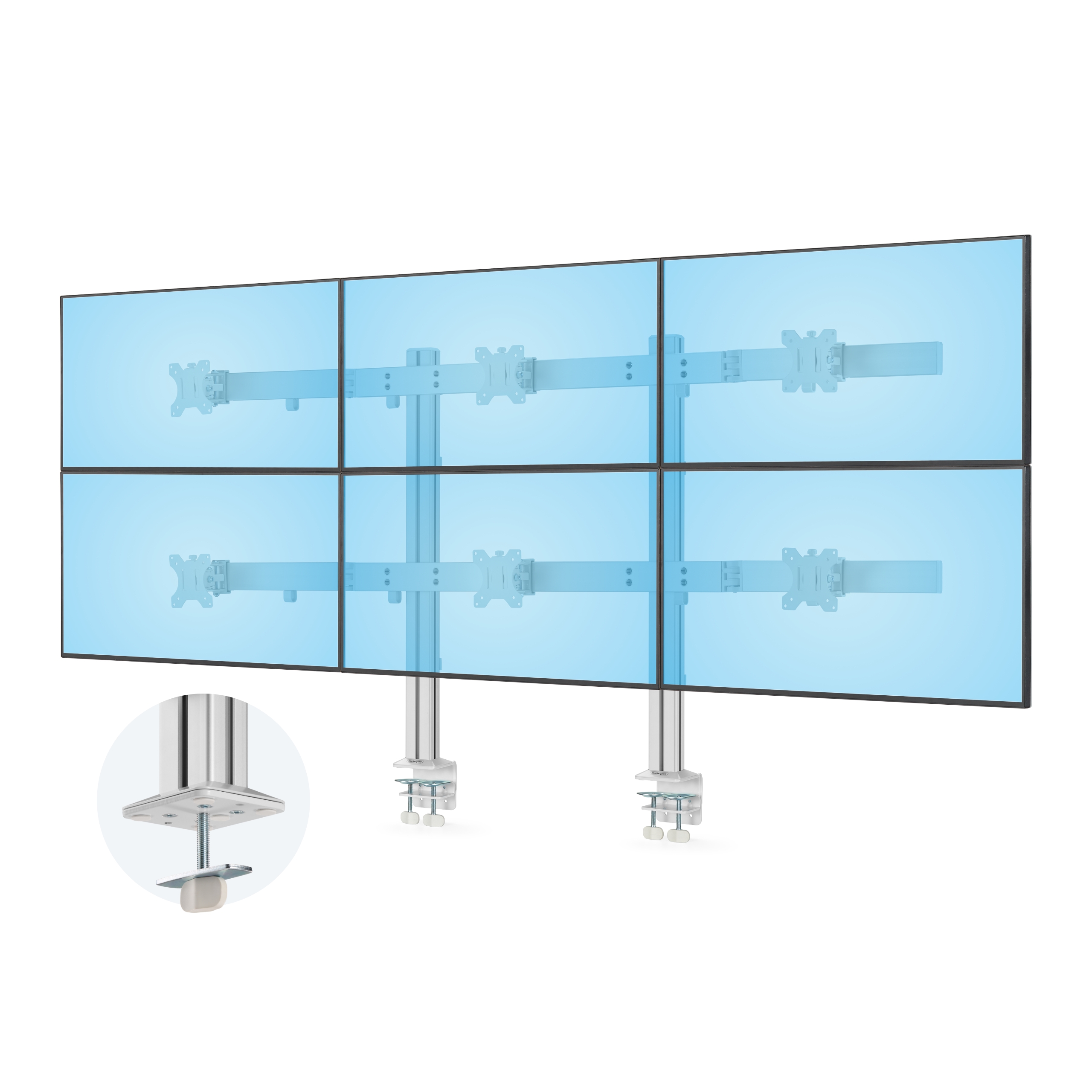

Six monitor desk mount with support up to 32" displays with articulation and height adjustment. VESA compatible 75x75/100x100
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name Six Monitor Mount Assembly Product Number 6-MONITOR-ARM-A UPC 065030895323 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Display Mounts Category Level 1 Display Mounts Category Level 2 Workstation Monitor Mounts Category Level 3 Multi-Monitor Desk Mount Arms Family Pivot Arm with Pole Monitor Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Six-Monitor Mount Product Title (Short) Six-Monitor Desk Mount, Max 32"/17.6lb Product Title (Medium) Six-Monitor Desk Mount w/ Crossbar, Up To 32inch Screens/Max 17.6lb each, VESA Product Title (Standard) Six-Monitor Desk Mount with Crossbar, Up To 32-inch Computer Screens, Max 17.6lb (8kg) each, Dual Column, C-clamp/Grommet Product Title (Long) Six-Monitor Desk Mount with Crossbar, Up To 32-inch Computer Screens, Max 17.6lb (8kg) each, Dual Column, C-clamp/Grommet, Height Adjustable Product Title (AMZ) Six-Monitor Desk Mount w/ Crossbar, Up To 32-inch Computer Screens/Max 17.6lb each, Dual Column, C-clamp/Grommet Title Ingram (Part 1) Six-Monitor Desk Mount Crossbar Title Ingram (Part 2) - Max 32" Screens/17.6lb each/VESA Website Product Headline Six monitor desk mount with support up to 32" displays with articulation and height adjustment. VESA compatible 75x75/100x100 Bullet 1 SIX-MONITOR MOUNT: Crossbar design ensures a stable horizontal alignment of the monitors at all times for a seamless visual experience; Six adjustable VESA 75x75/100x100 mounts for up to 32" & 17.6lb (8kg) per screen; Aluminum and steel construction Bullet 2 DISPLAY ADJUSTMENTS: VESA plates support +/-17° swivel, +/-34° tilt, and 360° screen rotation for portrait/landscape; Ergonomic mount allow moving monitors along the 5.9ft (1.8m) wide crossbars Bullet 3 PERFECT 3X2 SETUP: Individual micro-height adjustment for precise alignment of each monitor; The outer monitors can be angled (+/-16°) toward the user; Each row of screens can be height adjusted along the 34-inch (86.3cm) columns (tools included) Bullet 4 VERSATILE INSTALLATION: C-clamp design for 0.4-2.9in (1–7.5cm) thick desks or grommet hole mounts for 0.4-1.7in (1–4.5cm) thick desks; Removable VESA plates for convenient monitor installation/removal; Cable management clips for the crossbars and columns Bullet 5 DUAL COLUMN STABILITY: Robust dual column monitor mount with improved base design that won't tilt over time, for a secure & rigid multi-monitor mounting solution; It ensures the weight is more evenly distributed across the desk improving overall stability Bullets (Compact) Six-monitor mount w/ crossbar design for monitors up to 32"/17.6lb each - Robust dual column design - Micro-height adjustment for perfect display alignment - VESA mounts w/ +/-17 deg swivel +/-34 deg tilt 360 deg rotation - C-clamps/grommet mounting Bullets (Consolidated) Six-monitor mount with crossbar design; Adjustable VESA 75/100 for up to 32-inch and 17.6lb per screen - Robust dual column monitor mount with improved base design that won't tilt over time - Micro-height adjustment for perfect display alignment; Ergonomic monitor mounts support +/-17DEG swivel +/-34DEG tilt and 360 DEG rotation for portrait/landscape - Rigid mounting options with C-clamps for desks 0.4-2.9" thick or grommet mounts for desks 0.4-1.7" thick - Includes cable clips for a tidy setup Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Manual - Waste - European Union - Print Paper
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - 2569-PRIVACY-SCREEN
- 2461A-PRIVACY-SCREEN
- 2769A-PRIVACY-SCREEN
- PRIVSCNMON27
- 2769G-PRIVACY-SCREEN
- PRIVSCNMON32
- DK30CH2DPPD
- DK31C3HDPD
- DK31C2DHSPD
- 116N-USBC-DOCK
- UCC-3M-10G-USB-CABLE
- USB315C5C6
- HKLP25GN
- HKLP50BL
- HKLP50RD
- HKLP25
- CBMZT8B
- CBMZT6B
- CBMZT8N
- CBMZT6N
- CBMCTM3
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M
Related Products - 3M1A3SG-MONITOR-ARM
- 2MC1S-MONITOR-STAND
- ARMSLMBARDUO
- ARMDUALWALL
- ARMSLIMDUAL2USB3
- ARMBARQUAD
- ARMQUAD

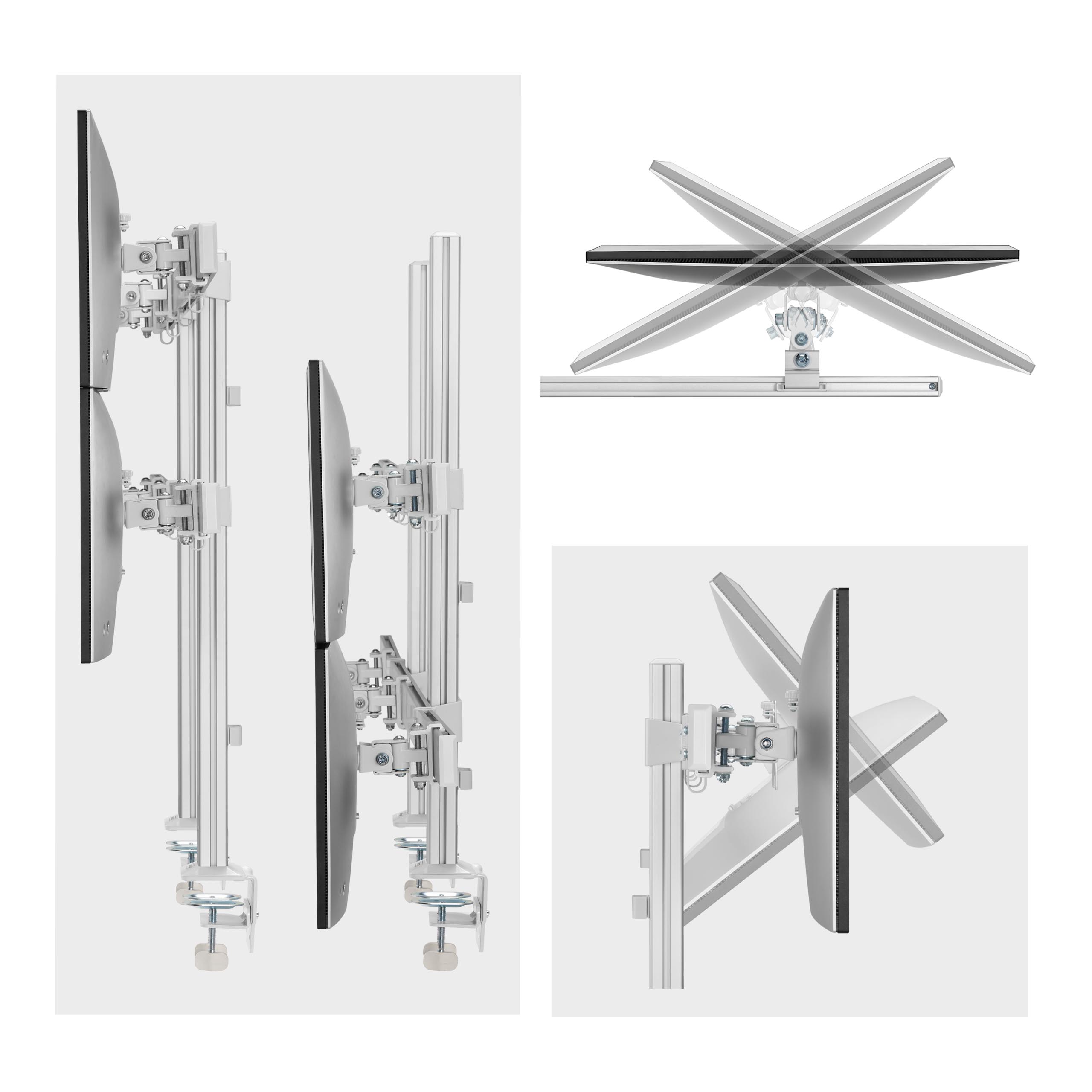

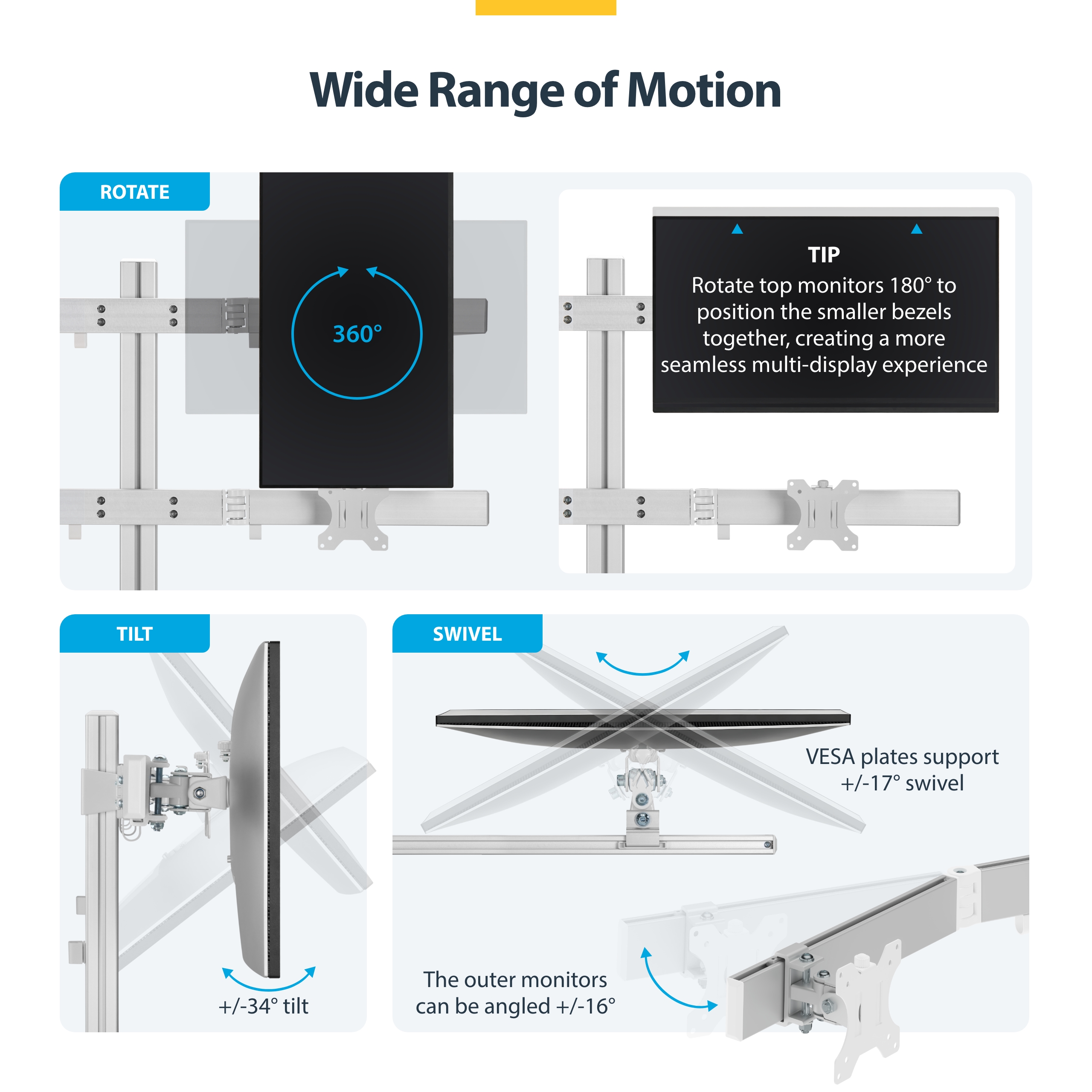

Color White Construction Material Steel and Plastic Primary Material Steel Product Length (mm) 118.000 Product Width (mm) 1806.000 Product Height (mm) 863.000 Product Weight (g) 13960.000 TAA Compliant No Anti-theft No Display Rotation 360° Display Swivel + 17° / - 17° Display Tilt +34° / -34° Fits Curved Display No Fits UltraWide Displays No Height Adjustment Yes Maximum Arm Extension 1745 Maximum Display Size 32" Maximum Height (mm) 863 Minimum Display Size 17" Weight Capacity for Display Mounts (g) 8000 Articulating Yes Aspect Ratio 16:9 Cable Management Yes Height Adjustment Method Pole-Mounted Mounting Options Desk & Grommet Clamp Mounting Surface Thickness Desk Clamp: Thickness 0.8 - 2.3in (2 - 7.5cm) </br> Grommet Clamp: Thickness 0.4 - 1.7in (1 - 4.5cm) Number of Displays 6 Tools Included Yes VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm

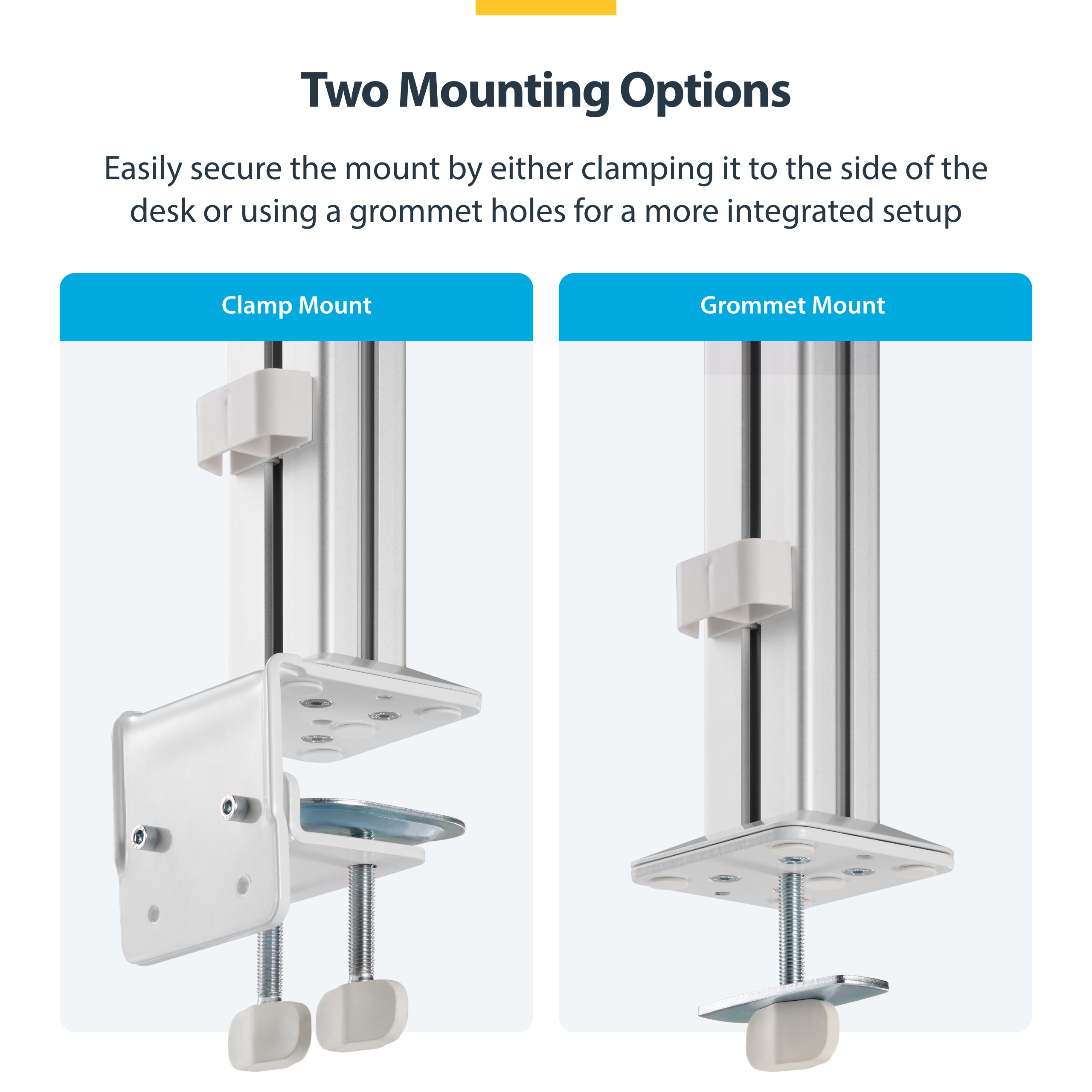

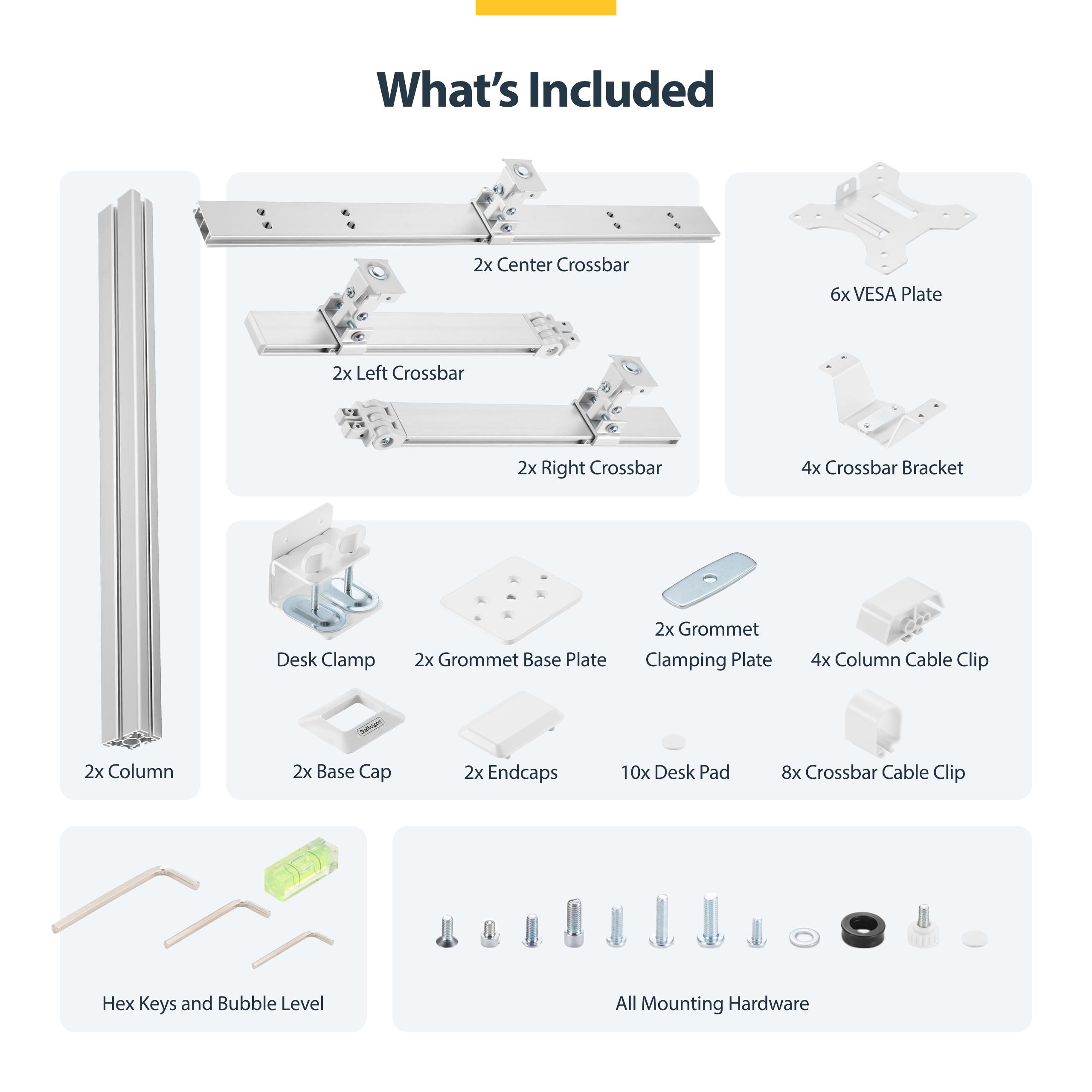

Wallmountable No Carton Depth (mm) 1030 Carton Height (mm) 120 Carton Quantity 1 Carton Weight Gross (g) 15800 Included in Package - 2 - Desk Clamps
- 2 - Grommet, Base Plates
- 2 - Grommet, Clamping Plates
- 2 - Columns
- 2 - Center, Crossbars
- 2 - Left, Crossbars
- 2 - Right, Crossbars
- 4 - Crossbar Mounting Brackets
- 6 - VESA Brackets
- 6 - VESA Bracket Screws

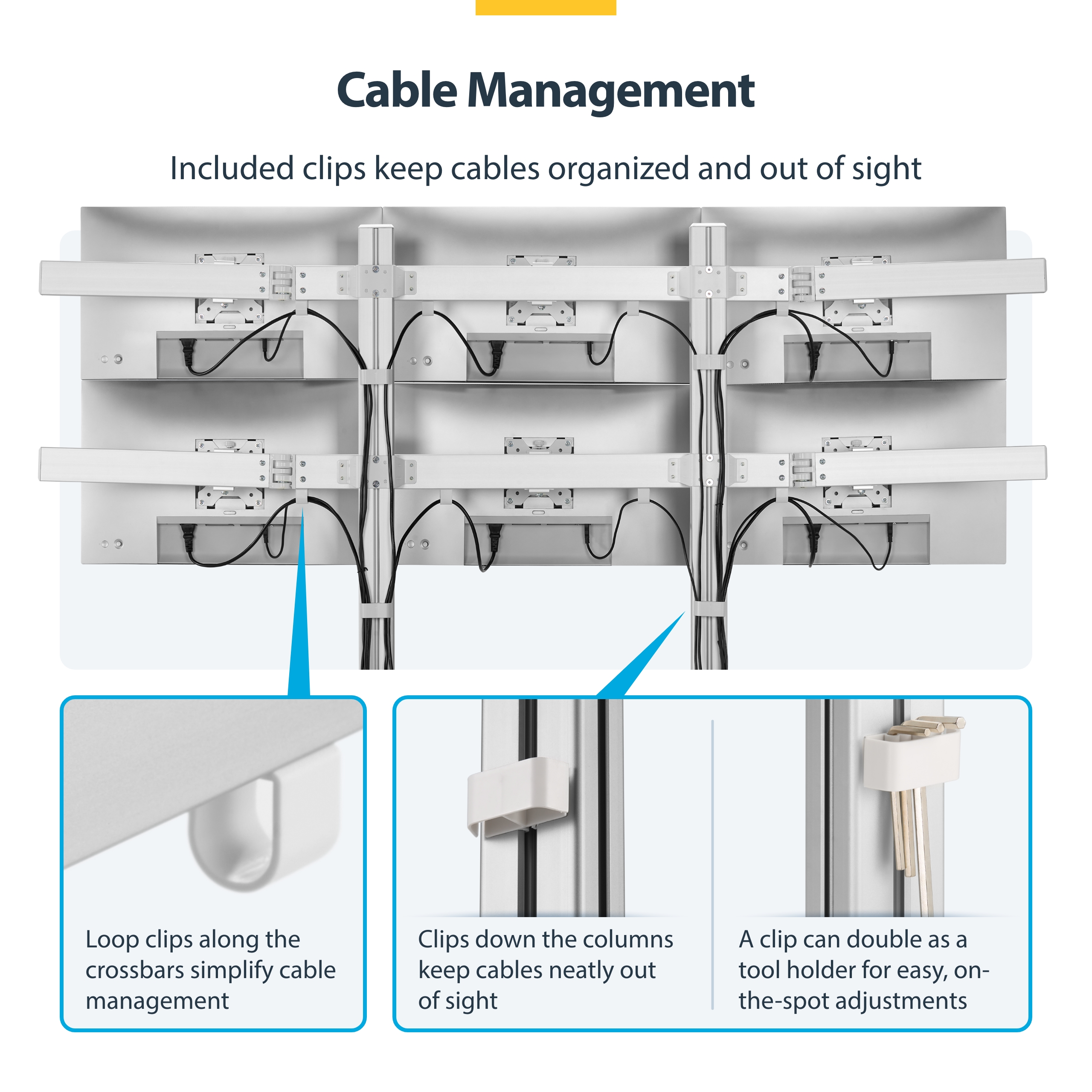

- 4 - Column Cable Management Clips
- 8 - Crossbar Cable Management Clips
- 2 - Column Endcaps
- 2 - Base Caps
- 10 - Clamp Pads
- 8 - Base Screws
- 16 - Center Crossbar Screws
- 8 - Button Head L&R Crossbar Screws
- 4 - Socket Head L&R Crossbar Screws
- 1 - Bubble Level
- 1 - 4mm Hex Key
- 1 - 6mm Hex Key
- 24 - M4x12mm Screws
- 24 - M4x16mm Screws
- 24 - M5x12mm Screws
- 24 - M5x16mm Screws
- 24 - Spacers
- 24 - Washers
- 1 - User Manual
- 1 - 5mm Hex Key
Package Depth (mm) 1030 Package Height (mm) 120 Package Width (mm) 405 Package Quantity 1 Package Weight (g) 15800 Packaging Description Six Monitor Arm Mount - Up to 32" Displays Packaging Description India Six Monitor Arm Mount - Up to 32" Displays Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kristian Haighton Application Photos Required Artwork Due Date 2024-09-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Comparable SKU Comment Quad Monitor Arm – Premium Articulating VESA 4 Monitor Mount 2x2 up to 30" (24.8lb/11.3kg) – Ergonomic Height Adjustable Pole Mount - Tilt/Swivel/Rotate - C-Clamp/Grommet - Silver - TAA Comparable SKU 2 Comment Quad Monitor Arm - Ergonomic VESA 4 Monitor Mount 2x2 up to 27" (17.6lb/8kg) - Articulating & Height Adjustable Pole Mount - Tilt/Swivel/Rotate LCD/LED Screen - Desk Clamp/Grommet Digital Content Due Date 2025-01-06 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2024-05-24 Target Production Release 2024-10-31 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine Video Required
