6ASPAT1MAQ

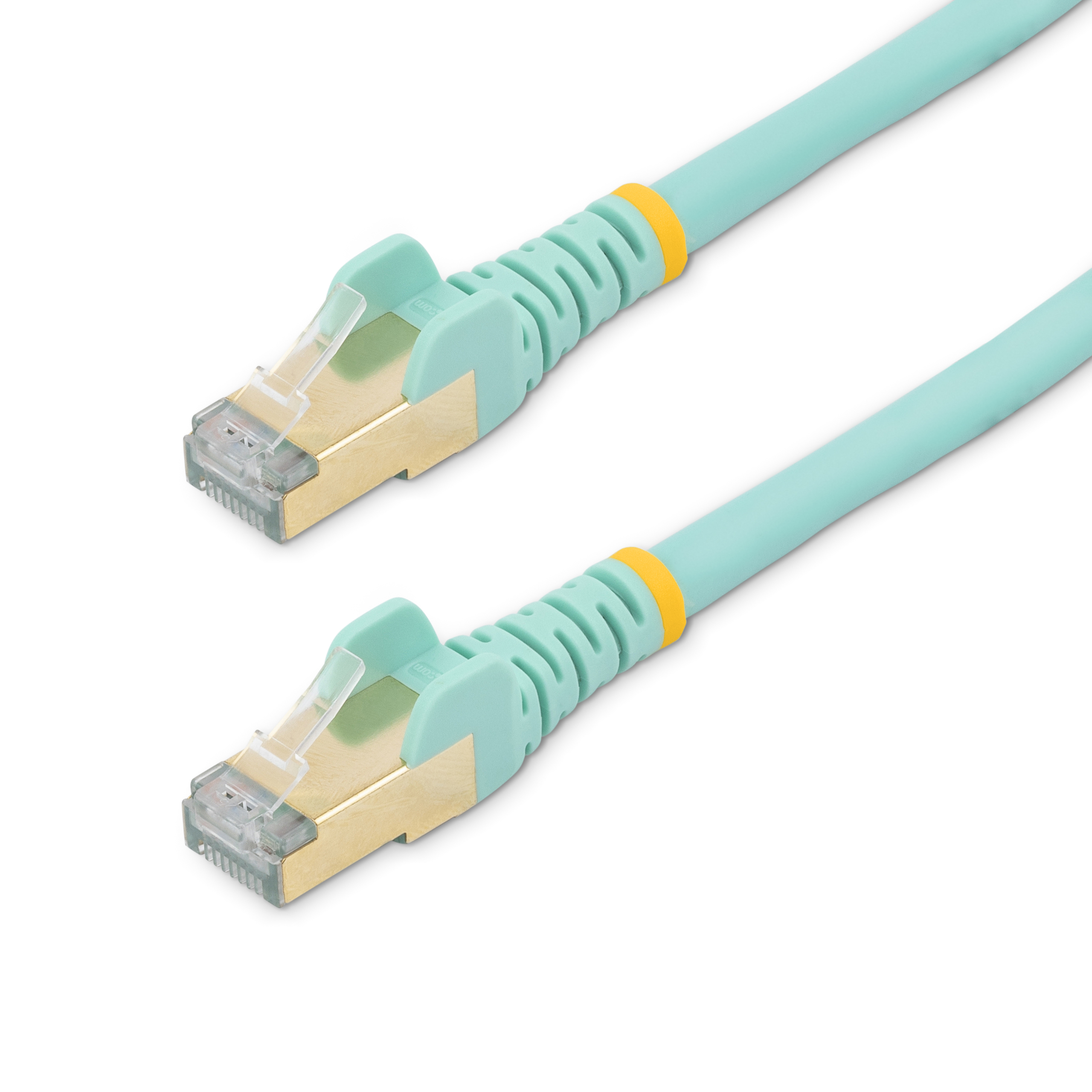

1m Aqua Snagless Cat6a Patch Cable
Deliver high-performance 10 Gigabit Ethernet connections with PoE support
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Name 1m Aqua Snagless Cat6a Patch Cable Product Number 6ASPAT1MAQ UPC 065030873277 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Copper Network Cables Category Level 1 Network Cables Category Level 2 Copper Ethernet Cables Category Level 3 Cat6a Cables - Shielded Snagless Family Cat6A Snagless Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) Philippines Country of Origin Revision (1) XXXXXX174X Country of Origin History (2) China Country of Origin Revision (2) XXXXXX048X Product Title (Ultra-Short) 1m Aqua Cat6a Product Title (Short) 1 m CAT6a Ethernet Cable - STP Aqua Product Title (Medium) 1m Aqua Cat6a Ethernet Cable - Shielded (STP) Product Title (Standard) 1m CAT6a Ethernet Cable - 10 Gigabit Category 6a Shielded Snagless 100W PoE Patch Cord - 10GbE Aqua UL Certified Wiring/TIA Product Title (Long) 1m CAT6a Ethernet Cable - 10 Gigabit Shielded Snagless RJ45 100W PoE Patch Cord - 10GbE STP Network Cable w/Strain Relief - Aqua Individually Tested/Wiring is UL Certified/TIA Product Title (AMZ) 1m CAT6a Ethernet Cable - 10 Gigabit Shielded Snagless RJ45 100W PoE Patch Cord - 10GbE STP Network Cable with Strain Relief - Aqua - UL, TIA (6ASPAT1MAQ) Title Ingram (Part 1) 1m Cat6a Patch Cable - Aqua - Title Ingram (Part 2) Cat 6a Network Cable - STP Website Product Headline Deliver high-performance 10 Gigabit Ethernet connections with PoE support Bullet 1 HIGH PERFORMANCE CAT6A ETHERNET CABLE: 100% copper for consistent & error-free 10 gigabit connection. Individually tested to comply with ANSI/TIA-568-B.2-10 Category 6 requirements; ETL Verified to meet ANSI/TIA-568.2-D standards Bullet 2 PROTECT YOUR NETWORK: Shielded RJ45 connectors minimize Near-End Crosstalk (NEXT) & protect against noise & electromagnetic (EMI/RFI) interference; Compatible w/ multi-speed 10Base-T/NBASE-T generation Bullet 3 QUALITY CONSTRUCTION: 50-micron gold-plated connectors for clear signal & to stop rust/corrosion. Snagless connector enables easy installation & flexible disconnection of patch cord in wiring conduits Bullet 4 POE SUPPORT: 26 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems. IEEE 802.3bt & DTE power compliant prevents cable heating up Bullet 5 THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cables are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) CAT6a Ethernet Cable delivers 10 Gigabit connection free of noise & EMI/RFI interference - Tested to comply w/ ANSI/TIA-568-D Category 6 requirements - 26 AWG stranded 100% copper UL Rated wire (E132276-A) - 100W PoE - Snagless Shielded Patch Cord Bullets (Consolidated) 1 m Aqua CAT6a Ethernet cable w/ 100% copper delivers 10 gigabit network connection|Individually tested using a Fluke® DSX2-8000 CableAnalyzer - Shielded pairs protect against crosstalk noise and electromagnetic interference - 26 AWG stranded copper conductors|Up to 100W for PoE applications|Built w/ ETL and UL verified wire (E132276-A) - 50-micron gold-plated RJ45 connectors provide clear signals stop rust/corrosion - Snagless connector patch cord easily pulls through wiring conduits Marketing Copy Get high-speed, interference-free connectivity with this Cat6A Snagless Patch Cable, built to support reliable 10Gb network performance in demanding IT environments. Shielded construction helps protect against EMI and noise, while snagless connectors and molded strain relief reduce the risk of damage during installation and daily use. Available in multiple lengths and colors for easy cable management, it delivers consistent signal integrity with 100% copper conductors, gold-plated connectors, and ETL-verified performance up to 500MHz. Applications - Connect PoE-enabled devices to 10Gb networks
- Connect servers to a Storage Area Network (SAN)
- Deliver data, voice and video over 10 Gigabit networks
- Connect between computers, hubs, switches, routers, print servers and patch panels
Website Search Keyword - cat 6a ethernet
- cable cat 6a
- cable cat6a
- utp patch cord
- utp rj45
- rj45 patch cord
- utp cat6a cable
- ethernet cat6a cable
- ethernet rj45 cable
- patch cable cat6a
- patch cable rj45
- rj45 to rj45 cable
- rj45 cat6a cable
- cable ethernet 6a
- cable ethernet cat 6a
- cable ethernet rj45
- cable utp cat 6a
- cat 6a network
- cat6a utp patch cable
- Cat6a ethernet cord
- cat6a to ethernet
- gigabit ethernet cable
- cat6a ethernet cable
- cat6a cable
- cat6a patch cable
- cat6a rj45
- cat 6a patch cord
- cat6a network cable
- cat6a utp
- cat6a utp cable
- category 6a cable
- cat 6a cable
- rj45 cable
- network cable
- ethernet cord
- ethernet cat6a
- rj45 patch cable
- utp patch cable
- cat6a connector
- cat6a data cable
- cat6a ethernet
- category 6a patch cable
- ethernet cable cat6a
- cat 6a utp
- Cat6a rj45 cable
- ethernet cat 6a
- ethernet cable 6a
- cat 6a patch
- cat 6a cord
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
Related Products - 6ASPAT1MGR
- 6ASPAT1MBL
- 6ASPAT1MBK

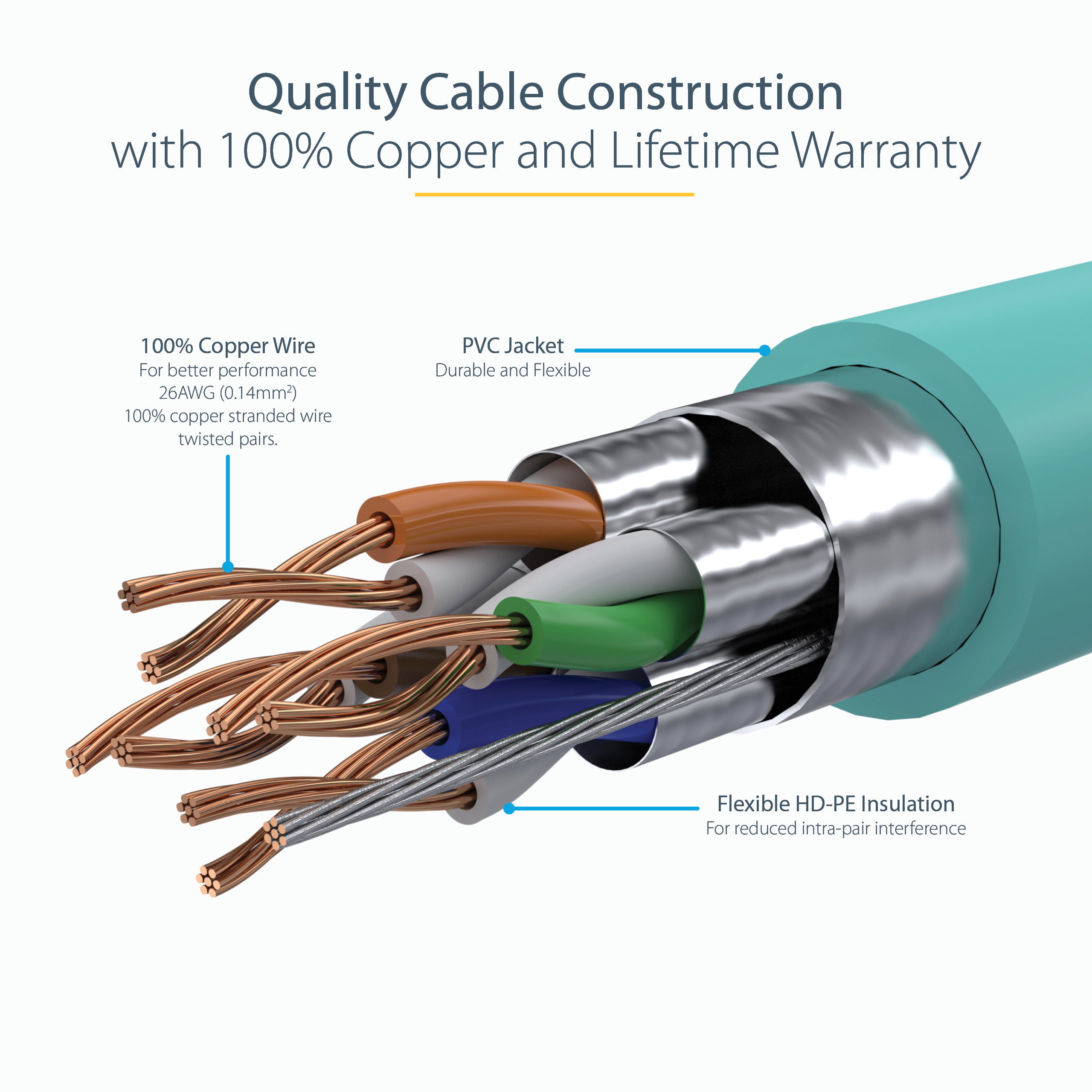

Power Delivery 100W Cable Length (mm) 1000 Cable OD 6.3 Color Aqua Conductor Type Stranded Copper Humidity 15 ~ 65% Operating Temperature -20°C to 80°C (-4°F to 176°F) Primary Material Plastic Product Length (mm) 1000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 48.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Wire Gauge 26 AWG (0.404 mm) Cable Rating CAT6a - 500 MHz ETL Verified Yes General Specifications Insertion Rating: 5000 Cable Jacket Material PVC - Polyvinyl Chloride Cable Shield Material Aluminum-polyester foil Cable Structure Foiled with Foiled Twisted Pairs (F/FTP) Cable Type Shielded Snag-less Fire Rating CMG Rated (General Purpose) Number of Conductors 4 Pair STP Pair Shield Structure Aluminium-Mylar Foil Shielding STP Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 374 Carton Height (mm) 282 Carton Quantity 160 Carton Weight Gross (g) 10204 Included in Package 1 - Cat6a patch cable Included In Package for Label 1 - Cat6A Patch Cable Number of Sub-Cartons 16 Package Depth (mm) 200 Package Height (mm) 10 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 58 Packaging Description Cat6a Patch Cable - Shielded - Aqua Packaging Description India Cat6a Patch Cable - Shielded - Aqua Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Quantity 10 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2017-04-10 Buying Center - AV & Collaboration Yes Buying Center - Data Center Yes Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2017-04-26 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CH,DE,DK,ES,EU,FR,IE,IN,IT,JP,NL,NZ,SE,UK Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2017-03-10 Target Production Release 2017-03-31 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
