6P6G-PCIE-SATA-CARD
6 Port SATA 6Gbps PCIe Controller Card
SATA III (6Gbps) | PCI Express 3.0 | PCIe x4 Slot | 6x SATA Connectors | 2-Year Warranty
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Quick-Start Guide
Product Name 6 Port SATA 6Gbps PCIe Controller Card Product Number 6P6G-PCIE-SATA-CARD UPC 065030893749 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family SATA to PCIe Controller Card Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX051X Product Title (Ultra-Short) 6Port SATA PCIe Card Product Title (Short) SATA PCIe Card/Controller Card, 6 Ports Product Title (Medium) SATA PCIe Card - 6 Port PCIe SATA Expansion Card - PCI Express to SATA Converter Product Title (Standard) 6-Port SATA PCIe Card, SATA Expansion Card, 6Gbps SATA Adapter, Stacked SATA Connectors, PCI Express to SATA Converter, TAA Product Title (Long) SATA PCIe Card - 6 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1166 Non-Raid - PCI Express to SATA Converter - TAA Product Title (AMZ) SATA PCIe Card - 6 Port PCIe SATA Expansion Card - 6Gbps - Low/Full Profile - Stacked SATA Connectors - ASM1166 Non-Raid - PCI Express to SATA Converter , TAA (6P6G-PCIE-SATA-CARD) Title Ingram (Part 1) SATA PCIe Card - 6 Port (6Gbps) Title Ingram (Part 2) PCIe SATA Expansion Card ASM1166 Website Product Headline SATA III (6Gbps) | PCI Express 3.0 | PCIe x4 Slot | 6x SATA Connectors | 2-Year Warranty Bullet 1 HIGH-PERFORMANCE: Add six SATA III 6Gbps ports to your desktop computer or server using a PCIe x4 slot to connect SATA drives (HDD/SSD); 6-Port SATA PCIe card features 6x SATA connections for connecting drives using SATA cables (sold separately) Bullet 2 ASM1166 CONTROLLER: Add six SATA (serial ATA) 6Gbps ports via a single x4 PCIe slot for combined total bandwidth up to 16Gbps; Supports & NCQ (Native Command Queue) & Port Multiplier across all six ports, up to five drives per PM port. Bullet 3 COMPATIBILITY: Supports PCIe 3.0, SATA 3.2 & AHCI 1.4 Specs, and previous gens at lower performance; Windows (7+), macOS (10.10+), Linux (2.6.32+); Improved motherboard compatibility with no built-in RAID; Supports ATA & ATAPI (HDD, SSD, Optical Disc) Bullet 4 EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux) Bullet 5 STARTECH.COM ADVANTAGE: IT professionals choice for over 30 years; This SATA PCIe adapter controller card converter is backed for 2-years by StarTech.com, including free 24/5 North America based multi-lingual tech support Bullets (Compact) SATA III 6Gbps PCIe 3.0 x4 card - SATA expansion adapter card - 6-Port SATA to PCIe Card w/ASM1166 controller for 16Gbps combined max - PCI Express 3.0/SATA 3.2/AHCI 1.4 - ATA/ATAPI for HDD/SSD/ODD support - Windows/macOS/Linux - Full/low-profile Bullets (Consolidated) 6-Port SATA III 6Gbps PCI Express 3.0 x4 expansion card - SATA adapter converter card features ASM1166 controller for 6x SATA 6Gbps ports w/combined bandwidth of 16Gbps - No built-in RAID for improved motherboard compatibility | Full/low-profile brackets - PCIe 3.0 | SATA 3.2 | AHCI 1.4 | ATA & ATAPI for HDD, SSD, ODD support - Windows (7+) | macOS (10.10+) | Linux (2.6.32+) - Supports storage management systems like Storage Spaces (Microsoft)/RAID Assistant (macOS)/mdraid/mdadm (Linux) Marketing Copy Marketing Copy (No HTML) Applications - Add six SATA 6Gbps drives to your desktop computer or server

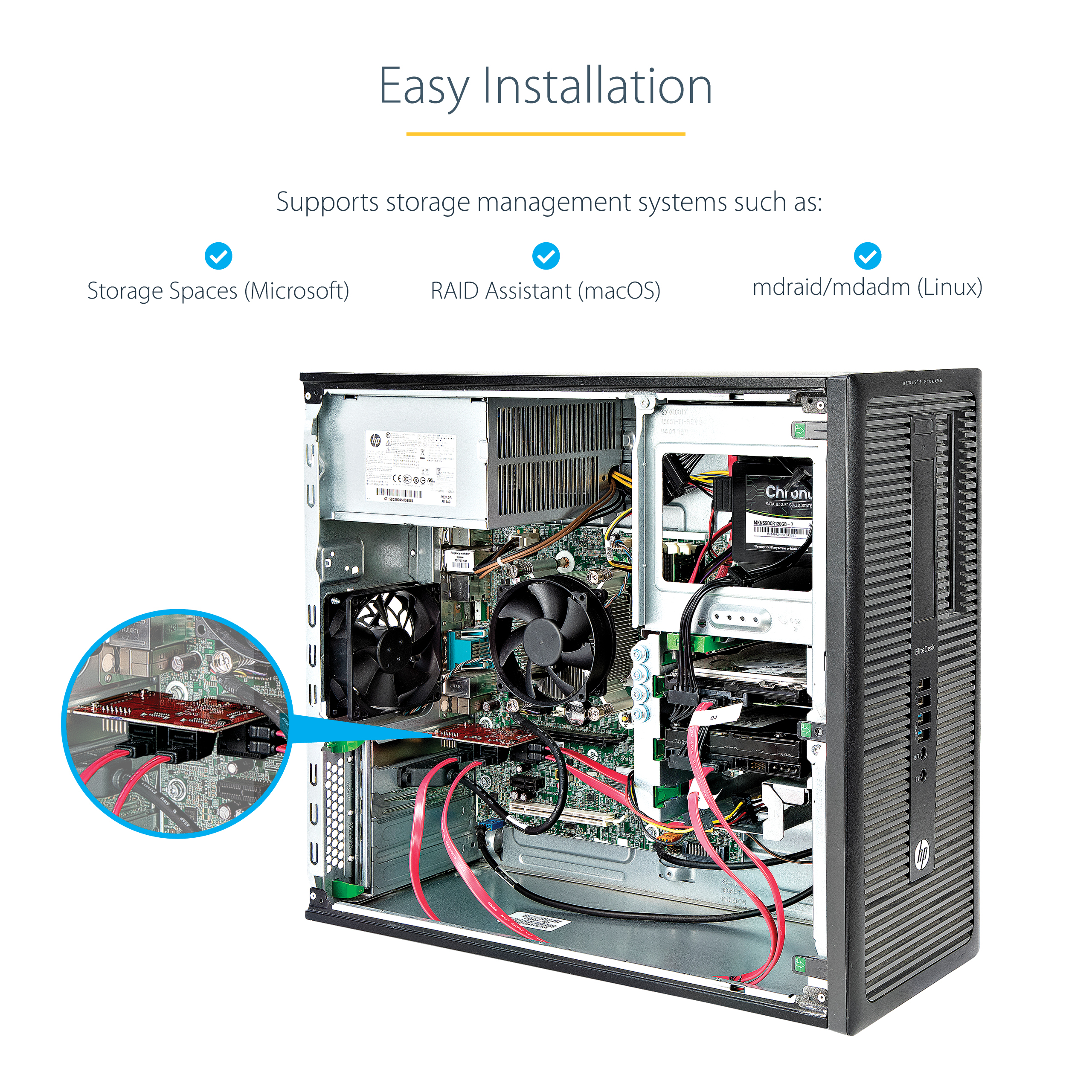

- Manage your drives and built RAID arrays with storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)
Website Search Keyword - 6 port sata card
- 6Gbps SATA card
- pci express card
- PCI Express SATA
- pci express sata 3 controller card
- pci express sata expansion card
- pci express to sata
- pcie 3.0 sata controller
- pcie SATA
- pcie sata 3 adapter
- pcie sata 3 expansion card
- pcie sata adapter
- PCIe sata card
- pcie sata card 6 port
- pcie sata controller card
- 6 port sata pcie card
- mzhou pcie sata card 8 port
- pcie x4 to sata adapter
- rivo pcie sata card
- rivo pcie sata card 8 port
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
Accessory Products - LSATA24
- SATA12
- SATA18
- SATA24
- SATA36
- SATA6
- SATA8
- LSATA6
- LSATA8
- LSATA12
- LSATA18
Related Products - CBESATA2
- ECESAT32
- ECESATA1
- ECESATA22
- ECESATA254
- ECESATUSB1
- PCIESATA2I
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PEXSAT2IDE2
- PEXESAT32
- PEXSATA22I
- PEXSATA24E
- USB2ESATA
- 4P6G-PCIE-SATA-CARD
- 10P6G-PCIE-SATA-CARD
- 2P6GR-PCIE-SATA-CARD
- 8P6G-PCIE-SATA-CARD

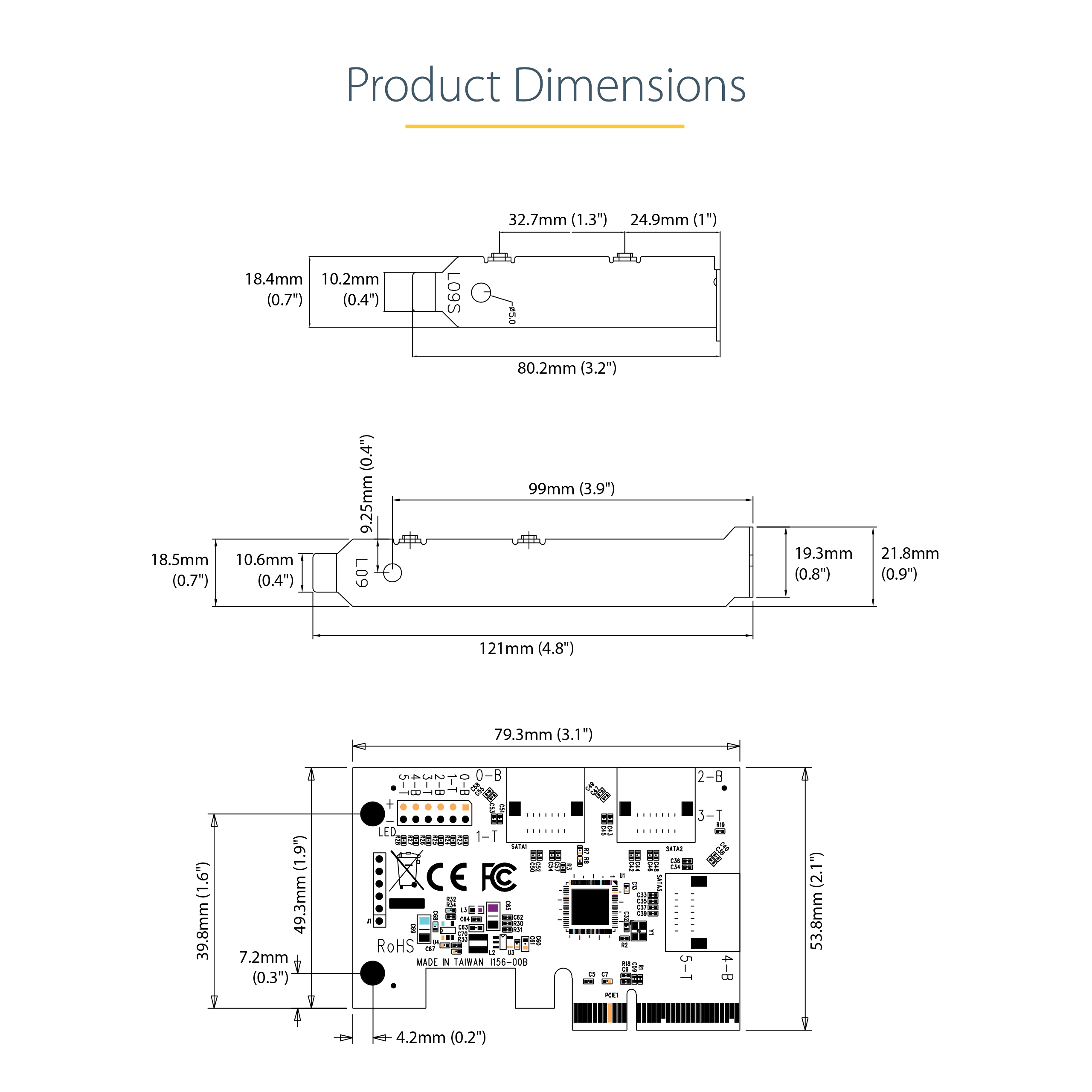

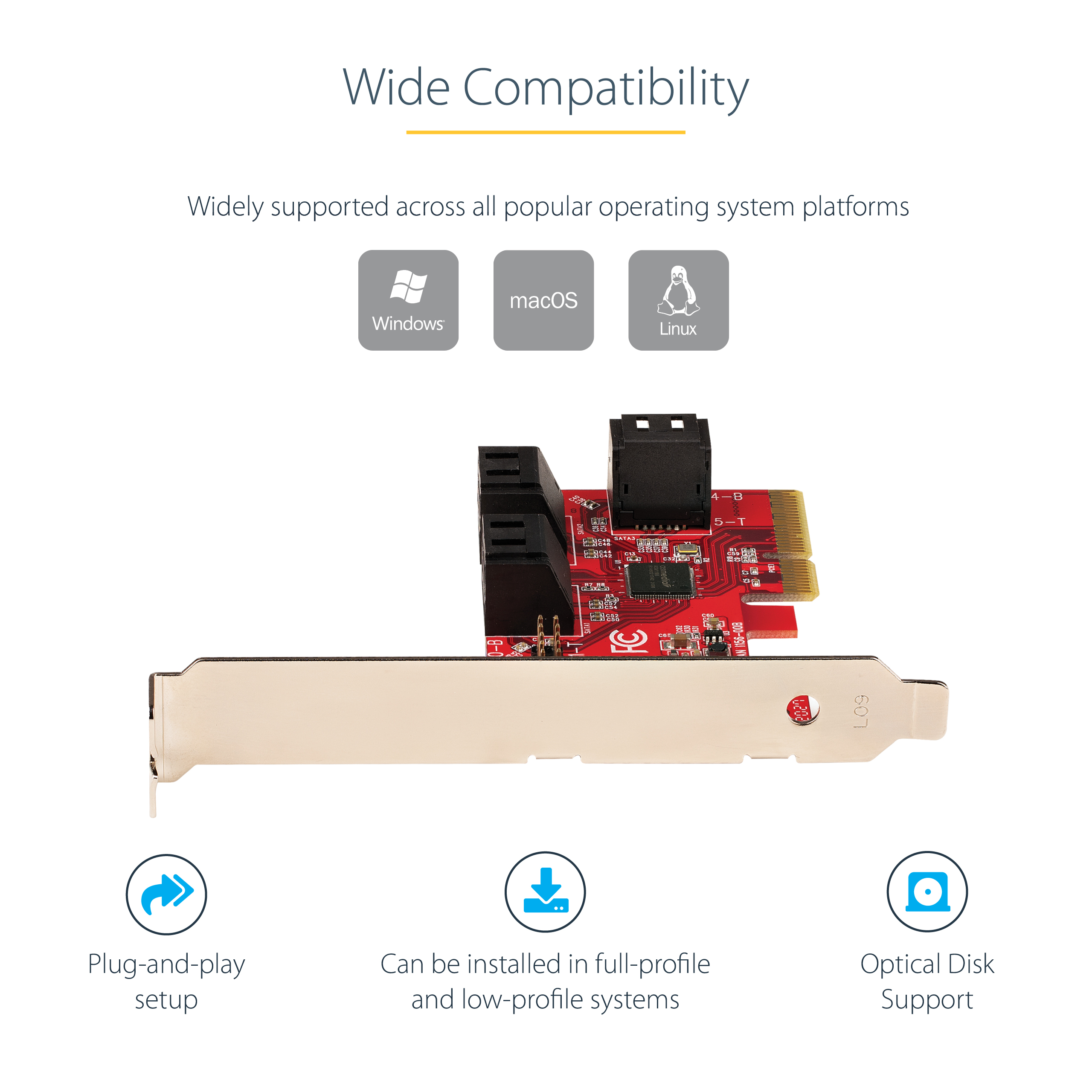

Color Red Humidity 20~80% RH Operating Temperature 0°C to 85°C (32°F to 185°F) Primary Material PCB Product Length (mm) 81.600 Product Width (mm) 53.700 Product Height (mm) 17.000 Product Weight (g) 29.000 Storage Temperature -25°C to 85°C (-13°F to 185°F) TAA Compliant Yes 4Kn Support Yes Maximum Data Transfer Rate 6 Gbps OS Compatibility - Windows 8
- Linux
- Windows 7
- Windows 10
- macOS Sierra (10.12)
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- Windows 11
- Mac OS X Yosemite (10.10)
- Mac OS X El Capitan (10.11)
- Windows Server 2012 R2
- Windows Server 2016
- macOS Monterey (12.0)
- macOS Ventura (13.0)
- Windows Server 2022
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

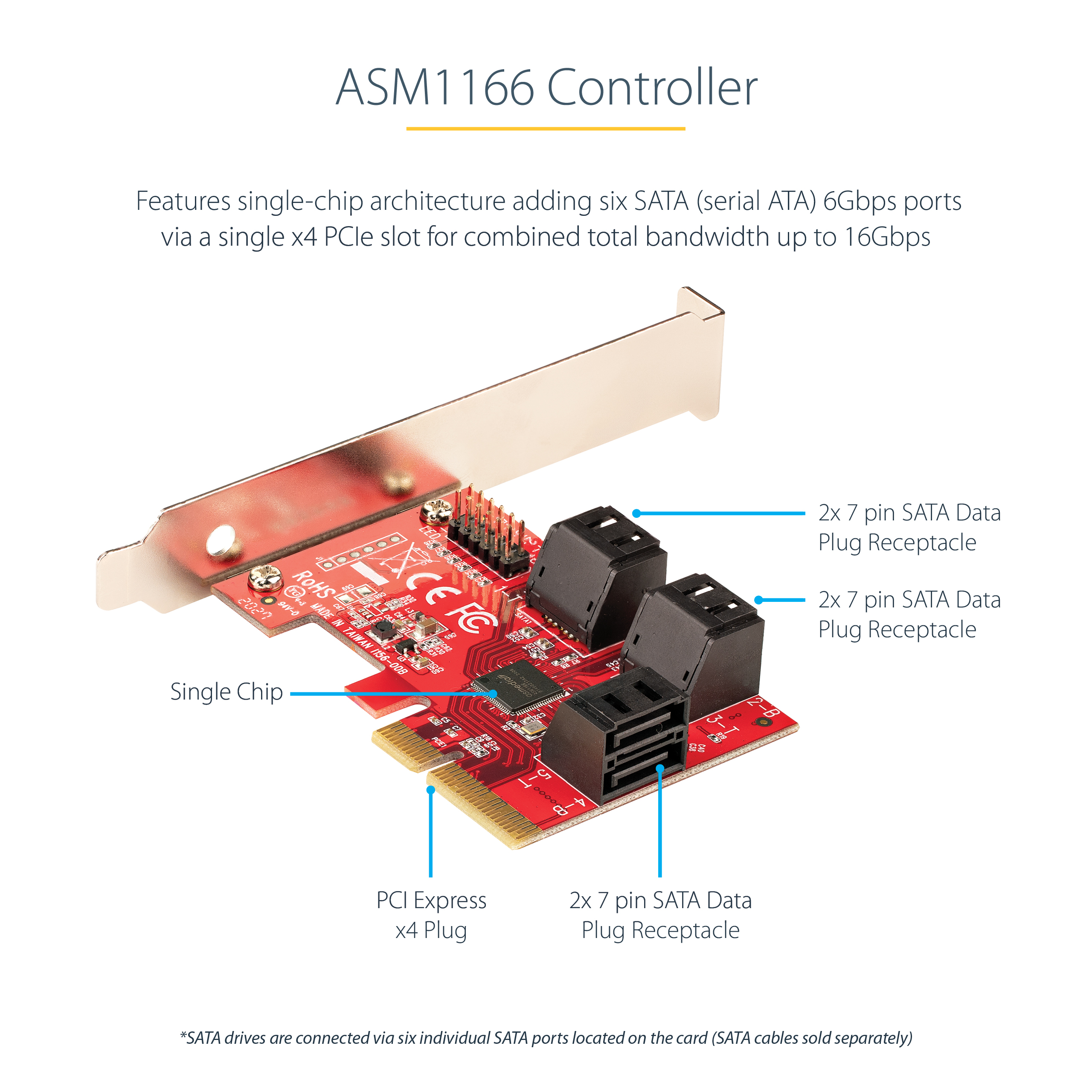

Port Multiplier Yes RAID No SATA Type and Rate SATA III (6 Gbps) S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID ASMedia - ASM1166 Industry Standards - Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express Base Specification Revision 3.0

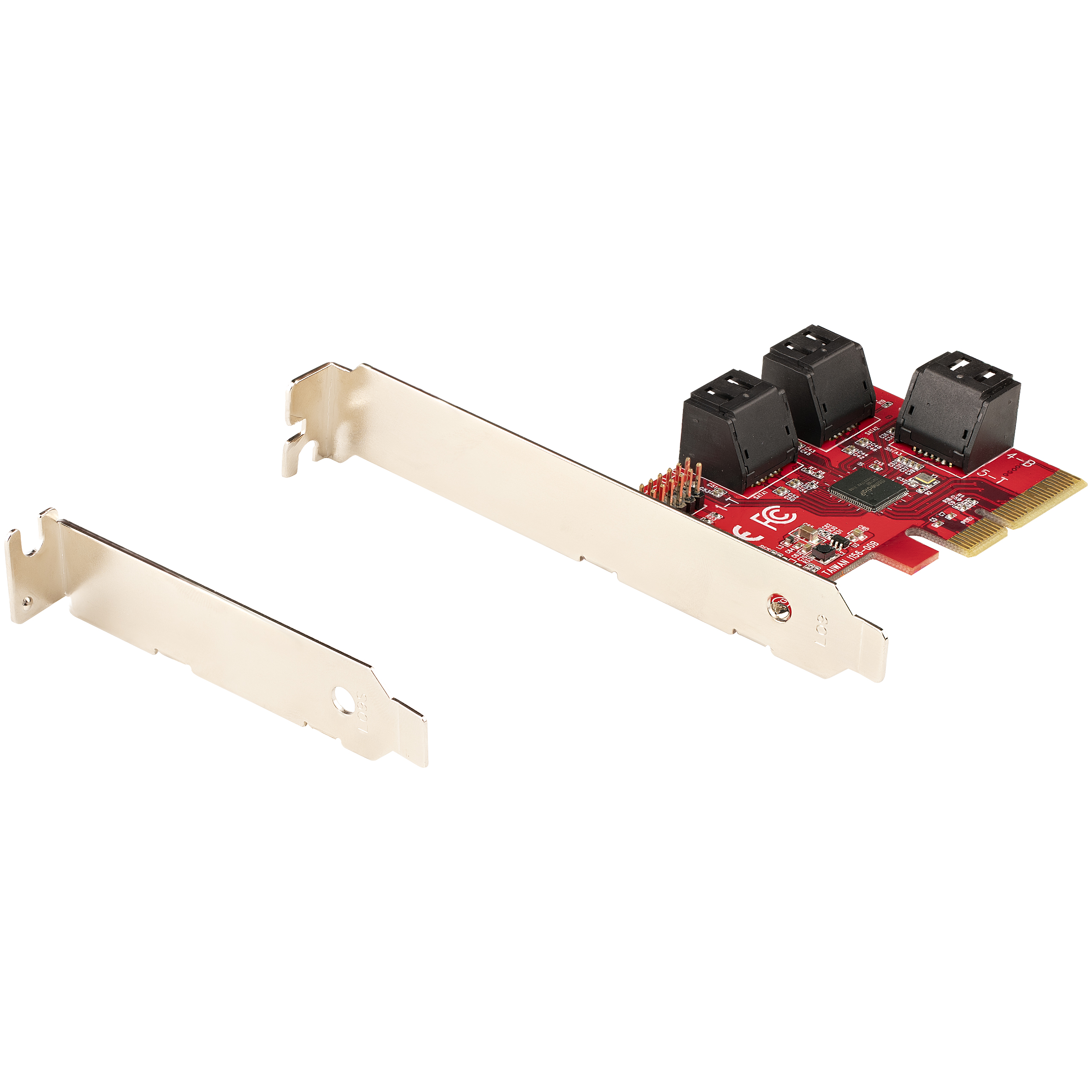

Interface/Bridge SATA Carton Depth (mm) 500 Carton Height (mm) 500 Carton Quantity 60 Carton Weight Gross (g) 9047 Included in Package - 1 - PCIe SATA Card

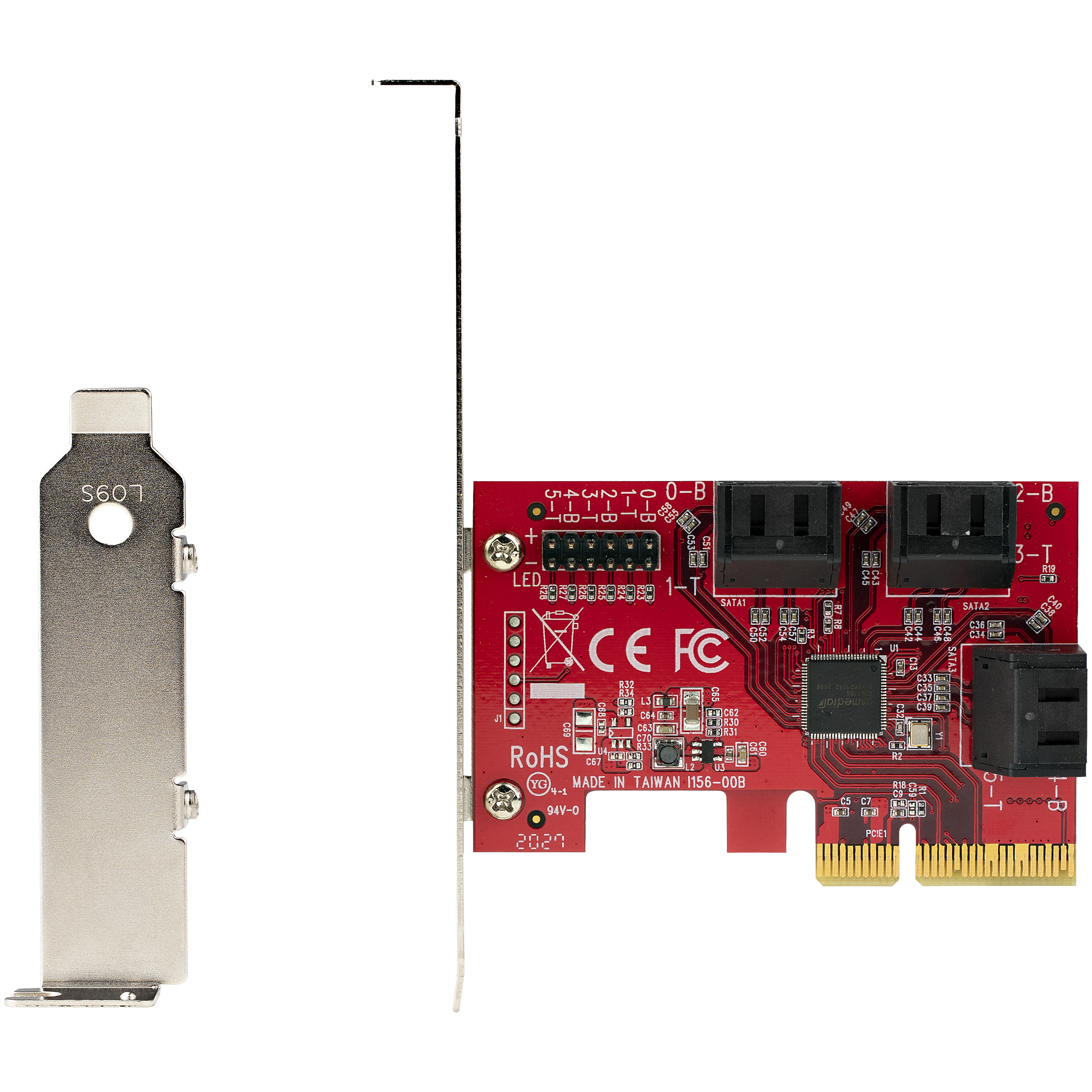

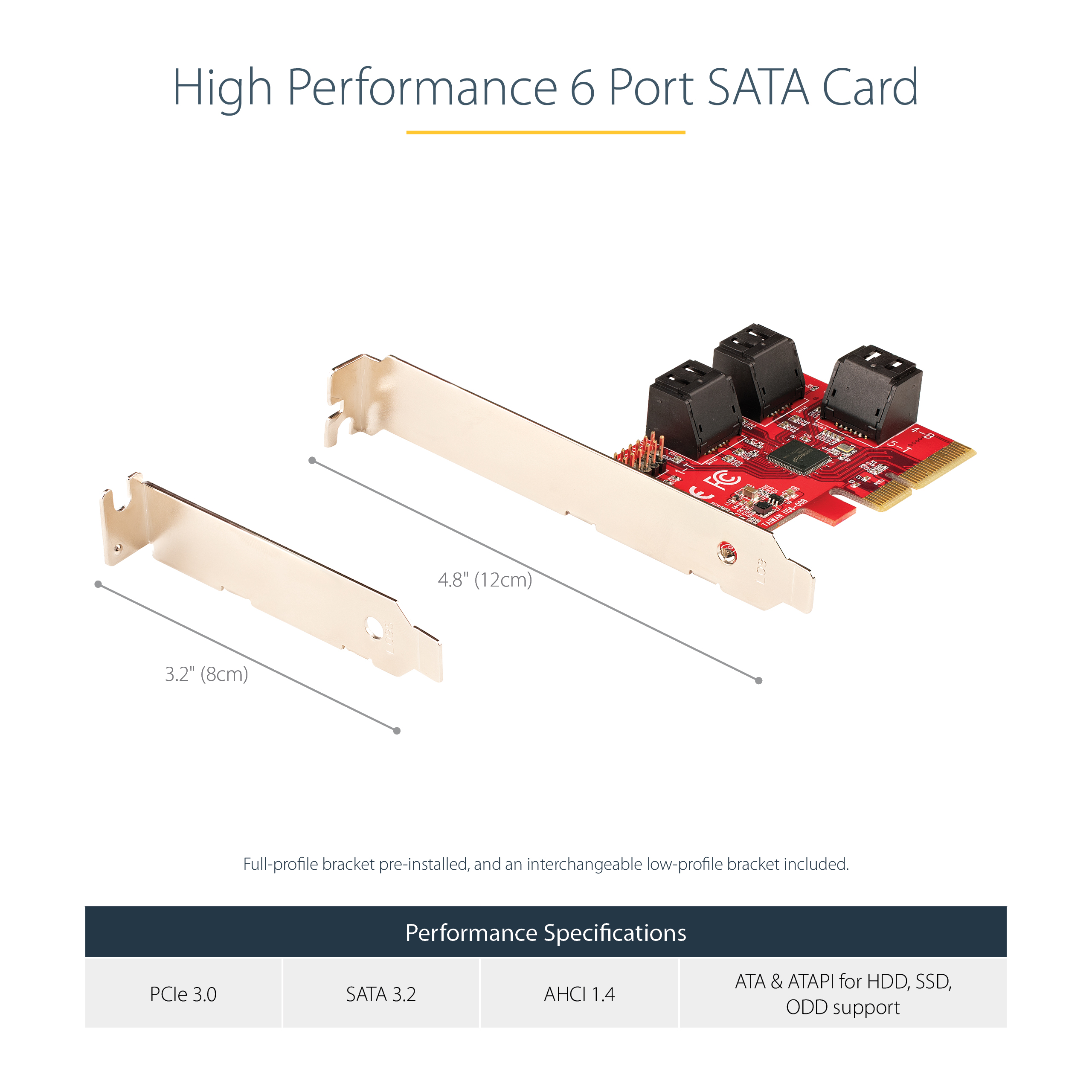

- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
Included In Package for Label - 1 - Quick-Start Guide
- 1 - PCIe SATA Card
- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
Number of Sub-Cartons 6 Package Depth (mm) 143 Package Height (mm) 33 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 120 Packaging Description 6-Port SATA 6 Gbps PCI Express SATA Controller Card Packaging Description India 6-Port SATA 6 Gbps PCI Express SATA Controller Card Sub-Carton Depth (mm) 360 Sub-Carton Height (mm) 160 Sub-Carton Width (mm) 170 Sub-Carton Quantity 10 Sub-Carton Weight (g) 160 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 SATA (7-Pin) Connector 2 (Quantity) 6 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-05-13 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 2 port version with RAID functionality Comparable SKU 2 Comment 4 port version with RAID functionality and Hyper Duo SSD Tiering Digital Content Due Date 2021-09-10 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,DE,DK,ES,FR,IE,IN,IT,JP,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-05-03 Target Production Release 2021-05-06 Tech Lead Brian Linseman Technical Writer Maria Powell Technology Lifecycle Mainstream
