7236CABINET

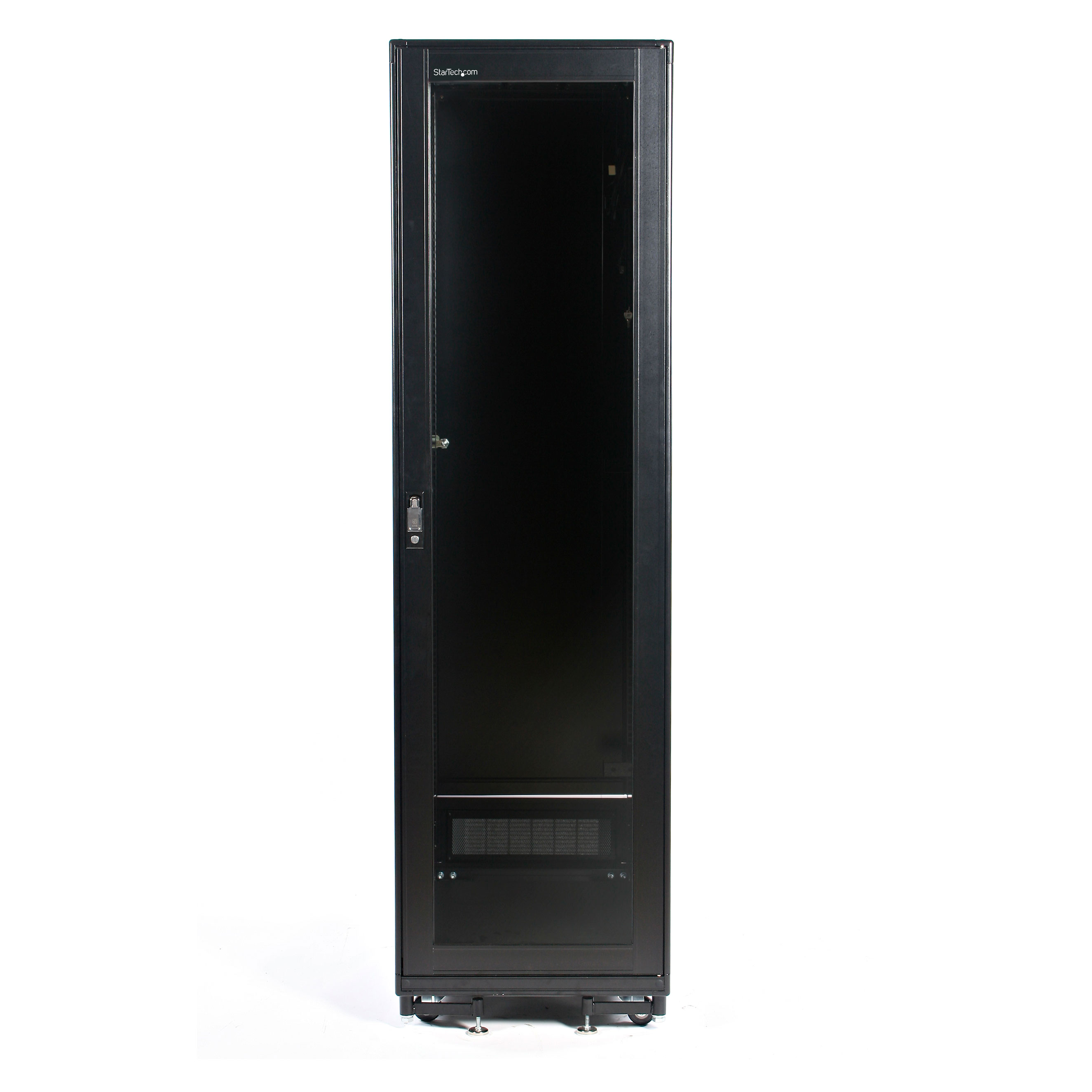

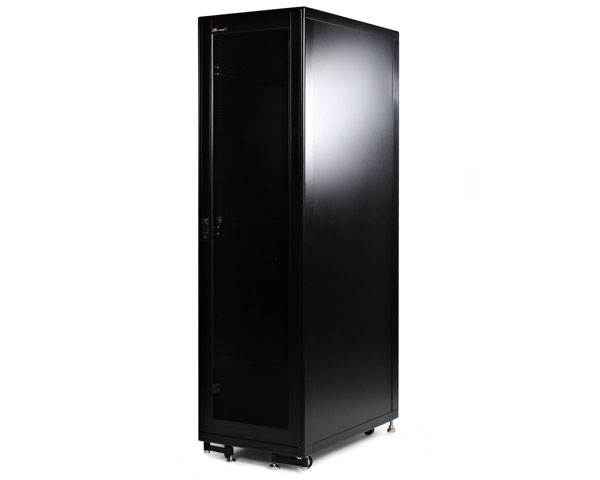

41U Rack Enclosure Server Cabinet
Store your servers, network and telecommunications equipment securely in this 41U solid steel rack
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name 41U Rack Enclosure Server Cabinet Product Number 7236CABINET UPC 065030792639 Lifecycle status Discontinued Warranty Lifetime Taxonomy Product > Legacy Discontinued Category Level 1 Racks and Enclosures Category Level 2 Rack Enclosures Category Level 3 Full-Size Enclosures - 40U+ - A Family 32" Rack Enclosure Server Cabinet Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX094X Product Title (Short) Rack Cabinet Server - 32in Deep Product Title (Standard) 41U Rack Enclosure Server Cabinet - 32 in. Deep - Built-in Fans Product Title (Long) 41U Rack Enclosure Server Cabinet - 32 in. Deep - Built-in Fans Product Title (AMZ) 41U Rack Enclosure Server Cabinet w/ Built-in Fans & Doors - 4 Post 32 in. Deep Solid Steel Network & Data Equipment Rack (7236CABINET) Title Ingram (Part 1) 41U Server Rack Cabinet Title Ingram (Part 2) - 32in Deep Website Product Headline Store your servers, network and telecommunications equipment securely in this 41U solid steel rack Bullet 1 Extruded aluminum construction provides rounded corners and edges for an attractive appearance Bullet 2 Fully forward/back adjustable mounting rails inside cabinet Bullet 3 Front and back doors are removable and can be switched to open left or right Bullet 4 Rolling casters provide full mobility Bullet 5 Three (3) roof-mounted fans exhaust up to 300 CFM of air Bullets (Compact) Store your servers, network and telecommunications equipment securely in this 41U solid steel rack - 41u enclosed rack - 41u server rack - 41u cabinet - server cabinet - server rack enclosure Bullets (Consolidated) Store your servers - network and telecommunications equipment securely in this 41U solid steel rack - 41U Black Server Rack Cabinet 32" Deep - Includes casters/stabilizers and everything you need to get started right away - 3x roof-mounted fans exhaust up to 300 CFM of air Marketing Copy Marketing Copy (No HTML) This 41U 36in Black Server Rack Cabinet offers a lockable, dust-reduced environment for rackmount servers and network equipment. This TAA compliant free standing enclosure adheres to the requirements of the US Federal Trade Agreements Act (TAA), allowing government GSA Schedule purchases. With exterior dimensions of H 75.5in x W22in x D35.5in (cabinet only), this sturdy space-saving computer rack cabinet is made from extruded aluminum for an appealing appearance. A standard lockable smoked plexiglass (see-through) front door and solid aluminum rear door provide quick access to installed equipment. The internal front and rear mounting rails are spaced to accept standard 19in rackmount devices and are completely depth adjustable as to be able to fit virtually any piece of equipment that is less than 33in deep. A standard roof-mounted triple motor AC fan unit and high-flow air filter below the rear door provide up to 300 CFM of bottom to top air flow through the AV rack cabinet, removing the heat produced by the enclosed equipment. In addition to the standard equipment that are options on most other cabinets, the 19 inch rack cabinet also has a full complement of optional accessories like fixed shelving, storage drawers, keyboard drawers, front panel spacer plates, and slide-out shelves. Website Search Keyword - Server racks
- racks
- cabinet
- cabinets
- equipment rack
- telecom rack
- telco
- telecommunications rack
- network rack
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
Accessory Products - CMBRUSH1U
- CMDUCT1UX
- CMDUCT2U
- CMHOOK1U
- CMHOOK1UL
- CMHOOK1UN
- CMHOOKMW
- CMPNL2U
- CMVELC1U

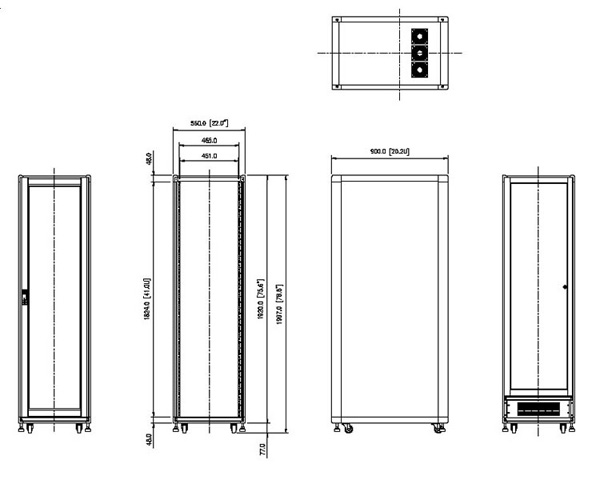

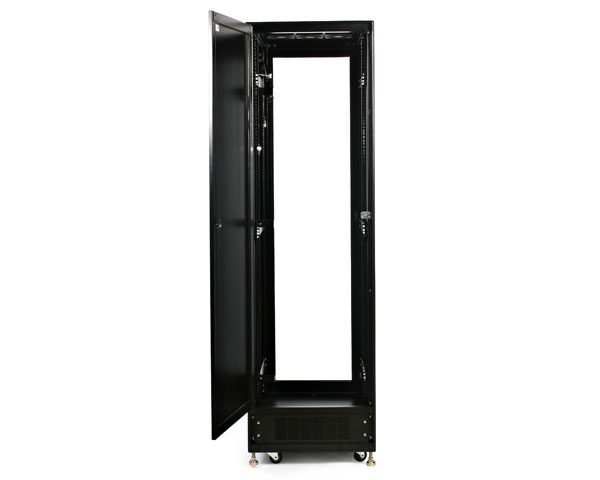

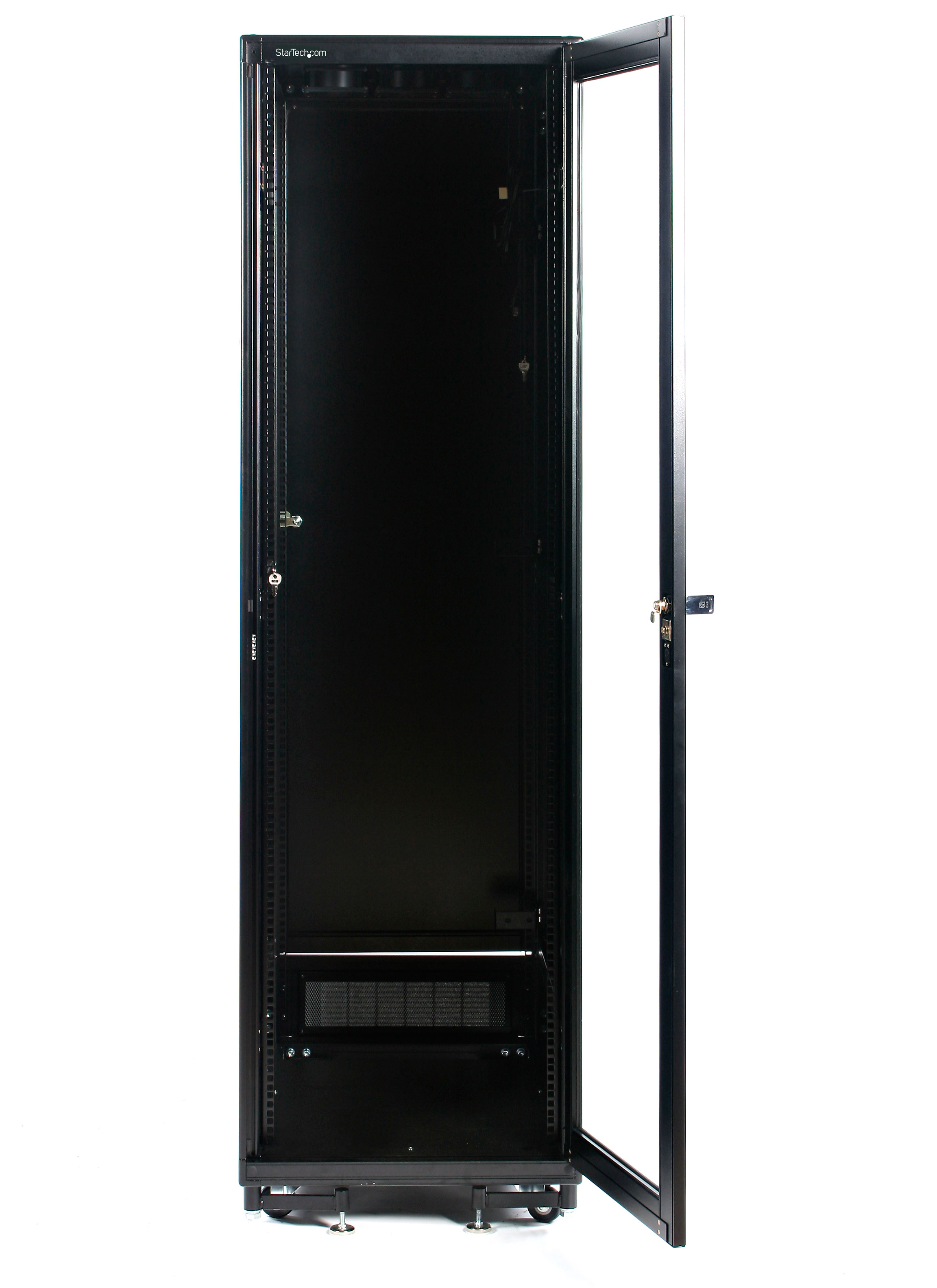

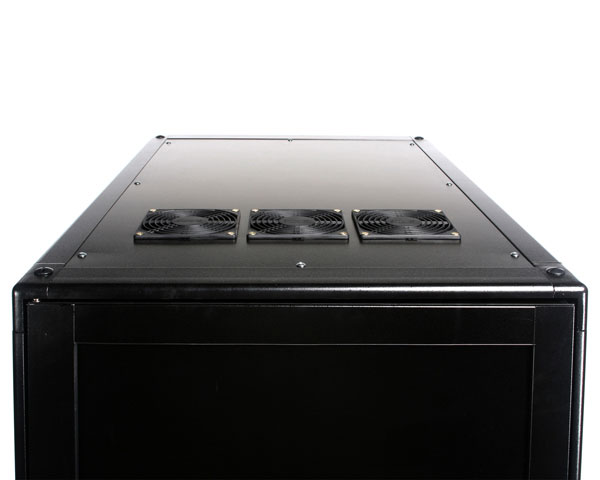

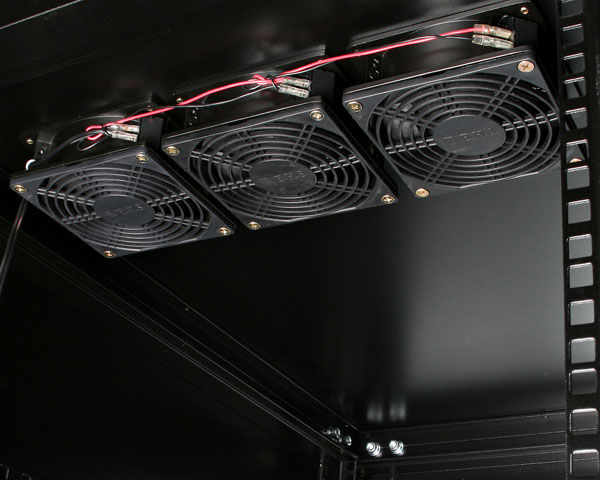

Related Products 7230CABINET Back Door Features Secure Key Lock with Reversible and Removable Back Door Color Black Depth Capacity (Filter) Greater Than 24 in. (610mm) Front Door Features Secure Key Lock with Reversible and Removable Front Door Height with Casters (mm) 2002 Internal Depth (mm) 890 Internal Width (mm) 554 Maximum Mounting Depth (mm) 820 Minimum Mounting Depth (mm) 360 Primary Material Steel Product Length (mm) 900.000 Product Width (mm) 560.000 Product Height (mm) 1914.000 Product Weight (g) 90718.400 Side Panel Construction Steel TAA Compliant Yes Rack Weight Capacity Range 1500-2500lbs (680-1134kg) Weight Capacity for Racks (Rolling) (g) 250000 Weight Capacity for Racks (Stationary) (g) 1000000 Back Door Construction Steel Fan Options Three Fans Included: 120 mm Frame Type Enclosed Cabinet Front Door Construction Steel with Glass Window Industry Standards EIA/ECA-310-E Mounting Hole Types Square (For Cage Nut) Mounting Rail Profile L-Shape Rack Special Features - Adjustable Mounting Rails
- Built-in Cable Management

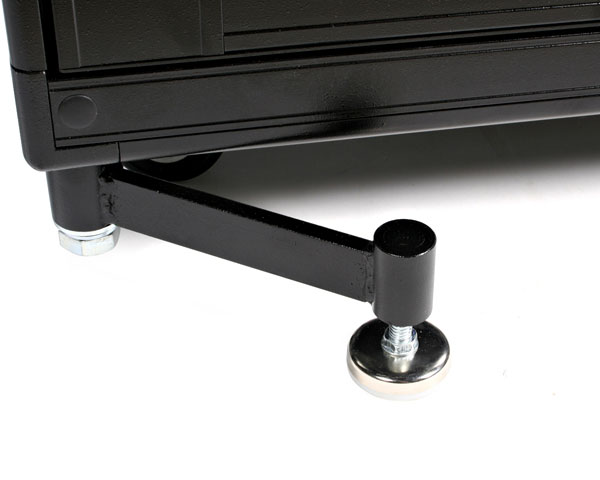

- Leveling Feet
- Ships Fully Assembled

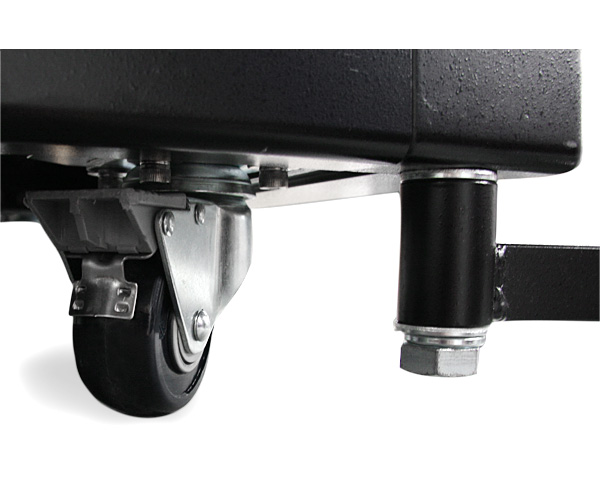

- Casters (Included)
Rack Type 4-Post Rack U Height Ranges 36-45U Side Panel Construction Steel U Height 41U Wallmountable No Carton Depth (mm) 586 Carton Height (mm) 2140 Carton Quantity 1 Carton Weight Gross (g) 98883.056 Included in Package - 1 - H72"xW19"xD36" 41U Cabinet Equipment Rack

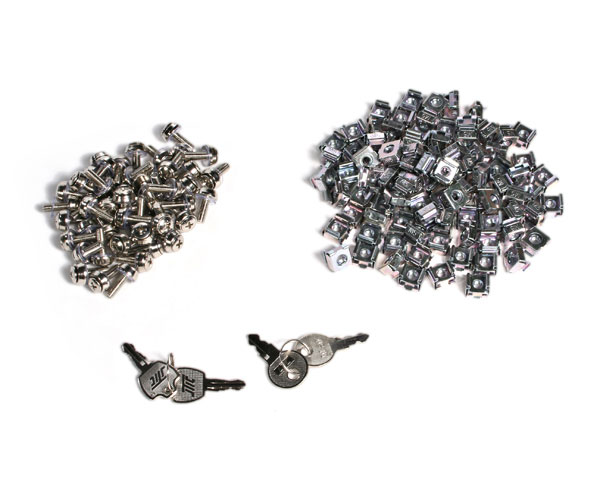

- 1 - Bag of screws, fasteners and keys
- 92 - M5 Cage Nuts
Package Depth (mm) 588 Package Height (mm) 2140 Package Width (mm) 922 Package Quantity 1 Package Weight (g) 98500 Packaging Description 41U 32in Deep Server Rack Cabinet with Fans Packaging Description India 41U 32in Deep Server Rack Cabinet with Fans Rack Flatpack No Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Bhuvan Uppal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
