8K-AOC-15M-DP-CABLE

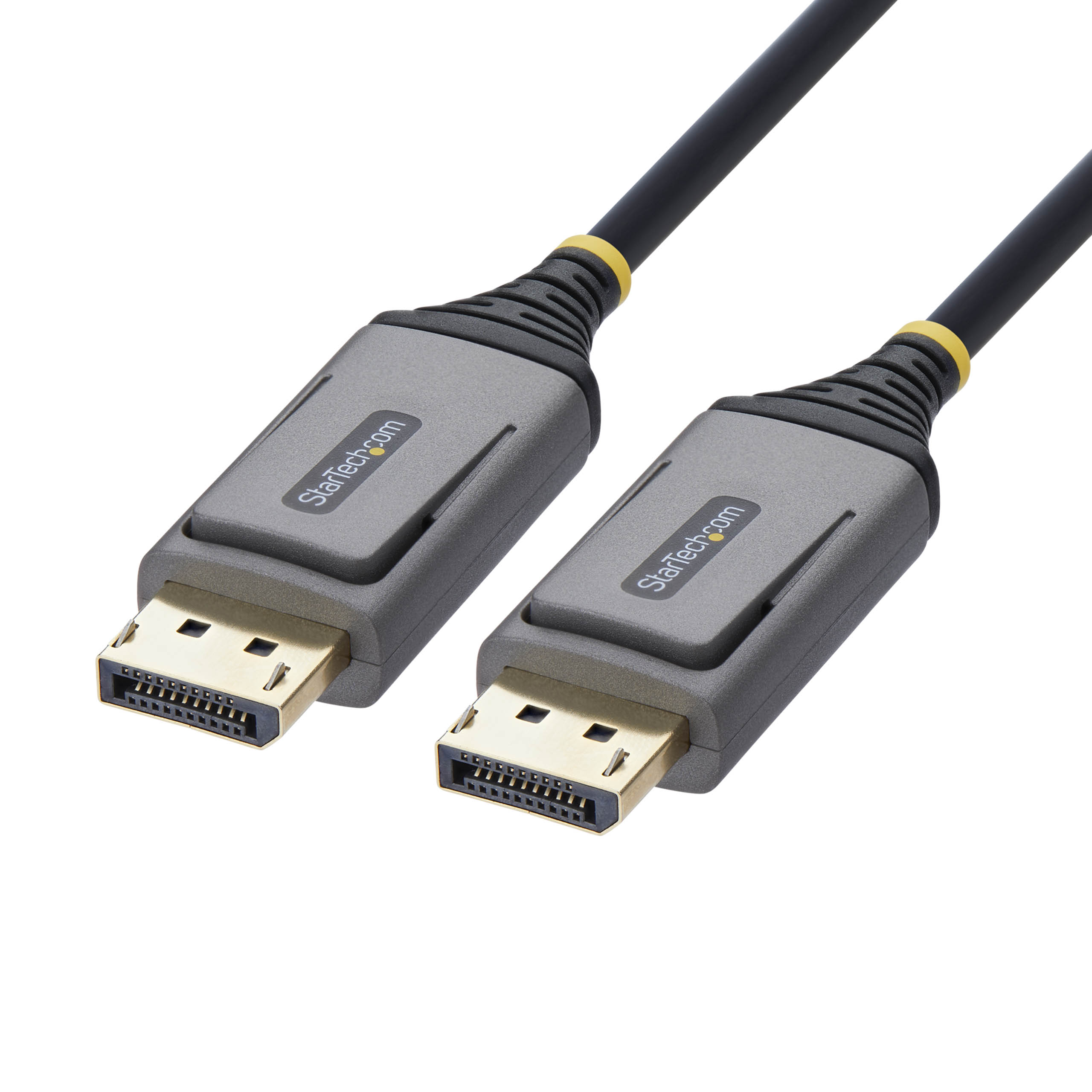

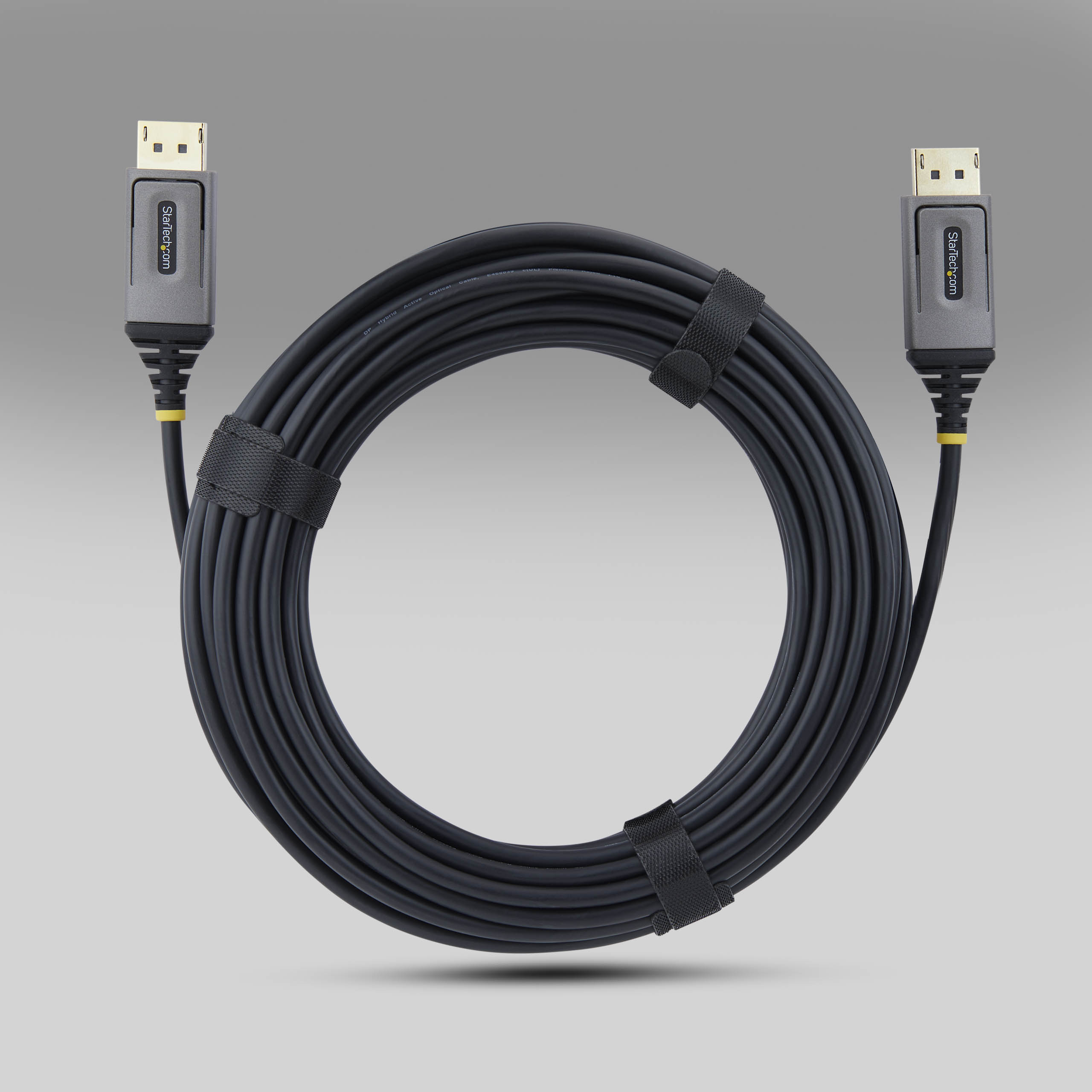

50ft 15m Displayport 1 4 CL3 Rated Active Optical Cable
Reliably connect high-bandwidth DP 1.4 devices through plenum spaces
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 50ft 15m Displayport 1 4 CL3 Rated Active Optical Cable Product Number 8K-AOC-15M-DP-CABLE UPC 065030915861 Lifecycle status Pending Warranty 2 Years Weighted Opportunity 0 Taxonomy Product > Cables > Video Cables Category Level 1 Digital Display Cables Category Level 2 DP Cables Category Level 3 DP Cables - Active Family DP 1.4 AOC Cables, HBR3, 32.4Gbps, Plenum, Full VBL Web Hierarchy Cables - Audio-Video Cables - Displayport Cables Country of Origin Europe & Japan Vietnam Country of Origin North America Vietnam Country of Origin History (1) Vietnam Country of Origin Revision (1) XXXXXX170X Product Title (Ultra-Short) AoC DP 1.4 Cable Product Title (Short) 15m Active Optical DP 1.4 Cable, CMP Product Title (Medium) 15m (49.2ft) DisplayPort 1.4 Hybrid Active Optical Cable (AOC), CMP, 8K 60Hz DP 1.4 Cable Product Title (Standard) 15m (49.2ft) DisplayPort 1.4 Hybrid Active Optical Cable (AOC), CMP Plenum, 8K 60Hz, 32.4Gbps, Active DisplayPort Cable Product Title (Long) 15m (50ft) DisplayPort 1.4 Hybrid Active Optical Cable (AOC), CMP Plenum, 8K 60Hz, 32.4Gbps, Active DisplayPort Cable Product Title (AMZ) 15m (50ft) DisplayPort 1.4 Hybrid Active Optical Cable (AOC), CMP Plenum, 8K 60Hz, 32.4Gbps, Active DisplayPort Cable Title Ingram (Part 1) Active Optical DP 1.4 Cable Title Ingram (Part 2) Hybrid AOC/CMP Plenum/8K 60Hz Website Product Headline Reliably connect high-bandwidth DP 1.4 devices through plenum spaces Bullet 1 Bullet 2 Bullet 3 Bullet 4 Bullet 5 Bullets (Compact) 15m Hybrid AOC DisplayPort 1.4 Cable supports 8K 60Hz; CMP-rated for plenum spaces; Shielded Gold-plated connectors; Aramid-reinforced fiber core; Unidirectional; DP 1.4 w/HDCP 2.3/HBR2/DSC 1.2; 32.4Gbps; 8K 60Hz/4K 120Hz; 4.8mm O.D. Bullets (Consolidated) - Route this DisplayPort 1.4 Hybrid Active Optical Cable (AOC) through office plenum spaces for 8K 60Hz video and high-quality audio; CMP-rated for ceiling/in-wall cable runs - Gold-plated connectors rated beyond 10k insertions; Aramid-reinforced for tensile strength - HDR10 (up to 12-bit with DSC); 7.1 surround audio; Backward-compatible with DisplayPort 1.2/1.1; Unidirectional; DisplayPort 1.4 w/HBR3/HDR10/DSC 1.2a/HDCP 2.3; 32.4Gbps; 8K 60Hz with DSC/4K 120Hz/1440p 240Hz; 4.8mm O.D. Marketing Copy Marketing Copy (No HTML) Applications - Deliver 8K 60Hz video over longer distances with minimal signal degradation
- Ideal for use in plenum spaces in buildings
Website Search Keyword - active DisplayPort cable
- active optical DisplayPort cable
- fiber optic displayport cable
- Hybrid AoC DP Cable
- DP 1.4 cable
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Prop 65 - Environmental - United States - Proposition 65 Warning Label
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
Special Notes This DisplayPort Cable is unidirectional with identified connectors for Source and Display. Please ensure that the HDMI connector labelled with "Display" is connected to the Display, TV, or Projector. Power Source Bus Powered Cable Length (mm) 15000 Cable OD 4.8 Color Black Connector Style Straight Humidity 10%~90% RH Material Zinc Alloy Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 15022 Product Width (mm) 21.3 Product Height (mm) 13.5 Product Weight (g) 430 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant No Wire Gauge 28/30 AWG Audio Specifications - DisplayPort - 32 Channel Audio
- DisplayPort - 7.1 Channel Audio
HDR Support HDR10 Maximum Data Transfer Rate 32.4Gbps Maximum Digital Resolutions MTBF (hours) Rated beyond 10,000 Insertion Cycles Active or Passive Adapter Active Cable Jacket Material PVC Cable Shield Material Aluminum-polyester foil Cable Type Hybrid Active Optical Cable (AOC) Chipset ID Connector Plating Gold Connectors DisplayPort to DisplayPort Fire Rating CMP Rated (Plenum) Included in Package 1 - Active Optical DisplayPort Cable Packaging Description 15m Active Optical DisplayPort 1.4 Cable - CMP Plenum Rated Packaging Description India 15m Active Optical DisplayPort 1.4 Cable - CMP Plenum Rated Connector 1 DisplayPort Connector 1 (Quantity) 1 Connector 2 DisplayPort Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Amazon Only SKU No Application Photos Uploaded Artwork Due Date 2025-12-01 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge No Comparable SKU Comment Basic DP 1.4 AOC with no VBL Design and no Fire Rating on the Jacket Comparable SKU 2 Comment - Digital Content Due Date 2026-05-11 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Brooke Taylor Graphic Design SKU Logic Naming Convention 8K-AOC-xM-DP-CABLE ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,PE,PL,SE,SG,UK,US Primary Technology DisplayPort 1.4 Priority New Product High Product Development Specialist Chi Zhang Product Information Creation Specialist (PICS) Brian Chan Product Manager David Muzinic Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2025-12-12 Target Production Release 2025-12-19 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
