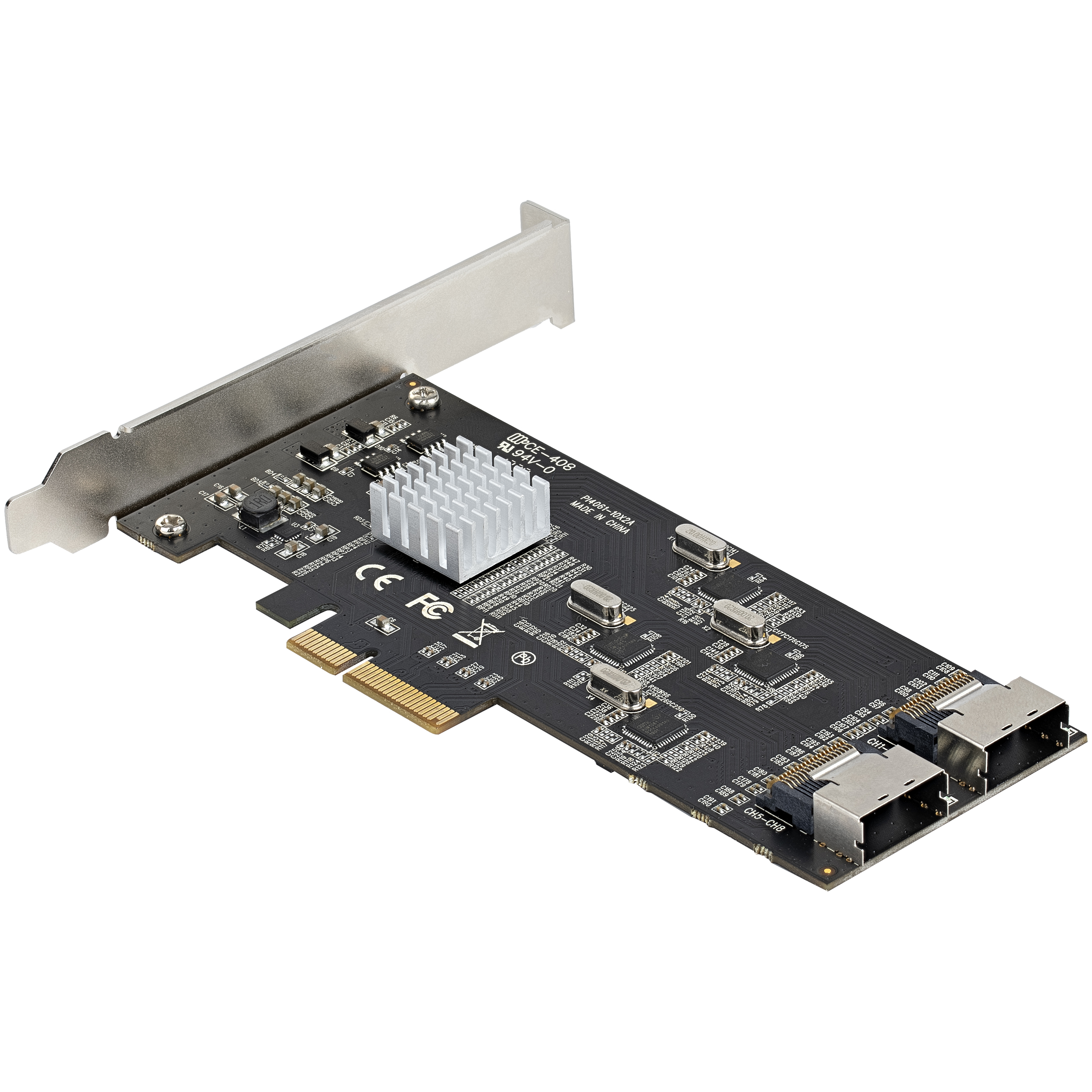

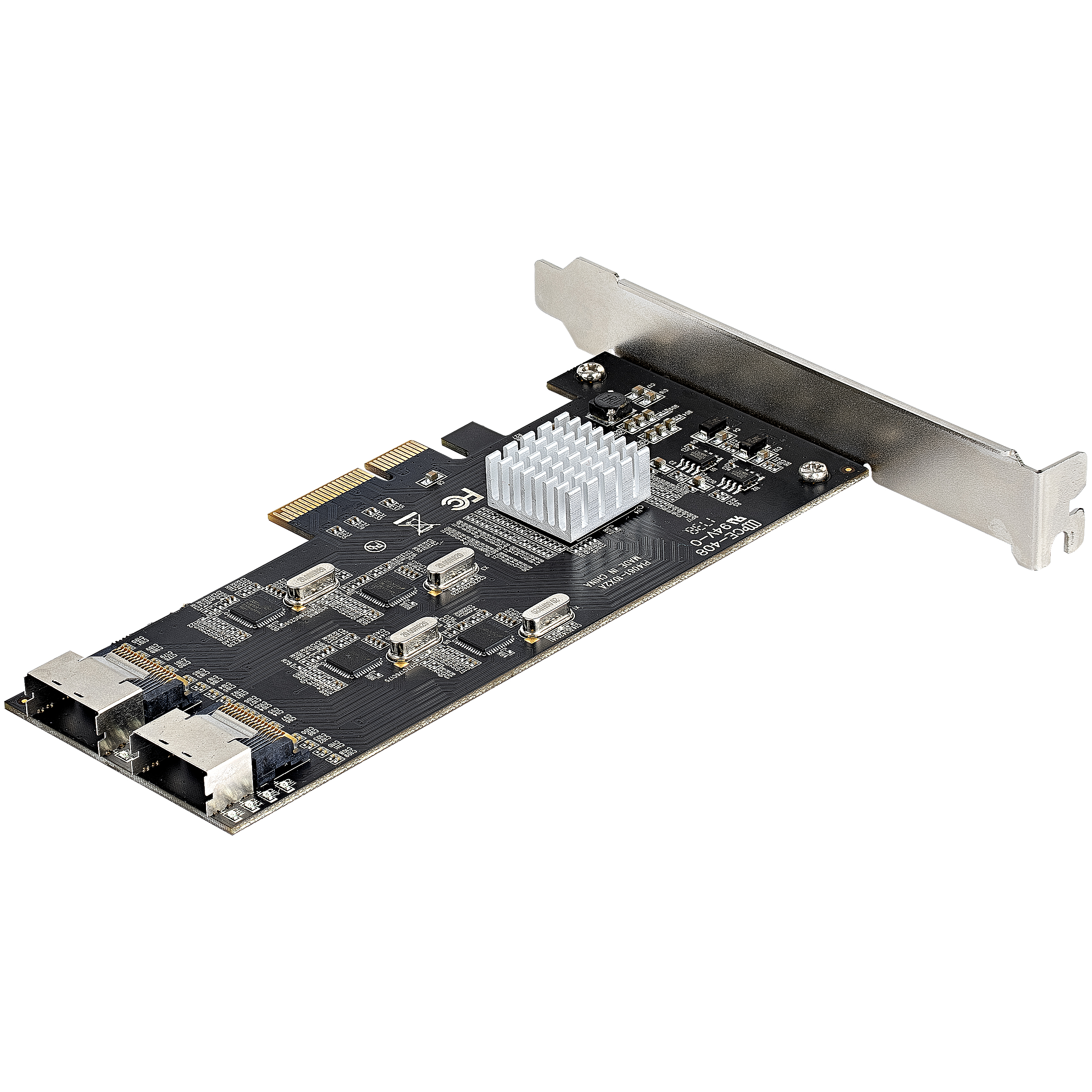

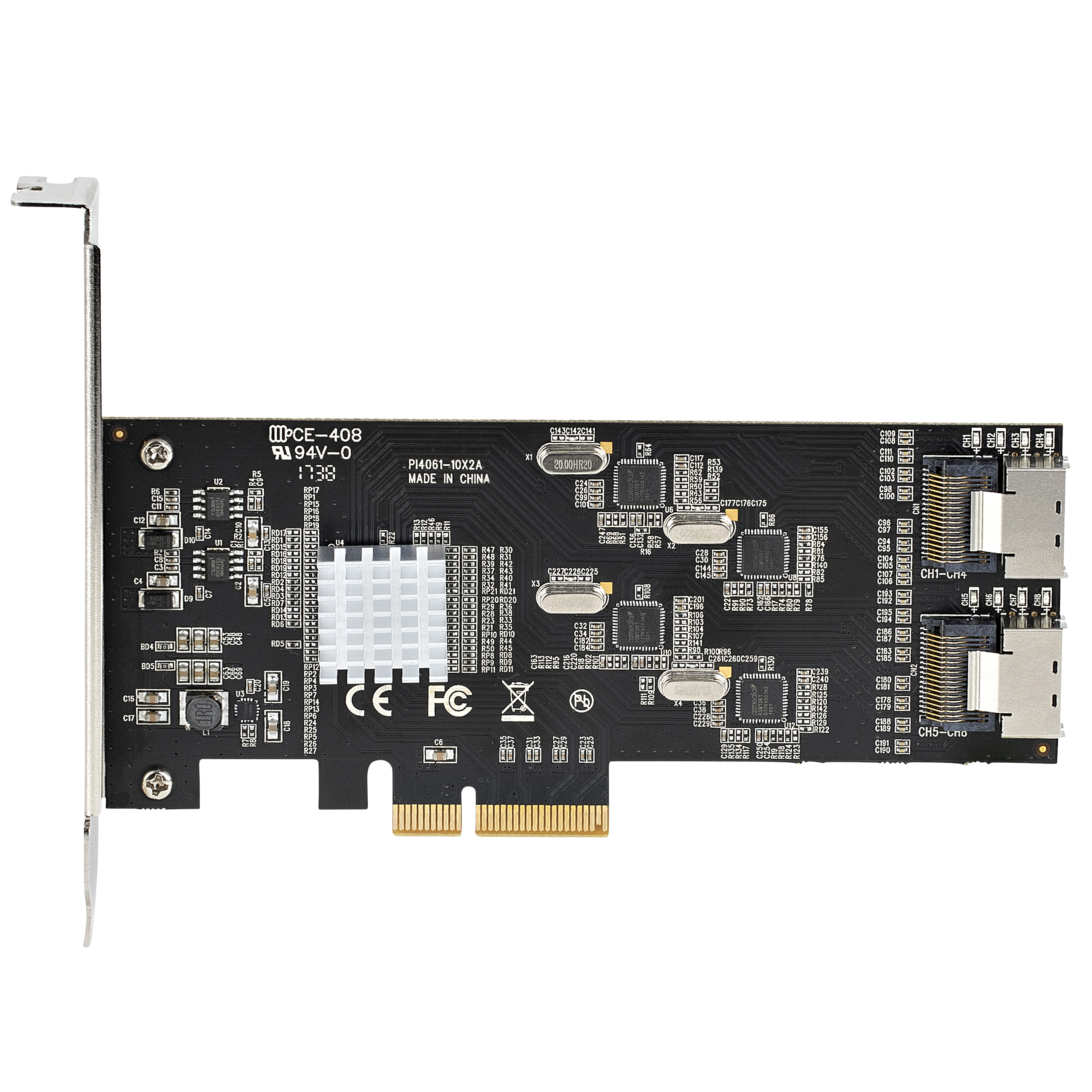

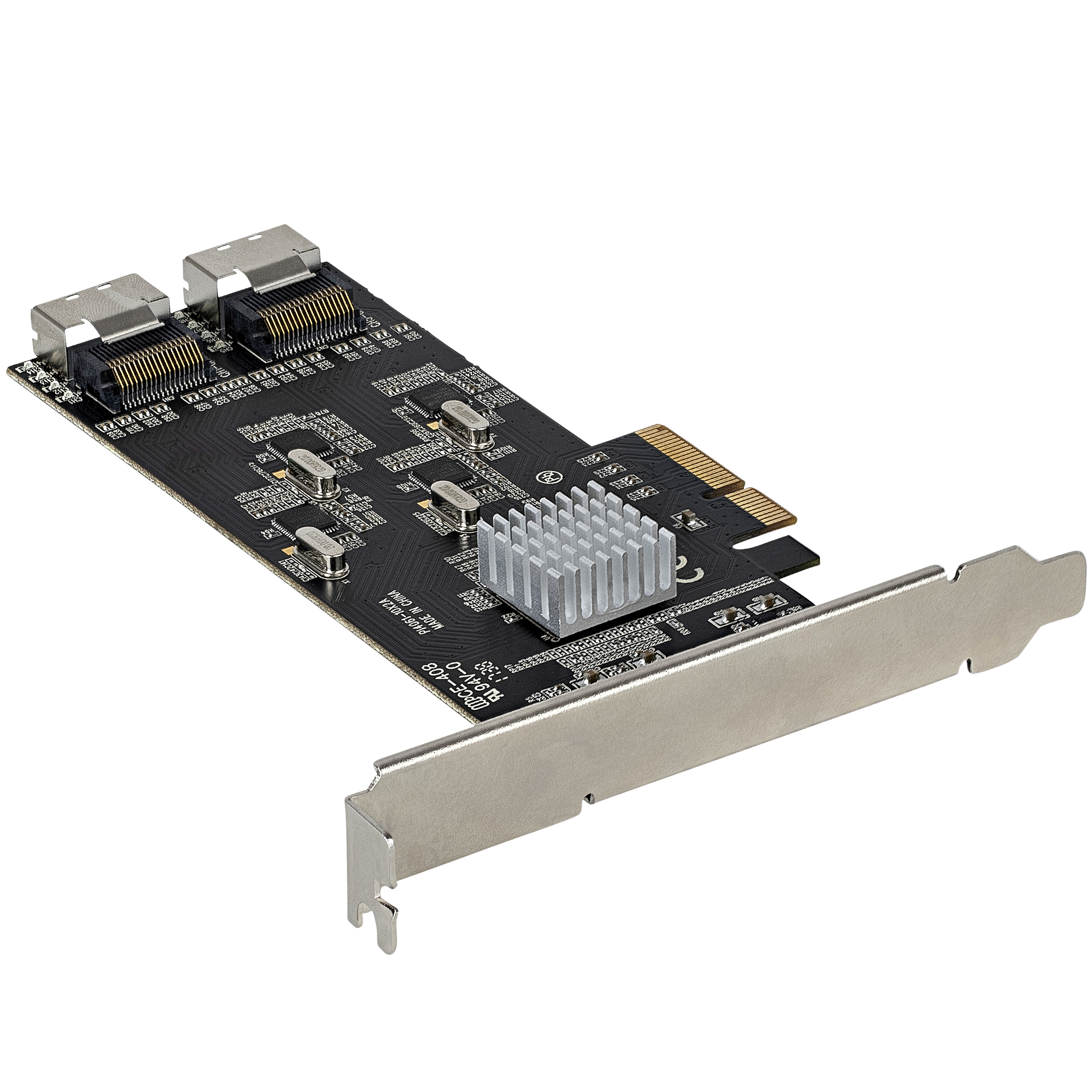

8P6G-PCIE-SATA-CARD

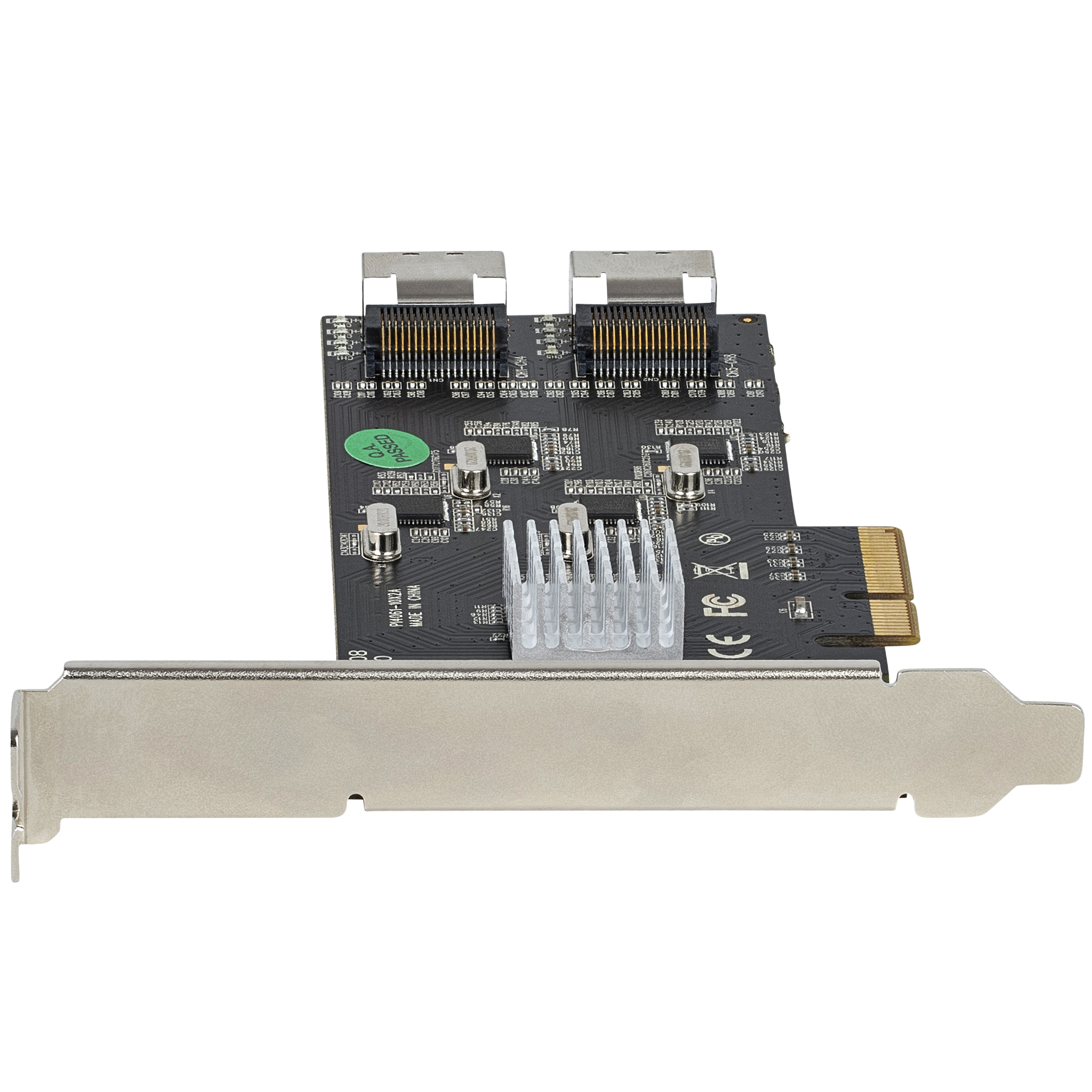

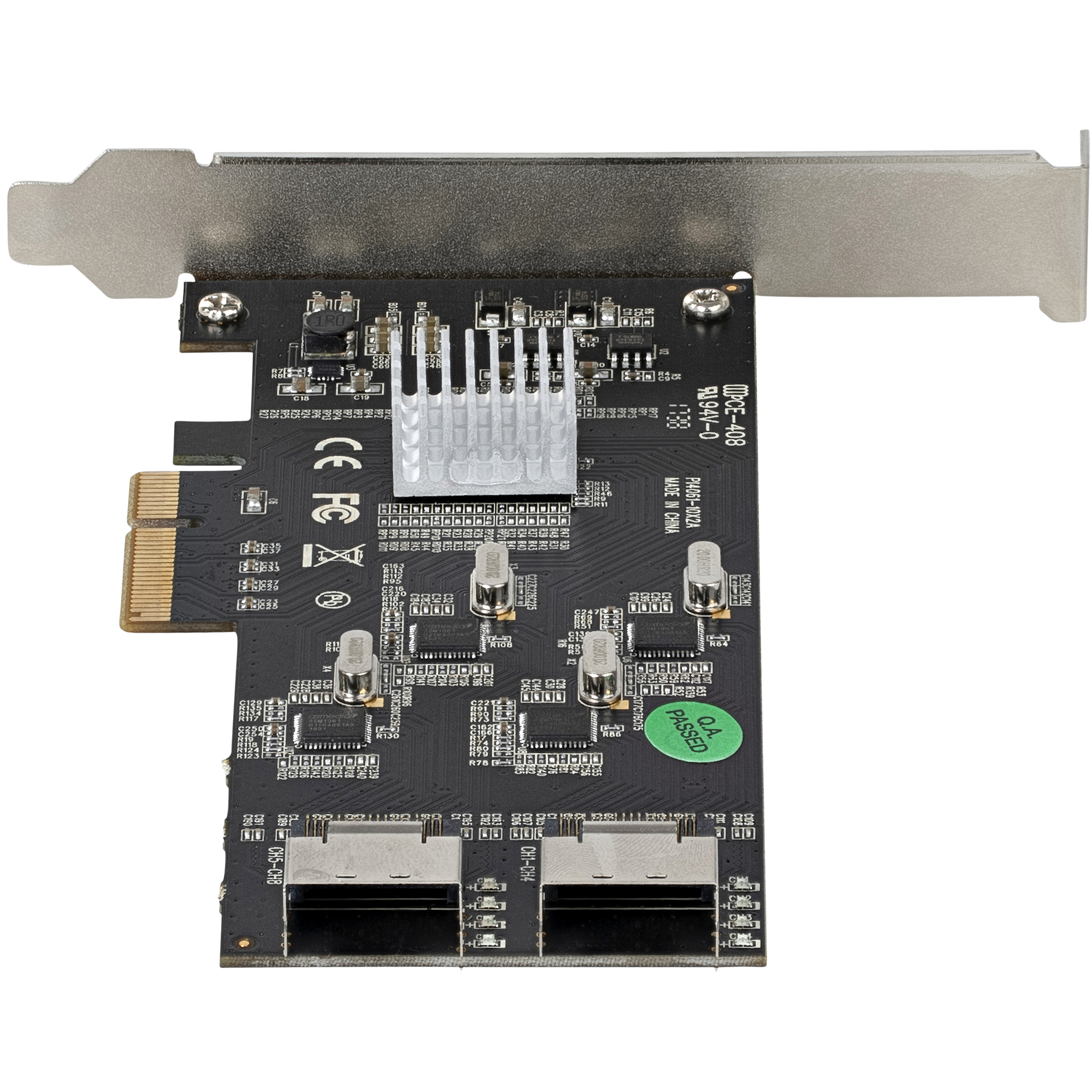

8-Port SATA 6 Gbps PCI Express SATA Controller Card
SATA III (6Gbps) | PCI Express Gen 2 | PCIe x4 Slot | 2x Mini-SAS Connectors | 2x Mini-SAS to 4x-SATA Cables Included
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 8-Port SATA 6 Gbps PCI Express SATA Controller Card Product Number 8P6G-PCIE-SATA-CARD UPC 065030893275 Lifecycle status Active Warranty 2 Years Taxonomy Product > Cards & Adapters > Data Storage Cards & Adapters Category Level 1 Data Storage Category Level 2 Drive Adapters and Converters Category Level 3 SATA Card Adapters/Controllers Family SATA to PCIe Controller Card Country of Origin Europe & Japan China Country of Origin North America Malaysia Country of Origin History (1) China Country of Origin Revision (1) XXXXXX076X Country of Origin History (2) Malaysia Country of Origin Revision (2) XXXXXX156X Product Title (Ultra-Short) 8Port SATA PCIe Card Product Title (Short) 8 Port 6Gbps SATA PCIe Card Controller Product Title (Medium) 8 Port SATA PCIe Card, PCI Express 6Gbps SATA Expansion Card with 4 Controllers Product Title (Standard) 8 Port SATA PCIe Card, PCI Express 6Gbps SATA Expansion Card with 4 Controllers, PCI-e x4 Gen 2 to SATA III Adapter Card Product Title (Long) 8 Port SATA PCIe Card - PCI Express 6Gbps SATA Expansion Adapter Card with 4 Host Controllers - SATA PCIe Controller Card - PCI-e x4 Gen 2 to SATA III - SATA HDD/SSD Product Title (AMZ) 8 Port SATA PCIe Card, PCI Express 6Gbps Expansion Adapter with 4 Host Controllers, PCI-e x4 Gen 2 to SATA III - HDD/SSD Controller Card Title Ingram (Part 1) 8 Port SATA PCIe Card - PCIe x4 Title Ingram (Part 2) 6Gbps SATA III Expansion Card Website Product Headline SATA III (6Gbps) | PCI Express Gen 2 | PCIe x4 Slot | 2x Mini-SAS Connectors | 2x Mini-SAS to 4x-SATA Cables Included Bullet 1 HIGH-PERFORMANCE: Add eight SATA III 6Gbps ports to your desktop computer or server using a PCIe x4 Gen 2 slot to connect SATA drives (HDD/SSD); 8-Port SATA PCIe Card features 2x Mini-SAS connections with Mini-SAS to 4x locking SATA adapter cables incl. Bullet 2 QUAD CONTROLLERS: This PCI Express SATA 6 card features a PCIe MUX and four 2-Port SATA host controllers; This architecture allows for eight total SATA (serial ATA) 6Gbps ports through a single x4 PCIe slot, enabling combined total throughput up to 16Gbps Bullet 3 COMPATIBILITY: Supports PCIe Gen 2 & SATA III Specs, and previous generations at lower performance; Windows XP and up, macOS 10.6.8 and up, Linux 2.6.32 and up (LTS kernels only); Motherboard compatibility with no bifurcation required & no built-in RAID Bullet 4 EASY INSTALL: Expansion card w/ plug-and-play setup in full or low-profile PCI-e slot (full-profile bracket installed, low-profile incl); Supports storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux) Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this SATA PCIe controller card converter is backed for 2-years, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) SATA III 6Gbps PCIe x4 Gen 2 card - PCIe SATA expansion card has 2x Mini-SAS ports with Mini-SAS to 4x SATA adapter cables - 8-Port SATA PCIe Card w/ PCI Express MUX and 4 SATA controllers for max 16Gbps total - Windows/macOS/Linux - Full/low-profile Bullets (Consolidated) 8-Port SATA III 6Gbps to PCI Express x4 Gen 2 card - SATA PCIE Card features a MUX and 4x 2-port SATA host controllers enables 8x SATA 6Gbps Ports w/ combined throughput up to 16Gbps - Expansion card has 2x Mini-SAS ports w/ Mini-SAS to 4x SATA adapter cables incl. - No motherboard bifurcation required | Full/low-profile brackets - Windows (XP+) | macOS (10.6.8+) | Linux (2.6.32+) - Supports storage management systems like Storage Spaces (Microsoft)/RAID Assistant (macOS)/mdraid/mdadm (Linux) Marketing Copy Marketing Copy (No HTML) Applications - Manage your drives and built RAID arrays with storage management systems such as Storage Spaces (Microsoft) , RAID Assistant (macOS), mdraid/mdadm (Linux)

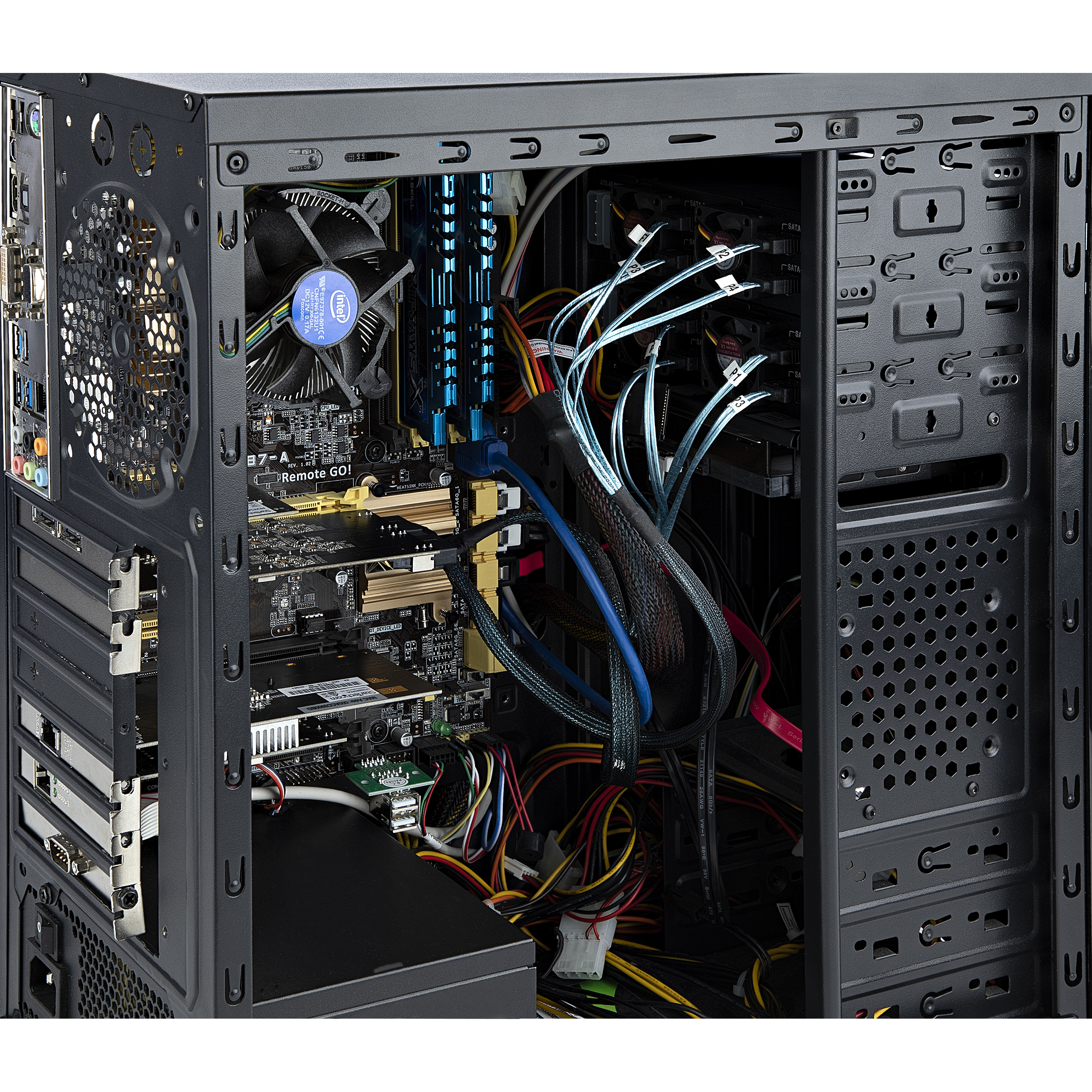

- Add eight SATA 6Gbps drives to your desktop computer or server
Website Search Keyword - 6Gbps SATA card
- 8 port sata card
- 8 port sata pcie card
- PCI Express SATA
- pci express sata 3 controller card
- pci express sata 3.0 controller card
- pci express sata card 8 port
- pci express sata controller card
- pci express sata expansion card
- pci express to sata
- pcie 3.0 sata controller
- pcie SATA
- pcie sata 3 adapter
- pcie sata 3 expansion card
- pcie sata 8 port
- 6 port sata pcie card
- mzhou pcie sata card 8 port
- rivo pcie sata card
- rivo pcie sata card 8 port
Required Regulatory Compliance Marks - ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Corrugated Fiberboard
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
Special Notes The port multiplier functionality is only available on Windows 10/11 by using the ASMedia driver, which can be found in the "Downloads" section Related Products - CBESATA2
- ECESAT32
- ECESATA1
- ECESATA22
- ECESATA254
- ECESATUSB1
- PCIESATA2I
- PEXESATA1
- PEXESATA2
- PEXESATA2I
- PEXSAT2IDE2
- PEXESAT32
- PEXSATA22I
- PEXSATA24E
- USB2ESATA
- 4P6G-PCIE-SATA-CARD

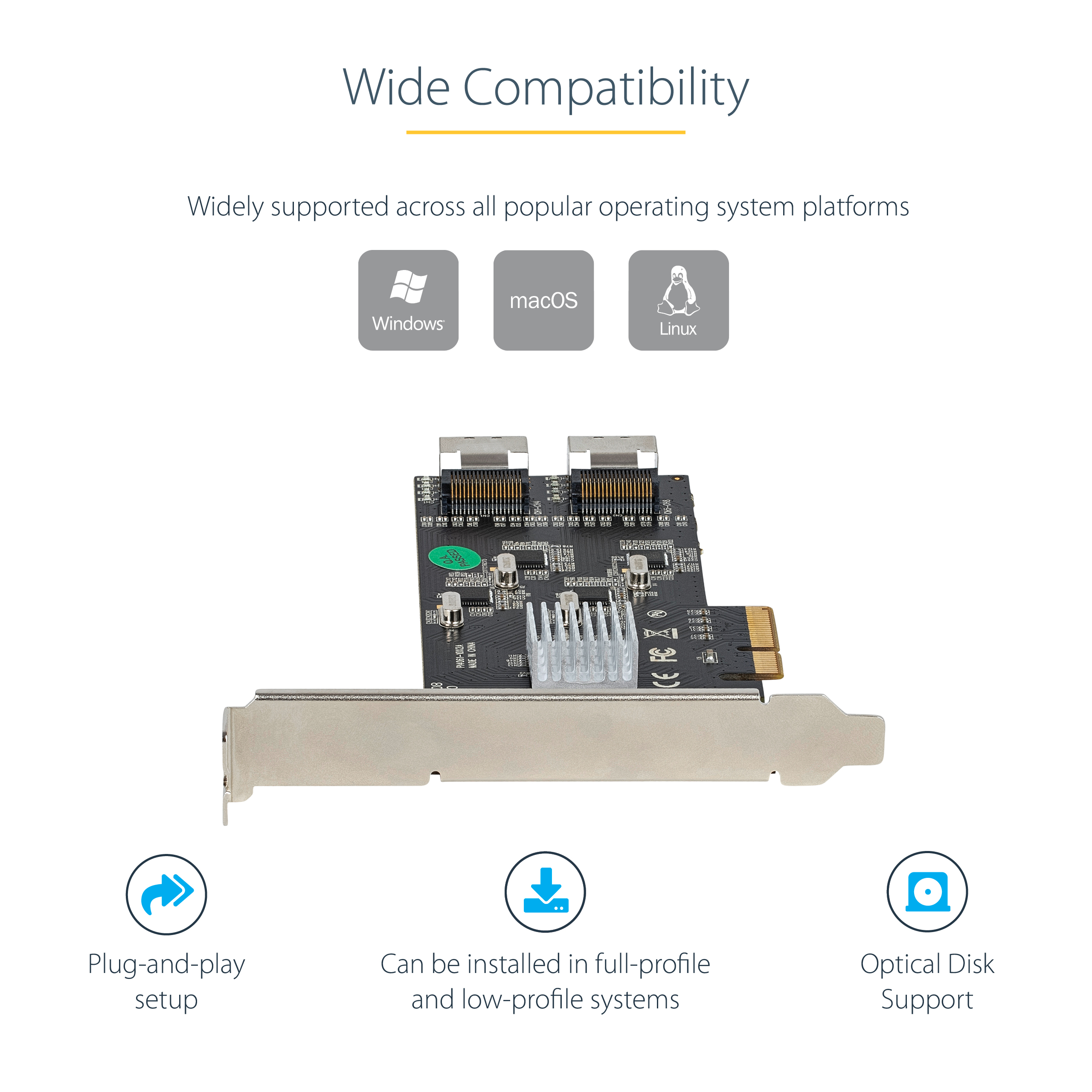

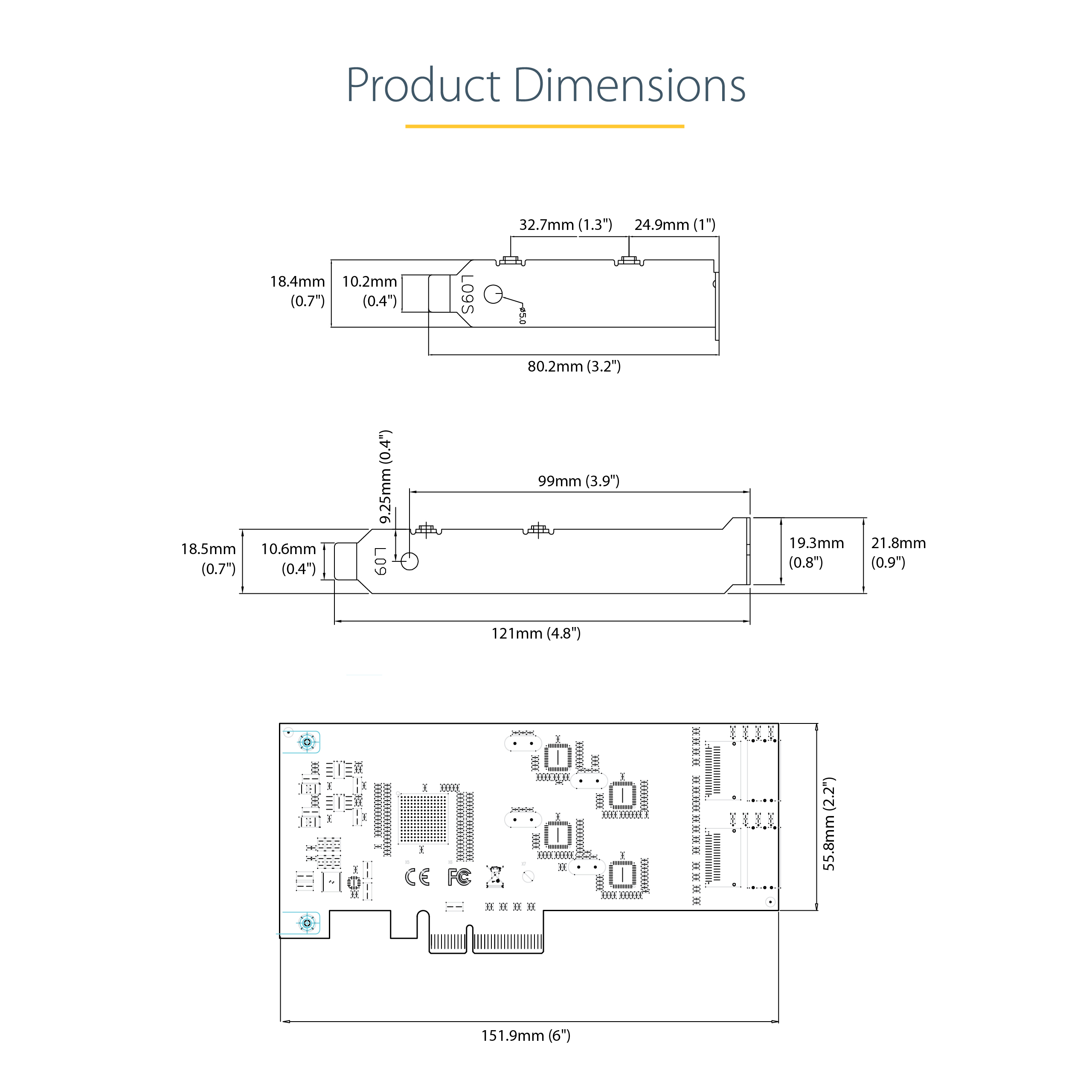

Cable Length (mm) 500 Color Black Humidity 20~80% RH Operating Temperature 5°C to 50°C (41°F to 122°F) Primary Material PCB Product Length (mm) 150 Product Width (mm) 120 Product Height (mm) 18 Product Weight (g) 68 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No 4Kn Support Yes Maximum Data Transfer Rate 6 Gbps OS Compatibility - Windows 8
- Linux
- Windows Server 2012
- Windows 7
- macOS Sierra (10.12)
- Windows Server 2016
- macOS High Sierra (10.13)
- macOS Mojave (10.14)
- Windows Server 2019
- macOS Catalina (10.15)
- macOS Big Sur (11.0)
- macOS Monterey (12.0)
- Windows 11
- macOS Ventura (13.0)
- Windows Server 2022
- Windows 10
- macOS Sonoma (14.0)
- macOS Sequoia (15.0)
- macOS Tahoe (26.0)

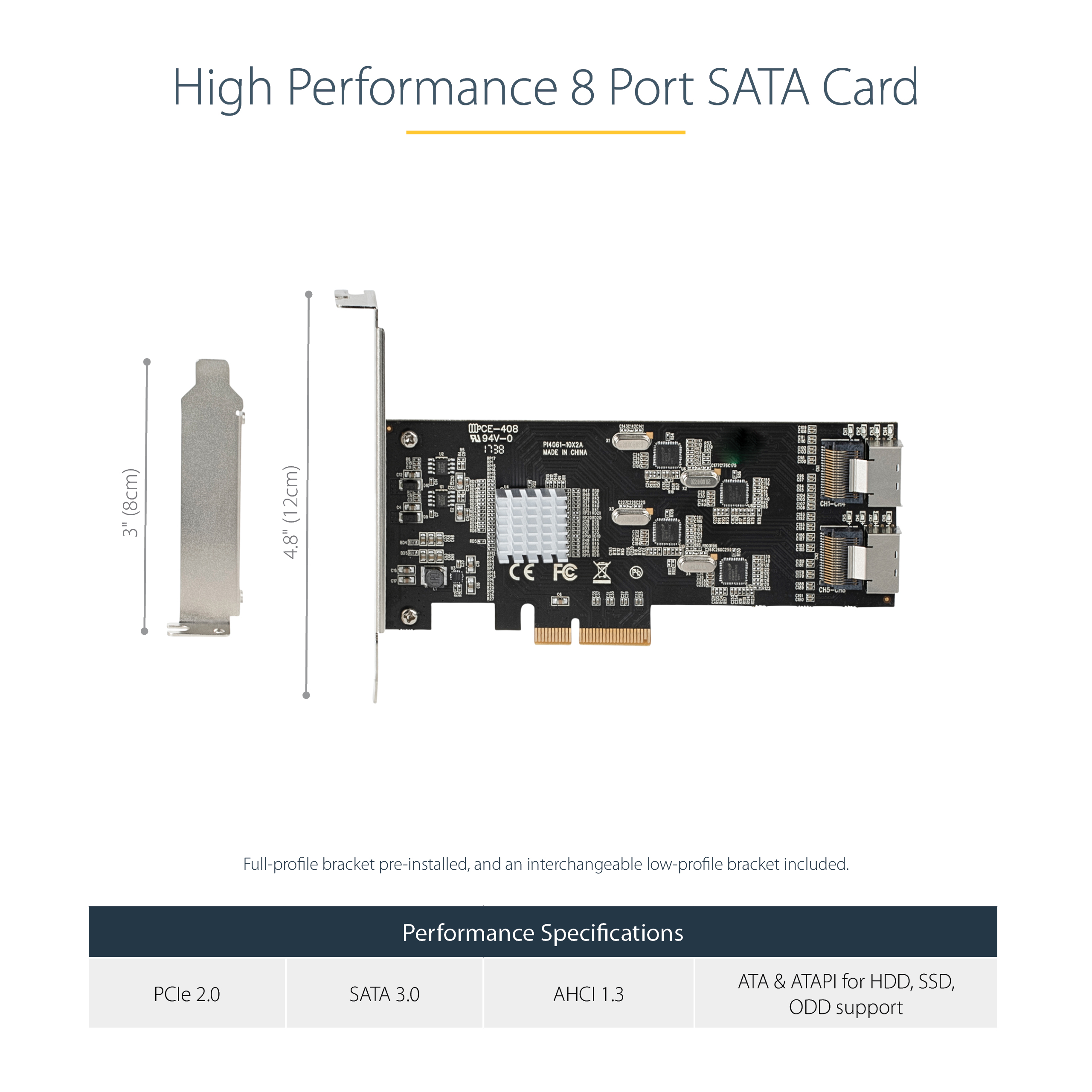

Port Multiplier Yes RAID No SATA Type and Rate SATA III (6 Gbps) S.M.A.R.T. Support Yes TRIM Support Yes Bus Type PCI Express Card Type Standard Profile (LP bracket incl.) Chipset ID Industry Standards - Serial ATA 3.0 specification - SATA I/II/III (1.5/3/6Gbps)
- PCI Express Base Specification Revision 2.0

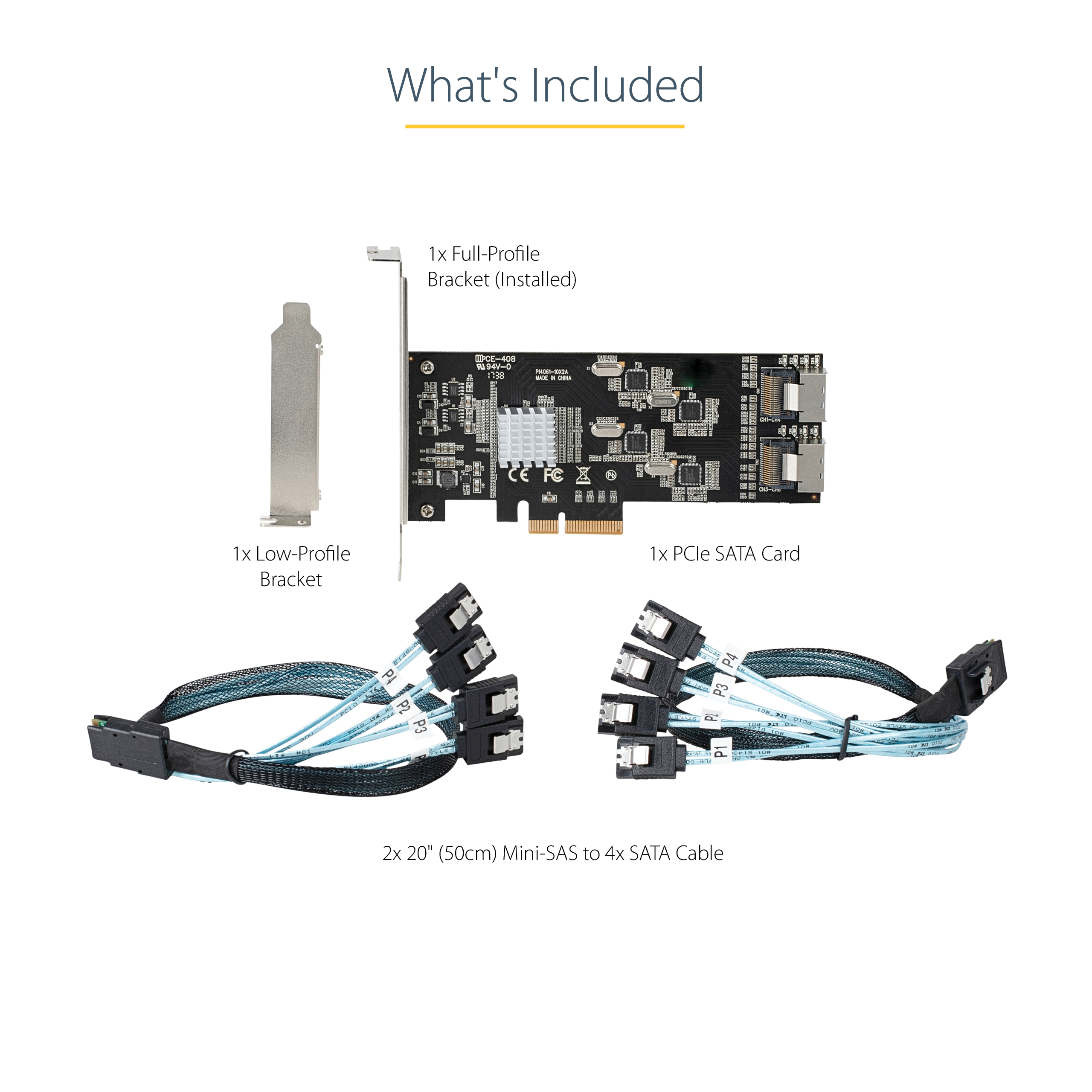

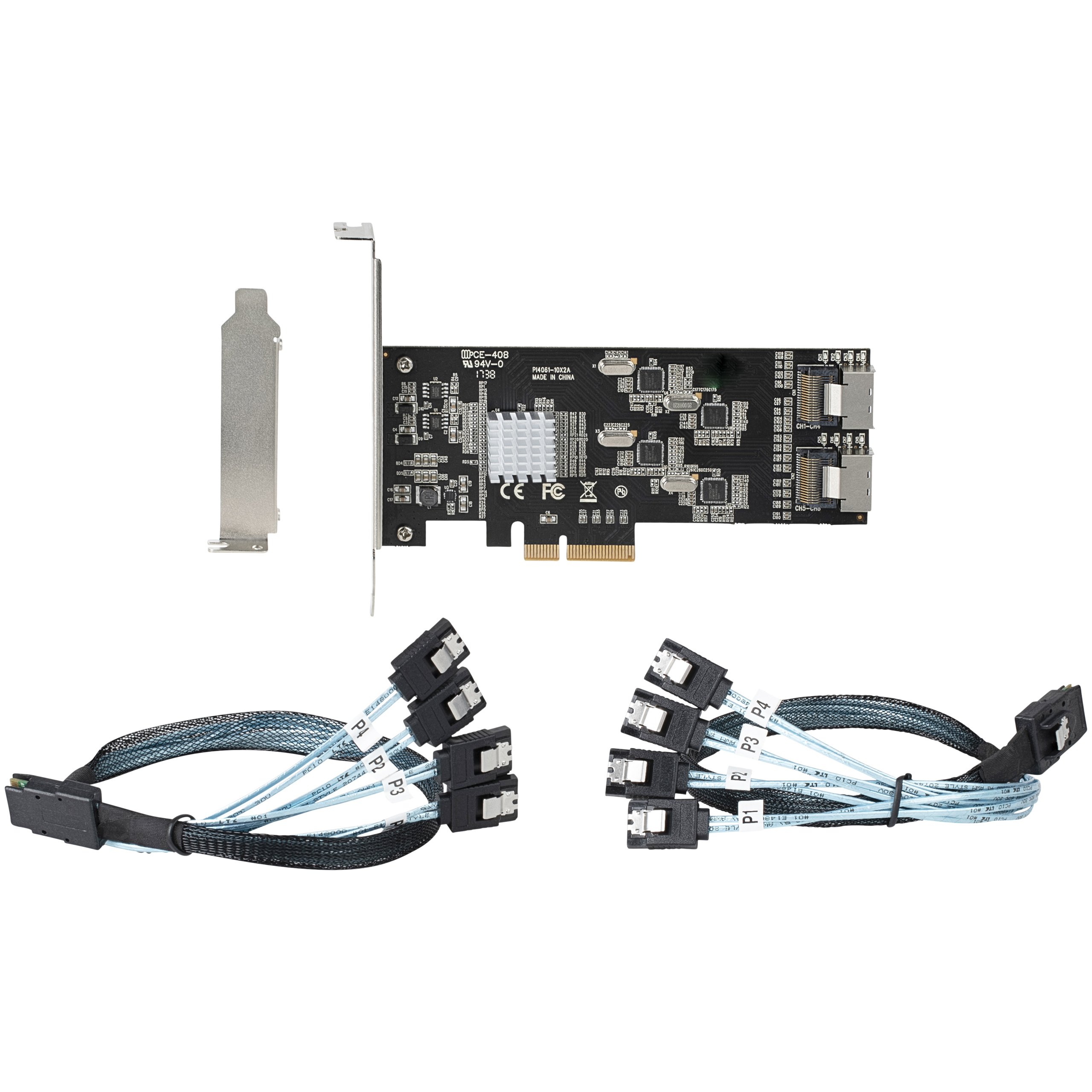

Interface/Bridge SATA Carton Depth (mm) 610 Carton Height (mm) 380 Carton Quantity 40 Carton Weight Gross (g) 13000 Included in Package - 1 - PCIe SATA Card
- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide

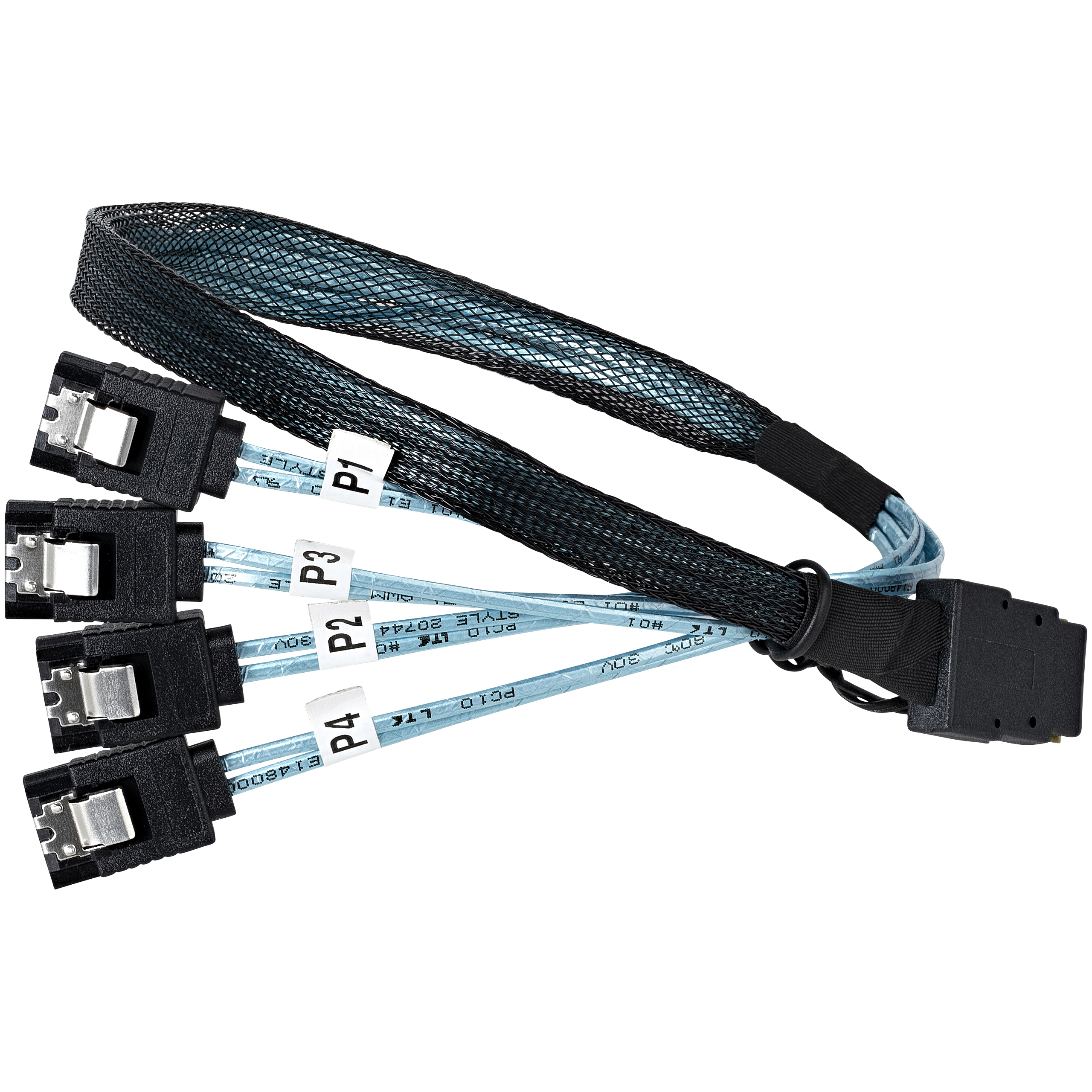

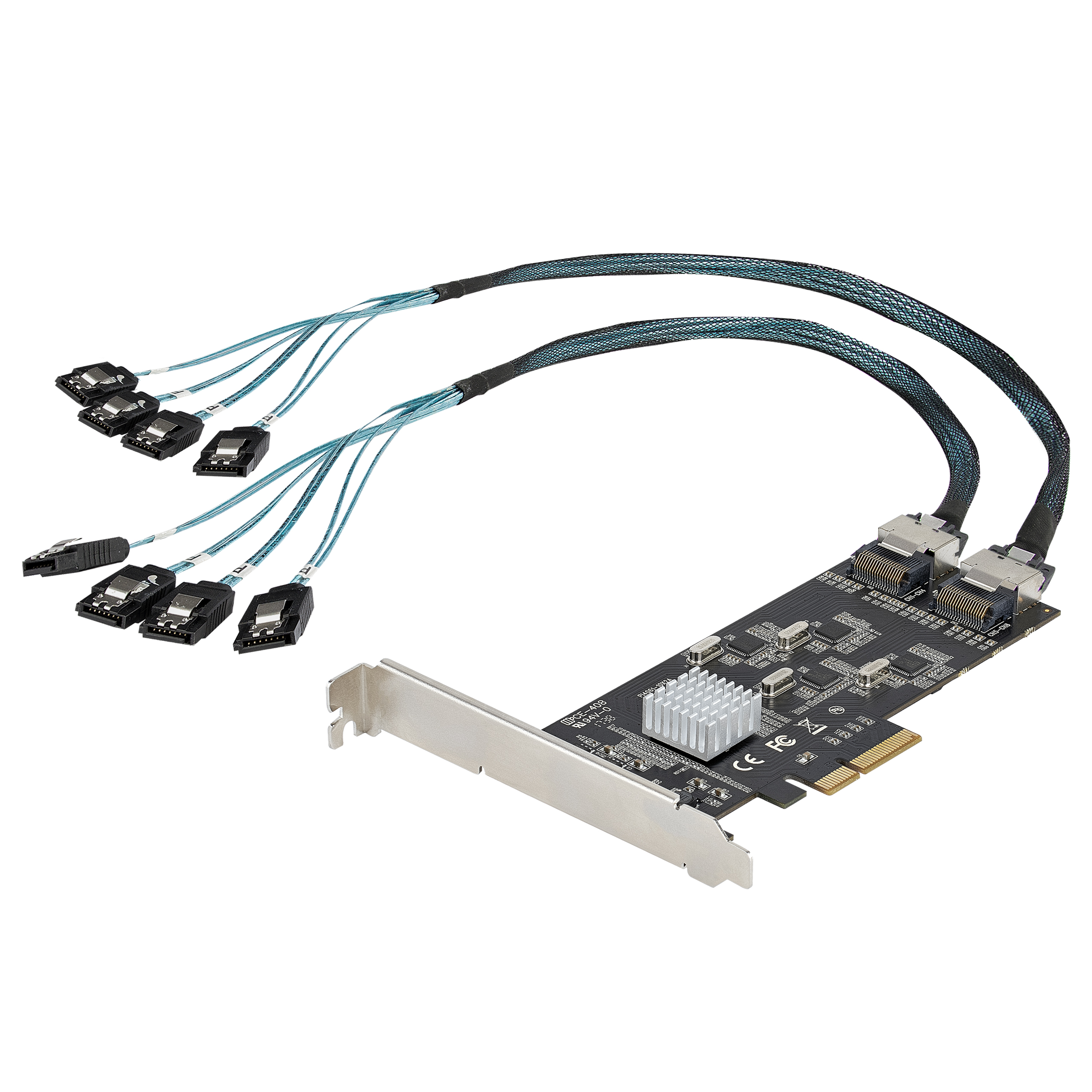

- 2 - 20 in. (50 cm) Mini-SAS to 4x SATA Cable
Included In Package for Label - 1 - PCIe SATA Card
- 1 - Full-Profile Bracket (Installed)
- 1 - Low-Profile Bracket
- 1 - Quick-Start Guide
- 2 - 20 in. (50 cm) Mini-SAS to 4x SATA Cable
Number of Sub-Cartons 4 Package Depth (mm) 157 Package Height (mm) 58 Package Width (mm) 232 Package Quantity 1 Package Weight (g) 254 Packaging Description 8-Port SATA 6 Gbps PCI Express SATA Controller Card Packaging Description India 8-Port SATA 6 Gbps PCI Express SATA Controller Card Sub-Carton Depth (mm) 330 Sub-Carton Height (mm) 160 Sub-Carton Width (mm) 190 Sub-Carton Quantity 10 Sub-Carton Weight (g) 810 Connector 1 PCI Express x4 Connector 1 (Quantity) 1 Connector 2 SFF-8087 (36-Pin, SAS) Connector 2 (Quantity) 2 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Veronica Ye Artwork Due Date 2021-06-10 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2021-08-04 Enhanced Gallery Uploaded Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,DE,DK,ES,FR,IE,IN,IT,JP,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist Pierre Wheeler Product Information Creation Specialist (PICS) Brian Chan Product Manager Tony Parackal Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2021-05-03 Target Production Release 2021-05-06 Tech Lead Brian Linseman Technical Writer Maria Powell Technology Lifecycle Mainstream Video Uploaded
