9M351M-RS232-CABLE

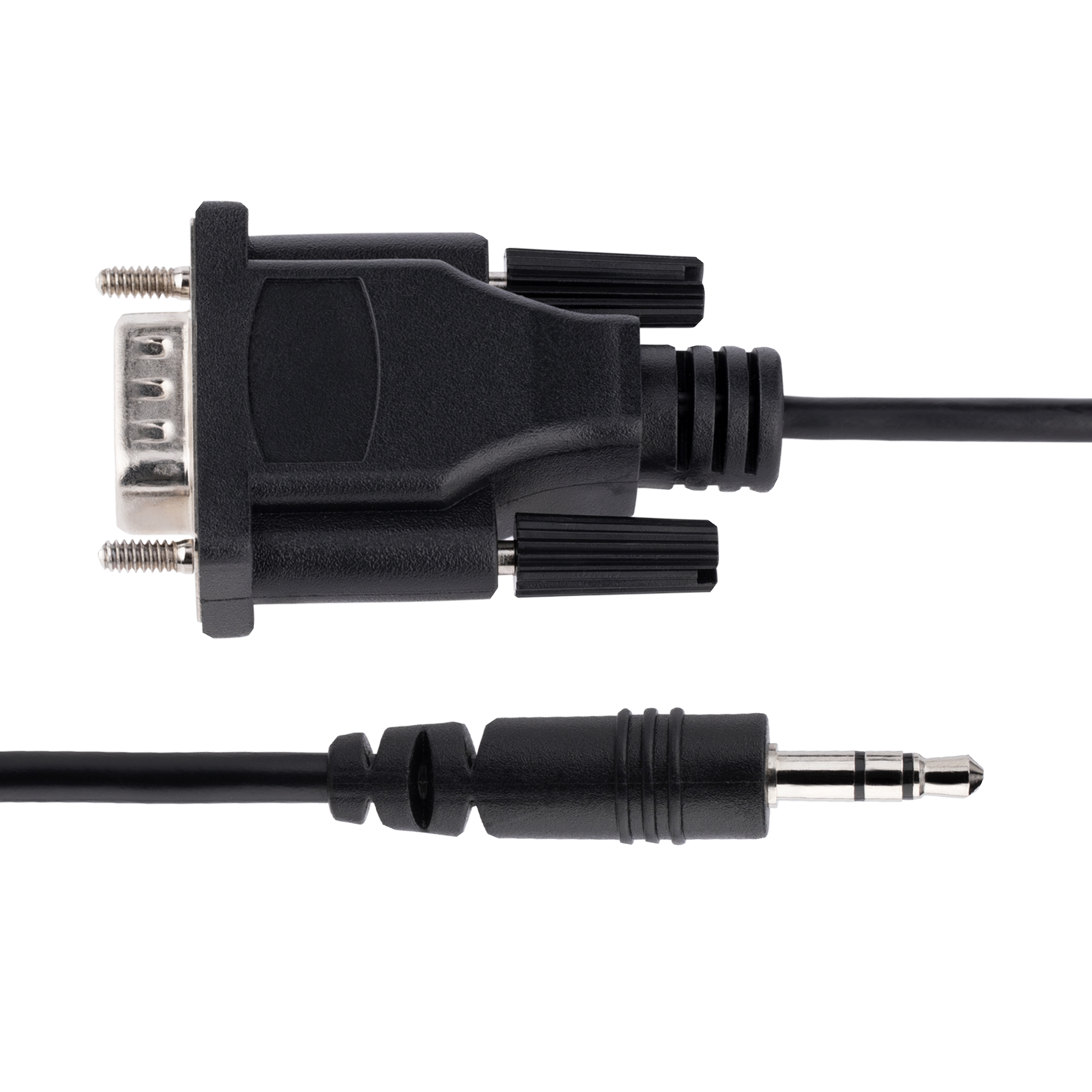

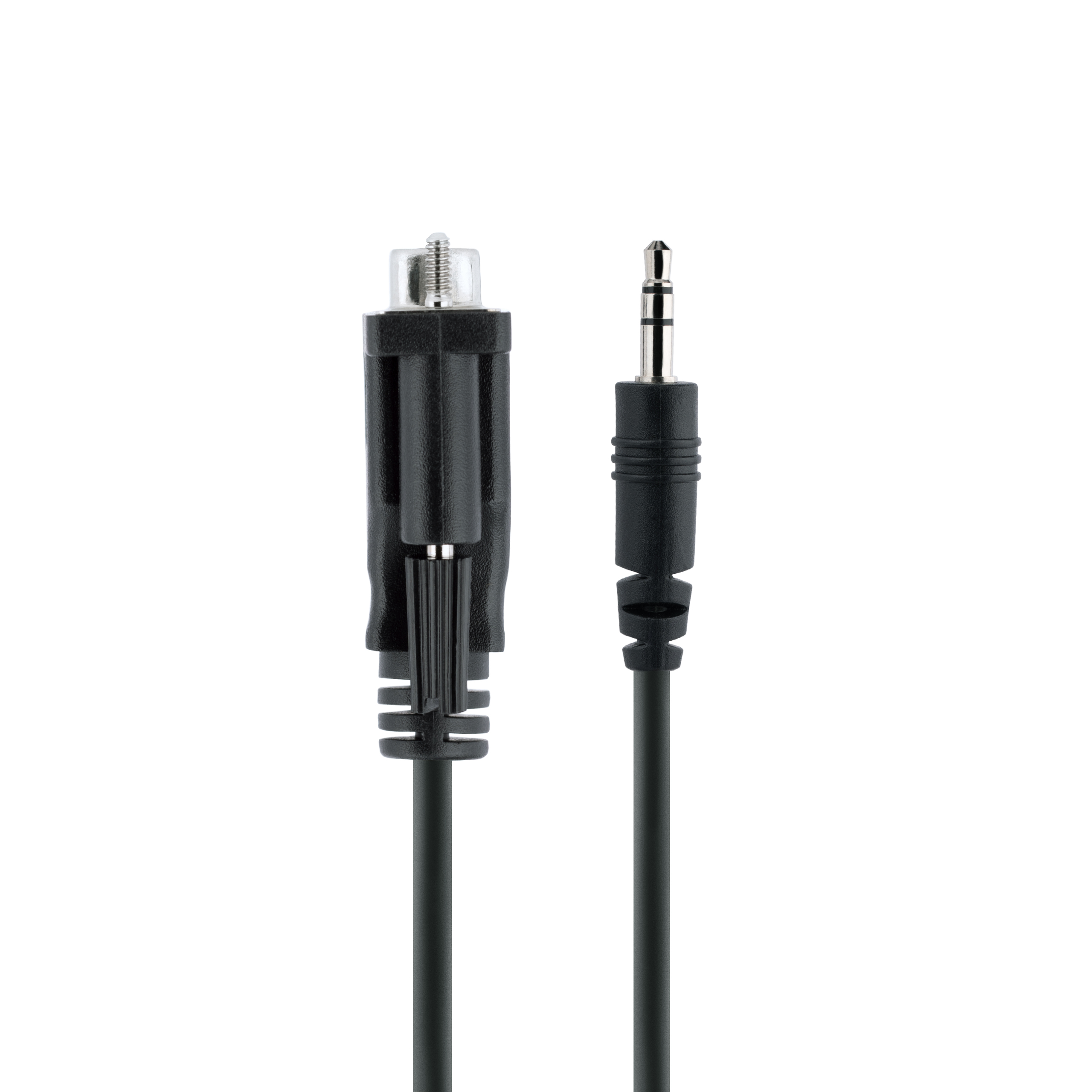

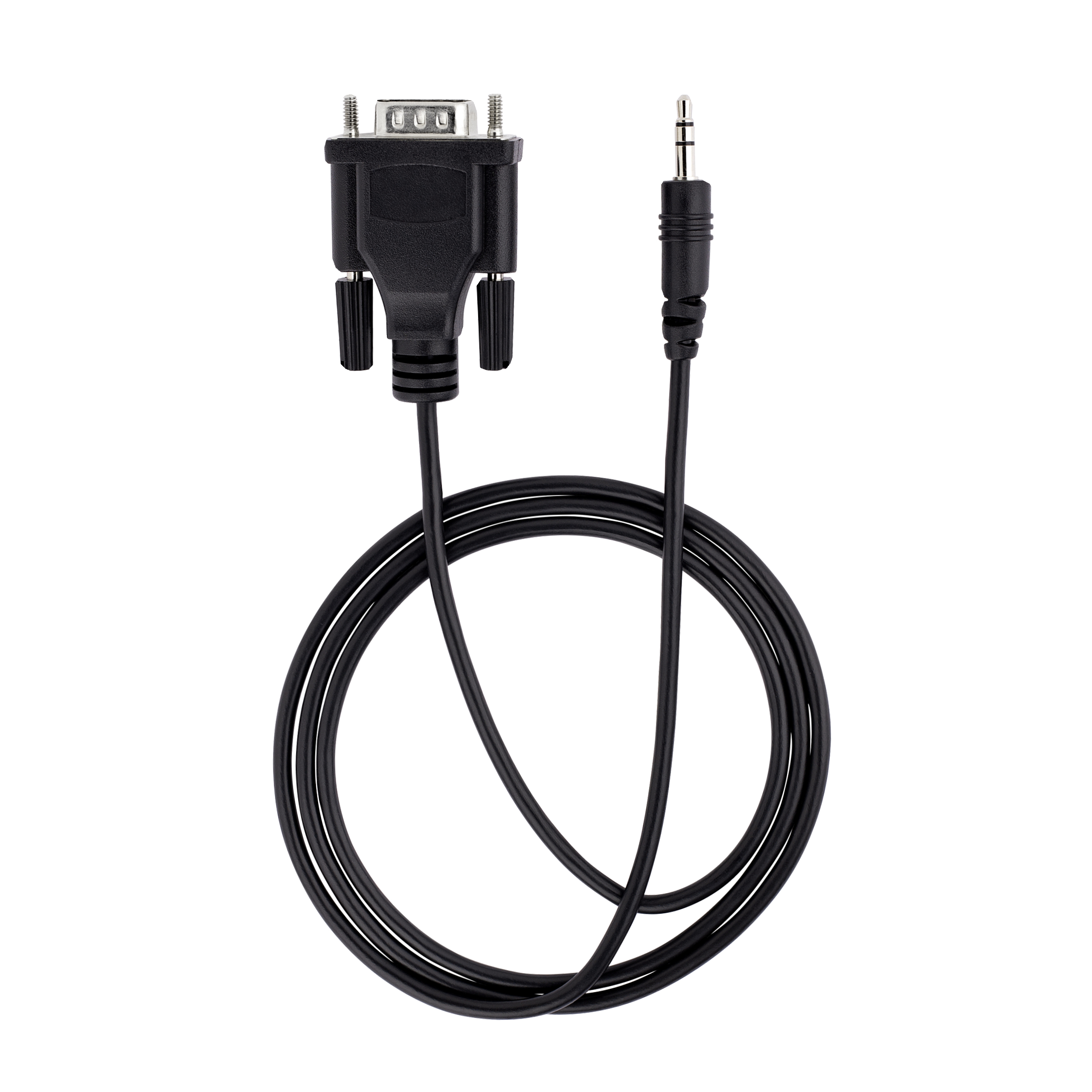

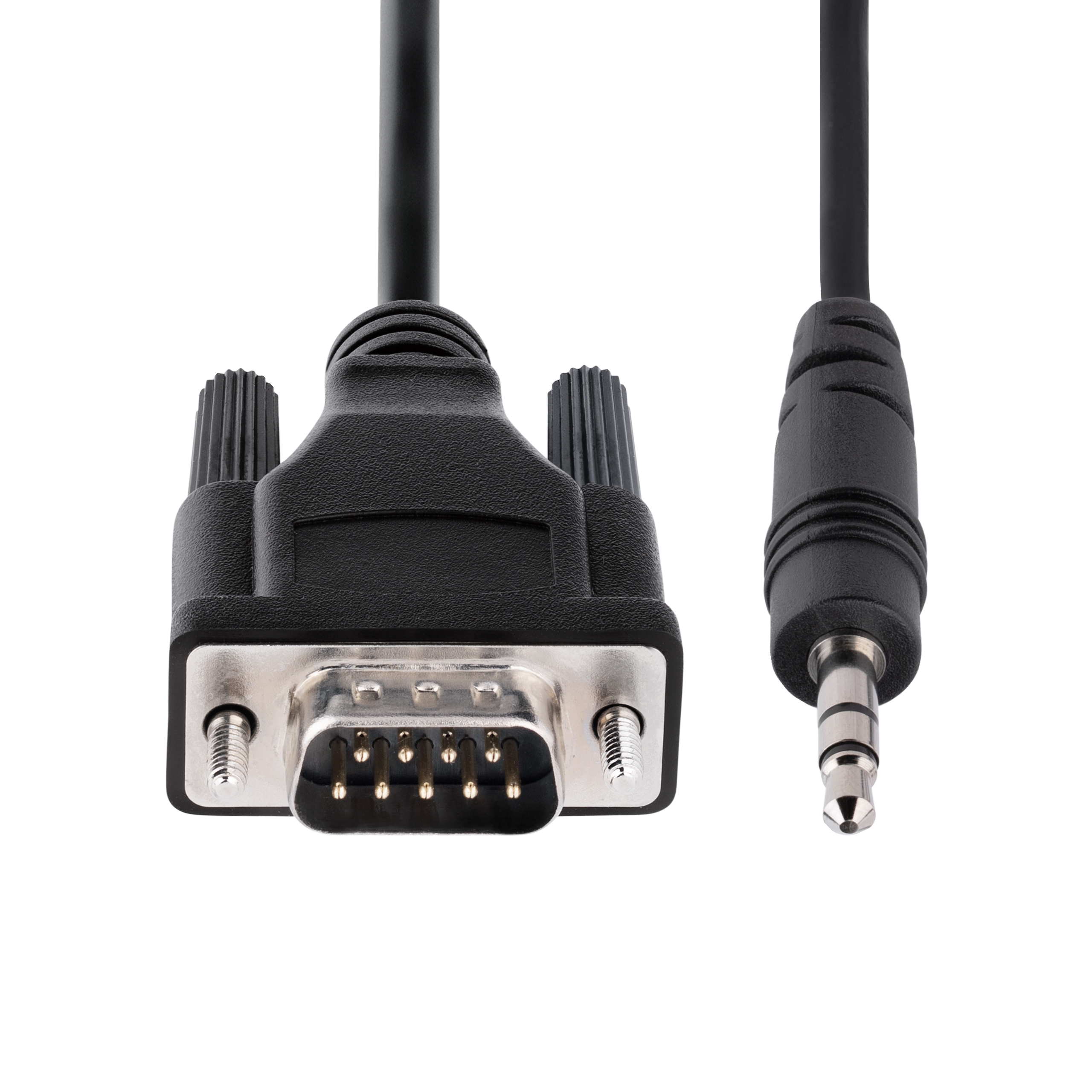

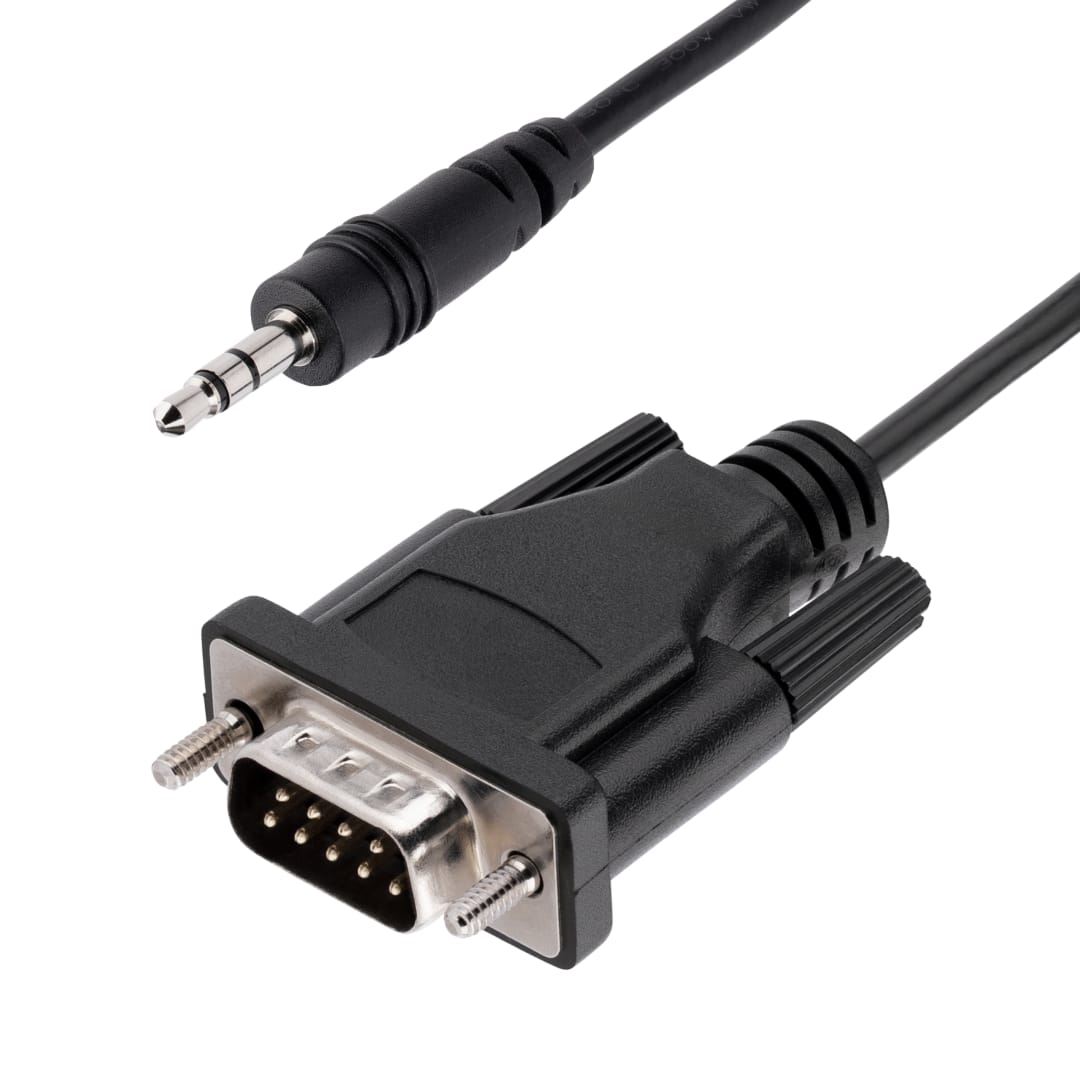

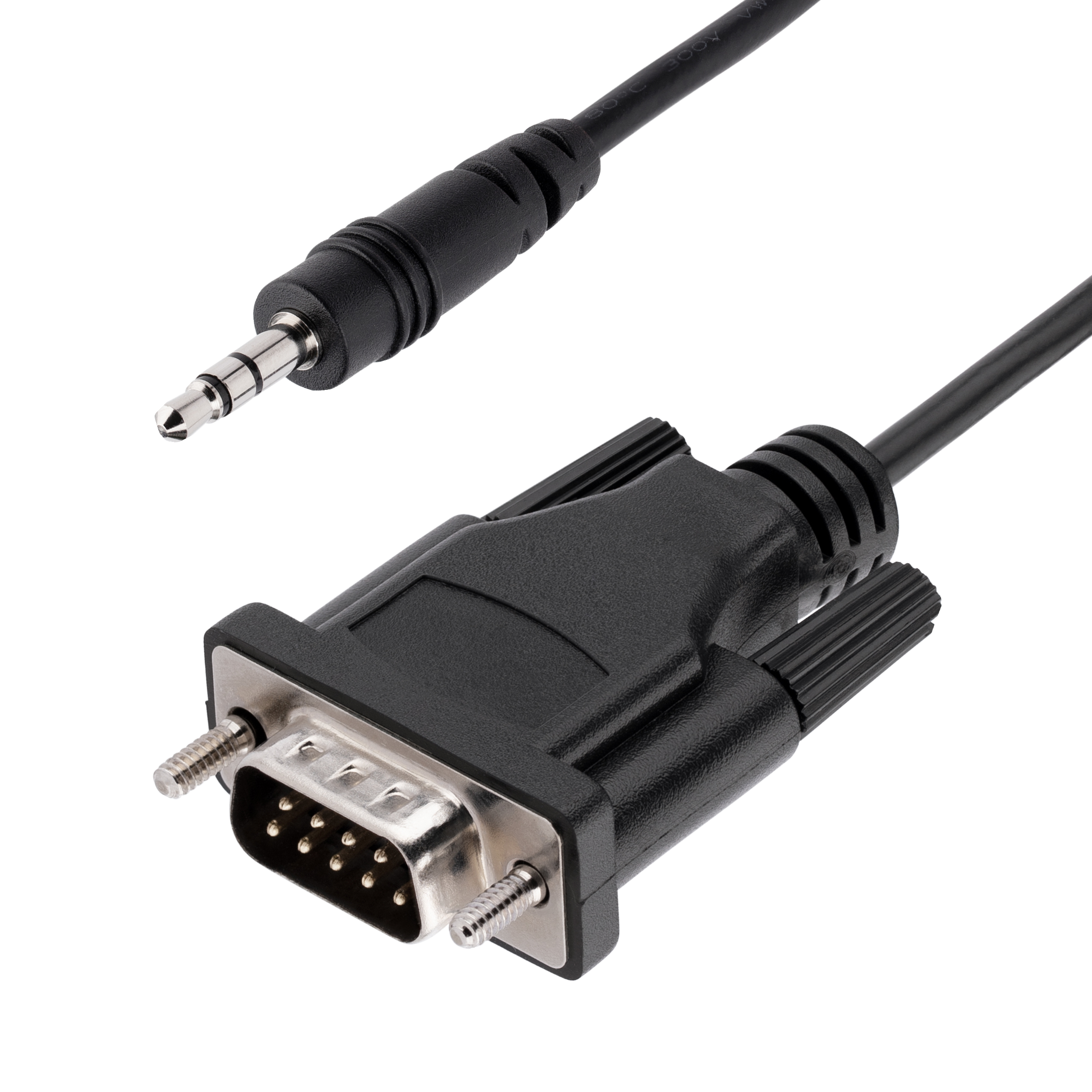

1m DB9 to 3 5mm serial control adapter cable M M
Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control
Main Image
Product Images
Product Images
Product Images
Product Images
Product Name 1m DB9 to 3 5mm serial control adapter cable M M Product Number 9M351M-RS232-CABLE UPC 065030893565 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Serial, Parallel and PS2 Cables Category Level 1 Cables - Other Category Level 2 Serial, Parallel and PS2 Cables Category Level 3 Serial Cables Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX100X Country of Origin History (2) Vietnam Country of Origin Revision (2) XXXXXX147X Product Title (Ultra-Short) DB9 to 3.5mm Serial Product Title (Short) 3ft DB9 to 3.5mm Serial Cable, RS232 Product Title (Medium) 3ft DB9 to 3.5mm Serial Cable, Configure Serial Devices, DB9 to 3.5mm Audio Jack Product Title (Standard) 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm for Calibrating via Audio Jack Product Title (Long) 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable Used for Calibrating Projectors, Digital Signage, TVs via Audio Jack Product Title (AMZ) 3ft (1m) DB9 to 3.5mm Serial Cable for Serial Device Configuration, RS232 DB9 Male to 3.5mm Cable for Calibrating Projectors, Digital Signage, TVs via Audio Jack (9M351M-RS232-CABLE) Title Ingram (Part 1) 1m DB9 to 3.5mm Serial Cable - Title Ingram (Part 2) RS232 Male to 3.5mm Serial Cable Website Product Headline Connect a DB9 enabled control unit to a 3.5mm enabled device for RS-232 based control Bullet 1 DB9 TO 3.5 MM SERIAL CABLE: 3ft (1m) RS232 serial control cable enables configuration or calibration of a 3.5mm RS-232 serial devices - Use with TVs, projectors, digital signage displays requiring 3-conductor RS-232 serial control through 3.5mm audio jack Bullet 2 QUALITY CONSTRUCTION: High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors prevent EMI interference - Molded PVC connectors with strain reliefs and PVC jacket prevent damage due to bends or rough usage Bullet 3 COMPATIBILITY: The DB9 to 3.5mm cable works with USB-A and USB-C to DB9 serial adapters (1P3FP-USB-SERIAL / ICUSB232C) for computers that do not have a built-in serial port | Note: DB9 gender changer may be required such as our GC9SF (not included) Bullet 4 SPECIFICATIONS: Length: 3.3ft (1m) - DB9 Male to 3.5 mm Male Serial Cable - Color: Black - 28 AWG - OD: 3.5mm - Jacket: PVC - DB9 Pin 3 to 3.5mm Tip - DB9 Pin 2 to 3.5mm Ring - DB9 Pin 5 to 3.5mm Sleeve Bullet 5 THE IT PRO'S CHOICE: Designed and built for IT Professionals, this product is backed for life, including free lifetime 24/5 multi-lingual technical assistance Bullets (Compact) 3ft/1m male DB9 to 3.5 mm serial control cable configure serial devices with a 3.5mm audio jack; High quality 28 AWG copper wires with Al-Mylar cable shielding; Works with computers that are equipped with a DB9 9pin serial ports to configure displays Bullets (Consolidated) ft DB9 to 3.5mm serial control cable enables configuration and calibration of a 3.5mm serial device requiring 3-conductor RS-232 serial remote control using a 3.5mm audio jack - High quality 28 AWG copper wires with Al-Mylar cable shielding and shielded metal shell connectors help prevent EMI interference - Works with computers that are equipped with a DB9 9pin serial port - 3ft (1m) DB9 Male to 3.5 mm Male Serial Cable | Color: Black | AWG: 28 | OD: 3.5mm | Jacket: PVC Marketing Copy Marketing Copy (No HTML) Website Search Keyword - 3.5 mm serial cable
- 3.5 mm to db9
- 3.5 mm to db9 serial cable
- db9 male to 3.5 mm
- db9 to 3.5 mm
- db9 to 3.5 mm cable
- db9 to 3.5 mm serial cable
- db9 to audio jack
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
Accessory Products - GC9SF
- 1P3FP-USB-SERIAL
- ICUSB232C
Cable Length (mm) 1000 Color Black Connector Style Straight Humidity 30 ~ 75% Operating Temperature -20 to 60°C (-4 to 140°F) Product Length (mm) 1030.000 Product Width (mm) 33.000 Product Height (mm) 15.000 Product Weight (g) 41.000 Storage Temperature -20 to 60°C (-4 to 140°F) TAA Compliant No Wire Gauge 28 AWG Supported Protocols RS232 Serial Cable Jacket Material PVC Connector Plating Nickel Number of Conductors 3 Screw Lock Yes Serial/Parallel Cable Type Straight Through (RS232) Carton Depth (mm) 388 Carton Height (mm) 310 Carton Quantity 120 Carton Weight Gross (g) 7000 Included in Package 1 - DB9 to 3.5mm RS232 Serial Cable Included In Package for Label 1 - DB9 To 3.5Mm Rs232 Serial Cable Package Depth (mm) 128 Package Height (mm) 10 Package Width (mm) 220 Package Quantity 1 Package Weight (g) 23 Packaging Description 3ft/1m DB9 male to 3.5mm male RS232 Serial adapter cable Packaging Description India 3ft/1m DB9 male to 3.5mm male RS232 Serial Converter cable Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 DB-9 Serial Connector 1 (Quantity) 1 Connector 2 3.5mm (4 Conductors, TRRS) Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created None Amazon Merchandising Manager Veronica Ye Application Photos Not Required Artwork Due Date 2021-11-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Digital Content Due Date 2022-11-10 Enhanced Gallery Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,DE,DK,ES,FI,FR,IE,IN,IT,JP,MX,NL,NZ,SE,SG,UK,US Primary Technology None Product Development Specialist David Bromley Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2021-10-20 Target Production Release 2022-01-14 Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream Video Not Required
