A-LAPTOP-DESK-MOUNT

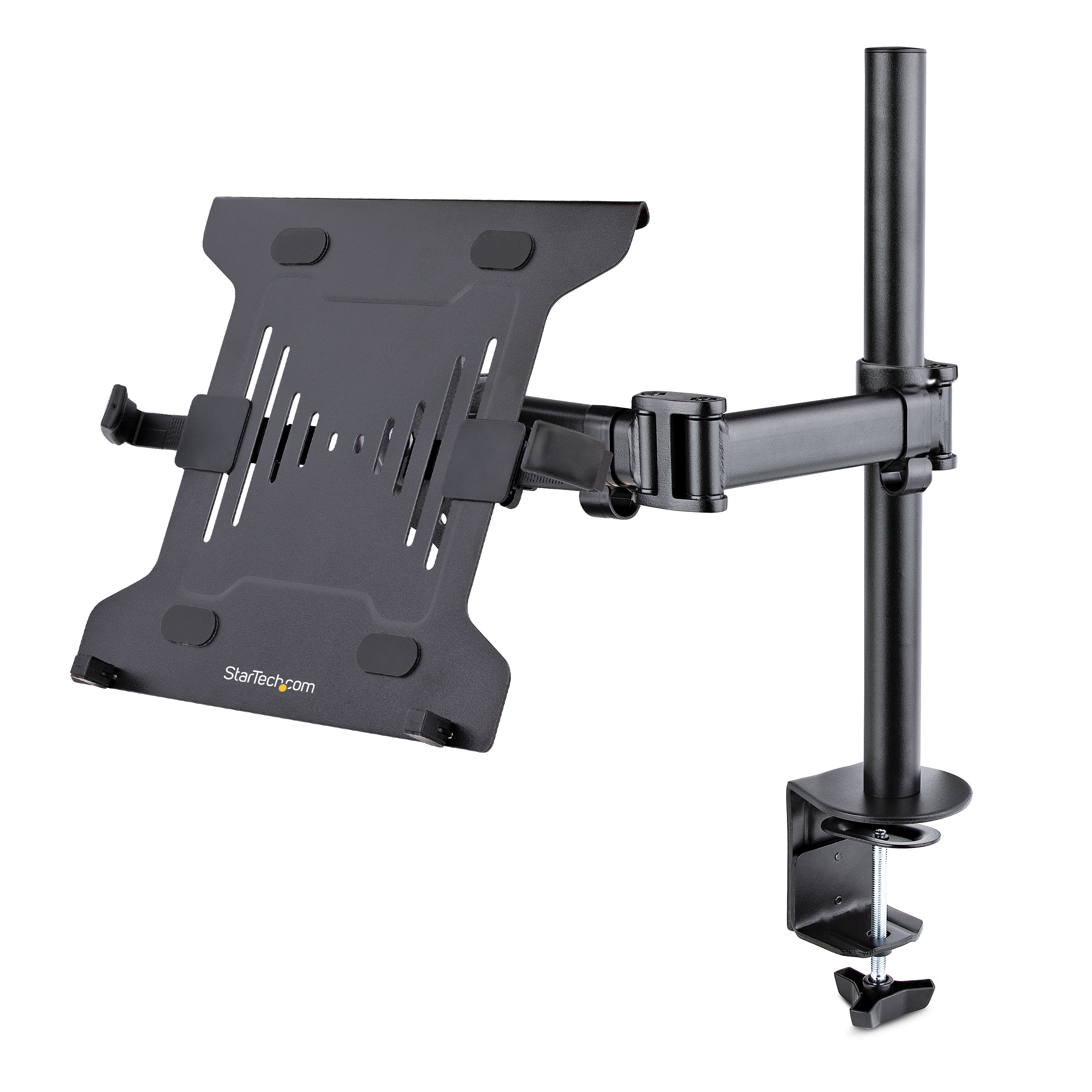

Laptop Desktop Mount

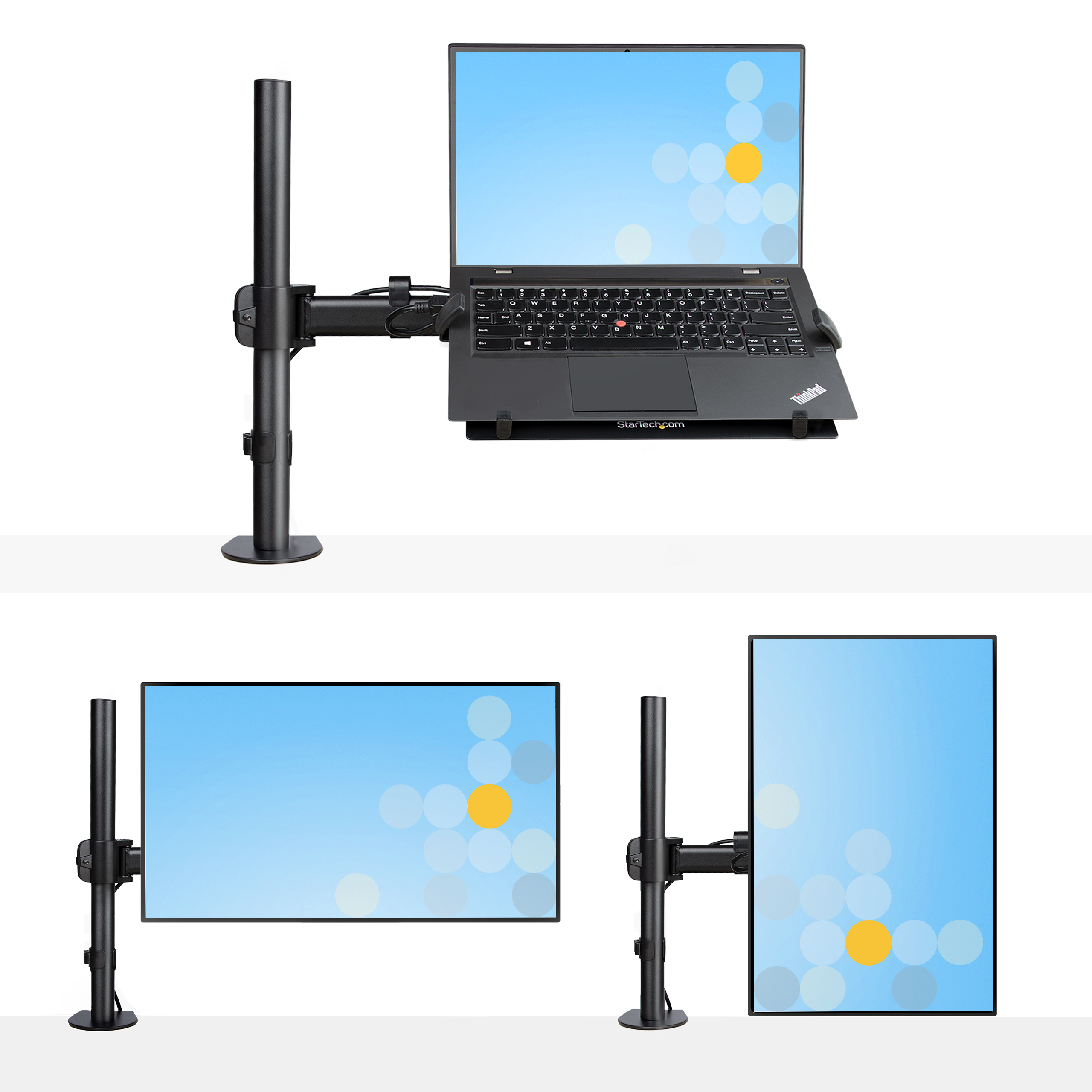

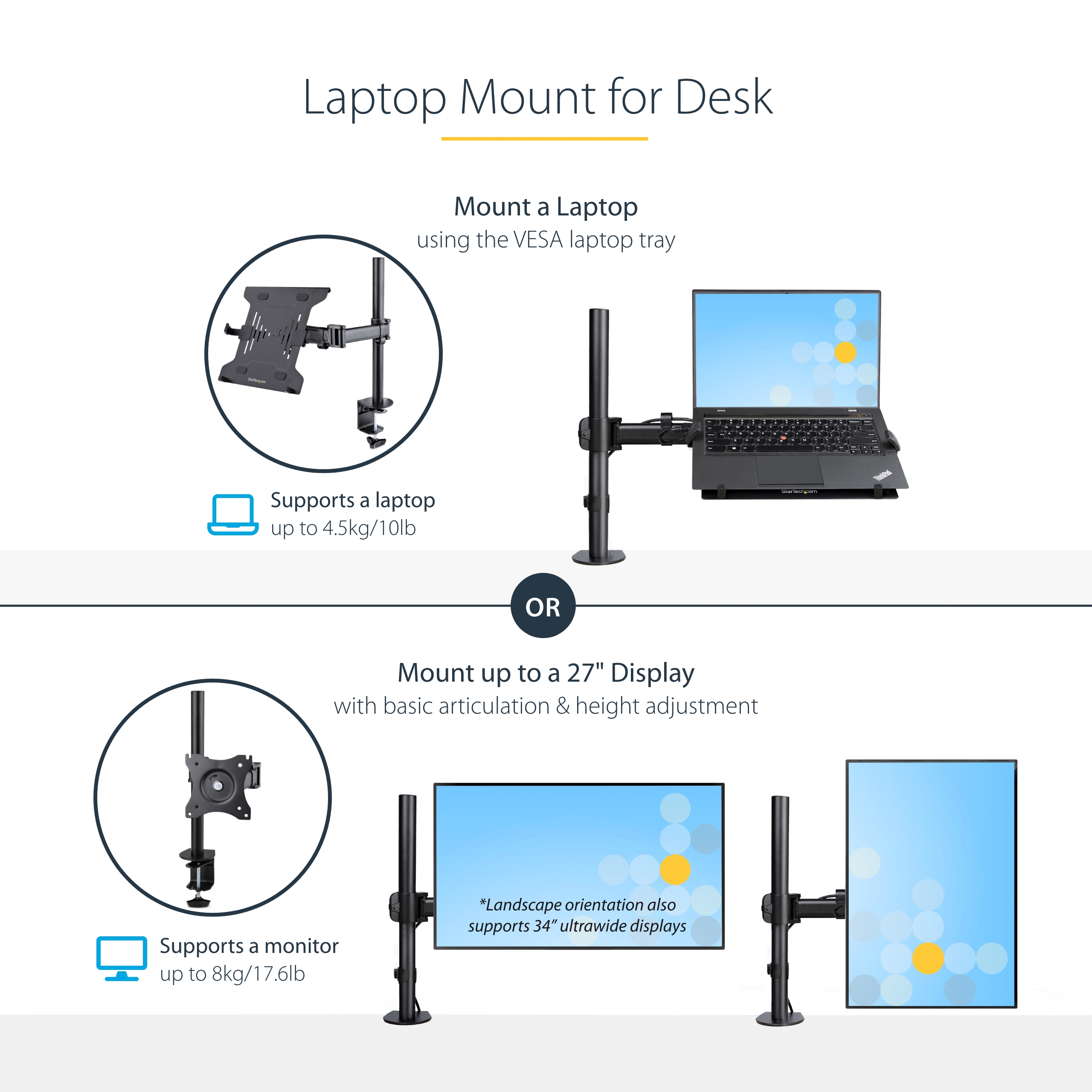

Laptop Desk Mount | Displays up to 34in (8kg/17.6lb) & Laptops (4.5kg/9.9lb) | Vented
Main Image
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Enhanced Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Laptop Desktop Mount Product Number A-LAPTOP-DESK-MOUNT UPC 065030894968 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Ergonomic Furniture Category Level 1 Display Mounts Category Level 2 Workstation Monitor Mounts Category Level 3 Desktop Monitor Stands Family Combo Monitor/Laptop Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Laptop Desk Mount Product Title (Short) Laptop Desk Mount, Monitor & Laptop Arm Product Title (Medium) Laptop Desk Mount, Monitor/Laptop Mount, 34in/17.6lb Displays, VESA Laptop Tray Product Title (Standard) Laptop Desk Mount, Monitor and Laptop Arm Mount, Displays up to 34" (17.6lb/8kg), VESA Laptop Tray Arm, Clamp / Grommet Product Title (Long) Laptop Desk Mount - Monitor and Laptop Mount - Displays up to 34" (17.6lb/8kg) & Laptops (4.5kg/9.9lb) - Articulating VESA Laptop Tray Arm - Clamp / Grommet Mount Product Title (AMZ) Laptop Desk Mount, VESA Monitor Mount for Displays up to 34" 17.6lb/8kg) or Laptops up to 9.9lb (4.5kg), Articulating Arm Tray with Clamp or Grommet Base Title Ingram (Part 1) Laptop Desk Mount - Title Ingram (Part 2) VESA Monitor Laptop Tray Arm Website Product Headline Laptop Desk Mount | Displays up to 34in (8kg/17.6lb) & Laptops (4.5kg/9.9lb) | Vented Bullet 1 LAPTOP MOUNT FOR DESK: The black dual-purpose mount allows you to mount a laptop using the VESA laptop tray or use it to mount a 27" or a 34" ultrawide display with basic articulation & height adjustment. Capacity 8kg/17.6lb monitor or 4.5kg/9.9lb laptop Bullet 2 SECURE LAPTOP TRAY: Adjustable padded arms grip and hold laptop (9.4-16.5" wide) at different angles; Arms can be positioned to avoid blocking laptop ports; Stoppers at the bottom w/variable heights 0.5" or 0.9" prevent laptop from sliding off; Ventilated Bullet 3 RANGE OF MOTION: The laptop tray or mounted display (75x75 & 100x100mm) have a wide range of motion with +/- 45° tilt, +/- 90° swivel, and 360° rotation (portrait/landscape). The laptop tray features ledge stoppers and padded arms to secure the laptop Bullet 4 ARTICULATING LAPTOP ARM: The arm height on the desk monitor mount can be positioned and secured anywhere along the 17.7 inches / 449mm pole and extend up to 16.85 inches / 428mm from the base. The arm has two joints allowing for +/-180° articulation Bullet 5 INSTALLATION OPTIONS: Interchangeable desk-clamp (C clamp) and grommet mount can be secured and tightened by hand to a desk 0.39 - 3.46 inches (10 - 88 mm) thick. Tools included to adjust articulation, tension, and height. Cable management clips included Bullets (Compact) - This dual-purpose black laptop mount for desk allows mounting a laptop on the ventilated VESA laptop tray or a 27in or 34in ultrawide display; Capacity 8kg/17.6lb monitor or 4.5kg/9.9lb laptop - Adjustable padded arms hold laptop (9.4-16.5in wide) Bullets (Consolidated) Laptop mount for desk with dual-purpose mount allows mounting a laptop to the VESA laptop tray or a 27" or 34" ultrawide display. Capacity 8kg/17.6lb monitor or 4.5kg/9.9lb laptop - Adjustable padded arms hold laptop (9.4-16.5" wide); Ventilated - Arm supports +/- 45DEG tilt +/- 90DEG swivel 360DEG rotation - Articulating laptop arm secures on the 17.7"/449mm long pole; Max length 16.85"/428mm from base; +/-180 DEG articulation - Desk-clamp (C clamp)/grommet up to desk 0.39-3.46" (10-88mm) thick Marketing Copy Marketing Copy (No HTML) Website Search Keyword - Laptop Desk Mount
- desk monitor mount
- laptop adjustable mount
- laptop arm for desk
- laptop arm mount
- laptop mount for desk
- laptop tray mount
- monitor and laptop mount
- monitor mount
- vesa laptop tray
- vesa mount
Required Regulatory Compliance Marks - Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE

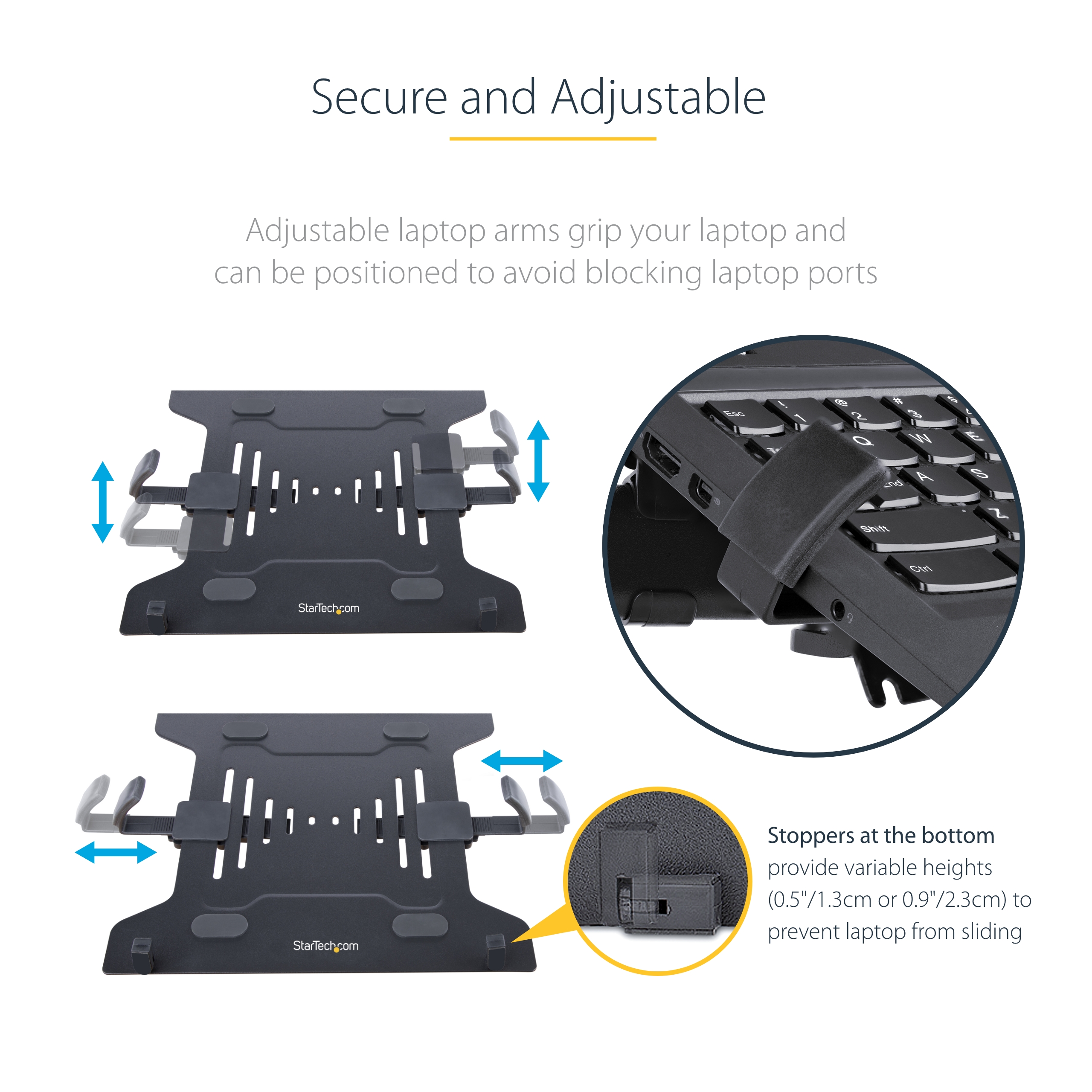

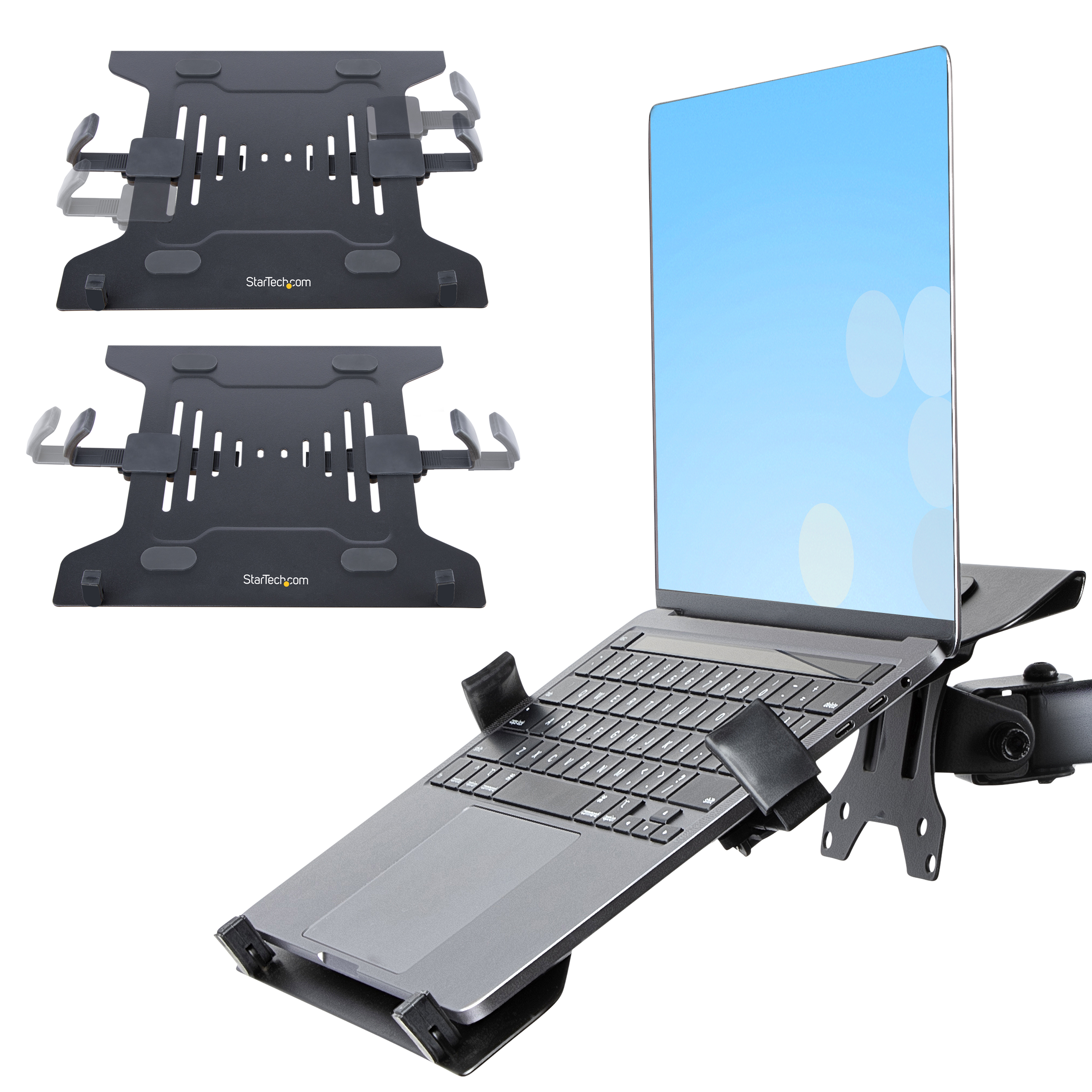

Special Notes The VESA Laptop Tray can be rotated up to 360° when mounted to the arm. It is not recommended to do this as the laptop may fall off at the back of the tray. Accessory Products - PRIVSCNMON21
- PRIVSCNMON24
- PRIVSCNMON27
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M

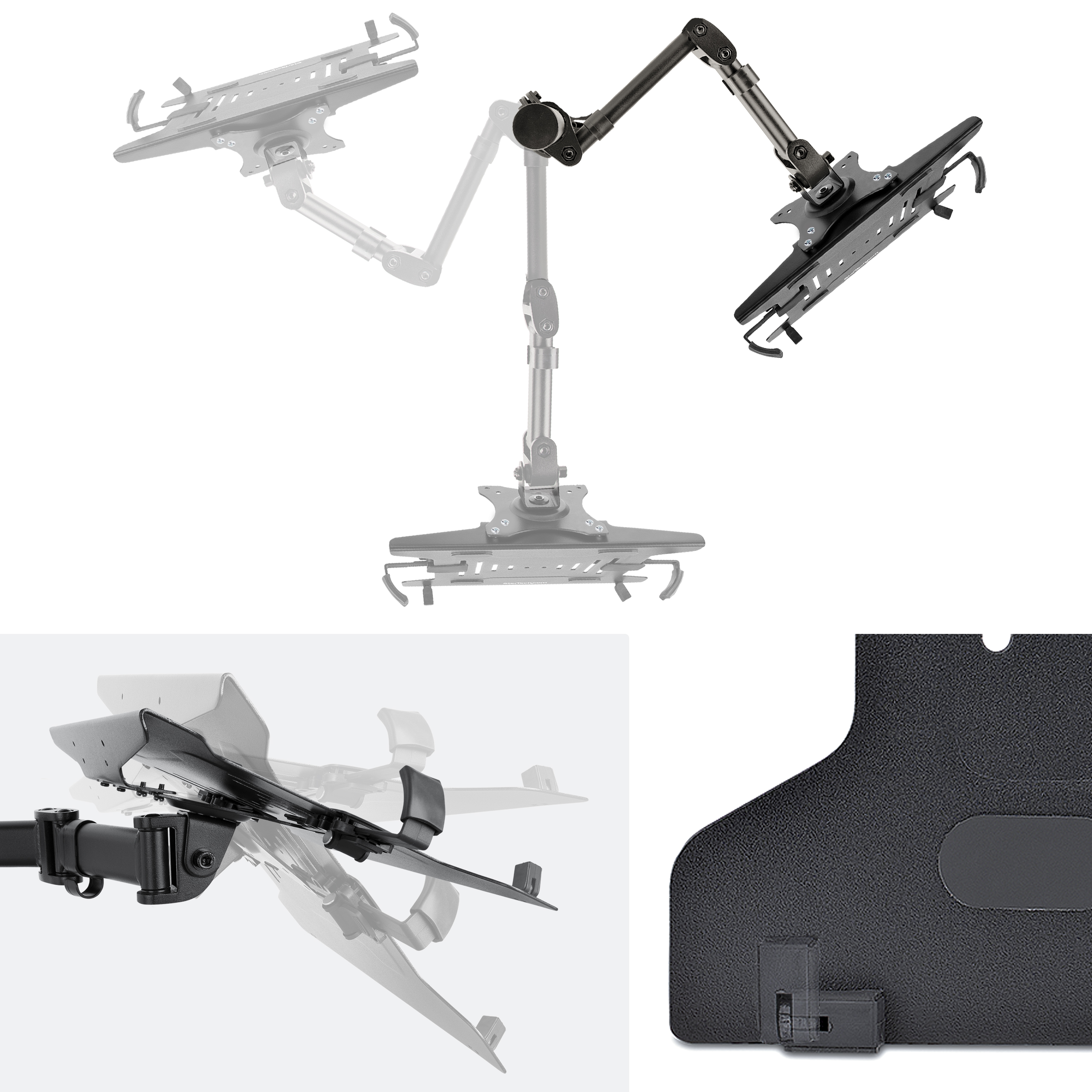

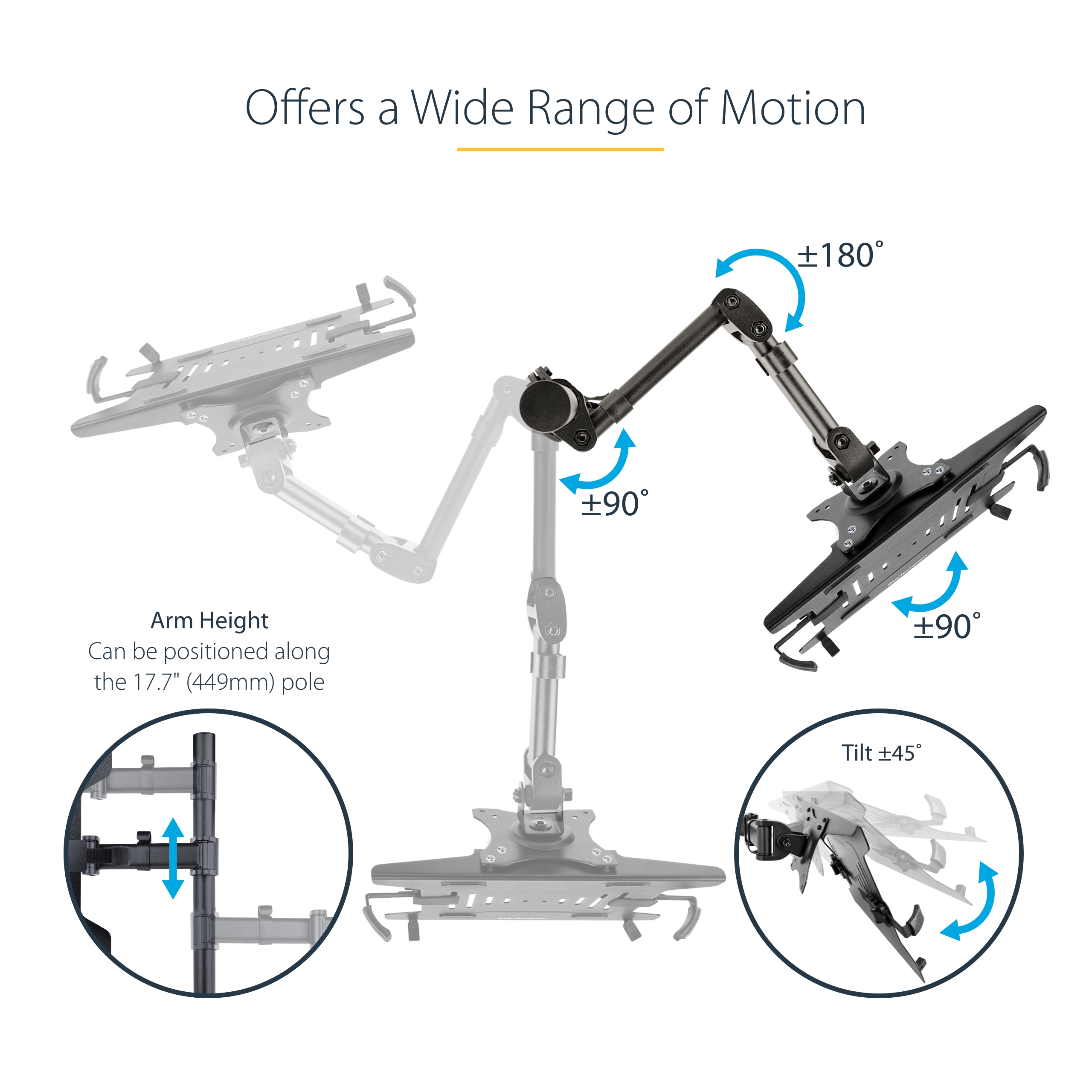

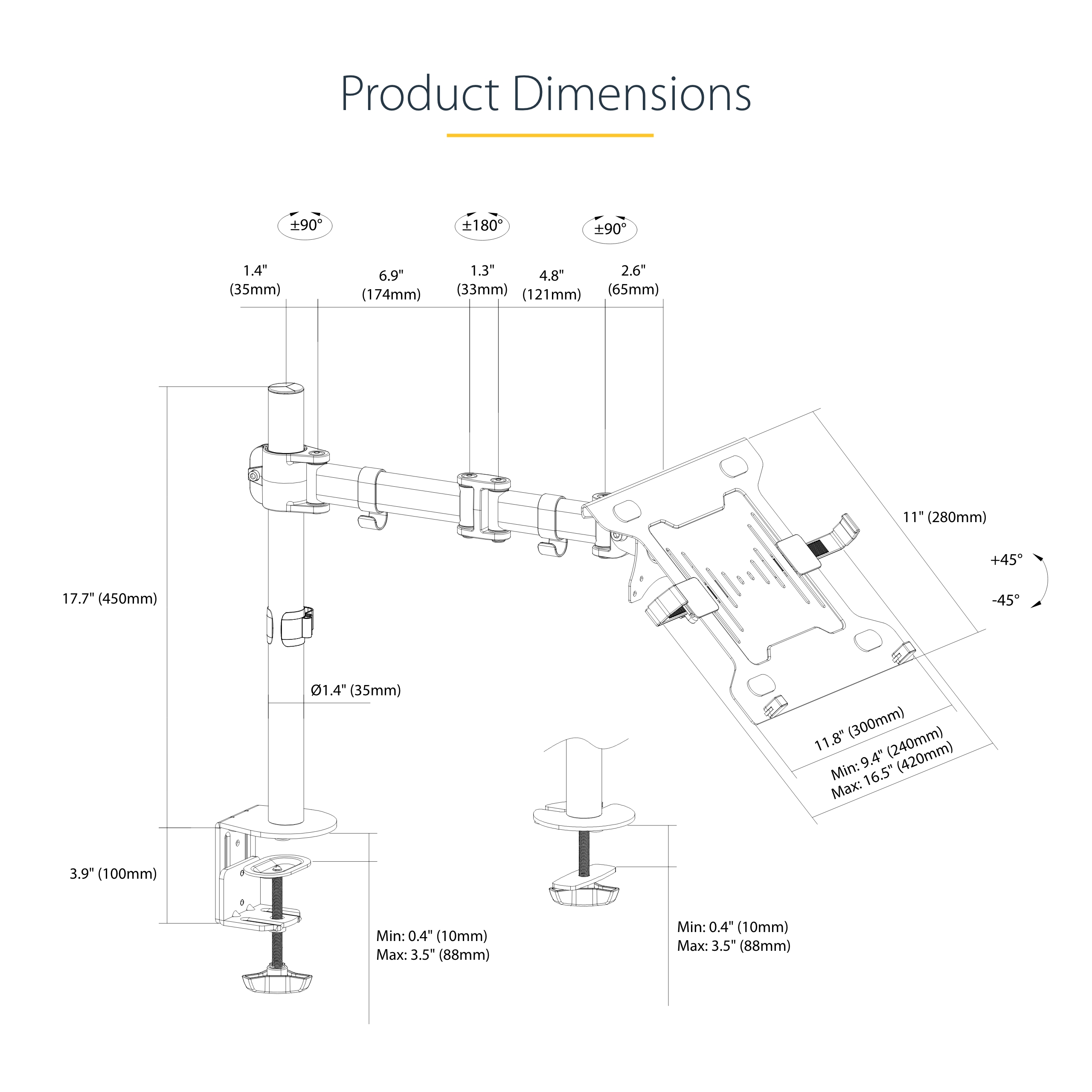

Color Black Material Steel and Plastic Product Length (mm) 708.000 Product Width (mm) 420.000 Product Height (mm) 550.000 Product Weight (g) 4300.000 TAA Compliant No Display Rotation 360° Display Swivel +90° / - 90° Display Tilt + 45° / - 45° Fits Curved Display Yes Fits UltraWide Displays Yes Height Adjustment Yes Maximum Arm Extension 428 Maximum Display Size 34" Maximum Height (mm) 450 Minimum Display Size 13" Premium Monitor Mount No Projector Mount No Swivel / Pivot 180° Weight Capacity for Display Mounts (g) 8000 Your Monitor Size - Up to 21"
- Up to 24"
- Up to 27"
- Up to 30"
- Up to 32"
- 32.1" or Larger

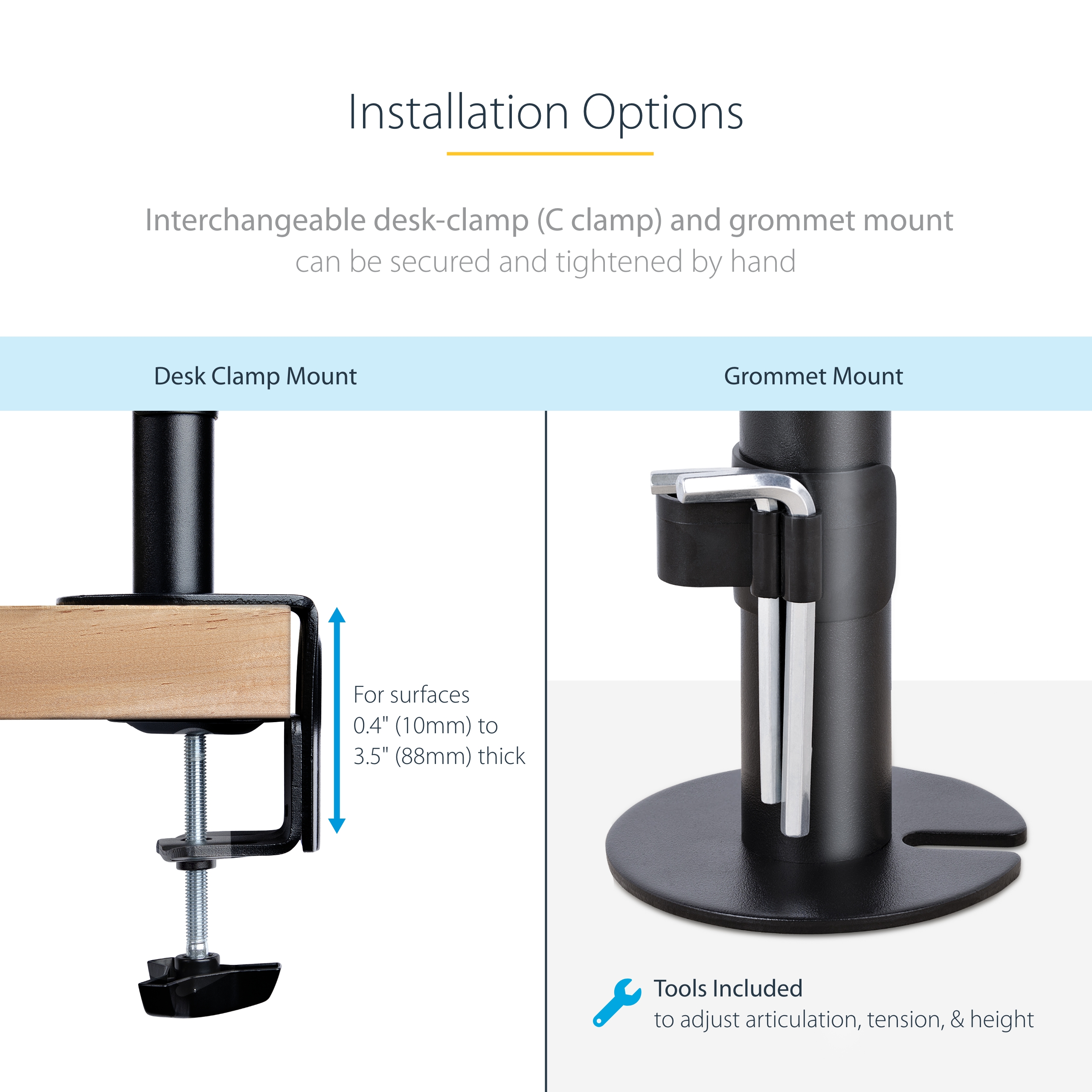

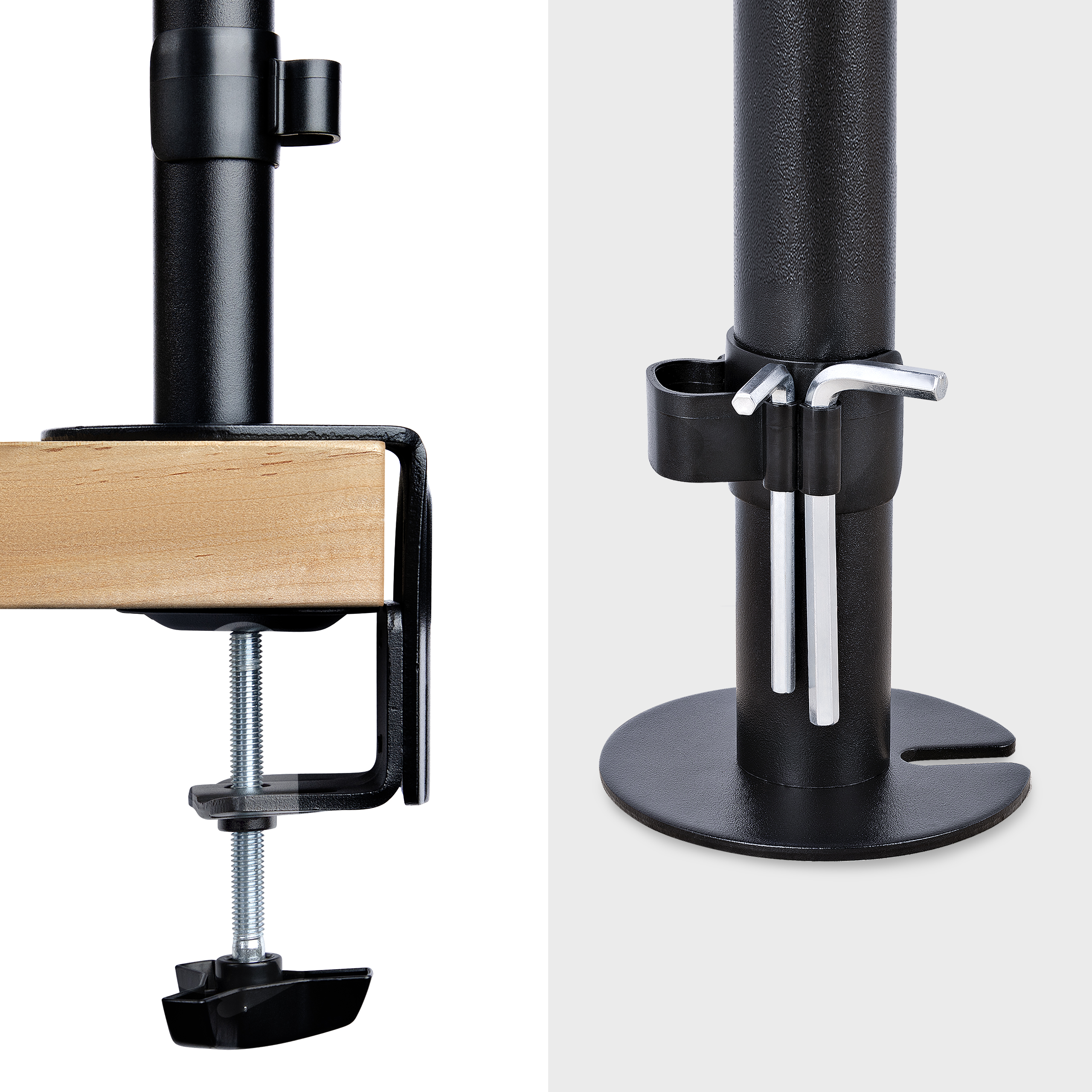

Articulating Yes Cable Management Yes Mounting Options Desk & Grommet Clamp Mounting Surface Thickness Number of Displays 1 VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm

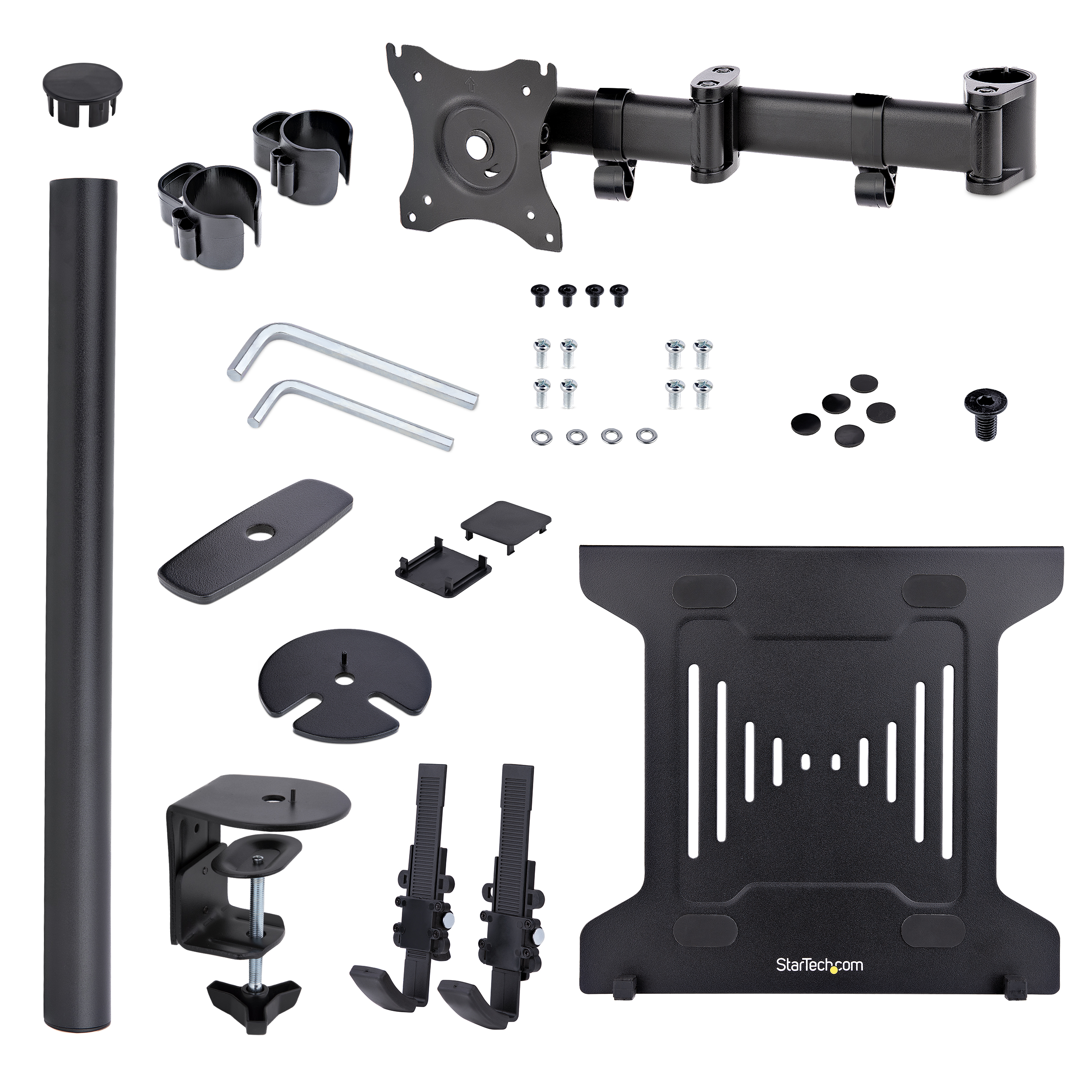

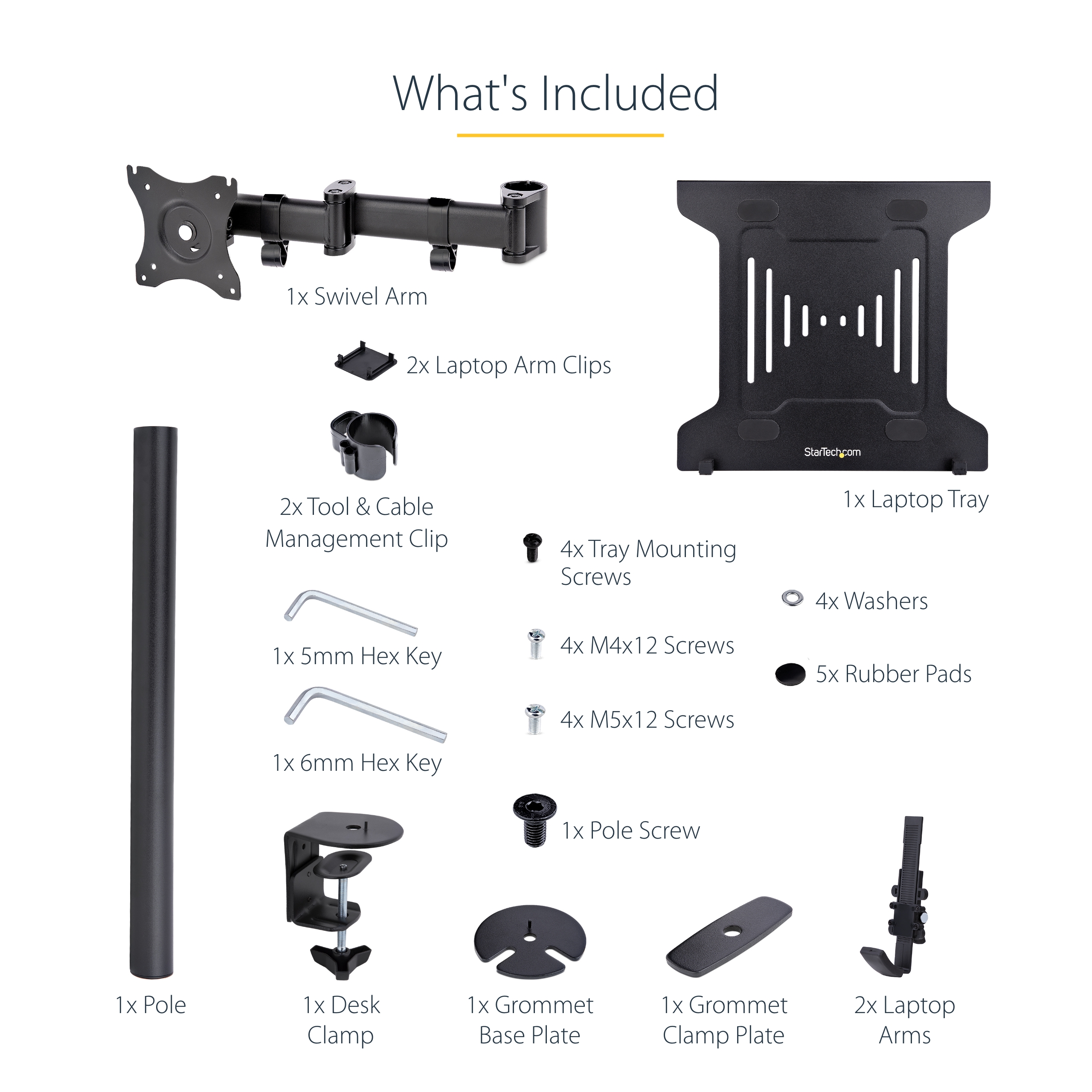

Wallmountable No Carton Depth (mm) 471 Carton Height (mm) 184 Carton Quantity 1 Carton Weight Gross (g) 5182 Included in Package - 1 - Swivel Arm
- 1 - Pole
- 1 - Desk Clamp
- 2 - Cable Management Clips
- 1 - Grommet Base Plate
- 5 - Rubber Pads
- 1 - Pole Screw
- 1 - Grommet Clamp Plate
- 1 - 5mm Hex Key
- 1 - 6mm Hex Key
- 4 - M4x12 Screws
- 4 - M5x12 Screws
- 4 - Washers
- 1 - Laptop Tray
- 2 - Laptop Arms
- 2 - Laptop Arm Clips
- 4 - Tray Mounting Screws
Included In Package for Label - 1 - Laptop Desk Mount Assembly
- 1 - Hardware Kit
- 1 - Product Documentation
Package Depth (mm) 303 Package Height (mm) 173 Package Width (mm) 470 Package Quantity 1 Package Weight (g) 5250 Packaging Description Monitor Mount with Laptop Tray Packaging Description India Monitor Mount with Laptop Tray Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2021-06-24 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2022-07-29 Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,MX,NL,NZ,SE,UK,US Primary Technology None Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-06-18 Target Production Release 2021-06-25 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine
