A2-LAPTOP-DESK-MOUNT
Articulating Monitor and Laptop Dual Articulating Arm Desk M
VESA Mount 75x75/100x100 | Laptop up to 9.4" to 16.5" Wide | Heigh Adjustment
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Name Articulating Monitor and Laptop Dual Articulating Arm Desk M Product Number A2-LAPTOP-DESK-MOUNT UPC 065030895224 Lifecycle status Active Warranty 5 Years Taxonomy Product > Mechanical Products > Ergonomic Furniture Category Level 1 Display Mounts Category Level 2 Workstation Monitor Mounts Category Level 3 Multi-Monitor Desktop Stands Family Combo Monitor/Laptop Mounts Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX050X Product Title (Ultra-Short) Monitor Arm - VESA Product Title (Short) Monitor Arm with Laptop Tray, Adjustable Product Title (Medium) Monitor Arm with VESA Laptop Tray, Adjustable Desk Laptop Arm, C-clamp/Grommet Product Title (Standard) Monitor Arm with VESA Laptop Tray, For a Laptop & Single Display up to 32" (17.6lb/8kg), Adjustable Desk Laptop Arm Mount Product Title (Long) Monitor Arm with VESA Laptop Tray, For a Laptop (4.5kg/9.9lb) and a Single Display up to 32" (17.6lb/8kg), Black, Vented Tray, Adjustable Laptop Arm Mount, C-clamp/Grommet Mount Product Title (AMZ) Monitor Arm with VESA Laptop Tray, For a Single Display up to 32" (17.6lb/8kg), and Laptop up to 9.9lb (4.5kg), Adjustable Monitor Mount with Clamp or Grommet Base Title Ingram (Part 1) Monitor Arm - VESA Laptop Title Ingram (Part 2) Tray - Laptop Arm Mount Website Product Headline VESA Mount 75x75/100x100 | Laptop up to 9.4" to 16.5" Wide | Heigh Adjustment Bullet 1 MONITOR ARM AND LAPTOP TRAY: This black dual-purpose mount allows you to mount a laptop using the ventilated VESA laptop tray and up to a 32" display with basic articulation & height adjustment. Capacity 8kg/17.6lb monitor and 4.5kg/10lb laptop Bullet 2 SECURE LAPTOP MOUNT: Adjustable padded arms secure a laptop (9.4 - 16.5" wide) at different tray angles. Arms can be positioned to avoid blocking laptop ports. Stoppers at the bottom with variable heights (0.5" or 0.9") prevent the laptop from sliding off Bullet 3 RANGE OF MOTION: The laptop tray and monitor VESA mount have a wide range of motion with +/- 45° tilt, +/- 90° swivel, and 360° rotation (portrait/landscape). The desk monitor mount is compatible with VESA mount patterns 75x75 & 100x100mm Bullet 4 RANGE OF ARTICULATION: The height of both arms can be independently positioned and secured along the 17.4in/443mm pole and extend up to 15.71in/399mm from the pole. The arms have joints that allow them to swivel +/-180° Bullet 5 EASE OF INSTALLATION: Interchangeable desk-clamp and grommet monitor mount (both for desks 0.39-3.46in/10-88mm thick) can be tightened by hand. Tools included to adjust tension and height of the desktop monitor arm and laptop arm; Cable mgnt. clips incl. Bullets (Compact) - This black monitor and laptop mount for desk allows fixing a laptop on the VESA laptop tray and up to a 32in display; Capacity 8kg/17.6lb monitor 4.5kg/9.9lb laptop - Adjustable padded arms hold laptop (9.4-16.5in wide) - VESA mount 75x75/100x100 Bullets (Consolidated) MONITOR ARM AND VESA LAPTOP TRAY: Mount a laptop and display up to 32" with basic adjustability. Capacity 17.6lb monitor|10lb laptop; Black - LAPTOP MOUNT: Padded arms secure a laptop 9.4-16.5" wide. Adjust arms not to block laptop ports; Vented tray - RANGE OF MOTION: The laptop tray/monitor mount offer +/- 45DEG tilt +/- 90DEG swivel 360DEG rotation. VESA mount 75x75/100x100 - Arms height is independent along pole (17.4in/443mm) max reach 15.71in/399mm - For desks 0.39-3.46in/10-88mm thick Marketing Copy Marketing Copy (No HTML) Website Search Keyword - monitor arm
- Laptop Arm
- laptop arm mount
- laptop desk mount
- laptop mount
- laptop mount for desk
- laptop tray
- monitor and laptop mount
- monitor desk mount
- Monitor Mount
- vesa desk mount
- vesa laptop tray
- vesa monitor mount
- vesa mount
Required Regulatory Compliance Marks - REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Recycling - Waste - Japan - Plastic Recycling Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - Furniture and Non-EEE
- Temp - N/A - Global - Used to replace duplicates or identify for removal
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement

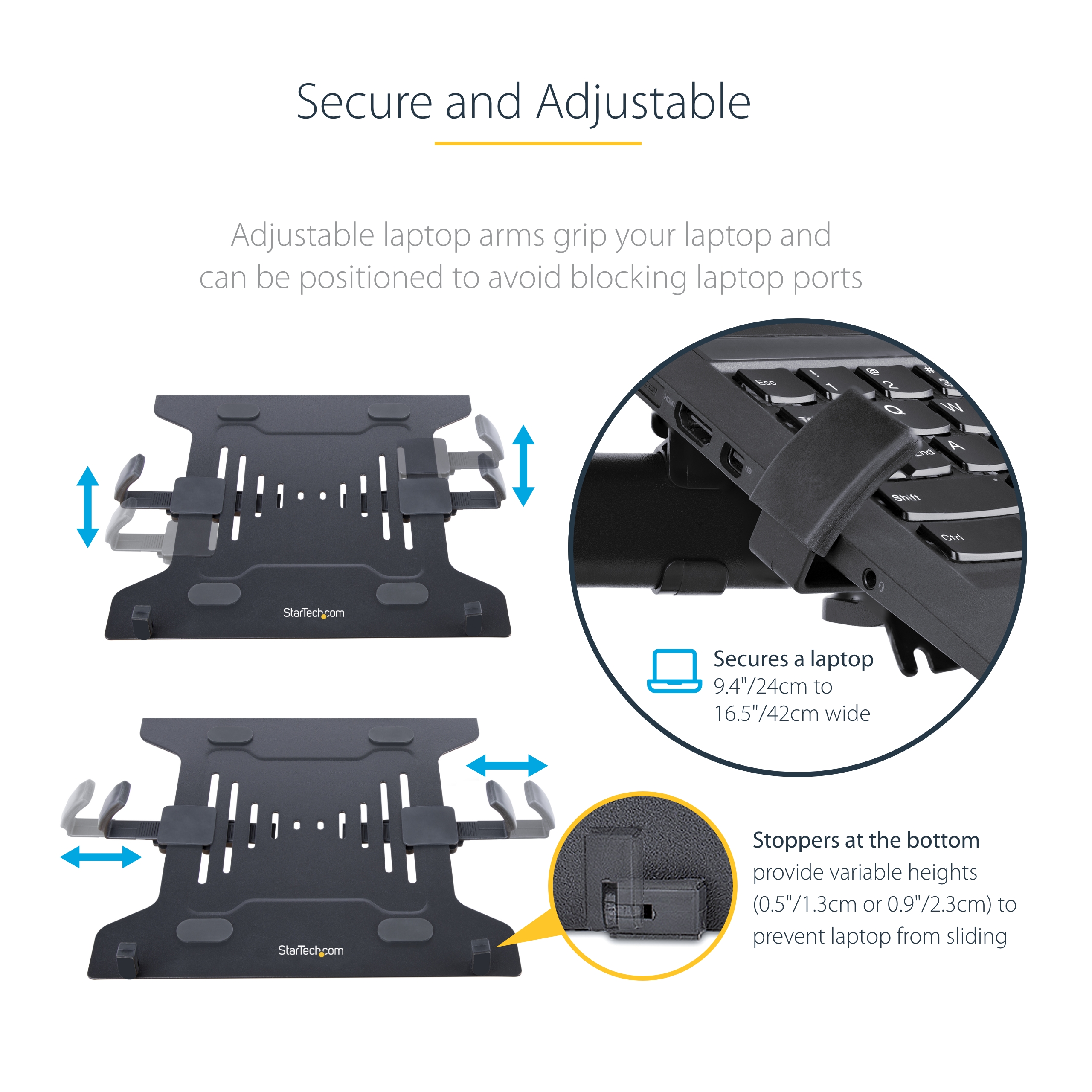

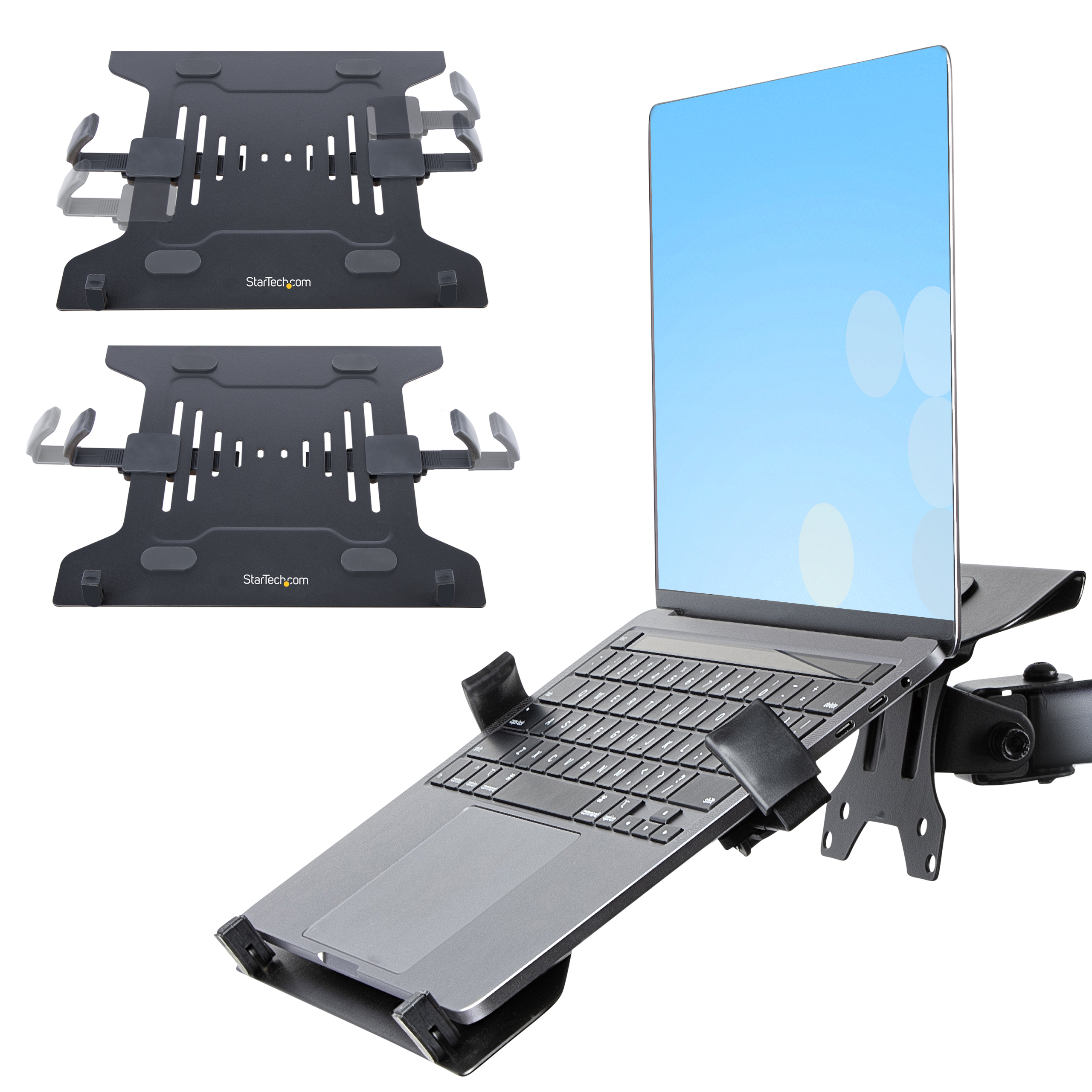

Special Notes The VESA Laptop Tray can be rotated up to 360° when mounted to the arm. It is not recommended to do this as the laptop may fall off at the back of the tray. Accessory Products - PRIVSCNMON21
- PRIVSCNMON24
- PRIVSCNMON27
- HDMI2-CABLE-4K60-6F
- HDMI2-CABLE-4K60-25F
- HDMI2-CABLE-4K60-2M
- HDMI2-CABLE-4K60-7M

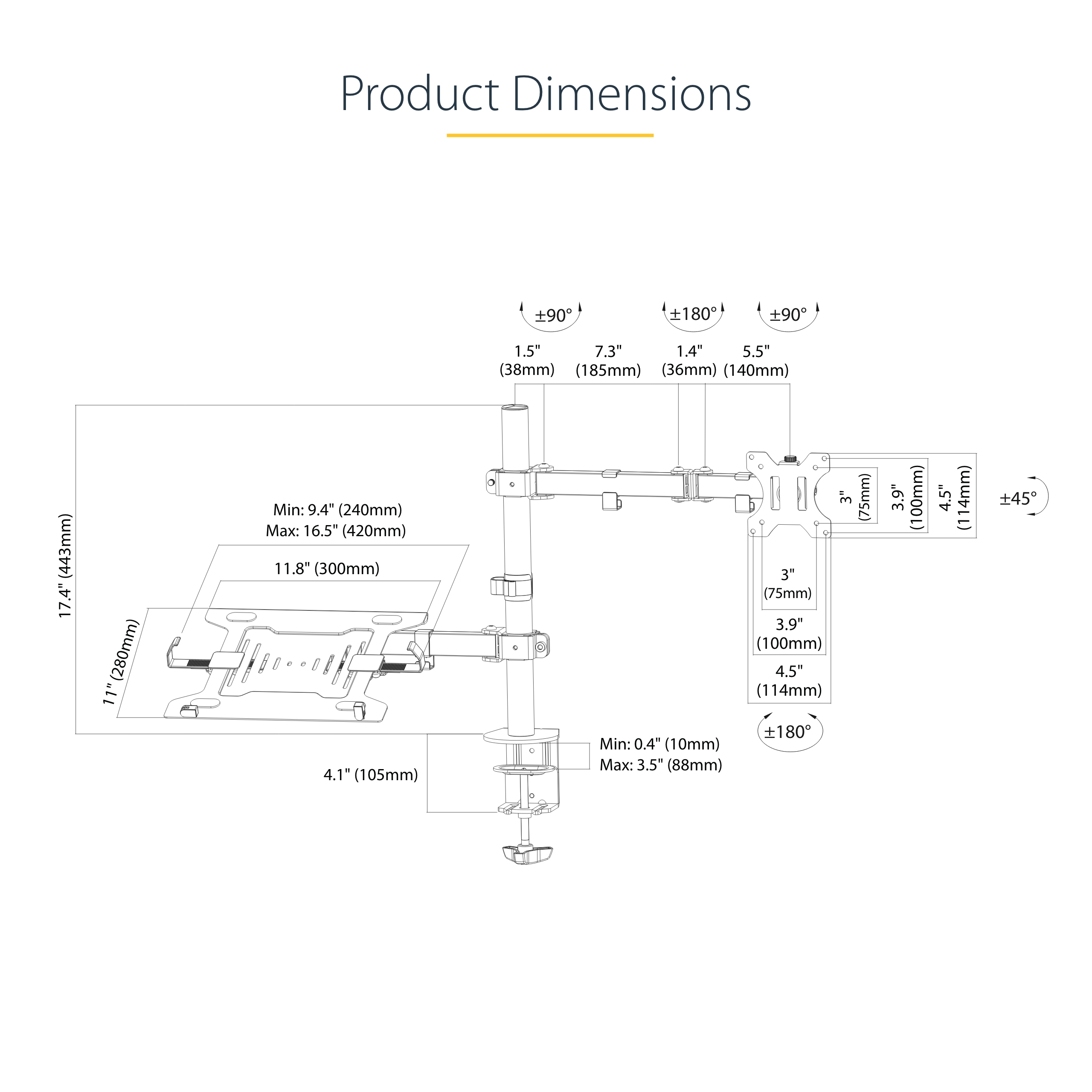

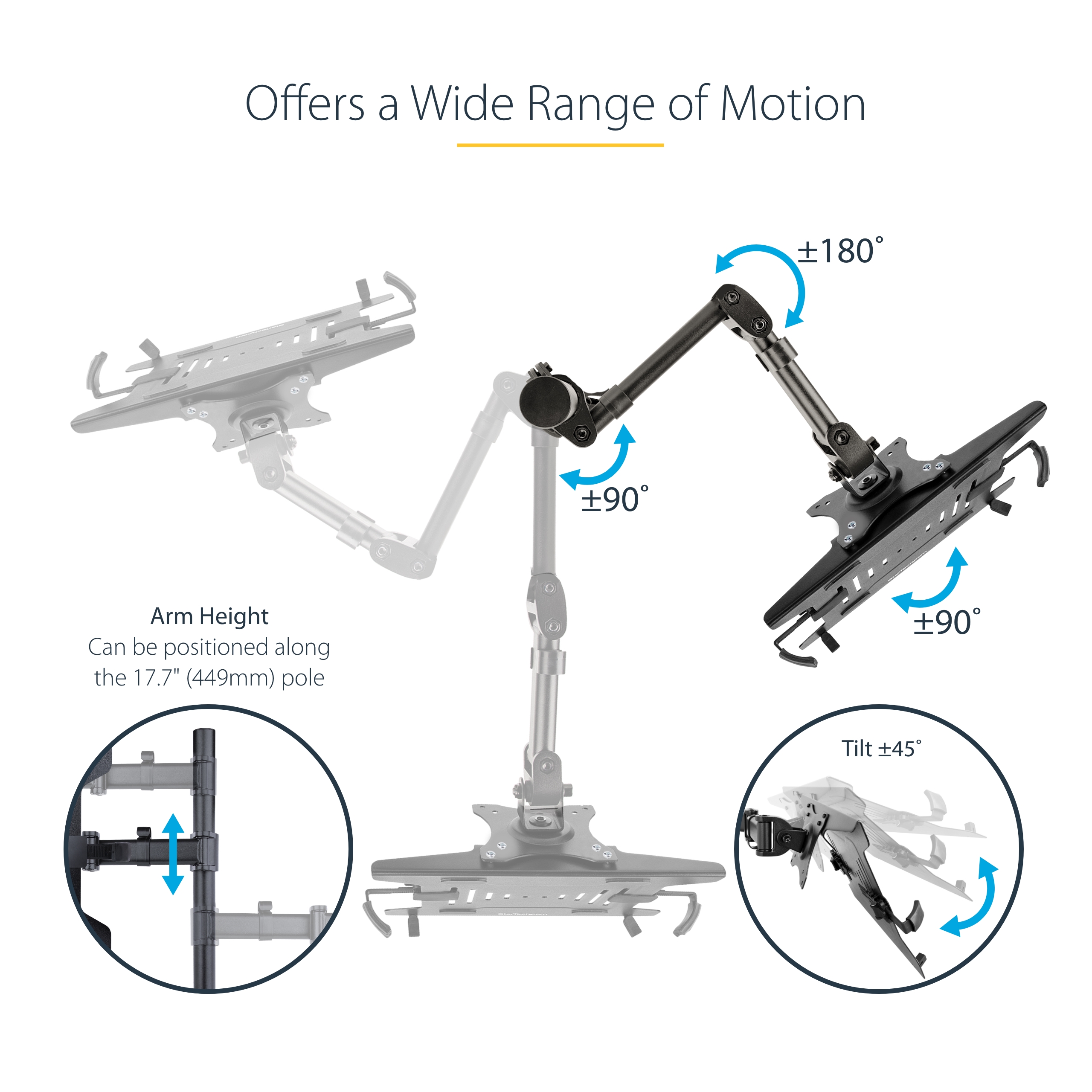

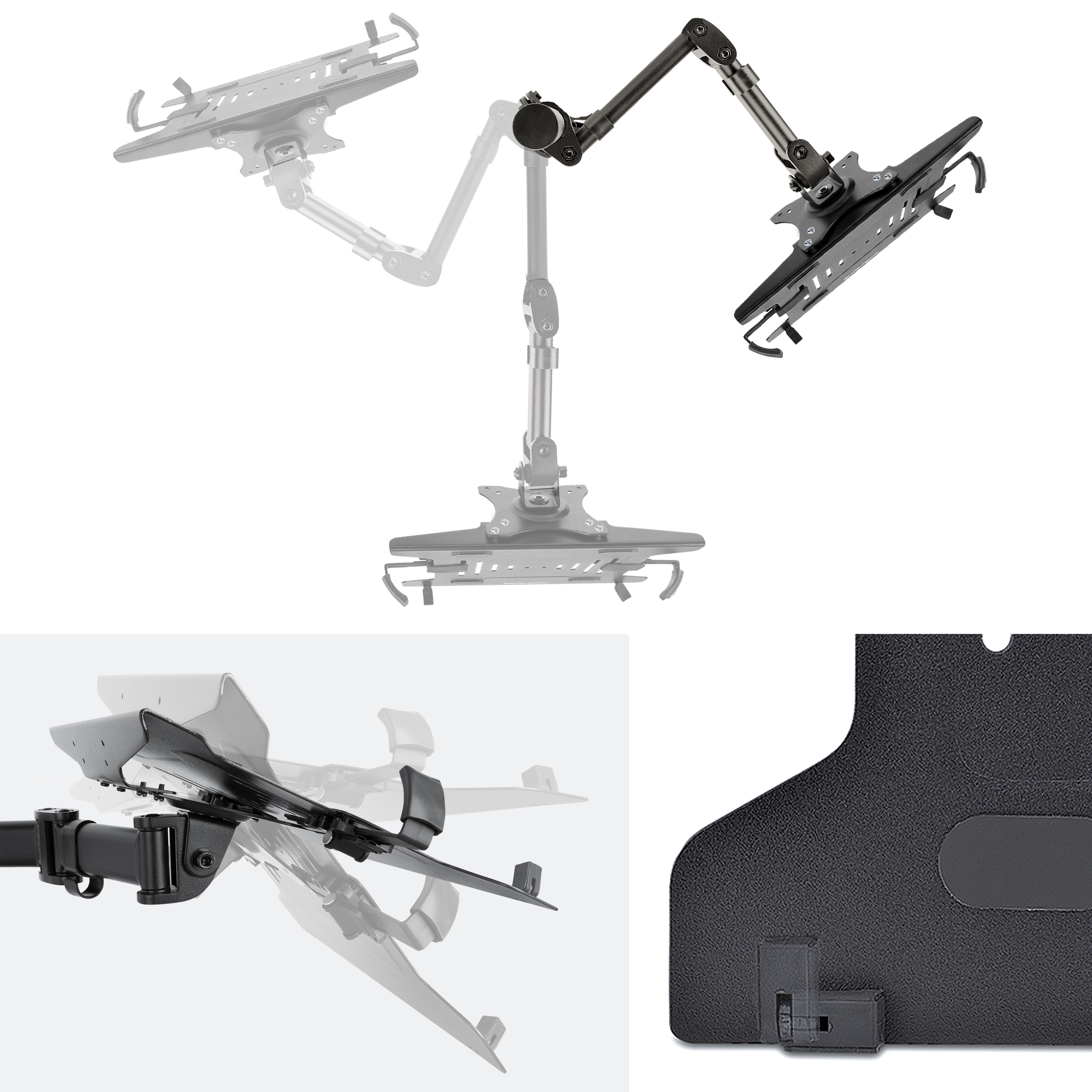

Color Black Material Steel and Plastic Primary Material Steel Product Length (mm) 280.000 Product Width (mm) 876.000 Product Height (mm) 548.000 Product Weight (g) 6100.000 TAA Compliant No Display Rotation 360° Display Swivel +90° / - 90° Display Tilt + 45° / - 45° Height Adjustment Yes Maximum Arm Extension 399 Maximum Display Size 34" Maximum Height (mm) 443 Minimum Display Size 13" Premium Monitor Mount No Projector Mount No Swivel / Pivot 180° Weight Capacity for Display Mounts (g) 8000 Your Monitor Size - Up to 21"
- Up to 24"
- Up to 27"
- Up to 30"
- Up to 32"

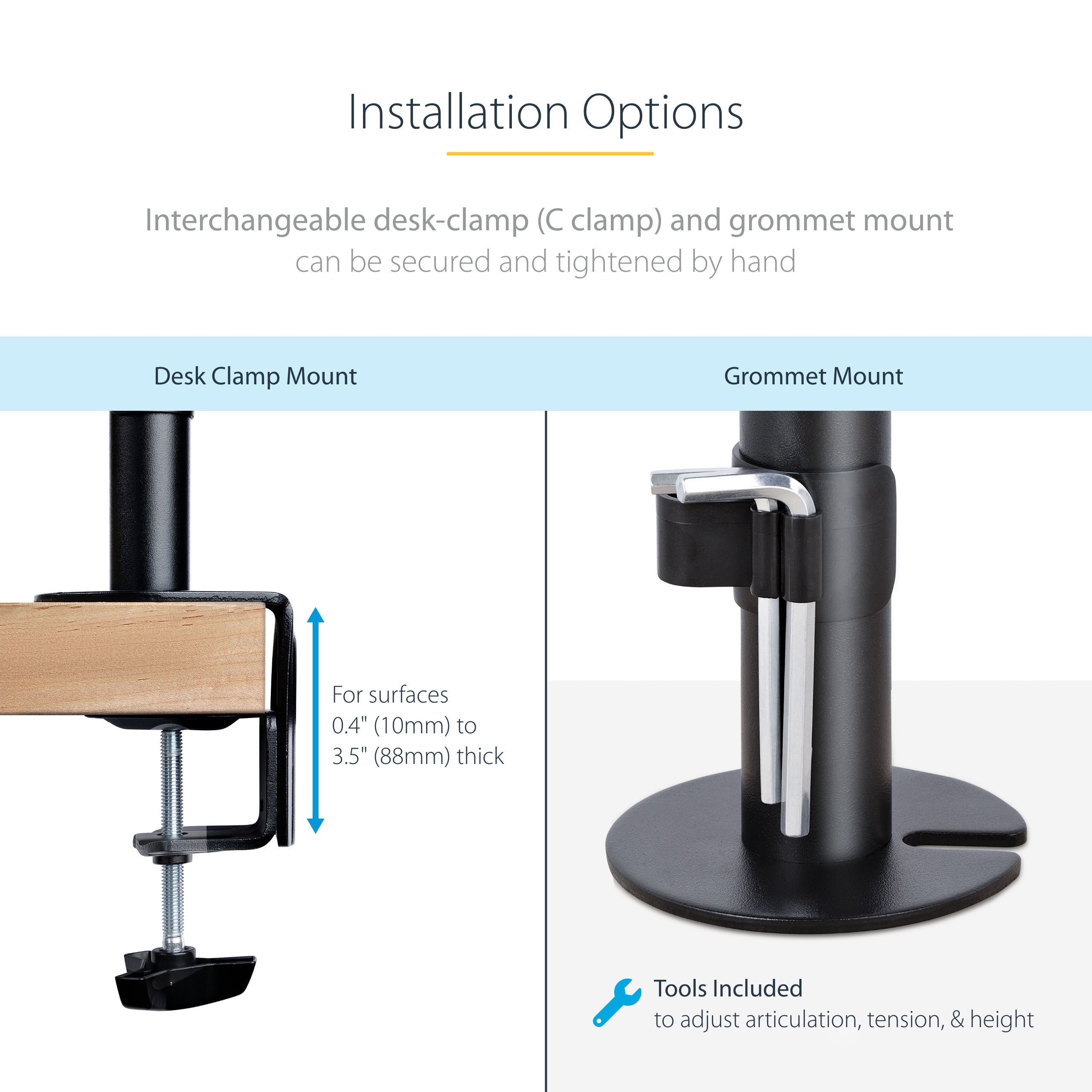

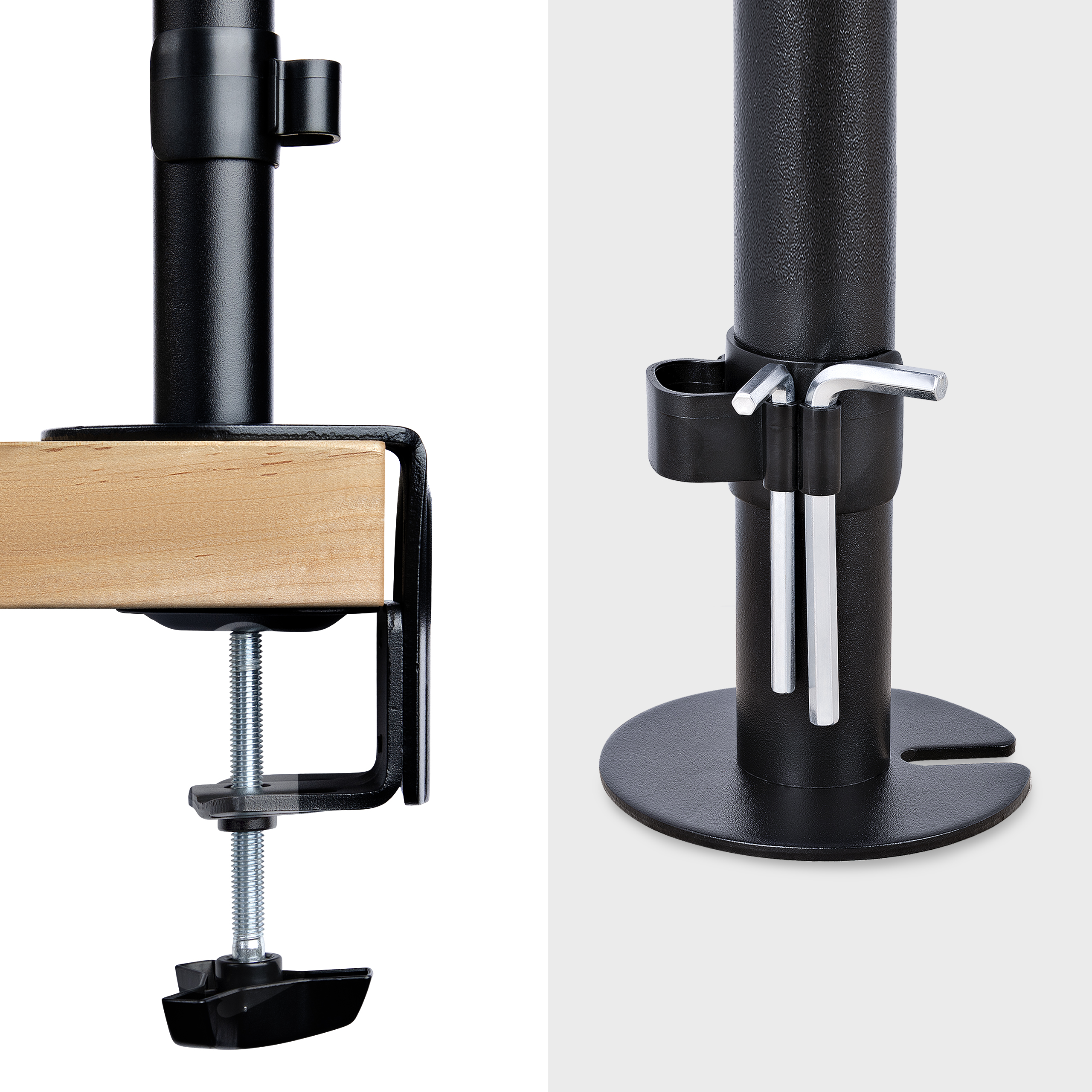

Articulating Yes Cable Management Yes Height Adjustment Method Pole-Mounted Mounting Options Desk & Grommet Clamp Mounting Surface Thickness Number of Displays 1 VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm

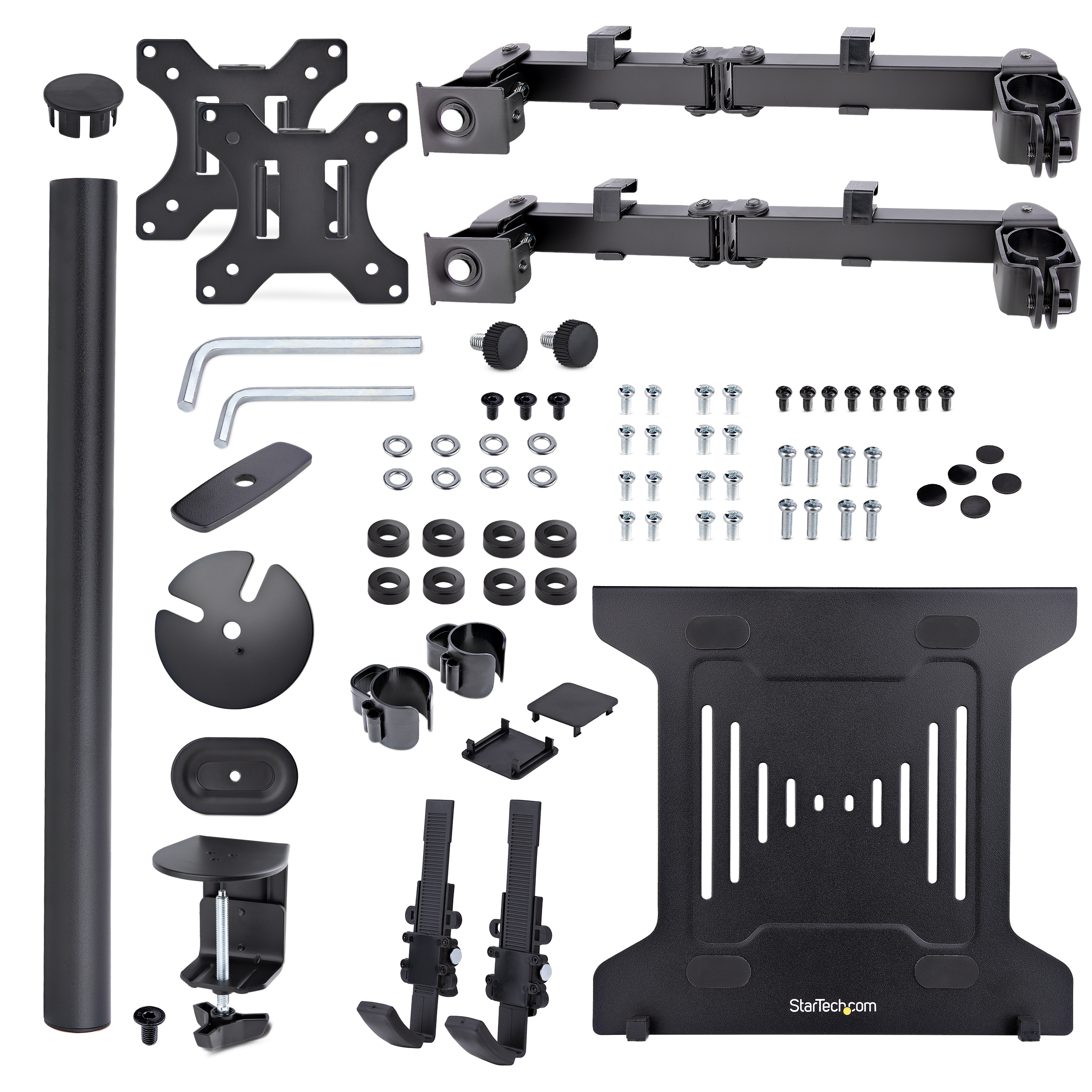

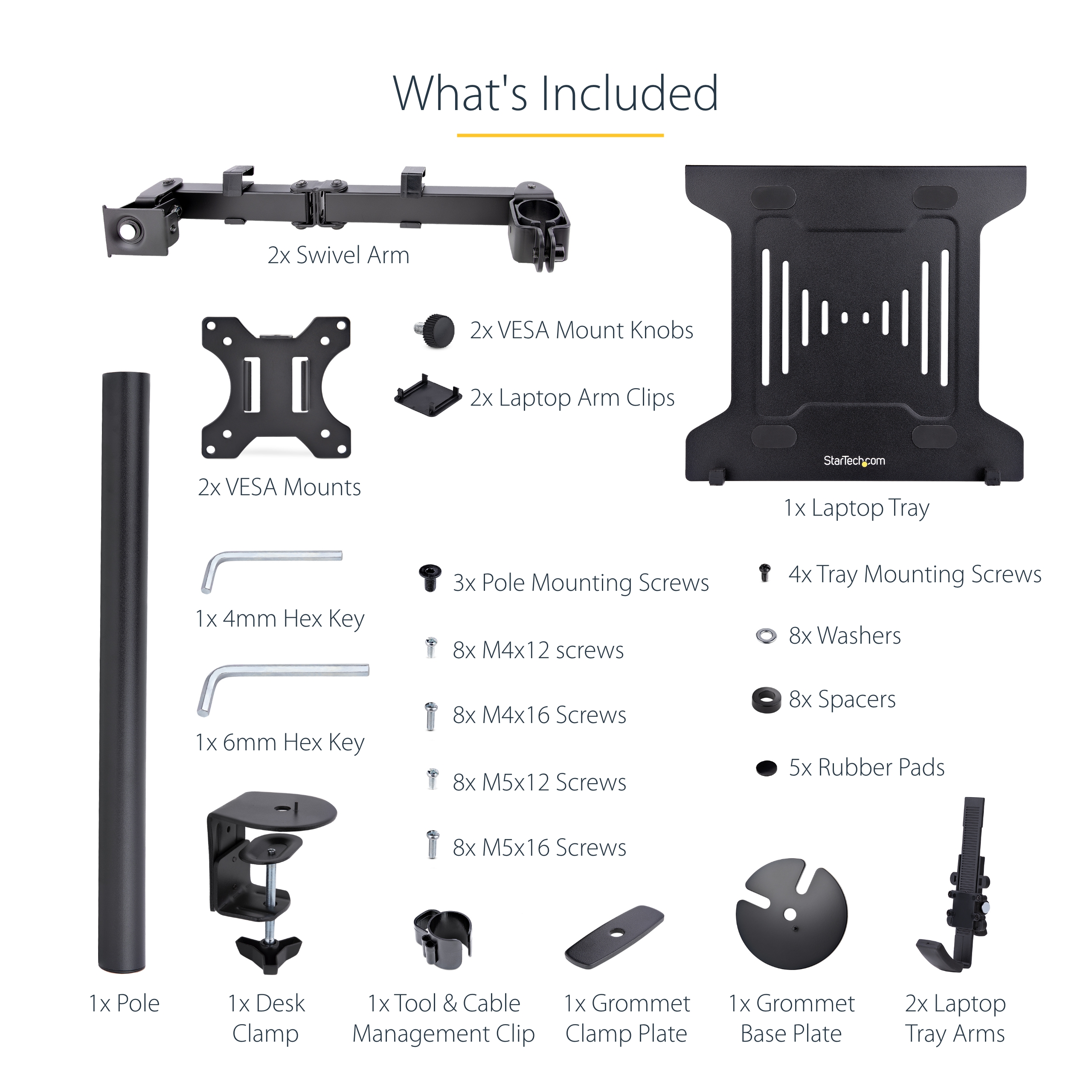

Wallmountable No Carton Depth (mm) 455 Carton Height (mm) 130 Carton Quantity 1 Carton Weight Gross (g) 6100 Included in Package - 2 - VESA mounts
- 2 - Swivel arms
- 1 - Laptop tray
- 2 - Laptop tray arms
- 1 - Desk clamp
- 1 - Pole
- 1 - Pole cap
- 1 - Cable management clip
- 1 - Grommet base plate
- 1 - Grommet clamp plate
- 4 - Laptop tray mounting screws
- 2 - VESA mount knobs
- 5 - Rubber pads
- 3 - Pole mounting screws
- 1 - 4mm hex key
- 1 - 6mm hex key
- 8 - M4x12 screws
- 8 - M4x16 screws
- 8 - M5x12 screws
- 8 - M5x16 screws
- 8 - Washers
- 8 - Spacers
Included In Package for Label - 1 - Laptop Deskmount Assembly
- 1 - Hardware Kit
- 1 - Product Documentation
Package Depth (mm) 460 Package Height (mm) 130 Package Width (mm) 327 Package Quantity 1 Package Weight (g) 6232 Packaging Description Articulating Monitor Arm and Laptop Holder Packaging Description India Articulating Monitor Arm and Laptop Holder Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 A+ Not Required Actual Inbox Documents Created Manual in the box Amazon Merchandising Manager Kristian Haighton Application Photos Uploaded Artwork Due Date 2021-08-12 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute Yes Buying Center - Networking & Edge Yes Digital Content Due Date 2022-07-29 Enhanced Gallery Not Required Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Silkscreened label - requires dieline showing location Launch Markets (concatenated) AU,BE,CA,CH,DE,DK,ES,FI,FR,HK,IE,IN,IT,JP,NL,NZ,SE,UK,US Product Development Specialist Anthony Slater Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Target Development Completion Date 2021-08-06 Target Production Release 2021-08-12 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle Mainstream Vending Machine Not Compatible with Vending Machine Video Required
