A50FBLCSC10

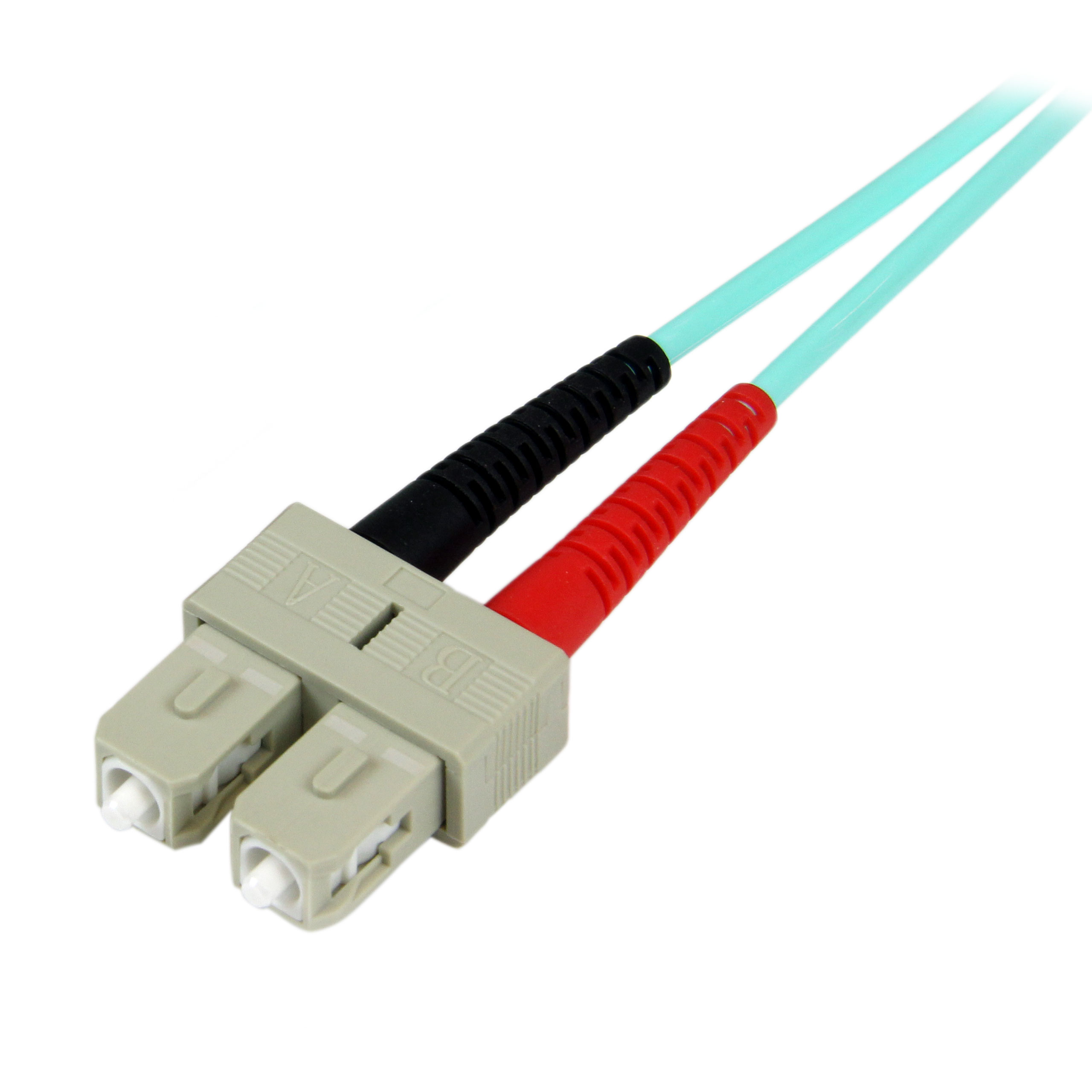

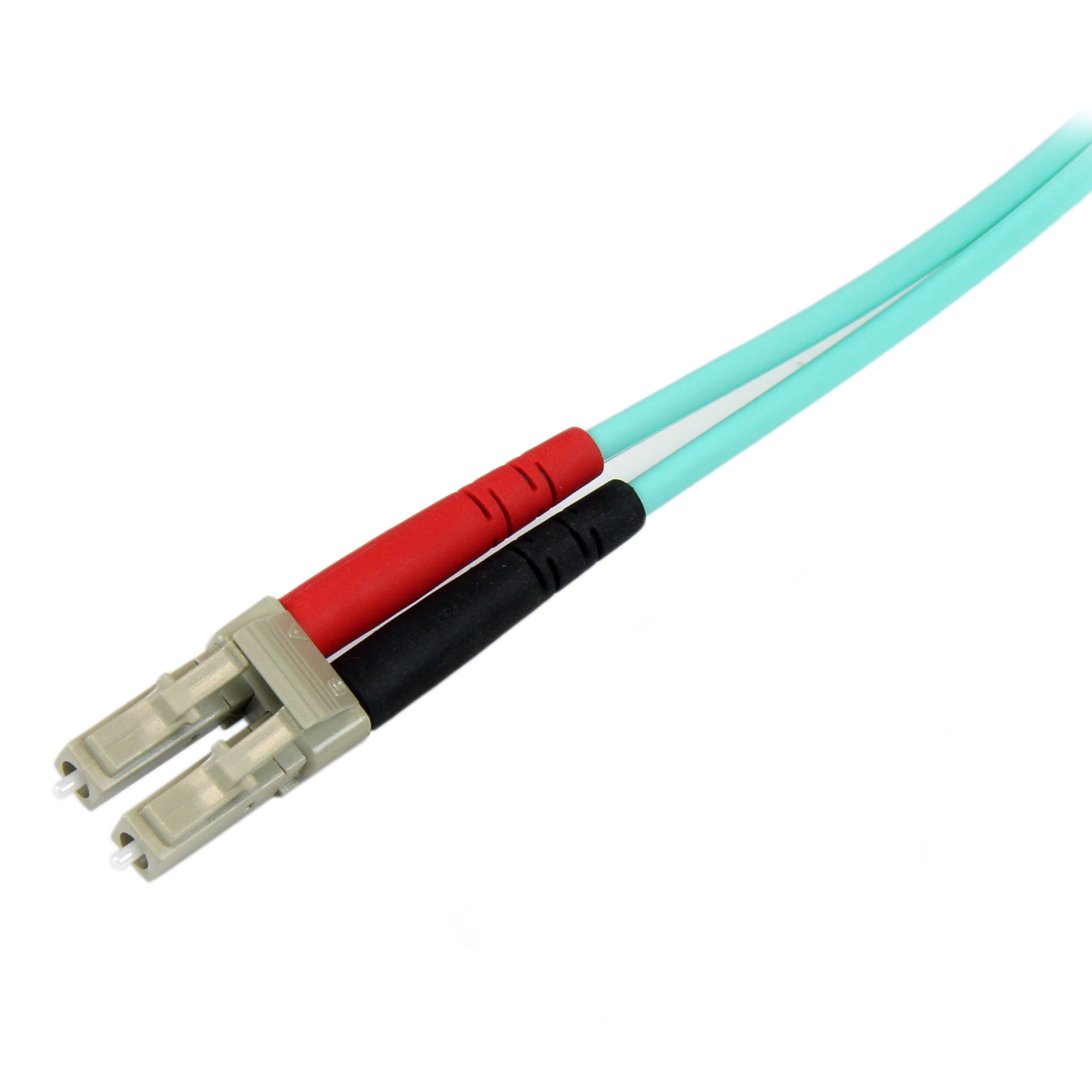

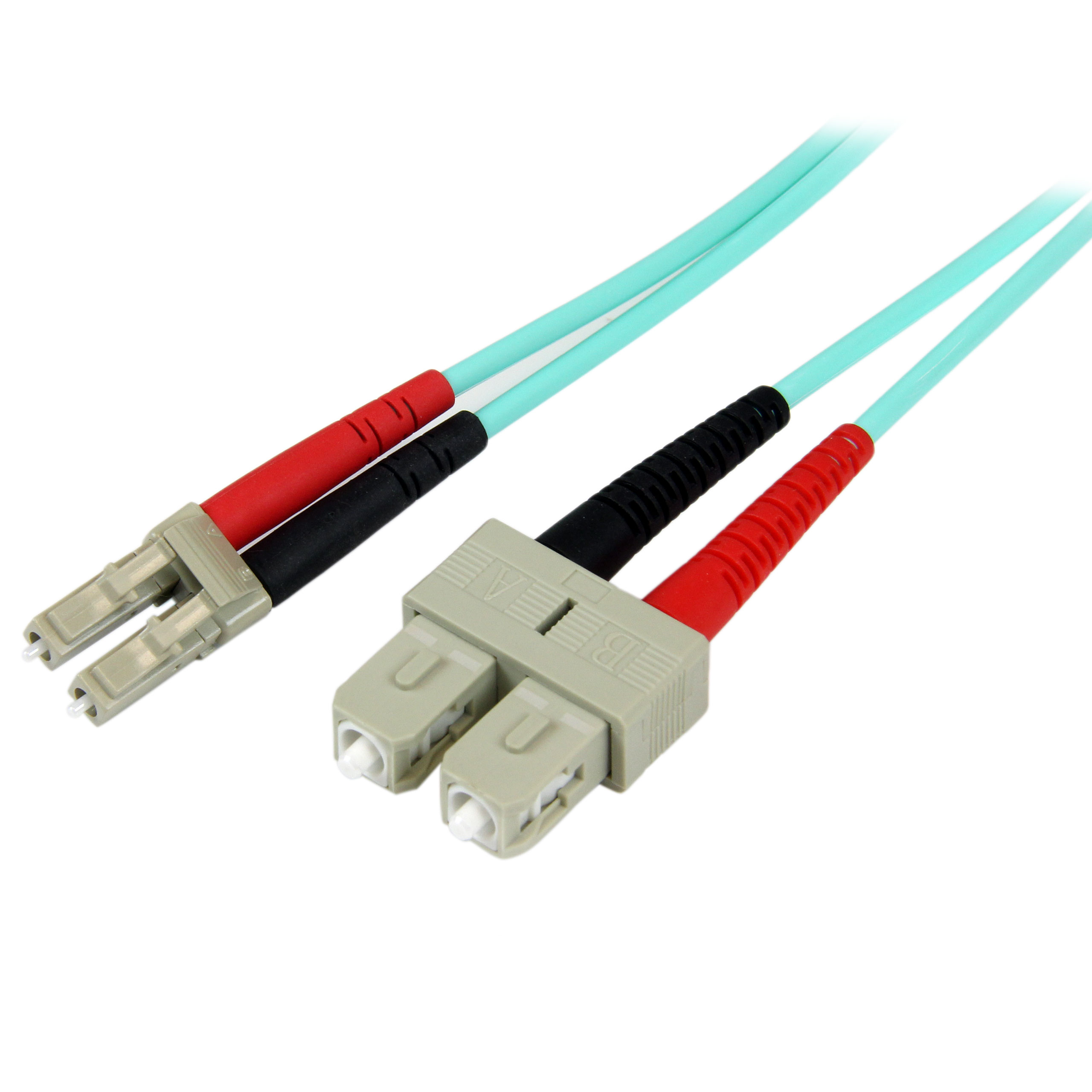

10m 10 Gb LC to SC MM LSZH Aqua Fiber Patch Cable
LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+
Main Image
Product Images
Product Images
Product Name 10m 10 Gb LC to SC MM LSZH Aqua Fiber Patch Cable Product Number A50FBLCSC10 UPC 065030827218 Lifecycle status Active Warranty Lifetime Taxonomy Product > Cables > Fiber Network Cables Category Level 1 Network Cables Category Level 2 Fiber Cables Category Level 3 Multimode OM3 Fiber Cables Family OM3 Fiber Cables Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX079X Product Title (Ultra-Short) OM3 Fiber Patch Cord Product Title (Short) 10m OM3 Multimode Fiber Cable, LC/SC UPC Product Title (Medium) 10m (30ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex Product Title (Standard) 10m (30ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125 Zipcord, 100G, LSZH Fiber Jumper Cord Product Title (Long) 10m (30ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125µm Zipcord Fiber Cable, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord Product Title (AMZ) 10m (30ft) LC/UPC to SC/UPC OM3 Multimode Fiber Optic Cable, Full Duplex 50/125, 100G, LSZH Fiber Jumper Cord Title Ingram (Part 1) 10m 10 Gb LC to SC LSZH Aqua Title Ingram (Part 2) Fiber Cable MM 50/125 Duplex Website Product Headline LSZH Jacket | Aramid Fiber Sheath | Ideal for SANs, data servers, SFP+ Bullet 1 OM3 FIBER CABLE: OM3 Laser-Optimized Multimode Fiber Cable delivers up to 100 Gbps Ethernet; Full-duplex zip-cord with color-coded TX/RX connectors for cabling servers and Storage Area Networks (SANs) Bullet 2 QUALITY CONSTRUCTION: 50/125µm fiber core/cladding is immune to EMI; Protective Aramid fiber sheath for improved tensile strength and crush resistance; LC/SC connectors with UPC polished ceramic ferrules for insertion loss below 0.3dB Bullet 3 RATINGS AND RELIABILITY: Individually tested for signal integrity; LSZH jacket emits low-smoke and fumes in case of fire; TIA/EIA compliant fiber core; Attenuation value under 2.3dB/km meets or exceeds industry standards Bullet 4 COMPATIBILITY: OM3 LC/SC multimode cable supports 1/10/40/100 Gbps for high-density network applications such as SANs, data servers, SFP+ and QSFP+ connections over 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, and 100GBASE-SR10; Backward compatible with OM2 Bullet 5 SPECS: 10m (33ft); Color: Aqua (OM3); LC/SC UPC; 850nm or 1300nm LED/VCSEL; Modal Bandwidth: ≥2000MHz·km at 850nm; Cable OD: 2.9mm; Bend Radius: Static 1.2in (3cm), Dynamic 2.4in (6cm); Backed for Life Bullets (Compact) 10m (33ft) OM3 Multimode LC/SC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL source; Outer Diameter: 2.9mm; Jacket Material: LSZH; Temp Range: -20 to 60°C (-4 to 140°F) Bullets (Consolidated) 10m (33ft) OM3 LC/SC UPC OM3 LOMMF cable supporting 1/10/40/100 Gbps full-duplex connections - Cable individually tested for signal integrity | Ideal for high-bandwidth multimode transmissions between servers and Storage Area Networks (SANs) - 50/125µm fiber core/cladding w/Aramid sheath | Optimized for >=2000MHz·km at 850nm w/ VCSEL source - Core Diameter: 50/125µm | Cord O.D.: 2.9mm | Jacket Material: LSZH | Temperature Range: -20 to 60DEG C (-4 to 140DEG F) Marketing Copy Applications - Used in 10 Gigabit high speed network environments
- Telecommunication / Data communication
- Broadband systems
- Ideal solution for data applications requiring high speed data transmission
Website Search Keyword - Aqua
- Fiber Cable
- 50/125
- Multimode
- LC to SC
- Gigabit
- N816-10M
Required Regulatory Compliance Marks - CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- UKCA - Environmental - United Kingdom - UK Restriction of Hazardous Substances (RoHS) 2012
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- TSCA - Environmental - United States - EPA TSCA Title VI Compliant
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Product - Waste - European Union - EEE Device
- Triman/Info-Tri - Packaging - Waste - European Union - Plastic Bag
- EU RIC + Italian Sorting - Packaging - Waste - European Union - Plastic - Low-Density Polyethylene
Related Products - A50FBLCSC1
- A50FBLCSC2
- A50FBLCSC5
Cable Length (mm) 10000 Cable OD 3 Color Aqua Humidity 0~90% RH Operating Temperature -20°C to 60°C (-4°F to 140°F) Primary Material Plastic Product Length (mm) 10000.000 Product Width (mm) 0.000 Product Height (mm) 0.000 Product Weight (g) 134 Storage Temperature -20°C to 60°C (-4°F to 140°F) TAA Compliant No Cable Rating 1Gbps / 10Gbps / 40Gbps / 100Gbps Fiber Type Multi Mode Maximum Data Transfer Rate 100Gbps Wavelength 850nm Cable Jacket Material Low Smoke Zero Halogen Classification OM3 Fiber Cable Type Duplex Fiber Classification OM3 Fiber Size 50/125 Fire Rating LSZH Rated (Low Smoke Zero Halogen) Amount of recycled material in plastic packaging At Least 30% Carton Depth (mm) 406 Carton Height (mm) 440 Carton Quantity 80 Carton Weight Gross (g) 13718 Included in Package 1 - 10m 10 Gb Aqua Multimode 50/125 Duplex LSZH Fiber Patch Cable LC - SC Package Depth (mm) 197 Package Height (mm) 34 Package Width (mm) 167 Package Quantity 1 Package Weight (g) 144 Packaging Description 10Gb Multimode 50/125 Duplex Fiber Patch Cable Packaging Description India 10Gb Multimode 50/125 Duplex Fiber Patch Cable Sub-Carton Depth (mm) 197 Sub-Carton Height (mm) 214 Sub-Carton Width (mm) 203 Sub-Carton Weight (g) 1548 Connector 1 LC Duplex Fiber Connector 1 (Quantity) 1 Connector 2 SC Duplex Fiber Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-06-18 Buying Center - AV & Collaboration No Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AU,CA,CO,JP,NZ,SG,US Primary Technology None Product Development Specialist Brian Ha Product Information Creation Specialist (PICS) Brian Chan Product Manager Tim North Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Tech Lead Justin Weaver Technical Writer Brian Chan Technology Lifecycle Mainstream
