AF212C-POE-INJECTOR
1 Port 802 3at 30W 2 5G PoE Injector
Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Video Link YouTube
Product Name 1 Port 802 3at 30W 2 5G PoE Injector Product Number AF212C-POE-INJECTOR UPC 065030905787 Lifecycle status Active Warranty 2 Years Weighted Opportunity 16297 Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX128X Product Title (Ultra-Short) 1-Port PoE+ Injector Product Title (Short) 1-Port 2.5GbE PoE/PoE+ Injector, 30W Product Title (Medium) 1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+, Midpsan, 30W Product Title (Standard) 1-Port 2.5GbE PoE+ Injector, Multi-Gigabit 10M/100M/1G/2.5G Ethernet, Midspan PoE/PoE+ (802.3af/802.3at), 30W, Unmanaged, TAA Product Title (Long) 1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+ 802.3af/802.3at, 30W, Multi-Gigabit Unmanaged Midspan Inline Power Over Ethernet, TAA Product Title (AMZ) 1-Port 2.5GbE PoE+ Injector, 10M/100M/1G/2.5G Ethernet, PoE/PoE+ (802.3af/802.3at), Multi-Gigabit, Midspan, 30W, TAA Title Ingram (Part 1) 1-Port PoE/PoE+ Injector 30W - Title Ingram (Part 2) 10M/100M/1G/2.5G Ethernet Website Product Headline Supply power and data to a remote Powered Device (PD) with this PoE/PoE+ injector Bullet 1 2.5GbE POE INJECTOR: Multi-gigabit single port midspan PoE+ injector supports up to 2.5Gbps with auto-negotiation; TAA-compliant Power Sourcing Equipment supports up to 30W PoE/PoE+; Features level-4 ESD protection for reliable performance and durability Bullet 2 NETWORK FLEXABILITY: Auto-negotiation between 2.5Gbps & 10/100/1000Mbps Ethernet; Deliver data/power to PoE devices up to 328ft/100m w/Cat5/5e/6/6a cabling; Unmanaged inline injector w/built-in LAN transformer for electrical isolation; 2K surge protection Bullet 3 HASSLE-FREE INSTALLATION: Integrated anchor points for surface mounting; Streamline deployment without additional software/settings; Connect the PoE injector to the network (e.g., switch or router) & the remote PD via standard Cat5/e or Cat6/6a cabling Bullet 4 APPLICATIONS: Enable data & power over a single RJ45 connection in high end enterprise access points such as high resolution IP cameras; Maintain existing network infrastructure while adding PoE functionality to support remote devices Bullet 5 TECH SPECS: x2 RJ45 ports (data/data+power); 54VDC 0.6A output; 30W max output; Compliant with IEEE 802.3af and 802.3at; 10M/100M/1G/2.5G with auto negotiation; WoL/PXE/9K jumbo frames; Wall mountable; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm) Bullets (Compact) 1-Port 2.5GbE PoE+ injector - Unmanaged inline midspan injector supports PoE/PoE+ (802.3af/802.3at) up to 30 Watts - Multi-gigabit PoE plus injector (10M/100M/1G/2.5G) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - Wall Mountable Bullets (Consolidated) - Single port multi-gigabit unmanaged PoE+ injector supports 2.5GbE and 10M/100M/1G/2.5G Ethernet - Up to 30W PoE/PoE+ (802.3af/802.3at) output to a remote powered device - Extend power and Gigabit data at distances of up to 100m over Cat5/5e/6/6a - Features network multi-speed auto-negotiation (10M/100M/1G/2.5G); Surge protection up to 2Kv; No software/drivers required - Inline midspan injector is ideal for powering remote IP devices; Integrated anchor points for surface and wall mounting Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - AS445C-POE-INJECTOR
- POEINJ30W
- POEINJ1G90W
- POEINJ1G
- PR12GIP-NETWORK-CARD
- ST1000PEXPSE
- AF211C-POE-INJECTOR
Input Current 0.8 A Input Voltage 100 - 240 AC Output Current 0.6 A Output Voltage (V) 54 DC Power Consumption (In Watts) 32.4 Power Source Standard 120V Power Cords Color Black Humidity 5~95% RH (Non-Condensing) Material Plastic Operating Temperature 32°F to 122°F (0°C to 50°C) Primary Material Plastic Product Length (mm) 100.000 Product Width (mm) 58.400 Product Height (mm) 33.400 Product Weight (g) 100.000 Storage Temperature 14°F to 158°F (-10°C to 70°C) TAA Compliant Yes Auto MDIX Yes Compatible Networks 2.5G/1G/100Mbps/10Mbps ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)
Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 2.5 Gbps OS Compatibility OS Independent PXE Yes Supported Protocols Wake-on-LAN (WoL) Total Available Power Output (In Watts) 30W Wake-On-LAN (WOL) Yes Chipset ID Monolithic Power Systems - MP3924 Ethernet Port Yes Industry Standards - IEEE 802.3at Type 2 / PoE+ (30 W)
- IEEE 802.3af Type 1 / PoE (15.4 W)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3i (10BASE-T)
- IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air)
- IEEE 802.3bz (2.5GBASE-T)

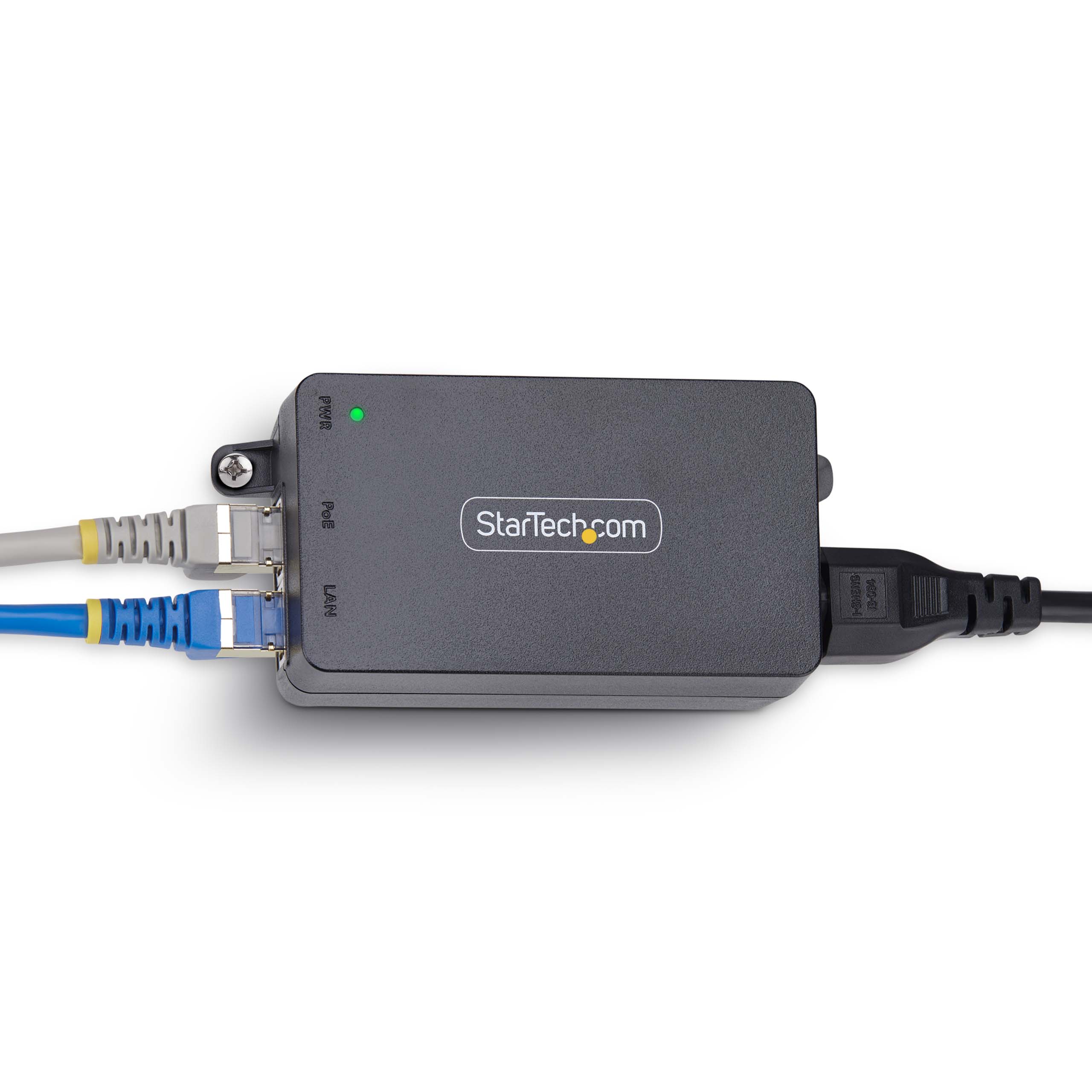

LED Indicators 1 - Power LED: </br> Steady Green - Power is being supplied to the PoE Injector </br> Off - No power is being supplied to the PoE Injector Mounting Options Surface Mount Carton Depth (mm) 520 Carton Height (mm) 455 Carton Quantity 40 Carton Weight Gross (g) 16650 Included in Package - 1 - PoE Injector

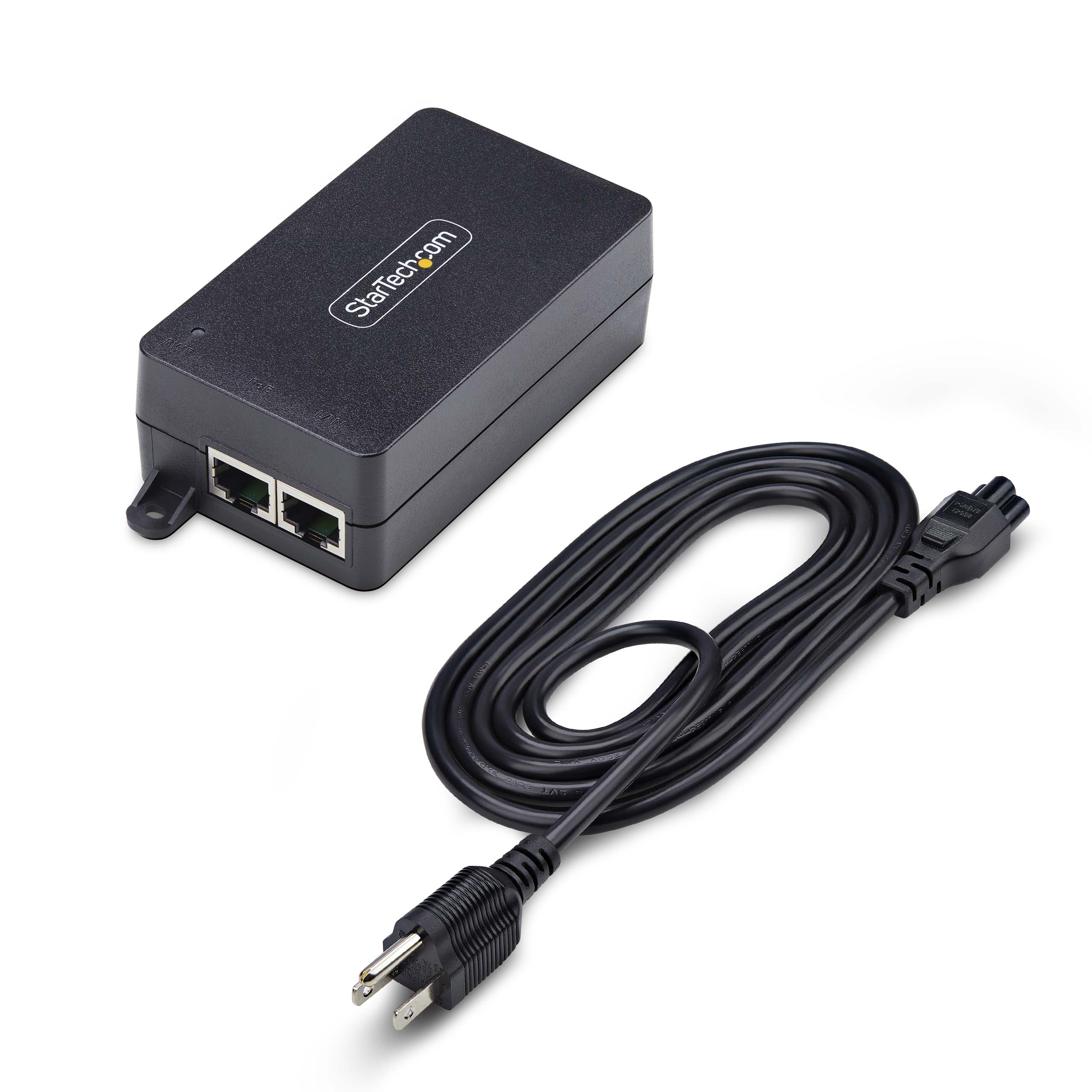

- 1 - 6ft (1.8m) NA Power Cord
- 1 - Quick-Start Guide

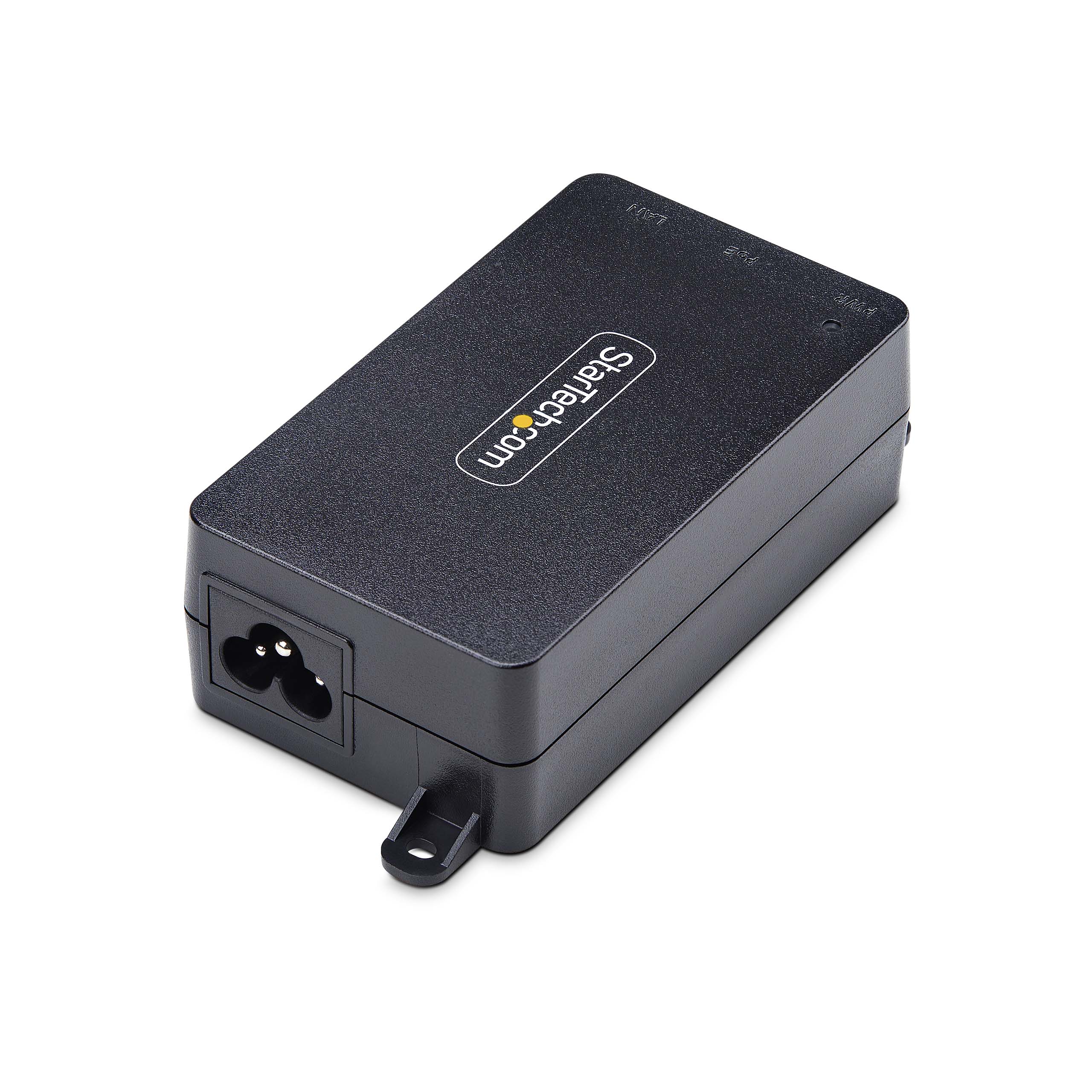

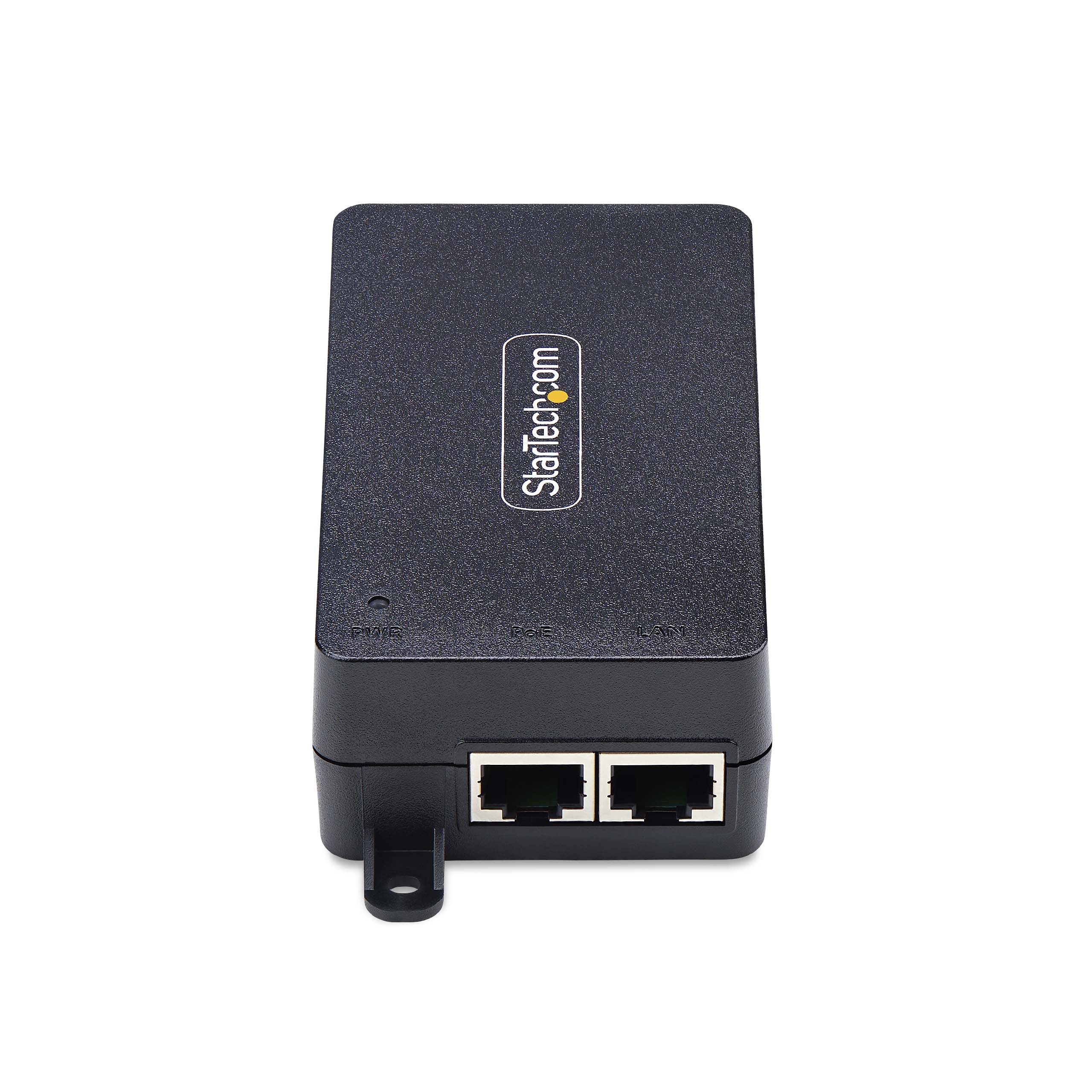

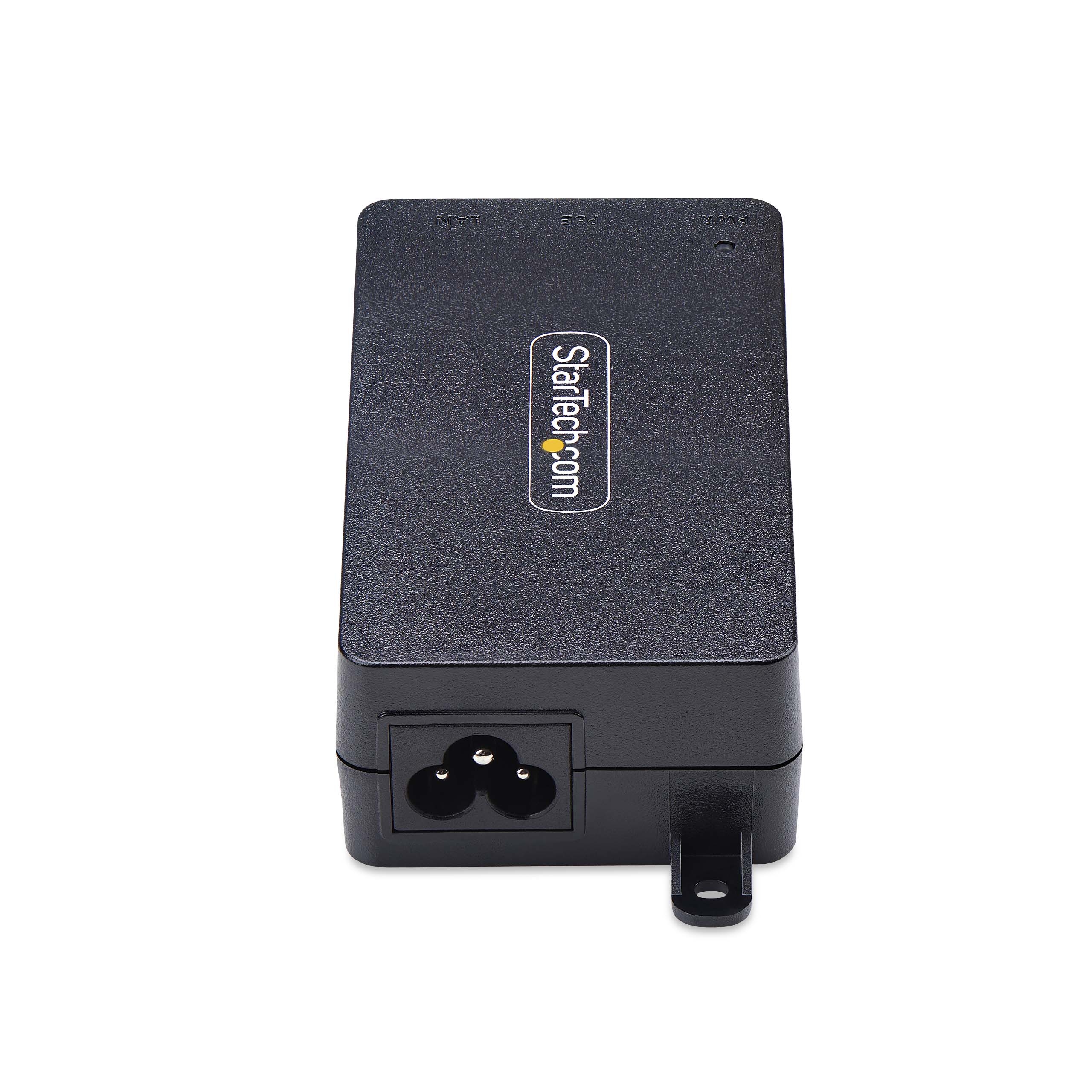

Package Depth (mm) 124 Package Height (mm) 50.5 Package Width (mm) 210 Package Weight (g) 364 Packaging Description 1-Port 802.3at 30W 2.5Gbps PoE+ Injector Packaging Description India 1-Port 802.3at 30W 2.5Gbps PoE+ Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 IEC C6 (250V AC, 2.5A) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 RJ-45 Connector 3 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-01-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 1-port 1G 802.3at PoE Injector Comparable SKU 2 Comment Industrial 802.3at Gigabit PoE injector Digital Content Due Date 2024-05-01 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2023-11-30 Target Production Release 2024-01-15 Tech Lead Stefan Tirolese Technical Writer Dan Dagenais Technology Lifecycle None Video Not Required
