AF221C-POE-INJECTOR
2 Port 802 3at 2 x 30W Gigabit PoE Injector NA Version
Supply power and data to two PoE devices over standard Ethernet cabling
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 2 Port 802 3at 2 x 30W Gigabit PoE Injector NA Version Product Number AF221C-POE-INJECTOR UPC 065030900911 Lifecycle status Active Warranty 2 Years Weighted Opportunity 50855 Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Malaysia Country of Origin North America Malaysia Country of Origin History (1) Malaysia Country of Origin Revision (1) XXXXXX156X Product Title (Ultra-Short) 2-Port PoE+ Injector Product Title (Short) 2-Port Multi-Gigabit PoE/PoE++ Injector Product Title (Medium) 2-Port Midspan PoE+ Injector, 10M/100M/1000M/1G Ethernet, PoE+, 30W (802.3af/at) Product Title (Standard) 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/802.3at), 30 Watt, 1Gbps Ethernet, Wall Mountable, Unmanaged Product Title (Long) 2-Port Gigabit Midspan PoE+ Injector, 10/100/1000Mbps, PoE+ (802.3af/at), 30W, 1Gbps Ethernet, Wall Mountable, Unmanaged Inline Power Over Ethernet Product Title (AMZ) 2-Port PoE+ Injector, 10/100/1000Mbps, PoE/PoE+ (802.3af/at), 4x 10/100/1000BASE-T RJ45, 30W, Wall Mountable Title Ingram (Part 1) 2-Port PoE++ Injector 30W - Title Ingram (Part 2) 802.3af/at, 10M/100M/1000M Website Product Headline Supply power and data to two PoE devices over standard Ethernet cabling Bullet 1 TWO-PORT POE+ INJECTOR: Power Sourcing Equipment provides up to 30W PoE/PoE+ and 1Gbps to two Powered devices; Level-4 ESD protection (15kV air and 8kV contact) and LAN transformer enhance device safety and maintain signal quality with reduced EMI Bullet 2 NETWORK COMPATIBILITY: Auto-negotiation between 10/100/1000Mbps; Deliver data and power to up to two Powered Devices (PDs) up to 328ft (100m) with Cat5/5e/6/6a cabling; Surge protection up to 2kV Bullet 3 HASSLE-FREE INSTALLATION: Wall-mountable w/front facing mounting ears and screw holes molded into the housing; Streamline deployment without additional software; Connect the PoE injector to the network (switch/router)/remote PD via standard cabling Bullet 4 APPLICATIONS: Provides more power and bandwidth over 2x RJ45 interfaces to demanding PoE devices such as IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points; Compatible w/1000Base-T/100Base-TX/10Base-T Ethernet Bullet 5 TECH SPECS: 4x RJ45 ports (2x data input, 2x data output + power); 30W max output, 52V 0.580A output per port; Compliant with IEEE 802.3af and IEEE 802.3at; 10/100/1000Mbps & 1Gbps; 9K jumbo frames; Dimensions 3.2x1x1.8-inch(82x25x46mm) Bullets (Compact) 2-Port multi-speed PoE+ injector; Unmanaged inline injector supports PoE/PoE+ (802.3af/802.3at) up to 30W - Multiple speed PoE plus injector (10/100/1000Mbps) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - /1 Gbps - Wall Mountable Bullets (Consolidated) - Dual-port unmanaged PoE+ injector supports up to 1Gbps Ethernet per port - Up to 30 Watts PoE/PoE+ (802.3af/802.3at) output to remote Powered Devices (PD) - Extend power and Gigabit data at distances of up to 100m over Cat5/5e/6/6a - Features multi-speed network auto-negotiation (10/100/1000Mbps); Surge protection up to 2kV; No software or drivers required - Inline injector is ideal for powering remote IP cameras/WiFi APs/PoE lighting/signage boxes; Wall mountable Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Accessory Products - N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - POEEXT1G60W
- POEEXT1GAT
- POEINJ1G
- POEINJ1G90W
- POEINJ30W
- POEINJ4G
- UPOESPLT1G
- AS445C-POE-INJECTOR
- AF211C-POE-INJECTOR
- AF212C-POE-INJECTOR
Input Current 1.5 Input Voltage 100 - 240 AC Output Current 1.25 Output Voltage (V) 52 DC Power Consumption (In Watts) 65 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5% - 90% RH (non-condensing) Material Plastic Operating Temperature 0°C - 60°C (32°F - 140°F) Primary Material Plastic Product Length (mm) 102.000 Product Width (mm) 46.000 Product Height (mm) 25.000 Product Weight (g) 60.000 Storage Temperature ‐10°C - 70°C (14°F - 158°F) TAA Compliant No Auto MDIX Yes Compatible Networks 10/100/1000 Mbps ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)
Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 1000 Mbps OS Compatibility OS Independent PXE Yes Supported Protocols Wake-on-LAN (WoL) Total Available Power Output (In Watts) 30W Wake-On-LAN (WOL) Yes Chipset ID IC Plus - IP802AR Ethernet Port Yes Industry Standards - IEEE 802.3at Type 2 / PoE+ (30 W)
- IEEE 802.3af Type 1 / PoE (15.4 W)
- IEEE 802.3ab (1000BASE-T)
- IEEE 802.3u (100BASE-TX)
- IEEE 802.3i (10BASE-T)
- IEC 61000-4-2 Level-4 ESD protection (8kV contact/15kV air)

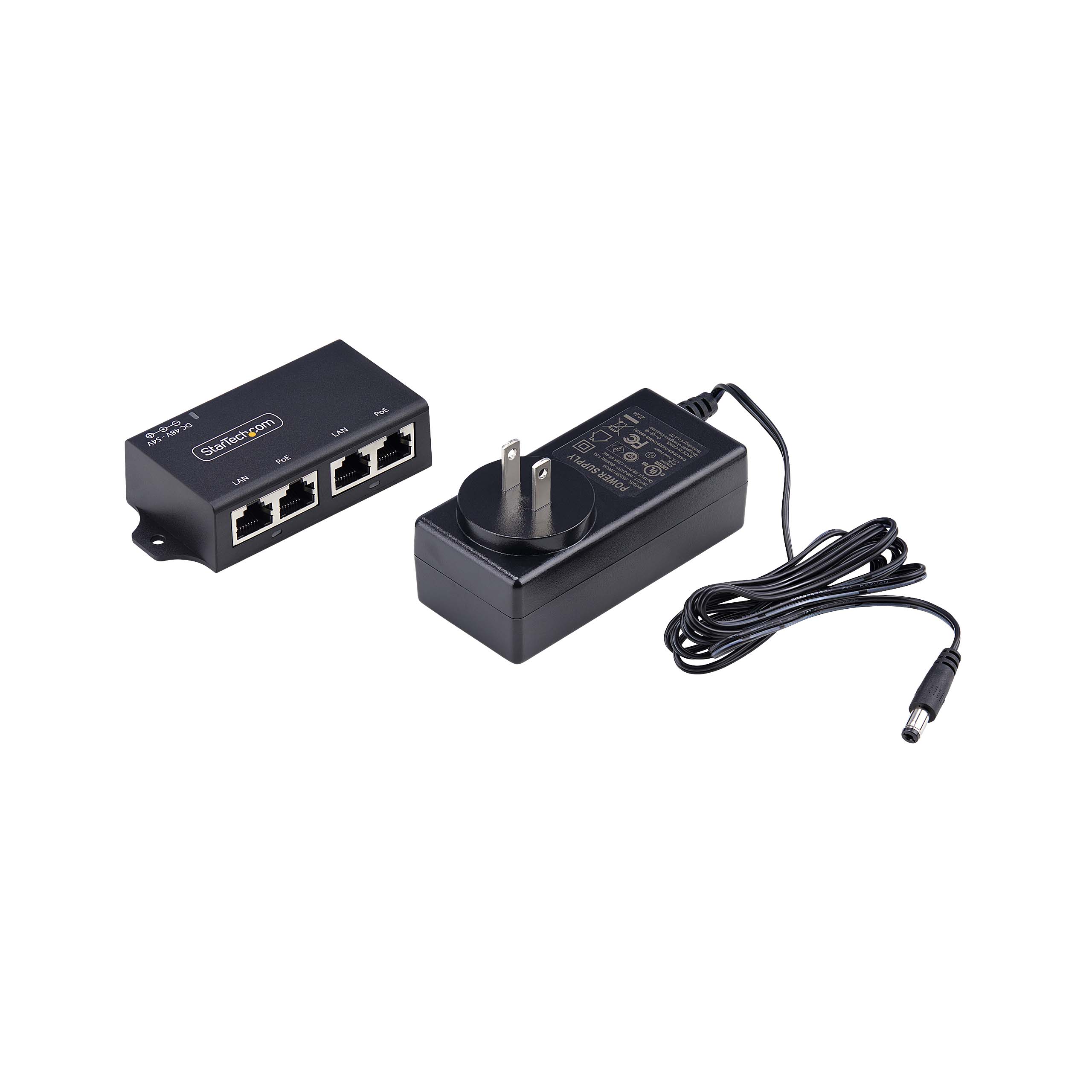

LED Indicators Mounting Options Surface Mount Carton Depth (mm) 605 Carton Height (mm) 385 Carton Quantity 80 Carton Weight Gross (g) 11000 Included in Package - 1 - PoE Injector
- 1 - NA Power Adapter
- 1 - Quick-Start Guide
Package Depth (mm) 170 Package Height (mm) 30 Package Width (mm) 142 Package Quantity 1 Package Weight (g) 110 Packaging Description 2-Port 802.3at 30W Gigabit PoE+ Injector Packaging Description India 2-Port 802.3at 30W Gigabit PoE+ Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Required Artwork Due Date 2024-04-30 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 802.3at 1-port Gigabit injector Comparable SKU 2 Comment 4-port 802.3at Gigabit injector Digital Content Due Date 2024-09-11 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Alejandra Valencia Target Development Completion Date 2024-03-22 Target Production Release 2024-04-30 Tech Lead Justin Weaver Technical Writer Maria Powell Technology Lifecycle None Video Required
