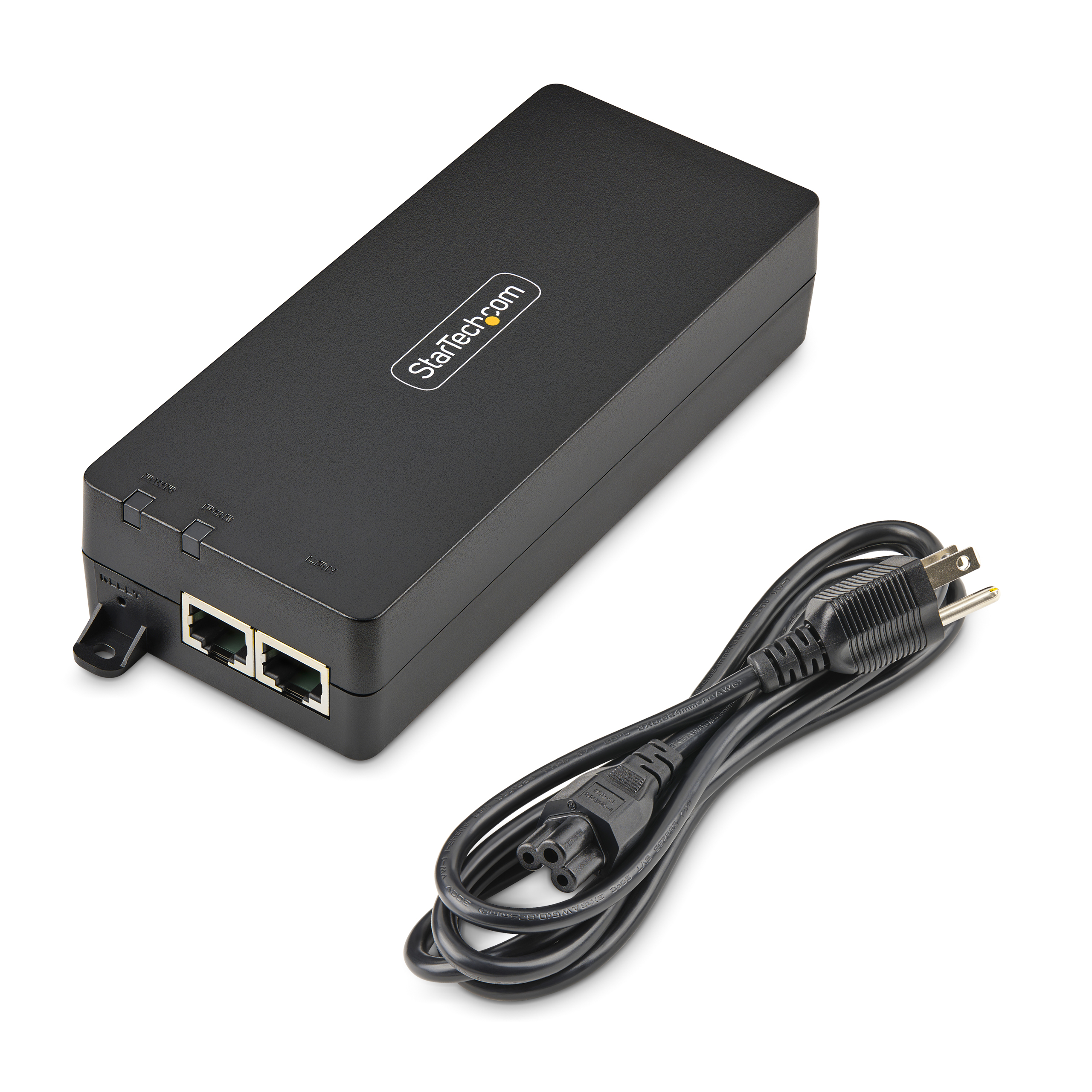

Main Image
AF41XC-POE-INJECTOR
1 Port 10Gbps 95 watt 802 3bt Injector
Supply power and data to a PoE device over standard Ethernet cabling
Main Image

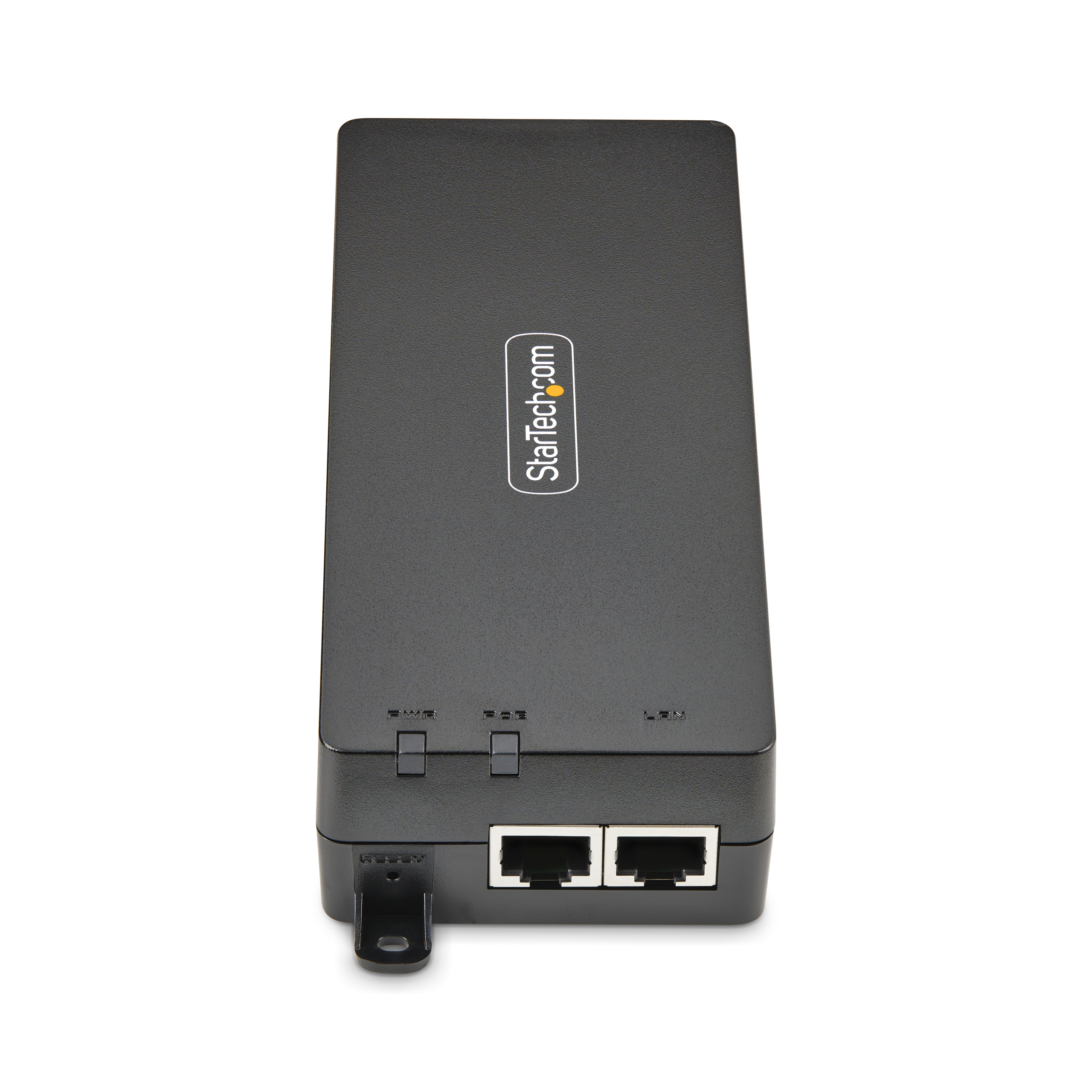

Product Images

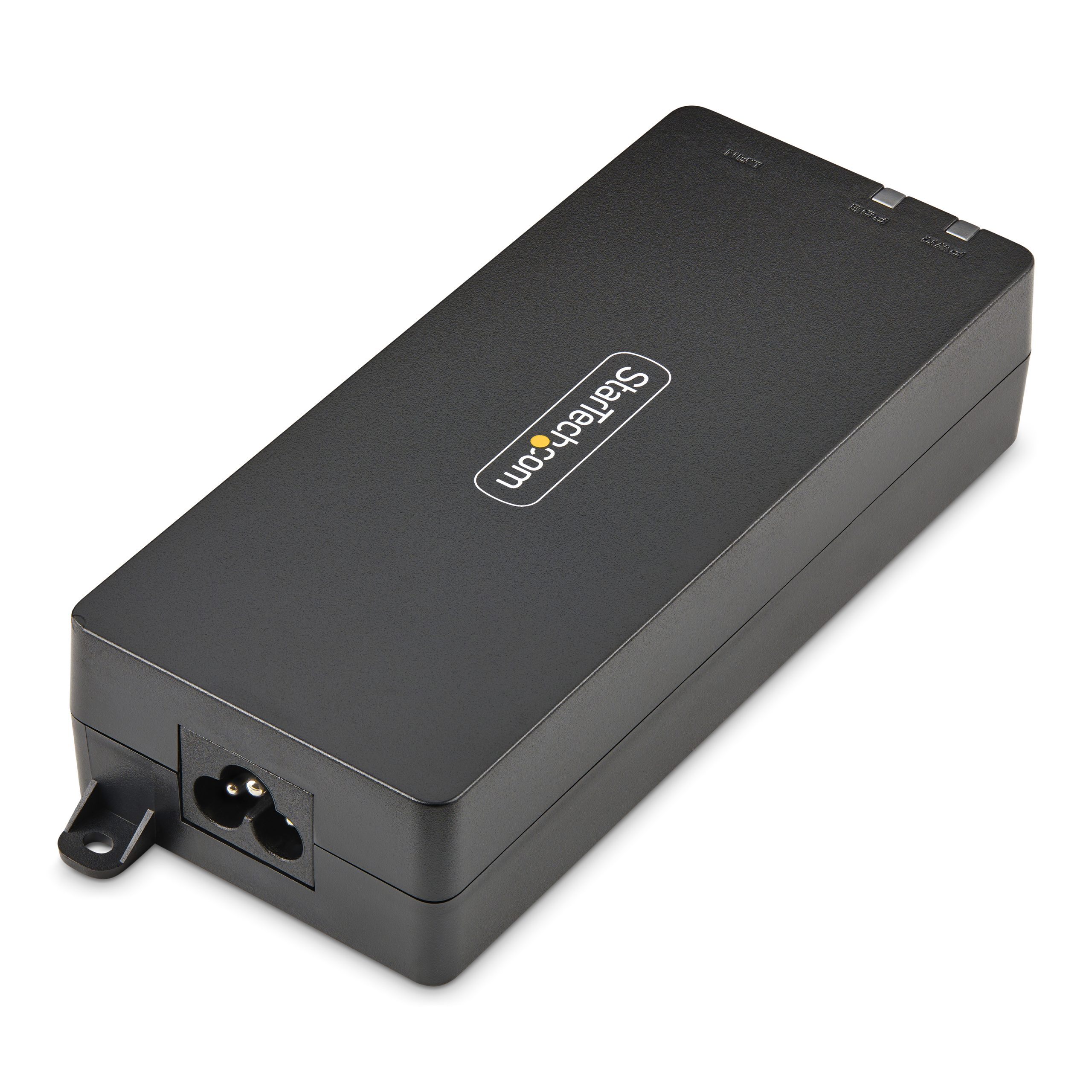

Product Images

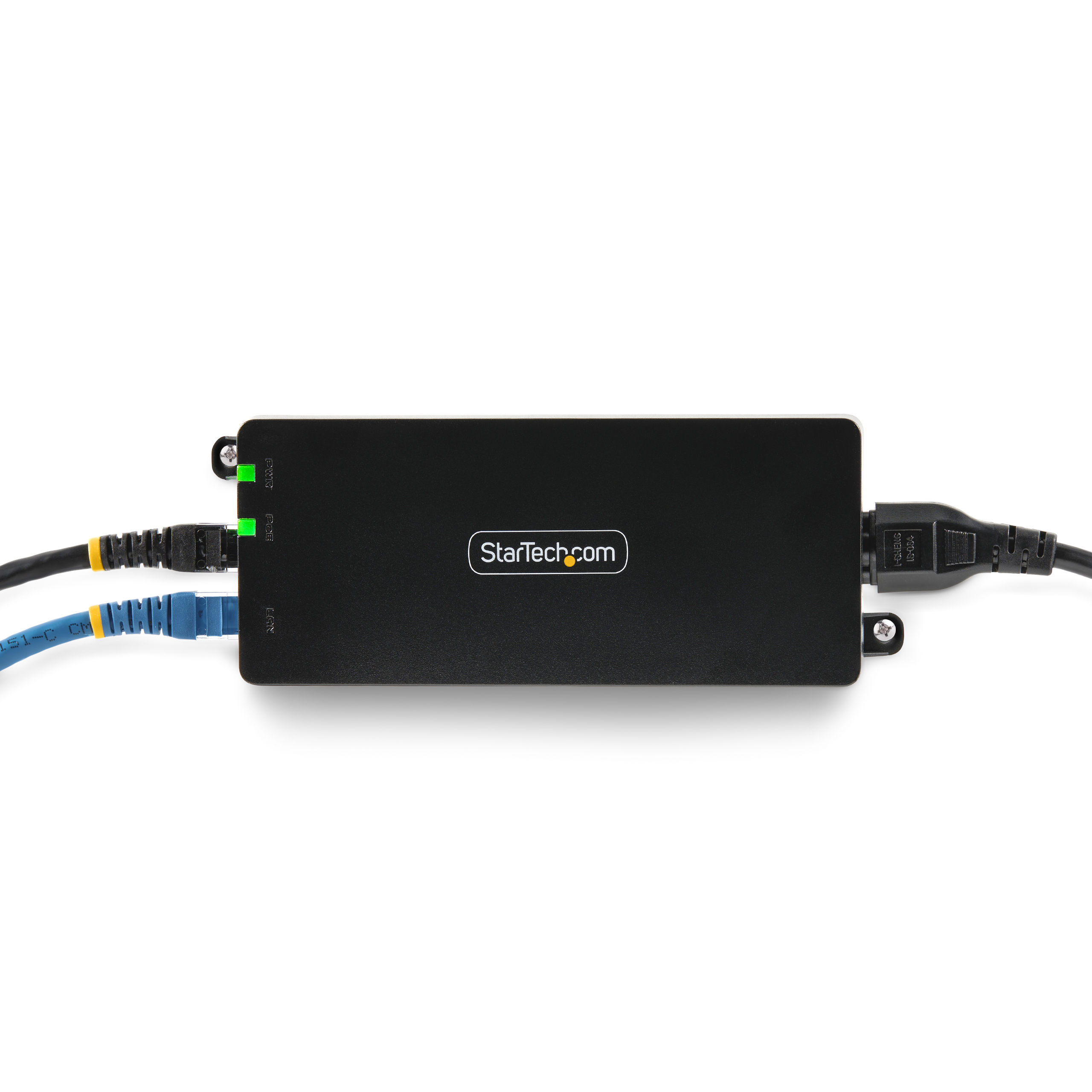

Product Images

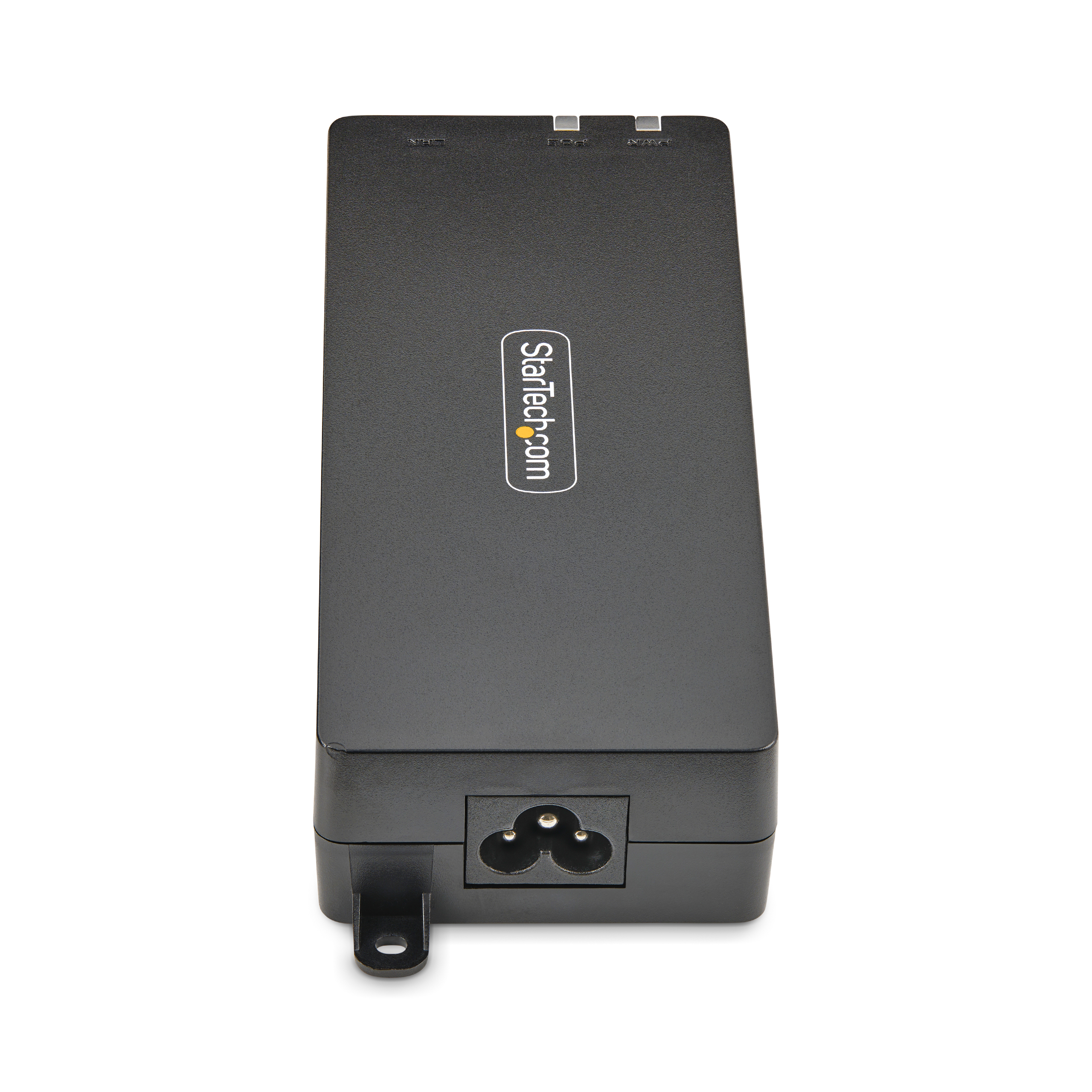

Product Images

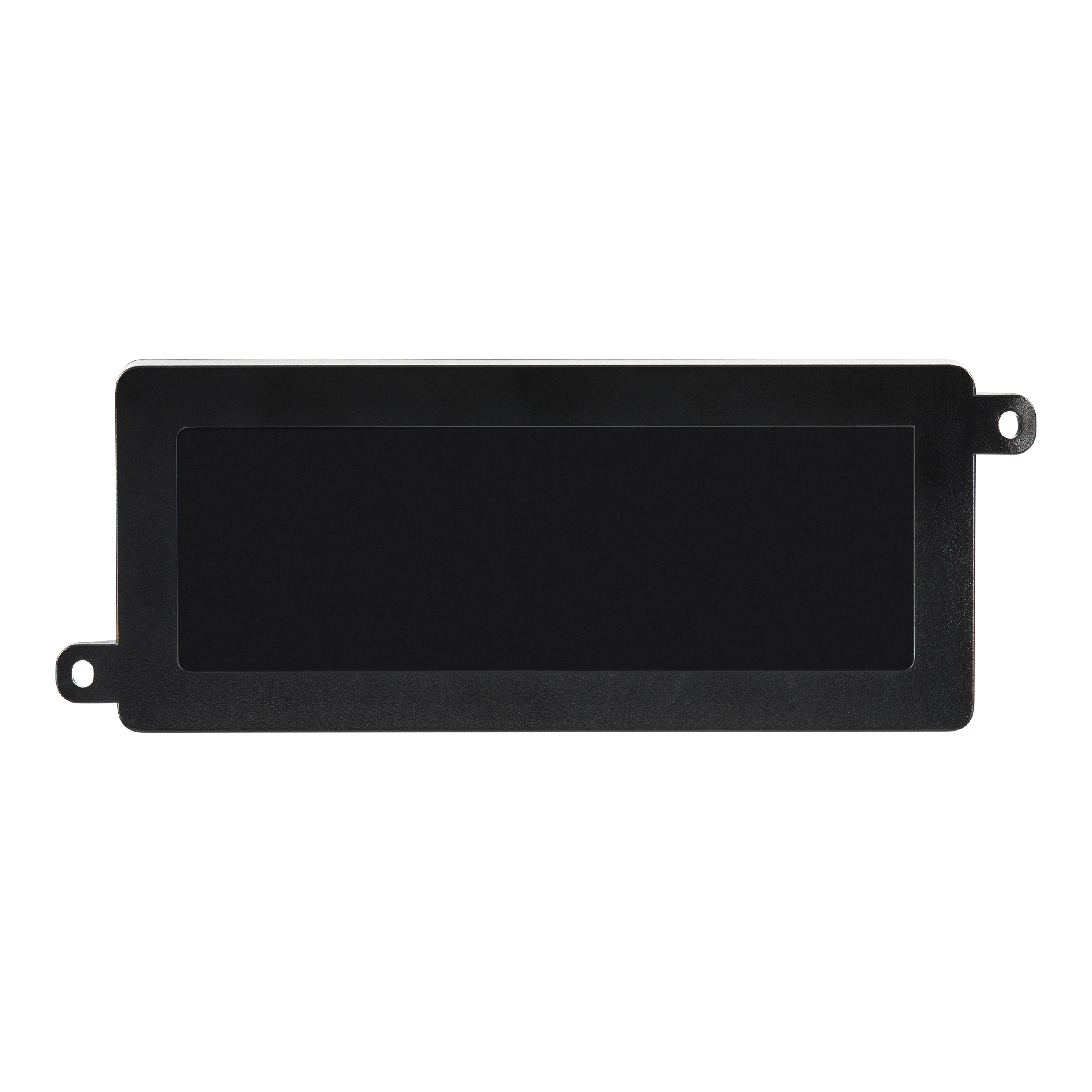

Product Images
BOM Image
Video Link YouTube
Product Name 1 Port 10Gbps 95 watt 802 3bt Injector Product Number AF41XC-POE-INJECTOR UPC 065030902212 Lifecycle status Active Warranty 2 Years Weighted Opportunity 35461 Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX128X Product Title (Ultra-Short) 1-Port PoE+ Injector Product Title (Short) 1-Port 10Gbps PoE++ Injector 90W Product Title (Medium) 1-Port 10Gbps PoE++ Injector, 90W, 2.5/5/10G/10/100/1000M, PoE++ (802.3af/at/bt) Product Title (Standard) 1-Port 10Gbps Gigabit PoE++ Injector, 90W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mount, Unmanaged, TAA Product Title (Long) 1-Port 10Gbps PoE++ Injector, 90W, 2.5/5/10G Ethernet/10/100/1000M, PoE++ (802.3af/at/bt), Wall Mountable, Unmanaged Inline Power Over Ethernet, TAA Product Title (AMZ) 1-Port 10Gbps PoE++ Injector, 90W, 2.5/5/10G Ethernet/10/100/1000Mbps, PoE++ , TAA (802.3af/802.3at/802.3bt) Title Ingram (Part 1) 1-Port 10Gbps PoE++ Injector 90W - Title Ingram (Part 2) 802.3af/at, 10/100/1000M/10G Website Product Headline Supply power and data to a PoE device over standard Ethernet cabling Bullet 1 10G POE++ INJECTOR: Single-port TAA-compliant PoE midspan injector supports up to 10Gbps and 90W of power (PoE/PoE+/PoE++); Features OVP, OCP, and SCP protection for enhanced reliability and durability, and a fan-less design to ensure silent operation Bullet 2 HASSLE-FREE INSTALLATION: Internal power supply and integrated wall-mounting ears with front-facing screw holes offer convenient, versatile installation, especially in hard-to-reach areas; Cables can be routed from one side for better cable management Bullet 3 APPLICATIONS: Provides more power and bandwidth over a single RJ45 connection to demanding PoE devices such as high resolution IP cameras and enterprise grade Wi-Fi 6/6E or 7 access points (APs); Ideal for remote IP devices without available power outlets Bullet 4 TECH SPECS: RJ45 Shielded Socket (data/data+power); 90W max output; 54V 1.7A output; Compliant with IEEE 802.3af/at & IEEE 802.3bt; 10/100/1000 Mbps & 1/2.5/5Gbps; Dimensions 4x2.3x1.3-inch (100x58.4x33.4mm) Bullet 5 MULTIGIGABIT 90W DATA & POWER: Auto-negotiation between 10/100/1000Mbps/2.5G/5G/10G; Delivers 10Gbps data & up to 90W of power to a single powered device up to 262ft (80m) away, up to 5Gbps and 90W of power up to 328ft (100m) Bullets (Compact) Unmanaged 1-Port 10Gbps Inline PoE++ Injector supports up to 90W/PoE/PoE+/PoE++ (802.3af/at/bt) - Multiple speed PoE plus injector (2.5/5/10G/10/100/1000Mbps) - Extend data/power up to 100m w/Ethernet Cat5/5e/6/6a cables - Wall Mountable Bullets (Consolidated) - Single port unmanaged PoE++ injector supports up to 2.5/5/10G Ethernet and 10/100/1000Mbps - Up to 90 Watts PoE/PoE+/PoE++ (802.3af/at/bt) output to a remote Powered Device (PD) - Extend power and Gigabit data at distances of up to 100m - Features network multi-speed auto-negotiation; Surge protection up to 2Kv; No software or drivers required - Inline injector is ideal for powering remote IP cameras/WiFi APs/PoE lighting/signage boxes; Wall mountable Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- UL - Safety - Electrical - Canada / United States - Enhanced UL Mark
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
Accessory Products - N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - POEEXT1G60W
- POEEXT1GAT
- POEINJ1G
- POEINJ1G90W
- POEINJ30W
- POEINJ4G
- UPOESPLT1G
- AS445C-POE-INJECTOR
- AF211C-POE-INJECTOR
- AF212C-POE-INJECTOR
Input Current 1.5 A Input Voltage 100 - 240 AC Output Current 1.7 A Output Voltage (V) 56 DC Color Black Humidity 5~90% RH (Non-Condensing) Material Plastic Operating Temperature 32°F to 104°F (0°C to 40°C) Product Length (mm) 170.000 Product Width (mm) 64.500 Product Height (mm) 33.500 Product Weight (g) 350.000 Storage Temperature -22°F to 176°F (-30°C to 80°C) TAA Compliant Yes Auto MDIX Yes Compatible Networks 10G/5G/2.5G/1G/100Mbps/10Mbps Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 10Gbps OS Compatibility OS Independent PXE Yes Supported Protocols Wake-on-LAN (WoL) Total Available Power Output (In Watts) 90W Wake-On-LAN (WOL) Yes Chipset ID SkyWorks - Si3471A-A01 Ethernet Port Yes Industry Standards LED Indicators Mounting Options Surface Mount Carton Depth (mm) 286 Carton Height (mm) 455 Carton Quantity 40 Carton Weight Gross (g) 25080 Included in Package - 1 - PoE Injector
- 1 - 6ft (1.8m) NA Power Cord
- 1 - Product Documentation
Package Depth (mm) 212 Package Height (mm) 52 Package Width (mm) 125 Package Weight (g) 582 Packaging Description 1-Port 802.3bt 90W 10GbE PoE Injector Packaging Description India 1-Port 802.3bt 90W 10GbE PoE Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 A+ Not Required Actual Inbox Documents Created Compliance Insert Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2024-04-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 90W 1G Industrial PoE Injector, USDIST 182.85, Nov 2022 T12 Sales $61.3K/303 units Comparable SKU 2 Comment 30W 1G PoE Injector, external PSU, USDIST 59.21, Nov 2022 T12 Sales $102.3K/1734 units, Digital Content Due Date 2024-08-30 Enhanced Gallery Not Required Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level - 2 Graphic Designer Shane Arnett ID Label Silkscreened or a Label Sticker label - 50x25mm Launch Markets (concatenated) CA,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Maria Powell Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Shane Arnett Target Development Completion Date 2024-03-08 Target Production Release 2024-04-15 Tech Lead Stefan Tirolese Technical Writer Maria Powell Technology Lifecycle None Video Not Required
