AP150WN1X1OD
Outdoor Wireless AP, 1T1R 150 Mbps - 600mW
Create a long-range, high-performance Wireless-N network from a wired connection – PoE powered
Main Image
Product Images
Product Images
BOM Image
Product Name Outdoor Wireless AP, 1T1R 150 Mbps - 600mW Product Number AP150WN1X1OD UPC 065030853569 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) Outdoor Wireless AP Product Title (Short) Outdoor 150 Mbps Wireless-N Access Point Product Title (Standard) Outdoor 150 Mbps 1T1R Wireless-N Access Point - 2.4GHz 802.11b/g/n PoE-Powered WiFi AP Product Title (Long) Outdoor 150 Mbps 1T1R Wireless-N Access Point - 2.4GHz 802.11b/g/n PoE-Powered WiFi AP Product Title (AMZ) Outdoor 150 Mbps 1T1R Wireless-N Access Point – 2.4GHz 802.11b/g/n WiFi AP - Pole / Wall-Mountable Long-Range PoE-Powered AP (AP150WN1X1OD) Title Ingram (Part 1) Long-Range 802.11n Outdoor WiFi Title Ingram (Part 2) Access Point - PoE-Powered Website Product Headline Create a long-range, high-performance Wireless-N network from a wired connection – PoE powered Bullet 1 Backward compatible with IEEE 802.11b/g WiFi networks Bullet 2 Optional external RP-SMA antenna connector Bullet 3 Built-in configuration utility (web-based) Bullet 4 Secondary LAN Port to connect an additional network device Bullet 5 Supports WEP, WPA and WPA2 wireless authentication Bullets (Consolidated) Create a long-range high-performance Wireless-N network from a wired connection – PoE powered - Compatible with WiFi enabled devices such as Apple iPhones iPads and MacBook Air - Compliant with IEEE 802.11 N (150 Mbps) - Long Range WiFi Extender/Wired to Wireless Network Solution/2.4Ghz - Create a long range wireless access point from a wired network - Powered using Ethernet cable for long range outdoor runs from CAT5/6 Cable - Outdoor Wireless Access Point Marketing Copy Applications - Create an outdoor Wireless-N access point from an existing wired connection to eliminate network dead spots and allow wireless devices to connect across large open spaces
- Use WDS (Wireless Distribution System) to mesh multiple Access Points together
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements - Available indoor AC electrical outlet
- Cat 5 (or better) network cabling from PoE Injector to Wireless AP and PoE Injector to LAN Switch/router (no more than 100m total)
Accessory Products - C6PATCH75BL
- C6PATCH50BL
- C6PATCH7BL
- C6PATCH25BL
- C6PATCH100BL
- SVA12M2NEUA
- SVA12M5NA
Related Products WFREPEAT300N Equivalent Part Number in the EU AP150WN1X1OE Equivalent Part Number in the UK AP150WN1X1OG Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 12V DC Power Consumption (In Watts) 12 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 70°C (32°F to 122°F) Product Length (mm) 292.000 Product Width (mm) 92.000 Product Height (mm) 59.000 Product Weight (g) 344.000 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Bandwidth 20/40 MHz General Specifications Maximum Clients: 16 Max Distance 3 km (1.86 mi) Maximum Data Transfer Rate 150 Mbps Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA Antenna Configuration 1x1:1 (TxR:S) Chipset ID Realtek - RTL8196C Industry Standards Interface/Bridge Wireless Ethernet LED Indicators - 1 - Power
- 1 - PoE Link/Activity
- 1 - Wireless Link/Activity
- 1 - LAN Link/Activity

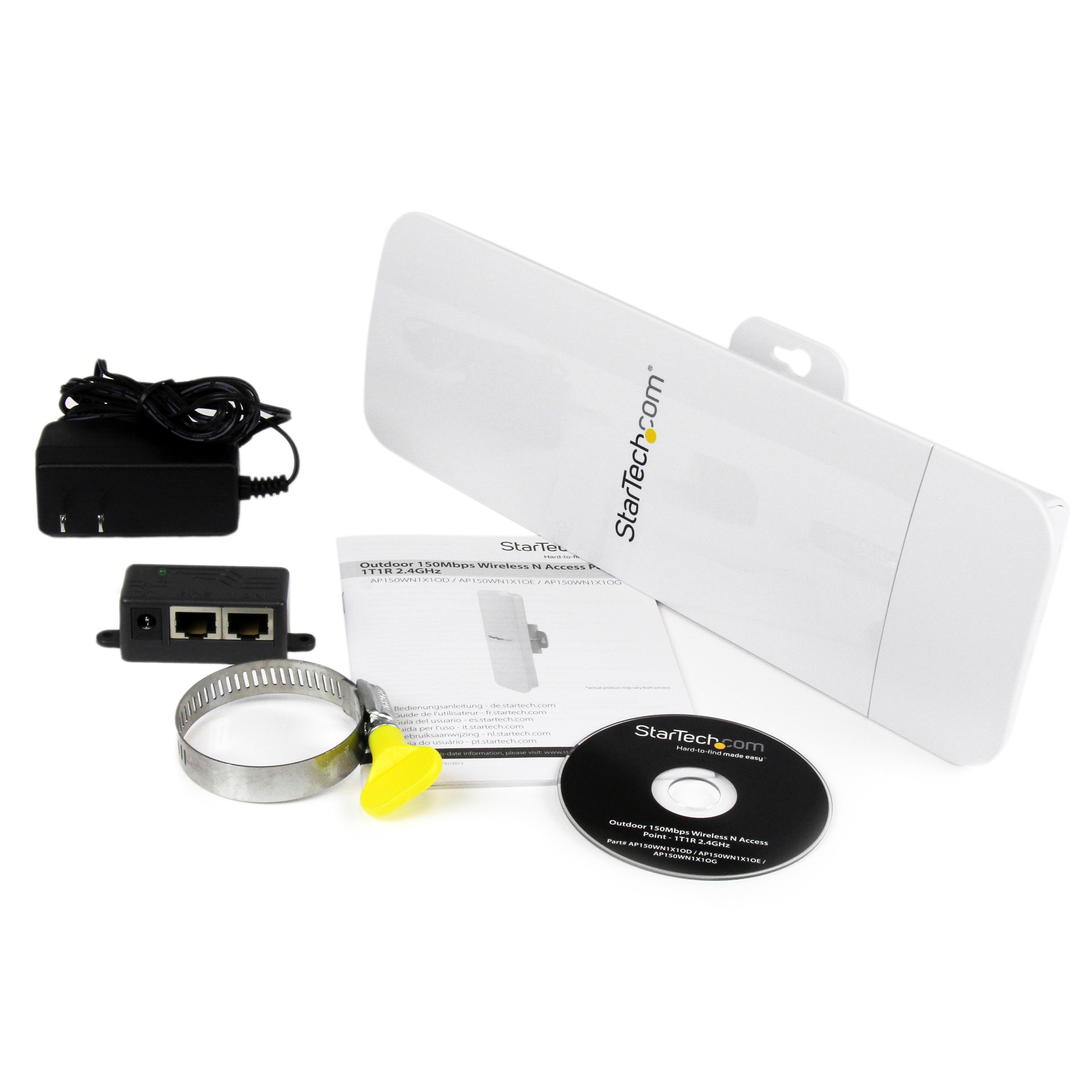

Carton Depth (mm) 481 Carton Height (mm) 370 Carton Quantity 20 Carton Weight Gross (g) 15013 Included in Package - 1 - Power Adapter
- 1 - Outdoor Access Point
- 1 - Metal Hose Clamp
- 1 - PoE Injector
- 1 - Instruction Manual CD
Package Depth (mm) 338 Package Height (mm) 92 Package Width (mm) 117 Package Quantity 1 Package Weight (g) 693 Packaging Description Outdoor 150Mbps Wireless N Access Point - 2.4GHz Packaging Description India Outdoor 150Mbps Wireless N Access Point - 2.4GHz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 RP-SMA (50 Ohm) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-07-16 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
