AP150WN1X1OG
Outdoor Wireless AP, 1T1R ; 150 Mbps - 600mW
Create a long-range, high-performance Wireless-N network from a wired connection – PoE powered
Main Image
Product Images
Product Images
BOM Image
Product Name Outdoor Wireless AP, 1T1R ; 150 Mbps - 600mW Product Number AP150WN1X1OG UPC 065030853576 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX049X Product Title (Ultra-Short) Outdoor Wireless AP Product Title (Short) Outdoor 150 Mbps Wireless-N Access Point Product Title (Standard) Outdoor 150 Mbps 1T1R Wireless-N Access Point - 2.4GHz 802.11b/g/n PoE-Powered WiFi AP Product Title (Long) Outdoor 150 Mbps 1T1R Wireless-N Access Point - 2.4GHz 802.11b/g/n PoE-Powered WiFi AP Product Title (AMZ) Outdoor 150 Mbps 1T1R Wireless-N Access Point – 2.4GHz 802.11b/g/n WiFi AP - Pole / Wall-Mountable Long-Range PoE-Powered AP (AP150WN1X1OG) Title Ingram (Part 1) Long-Range 802.11n Outdoor WiFi Title Ingram (Part 2) Access Point - PoE-Powered Website Product Headline Create a long-range, high-performance Wireless-N network from a wired connection – PoE powered Bullet 1 Weather-resistant pole and wall-mountable housing Bullet 2 PoE-powered access point with included PoE injector Bullet 3 Compliant with IEEE 802.11n (Wireless-N), with up to 150Mbps of data bandwidth Bullet 4 Backward compatible with IEEE 802.11b/g WiFi networks Bullet 5 Supports WEP, WPA and WPA2 wireless authentication Marketing Copy Applications - Create an outdoor Wireless-N access point from an existing wired connection to eliminate network dead spots and allow wireless devices to connect across large open spaces
- Use WDS (Wireless Distribution System) to mesh multiple Access Points together
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements - Available indoor AC electrical outlet
- Cat 5 (or better) network cabling from PoE Injector to Wireless AP and PoE Injector to LAN Switch/router (no more than 100m total)
Accessory Products - C6PATCH7BL
- C6PATCH25BL
- C6PATCH50BL
- C6PATCH75BL
- C6PATCH100BL
- SVA12M2NEUA
- SVA12M5NA
Related Products WFREPEAT300N Equivalent Part Number in the EU AP150WN1X1OE Input Current 0.3 A Input Voltage 100 - 240 AC Output Current 1 A Output Voltage (V) 12V DC Power Consumption (In Watts) 12 Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color White Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 70°C (32°F to 122°F) Product Length (mm) 292 Product Width (mm) 92 Product Height (mm) 59 Product Weight (g) 345 Storage Temperature -20°C to 70°C (-4°F to 158°F) TAA Compliant Yes Bandwidth 20/40 MHz Maximum Data Transfer Rate 150 Mbps Security Features - WEP Data Encryption
- TKIP/AES
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Supported Protocols CSMA/CA Antenna Configuration 1x1:1 (TxR:S) Chipset ID Realtek - RTL8196C Industry Standards Interface/Bridge Wireless Ethernet LED Indicators - 1 - Power
- 1 - PoE Link/Activity
- 1 - Wireless Link/Activity
- 1 - LAN Link/Activity

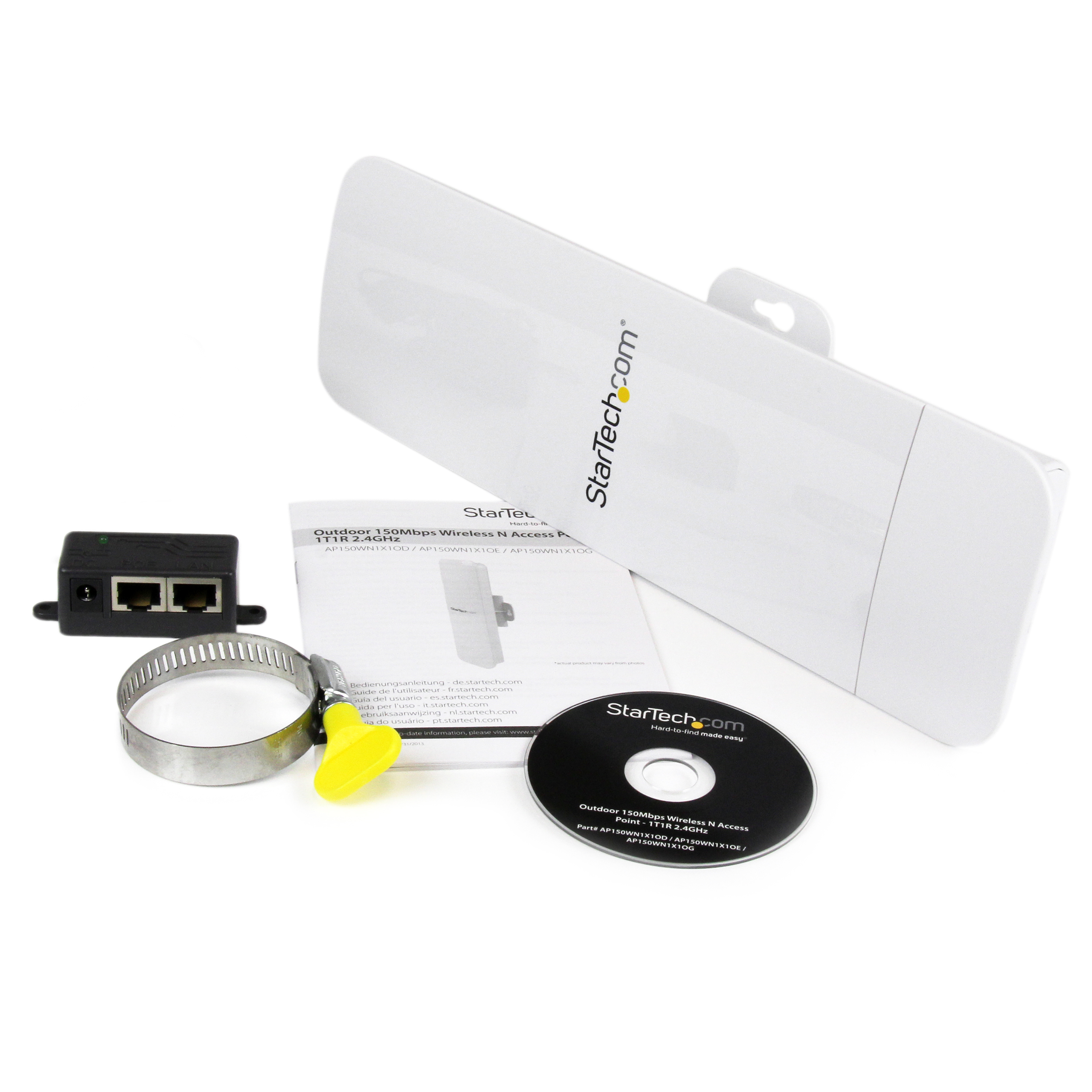

Carton Depth (mm) 480 Carton Height (mm) 355 Carton Quantity 20 Carton Weight Gross (g) 15382 Included in Package - 1 - Outdoor Access Point
- 1 - PoE Injector
- 1 - Metal Hose Clamp
- 1 - Power Adapter
- 1 - Instruction Manual CD
Package Depth (mm) 335 Package Height (mm) 93 Package Width (mm) 117 Package Quantity 1 Package Weight (g) 703 Packaging Description Outdoor 150Mbps Wireless N Access Point - 2.4GHz Packaging Description India Outdoor 150Mbps Wireless N Access Point - 2.4GHz Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 RJ-45 Connector 1 (Quantity) 2 Connector 2 RP-SMA (50 Ohm) Connector 2 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-11-22 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy Vending Machine Not Compatible with Vending Machine
