AP150WN1X1U

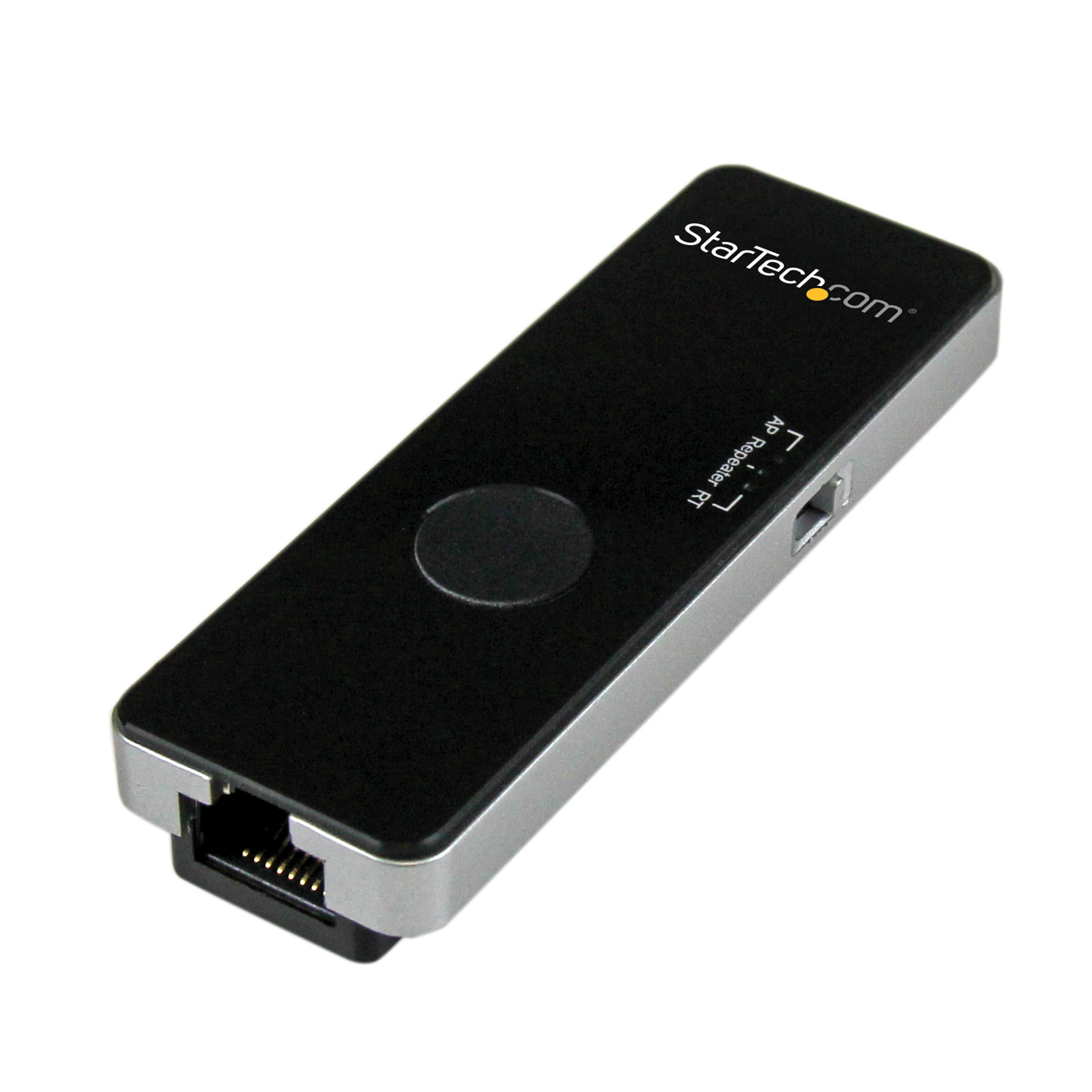

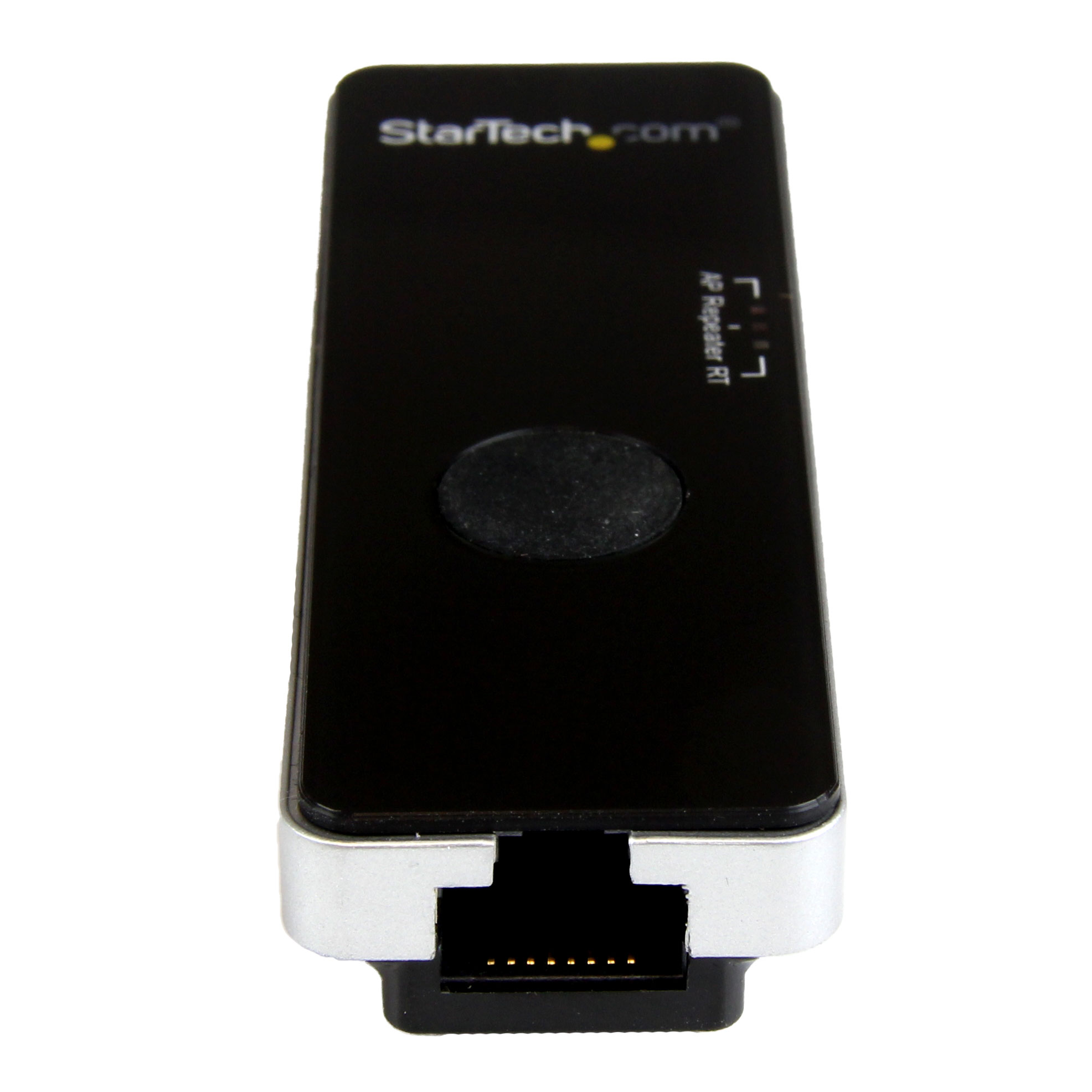

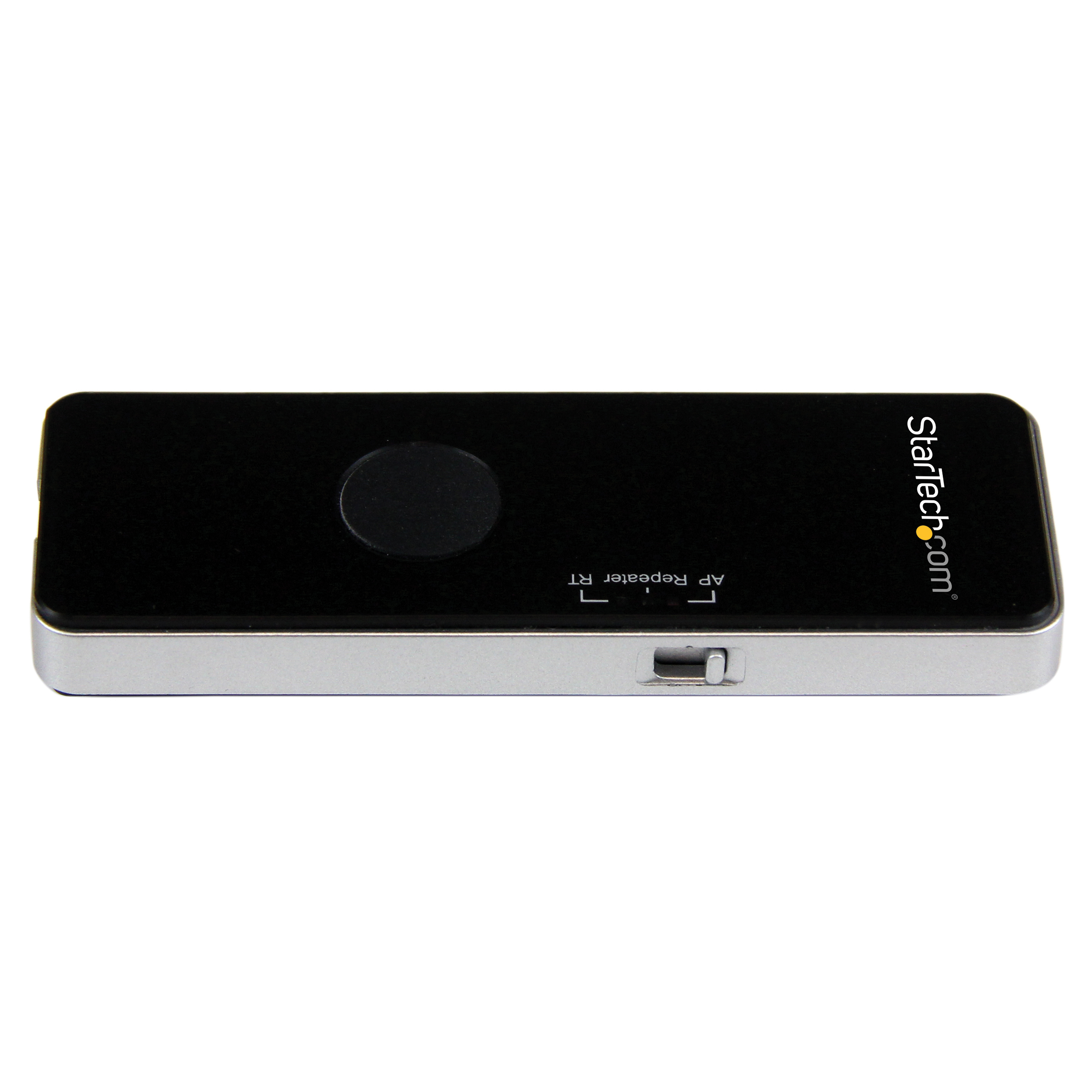

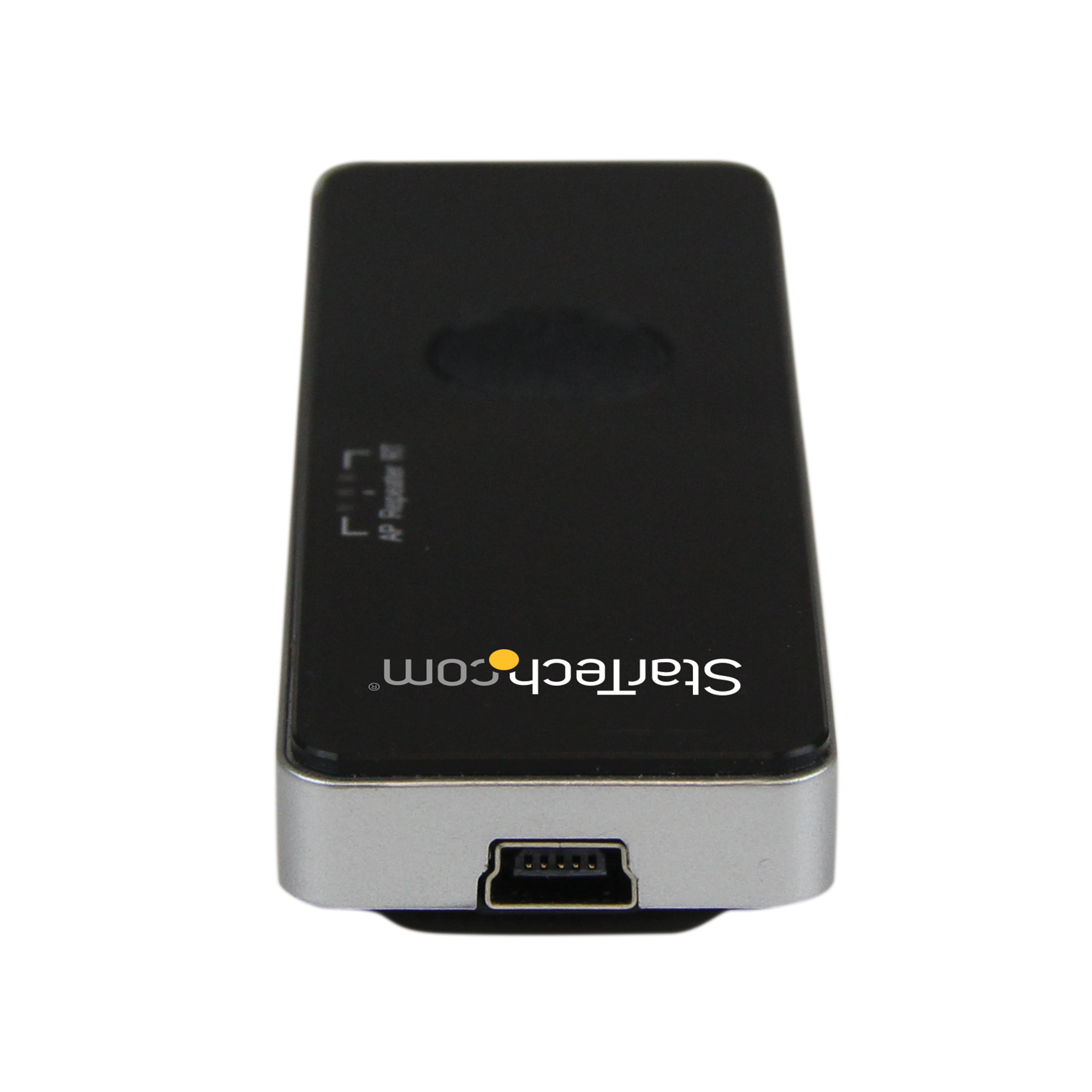

802.11b/g/n Portable WiFi Router / Wireless AP
Create a wireless hot-spot from a wired network connection to share with any WiFi-enabled device
Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 802.11b/g/n Portable WiFi Router / Wireless AP Product Number AP150WN1X1U UPC 065030855181 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Ultra-Short) WiFi N Travel Router Product Title (Short) Portable Wireless N Travel Router Product Title (Medium) Portable Wireless N WiFi Travel Router / Access Point / Repeater - USB Powered Product Title (Standard) Portable Wireless N WiFi Travel Router / Access Point / Repeater - USB Powered Product Title (Long) Portable Wireless N WiFi Travel Router / Access Point / Repeater - USB Powered Product Title (AMZ) Portable Wireless N WiFi Travel Router / Access Point / Repeater - USB Powered Portable WiFi Router - 802.11b/g/n Wireless AP (AP150WN1X1U) Title Ingram (Part 1) 802.11b/g/n Portable WiFi Title Ingram (Part 2) Router / Travel Wireless AP Website Product Headline Create a wireless hot-spot from a wired network connection to share with any WiFi-enabled device Bullet 1 USB powered using a laptop or tablet USB wall charger / port Bullet 2 Compliant with IEEE 802.11n (Wireless-N), with speeds up to 150 Mbps Bullet 3 Backward compatible with IEEE 802.11g, and 802.11b WiFi networks / devices Bullet 4 Built-in configuration utility (web-based) Bullet 5 Integrated one-touch WPS connection button Bullets (Consolidated) Create a wireless hot-spot from a wired network connection to share with any WiFi-enabled device - Portable Wireless N WiFi Travel Router/Access Point/Repeater - USB Powered Portable WiFi Router - 802.11b/g/n Wireless AP - Pocket Router - Create a wireless access point for tablets, laptops and smartphones Marketing Copy Applications - Create a wireless access point for tablets, laptops and smartphones in a hotel room with only wired connections available
- Share one paid wireless connection with multiple devices using Repeater (WISP) mode
- Add a wireless hotspot in a boardroom or conference center to share with your co-workers
- Extend the coverage area or increase the signal strength in “dead spots” of an existing Wireless-N signal
Website Search Keyword - 802.11n
- Pocket Router
- Travel Router
- Travel WiFi
- Portable Access Point
- Portable Router
- Ethernet to wireless
- Ethernet to WiFi
- RJ45 to wireless
- RJ45 to WiFi
- Wireless Access Point
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - IR - Wireless - European Union - EU Radio Equipment Directive (RED) Short-Form DoC
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements - Wired network connection
- USB wall charger or available USB port
Accessory Products - USB300WN2X2
- USB150WN1X1
- C6PATCH6BL
- USB300WN2X2D
- C6PATCH6BK
Related Products - WFREPEAT300N
- R150WN1X1T
Power Source USB-Powered Color Black Humidity 10~90% RH Material Plastic Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 82 Product Width (mm) 28 Product Height (mm) 13 Product Weight (g) 68 Storage Temperature -40°C to 70°C (-40°F to 158°F) TAA Compliant No Compatible Networks 10/100 Mbps General Specifications Maximum Clients: 5 Max Distance 10m [33ft] Maximum Data Transfer Rate 150 Mbps OS Compatibility OS Independent Security Features - WEP Data Encryption
- WPA and WPA2-PSK Data Encryption
- WPA and WPA2 Enterprise Data Encryption
Antenna Configuration 1x1:1 (TxR:S) Industry Standards IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u Interface/Bridge Wireless Ethernet LED Indicators - 1 - WiFi
- 1 - Power
- 1 - WLAN

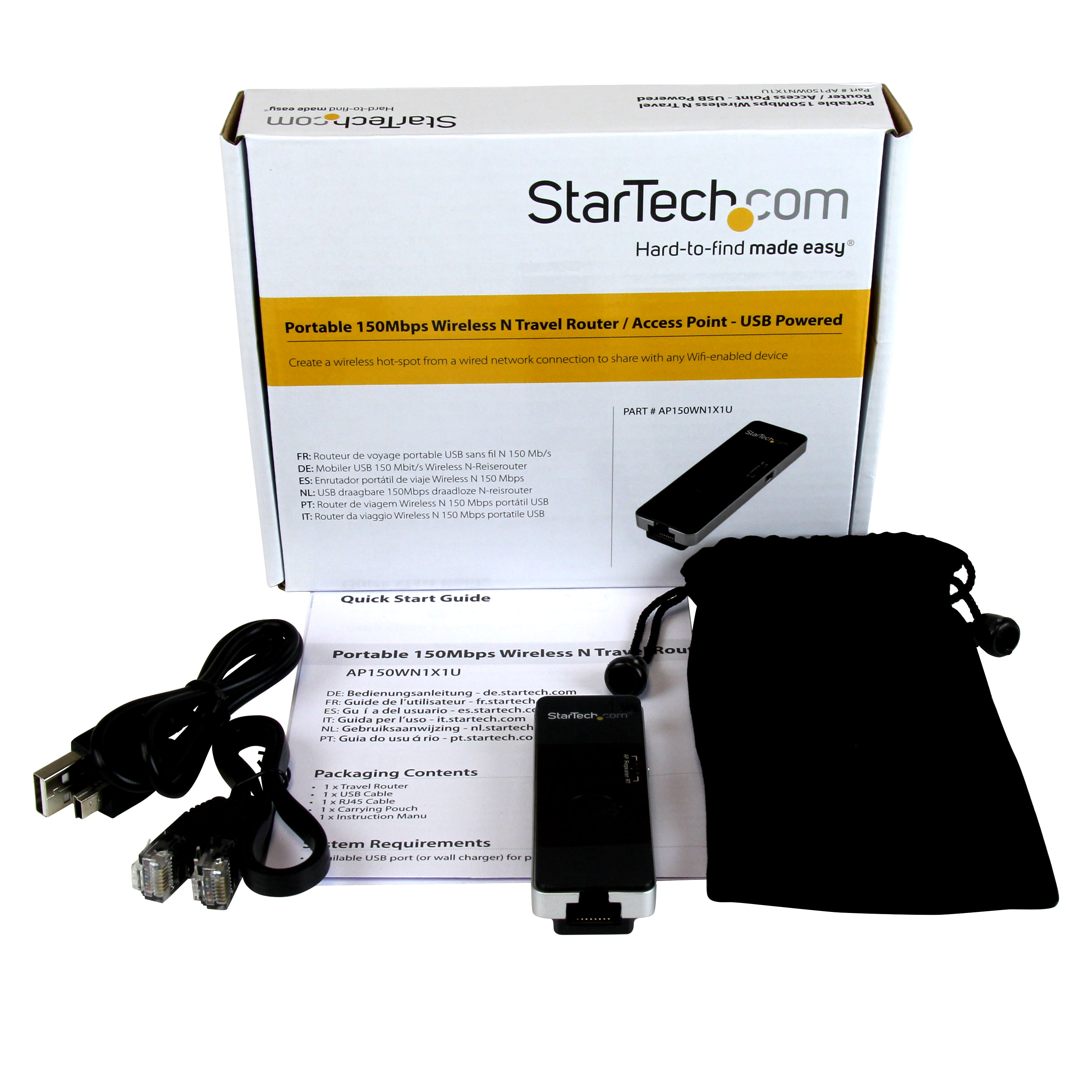

Carton Depth (mm) 365 Carton Height (mm) 315 Carton Quantity 100 Carton Weight Gross (g) 12300 Included in Package - 1 - USB Cable
- 1 - RJ45 Cable
- 1 - Carrying Pouch
- 1 - Instruction Manual
- 1 - Travel Router
Package Depth (mm) 140 Package Height (mm) 30 Package Width (mm) 175 Package Quantity 1 Package Weight (g) 112 Packaging Description USB Portable 150Mbps Wireless N Travel Router Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 1 Connector 3 USB Mini-B (480Mbps, 2.5W) Connector 3 (Quantity) 1 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2013-10-09 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,CA,DK,ES,EU,FR,IT,NL,SE,UK,US Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
