AP300WN22WUE
802.11n PoE-Powered Indoor Wireless Access Point
Install a PoE-Powered, in-wall 802.11b/g/n access point with 2 RJ45 LAN / phone ports

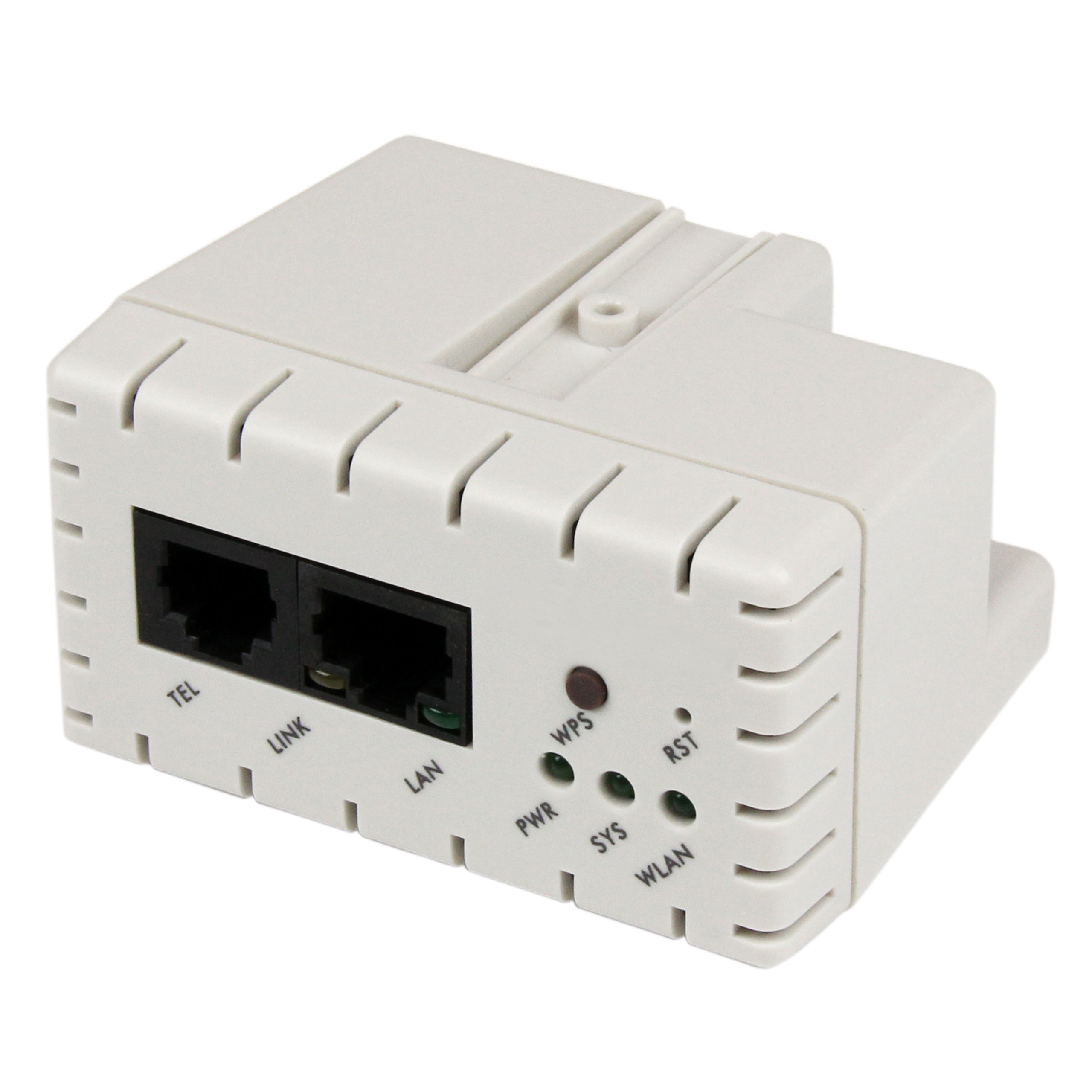

Main Image
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 802.11n PoE-Powered Indoor Wireless Access Point Product Number AP300WN22WUE UPC 065030859004 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Product Title (Ultra-Short) In-Wall Wireless AP Product Title (Short) In-Wall Wireless-N Access Point - PoE Product Title (Medium) In-wall Wireless Access Point - Wireless-N - 2.4GHz 802.11b/g/n - PoE-Powered Product Title (Standard) In-wall Wireless Access Point - Wireless-N - 2.4GHz 802.11b/g/n - PoE-Powered WiFi AP Product Title (Long) In-Wall Wireless Access point - Wireless-N - PoE Product Title (AMZ) In-wall Wireless Access Point - Wireless-N - 2.4GHz 802.11b/g/n - PoE-Powered WiFi AP (AP300WN22WUE) Title Ingram (Part 1) In-wall Wireless Access Point Title Ingram (Part 2) 802.11n PoE-Powered Indoor Website Product Headline Install a PoE-Powered, in-wall 802.11b/g/n access point with 2 RJ45 LAN / phone ports Bullet 1 Sleek and discreet installation with standard in-wall design Bullet 2 Hassle-free integration with support for PoE Bullet 3 Fast, secure and reliable network connectivity, with Wireless-N Bullet 4 WEP, WPA and WPA2 security with TKIP/AES encryption Bullet 5 Internal 2.3dBi 2T2R antenna with adjustable output power Bullets (Consolidated) Expand your network with a discreet Wi-Fi hot-spot that also provides two Gigabit LAN ports - In-Wall 300 Mbps 2T2R Wireless-N Access Point - PoE-Powered WiFi AP - Indoor Wireless Access Point - 802.11n Wireless AP - 1-gang wall box installation - 2 front RJ45 connectors for wired LAN/telephony devices/In-Wall 300 Mbps 2T2R Wireless-N Access Point/2.4GHz 802.11b/g/n PoE-Powered WiFi AP/Indoor Wireless Access Point/802.11n Wireless AP - Hassle-free integration with support for PoE Marketing Copy Applications - Use your existing CAT5 infrastructure to easily replace standard single Ethernet ports with dual jack RJ45 while expanding your wireless network connectivity
- Discretely add a wireless hotspot to schools, offices or hotels allowing employees, students or customers wireless access
- Create an indoor Wireless-N access point from an existing wired connection to eliminate network dead zones and allow wireless devices to connect
Website Search Keyword - wireless N
- wireless access point
- wireless router extender
- wireless extender
- wireless router
- network extender
- wireless network extender
Required Regulatory Compliance Marks - WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- ISED - IR - Wireless - Canada - Industry Canada (IC) Wireless ID
System and Cable Requirements - 802.3af / at compatible PoE Switch or Injector
- Cat 5e (or better) Ethernet cabling from PoE switch to the Access Point
- 1-gang receptacle box
Accessory Products - N6PATC2MBL
- N6PATC3MBL
- N6PATC5MBL
- N6PATCH25BL
- N6PATC15MBL
Related Products - R300WN22OP5G
- R300WN22OP5E
- AP150WN1X1OG
- AP150WN1X1OE
- R300WN22ODG
- R300WN22ODE
- R300WN22MO5G
- R300WN22MO5E
Color White Humidity 20~90% RH (Non-Condensing) Material Plastic Operating Temperature 0°C to 50°C (32°F to 122°F) Product Length (mm) 70 Product Width (mm) 55 Product Height (mm) 29 Product Weight (g) 82 Storage Temperature -10°C to 60°C (14°F to 140°F) TAA Compliant Yes Bandwidth 20/40MHz Full Duplex Support Yes Max Distance 10m [33ft] Maximum Data Transfer Rate 300 Mbps Security Features - WEP Data Encryption
- WPA Data Encryption
- TKIP/AES

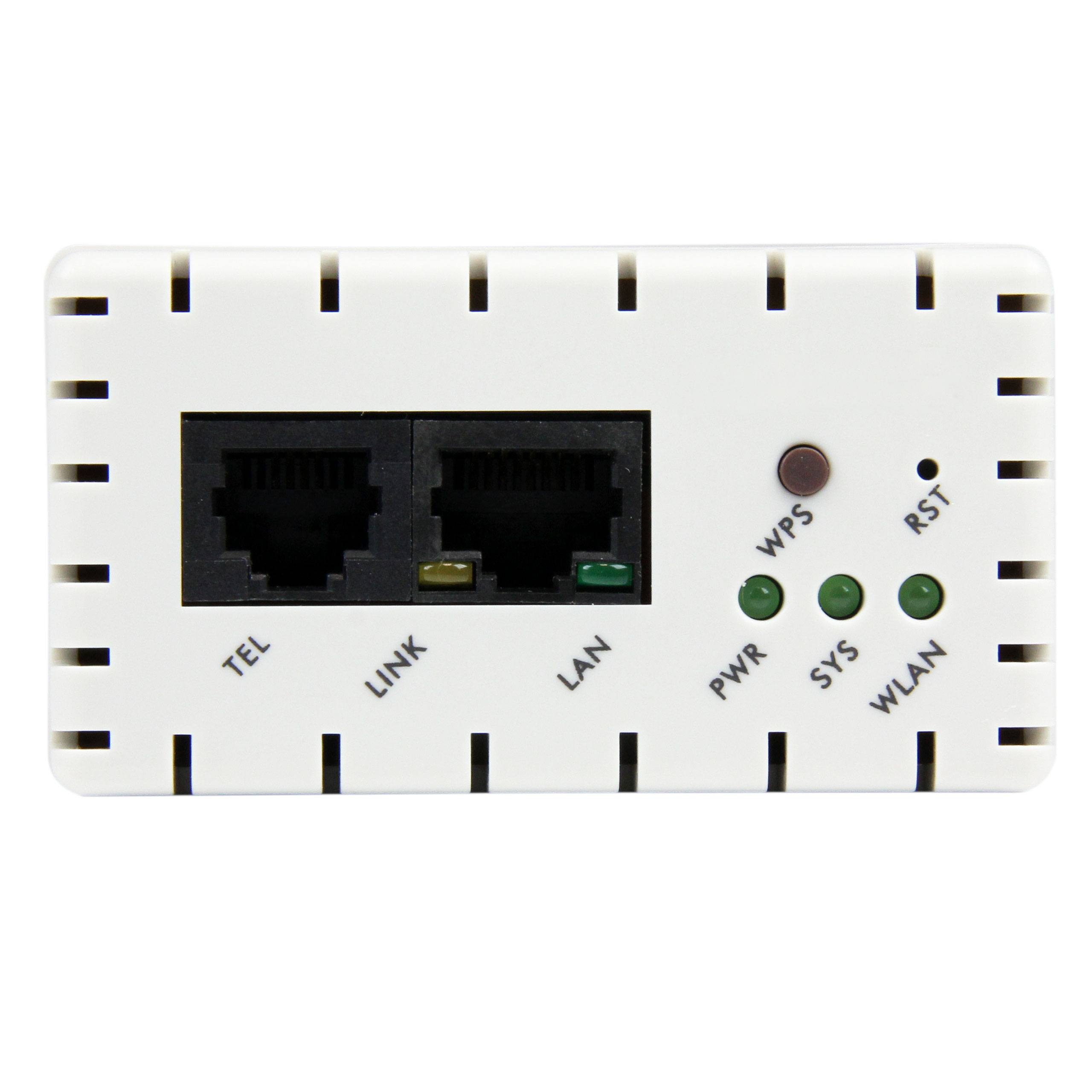

Supported Protocols CSMA/CA Antenna Configuration 2x2:2 (TxR:S) Chipset ID Mediatek - MT7620n Industry Standards Interface/Bridge Wireless Ethernet LED Indicators - 1 - Power
- 1 - System
- 1 - WAN Link / Act
- 1 - LAN Link / Act
- 1 - WLAN Link / Act

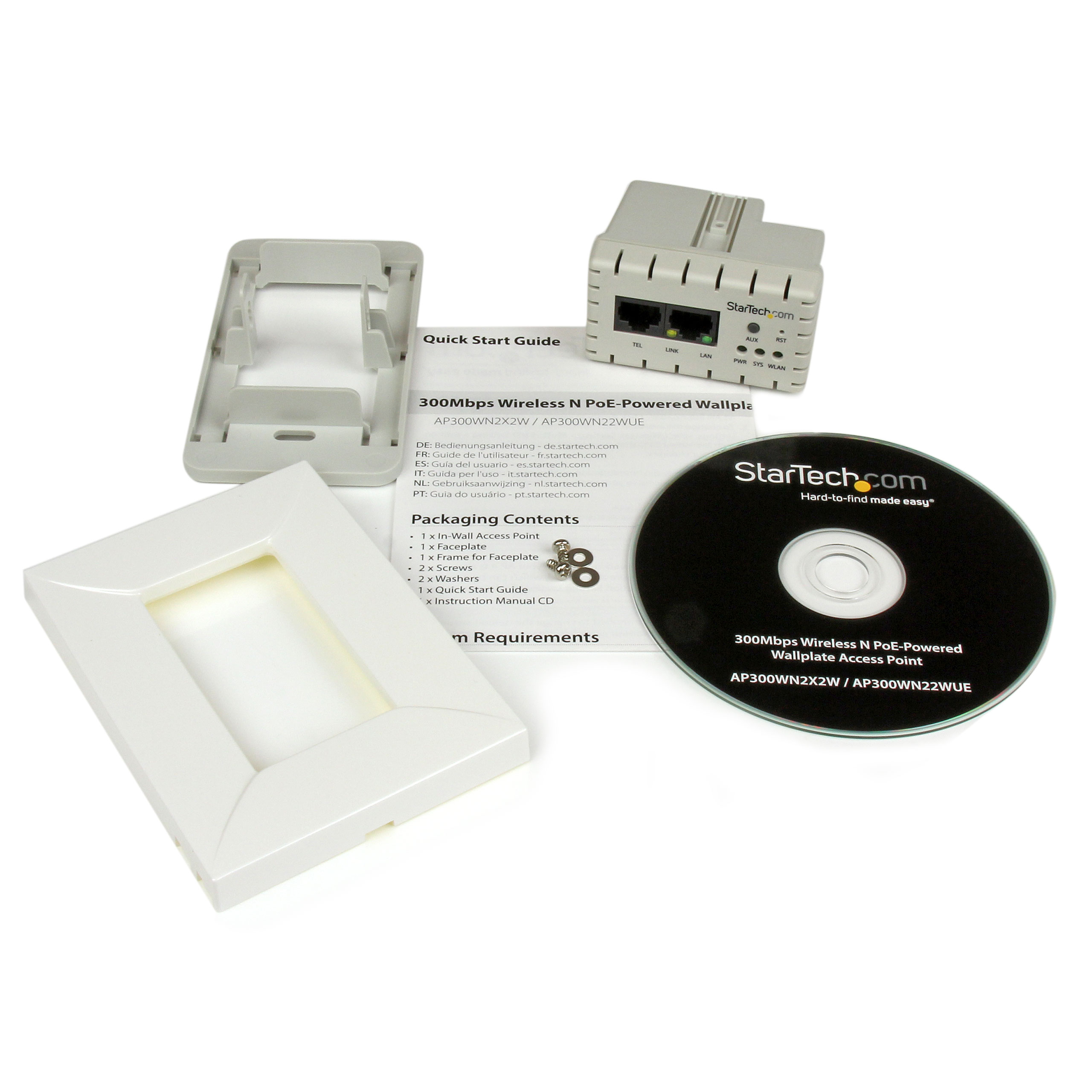

Carton Depth (mm) 410 Carton Height (mm) 365 Carton Quantity 20 Carton Weight Gross (g) 6964 Included in Package - 1 - In-Wall Access Point
- 1 - Faceplate (UK / EU)
- 1 - Frame for Faceplate (Square)
- 1 - Mounting Cage
- 2 - Screws
- 2 - Washers
- 1 - Quick Start Guide
- 1 - Instruction Manual CD
Package Depth (mm) 165 Package Height (mm) 75 Package Width (mm) 215 Package Quantity 1 Package Weight (g) 293 Packaging Description 300Mbps Wireless N PoE Wallplate Access Point Packaging Description India 300Mbps Wireless N PoE Wallplate Access Point Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Wi-Fi 4 (802.11n, 600Mbps) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 2 Connector 3 RJ-45 Connector 3 (Quantity) 2 Amazon Merchandising Manager Kathleen Marshall Artwork Due Date 2014-04-22 en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) BE,DE,DK,ES,EU,FR,IT,NL,SE,UK Primary Technology None Product Development Specialist Ray Aoki Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Photographer Alejandra Valencia Tech Lead Stefan Tirolese Technical Writer Andrew Richardson Technology Lifecycle Legacy
