ARMPIVOTE
Gas Spring Monitor Arm
VESA Monitor Mount | Desk/Grommet Mount | Height Adjustable | For up to 34" Monitors
Main Image
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name Gas Spring Monitor Arm Product Number ARMPIVOTE UPC 065030858595 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Display Mounts Category Level 2 Workstation Monitor Mounts Category Level 3 Desk Mount Monitor Arms Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX037X Product Title (Ultra-Short) Single Monitor Arm Product Title (Short) Monitor Arm - Single - Deskmount Product Title (Medium) Single Desk-Mount Monitor Arm - Full Motion - For up to 34" VESA Monitors, Steel Product Title (Standard) Single Desk Mount Monitor Arm - Full Motion - Height Adjustment - For up to 34" VESA Monitors - Desk/Grommet Mount - Steel Product Title (Long) Single Desk-Mount Monitor Arm - Full Motion Articulating - Steel Product Title (AMZ) Desk Mount Monitor Arm - Full Motion Articulating - Monitors 12” to 34” Adjustable VESA Single Monitor Arm - Desk & Grommet Clamp - Black (ARMPIVOTE) Title Ingram (Part 1) Single Monitor Arm - One-Touch Title Ingram (Part 2) Height Adjustment -Articulating Arm Website Product Headline VESA Monitor Mount | Desk/Grommet Mount | Height Adjustable | For up to 34" Monitors Bullet 1 Mount a VESA (75x75, 100x100) compatible display 12" to 34", flat screen, curved or ultrawide, with a max weight of 8 lb. (3.6 kg) Bullet 2 Smooth one-touch height adjustment, with the gas-spring arm Bullet 3 Articulating arm with wide range of motion, 360° around support pole and elbow, +/-90 degrees tilt and +/-90 degrees swivel Bullet 4 Maximum arm extension of 22.05" (560 mm) Bullet 5 Landscape-to-portrait display rotation (for use in portrait position, the mount supports ultrawide displays with max width of 20"/50.8 cm) Bullets (Compact) Mount a display on your desk surface or through a grommet, w/ spring-assisted height adjustment and cable management - Articulating Desk Mount Monitor Arm for VESA 75x75/100x100 displays up to 34" incl flat screen, curved, ultrawide up to 8 lb/3.6kg Bullets (Consolidated) Mount a display on your desk surface or through a grommet with spring-assisted height adjustment and cable management - Single Desk Mount Monitor Arm for VESA 75x75/100x100 displays up to 34" incl flat screen and curved and ultrawide up to 8 lb/3.6kg - Works on Mount compliant monitors including Acer/HP/Samsung - Articulating arm with wide range of motion: 360DEG around support pole and elbow plus tilt and swivel - Maximum arm extension 22.05" (560 mm) - Desk/Grommet Mount - Steel Marketing Copy Marketing Copy (No HTML) Applications - Mount a display to your desk, table or counter with a wide range of adjustment capability
- Grommet mount your display through a desk and position as needed
- Rotate displays to portrait orientation for web design and coding
Website Search Keyword - Monitor Arm
- LCD Arm
- Monitor Mounting Arm
- Adjustable Monitor Arm
- Desk Clamp Monitor Arm
- Grommet Clamp Monitor Arm
- Desk Mount
- Monitor Mount
- Ergotron lx
- ergotech freedom arm
- dell viewsonic
- fellowes lcd flat panel
- ergonomic clamp swivel
- 3m hp
- Single-Monitor Arm
- ultrawide mount
- curved TV mount
- ultra wide mount
- curved display mount
Required Regulatory Compliance Marks - REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes This mount supports monitors up to 34”, including flat screen, curved and ultrawide displays, with a max weight of 8 lb. (3.6 kg). If you choose to use an ultrawide display in portrait position, the mount supports ultrawide displays with a max width of 20" (50.8 cm). Accessory Products - DKT30CSDHPD
- USBVGADOCK2
- USB3VDOCKD
- USB3VDOCK4DP
- KSLTAD
- ACCSMNT
- PRIVSCNMON27
- PRIVSCNMON24
- PRIVSCNMON21
Related Products - ARMPIVOT
- ARMUNONB
- ARMSLIM
- ARMPIVSTND
Color Black Material Steel and Plastic Primary Material Steel Product Length (mm) 560.000 Product Width (mm) 75.000 Product Height (mm) 527.000 Product Weight (g) 2221.466 TAA Compliant No Display Rotation 360° Display Swivel +90° / - 90° Display Tilt +90° / - 90° Fits Curved Display Yes Fits UltraWide Displays Yes Height Adjustment Yes Maximum Arm Extension 560 Maximum Display Size 34" Premium Monitor Mount No Projector Mount No Swivel / Pivot Weight Capacity for Display Mounts (g) 3628 Your Monitor Size - 32.1" or Larger
- Up to 32"
- Up to 30"
- Up to 27"
- Up to 24"
- Up to 21"
Articulating Yes Height Adjustment Method One-Touch (Spring Assisted) Mounting Options Desk & Grommet Clamp Mounting Surface Thickness Number of Displays 1 VESA Hole Pattern(s) - 75x75 mm
- 100x100 mm

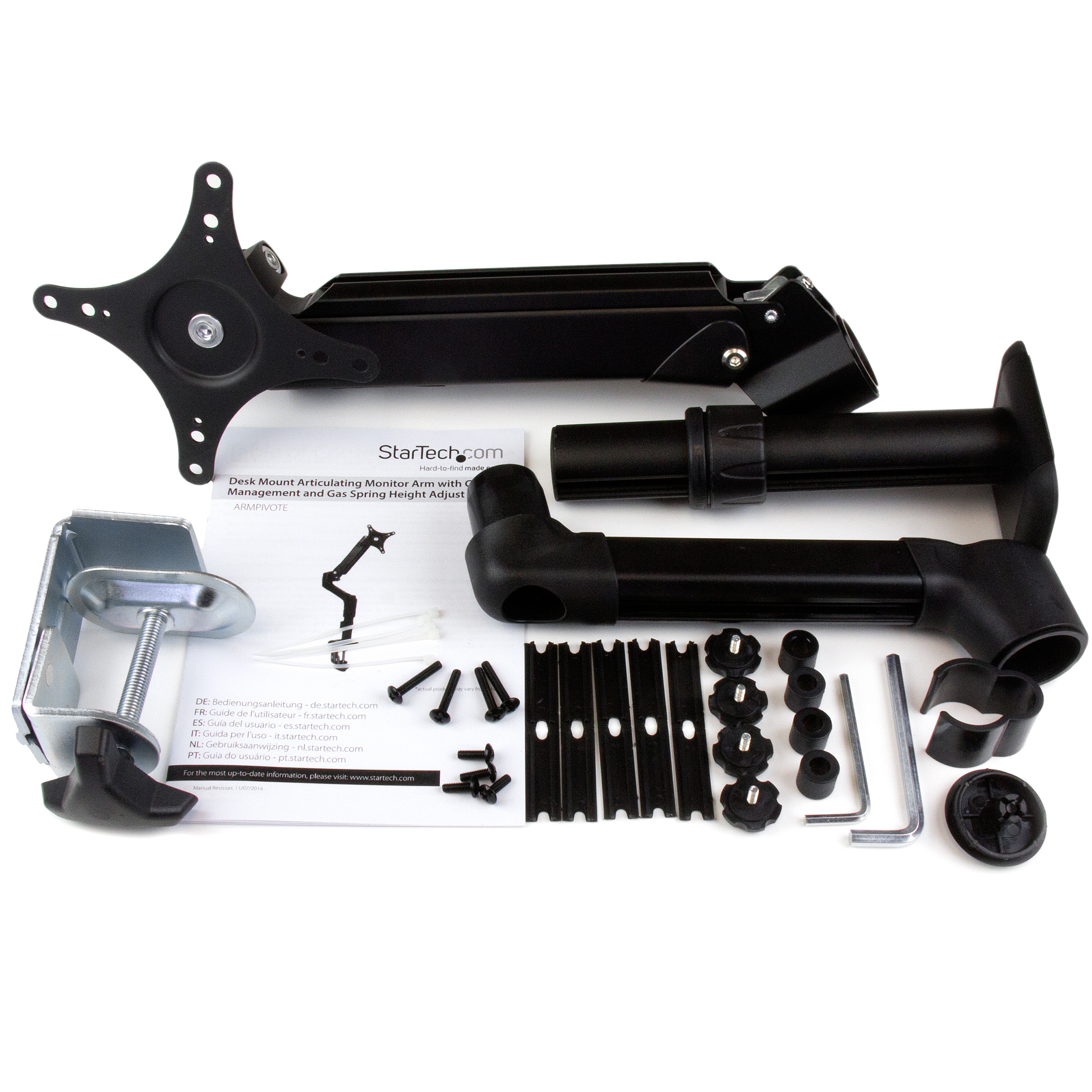

Wallmountable No Carton Depth (mm) 213 Carton Height (mm) 132 Carton Quantity 1 Carton Weight Gross (g) 2699.552 Included in Package - 1 - Gas Spring Arm
- 1 - Extension Arm
- 1 - Support Pole
- 1 - Clamp
- 1 - Cover and Bolt
- 5 - Cable Covers
- 4 - Spacers
- 4 - M4x12mm Screws
- 4 - M4x25mm Screws
- 1 - Cable Clip
- 2 - Plastic Gasket Cushions
- 1 - 4mm Allen Wrench
- 1 - 6mm Allen Wrench
- 1 - Instruction Manual
- 4 - Thumb screws
- 5 - Cable ties
Package Depth (mm) 213 Package Height (mm) 132 Package Width (mm) 477 Package Quantity 1 Package Weight (g) 2699.552 Packaging Description Desk Mount Articulating Monitor Arm Packaging Description India Desk Mount Articulating Monitor Arm Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Amazon Merchandising Manager Kristian Haighton Artwork Due Date 2014-06-24 Buying Center - AV & Collaboration No Buying Center - End User Compute Yes Buying Center - Networking & Edge No Enhanced Gallery Designer Rob Selenis en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett Launch Markets (concatenated) AT,AU,BE,CA,CH,CL,CO,DE,DK,ES,EU,FR,HK,IE,IT,JP,MX,NL,NZ,PE,SE,SG,UK,US Primary Technology None Product Development Specialist Sead Ferhatovic Product Information Creation Specialist (PICS) Alex Garcia Product Manager Tony Parackal Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Justin Weaver Technical Writer Andrew Richardson Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
