AS445C-POE-INJECTOR

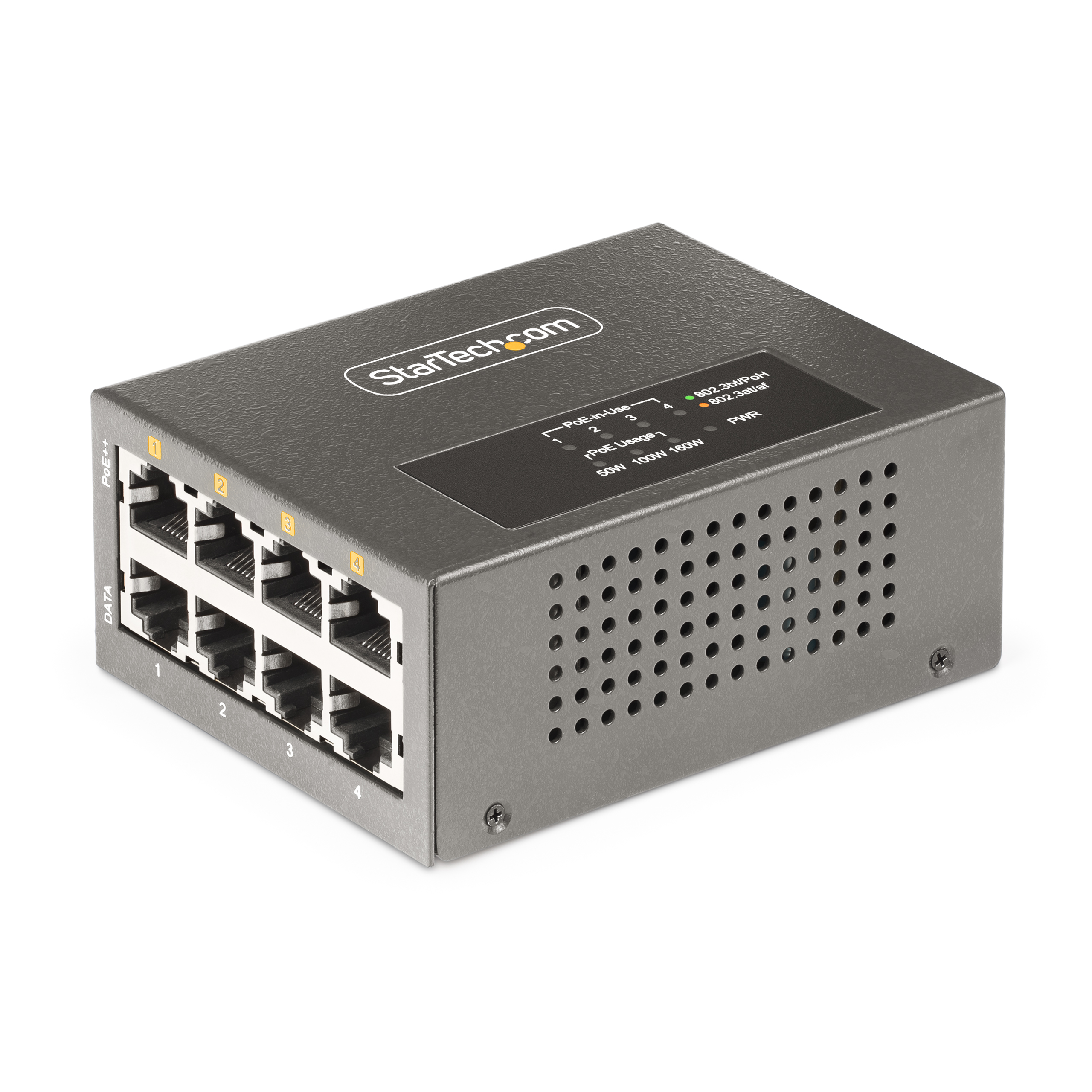

4 Port 802 3bt 90W Active Multi Gigabit PoE Injector
Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injector
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Quick-Start Guide
Product Name 4 Port 802 3bt 90W Active Multi Gigabit PoE Injector Product Number AS445C-POE-INJECTOR UPC 065030900928 Lifecycle status Active Warranty 2 Years Taxonomy Product > Networking > Network Switches Category Level 1 Networking Category Level 2 POE Injectors and Extenders Category Level 3 POE Injectors Country of Origin Europe & Japan Taiwan Country of Origin North America Taiwan Country of Origin History (1) Taiwan Country of Origin Revision (1) XXXXXX060X Product Title (Ultra-Short) PoE+/PoE++ Injector Product Title (Short) 4-Port Multi-Gigabit PoE+/PoE++ Injector Product Title (Medium) 4-Port Multi-Gigabit PoE Injector, 5/2.5/1G Ethernet, PoE/PoE+/PoE++ Up To 95W Product Title (Standard) 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160W Budget, TAA Product Title (Long) 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt), 160Watts Power Budget, Wall/DIN Rail Mountable, Unmanaged - TAA Product Title (AMZ) 4-Port Multi-Gigabit PoE++ Injector, 5/2.5/1G Ethernet (NBASE-T), PoE/PoE+/PoE++, Wall/DIN Rail Mountable, TAA Title Ingram (Part 1) 4-Port PoE+/PoE++ Injector - Title Ingram (Part 2) Multi-Gigabit, 5/2.5G Ethernet Website Product Headline Supply power and data to up to four remote Powered Devices (PDs) with this PoE/PoE+/PoE++ injector Bullet 1 4-PORT MULTI-GIGABIT POE INJECTOR: Multiport PoE++ injector supports up to 5Gbps (NBASE-T) w/auto-negotiation; TAA-compliant Power Sourcing Equipment (PSE) delivers power & data over Ethernet cable; Supports PoE/PoE+/PoE++ 95W max; Level-4 ESD protection Bullet 2 SELECTABLE POWER OUTPUT: DIP switch allows user to select the power output between auto-negotiation up to 90W, 95W PoH+, or forced legacy 60W (UPoE); 802.3af/802.3at/802.3bt power modes available on all ports; Total power budget of 160 Watts Bullet 3 MULTI-GIGABIT: Supports 5/2.5/1Gbps & 100/10Mbps; 5GBASE-T/2.5GBASE-T compatible; Provide data & power to Powered Devices (PDs) up to 328ft (100m) w/Cat 5e/6/6a cabling; Supports WoL/PXE/9K Jumbo frames; Unmanaged PoE injector streamlines setup & deployment Bullet 4 RUGGED ENCLOSURE: Durable full-metal housing ensures durability; Mount the PoE injector to a wall or a DIN rail with the included bracket; LAN transformers isolate the input/output data, and a power circuit prevents interference between ports Bullet 5 STATUS LEDS: Top-facing color-coded diagnostic LEDs indicate the current PoE mode per Ethernet port and current PoE power budget of the injector for quick at-a-glance status of the system Bullets (Compact) 4-Port Multi-Gigabit PoE injector supports Ethernet 5/2.5/1Gbps and 100/10Mbps (NBASE-T) - PoE/PoE+/PoE++ up to 95W - Features selectable power output switch for 90W/95W PoH/legacy 60W - PoE ++ injector w/ top-facing LEDs for PoE mode/power budget Bullets (Consolidated) - 4-Port Multi-Gigabit PoE injector supports up to 5 Gbps (NBASE-T) - Features PoE/PoE+/PoE++ (802.3af/802.3at/802.3bt) up to 95W; 160W Power budget - Selectable power output for 90W/95W PoH/legacy 60W; PoE plus injector features multi-gigabit auto-negotiation between 5/2.5/1Gbps and 100/10Mbps - Extend data/power up to 100m w/ Ethernet Cat 5e/6/6a cables - Durable metal enclosure w/ DIN rail mounting bracket; Unmanaged injector equipped w/ top-facing color-coded LEDs for PoE mode/power budget Marketing Copy Marketing Copy (No HTML) Required Regulatory Compliance Marks - CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- CE - Environmental - European Union - EU Restriction of Hazardous Substances (RoHS) 2011/65/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class A Digital Device Interference Full Statement
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class A Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- UKCA - EMC/EMI - United Kingdom - UK Electromagnetic Compatibility Regulations 2016
- Recycling - Waste - Japan - Paper Recycling Mark
- Recycling - Waste - Japan - Plastic Recycling Mark
- Triman/Info-Tri - Packaging - Waste - European Union - Paper Box + plastic bag + Paper/foam divider/tray
- Triman/Info-Tri - Product - Waste - European Union - EEE Device + accessories + cords
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
Special Notes - It is recommended to attach a grounding wire between the PoE Injector and Earth Ground for safety and stability.

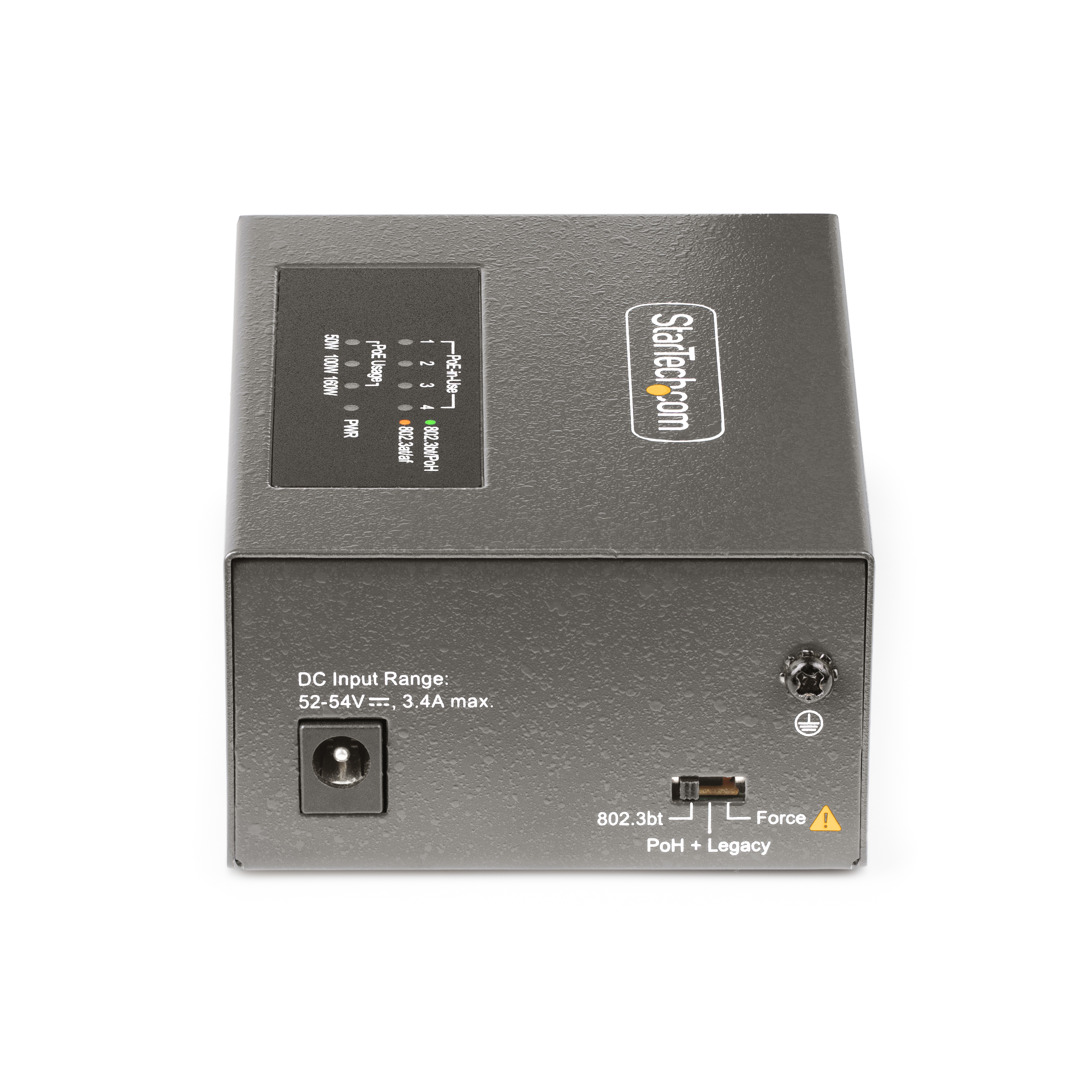

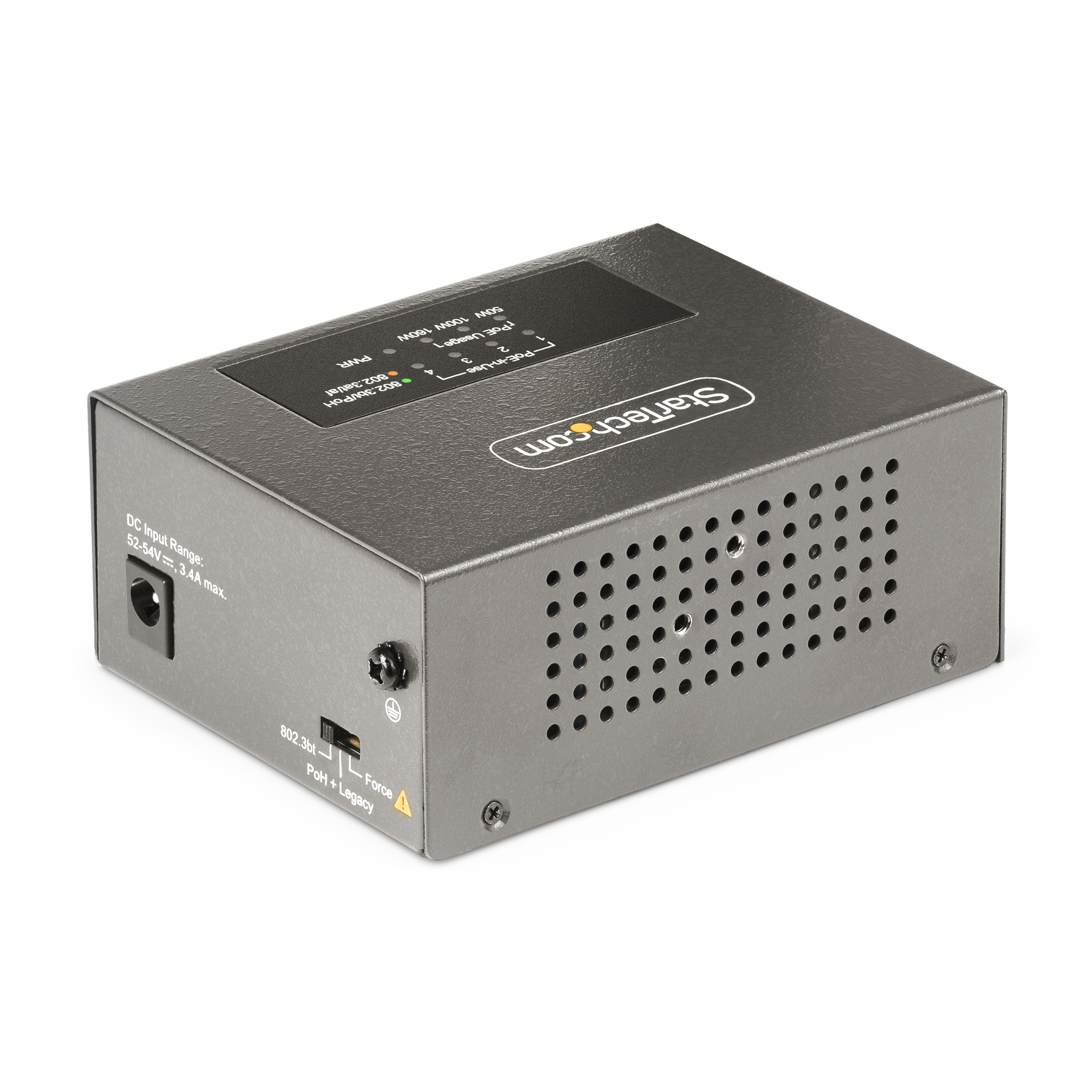

- 802.3bt and the 'PoH + Legacy' switch position both pass power classes 0-8. </b> 'Force' switch position passes power class 0-3.
- Force mode operates as a non-negotiating 4-pair 60W PoE PSE. Prior to selecting this mode, ensure that the PD supports a 60W power input to avoid potential equipment damage.
Accessory Products - NETRS2321POE
- N6PATCH100BL
- N6PATCH50BL
- N6PATCH25BK
- N6PATCH10OR
- WIRC6PATBLRL
- WIRC6PATBKRL
- WIRC6CMRBL
Related Products - POEINJ1G90W
- POEINJ4G
- POEINJ1G
- POEINJ30W
- IESC1G50UP
- IESC1G80UP
- IES1G52UPDIN
- IES81GPOEW
- IMC1GSFP30W
Input Current 2.5 A Input Voltage 100 - 240 AC Output Current 3.3 A Output Voltage (V) 54 DC Power Source AC Adapter Included Plug Type M Center Tip Polarity Positive Color Black Humidity 5~95% RH (Non-Condensing) Material Steel Operating Temperature 32°F to 122°F (0°C to 50°C) Primary Material Steel Product Length (mm) 94.000 Product Width (mm) 70.000 Product Height (mm) 39.000 Product Weight (g) 278.000 Storage Temperature 14°F to 158°F (-10°C to 70°C) TAA Compliant Yes Auto MDIX Yes Compatible Networks 5G/2.5G/1G/100Mbps/10Mbps ESD Protection - +/-8kV (Contact)
- +/-15kV (Air)

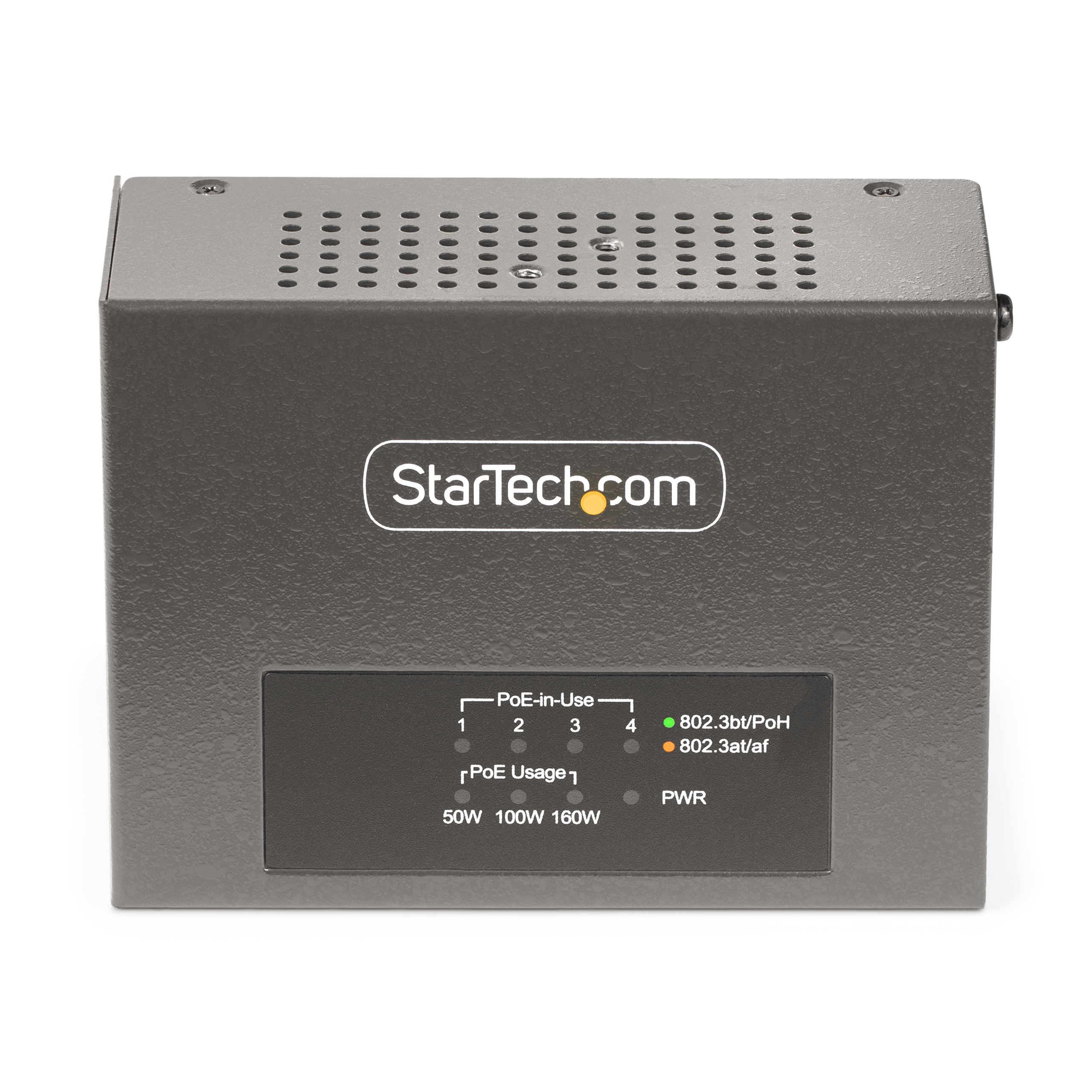

Jumbo Frame Support 9K max. Maximum Cable Length (mm) 100000 Maximum Data Transfer Rate 5000 Mbps OS Compatibility OS Independent PXE No Supported Protocols Wake-on-LAN (WoL) Total Available Power Output (In Watts) 160W Chipset ID Microsemi - PD69208T4 </br> Microsemi - PD69200R Ethernet Port Yes Industry Standards LED Indicators - 3 - PoE Usage LEDs: </br> Steady Amber - The system is consuming over the indicated PoE power budget </br> Blinking Amber. Indicates that the system is consuming under the indicated PoE power budget </br>
- 3 - PoE-in-Use LEDs: </br> Steady Green - The port is providing 802.3bt/PoH/Force power to the remote powered device </br> Steady Amber - The port is providing 802.3af/at PoE/PoE+ power to the remote powered device </br> Off - No power is being provided to the remote device </br>
- 1 - Power LED. </br> Steady Green - Power is being supplied to the PoE Injector </br> Off - No power is being supplied to the PoE Injector

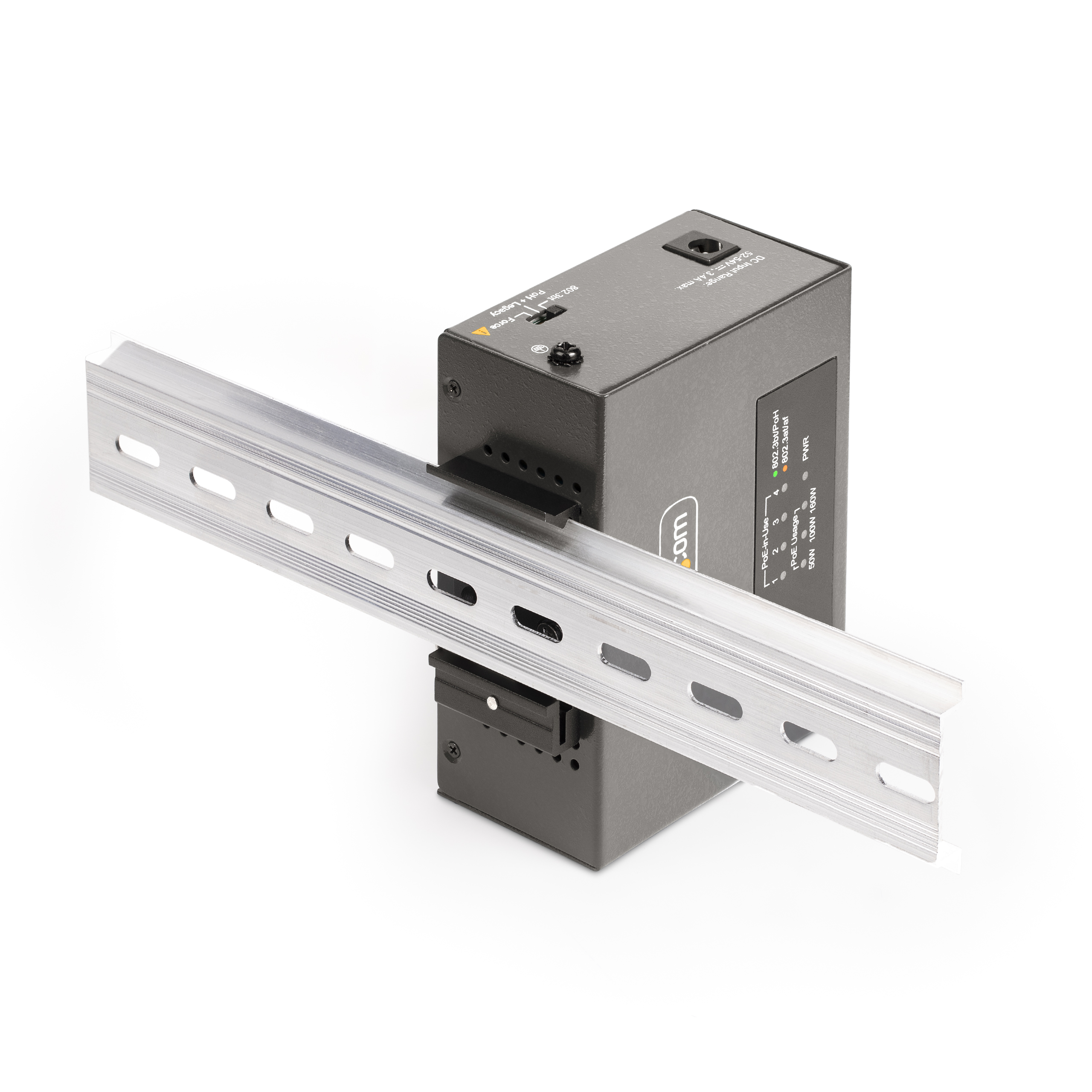

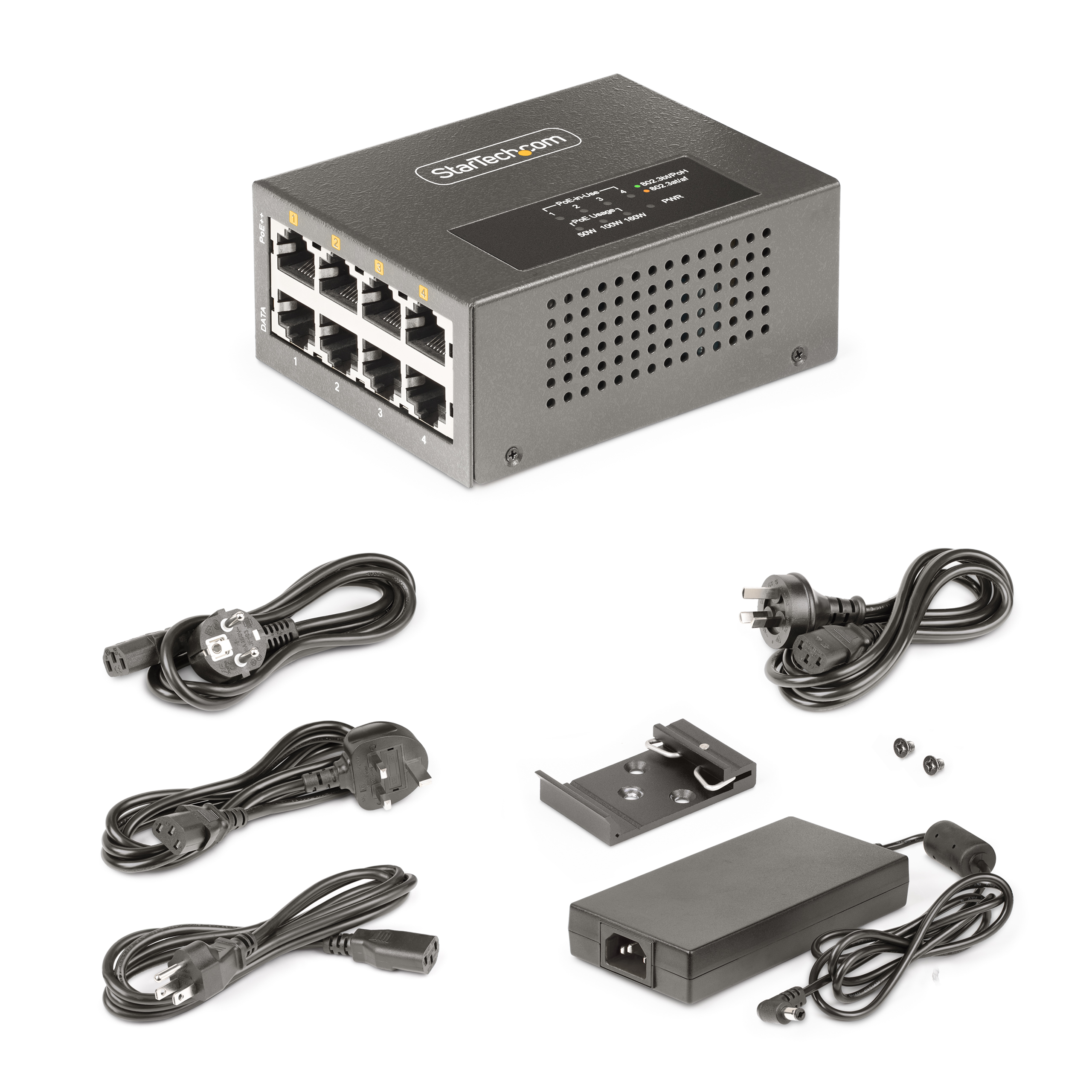

Mounting Options DIN Rail Carton Depth (mm) 376 Carton Height (mm) 479 Carton Quantity 10 Carton Weight Gross (g) 17282 Included in Package - 1 - 4-Port PoE Injector
- 1 - Universal Power Adapter
- 1 - Quick-Start Guide
- 1 - DIN Rail Mounting Kit

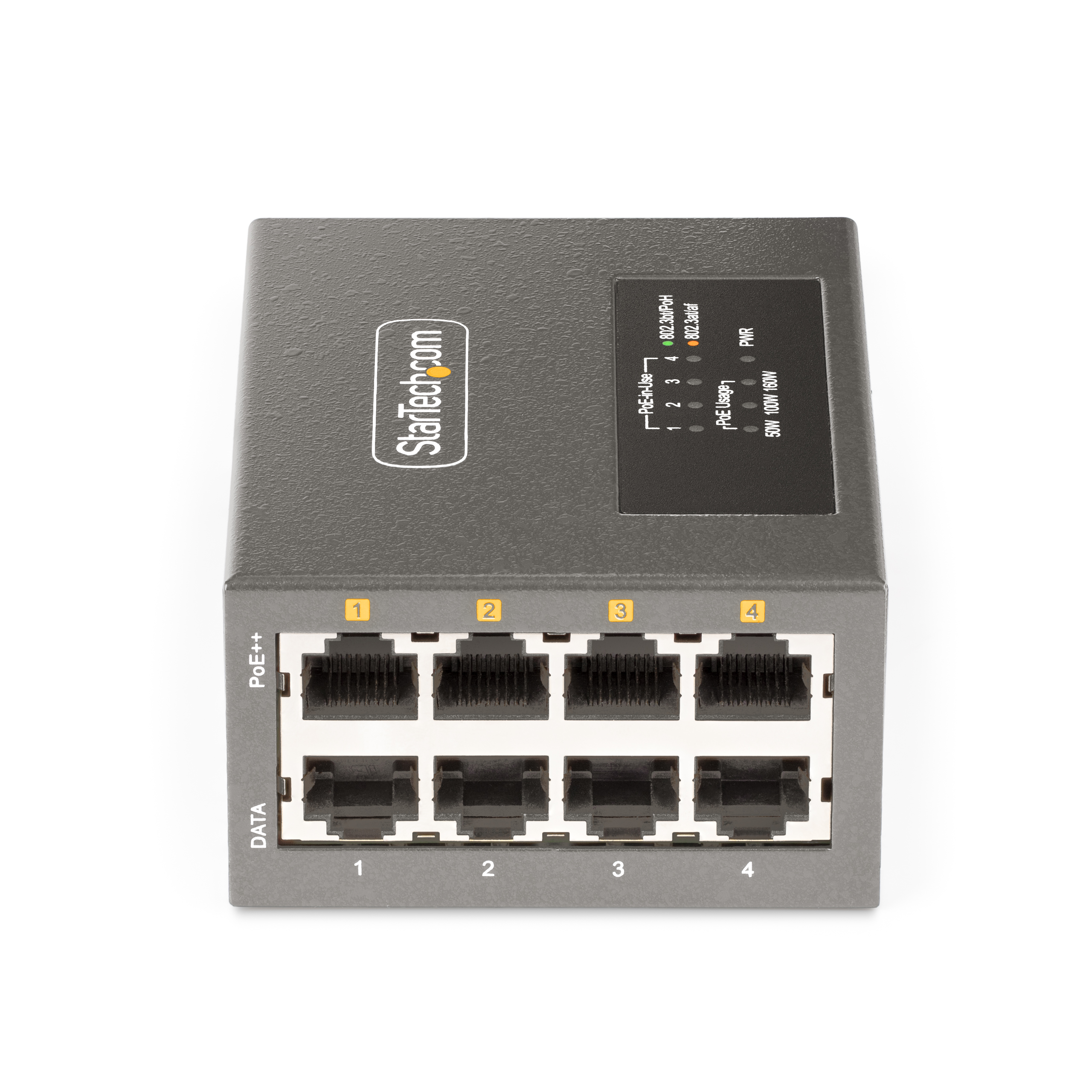

Package Depth (mm) 310 Package Height (mm) 93 Package Width (mm) 178 Package Quantity 1 Package Weight (g) 1664 Packaging Description 4-Port 802.3bt 90W 5Gbps PoE Injector Packaging Description India 4-Port 802.3bt 90W 5Gbps PoE Injector Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 Barrel Power (M-Type, OD 5.5mm / ID 2.1mm) Connector 1 (Quantity) 1 Connector 2 RJ-45 Connector 2 (Quantity) 4 Connector 3 RJ-45 Connector 3 (Quantity) 4 Actual Inbox Documents Created QSG in the box Amazon Merchandising Manager Kathleen Marshall Application Photos Uploaded Artwork Due Date 2023-07-15 Buying Center - AV & Collaboration Yes Buying Center - Data Center No Buying Center - End User Compute No Buying Center - Networking & Edge Yes Comparable SKU Comment 802.3at 4-port POE Injector, 30W per port Comparable SKU 2 Comment 802.3at 1-port POE Injector Digital Content Due Date 2023-10-23 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Focus Rank Level 0 - Not Applicable Graphic Designer Shane Arnett ID Label Silkscreened or a Label No ID label Launch Markets (concatenated) AT,BE,CA,CH,DE,DK,ES,FI,FR,IE,IT,JP,NL,SE,UK,US Product Development Specialist Alex Sikora Product Information Creation Specialist (PICS) Alex Garcia Product Manager Rob Fleck Product Performance Specialist Ray Aoki Product Photographer Caleigh Le Grand Target Development Completion Date 2023-06-16 Target Production Release 2023-07-30 Tech Lead Justin Weaver Technical Writer Alex Garcia Technology Lifecycle None Vending Machine Not Compatible with Vending Machine
