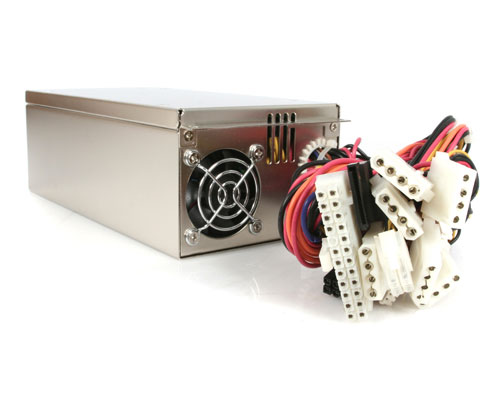

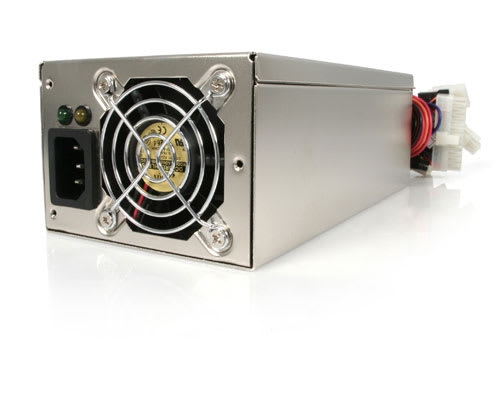

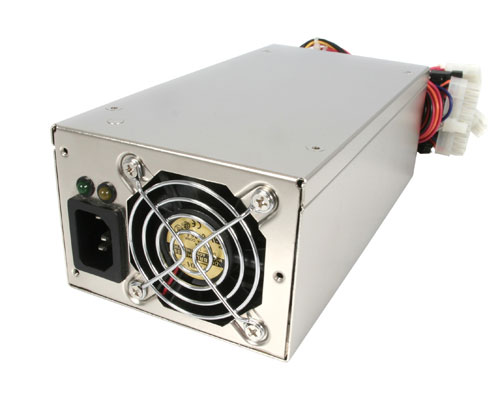

Product Name 400 Watt 2U ATX12V 2.01 Power Supply Product Number ATX2POW4002U UPC 065030819985 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 400W 2U ATX Industrial Computer PSU Product Title (Standard) StarTech.com 400 Watt 2U Dual ATX12V 2.01 Industrial Computer Power Supply - Power supply ( rack-mountable ) - ATX12V 2.01 - AC 115/230 V - 400 Watt - 12 output connector(s) - active PFC - 2U Product Title (Long) 400 Watt 2U Dual ATX12V 2.01 Industrial Computer Power Supply Title Ingram (Part 1) 400 Watt 2U Dual ATX12V Industri Title Ingram (Part 2) al Computer Power Supply Bullet 1 ATX12V 2.01 compliant and 24/20 pin split mb connector for compatibility with existing standards Bullet 2 Two separate 12V power rails to deliver stable power to demanding devices Bullet 3 Nickel-plated finish Bullet 4 Generous number of device and peripheral connectors, including SATA and PCI-Express connectors. Marketing Copy Applications - Ideally designed for lower profile 2U and 3U case chassis making it ideal for 2U and 3U rackmount system builds.
- Perfect replacement or upgrade for Industrial PC or server systems with 2U and 3U chassis size.
Website Search Keyword - 2u
- 3u
- rackmount
- active
- PFC
- power factor correction
- industrial IPC
- low profile
- high efficiency
Related Products - ATX2PW400PRO
- ATX2POWER400

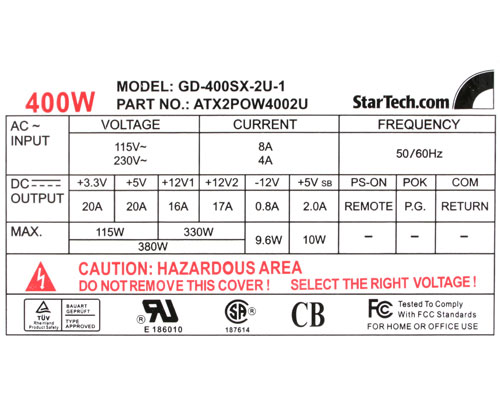

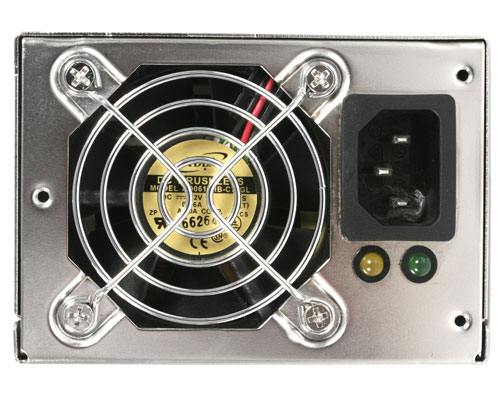

Input Current 115V (8A), 230V (4A) Material Nickel-plated Steel Operating Temperature Product Length (mm) 213 Product Width (mm) 100 Product Height (mm) 71 Product Weight (g) 1850 Storage Temperature -20 to 80 Degrees C, 5-90% RH TAA Compliant No MTBF (hours) 100,000 Hours Fan Bearing Type Ball Bearing Fans 1 - 80 mm Carton Depth (mm) 525 Carton Height (mm) 400 Carton Quantity 10 Carton Weight Gross (g) 22500 Package Depth (mm) 92 Package Height (mm) 165 Package Width (mm) 270 Package Weight (g) 2130 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 6 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 ATX Power (4-Pin, 12V, 192W) Connector 3 (Quantity) 1 Connector 4 PCIe Power (6-Pin, 12V, 75W) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 1 Connector 6 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 6 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
