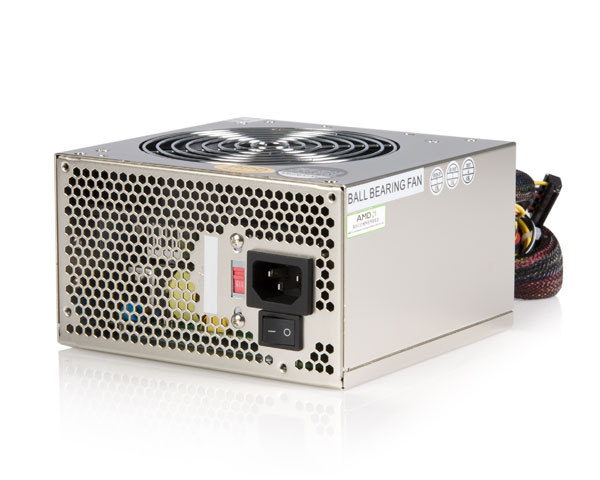

Product Name 450W Silent ATX12V PC PSU Power Supply w/120mm Fan Product Number ATX2POW450HS UPC 065030819596 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 450W Silent ATX Computer PC Power Supply Product Title (Standard) StarTech.com 450 Watt Silent ATX12V PC Computer Power Supply with 120mm Fan Product Title (Long) 450 Watt Silent ATX12V 2.01 PC Computer Power Supply with 120mm Fan Title Ingram (Part 1) 450 Watt Silent ATX12V PC Comput Title Ingram (Part 2) er Power Supply w/ 120mm Fan Bullet 1 ATX12V 2.01 compliant and 24/20 pin split ATX connector for compatibility with existing standards Bullet 2 Generous number of accessory connectors Bullet 3 Nickel-plated finish Bullet 4 Premium EMI/RFI power filtration provides low noise and ripple for stable power delivery Bullet 5 Quad+1 protection against: short circuit, over power, over voltage, no load Marketing Copy Applications - Ideal for adding PCI Express and SATA power support to existing computers
- The perfect choice for new system builds and upgrades, including dual core CPU (Pentium D, Core 2 Duo, Athlon 64 X2) system designs
Website Search Keyword - PCI-e
- ATXPOW430HS
Accessory Products - ATX2024FM
- ATXPOWEXT
- LP4PCIEXADAP
- PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATX2PW400PRO
- ATX2PW450PRO
- ATX2PW550PRO
- ATX2POWER450
- ATX2POW400HS
- ATX2POWR400E
- ATX2POW500HS
- ATX2PW500PRO

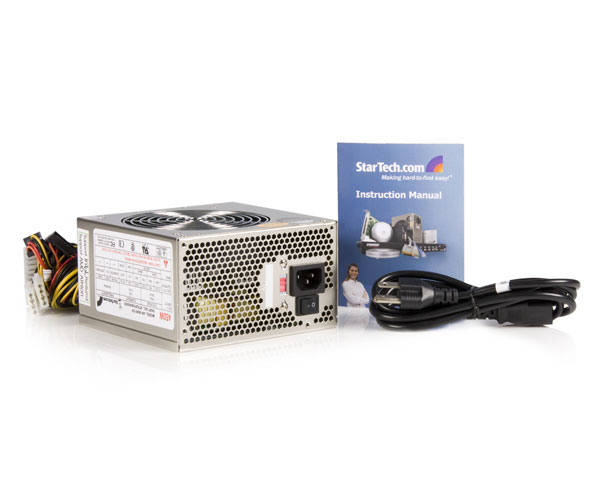

Material Nickel-plated Steel Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 86 Product Weight (g) 2050 TAA Compliant No General Specifications Input Current/Draw: 115V (10A), 230V (5.5A) MTBF (hours) 100,000 Hours Noise Level 21.5 ~ 24.9 dBA (Light to 50% Load @ 1800 RPM) Fan Bearing Type Ball Bearing Fans 1 - 120 mm Carton Depth (mm) 640 Carton Height (mm) 276 Carton Quantity 6 Carton Weight Gross (g) 15720 Included in Package - 1 - Instruction Manual
- 1 - Power supply
- 1 - Standard power cable
Package Depth (mm) 206.5 Package Height (mm) 101.6 Package Width (mm) 234.95 Package Weight (g) 2340 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 4 Connector 3 ATX Power (4-Pin, 12V, 192W) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 4 Connector 5 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 5 (Quantity) 2 Connector 6 Fan TX3 (3-Pin, 12V) Connector 6 (Quantity) 1 Connector 7 PCIe Power (6-Pin, 12V, 75W) Connector 7 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
