ATX2POW550HS
Main Image

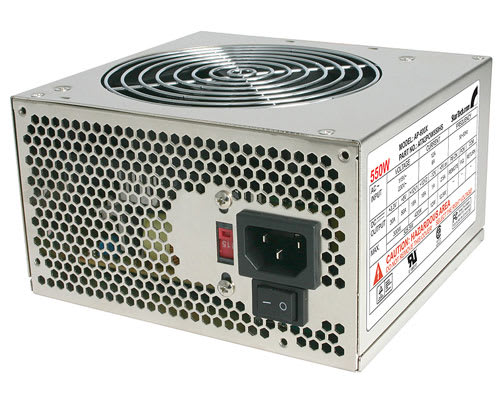

Product Name 550 Watt Silent ATX12V 2.01 P4 Power Supply with 12cm Fan Product Number ATX2POW550HS UPC 065030819619 Warranty 2 Years Taxonomy Product > Legacy Discontinued Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 550 Watt Silent ATX12V 2.01 P4 Power Supply with 12cm Fan Bullet 1 ATX12V 2.01 compliant and 24/20 pin split ATX connector for compatibility with existing standards Bullet 2 Generous number of accessory connectors Bullet 3 Nickel-plated finish Bullet 4 Premium EMI/RFI power filtration provides low noise and ripple for stable power delivery Bullet 5 Quad+1 protection against: short circuit, over power, over voltage, no load Marketing Copy This 550 Watt, silent power supply is the perfect upgrade or replacement for powering your AMD or Intel based PC, including dual-core CPU designs. With dual 12V power rails and premium EMI/RFI power filtration for low noise and ripple, this is the ideal solution for delivering stable power to the most demanding devices. Plus, with Quad+1 protection from short circuit, over power, over voltage and no-load situations, as well as a 12cm dual ball bearing fan for superior air flow, you can rest assured that this power supply will be as dependable as you need it to be. Compliant with the ATX 2.01 form factor, the ATX2POWER550HS includes a split 24/20 pin ATX connector for compatibility with existing standards, as well as a generous number of accessory connectors to maximize your configuration possibilities. Applications - Ideal for adding PCI Express and SATA power support to existing computers
- The perfect choice for new system builds and upgrades, including dual core CPU (Pentium D, Core 2 Duo, Athlon 64 X2) system designs
Website Search Keyword PCI-e Accessory Products - ATX2024FM
- ATXPOWEXT
- LP4PCIEXADAP
- PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATX2PW400PRO
- ATX2PW450PRO
- ATX2PW550PRO
Material Nickel-plated Steel Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 86 Product Weight (g) 2250 TAA Compliant No General Specifications - Input Current/Draw: 115V (10A), 230V (5.5A)
- MTBF: 100,000 hours @ 25 deg. C.
Noise Level 21.9 ~ 29.8 dBA (Light to 50% Load @ 1800 RPM) Fan Bearing Type Ball Bearing Fans 1 - 120 mm Included in Package - 1 - Instruction Manual
- 1 - Power supply
- 1 - Standard power cable
Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 6 Connector 3 ATX Power (4-Pin, 12V, 192W) Connector 3 (Quantity) 1 Connector 4 SATA (15-Pin) Connector 4 (Quantity) 6 Connector 5 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 5 (Quantity) 3 Connector 6 Fan TX3 (3-Pin, 12V) Connector 6 (Quantity) 1 Connector 7 PCIe Power (6-Pin, 12V, 75W) Connector 7 (Quantity) 2 en-US Content Approved Yes
