ATX2POWER350
350 Watt ATX12V 2.01 Power Supply
Replace or upgrade to a 350W power supply for a standard ATX computer
Main Image
Product Images
Product Images
BOM Image
Product Name 350 Watt ATX12V 2.01 Power Supply Product Number ATX2POWER350 UPC 065030818827 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Family No Family Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 350W ATX Computer Power Supply Product Title (Standard) StarTech.com Computer Power supply ( internal ) - 20/24 Pin - ATX12V 2.01 - AC 115/230 V - 350 Watt Product Title (Long) 350 Watt ATX12V 2.01 Computer PC Power Supply w/ 20 & 24 Pin Connector Product Title (AMZ) 350 Watt ATX12V 2.01 Computer PC Power Supply w/ 20 & 24 Pin Connector (ATX2POWER350) Title Ingram (Part 1) 350W ATX12V Computer PC Power Su Title Ingram (Part 2) pply - 20 & 24 Pin Connector Website Product Headline Replace or upgrade to a 350W power supply for a standard ATX computer Bullet 1 ATX12V version 2.01 compliant Bullet 2 EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 3 High flow fan provides efficient cooling for the system and the power supply Bullet 4 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 5 Industry’s leading safety approval ratings Bullets (Consolidated) Replace or upgrade to a 350W power supply for a standard ATX computer - 350W ATX Power Supply - 350 Watt ATX Power Supply - 350w ATX PSU - 350w Power Supply - 350W ATX12V Power Supply - 350 Watt ATX12V 2.01 power supply - 20 and 24 Pin Connector Marketing Copy Applications - Dual 12V rails are designed for demanding components.
- Offers extra current required by cutting-edge CPUs and peripherals
- The perfect choice for new system builds and upgrades, including dual core CPU (Pentium D, Core 2 Duo, Athlon 64 X2) system designs
Website Search Keyword - ATXPOWER350
- ATX2POWR350E
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATX2POWER450
- ATX2POWER400

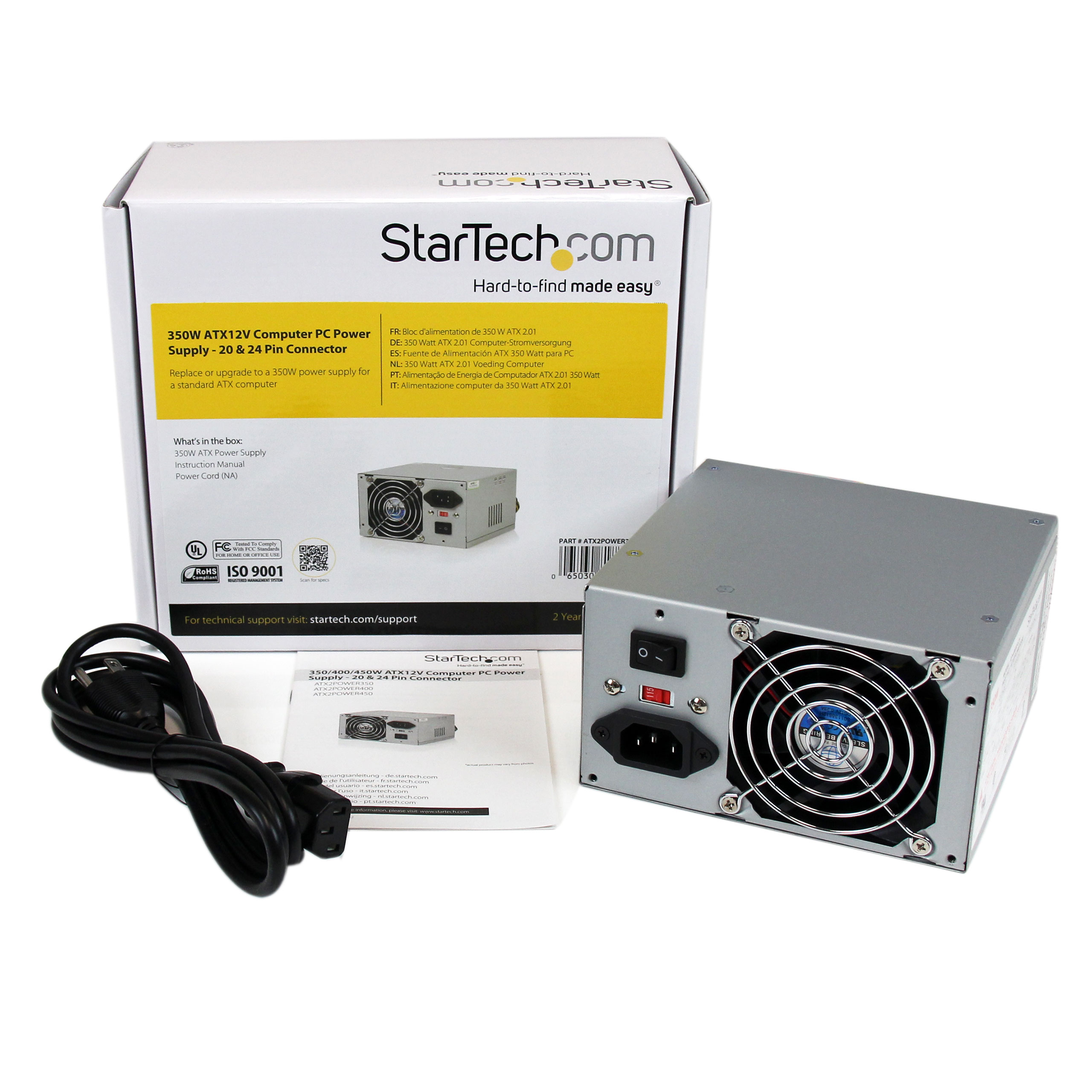

Input Voltage 115 ~ 230 Color Gray Operating Temperature 0° ~ 50° Primary Material Plastic Product Length (mm) 140.000 Product Width (mm) 150.000 Product Height (mm) 85.000 Product Weight (g) 1552.000 Storage Temperature -20° ~ 80° TAA Compliant No Air Flow Rate 32.3 CFM MTBF (hours) 100,000 Hrs Noise Level 27.4 dBa Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 255 Carton Height (mm) 425 Carton Quantity 10 Carton Weight Gross (g) 19976 Included in Package - 1 - Instruction Manual
- 1 - Power Cord (NA)
- 1 - 350W ATX Power Supply
Package Depth (mm) 100 Package Height (mm) 203 Package Width (mm) 235 Package Quantity 1 Package Weight (g) 1935 Packaging Description 350 Watt ATX 2.01 Computer Power Supply Packaging Description India 350 Watt ATX 2.01 Computer Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 2 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 2 Connector 5 ATX Power (4-Pin, 12V, 192W) Connector 5 (Quantity) 1 Connector 6 PCIe Power (6-Pin, 12V, 75W) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle None
