ATX2POWER450
450 Watt ATX12V 2.01 Power Supply
Replace or upgrade to a 450W power supply for a standard ATX computer
Main Image
Product Images
Product Images
BOM Image
Product Name 450 Watt ATX12V 2.01 Power Supply Product Number ATX2POWER450 UPC 065030818834 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 450W ATX Computer Power Supply Product Title (Standard) StarTech.com Computer Power supply ( internal ) - 20/24 pin - ATX12V 2.01 - AC 115/230 V - 450 Watt Product Title (Long) 450 Watt ATX12V 2.01 Computer PC Power Supply w/ 20 & 24 Pin Connector Title Ingram (Part 1) 450W ATX12V Computer PC Power Su Title Ingram (Part 2) pply - 20 & 24 Pin Connector Website Product Headline Replace or upgrade to a 450W power supply for a standard ATX computer Bullet 1 ATX12V version 2.01 compliant Bullet 2 EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 3 High flow fan provides efficient cooling for the system and the power supply Bullet 4 High quality connectors provide minimal resistance and enhanced electric conductivity Bullet 5 Industry’s leading safety approval ratings Marketing Copy Applications - Dual 12V rails are designed for demanding components.
- Offers extra current required by cutting-edge CPUs and peripherals
- The perfect choice for new system builds and upgrades, including dual core CPU (Pentium D, Core 2 Duo, Athlon 64 X2) system designs
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATX2POWER350
- ATX2POWER400
- ATX2POW450HS
Input Current 10 ~ 5.5 Input Voltage 115 ~ 230 Operating Temperature 0° ~ 50° Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 85 Product Weight (g) 1970 Storage Temperature -20° ~ 80° TAA Compliant No Air Flow Rate 32.3 CFM MTBF (hours) 100,000 Hrs Noise Level 27.4 dBa RPM 3500 RPM +/-10% Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 672 Carton Height (mm) 280 Carton Quantity 6 Carton Weight Gross (g) 15660 Included in Package - 1 - Instruction Manual
- 1 - Power Cord (NA)

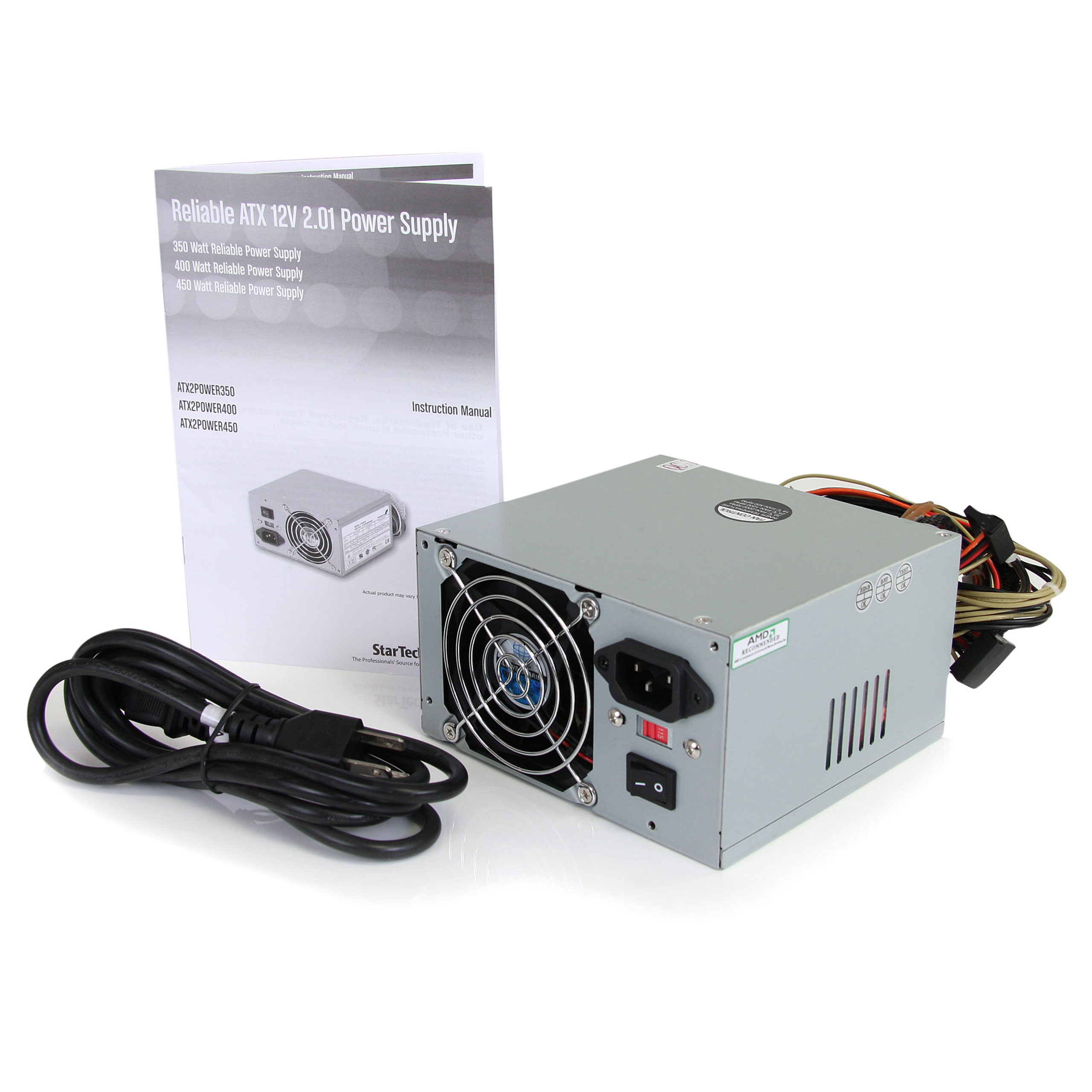

- 1 - 450W ATX Power Supply
Package Depth (mm) 99 Package Height (mm) 218 Package Width (mm) 236 Package Weight (g) 2410 Packaging Description 450 Watt ATX 2.01 Computer Power Supply Packaging Description India 450 Watt ATX 2.01 Computer Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 4 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 4 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 2 Connector 5 ATX Power (4-Pin, 12V, 192W) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
