ATX2POWR350E
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
Product Images

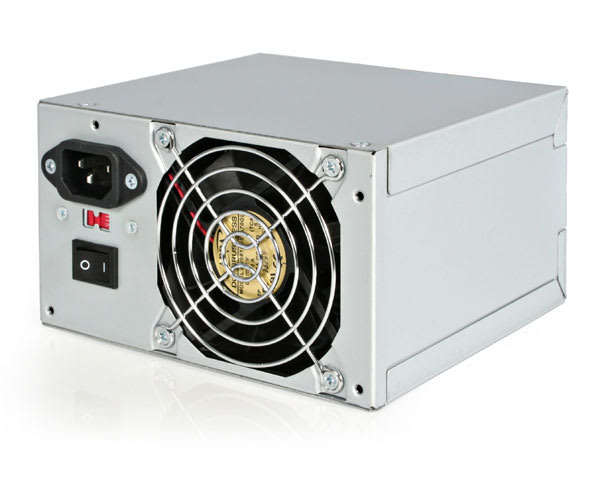

Product Name 350 Watt ATX 2.01 Power Supply Product Number ATX2POWR350E UPC 065030824521 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Product Title (Long) 350W ATX12V 2.2 Power Supply Bullet 1 Dual 12V output rails, 12V1 & 12V2, providing dedicated output for today’s more advanced & demanding processors Bullet 2 Split 20+4 pin motherboard connector compatible with newer and legacy motherboards Bullet 3 Over Current Protection (OCP), Over Voltage Protection, Over Temperature Protection, Short Circuit Protection, Protection Reset and No Load operation Bullet 4 Intelligent thermal fan speed control technology Marketing Copy Applications - Compatibility with Intel Pentium 4, Pentium D, Core 2 Duo and AMD Athlon 64 processor-based systems (single and dual core) conforming to standard ATX form factor
- Replacement power supply upgraded to support component demands of today’s systems as well as being backward compatible to older Intel & AMD systems
Website Search Keyword - ATXPOWER350
- RoHS power supply
Accessory Products - PXT101
- PYO2L
- PYO2S
- PYO2SL
Related Products - ATX2POWR400E
- ATX2POWER350

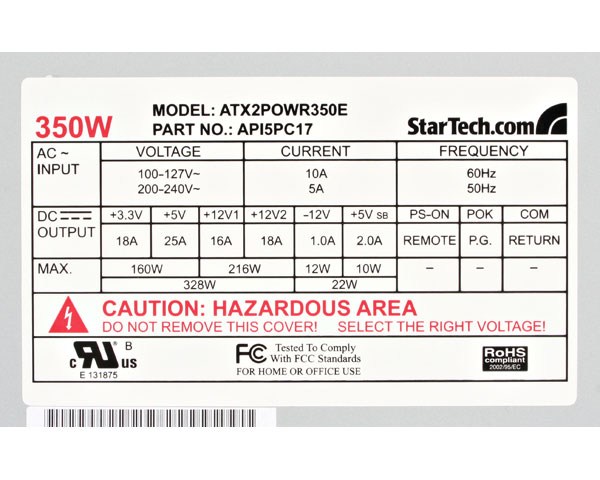

Replacement Product ATX2POWER350 Input Current Material Steel Operating Temperature 0 ~ 50 Degrees C Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 86 Product Weight (g) 1303 Storage Temperature -40 ~ 70 Degrees C TAA Compliant No General Specifications - Fan Speed Control circuitry
- +3.3V DC Output: 18A
- +5V DC Output: 25A
- +12V1 DC Outout: 16A
- +12V2 DC Output: 18A
- -12V DC Output: 1.0A
- +5V sb DC Output: 2.0A
- ON / OFF Switch
- Chrome Fanguard

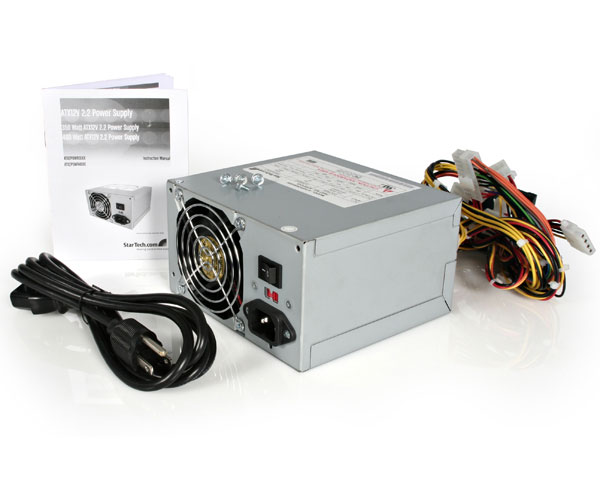

MTBF (hours) 100,000 Hours @ 25°C Fan Bearing Type Sleeve Bearing Fans 1 - 80 mm Carton Depth (mm) 510 Carton Height (mm) 226 Carton Quantity 6 Carton Weight Gross (g) 11280 Included in Package - 1 - Power Supply
- 1 - NA Power Cord
- 1 - Manual
Package Depth (mm) 97 Package Height (mm) 203 Package Width (mm) 232 Package Weight (g) 1680 Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 5 Connector 3 SATA (15-Pin) Connector 3 (Quantity) 2 Connector 4 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 1 Connector 5 ATX Power (4-Pin, 12V, 192W) Connector 5 (Quantity) 1 en-US Content Approved Yes Product Manager Daryl Hunt
