ATX2PW400PRO
400 Watt ATX12V 2.01 Pro Power Supply
Add a high performance 400W power supply to a standard ATX computer
Main Image
Product Images
Product Images
Product Images
BOM Image
Product Name 400 Watt ATX12V 2.01 Pro Power Supply Product Number ATX2PW400PRO UPC 065030817745 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 400W ATX 12V Computer PSU w/ PCIe & SATA Product Title (Standard) StarTech.com Professional - Computer Power supply with PCIe and SATA ( internal ) - ATX12V 2.01 - AC 115/230 V - 400 Watt - 14 output connector(s) Product Title (Long) Professional 400 Watt ATX12V 2.01 Computer Power Supply w/ PCIe & SATA Product Title (AMZ) Professional 400 Watt ATX12V 2.01 Computer Power Supply w/ PCIe & SATA (ATX2PW400PRO) Title Ingram (Part 1) Professional 400W ATX Computer P Title Ingram (Part 2) ower Supply w/ PCIe & SATA Website Product Headline Add a high performance 400W power supply to a standard ATX computer Bullet 1 Generous number of accessory connectors Bullet 2 ATX12V 2.01 compliant and 24/20 pin split mb connector for compatibility with existing standards Bullet 3 Two separate 12V power rails to deliver stable power to demanding devices Bullet 4 Quad+1 protection against: short circuit, over power, over voltage, no load Bullet 5 Premium EMI/RFI power filtration provides low noise and ripple for stable power delivery Bullets (Consolidated) Internal Power Supply - ATX12V 2.01 - AC 115/230V - 400 Watt - 14 output connector(s) Marketing Copy Applications - Ideal for adding PCI Express and SATA power support to existing computers
- The perfect choice for new system builds and upgrades, including dual core CPU (Pentium D, Core 2 Duo, Athlon 64 X2) system designs
Website Search Keyword - PCI-e
- ATXPOW400PRO
Required Regulatory Compliance Marks - FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Accessory Products - PYO2SL
- PYO2S
- PYO2L
- PXT101
- ATXPOWEXT
- ATX2024FM
- LP4PCIEXADAP
Related Products - ATX2PW450PRO
- ATX2PW500PRO
- ATX2PW550PRO
Input Current 10A ~ 5.5A Input Voltage 115V-230V AC Material Steel Product Length (mm) 140.000 Product Width (mm) 150.000 Product Height (mm) 86.000 Product Weight (g) 1672.000 TAA Compliant No MTBF (hours) 100,000 Hrs Fan Bearing Type Ball Bearing Fans 1 - 80 mm Carton Depth (mm) 255 Carton Height (mm) 431 Carton Quantity 10 Carton Weight Gross (g) 21170 Included in Package - 1 - 400W ATX Power Supply

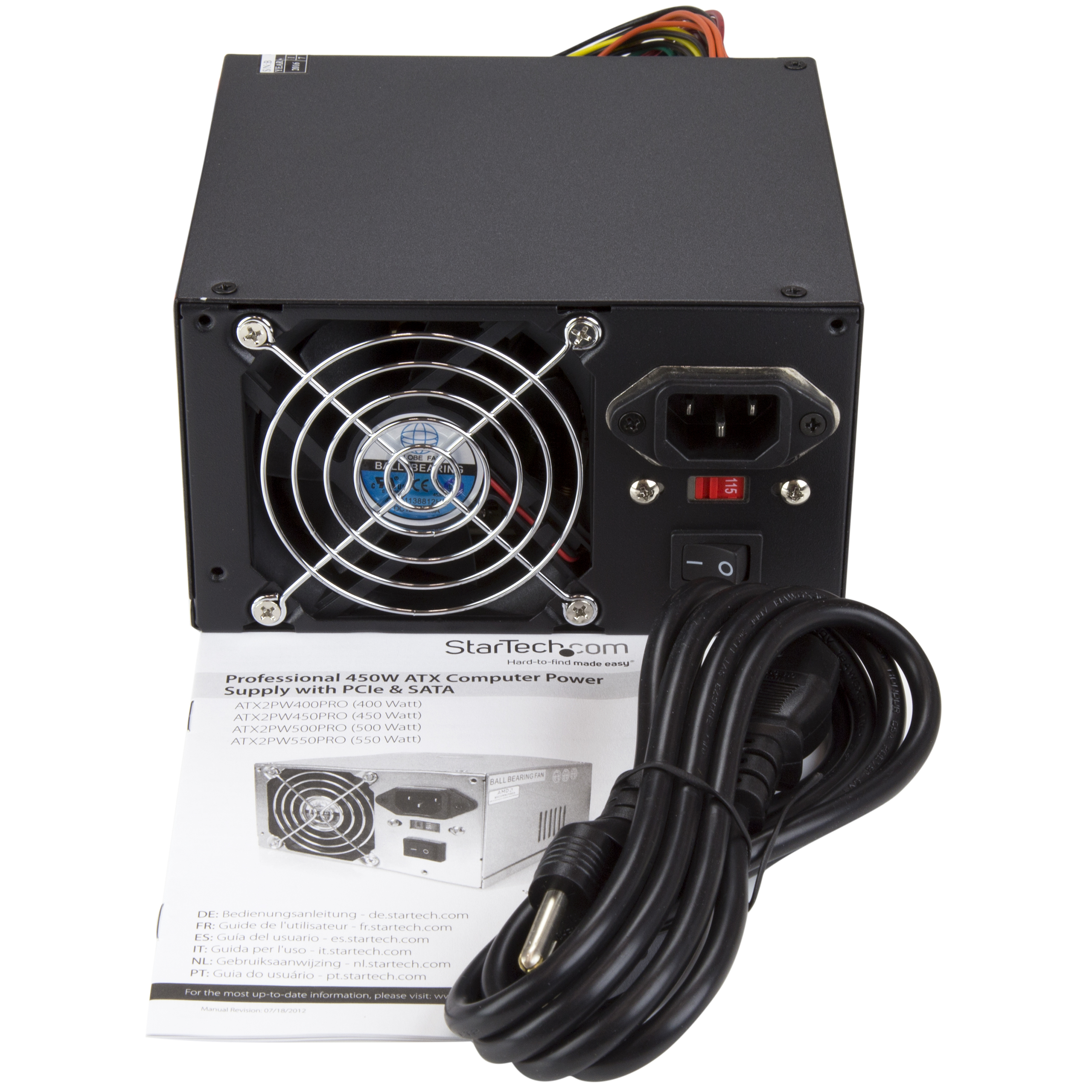

- 1 - Power Cord (NA)
- 1 - Instruction Manual
Package Depth (mm) 236 Package Height (mm) 99 Package Width (mm) 204 Package Quantity 1 Package Weight (g) 2039 Packaging Description 400 Watt Professional ATX Power Supply Packaging Description India 400 Watt Professional ATX Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 1 (Quantity) 4 Connector 2 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 2 (Quantity) 2 Connector 3 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 3 (Quantity) 1 Connector 4 ATX Power (4-Pin, 12V, 192W) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 4 Connector 6 PCIe Power (6-Pin, 12V, 75W) Connector 6 (Quantity) 1 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2014-06-18 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,US Primary Technology None Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
