ATX2PW430PRO

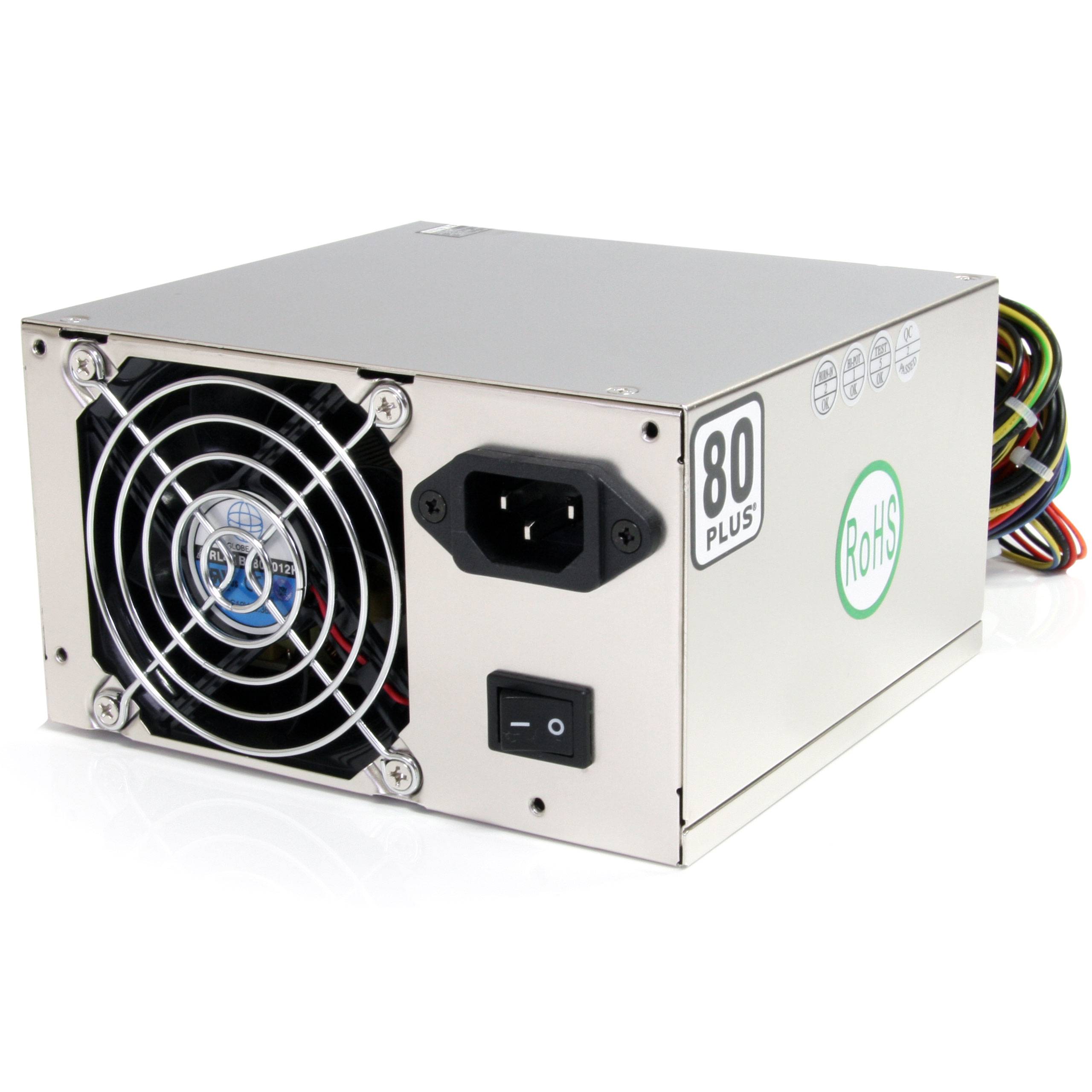

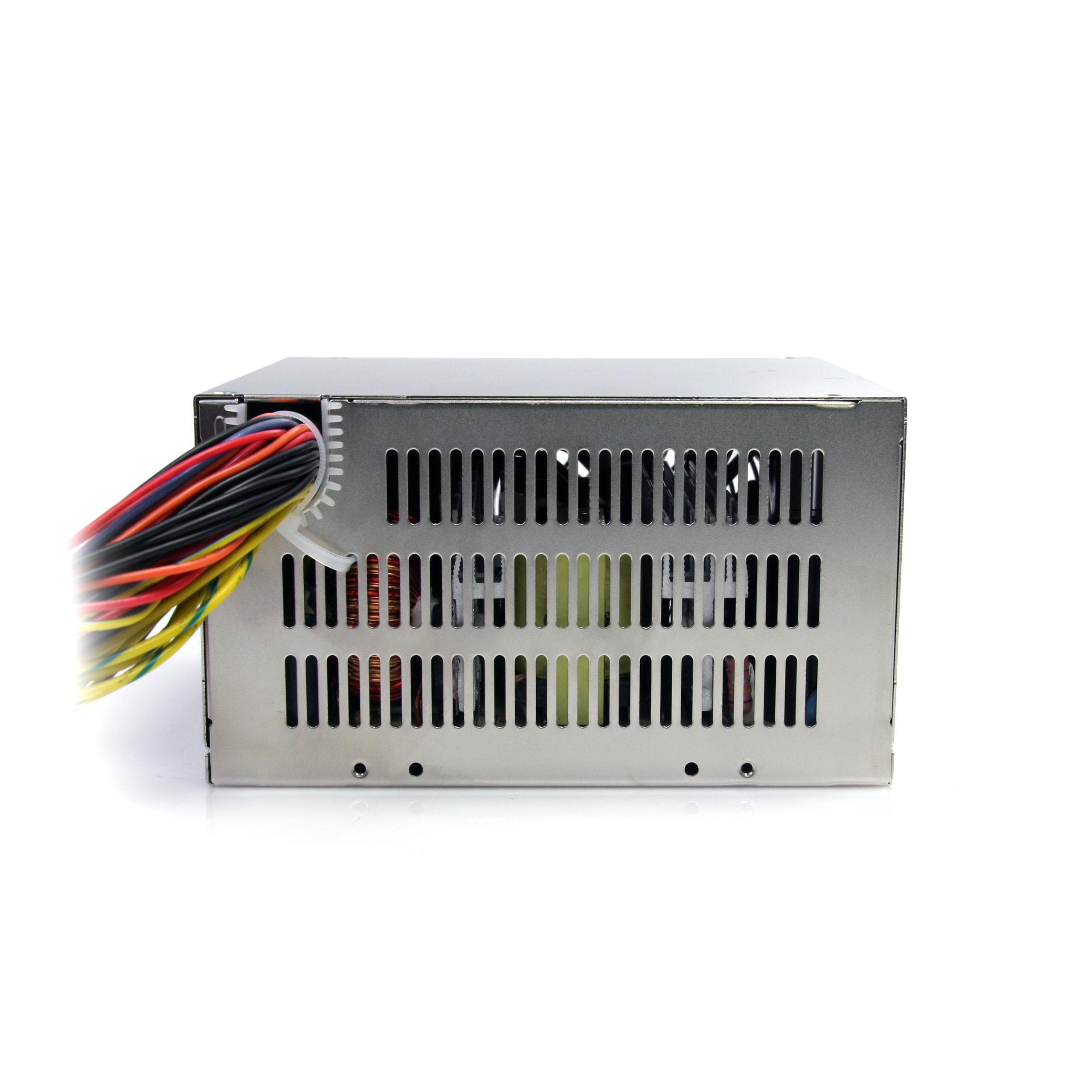

12v ATX Active PFC 80 Plus Certified Power Supply
Add a high performance, energy efficient 430W power supply to an ATX computer
Main Image
Product Images
Product Images
BOM Image
Product Name 12v ATX Active PFC 80 Plus Certified Power Supply Product Number ATX2PW430PRO UPC 065030839846 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 430W ATX12 80 Plus Computer Power Supply Product Title (Standard) 430W ATX12V 2.3 80 Plus PRO Computer Power Supply Product Title (Long) Professional 430 Watt ATX12V 2.3 80 Plus Computer Power Supply Active PFC Title Ingram (Part 1) Professional 430W ATX12V 2.3 80 Title Ingram (Part 2) Plus Computer Power Supply Website Product Headline Add a high performance, energy efficient 430W power supply to an ATX computer Bullet 1 Protection: Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP), Over Temperature Protection (OTP) Bullet 2 80mm Dual Ball Bearing fan Bullet 3 Built to ATX12V 2.3 standards Bullet 4 Complies with Intel EPS 12V rev: 2.8, and 2.92 specifications Bullet 5 Active Power Factor Correction (A-PFC) with 110~240VAC Auto switching Marketing Copy Applications - Perfect solution for replacing older less reliable power supplies
- Upgrading existing system to meet new system requirements for SATA and PCIe graphics
- Upgrading or building energy efficient PC requiring an 80 Plus power supply
Website Search Keyword - 12V
- 80 Plus
- 8pin EPS
- Active Power Factor Correction A/PFC
- ATX 2.3
- Dual Rail
- Efficient Power Supply
- Four Rail
- PCI Express
- Quad Rail
- Reliable Power Supply
- professional power supply
- 12 v power supply
- 12v power supplies
- atx 12v
- atx12v
- pro power supply
Accessory Products - CPUFANADAPT
- CV075K
- CV150
- EPS8EXT
- LP4PCIEXADAP
- LP4SATAFM2L
- LP4SATAFMD
- PCIEX68ADAP
- PYO2S
- PYO2SL
- SATAPOWADAP
- TCV155
Related Products - ATX2POW400HS
- ATX2POW450HS
- ATX2POW500HS
- ATX2POWER350
- ATX2POWER400
- ATX2POWER450
- ATX2PW530PRO
- ATX2PW400PRO
- ATX2PW450PRO
- ATXPOWER250
- ATXPOWER300
- ATX2PW500PRO
- ATX2PW550PRO
- ATXPOW300PRO
- ATXPOW350PRO
- ATX2POWER430
- ATX2POWER530
Input Current 10A @ 115VAC / 5A @ 230VAC Input Voltage 110V-240V AC Color Gray Humidity 5~90% RH Material Nickel-plated Steel Operating Temperature 0°C to 40°C (32°F to 104°F) @ 90% Load Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 1710 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Air Flow Rate 43.94 CFM MTBF (hours) 100,000 Hrs Noise Level 31.3 dBa RPM 3000 RPM +/-10% Fan Bearing Type Dual Ball Bearing Fans 1 - 80 mm Carton Depth (mm) 500 Carton Height (mm) 450 Carton Quantity 10 Carton Weight Gross (g) 18400 Included in Package - 1 - 430 Watt Professional Computer Power Supply

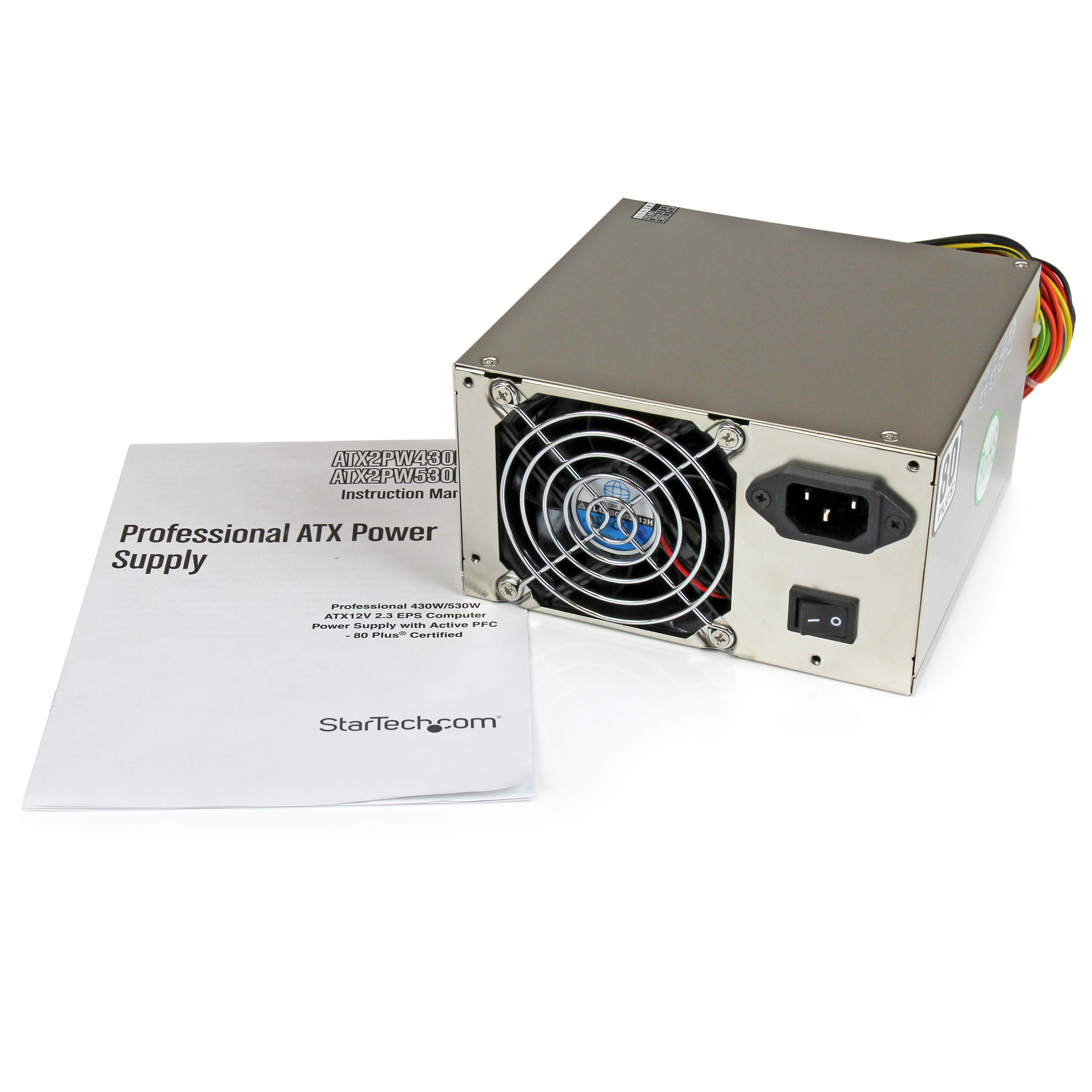

- 1 - Instruction Manual
Package Depth (mm) 100 Package Height (mm) 225 Package Width (mm) 225 Package Weight (g) 1720 Packaging Description 430 Watt 80Plus ATX 2.3 Power Supply Packaging Description India 430 Watt 80Plus ATX 2.3 Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 SATA (15-Pin) Connector 1 (Quantity) 5 Connector 2 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 2 (Quantity) 1 Connector 3 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 3 (Quantity) 1 Connector 4 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 4 (Quantity) 3 Connector 5 PCIe Power (6-Pin, 12V, 75W) Connector 5 (Quantity) 2 Connector 6 ATX 12V EPS Power (4+4 pin) Connector 6 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
