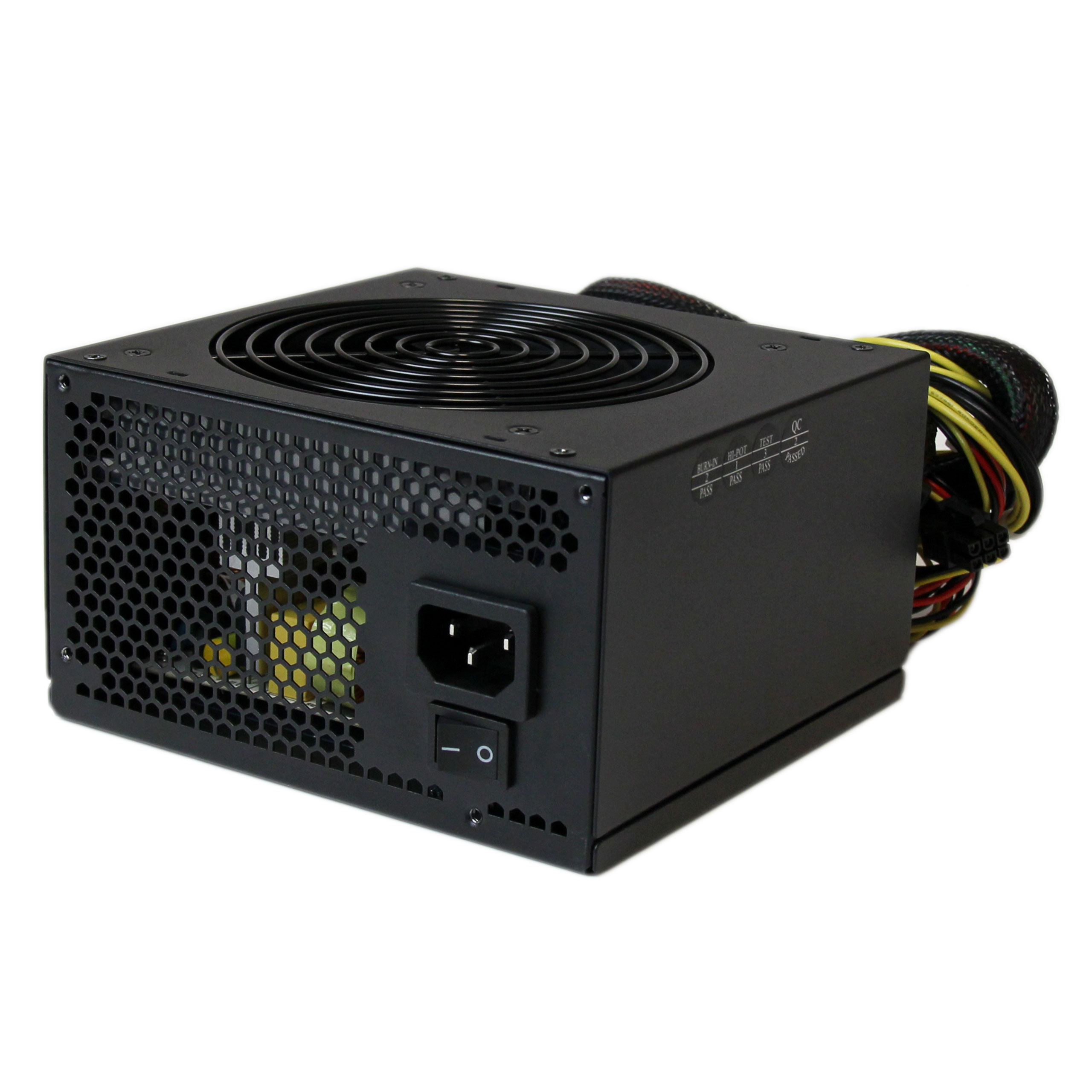

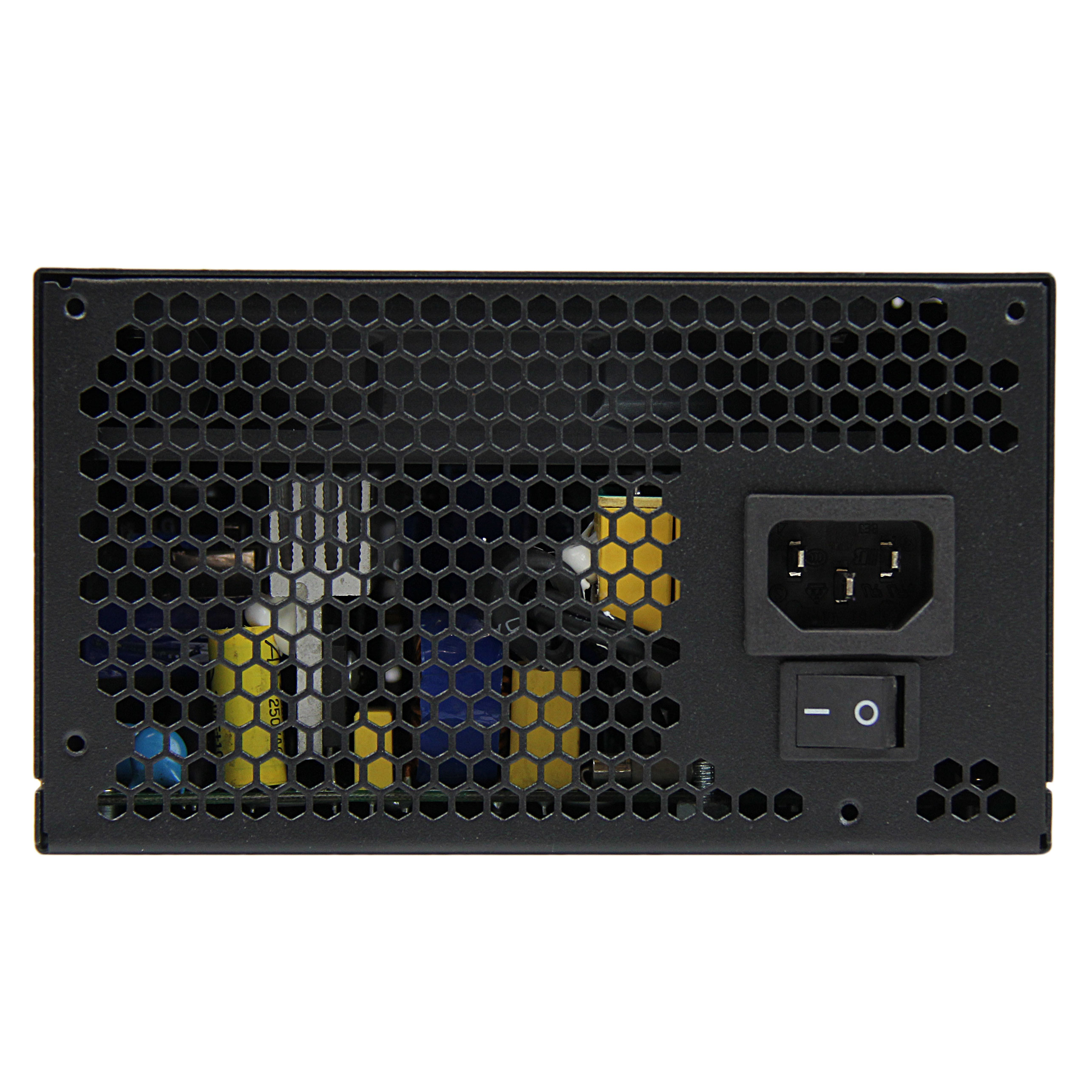

ATX2PW500WH
500W ATX 12V 80 Plus Active PFC Power Supply
Build or upgrade a computer system with an energy efficient and reliable 500 Watt ATX power supply
Main Image
Product Images
Product Images
BOM Image
Product Name 500W ATX 12V 80 Plus Active PFC Power Supply Product Number ATX2PW500WH UPC 065030852951 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Ultra-Short) 500W Power Supply Product Title (Short) 500W 80 Plus Computer Power Supply WH Product Title (Standard) 500 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC Product Title (Long) 500 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC Product Title (AMZ) 500 Watt ATX12V 2.3 80 Plus White Computer Power Supply w/ Active PFC - 500W ATX Active PFC Power Supply ATX 12V - 12cm Fan (ATX2PW500WH) Title Ingram (Part 1) 500W ATX 12V 80 Plus Active PFC Title Ingram (Part 2) Power Supply - 500 Watt PSU Website Product Headline Build or upgrade a computer system with an energy efficient and reliable 500 Watt ATX power supply Bullet 1 80 Plus Certified Bullet 2 Protection: Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP) Bullet 3 Complies with ATX 12V rev: 2.3 Bullet 4 Support for Intel and AMD Systems Bullet 5 110~240VAC Auto switching power supply Bullets (Consolidated) Power supply (internal) - ATX12V 2.3/ EPS12V 2.92 - 80 PLUS - AC 115/230 V - 500 Watt - active PFC - black Marketing Copy Applications - Replacing an older, less reliable power supply
- Upgrading or building an energy-efficient PC with a more efficient, 80 Plus certified power supply
- Upgrading existing systems to meet new system requirements for SATA drive connections and PCIe graphics
Required Regulatory Compliance Marks - UL Recognized - Safety - Electrical - Canada / United States - cURus Recognised Component Mark
- WEEE - Waste - European Union - WEEE Mark (crossed-out wheeled bin)
- REACH - Environmental - European Union - Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- REACH - Environmental - United Kingdom - UK Registration, Evaluation, Authorisation and Restriction of Chemicals (REACH) - General Statement
- CE - EMC/EMI - European Union - EU EMC Directive 2014/30/EU
- FCC - EMC/EMI - United States - FCC Part 15 Class B Digital Device Interference
- ICES - EMC/EMI - Canada - Industry Canada (IC) CAN ICES-003 Class B Digital Device Product Label Statement
- RCM - EMC/EMI - Australia/New Zealand - RCM Mark
- CE - Safety - Electrical - European Union - Low Voltage Directive (LVD) 2014/35/EU
Accessory Products - PAC1016
- PXT101_10
- PXT10115
- PXT101L10
- PXT101L
- PXT101Y
Related Products - ATX2PW450BR
- ATX2PW630WH
- ATX2PW550WH
- ATX2PW530WH
- ATX2PW450GO
- ATX2PW430WH

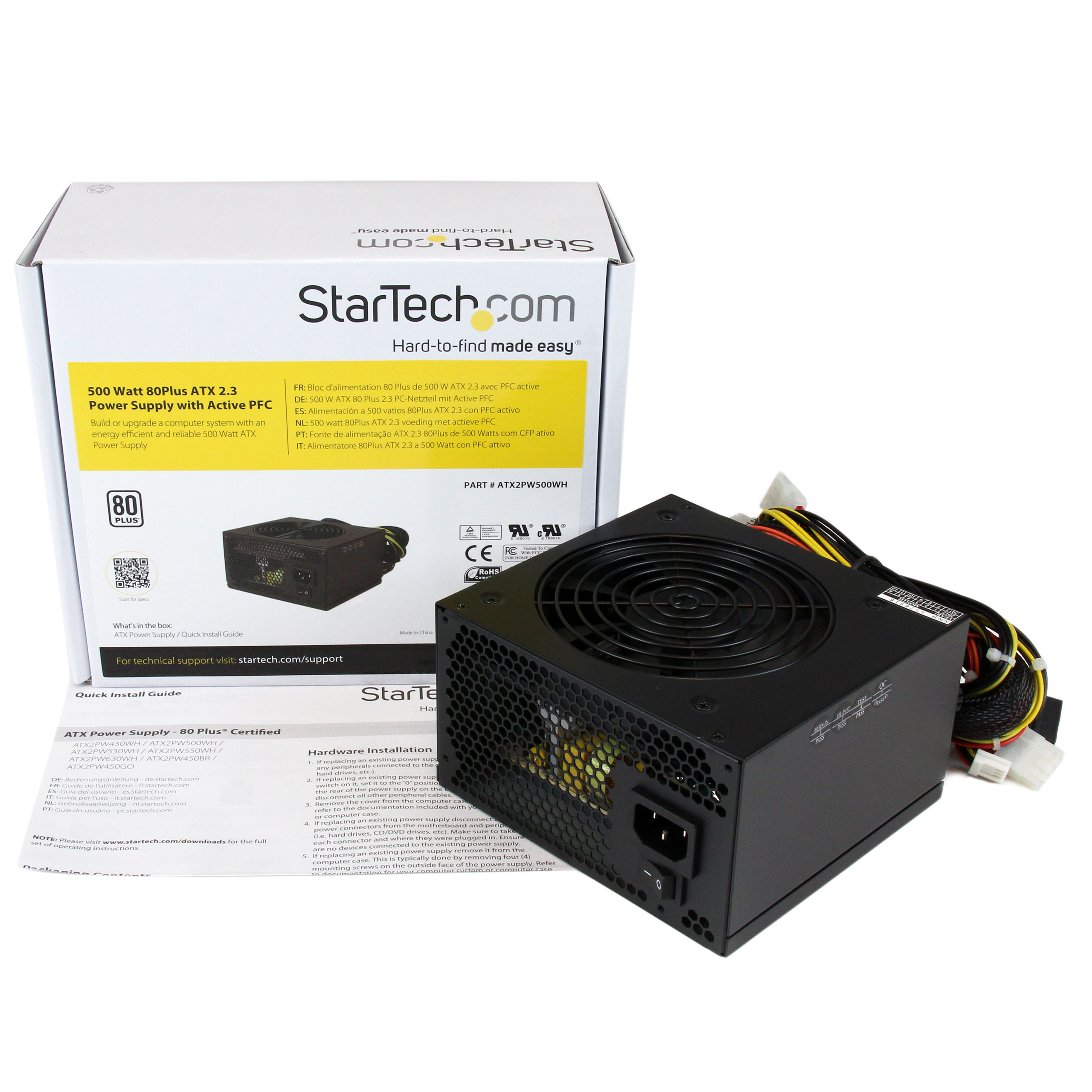

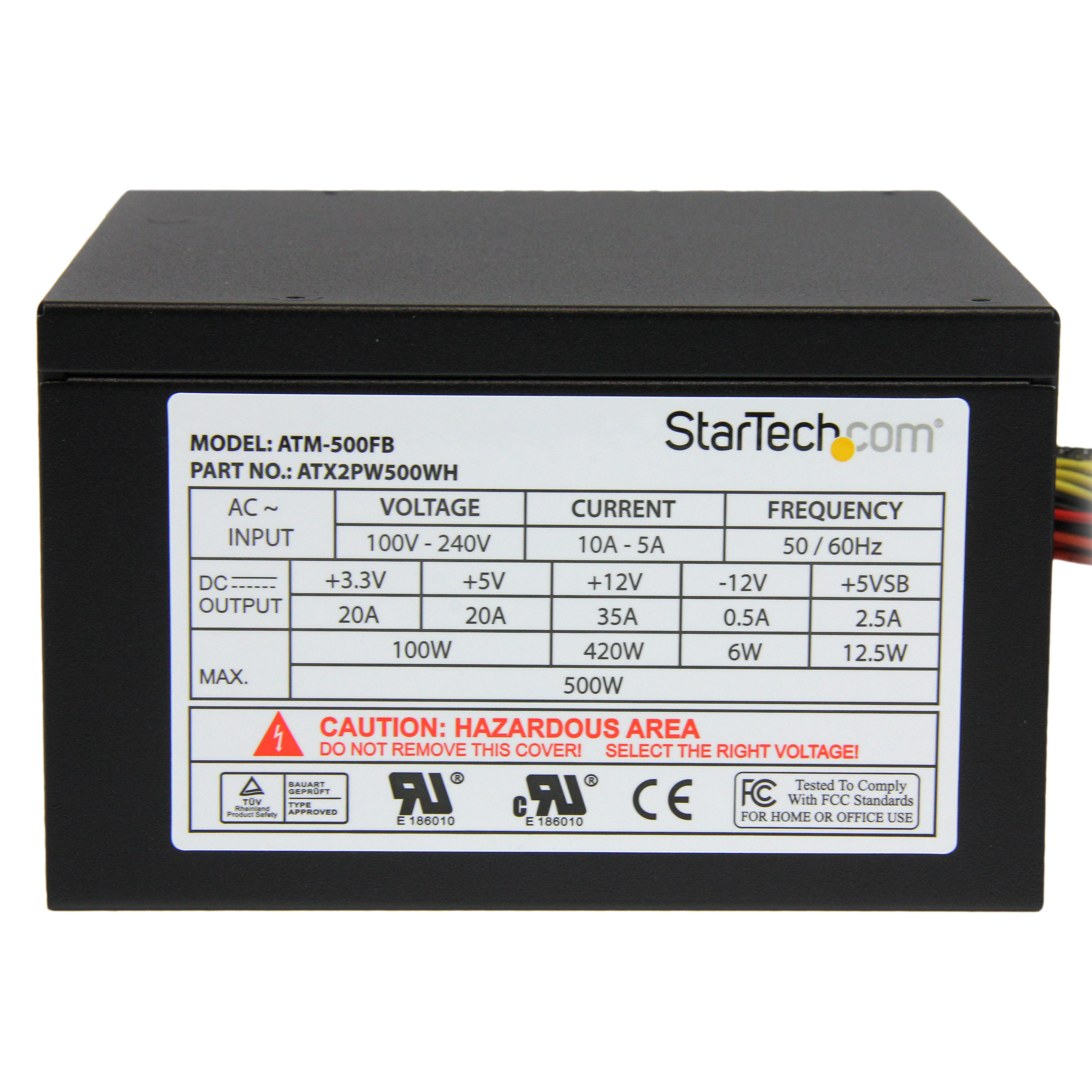

Input Voltage 100 - 240 AC Color Black Humidity 10~90% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140.000 Product Width (mm) 150.000 Product Height (mm) 85.000 Product Weight (g) 1680.000 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Noise Level 34 dB Carton Depth (mm) 250 Carton Height (mm) 425 Carton Quantity 10 Carton Weight Gross (g) 19820 Included in Package - 1 - Quick Install Guide
- 1 - 500 Watt Power Supply
Package Depth (mm) 202 Package Height (mm) 100 Package Width (mm) 235 Package Quantity 1 Package Weight (g) 1900 Packaging Description 500 Watt 80Plus ATX 2.3 Power Supply w/ Active PFC Packaging Description India 500 Watt 80Plus ATX 2.3 Power Supply w/ Active PFC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 PCIe Power (8-Pin, 12V, 150W) Connector 2 (Quantity) 1 Connector 3 ATX 12V EPS Power (4+4 pin) Connector 3 (Quantity) 1 Connector 4 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 4 Connector 6 ATX Power (4-Pin, 12V, 192W) Connector 6 (Quantity) 1 Connector 7 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 7 (Quantity) 3 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Sead Ferhatovic Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
