ATX2PW550WH

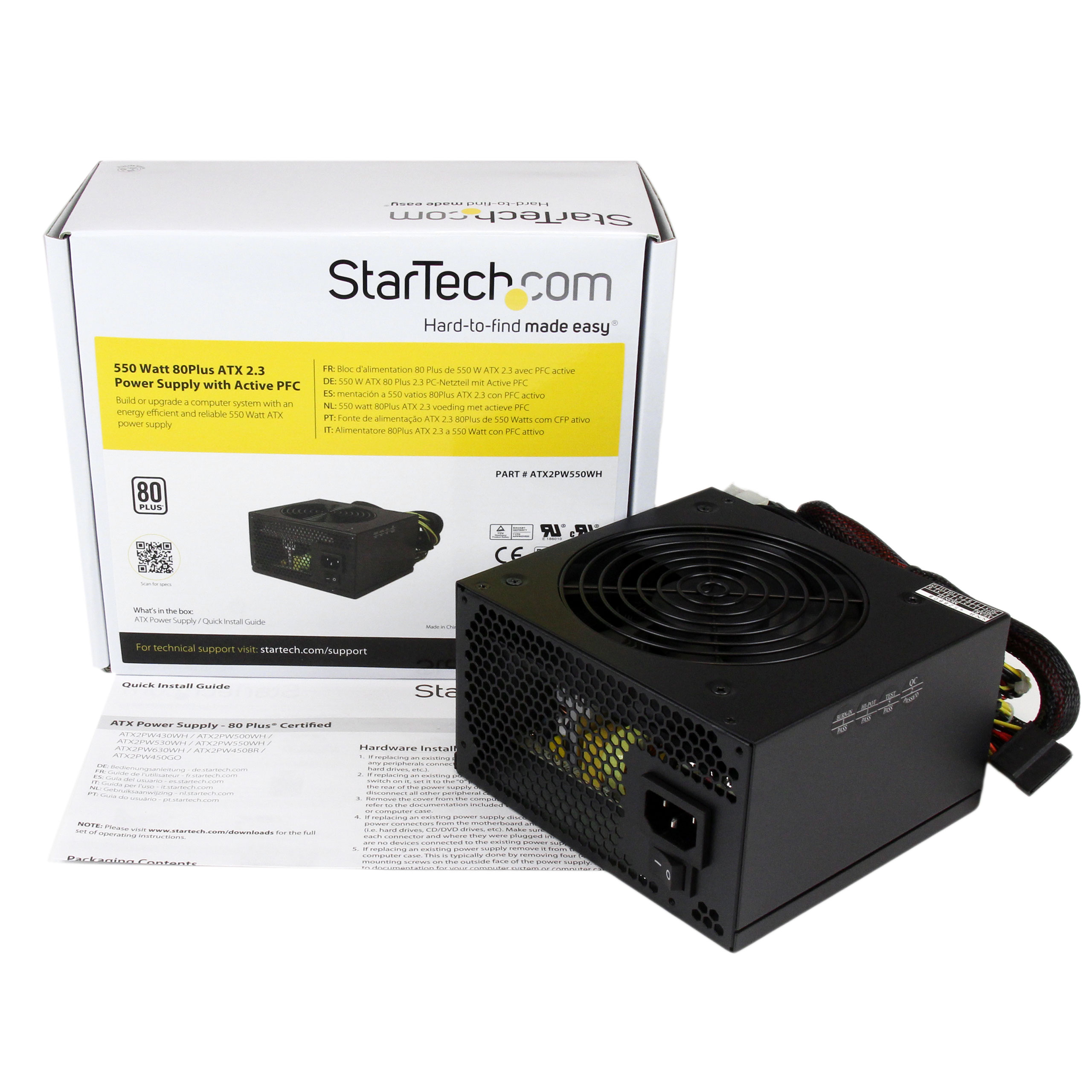

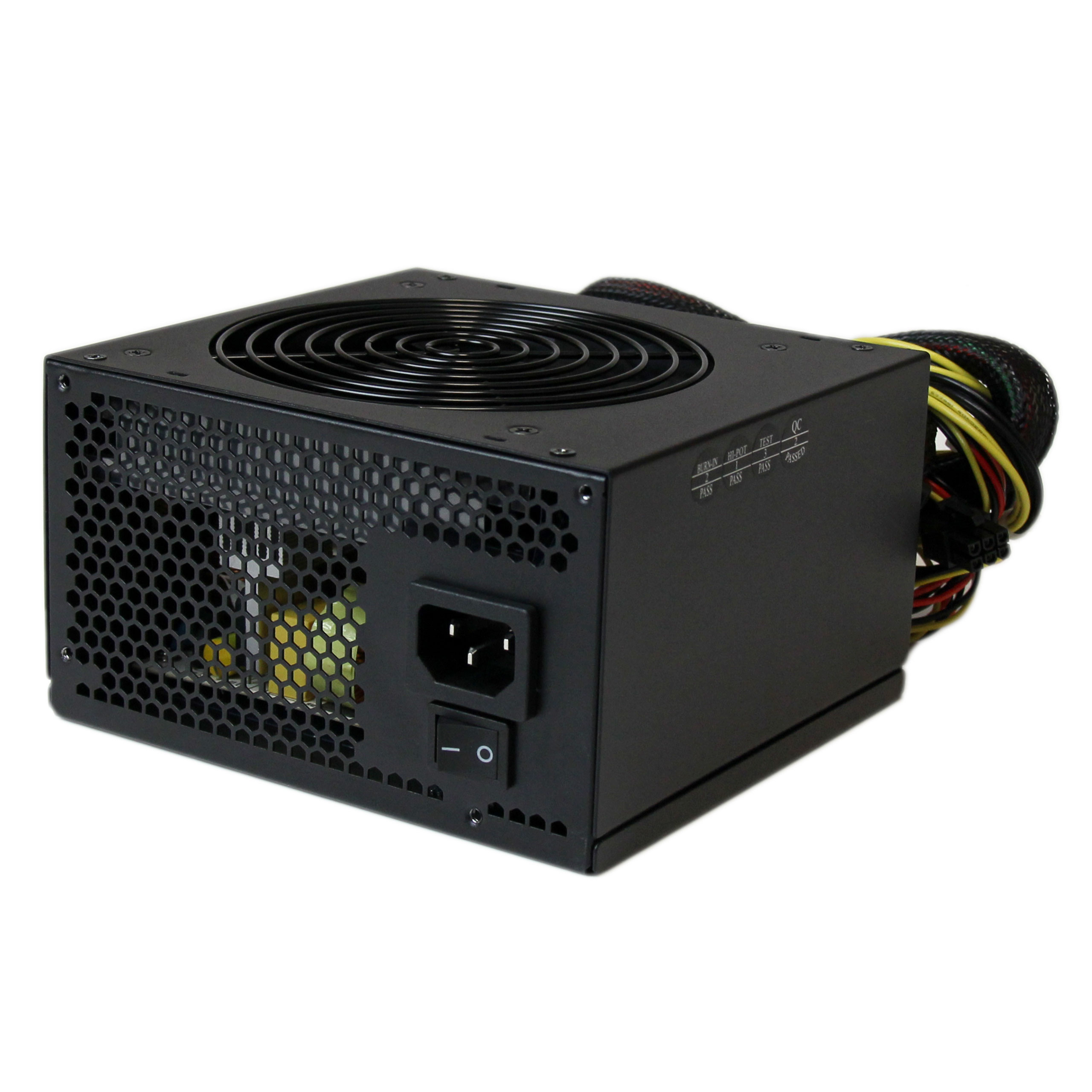

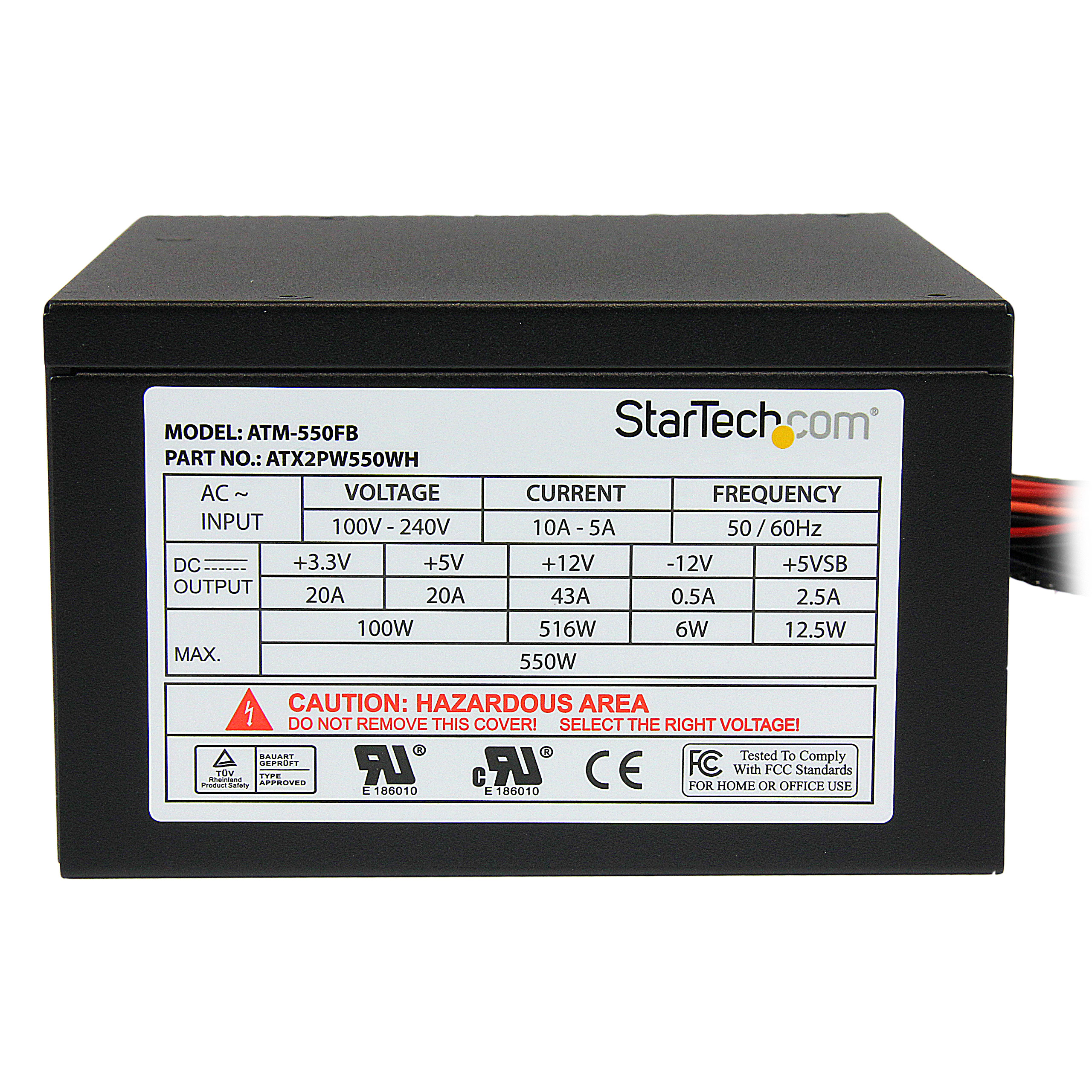

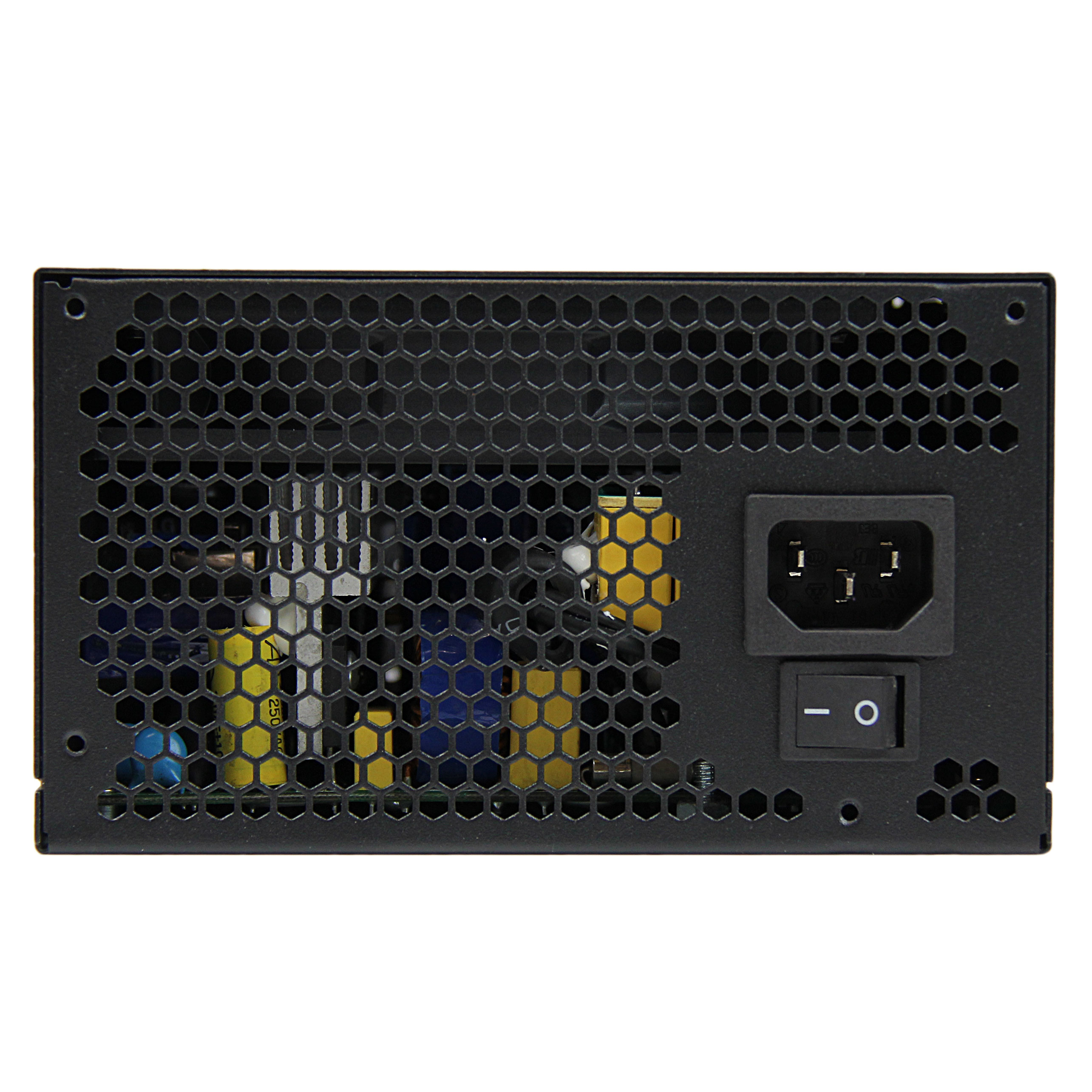

550W ATX 12V 80 Plus Active PFC Power Supply
Build or upgrade a computer system with an energy efficient and reliable 550 Watt ATX power supply
Main Image
Product Images
Product Images
BOM Image
Product Name 550W ATX 12V 80 Plus Active PFC Power Supply Product Number ATX2PW550WH UPC 065030852937 Lifecycle status Discontinued Warranty 2 Years Taxonomy Product > Legacy Discontinued Category Level 1 Computer Cards and Adapters Category Level 2 Components, Tools and Accessories Category Level 3 Power Supplies Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Ultra-Short) 550W Power Supply Product Title (Short) 550W 80 Plus Computer Power Supply WH Product Title (Standard) 550 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC Product Title (Long) 550 Watt ATX12V 2.3 80 Plus Computer Power Supply w/ Active PFC Product Title (AMZ) 550 Watt ATX12V 2.3 80 Plus White Computer Power Supply w/ Active PFC - 550W ATX Active PFC Power Supply ATX 12V - 12cm Fan (ATX2PW550WH) Title Ingram (Part 1) 550W ATX 12V 80 Plus Active PFC Title Ingram (Part 2) Power Supply - 550 Watt PSU Website Product Headline Build or upgrade a computer system with an energy efficient and reliable 550 Watt ATX power supply Bullet 1 80 Plus Certified Bullet 2 Protection: Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Current Protection (OCP), Over Power Protection (OPP) Bullet 3 Complies with ATX 12V rev: 2.3 Bullet 4 Support for Intel and AMD Systems Bullet 5 110~240VAC Auto switching power supply Marketing Copy Applications - Replacing an older, less reliable power supply
- Upgrading existing systems to meet new system requirements for SATA drive connections and PCIe graphics
- Upgrading or building an energy-efficient PC with a more efficient, 80 Plus certified power supply
Accessory Products - PAC1016
- PXT101_10
- PXT10115
- PXT101L10
- PXT101L
- PXT101Y
Related Products - ATX2PW450BR
- ATX2PW630WH
- ATX2PW450GO
- ATX2PW530WH
- ATX2PW500WH
- ATX2PW430WH
Input Voltage 100 - 240 AC Color Black Humidity 10~90% RH Material Aluminum Operating Temperature 0°C to 40°C (32°F to 104°F) Product Length (mm) 140 Product Width (mm) 150 Product Height (mm) 85 Product Weight (g) 1755 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Carton Depth (mm) 247 Carton Height (mm) 425 Carton Quantity 10 Carton Weight Gross (g) 20652 Included in Package - 1 - Quick Install Guide
- 1 - 550 Watt Power Supply
Package Depth (mm) 200 Package Height (mm) 98 Package Width (mm) 242 Package Quantity 1 Package Weight (g) 1973 Packaging Description 550 Watt 80Plus ATX 2.3 Power Supply w/ Active PFC Packaging Description India 550 Watt 80Plus ATX 2.3 Power Supply w/ Active PFC Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 PCIe Power (8-Pin, 12V, 150W) Connector 2 (Quantity) 1 Connector 3 ATX 12V EPS Power (4+4 pin) Connector 3 (Quantity) 1 Connector 4 ATX AUX Power (6-Pin, 3.3V / 5V) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 4 Connector 6 ATX Power (4-Pin, 12V, 192W) Connector 6 (Quantity) 1 Connector 7 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 7 (Quantity) 3 Amazon Merchandising Manager Veronica Ye Artwork Due Date 2013-07-08 Enhanced Gallery Designer Catherine Almeida en-US Content Approved Yes Graphic Designer Shane Arnett Launch Markets (concatenated) CA,EU,UK,US Primary Technology None Product Development Specialist Sead Ferhatovic Product Information Creation Specialist (PICS) Alex Garcia Product Manager Natalie Goodale Product Performance Specialist Aaron Bens Product Photographer Alejandra Valencia Tech Lead Brian Linseman Technical Writer Andrew Richardson Technology Lifecycle Legacy
