ATX2PW630PRO
12v ATX Active PFC 80 Plus Certified Power Supply
Replace or upgrade to a high efficiency and modular 630W ATX power supply
Main Image
Product Images
Product Images
Product Images
Product Images
Product Images
BOM Image
Product Name 12v ATX Active PFC 80 Plus Certified Power Supply Product Number ATX2PW630PRO UPC 065030840224 Lifecycle status Discontinued Warranty 3 Years Taxonomy Product > Legacy Discontinued Category Level 1 Legacy Category Category Level 2 Legacy Sub-Category Category Level 3 Legacy Group Country of Origin Europe & Japan China Country of Origin North America China Country of Origin History (1) China Country of Origin Revision (1) XXXXXX097X Product Title (Short) 630W ATX12V 80 Plus Modular Power Supply Product Title (Standard) 630W ATX12V 80 Plus Computer Modular Power Supply Product Title (Long) Professional 630 Watt ATX12V 2.3 80 Plus Computer Modular Power Supply Title Ingram (Part 1) Pro 630W ATX12V 2.3 80 Plus Comp Title Ingram (Part 2) uter Modular Power Supply Website Product Headline Replace or upgrade to a high efficiency and modular 630W ATX power supply Bullet 1 110~240VAC auto switching power supply Bullet 2 Active Power Factor Correction (A-PFC) Bullet 3 Built to ATX12V 2.3 standards for maximum system compatibility Bullet 4 Complies with EPS12V rev 2.8 and 2.92 specifications Bullet 5 Four 12V rails for more consistent and reliable power Marketing Copy Applications - Replacing an older, less reliable power supply
- Upgrading existing systems to meet new system requirements for SATA drive connections and PCIe graphics
- Upgrading or building an energy-efficient PC with a more efficient, 80 Plus-certified power supply
Website Search Keyword - 12V
- 80 Plus
- 8pin EPS
- Active Power factor Correction A/PFC
- ATX 2.3
- Dual Rail
- Efficient Power Supply
- Four Rail
- PCI Express
- Quad Rail
- Reliable Power Supply
- Modular
- modular power supply ATX Watt MPS supplies
Accessory Products - CPUFANADAPT
- CV075K
- CV150
- EPS8EXT
- LP4PCIEXADAP
- LP4SATAFM2L
- LP4SATAFMD
- PCIEX68ADAP
- PYO2S
- PYO2SL
- SATAPOWADAP
- TCV155
Related Products - ATX2POW400HS
- ATX2POW450HS
- ATX2POW500HS
- ATX2PW400PRO
- ATX2PW430PRO
- ATX2PW450PRO
- ATX2PW500PRO
- ATX2PW550PRO
- ATXPOW250PRO
- ATXPOW350PRO
- ATX2PW530PRO

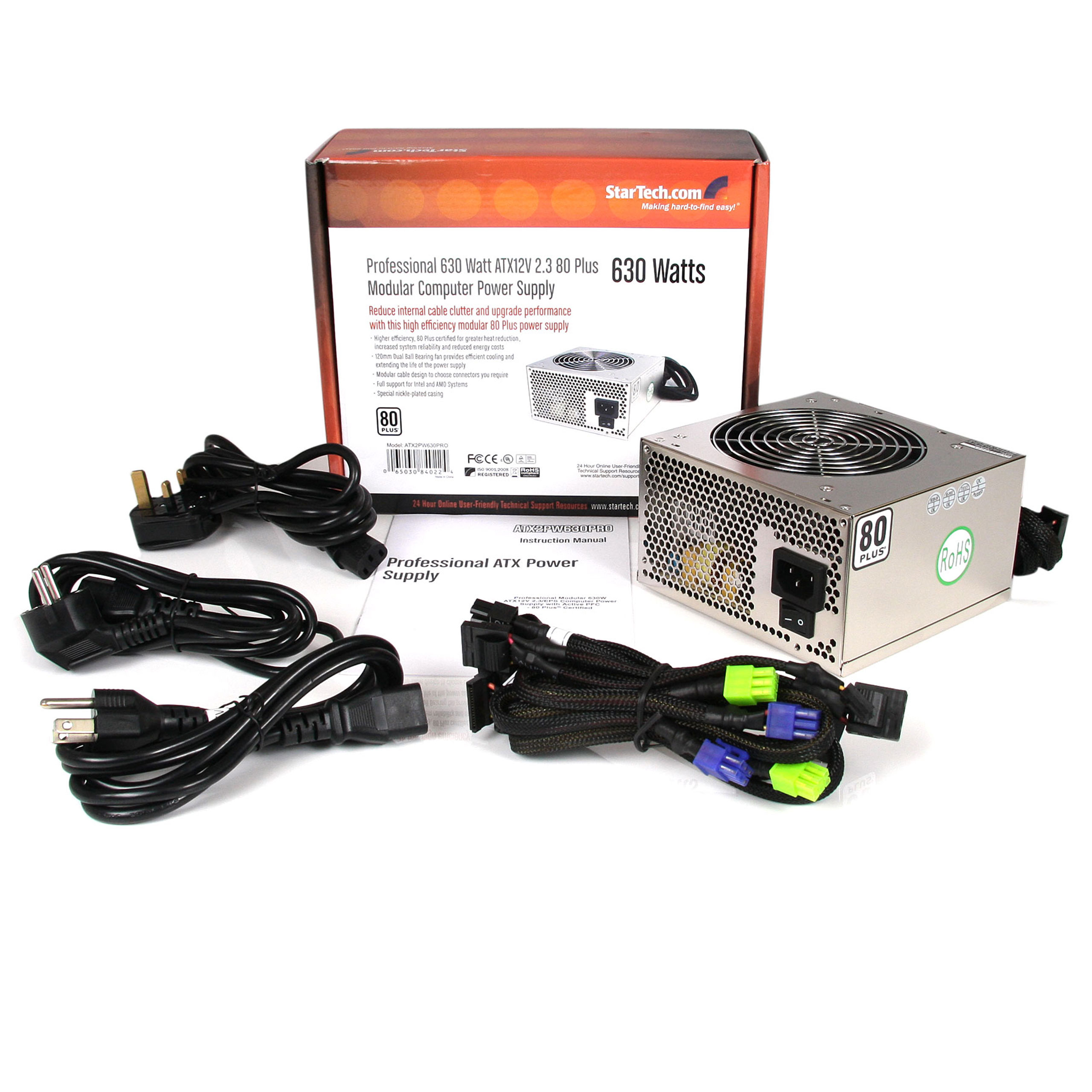

Input Current 10A @ 115VAC / 5A @ 230VAC Input Voltage 110V-240V AC Color Gray Humidity 10~90% RH Material Nickel-plated Steel Operating Temperature 0°C to 40°C (32°F to 104°F) @ 90% Load Product Length (mm) 141 Product Width (mm) 150 Product Height (mm) 86 Product Weight (g) 2100 Storage Temperature -20°C to 80°C (-4°F to 176°F) TAA Compliant No Air Flow Rate 43.94 CFM MTBF (hours) 100,000 Hrs Noise Level 31.3 dBa RPM 3000 RPM +/-10% Fan Bearing Type Dual Ball Bearing Fans 1 - 120 mm Carton Depth (mm) 500 Carton Height (mm) 455 Carton Quantity 10 Carton Weight Gross (g) 27200 Included in Package - 1 - 630W Modular ATX Power Supply
- 1 - Instruction Manual
- 3 - Power Cord (NA/UK/EU)
- 1 - 3x LP4 + 1x SP4 Modular Cable
- 1 - 3x SATA Modular Cable
- 1 - 6pin PCI Express Modular Cable
- 1 - 8pin (6+2) PCI Express Modular Cable
Package Depth (mm) 100 Package Height (mm) 220 Package Width (mm) 260 Package Weight (g) 2600 Packaging Description 630W ATX 80 Plus Modular Power Supply Packaging Description India 630W ATX 80 Plus Modular Power Supply Sub-Carton Depth (mm) 0 Sub-Carton Height (mm) 0 Sub-Carton Width (mm) 0 Sub-Carton Weight (g) 0 Connector 1 ATX Power (24-Pin, 3.3V / 5V / 12V) Connector 1 (Quantity) 1 Connector 2 ATX 12V EPS Power (4+4 pin) Connector 2 (Quantity) 1 Connector 3 PCIe Power (8-Pin, 12V, 150W) Connector 3 (Quantity) 2 Connector 4 PCIe Power (6-Pin, 12V, 75W) Connector 4 (Quantity) 1 Connector 5 SATA (15-Pin) Connector 5 (Quantity) 6 Connector 6 LP4 / Molex Power (4-Pin, 5V / 12V) Connector 6 (Quantity) 3 Connector 7 SP4 / Floppy Power (4-Pin, 5V / 12V) Connector 7 (Quantity) 1 en-US Content Approved Yes Product Manager Rafal Gwozdz
