ATXPOW300MOD
Main Image

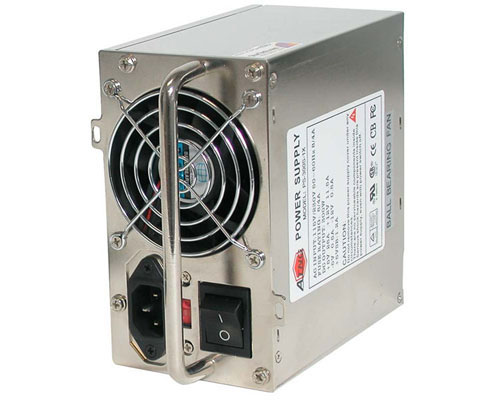

Product Name Replacement power module for ATXPOW300RD Product Number ATXPOW300MOD UPC 065030788960 Warranty 2 Years Taxonomy Product > Legacy Discontinued Product Title (Long) Replacement power module for ATXPOW300RD Bullet 1 Maximum output power of 300 watts Bullet 2 Premium EMI/RFI power filtration system provides low noise/ripple for super clean and stable power to all system components Bullet 3 Built-in quad protection: Short Circuit Protection, Over Voltage Protection and Over Temperature Protection Bullet 4 ATX version 2.03 and ATX12V complaint Bullet 5 2 years warranty Marketing Copy Material Steel Product Length (mm) 150 Product Width (mm) 140 Product Height (mm) 85 Product Weight (g) 1530 TAA Compliant No General Specifications - AC INPUT: 115V(8A) 230V(4A)
- Frequency: 50~60Hz
- DC OUTPUT: +5V(28A)
- : +12V(11.5A)
- : -5V(0.5A)
- : -12V(0.8A)
- : +5VSB(1.2A)
- Safety Approvals: TUV, UL, CSA, CE, FCC & CB
MTBF (hours) 60,000 Hours Fans 1 - 80 mm Included in Package 1 - Replacement power module for ATXPOW300RD en-US Content Approved Yes
